HiSpeed RollScreen 3000

HiSpeed RollScreen 3000

Medium-size, easy to install budget-friendly fixed speed roller system.

The compact motor is compatible with the Truss Rollers.

  • The screen is fixed to a 3 m / 6 m / 9 m wide Truss Roller and is mounted in a standard 40/40 truss.
  • When trusses are joined together (with a mere 3 cm overlap), the built-in axes are connected perfectly in line, so one motor can drive several rollers at a time.
  • Variable width by connecting several standard axes of 3m, 6m or 9m.
  • Fixed speed: 0.30 m/sec (3 m and 6 m modules, cylinder Ø 20 cm)
  • Fixed speed: 0.38 m/sec (9 m modules, cylinder Ø 25 cm)
  • Max range of limit switch: 24 rotations
  • Duty cycle: 40%
  • Power: 395 W (3-phase) CEE 3F16A
  • Easy installation
  • Remote control (up/down)



TECHNICAL DATA - HISPEED ROLLSCREEN 3000

AccessoryArticle codeWeightInformation

1. HiSpeed Motor 3000

8140 3112 1027

24.20 kg/piece

395 W • 3 x 380 VAC • 50 Hz • 4.2 A

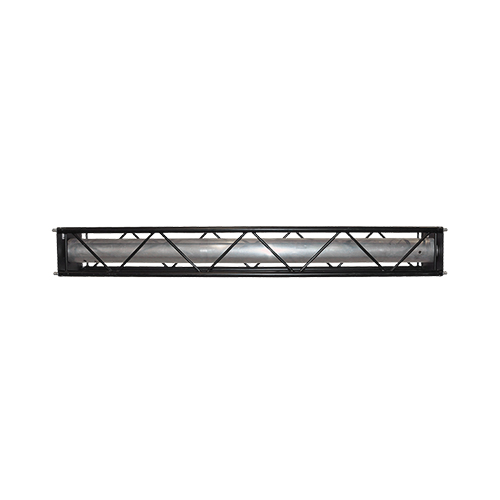

2. Truss Roller (mounted in a 40/40 truss)

8140 3115 3007

125 kg/piece

Length: 3 m • Ø 20 cm • Speed: 0.30 m/s • Capacity: 66 kg

8140 3115 6007

175 kg/piece

Length: 6 m • Ø 20 cm • Speed: 0.30 m/s • Capacity: 66 kg

8140 3115 9007

225 kg/piece

Length: 9 m • Ø 25 cm • Speed: 0.38 m/s • Capacity: 53 kg

3. Remote Unit

8140 0766 0030

5.75 kg/piece

4. Link Cable

8160 0915 0257

3.42 kg/piece

25 m

5. Truss trolley

8140 6050 0407

15.20 kg/piece

For 30 cm and 40 cm trusses

incl. 3 stack elements • Ratchet Fastener not included

6. Ratchet Fastener

8800 0372 3007

0.27 kg/piece

Length: 3 m

8800 0372 3009

0.33 kg/piece

Length: 5 m
