Annex
No part of this publication may be duplicated or edited in any form or by any means, including any type of electronic or mechanical method without prior written permission from ShowTex.
ShowTex and its employees are fully aware of their task to provide a reliable edition of this document. Nevertheless, they cannot accept any form of liability for the direct or indirect consequences of imperfections that might remain in this edition. The material in this manual is subject to change without notice.
ShowTex warrants that its mechanical and technical products, when delivered in new condition, in original packing, sold directly and used in normal conditions are free from any defects in manufacturing, materials and workmanship. For more information about your local warranty terms, please check our website or contact your local ShowTex office.
All products from the ShowTex Rental range are supposed to be returned in the same state as they were rented. Please treat our products with care, allowing the next user to enjoy the products as much as you did. The rented products are internally checked according to the general rental conditions. Be sure to check our rental guidelines on our website before installing and using this product: ShowTex rental guidelines
Read and understand this user manual before installing and or operating the system. Failure to follow the instructions in this document could result in serious injury!
Following the guidelines of this manual will reduce the risk of damaging the equipment or injuring yourself and the people around you. Nevertheless, ShowTex cannot be held accountable for any use or misuse of the equipment and supplies.
Damage to the system caused by any other method of installation than the one shown in this manual can only be repaired or fixed at the customer’s expense.
As a result of the above warning, any ShowTex product must be installed and operated by a qualified technician who knows its capabilities as well as its limitations.
In case you are uncertain about the eligibility of any hardware in your product, please get in touch with your local ShowTex office to receive additional guidance.
Thank you for choosing for ShowTex and purchasing one of our products. We want to ensure that your experience is as smooth and safe as possible, so we kindly request that you take a few moments to carefully read this manual before installing your new system.
This manual contains important information that will help you comply with health and safety regulations, as well as provide guidance on how to safely install, operate and maintain your product. Our team has taken great care to ensure that this manual is easy to understand and follow, using straightforward language and clear illustrations.
If you have any questions or concerns regarding the installation or use of your product, please feel free to contact your local ShowTex office. Our knowledgeable team members are always available to assist you and answer any questions you may have.

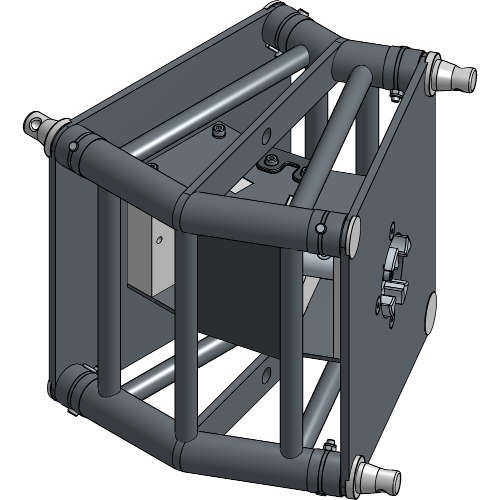

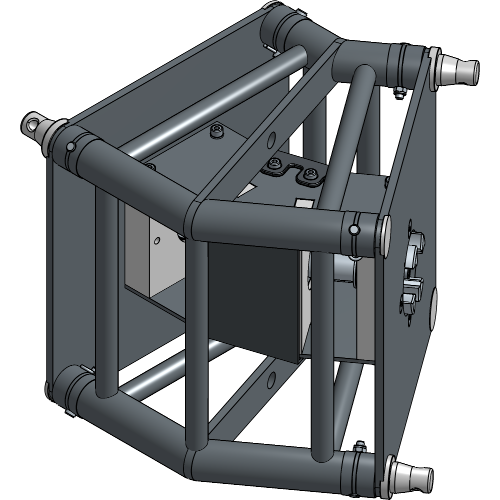

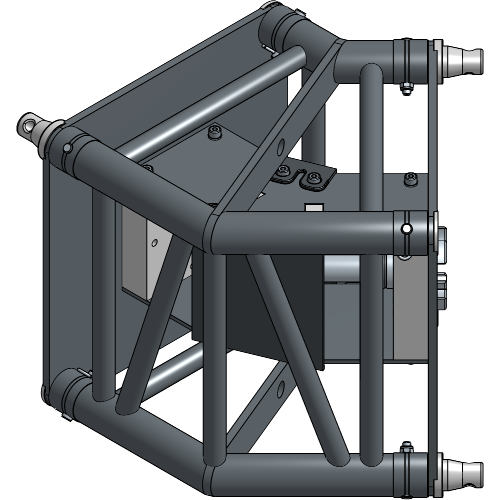

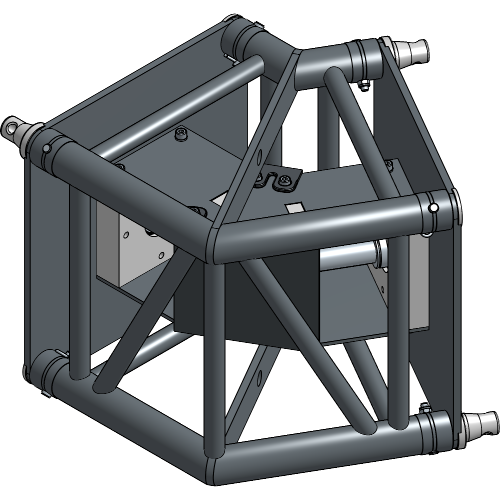

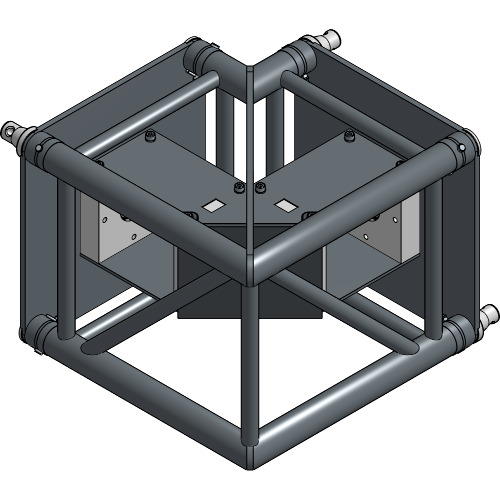

Article number | Colour | Weight | Length |
---|---|---|---|
8140 3115 3007 | Black | 125.00 kg | 3.00 m |
8140 3115 6007 | Black | 175.00 kg | 6.00 m |
8140 3115 9007 | Black | 225.00 kg | 9.00 m |
Article number | Colour | Weight | Cable length |
---|---|---|---|
8140 3112 1037 | Black | 50.00 kg | 21.00 m |
Article number | Colour | Weight | Length |
---|---|---|---|
8140 3112 1047 | Black | 100.00 kg | 1.00 m |
Article number | Colour | Weight |
---|---|---|
8140 2263 0147 | Black | 29.60 kg |
Article number | Colour | Weight |
---|---|---|
8140 2263 0137 | Black | 30.20 kg |
Article number | Colour | Weight |
---|---|---|
8140 2263 0127 | Black | 30.80 kg |
Article number | Colour | Weight |
---|---|---|
8140 2263 0117 | Black | 32.40 kg |
Article number | Colour | Weight |
---|---|---|
8140 2263 0107 | Black | 36.10 kg |
Article number | Colour | Weight |
---|---|---|
8140 2247 0124 | Aluminium | 0.18 kg |
Article number | Colour | Weight |
---|---|---|
8140 2247 0224 | Aluminium | 0.23 kg |
Article number | Colour | Weight |
---|---|---|
8140 2247 0004 | Aluminium | 0.11 kg |
Article number | Colour | Weight |
---|---|---|
8140 3116 3027 | Aluminium | 0.50 kg |
Article number | Colour | Weight |
---|---|---|
8140 2247 0014 | Aluminium | 0.04 kg |
Article number | Colour | Weight |
---|---|---|
8140 2253 0001 | Aluminium | 0.05 kg |
Article number | Colour | Weight |
---|---|---|
8140 9999 0007 | Red | 0.05 kg |
Conical Couplers Truss-Roll are used to connect a Truss Roller to the HiSpeed Motor 8000. The Truss-Roll Couplers are asymmetrical as one side has a conical and a cylindrical shape and mates with the truss. The other side is fully conical shaped and mates with the truss roller.
Conical Couplers Roll-Roll are used either to connect two Truss Rollers, a Truss Roller and the HiSpeed Motor 3000 or the Angled Transmission. The Roll-Roll Couplers are symmetrically shaped with on both sides a conical and cylindrical shape.
Conical End Pieces are used for protection of the Truss and are removed when the Truss Roller gets coupled. For transport the Conical End Pieces need to be re-inserted at all times.
The motors and rollers always need at least 2 Conical Couplers or End Pieces in place. Never remove 4 Conical Couplers or Conical End Pieces of a motor or roller simultaneously as this will result in the side plate to detach and roller to fall apart.

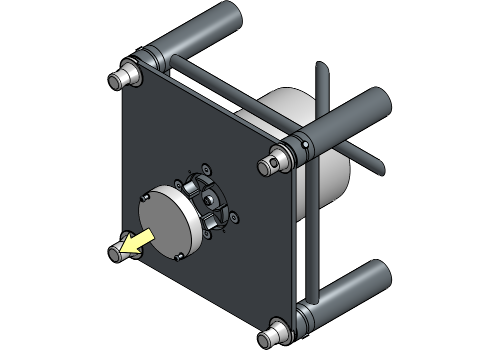

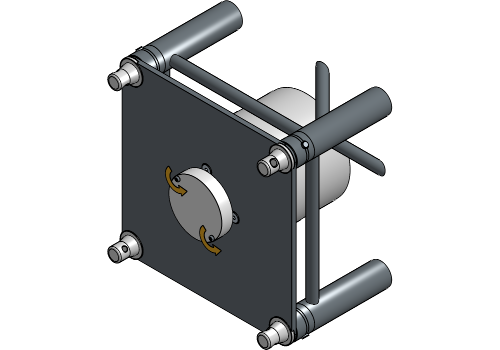

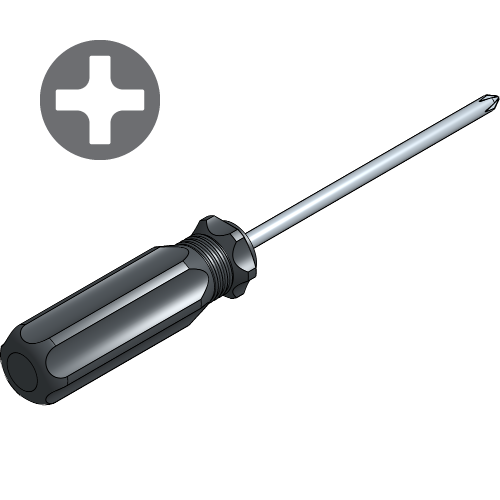

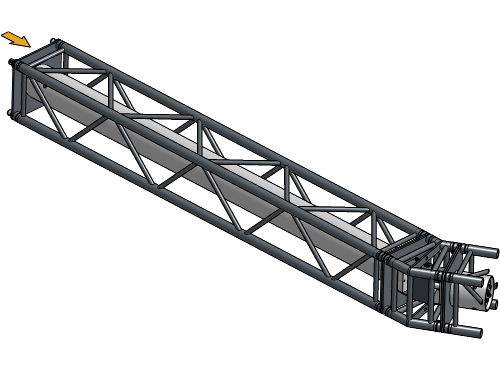

If there is a Coupling End Cap present at the side of the Truss Roller that will be coupled, loosen the screws and remove the Coupling End Cap.

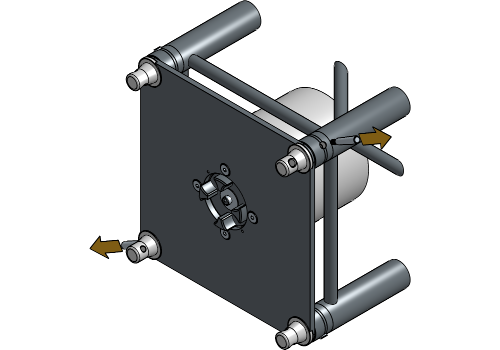

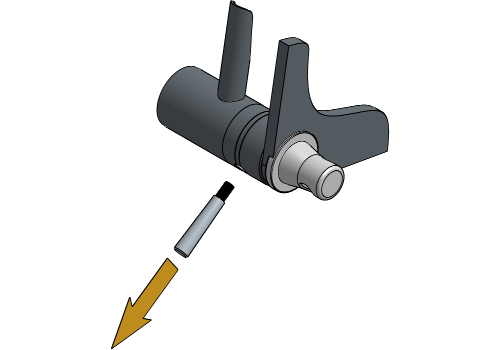

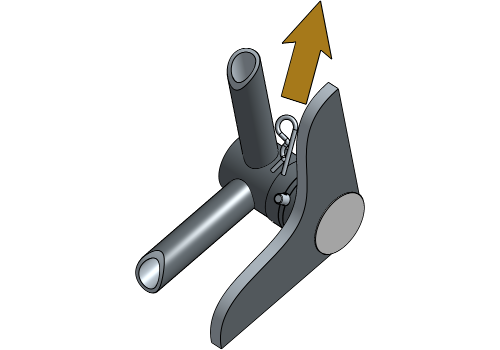

Remove the bottom right and upper left Safety Clips from the Pins of one side of the Angled Transmission.

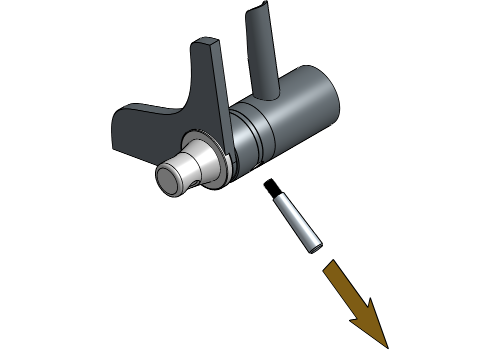

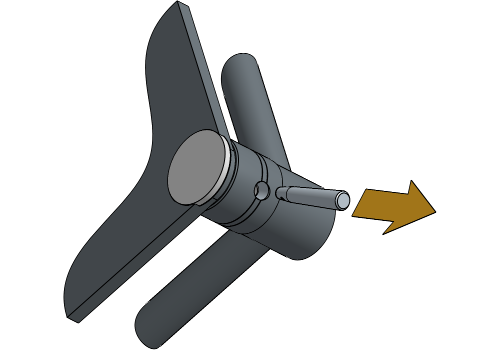

Hammer the bottom right and upper left Pins out of the Angled Transmission.

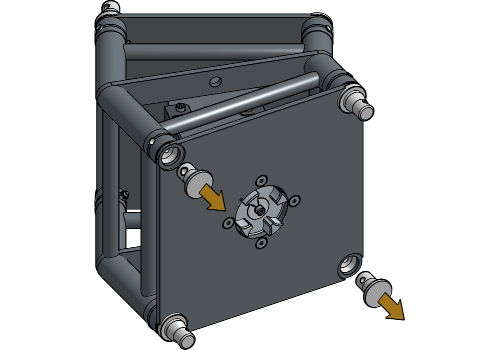

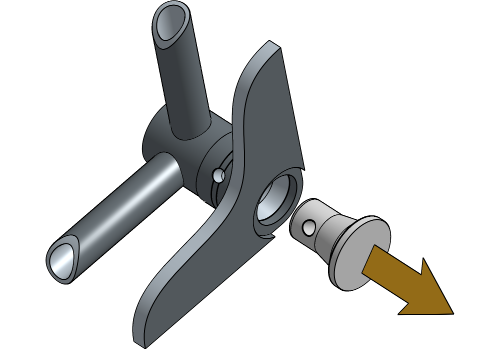

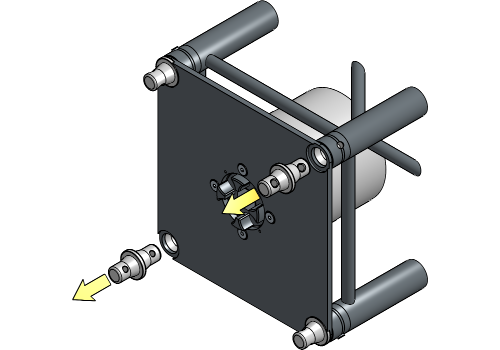

Remove the bottom right and upper left Conical End Pieces from the Angled Transmission.

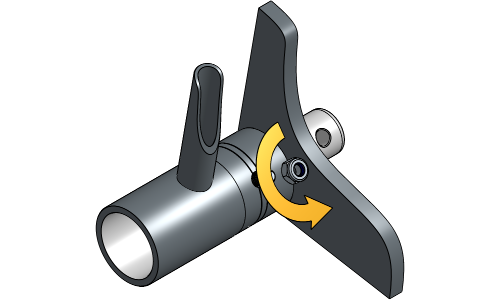

Unfasten and remove the bottom left and upper right Safety Nuts from Pins of the Truss Roller.
Hammer the bottom left and upper right Pins out of the Truss Roller.
Do not use the Safety Nuts that come with the Pins, but use a spare M8 nut to prevent damaging the thread when hammering them out. Hammering on the Pin directly can damage the thread, and hammering on the Safety Nut can damage the nylon collar.

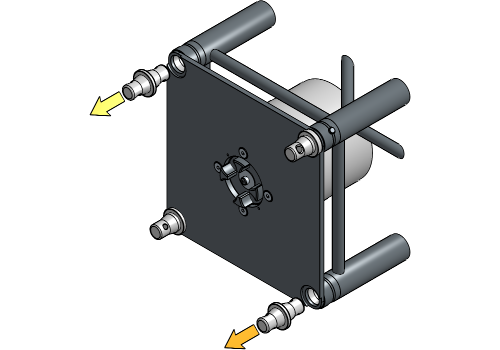

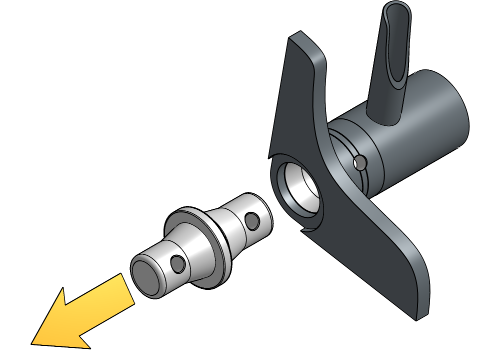

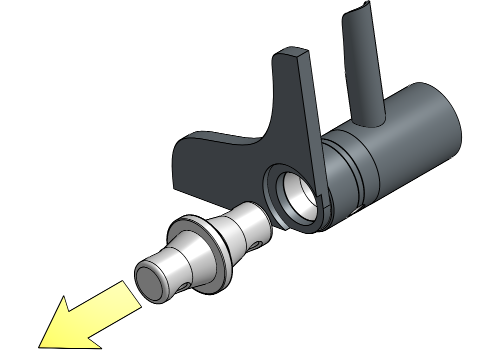

Remove the bottom left and upper right Truss-Roll Conical Couplers from the Truss Roller.

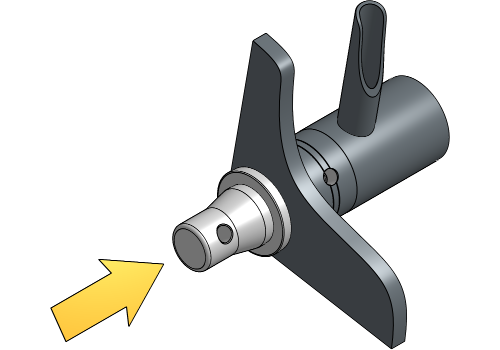

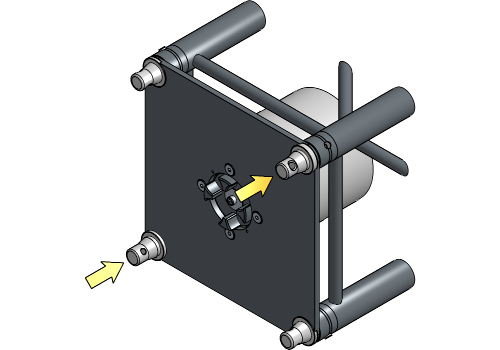

Insert Roll-Roll Conical Couplers into the empty bottom left and upper right holes of the Truss Roller.

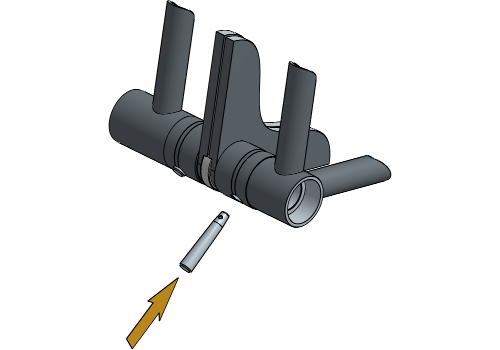

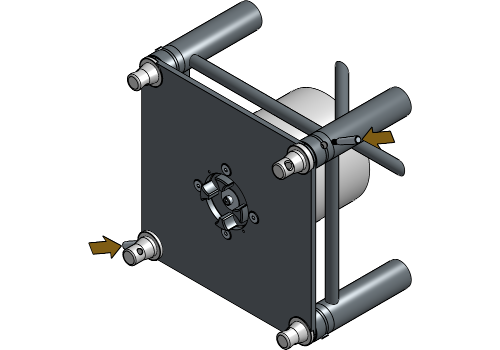

Align the holes of the coupler and a pin with thread, and hammer the pin into the bottom left and upper right holes of the Truss Roller.

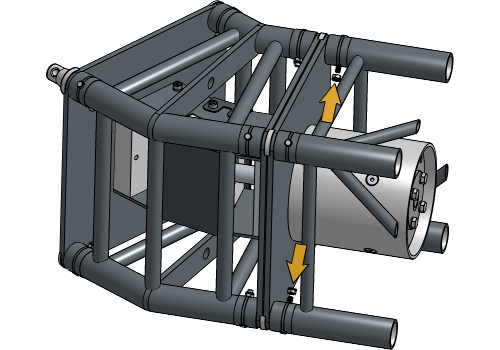

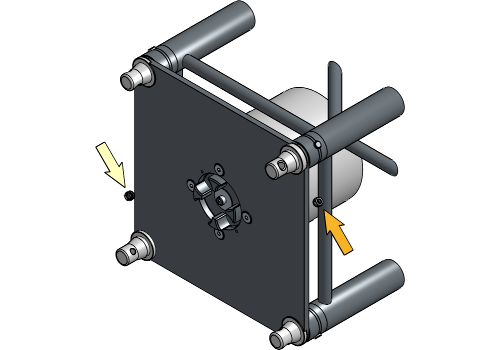

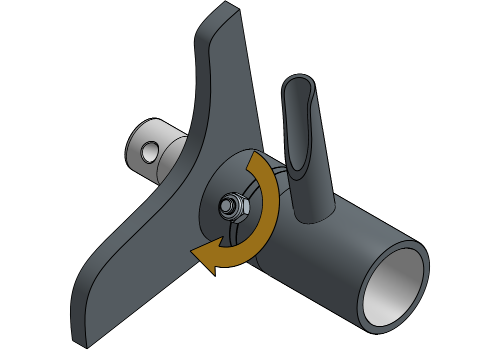

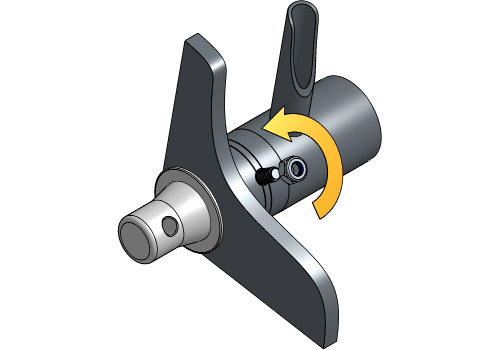

Fasten a Safety Nut on the bottom left and upper right Pins of the Truss Roller.
Unfasten and remove the bottom right and upper left Safety Nuts from Pins of the Truss Roller.

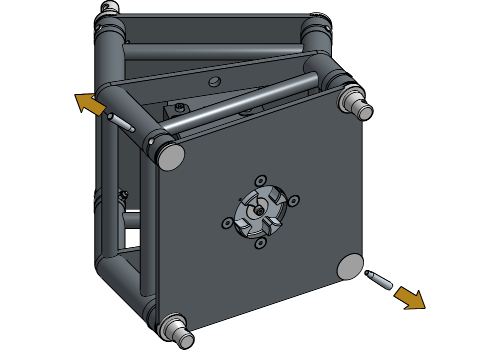

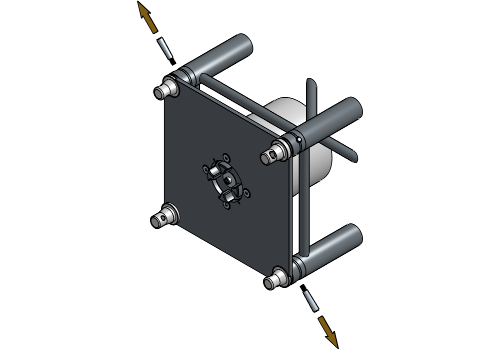

Hammer the bottom right and upper left Pins out of the Truss Roller.
Do not use the Safety Nuts that come with the Pins, but use a spare M8 nut to prevent damaging the thread when hammering them out. Hammering on the Pin directly can damage the thread, and hammering on the Safety Nut can damage the nylon collar.
Remove the bottom right and upper left Truss-Roll Conical Couplers from the Truss Roller.

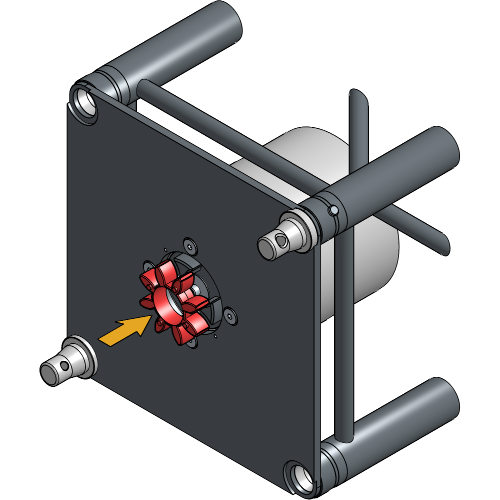

Place the Coupling Spider on the coupling jaw of the Truss Roller.

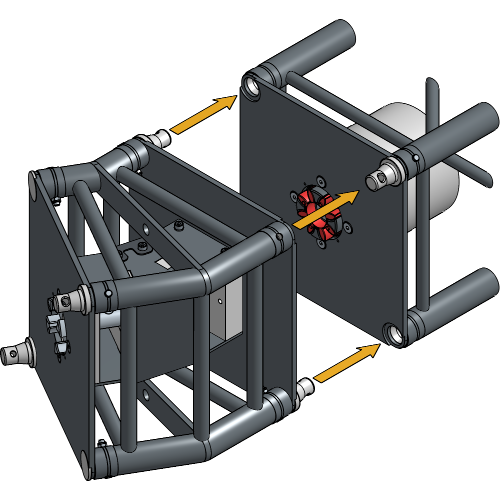

Align the coupling jaw of the Angled Transmission with the coupling jaw of the Truss Roller and insert the Conical Couplers into the Truss Roller.

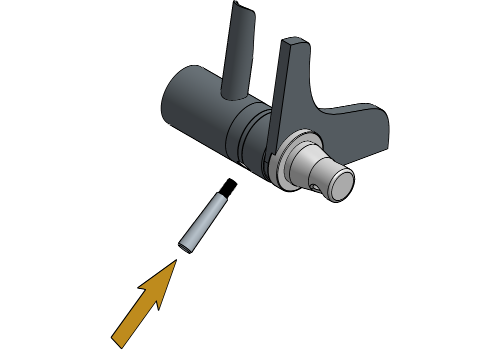

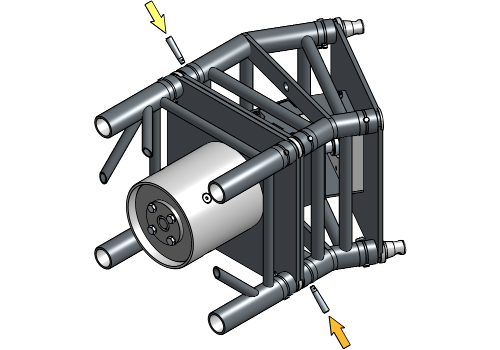

Hammer a Pin into the holes of the Angled Transmission.

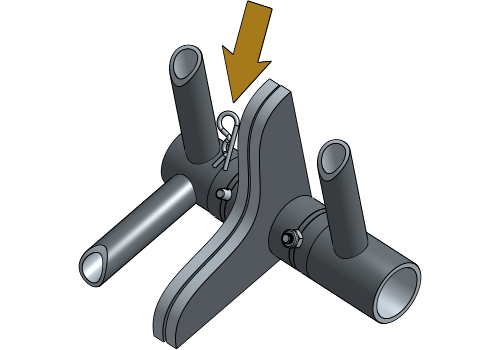

Insert the Safety Clips into the Pins of the Angled Transmission.

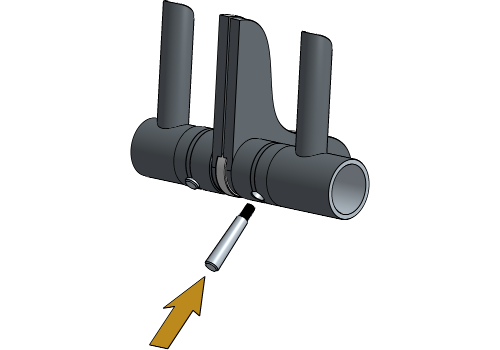

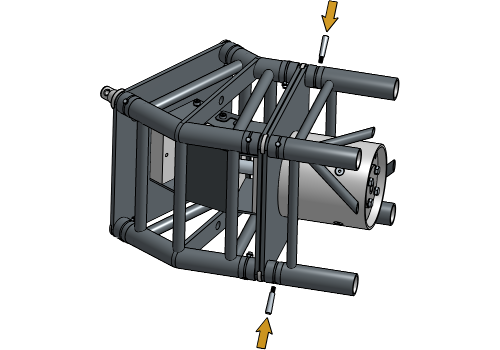

Hammer a Pin with thread into the holes of the Truss Roller.

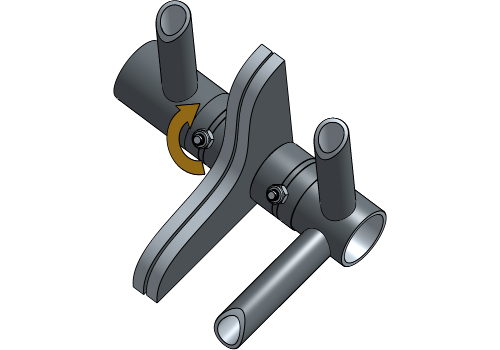

Fasten a Safety Nut on the Pins of the Truss Roller.
Repeat these steps to couple the second Truss Roller to the Angled Transmission.

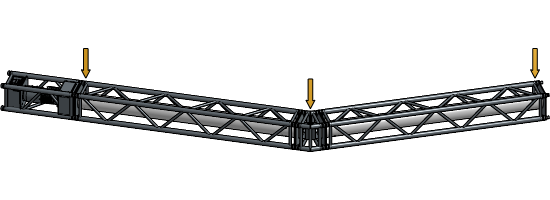

Provide the rigging points that are required for your setup. These are different for each Truss Roller size and depend on the truss junctions.
A rigging point must be provided at each truss junction. For more information about the correct rigging points for each setup, consult the Technical Data Sheet.
Your Angled Transmission is now coupled and rigged, go back to the Plugging in the Cables chapter in the main HiSpeed RollUp Installation Manual for further installation steps!
Periodic, regularly scheduled maintenance inspections are necessary as the HiSpeed RollUp has components that must be inspected, adjusted, maintained and replaced. To ensure the safety and proper functioning of the system, it is essential to establish a routine inspection.
Please follow the provided schedule below as the minimum maintenance program. After the operating personnel gains experience with the system within the initial year, additional measures and adjustments may be implemented based on your systems specific needs.
Every week | Every month | Every year | |
---|---|---|---|
Operate the HiSpeed RollUp. | X | ||
Listen for unusual noises. | X | ||
Inspect if HiSpeed RollUp system is operating smoothly. | X | ||
Inspect the condition of the screen or fabric. | X | ||
For the Venetia and Roman Blind setup, inspect the condition of the Ribcord. | X | ||
Listen for unusual noise at level of the bearings of the Truss Rollers. | X | ||
Listen for unusual noise at level of the motor. | X | ||
Listen for unusual noise at level of the Angled Transmission. | X | ||
Inspect whether all Pins with safety Nuts or Safety Clips are securely in place. | X | ||
Inspect whether all rigging points are secure. | X | ||
Inspect whether the HiSpeed RollUp remains properly rigged and level. | X | ||
Inspect whether the weighted bar at the bottom of the screen or fabric remains securely in place. | X | ||
Inspect whether the screen or fabric stops at the correct end position. | X | ||
Inspect whether the Coupling End Cap is in place. | X | ||
Inspect whether the safety covers of the Angled Transmission are in place. | X | ||
Remove the safety cover from the Angled Transmission and inspect if the gears need additional grease. | X |
To effectively maintain your HiSpeed Angled Transmission, it is recommended to regularly use it as it helps distribute the grease evenly. Instances of above-average use or operating the curtain in surroundings with high humidity, dust or extreme temperature changes may require shorter intervals than indicated in the Care & Maintenance. Contact your local ShowTex branch to obtain the correct grease specifications.
For more technical assistance, please contact your local ShowTex
office.
The address and contact information can be found on our website:
www.showtex.com
