The HiSpeed RollUp is an ultra-fast motorised roll-up system that can be configured according to your specific needs.

Specifications:

Projection screens and fabric screens are attached to a Truss Roller.
Venetian and Roman Blind curtains are attached to the truss with a D-Ring with Hook & Loop Fastener while the curtain gets pulled up by RibCord that rolls up on the Flanges.
All Truss Rollers and Venetia Truss Rollers are mounted in a 40/40 truss.
Truss Rollers come in standard lengths of 3, 6 and 9 m, while Venetia Truss Rollers are only available in a single standard length of 3 m.
Various lengths can be achieved by coupling multiple Truss Rollers of 3, 6 and 9 m. Venetian curtains can be wider, as the roller is used as a winch to lift the curtain.
The maximum continuous width for a Truss Roller screen is 8.85 m.
Truss Rollers are physically coupled together through a jaw coupling, and are driven synchronous by a single motor.
Screen heights can reach up to 18 m.

2 Product Flyer

For more information regarding the set-ups that are possible for this ShowTex product, be sure to check the Product Flyer of this product.

3 Compatible Motors

HiSpeed Motor 3000

The HiSpeed Motor 3000 is our go to option for the operation of a permanent, fixed speed HiSpeed RollUp systems. The motor is compatible with all Truss Rollers and can be controlled with an RF Remote upon request.

For more information, check out the HiSpeed Motor 3000 Technical Data Sheet.

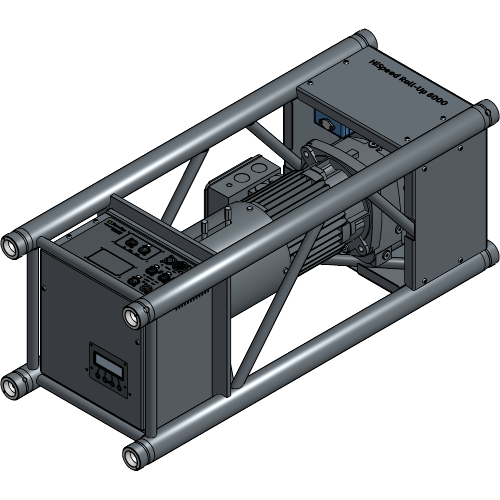

HiSpeed Motor 8000

The HiSpeed Motor 8000 is the fastest, most powerful motor there is to offer in the HiSpeed Rollup range. This ultra-fast motor can roll up projection screens in up to 1.80 m/second, is DMX and OSC compatible and can be controlled with the UMC software for unique positioning control.

For more information, check out the HiSpeed Motor 8000 Technical Data Sheet.

4 Speed and Load Capacity

4.1 With the HiSpeed Motor 3000

Roller	Axis Ø	Article Number	Speed	Load Capacity
3 m Truss Roller	20 cm	8140 3115 3007	0.40 m/s	112 kg
6 m Truss Roller	20 cm	8140 3115 6007	0.40 m/s	112 kg
9 m Truss Roller	25 cm	8140 3115 9007	0.50 m/s	89 kg
3 m Venetia Truss Roller	13 cm	8140 3116 3007	0.26 m/s	172 kg

4.2 With the HiSpeed Motor 8000

Roller	Axis Ø	Article Number	Speed	Load Capacity
3 m Truss Roller	20 cm	8140 3115 3007	0 - 1.45 m/s	125 kg
6 m Truss Roller	20 cm	8140 3115 6007	0 - 1.45 m/s	125 kg
9 m Truss Roller	25 cm	8140 3115 9007	0 - 1.80 m/s	100 kg
3 m Venetia Truss Roller	13 cm	8140 3116 3007	0 - 0.95 m/s	190 kg

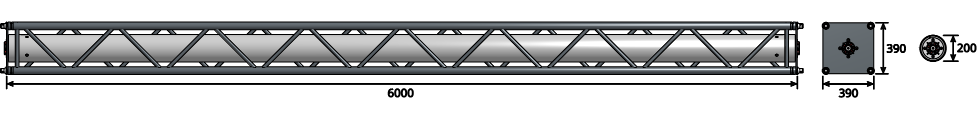

5 Truss Roller Dimensions

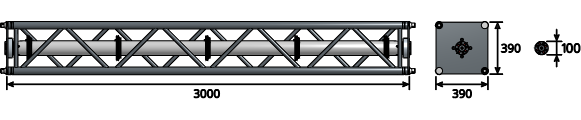

5.1 3 m Truss Roller

5.2 6 m Truss Roller

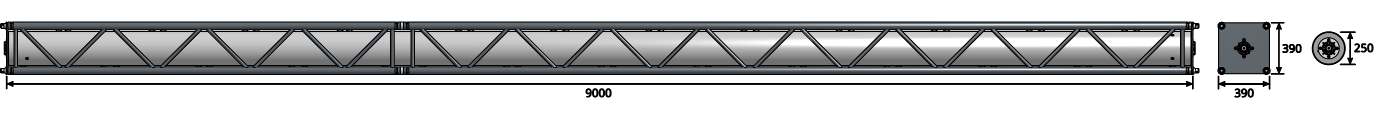

5.3 9 m Truss Roller

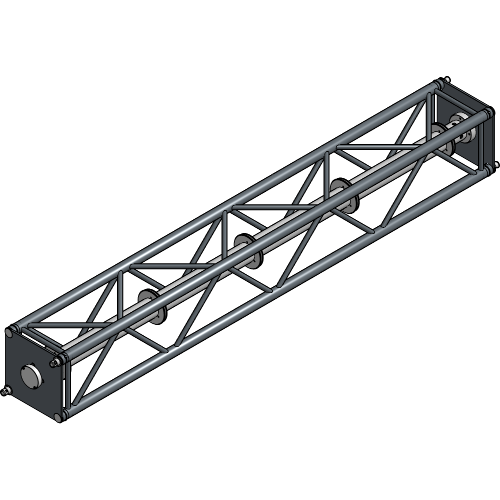

6 Venetia Truss Roller Dimensions

6.1 3 m Venetia Truss Roller

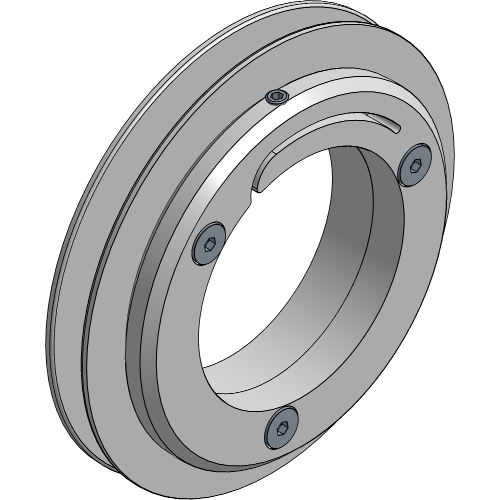

6.2 Flange

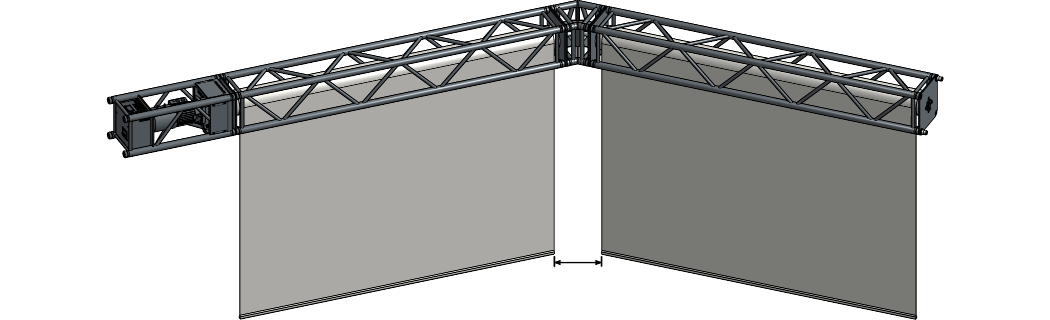

7 Angled Transmission Dimensions

7.1 HiSpeed Angled Transmission Rigging Point

8 Angled Transmission Screen Distances

Setup	Distance
Without Angled Transmission: 180°	146 mm
Angled Transmission 150°	392 mm
Angled Transmission 144°	396 mm
Angled Transmission 135°	400 mm
Angled Transmission 120°	401 mm
Angled Transmission 90°	382 mm

9 Truss Roller Rigging Points

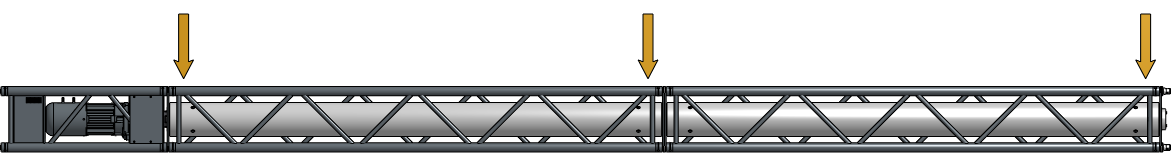

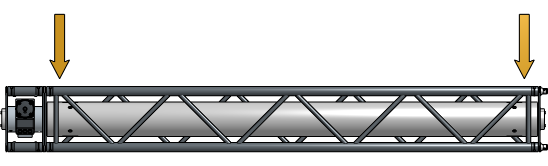

9.1 3, 6 and 9 m Truss Roller with HiSpeed Motor 3000

9.2 Multiple Truss Rollers with HiSpeed Motor 3000

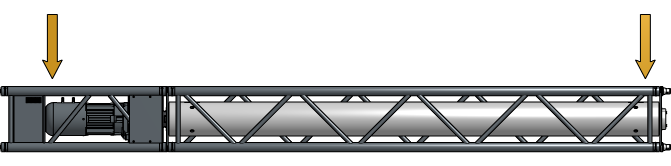

9.3 3 m Truss Roller with HiSpeed Motor 8000

9.4 6 and 9 m Truss Rollers and multiple Truss Rollers with HiSpeed Motor 8000

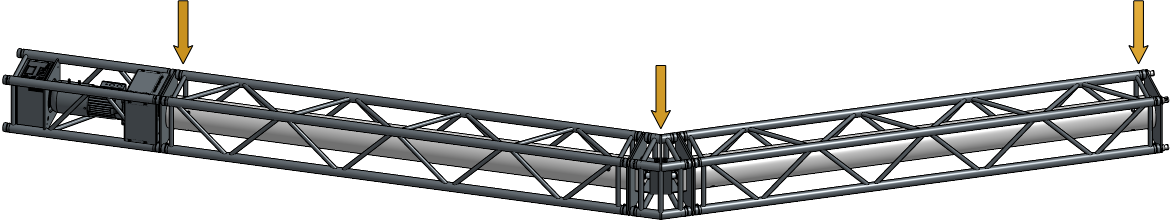

9.5 Angled Transmission with HiSpeed Motor 8000

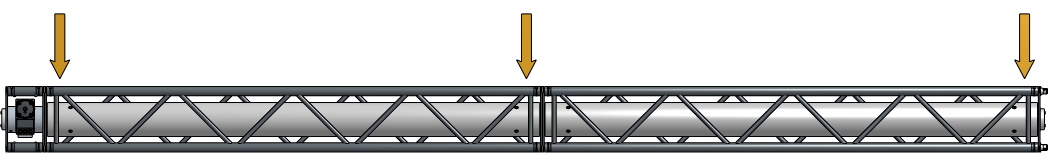

A rigging point at each junction must be provided for Truss Rollers that are coupled together. Standard Truss Roller lengths of 3, 6 and 9 m only require a rigging point at the beginning and at the end of the Truss.

Rigging points for Truss Rollers and Venetia Truss Rollers are identical.

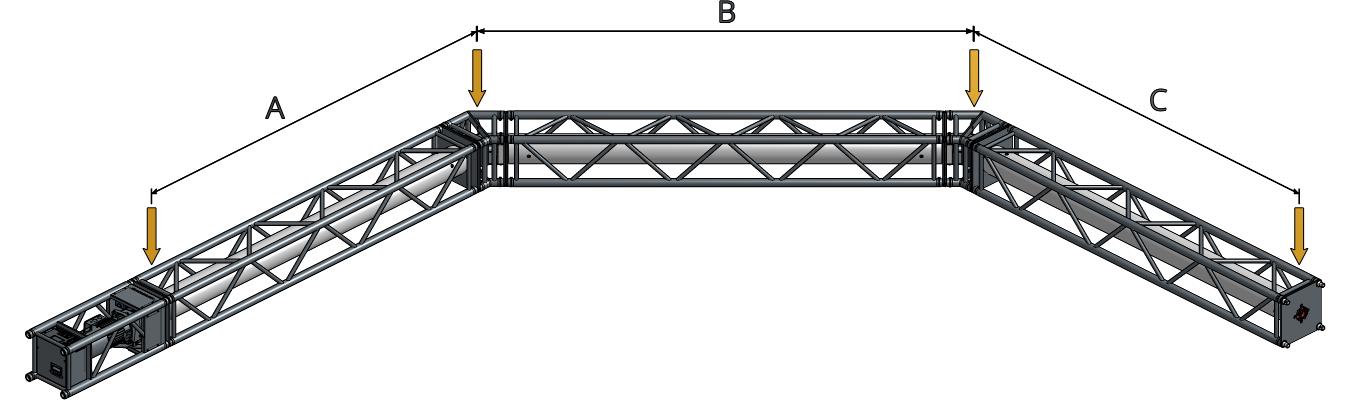

10 Rigging Distances Angled Transmission

10.1 HiSpeed RollUp with Truss Roller or Venetia Truss Roller of 3 m

Setup	Distance A	Distance B	Distance C
Angled Transmission 90°	3220 mm	3590 mm	3220 mm
Angled Transmission 120°	3140 mm	3420 mm	3140 mm
Angled Transmission 135°	3100 mm	3370 mm	3100 mm
Angled Transmission 144°	3090 mm	3340 mm	3090 mm
Angled Transmission 150°	3080 mm	3310 mm	3080 mm

10.2 HiSpeed RollUp with Truss Roller or Venetia Truss Roller of 6 m

Setup	Distance A	Distance B	Distance C
Angled Transmission 90°	6210 mm	6590 mm	6210 mm
Angled Transmission 120°	6130 mm	6420 mm	6130 mm
Angled Transmission 135°	6900 mm	6370 mm	6900 mm
Angled Transmission 144°	6080 mm	6340 mm	6080 mm
Angled Transmission 150°	6070 mm	6310 mm	6070 mm

11 Technical Specifications

11.1 Components

Truss Rollers & Motors

Truss Roller

Article number	Length	Weight	Colour
8140 3115 3007	3.00 m	125.00 kg	Black
8140 3115 6007	6.00 m	175.00 kg	Black
8140 3115 9007	9.00 m	225.00 kg	Black

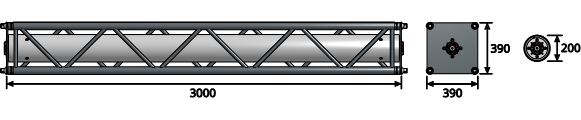

Venetia Truss Roller

Article number	Length	Weight	Colour
8140 3116 3007	3.00 m	64.00 kg	Black

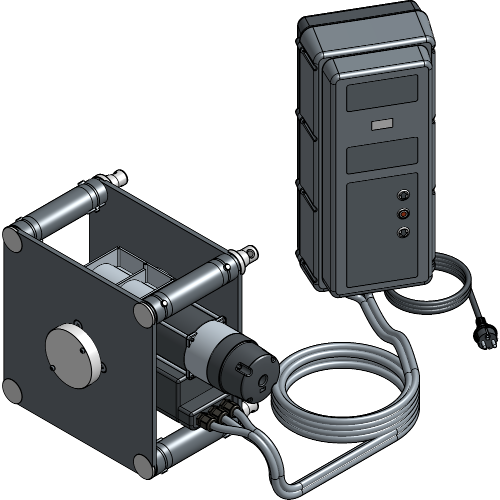

HiSpeed Motor 3000

Article number	Weight	Colour	Cable length
8140 3112 1037	50.00 kg	Black	21.00 m

HiSpeed Motor 8000

Article number	Length	Weight	Colour
8140 3112 1047	1.00 m	100.00 kg	Black

Top Transmission

Article number	Weight	Colour
8140 2263 0007	24.20 kg	Black

Angled Transmission 150°

Article number	Weight	Colour
8140 2263 0147	29.60 kg	Black

Angled Transmission 144°

Article number	Weight	Colour
8140 2263 0137	30.20 kg	Black

Angled Transmission 135°

Article number	Weight	Colour
8140 2263 0127	30.80 kg	Black

Angled Transmission 120°

Article number	Weight	Colour
8140 2263 0117	32.40 kg	Black

Angled Transmission 90°

Article number	Weight	Colour
8140 2263 0107	36.10 kg	Black

Anti-Wrinkle Tube

Article number	Length	Weight	Colour
8140 3120 3007	3.00 m	4.00 kg	Black
8140 3120 6007	6.00 m	8.00 kg	Black
8140 3120 9007	9.00 m	12.00 kg	Black

Coupling

Conical Coupler Truss-Roll

Article number	Weight	Colour
8140 2247 0124	0.18 kg	Aluminium

Conical Coupler Roll-Roll

Article number	Weight	Colour
8140 2247 0224	0.23 kg	Aluminium

Conical End Piece

Article number	Weight	Colour
8140 2247 0004	0.11 kg	Aluminium

Coupling End Cap

Article number	Weight	Colour
8140 3116 3027	0.50 kg	Aluminium

Pin with Safety Clip

Article number	Weight	Colour
8140 2247 0014	0.04 kg	Aluminium

Pin with Safety Nut

Article number	Weight	Colour
8140 2253 0001	0.05 kg	Aluminium

Coupling Spider

Article number	Weight	Colour
8140 9999 0007	0.05 kg	Red

Accessories

Flange

Article number	Weight	Colour
8140 3116 3017	0.61 kg	Aluminium

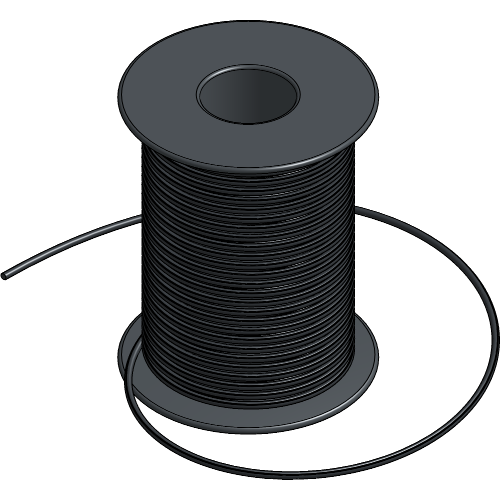

RibCord

Article number	Length	Weight	Colour
7550 0002 0007	100.00 m	0.45 kg	Black
7550 0002 0003	100.00 m	0.45 kg	White

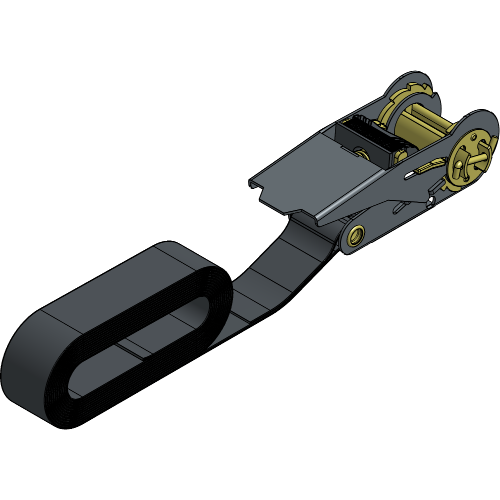

Ratchet Strap

Article number	Length	Weight	Colour
8800 0372 3007	3.00 m	0.27 kg	Black
8800 0372 5009	5.00 m	0.32 kg	Black

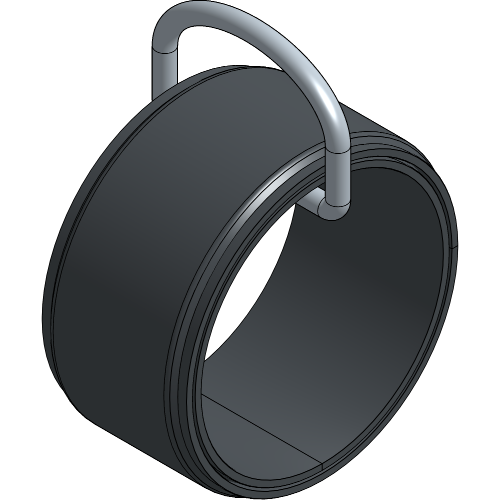

D-Ring with Hook & Loop Fastener

Article number	Weight	Colour
8140 3116 3037	0.02 kg	Black

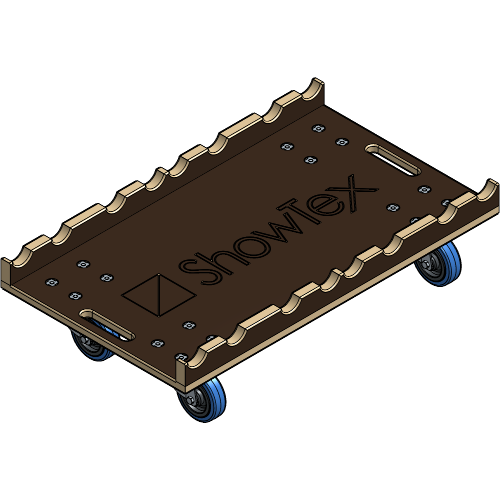

Truss Trolley

Article number	Weight	Colour
8140 6050 0407	15.20 kg	Brown

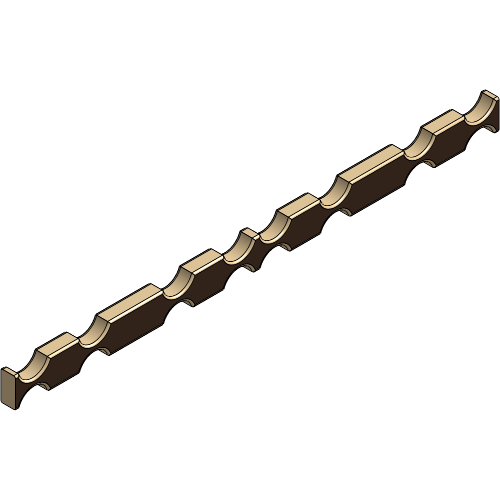

Truss Stacking Spacer

Article number	Length	Weight	Colour
8140 6050 0417	0.80 m	0.47 kg	Brown
