Rope Drive Decoupler - manual override curtain motor

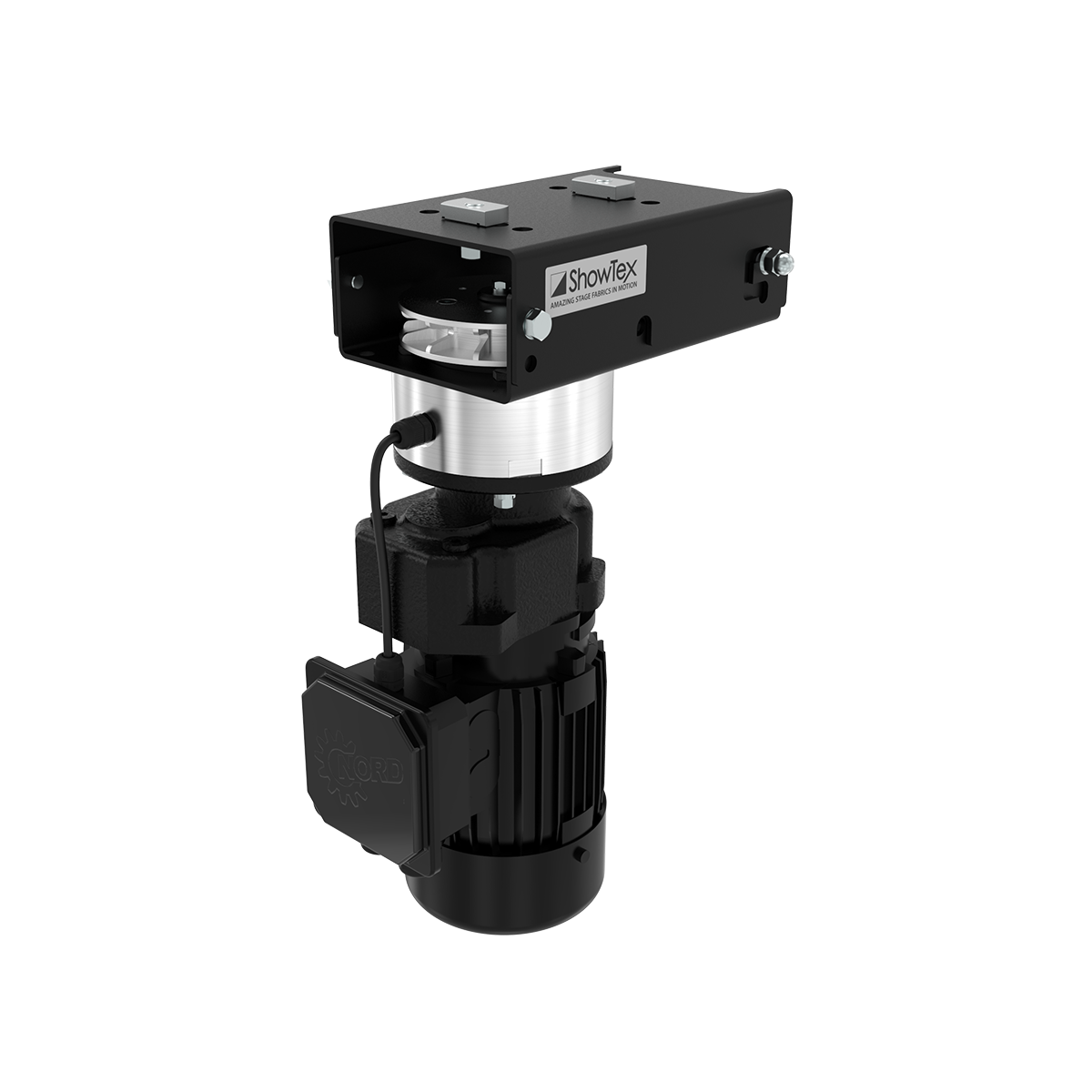

Rope Drive Decoupler

Take full control of your stage curtains and choose peace of mind, even during a power cut.

The Rope Drive motor with Decoupler lets you open and close your curtains motorised when everything is running as planned, and fully manual whenever electricity fails.

How? An electromagnetic clutch automatically disconnects the Rope Drive wheel when the motor isn’t powered, allowing you to move the curtain smoothly by hand at any time. As soon as the motor is running again, the clutch re-engages and your curtain resumes its motorised movement without losing position or needing a reset.

Compact, practical, and easy to integrate, the Decoupler fits perfectly with all ShowTex motorised tracks. It’s a simple, reliable way to keep your curtain moving, whatever happens, and the perfect upgrade for your professional curtain automation system.

Key features

  • Includes all functionalities of the ShowTex Rope Drive Standard.
  • Move the curtain by hand when the motor is not powered or in the event of a power cut.
  • No repositioning or reset needed when power is restored.
  • Automatic clutch switches smoothly between manual and motorised modes.
  • Compact build adds only 50 mm to motor height.
  • Optional pull rope for easy walk-along control.

Compatibility

  • Works with Rope Drive Standard and all ShowTex motorised tracks: H100, ShowPipe, OrientTrack, and ShowTrack
  • Works with both DMX and standard control
  • Suitable for 230 VAC and 110 VAC motors
  • Clutch system not compatible with the Rope Drive Lite or Chain Drive motors



إكسسواراتكود المقالمعلومات

01. Rope Drive Decoupler

8050 0425 0517

Weight: 13.53 kg • Black

02. Control Unit

8050 0751 1507

Weight: 6.46 kg • Black • Including Half Coupler Clamp 75 kg

03. Remote

8050 0766 0040

Weight: 1.76 kg • Black • Including 2 m cable

04. DMX Remote

8050 0766 0300

Weight: 2.20 kg • Black • Including 2 m cable

05. RF Remote

8050 0950 0200

Weight: 0.14 kg • Black

06. RF Receiver

8050 0950 0300

Weight: 0.32 kg • Black

07. Power Supply Cable

8150 0912 0027

Weight: 0.40 kg • Black • Length: 2 m

08. Extension Cable

8140 7202 2500

Weight: 2.60 kg • Black • Length: 25 m

09. Limit Switch set

8050 0770 0020

Weight: 0.23 kg • Black • Set of 2 pieces • For H100

10. Limit Switch set

8050 0770 0010

Weight: 0.23 kg • Black • Set of 2 pieces • For ShowPipe

11. Limit Switch set

8050 0770 0011

Weight: 0.23 kg • Black • Set of 2 pieces • For OrientTrack

12. Limit Switch set

8050 0770 0013

Weight: 0.23 kg • Black • Set of 2 pieces • For ShowTrack

13. Limit Switch Ski

8075 0770 0017

Weight: 0.30 kg • Black • For ShowTrack

14. Limit Switch Ski Curved Track

8075 0770 0027

Weight: 0.20 kg • Black • For ShowTrack

15. Limit Switch Ski

8067 0770 0007

Weight: 0.18 kg • Black • For OrientTrack
