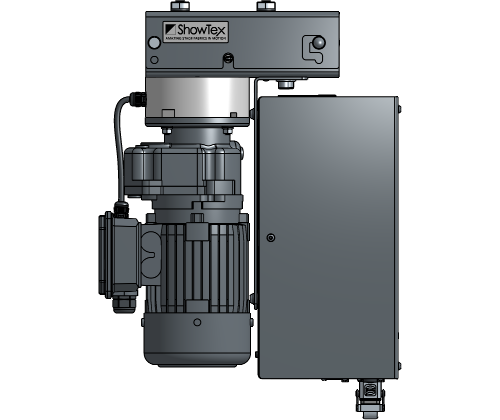

Rope Drive

Decoupler

Technical Data Sheet

1 Info

The Rope Drive system facilitates motion of stage curtains or set pieces on a stage track by means of electric motors.

Specifications:

  • Automatically disconnects the Rope Transmission from the Motor Unit when the motor is not powered.
  • The clutch of the Decoupler automatically engages when the motor starts moving.
  • When the motor stops, the clutch disengages after a small delay to ensure the curtain does not move any further.
  • A rope can be attached to the Master Carrier to replicate a Walk-Along setup, allowing the curtain to be easily moved by hand.
  • In case of a power outage, when the power is restored, the motor resumes normal operation without requiring a reset.
  • Available in a standard high speed and low torque setup. Other speed configurations are possible but not part of the standard offering.

2 Installation Specifications

The motor is driven by frequency drive, the RFI filters produce a leakage current. For the correct use of the device on a current-sensitive RCD, the use of an all-current sensitive earth leakage circuit breaker (Type B) compliant with EN 50178 / VDE 0160 is necessary.

3 Operational Specifications

4 Electrical and Mechanical Specifications

4.1 Standard Setup

  • Motor Torque : 12 Nm
  • Motor Speed : 101 rpm
  • Motor Power : 120 W
  • Maximum Rope Force : 300 N
  • Rope Speed : 0 to 42 cm/sec
  • Power In : 3 x 230 VAC / 2.2 A
  • Power Connection : HAN Q 7/0
  • Duty Cycle : S1 - Continuous duty

Other speed configurations are possible but not part of the standard offering.

5 Electrical Wiring and Connectors

5.1 Rope Drive Standard with Remote


5.2 Rope Drive Standard with DMX Remote

6 Components

6.1 Motion

Rope Drive Decoupler

Rope Drive Decoupler

Article number Colour Weight
8050 0425 0517 Black 0.50 kg

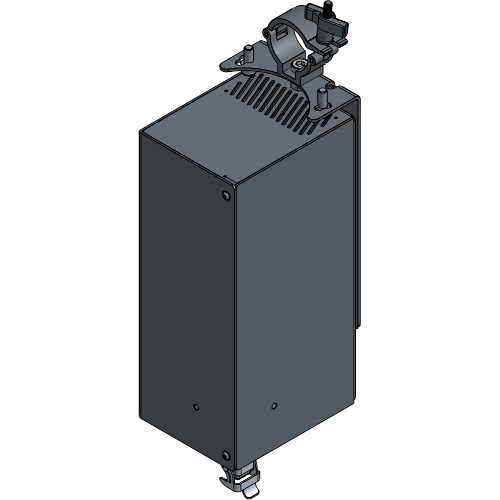

Control Unit

Control Unit

Article number Colour Weight
8050 0751 1537 Black 6.46 kg

6.2 Remotes

Remote

Remote

Article number Colour Weight
8050 0766 0040 Black 1.76 kg
DMX Remote

DMX Remote

Article number Colour Weight
8050 0766 0300 Black 2.20 kg
RF Remote

RF Remote

Article number Colour Weight
8050 0950 0200 Black 0.14 kg
RF Receiver

RF Receiver

Article number Colour Weight
8050 0950 0300 Black 0.32 kg

6.3 Cables

Power Cable

Power Cable

Article number Colour Weight Length
8150 0912 0027 Black 0.40 kg 2.00 m
Extension Cable

Extension Cable

Article number Colour Weight Length
8140 7202 2500 Black 2.60 kg 25.00 m

6.4 Limit Switches

Limit Switch set

Limit Switch set

Article number Colour Weight Tracks
8050 0770 0020 Black 0.23 kg H100
Limit Switch set

Limit Switch set

Article number Colour Weight Tracks
8050 0770 0010 Black 0.23 kg ShowPipe
Limit Switch set

Limit Switch set

Article number Colour Weight Tracks
8050 0770 0011 Black 0.23 kg OrientTrack
Limit Switch set

Limit Switch set

Article number Colour Weight Tracks
8050 0770 0013 Black 0.23 kg ShowTrack
Limit Switch Ski

Limit Switch Ski

Article number Colour Weight Tracks
8075 0770 0017 Black 0.30 kg ShowTrack
Limit Switch Ski Curved Track

Limit Switch Ski Curved Track

Article number Colour Weight Tracks
8075 0770 0027 Black 0.20 kg ShowTrack
Limit Switch Ski

Limit Switch Ski

Article number Colour Weight Tracks
8067 0770 0007 Black 0.18 kg OrientTrack
