ShowPipe
More sturdy aluminum version of the H100 curtain track with the same characteristics.
- This rail system is easy to assemble and fast to rig.
- ShowPipe slides into our 50 mm aluminum tube and thus can be integrated into our EasyDrape system, wherever curtain movement is wanted.
- ShowPipe can be DMX controlled.
ShowPipe is compatible with our range of Rope Drive motors.
TECHNICAL DATA - SHOWPIPE - CURTAIN TRACK
| Accessory | Article code | Information |
|---|---|---|
01. Track | 8055 0001 6007 | Weight: 1.31 kg/m • Length: 6.00 m • Black |
02. Curved Track 45° | 8055 0004 0757 | Weight: 1.31 kg/m • Radius: 0.75 m • Black |
8055 0004 1007 | Weight: 1.31 kg/m • Radius: 100 cm • Black | |
03. Curved Track 90° | 8055 0007 0507 | Weight: 1.31 kg/m • Radius: 0.50 m • Black |
8055 0007 0757 | Weight: 1.31 kg/m • Radius: 0.75 m • Black | |
8055 0007 1007 | Weight: 1.31 kg/m • Radius: 1.00 m • Black | |
04. Custom-Made Track | 8055 0007 0007 | Weight: 1.31 kg/m • Black |
05. Joint set | 8055 0042 1507 | Weight: 0.11 kg • Set of 2 pieces • Black |
06. End Stop | 8050 0050 0001 | Weight: 0.03 kg • Galvanised |
07. End Stop Swivel Hook Add-On | 8050 0050 0017 | Weight: 0.02 kg • Black |
8050 0050 0011 | Weight: 0.02 kg • Galvanised | |
08. Half Coupler Clamp | 8055 0680 0757 | Weight: 0.40 kg • ⌀ 48-51 mm • M10 • WLL: 100 kg SF: 5:1 • Black |
09. Hidden Ceiling Bracket | 8055 0110 0027 | Weight: 0.02 kg • WLL: 40 kg SF: 2:1 • Black |
10. Diamond-Shaped Channel Nut | 8700 9224 0011 | Weight: 0.01 kg • M10 • Galvanised |
11. Square-Shaped Channel Nut | 8055 9224 0007 | Weight: 0.02 kg • M10 • Galvanised |
12. Glider | 8067 0195 0007 | Weight: 0.03 kg • WLL: 8 kg SF 2:1 • Black |

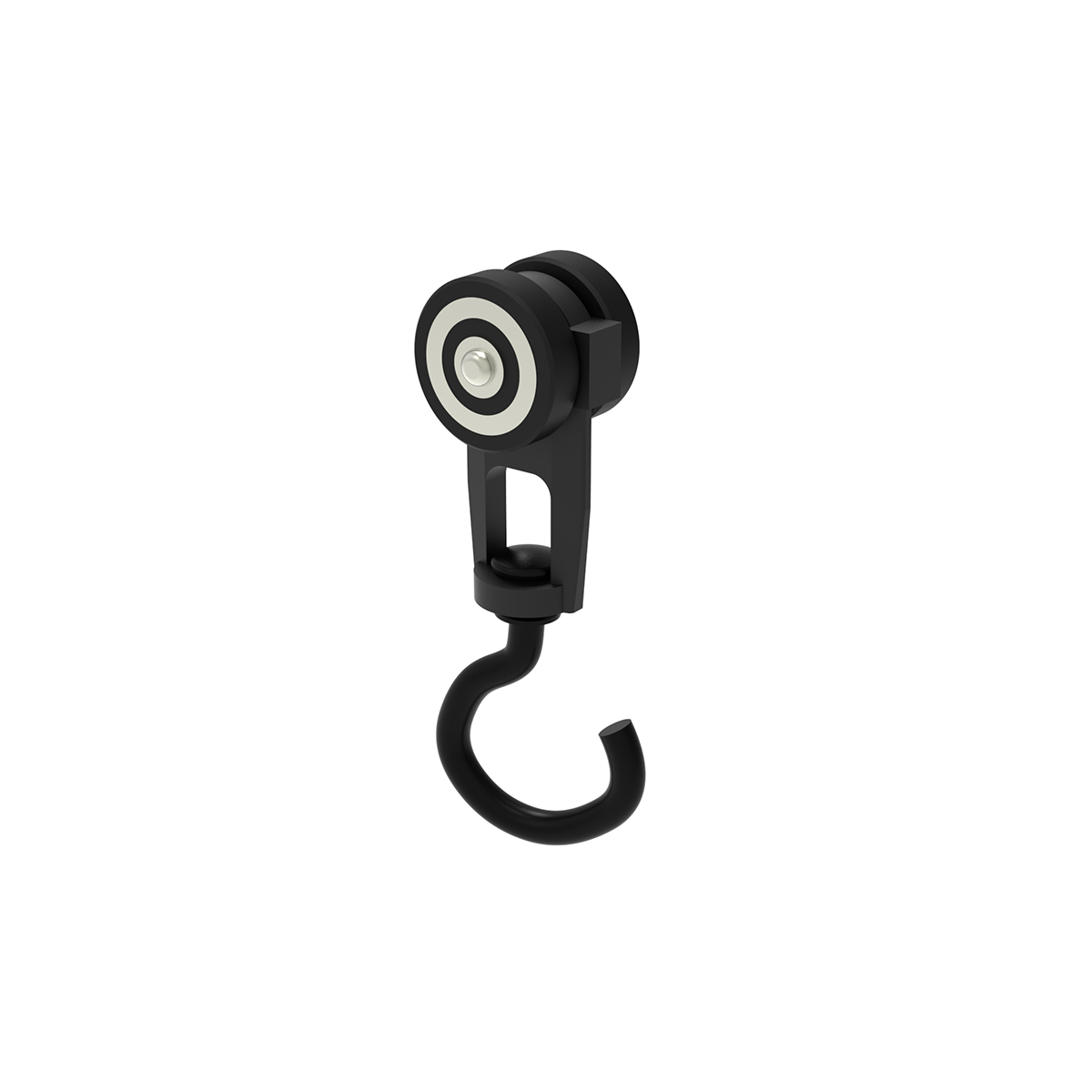

13. Runner | 8050 0205 0087 | Weight: 0.02 kg • Ball-raced • WLL: 8 kg SF: 2:1 • Black |
8050 0205 0083 | Weight: 0.02 kg • Ball-raced • WLL: 8 kg SF: 2:1 • White | |
14. Scenery Carrier | 8055 0230 0002 | Weight: 0.11 kg • Ball-raced • WLL: 60 kg SF: 2:1 • Galvanized |

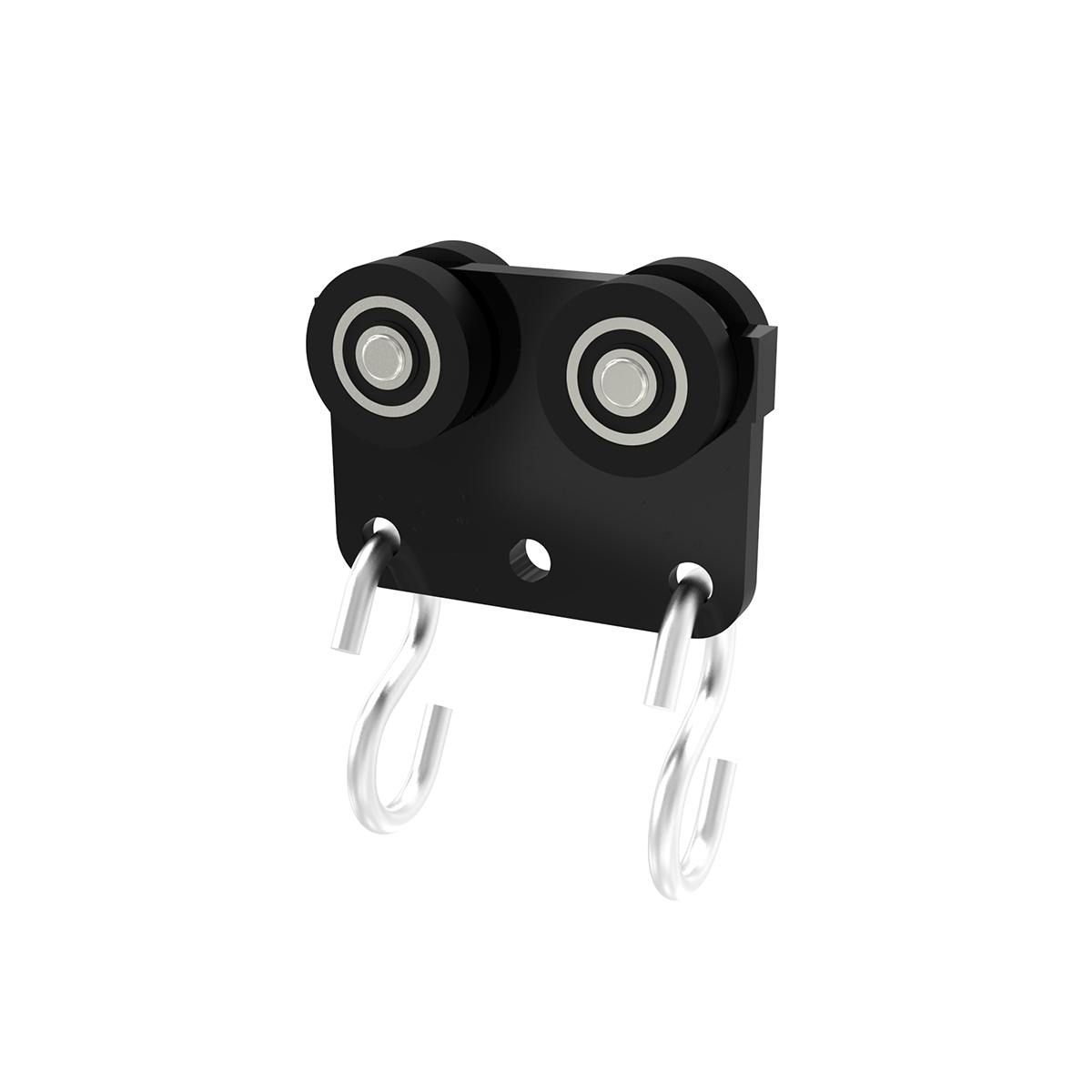

15. Master Carrier | 8050 0221 0167 | Weight: 0.05 kg • Ball-raced • WLL: 15 kg SF: 2:1 • Black |
8050 0221 0163 | Weight: 0.05 kg • Ball-raced • WLL: 15 kg SF: 2:1 • White | |

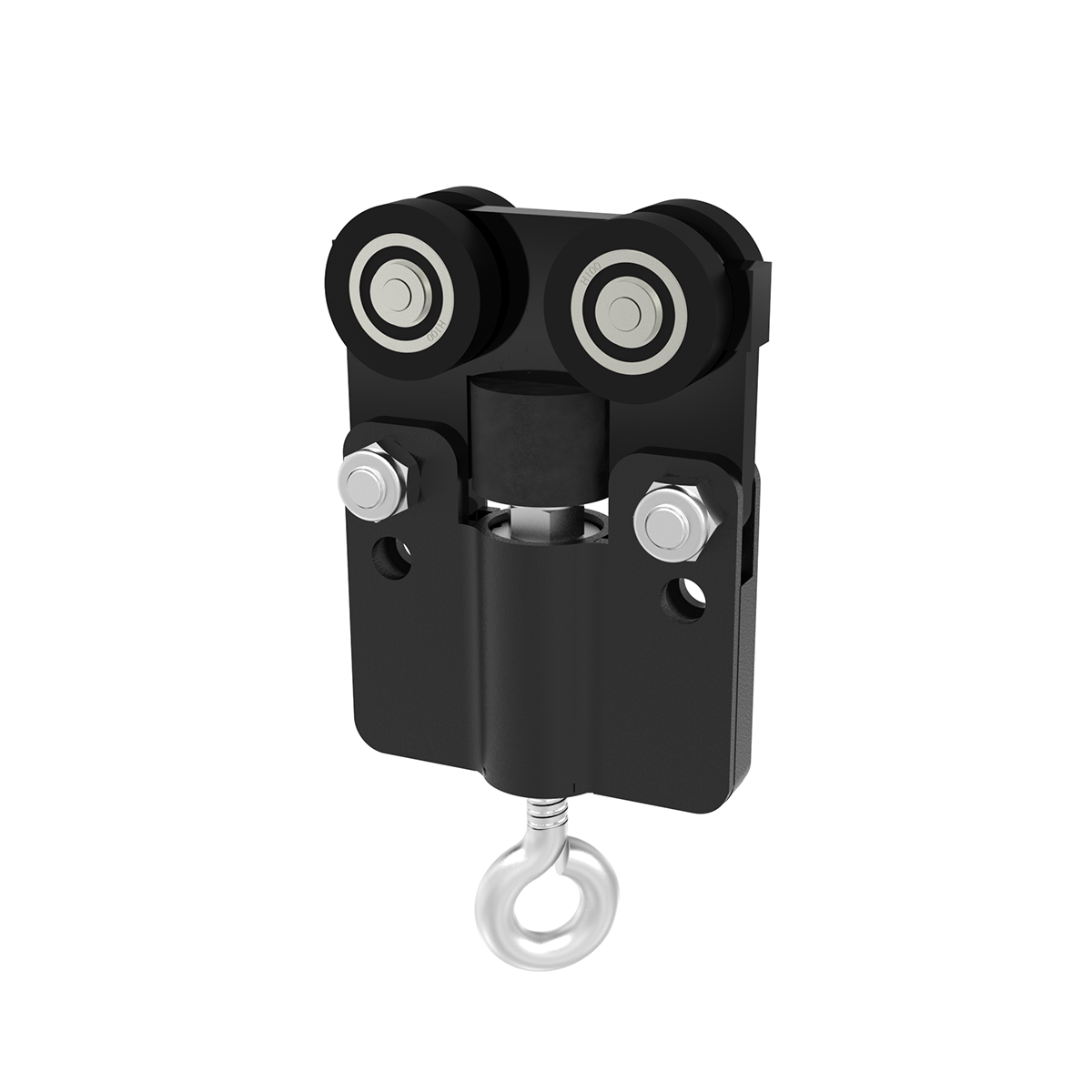

16. Master Carrier with Brake | 8050 0221 0197 | Weight: 0.10 kg • Ball-raced • WLL: 15 kg SF: 2:1 • Black |
8050 0221 0193 | Weight: 0.10 kg • Ball-raced • WLL: 15 kg SF: 2:1 • White | |

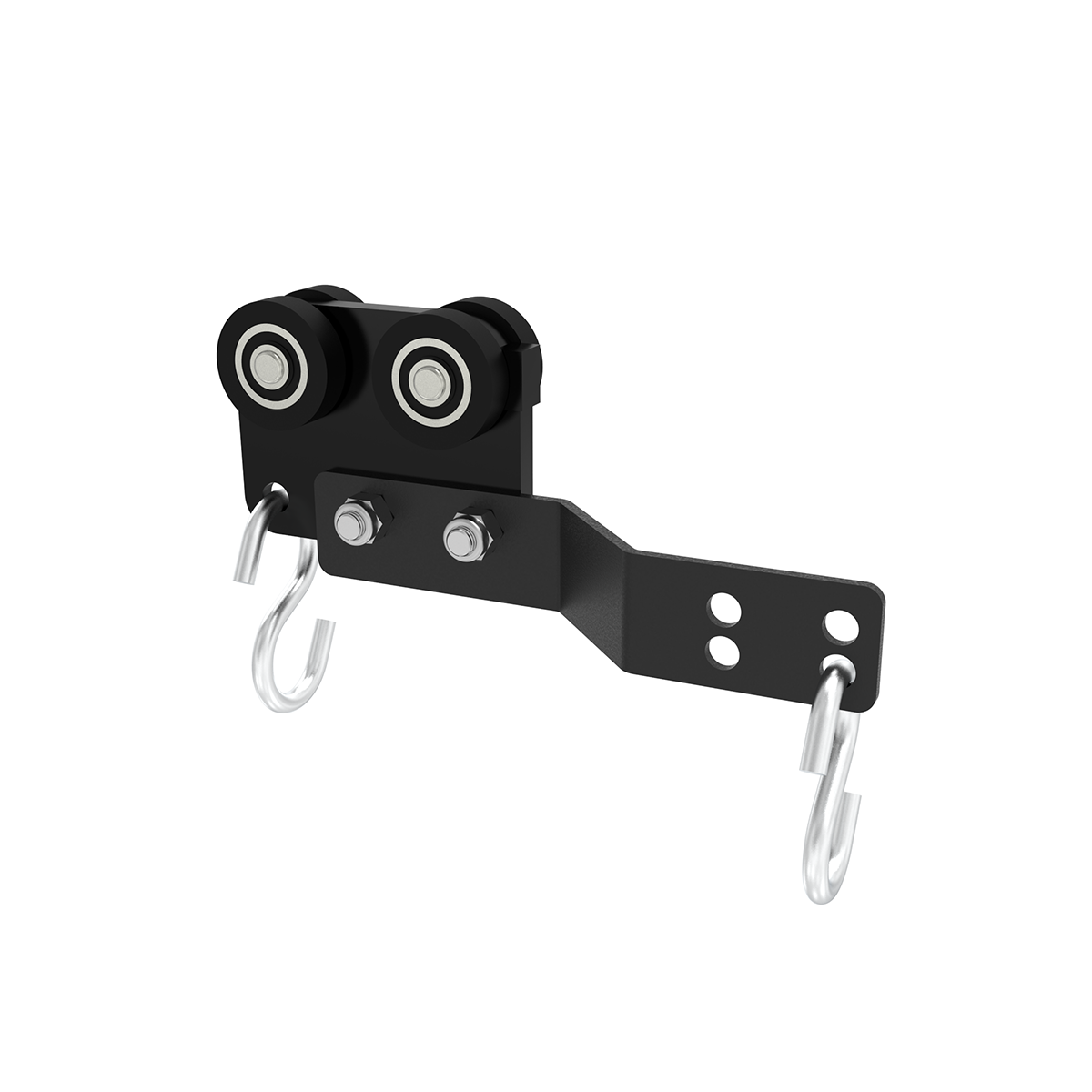

17. Short Overlap Master Carrier | 8050 0245 0057 | Weight: 0.14 kg • Ball-raced • WLL: 15 kg SF: 2:1 • Black |
8050 0245 0053 | Weight: 0.14 kg • Ball-raced • WLL: 15 kg SF: 2:1 • Black | |

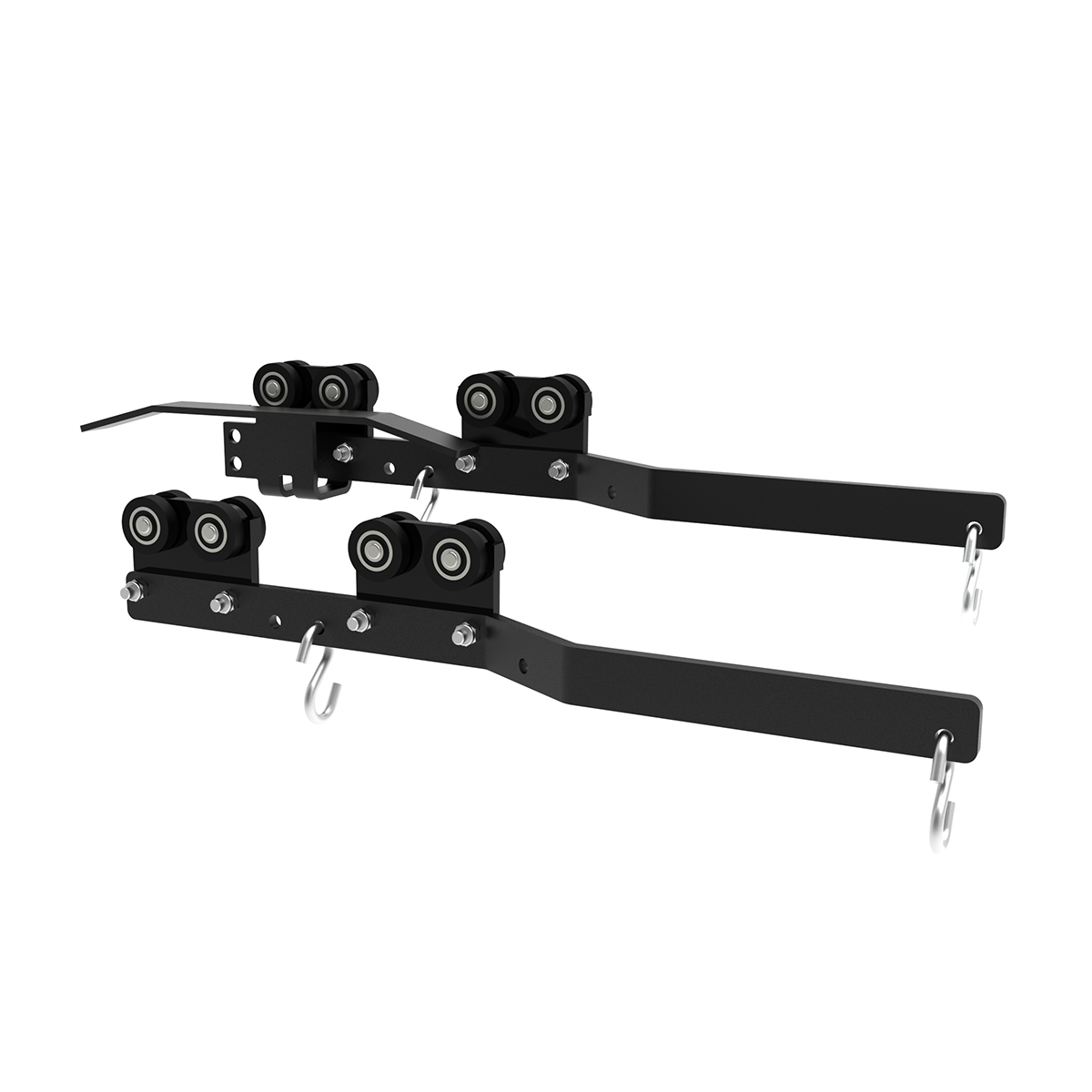

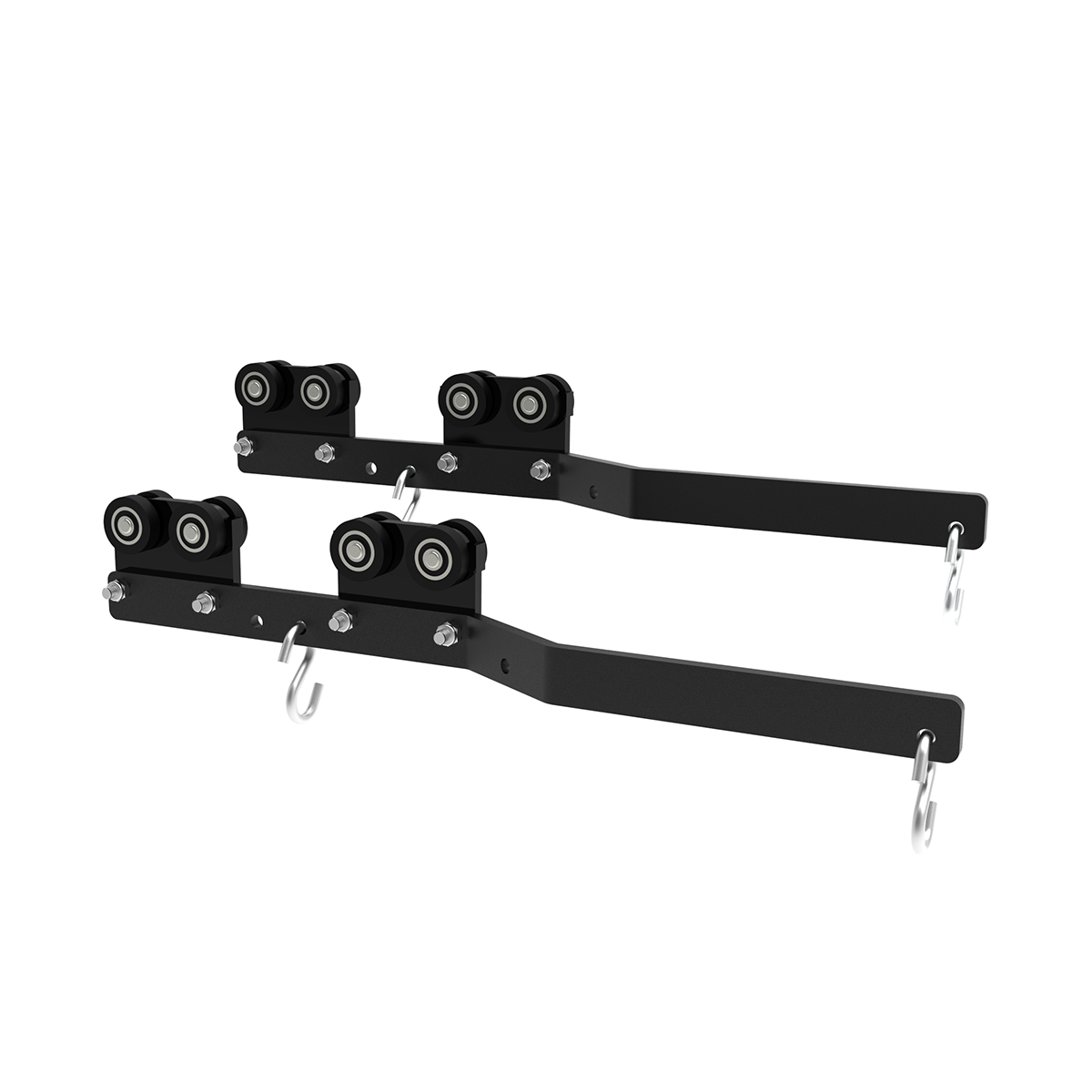

18. Overlap Master Carrier with set | 8050 0246 0167 | Weight: 0.79 kg • Ball-raced • WLL: 15 kg SF: 2:1 • Black |
8050 0246 0163 | Weight: 0.79 kg • Ball-raced • WLL: 15 kg SF: 2:1 • White | |

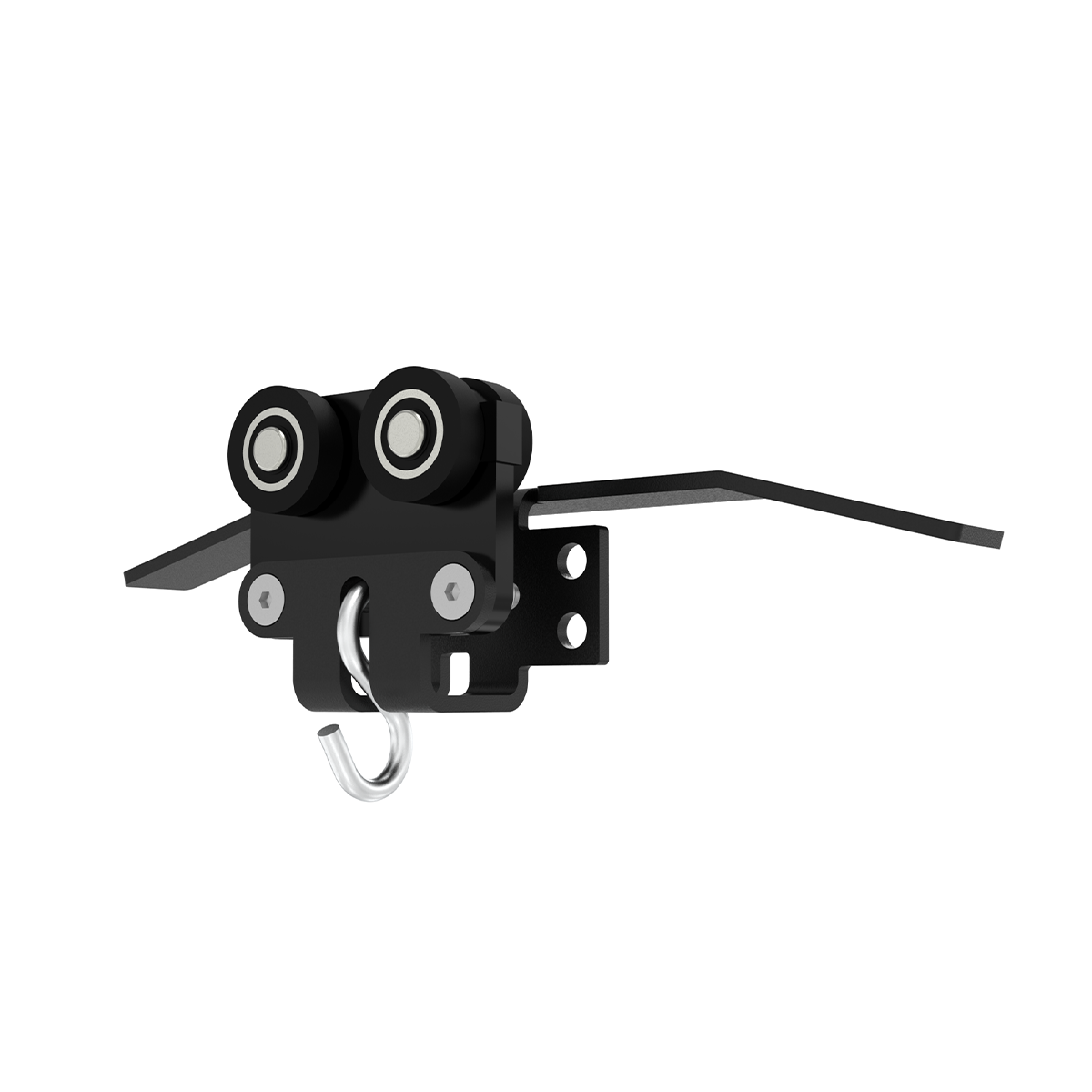

19. Master Carrier with Ski | 8050 0228 0167 | Weight: 0.12 kg • Ball-raced • WLL: 15 kg SF: 2:1 • Black |
8050 0228 0163 | Weight: 0.12 kg • Ball-raced • WLL: 15 kg SF: 2:1 • White | |

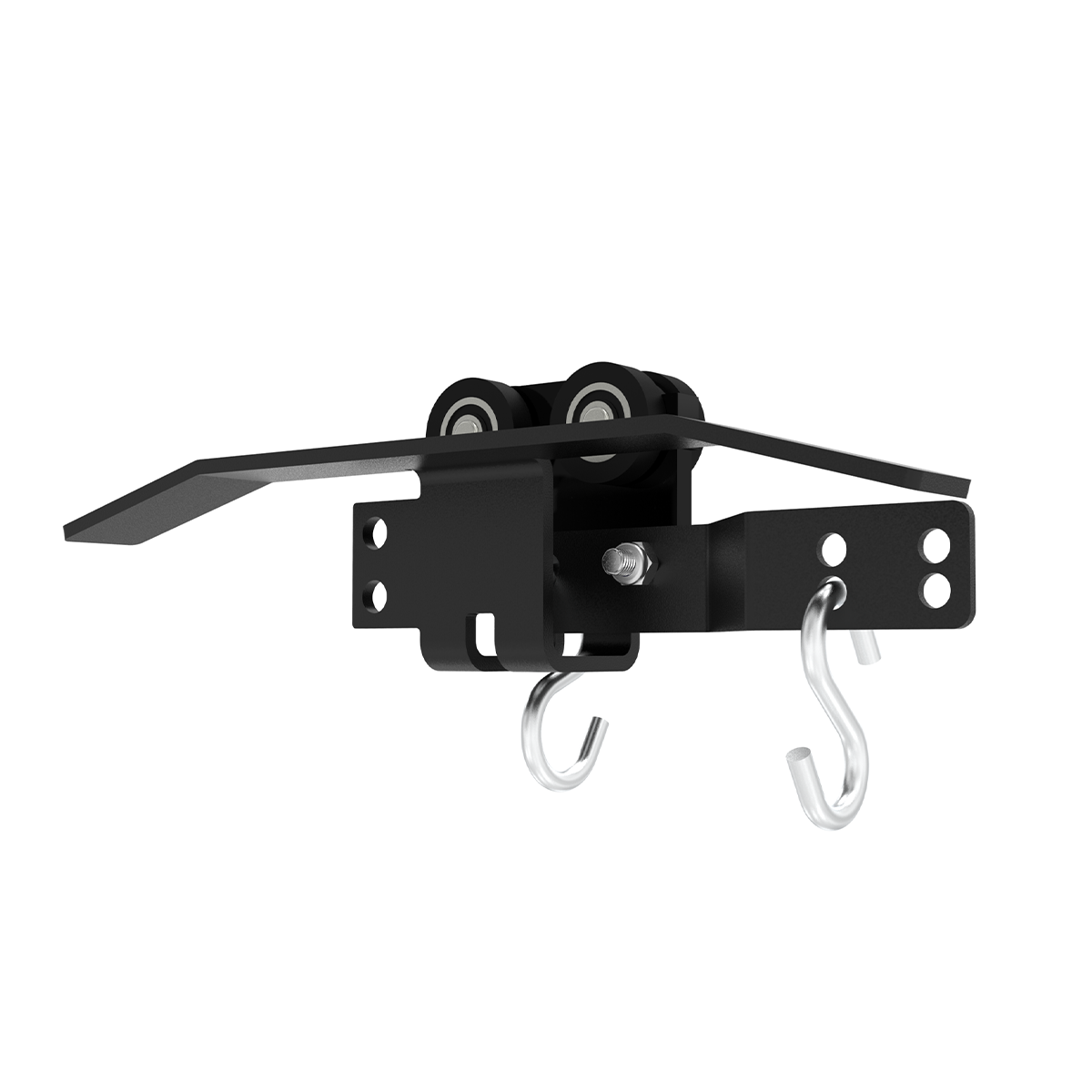

20. Short Overlap Master Carrier with Ski | 8050 0245 1057 | Weight: 0.20 kg • Ball-raced • WLL: 15 kg SF: 2:1 • Black |
8050 0245 1053 | Weight: 0.20 kg • Ball-raced • WLL: 15 kg SF: 2:1 • White | |
21. Overlap Master Carrier set with Ski | 8050 0246 1167 | Weight: 0.90 kg • Ball-raced • WLL: 15 kg SF: 2:1 • Black |
8050 0246 1163 | Weight: 0.90 kg • Ball-raced • WLL: 15 kg SF: 2:1 • White | |

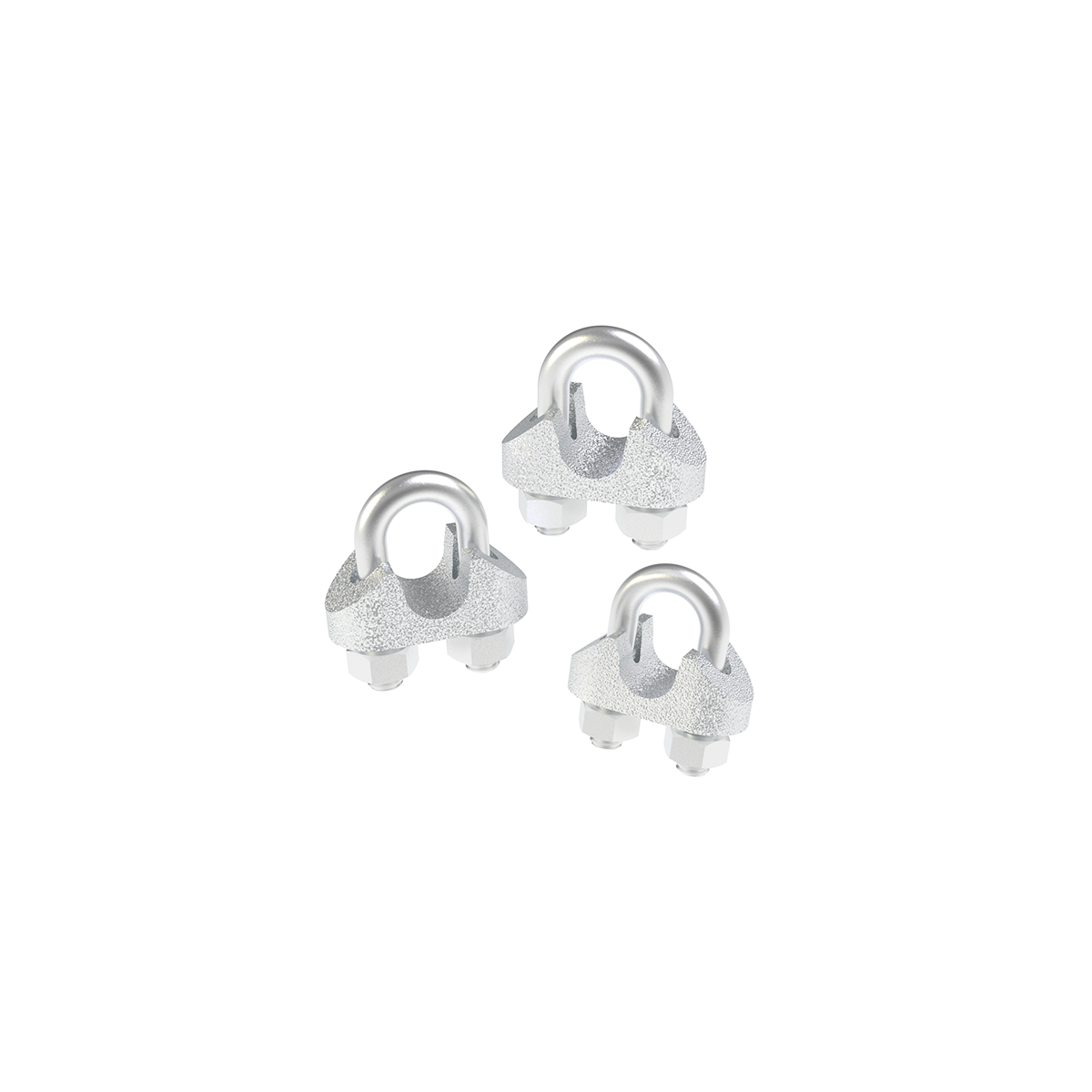

22. Rope Clamp set | 8050 0248 0035 | Weight: 0.01 kg • For rope operation • Galvanised |
23. Head Pulley | 8050 0400 0047 | Weight: 1.50 kg • For rope operation • Black |
24. Return Pulley | 8050 0410 0047 | Weight: 1.50 kg • For rope operation • Black |
25. Rope Pickup | 8055 0694 0007 | Weight: 0.20 kg • For Double Track • Black |
26. Limit Switch set | 8050 0770 0010 | Weight: 0.27 kg • Set of 2 pieces • Black |
27. Double Braided Rope | 7530 0308 1007 | Weight: 5.04 kg • Length: 100 m • ⌀: 8 mm • Black |
7530 1308 0027 | Weight: 5.04 kg • Length: 100 m • ⌀: 8 mm • Black / Green / Orange | |
28. Double Braided Rope | 7530 1308 0017 | Weight: 0.04 kg/m • Length: lm • ⌀: 8 mm • Black |
7530 1308 5027 | Weight: 0.04 kg/m • Length: lm • ⌀: 8 mm • Black / Green / Orange | |
29. Weighted Return Pulley | 8050 0415 0077 | Weight: 5.50 kg • For rope operation • Black |
8050 0415 0097 | Weight: 10.50 kg • For rope operation • Black | |
30. Floor Fixed Return Pulley | 8050 0420 0007 | Weight: 3.38 kg • For rope operation • Black |

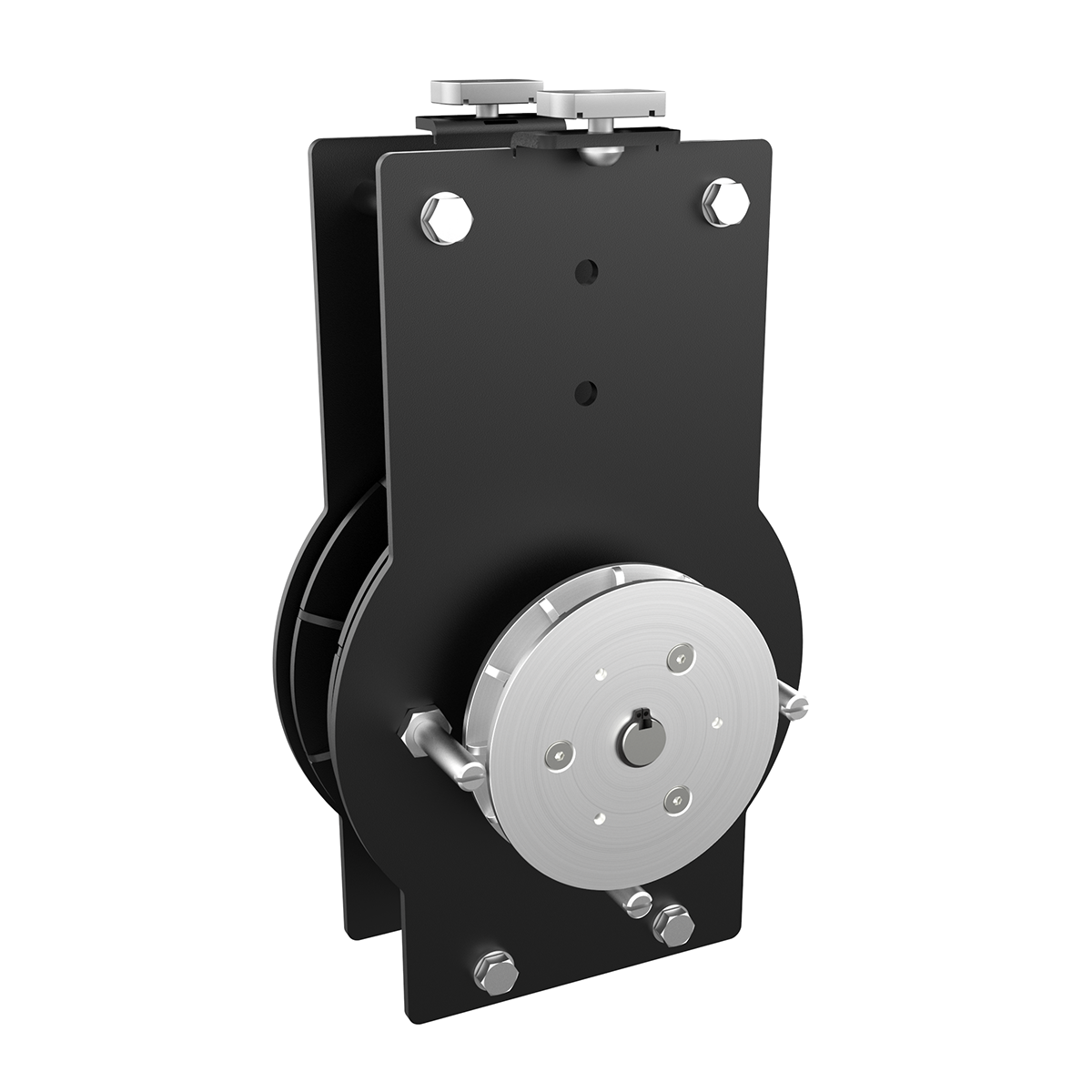

31. RopeAssist | 8050 0425 0107 | Weight: 6.54 kg • For comfortable rope operation • Black |
32. Rope Drive Lite | 8050 0713 1107 | Weight: 15.75 kg • 16 Nm • 108 rpm • Black |

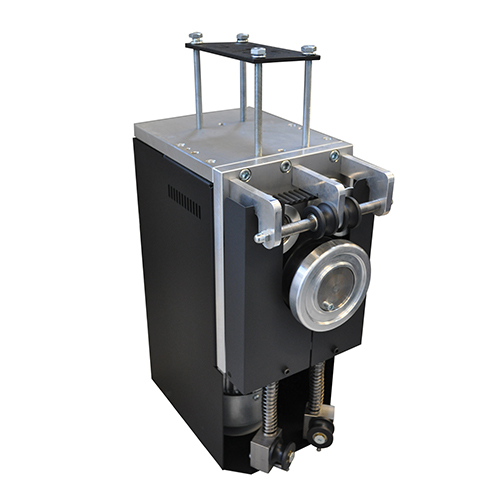

33. Rope Drive Standard | 8050 0713 1507 | Weight: 19.50 kg • 12 Nm • 101 rpm • Black |
8050 0713 1707 | Weight: 19.50 kg • 24 Nm • 48 rpm • Black | |
8050 0713 2307 | Weight: 19.50 kg • 54 Nm • 22 rpm • Black | |
34. Rope Drive Decoupler | 8050 0713 1557 | Weight: 20.00 kg • 12 Nm • 101 rpm • Black |
