ShowPipe

نسخة أكثر متانة من الألومنيوم لمسار H100 بالمواصفات نفسها.

هذا النظام لمسار التعليق سهل التجميع وسريع في التجهيز.
ShowPipe يدخل في الأنبوب الألومنيوم بسمك 50 مم ومن ثَم يُمكن أن يدمج بسلاسة مع نظامنا EasyDrape، متى كانت حركة الستارة مطلوبة.
يمكن أن يتم التحكم في ShowPipe عن طريق DMX.

إكسسوارات	كود المقال	معلومات

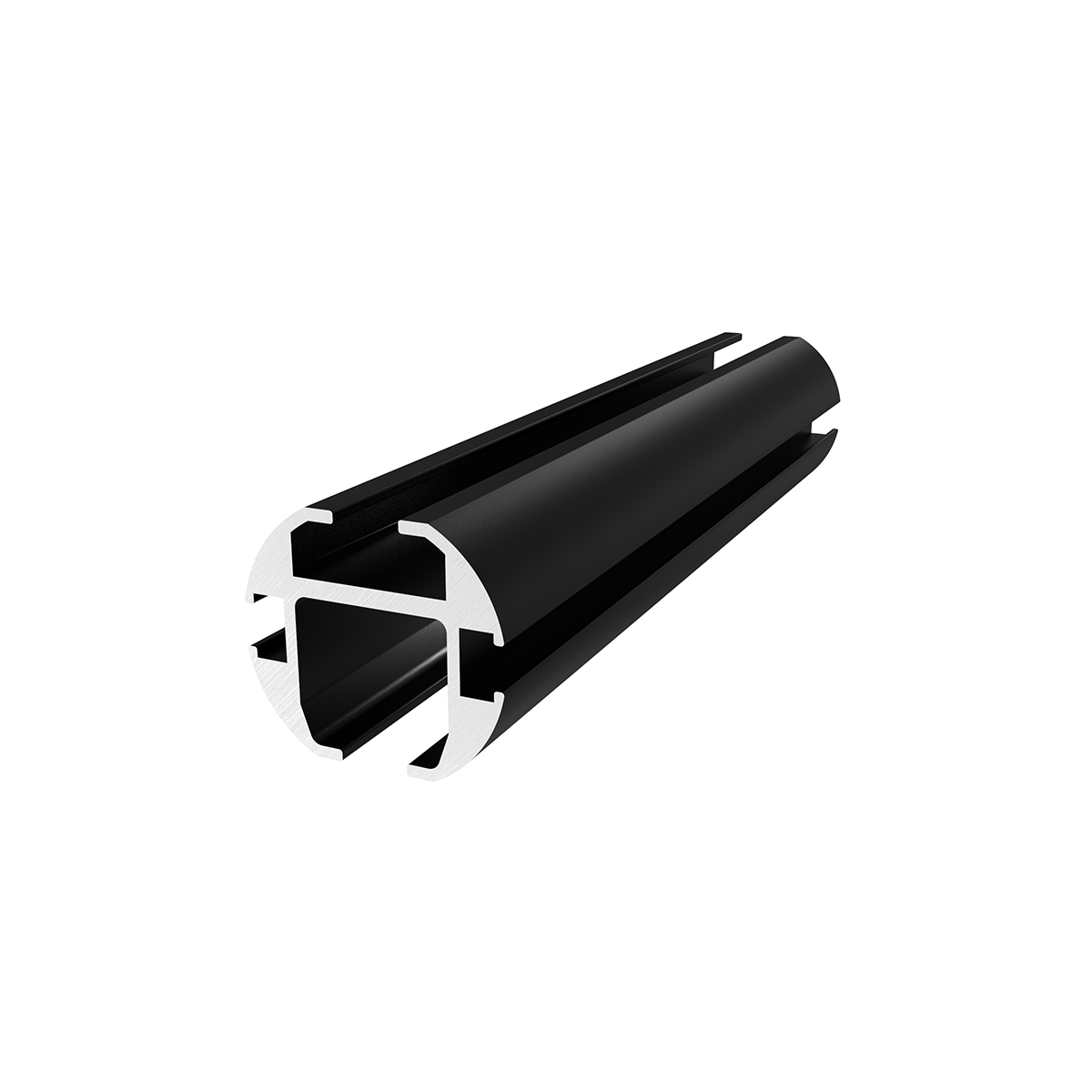

1. Track	8055 0001 6007	Length: 600 cm • Weight: 1.31 kg/meter

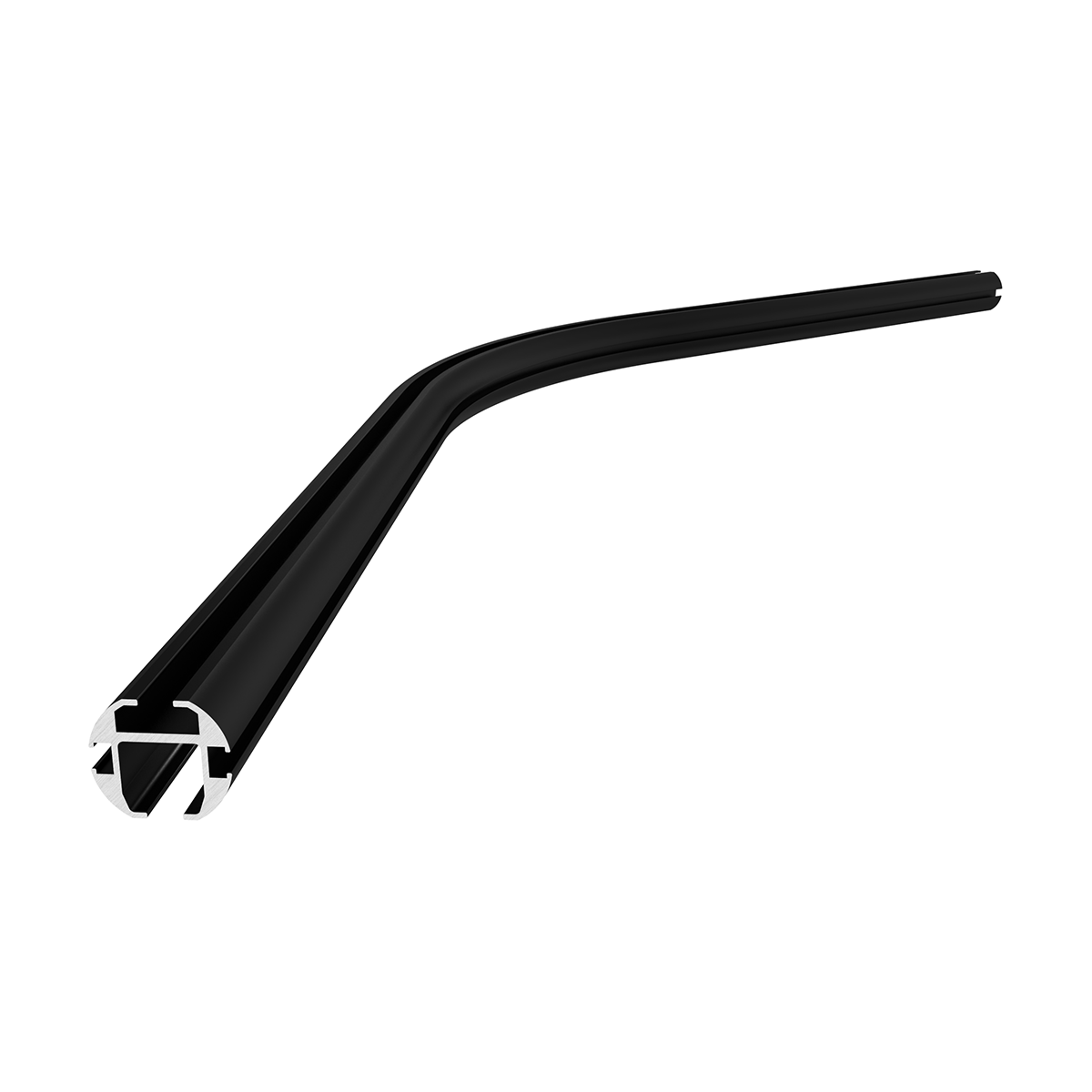

2. Curved Track	8055 0004 0757	45° • Radius: 75 cm • Weight: 1.54 kg/piece

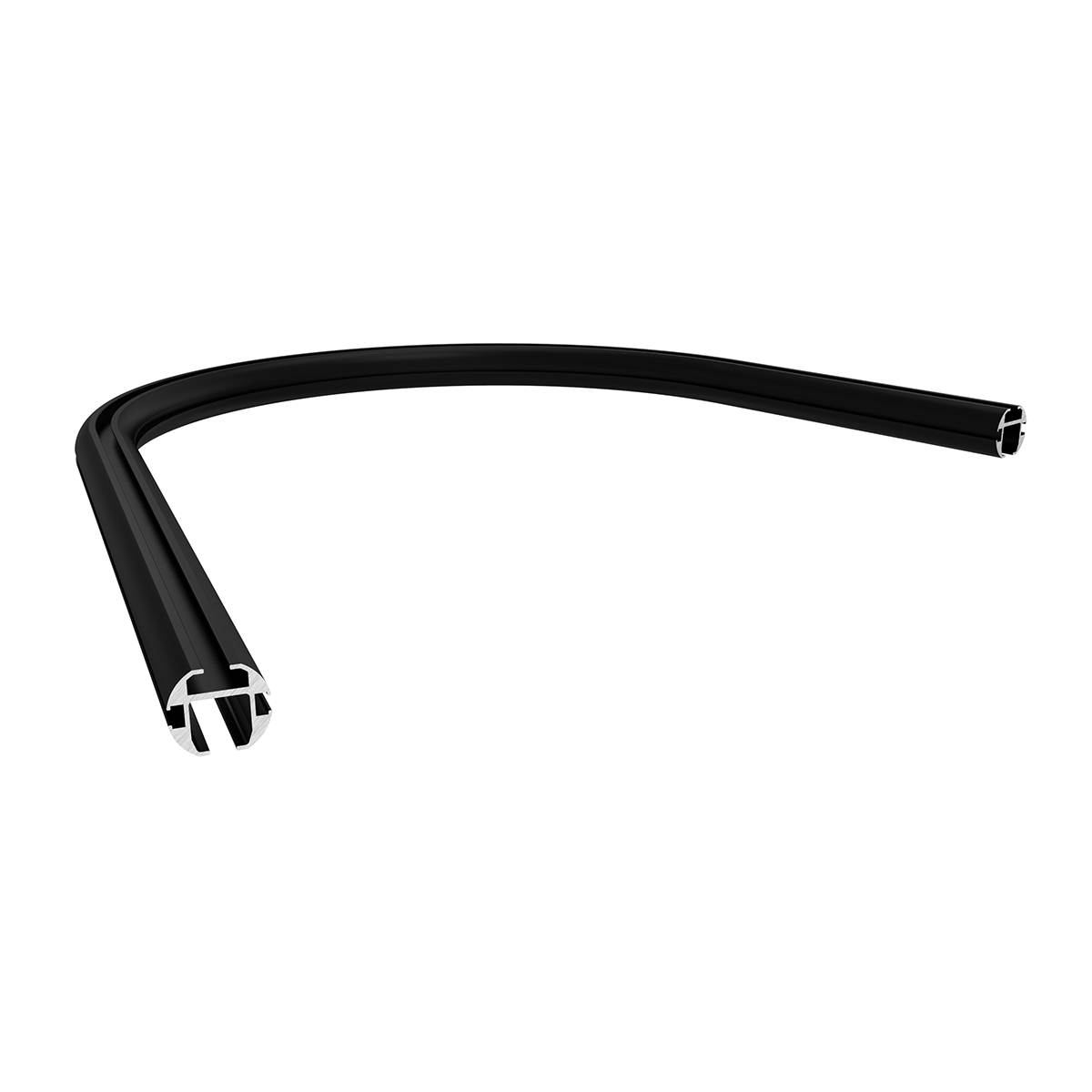

(can also be custom-curved)	8055 0004 1007	45° • Radius: 100 cm • Weight: 2.06 kg/piece

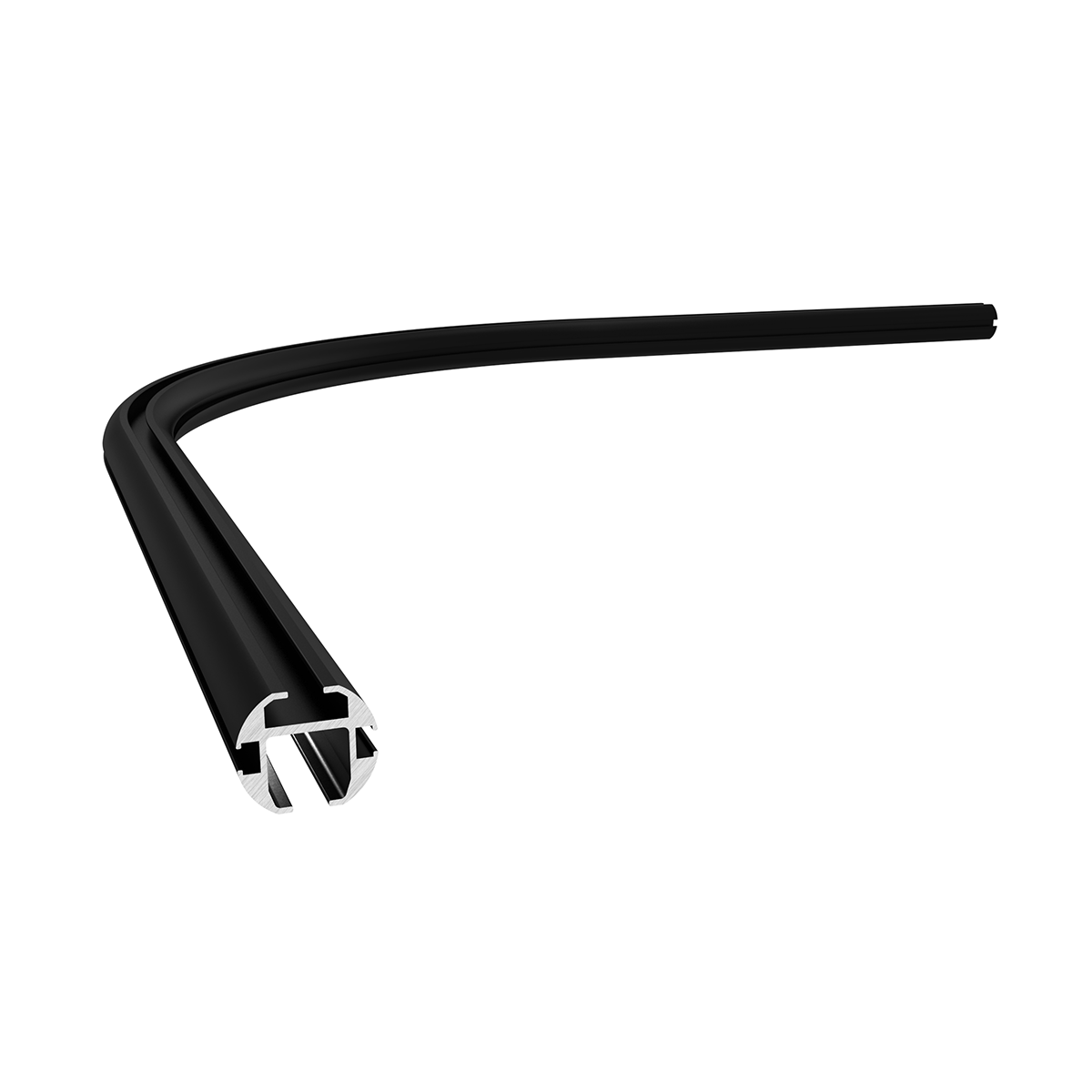

	8055 0007 0507	90° • Radius: 50 cm • Weight: 1.54 kg/piece
	8055 0007 0757	90° • Radius: 75 cm • Weight: 1.54 kg/piece
	8055 0007 1007	90° • Radius: 100 cm • Weight: 2.06 kg/piece

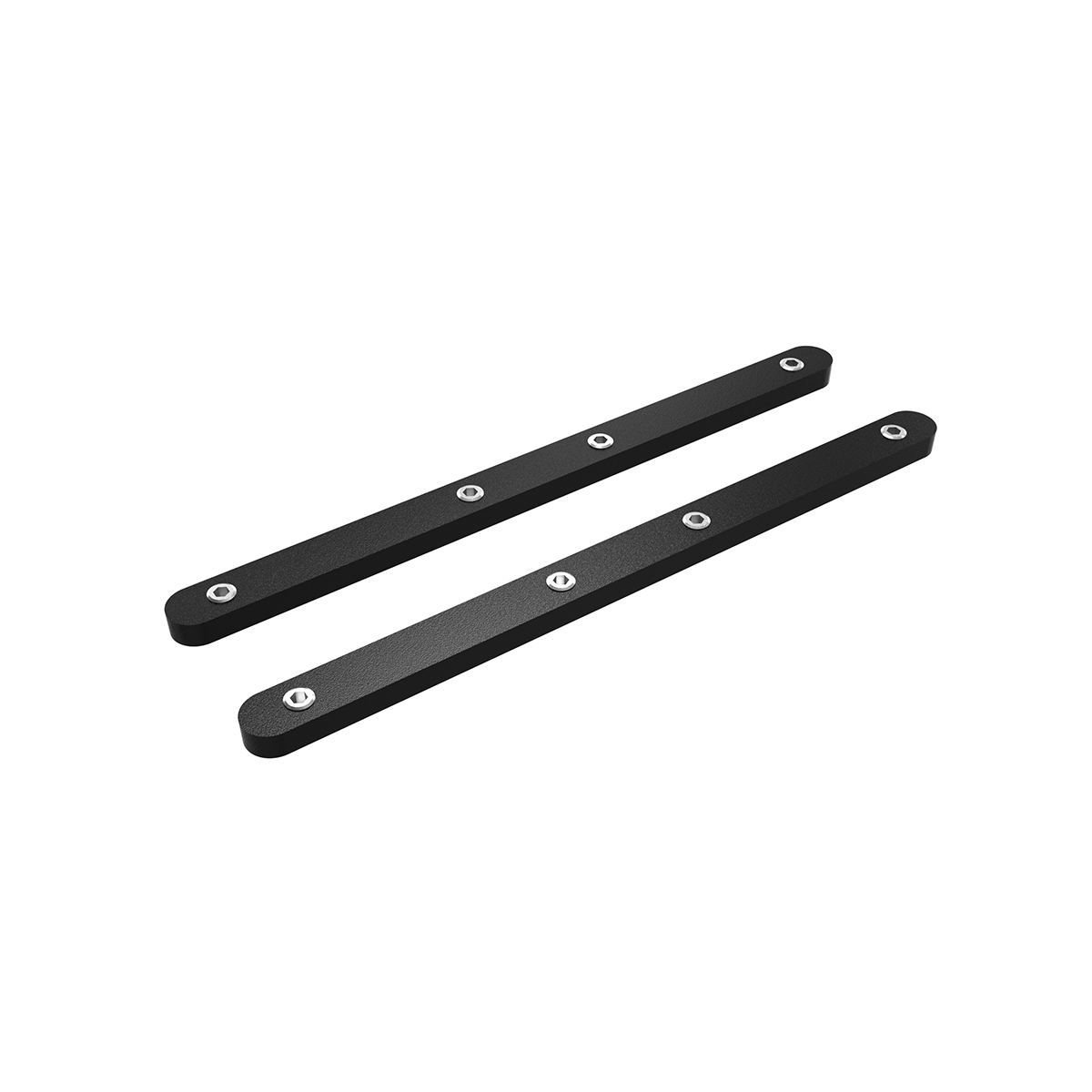

3. Joiner Set	8055 0042 1507	Includes left and right pieces • Weight: 0.11 kg/set
4. End Stop	8050 0050 0001	Weight: 0.03 kg/piece

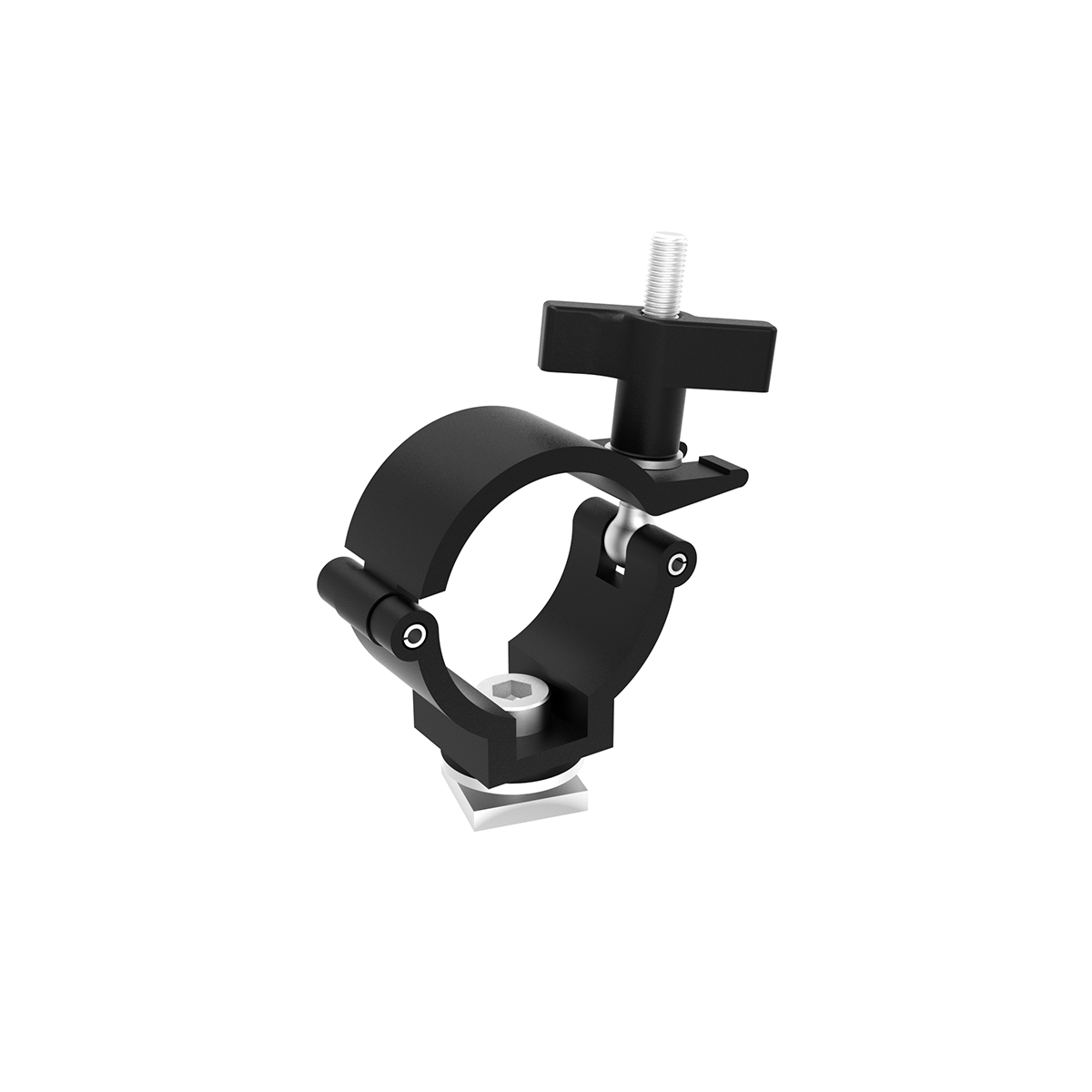

5. Half Coupler Clamp 75 kg	8055 0680 0757	Fits ø 48/51 mm tubes • 75 kg capacity
+ Channel Nut M10		Weight: 0.40 kg/piece

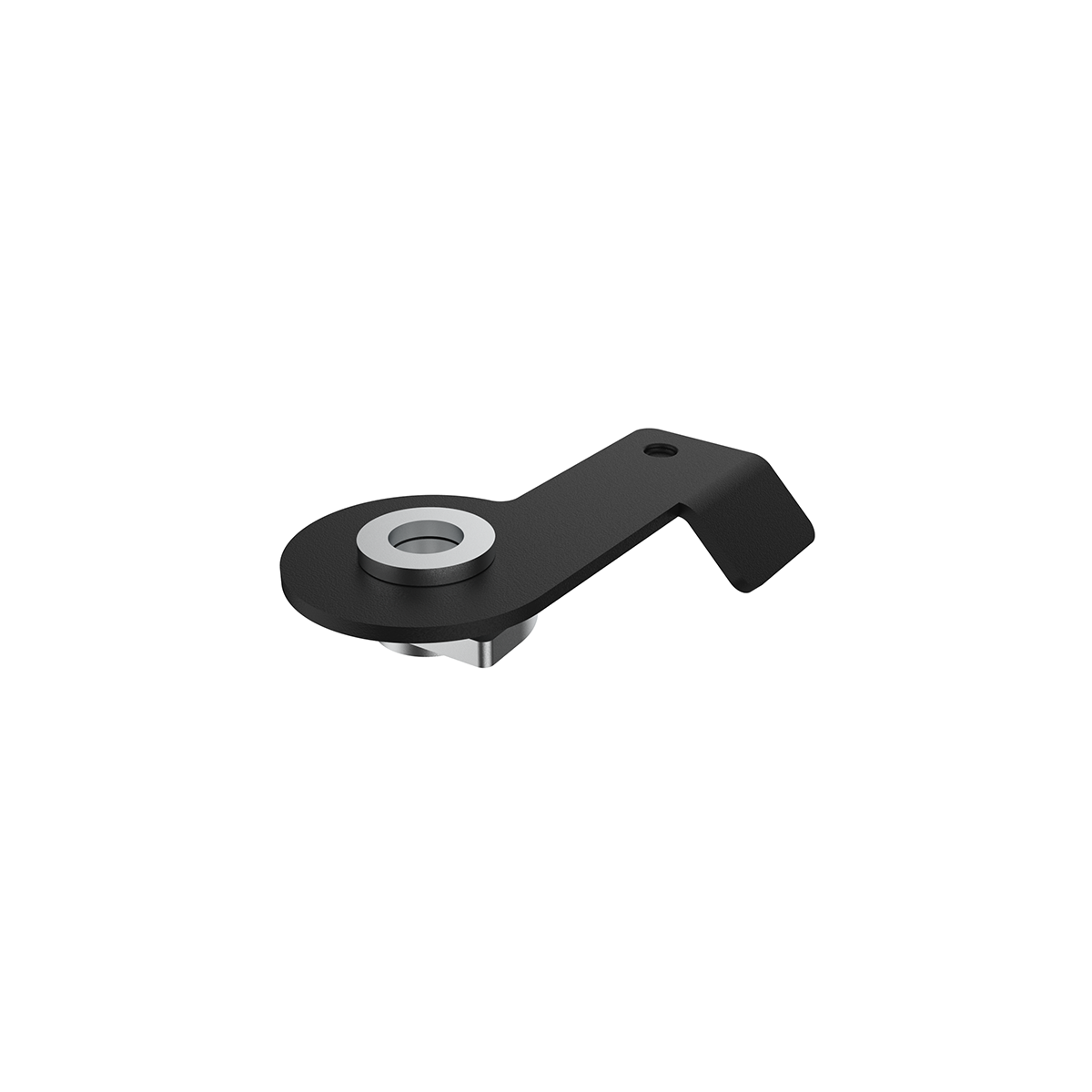

6. Hidden Ceiling Clip	8055 0110 0017	Weight: 0.004 kg/piece • SWL: 8 kg

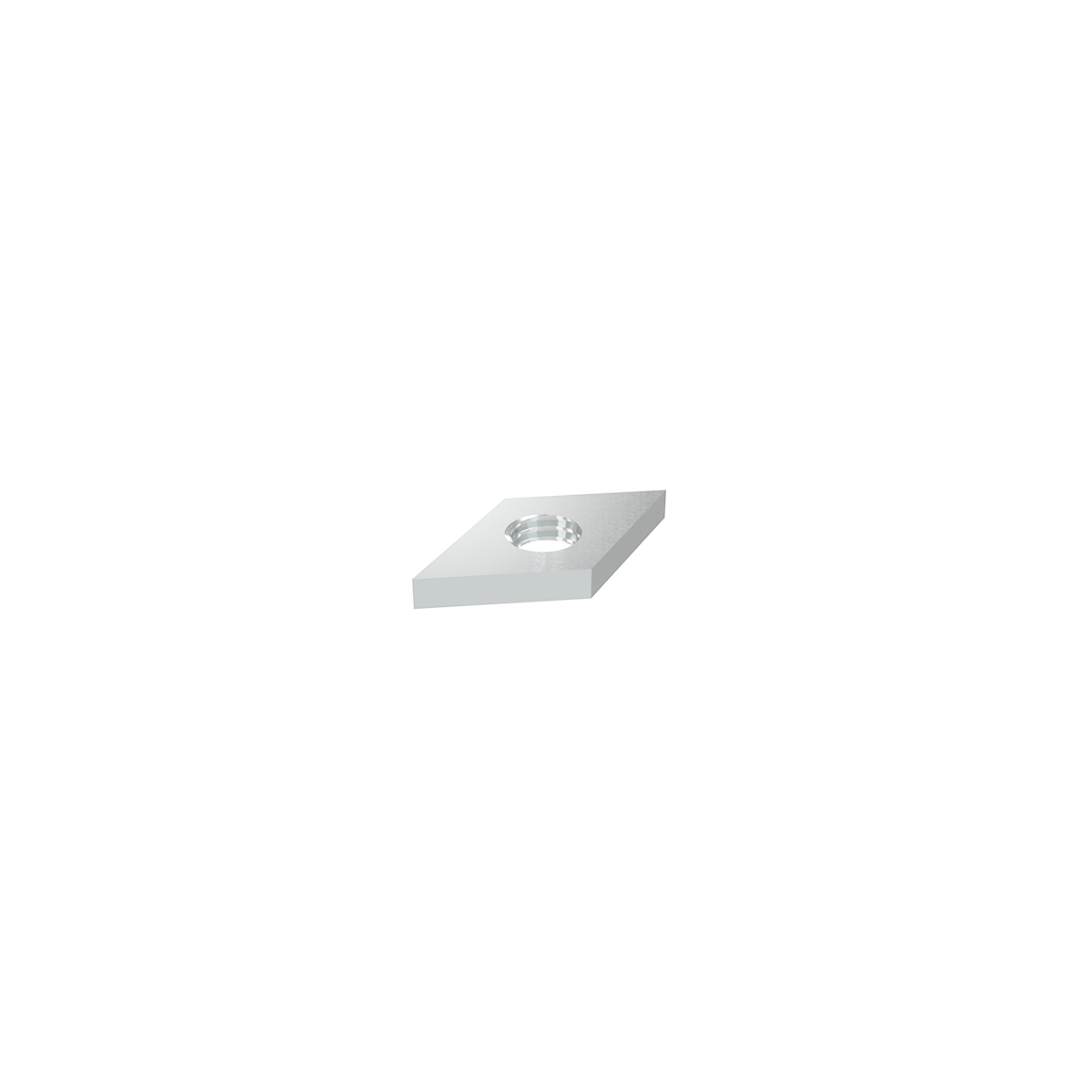

7. Diamond-Shaped Nut	8700 9224 0011	Weight: 0.01 kg/piece

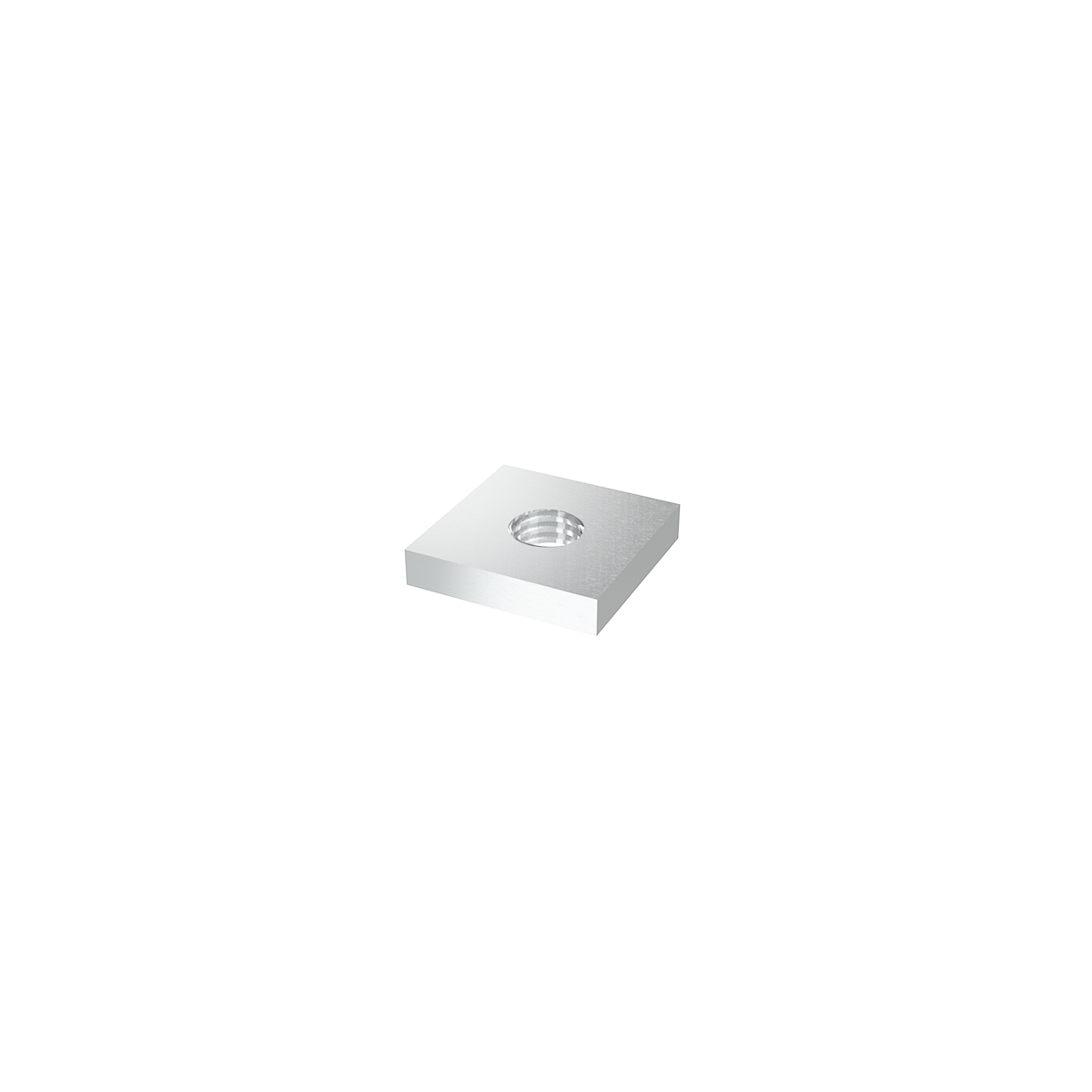

8. Square Channel Nut	8055 9224 0007	Weight: 0.02 kg/piece
9. Ball Raced Runner	8050 0205 008#	With swivel hook • 8 kg capacity • Weight: 0.03 kg/piece

10. Glider	8067 0195 0007	With swivel hook • SWL: 6 kg • Weight: 0.17 kg/pc
11. Ball Raced Master Carrier	8050 0221 016#	With 1 S-hook • 15 kg capacity • Weight: 0.05 kg/piece

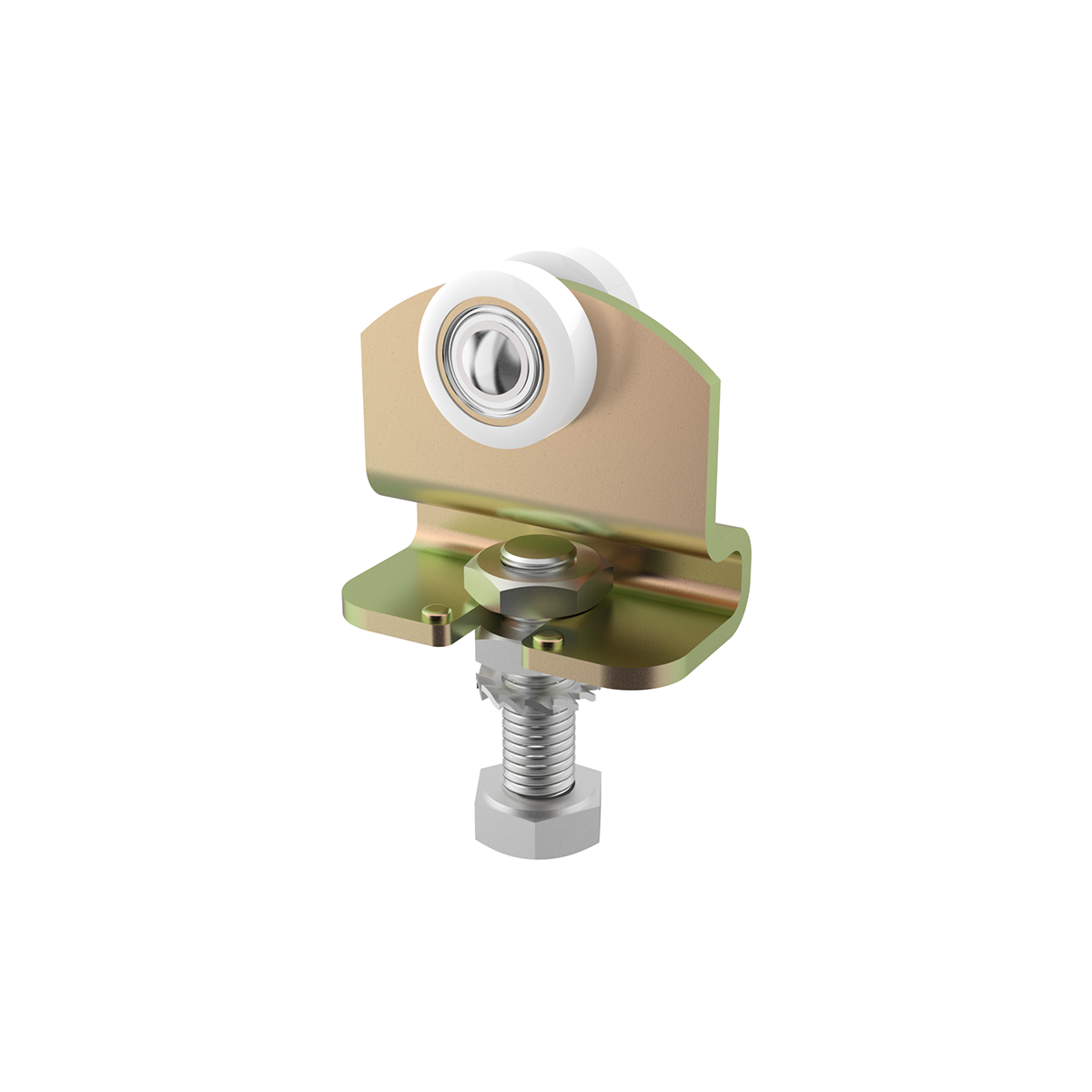

12. Scenery Carrier	8055 0230 0002	60 kg capacity • Weight: 0.11 kg/piece
13. Master Carrier with Brake	8050 0221 0197	15 kg capacity • Weight: 0.22 kg/piece
14. Short Overlap Carrier	8050 0245 0057	With 2 S-hooks • Weight: 0.09 kg/piece

15. Overlap Carrier Set	8050 0246 0167	Set of 2 pieces • With 4 S-hooks • Weight: 0.82 kg/set
16. Master Carrier for Motor Control	8050 0228 0163	With 1 S-hook • Weight: 0.116 kg/piece
	8050 0228 0167	With 1 S-hook • Weight: 0.116 kg/piece
17. Short Overlap Carrier for Motor Control	8050 0245 1057	Weight: 0.09 kg/piece • with 2 S-hooks
18. Overlap Carrier Set for Motor Control	8050 0246 1167	Set of 2 pieces • Weight: 0.82 kg/set • with 4 S-hooks



19. Head Pulley	8050 0400 0047	Weight: 1.65 kg/piece
20. Return Pulley	8050 0410 0047	Weight: 0.95 kg/piece

21. Weighted Return Pulley	8050 0415 0077	Weight: 5.50 kg/piece
	8050 0415 0097	Weight: 10.50 kg/piece
22. Floor Fixed Return Pulley	8050 0420 0007	Weight: 3.38 kg/piece

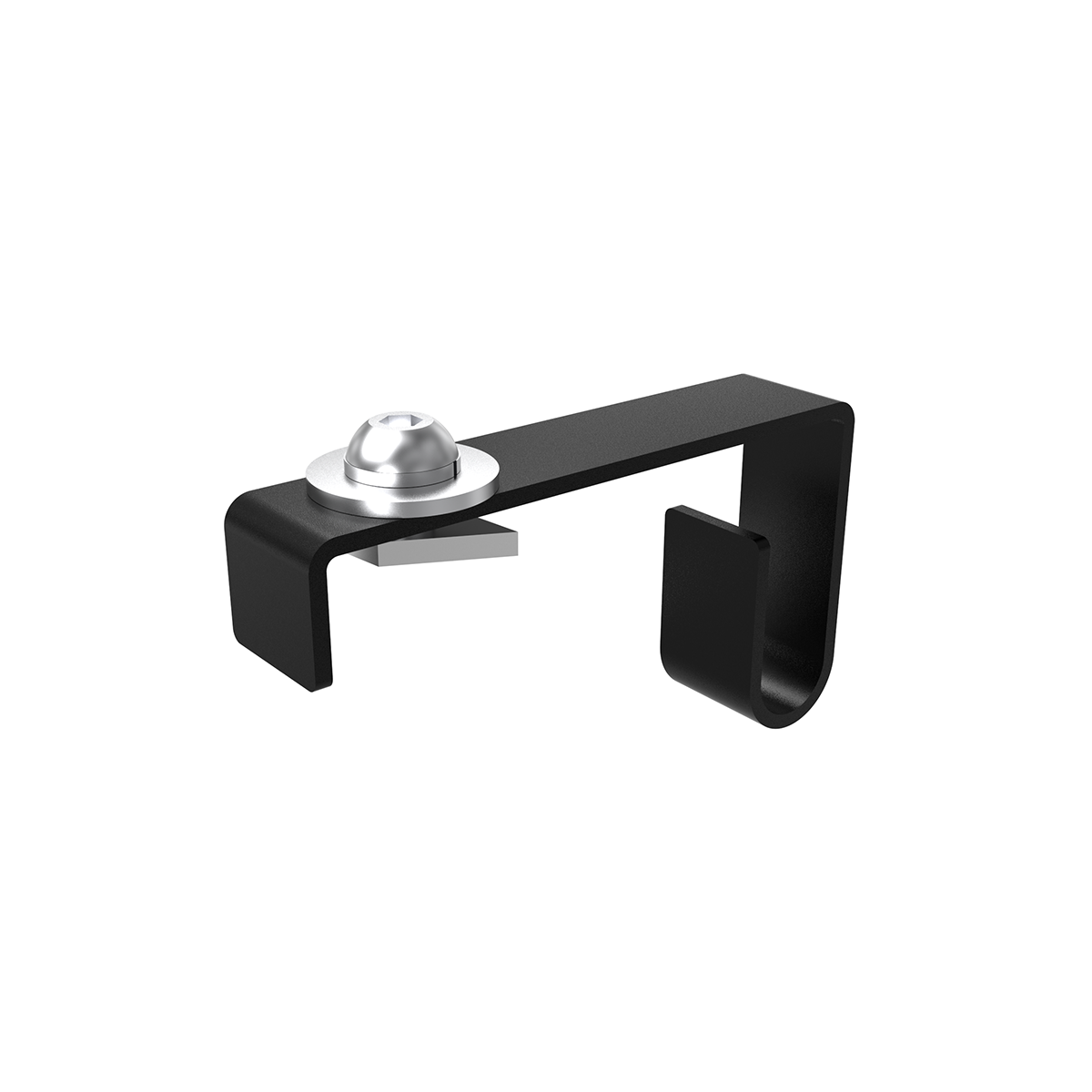

23. Line Pickup	8055 0694 0007	Weight: 0.2 kg/piece
24. Double Braided Rope (Ø8 mm)	7530 0308 1007	Weight: 0.04 kg/meter
25. Rope Clamp (set of 3)	8050 0248 0035	Weight: 0.035 kg/piece


26. Limit Switch Set	8050 0770 0010	Weight: 0.226 kg/set
27. RopeAssist	8050 0425 0107	Weight: 6.54 kg/piece
