ShowPipe

Technical Data Sheet

1 Info

The ShowPipe is a sturdier, anodized extruded aluminum version of the H100 track.

Specifications:

  • The ShowPipe is a black anodized extruded aluminum track based on the geometry of the H100.
  • The track profile can easily slide into our Ø 50mm aluminium construction tubes
  • Rails are available in straight or curved lengths, with curves starting from a 450 mm radius.
  • A ShowPipe rail system can be operated manually by walking along the curtain, by manual rope operation or with a motor.
  • Different types of Runners are available to answer a broad range of needs, including Gliders, ball-raced Runners and Master Carriers with Overlap Arms.

2 Load Capacity of the Track

L Point load
1 m 135 kg
2 m 68 kg
3 m 49 kg
L Uniformly distributed load Total resulting load
1 m 210 kg/m 210 kg
2 m 60 kg/m 120 kg
3 m 30 kg/m 90 kg

The distance between two suspension points should never exceed 3 m. We recommend suspension points every 1 to 1.5 m.

The stated load capacities apply to the rail only. The load-bearing capacity of the carrying construction (ceiling/truss/…) and all individual mounting accessories must be taken into account as well.

Load capacities have been calculated using Safety Factor 2. Apply the required Safety factor according to the standards pertaining to your application.

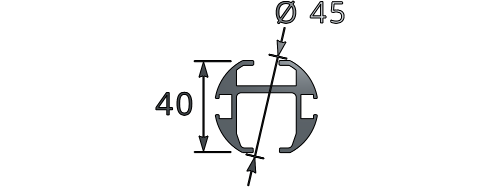

3 Track Dimensions

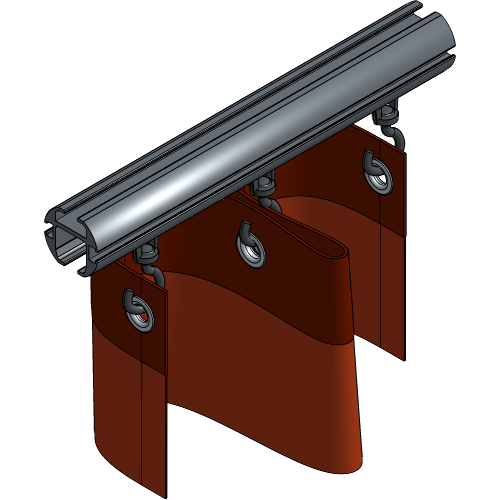

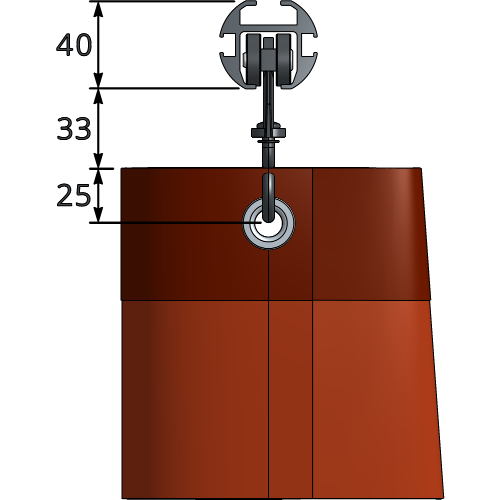

4 Track with Runners and Curtain

5 Components

Track

Track

Track

Article number Weight Length Colour
8055 0001 6007 1.31 kg/m 6.00 m Black

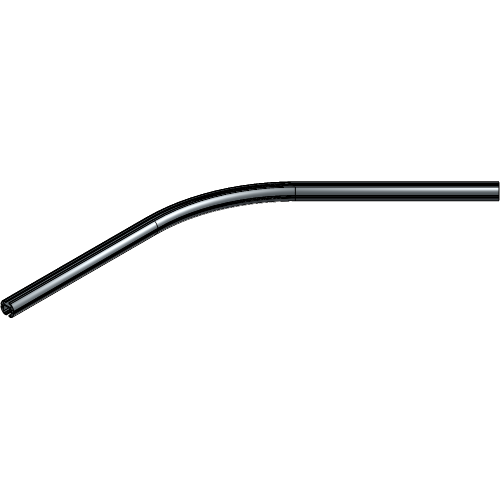

Curved Track 45°

Curved Track 45°

Article number Weight Radius Colour
8055 0004 0757 1.31 kg/m 0.75 m Black
8055 0004 1007 1.31 kg/m 1.00 m Black

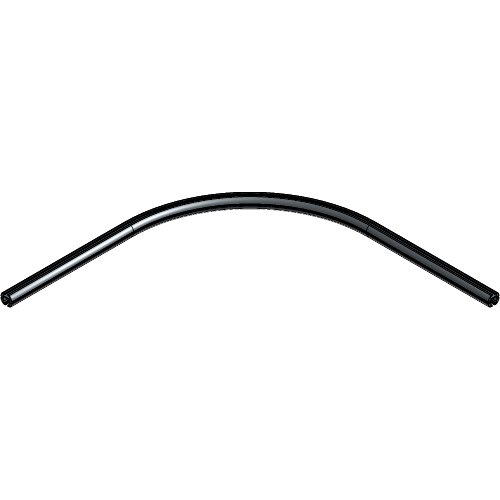

Curved Track 90° - Radius 50 cm

Curved Track 90° - Radius 50 cm

Article number Weight Radius Colour
8055 0007 0507 1.31 kg/m 0.50 m Black
8055 0007 0757 1.31 kg/m 0.75 m Black
8055 0007 1007 1.31 kg/m 1.00 m Black

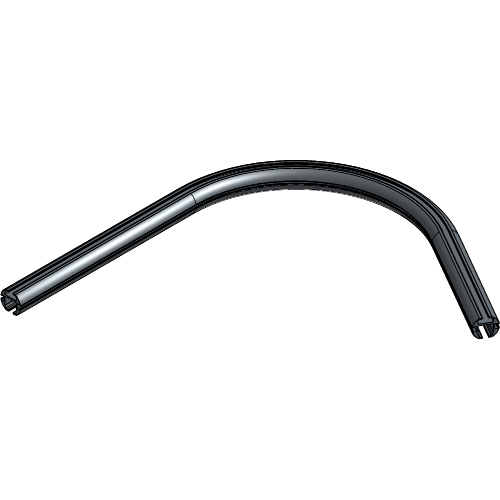

Custom-Made Track

Custom-Made Track

Article number Weight Colour
8055 0007 0007 1.31 kg/m Black
Joint set

Joint set

Article number Weight Colour
8055 0042 1507 0.11 kg Black

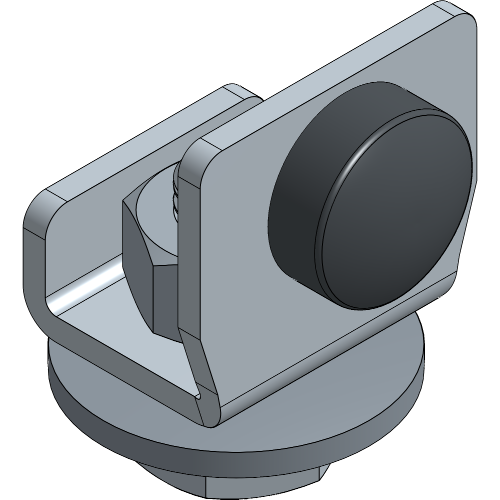

End Stop

End Stop

Article number Weight Colour
8050 0050 0001 0.03 kg Galvanised

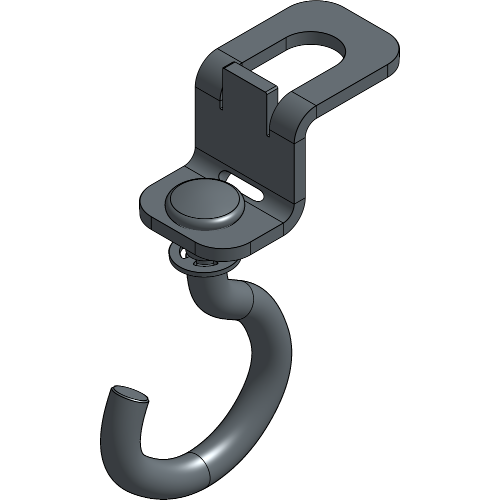

End Stop Swivel Hook Add-On

End Stop Swivel Hook Add-On

Article number Weight Colour
8050 0050 0017 0.02 kg Black
8050 0050 0011 0.02 kg Galvanized

Suspension

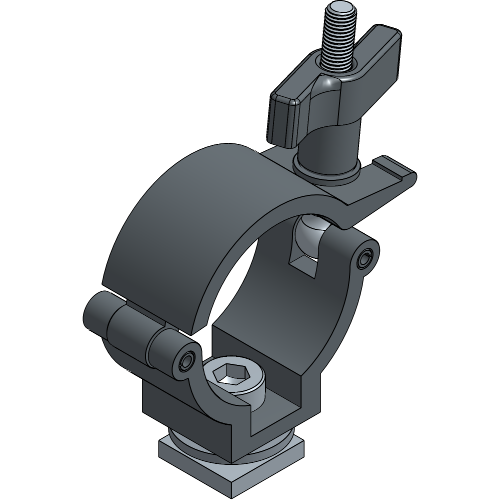

Half Coupler Clamp

Half Coupler Clamp

Article number Weight WLL SF Colour
8055 0680 0757 0.40 kg 100.00 kg 2:1 Black

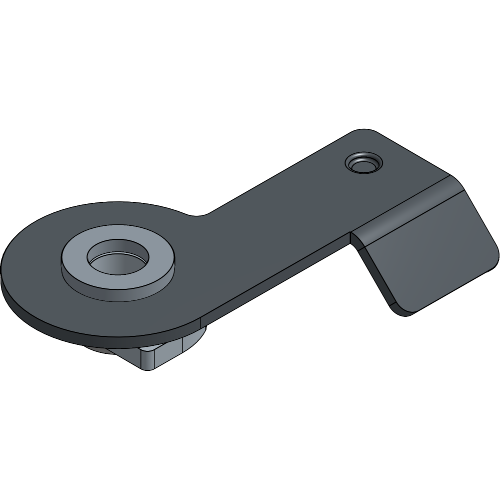

Hidden Ceiling Bracket

Hidden Ceiling Bracket

Article number Weight WLL SF Colour
8055 0110 0027 0.02 kg 40.00 kg 2:1 Black

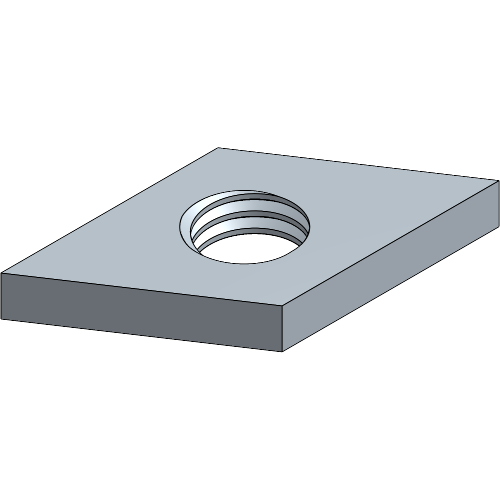

Diamond Shaped Channel Nut M10

Diamond Shaped Channel Nut M10

Article number Weight Colour
8700 9224 0011 0.01 kg Galvanised

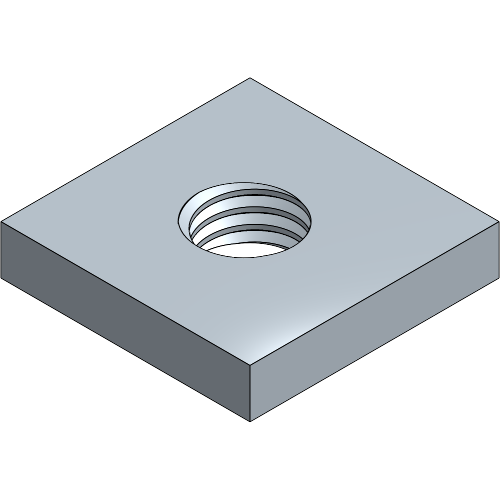

Square Shaped Channel Nut M10

Square Shaped Channel Nut M10

Article number Weight Colour
8055 9224 0007 0.02 kg Galvanised

Runners

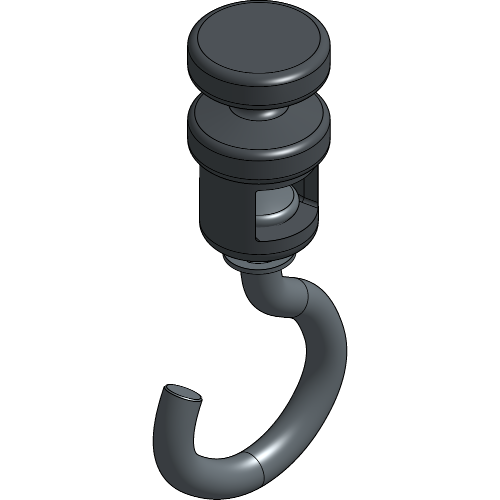

Glider

Glider

Article number Weight WLL SF Colour
8067 0195 0007 0.03 kg 6.00 kg 2:1 Black

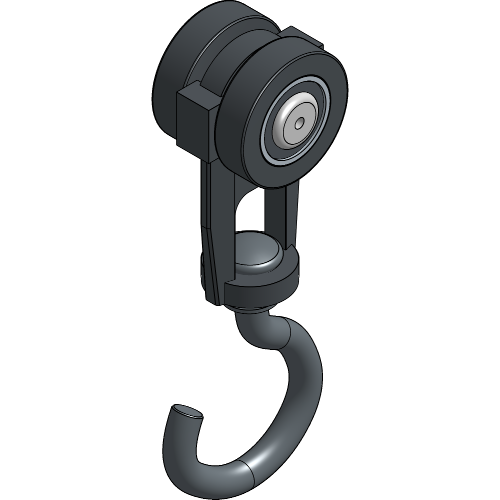

Runner

Runner

Article number Weight WLL SF Min. Rad. Colour
8050 0205 0087 0.02 kg 8.00 kg 2:1 205 mm Black
8050 0205 0083 0.02 kg 8.00 kg 2:1 205 mm White

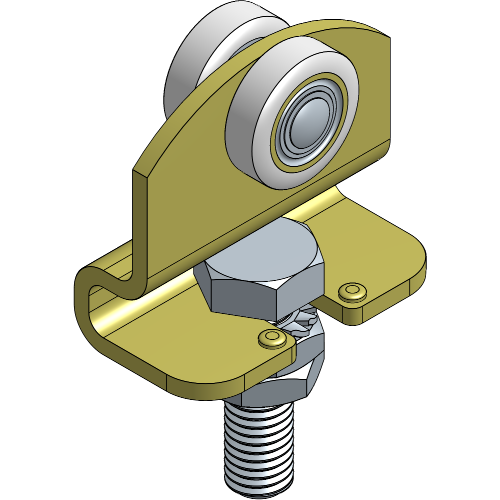

Scenery Carrier

Scenery Carrier

Article number Weight WLL SF Min. Rad. Colour
8055 0230 0002 0.11 kg 60.00 kg 2:1 205 mm Galvanised

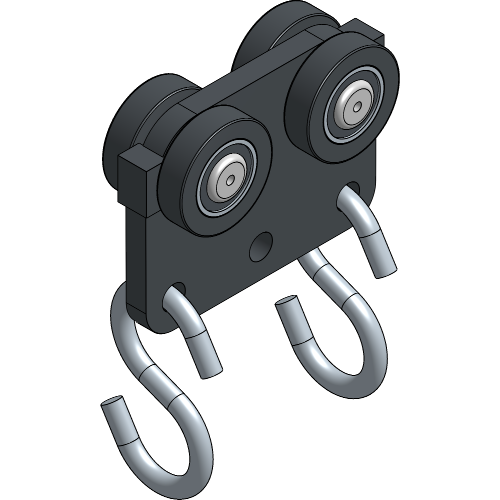

Master Carrier

Master Carrier

Article number Weight WLL SF Min. Rad. Colour
8050 0221 0167 0.05 kg 15.00 kg 2:1 205 mm Black
8050 0221 0163 0.05 kg 15.00 kg 2:1 205 mm White

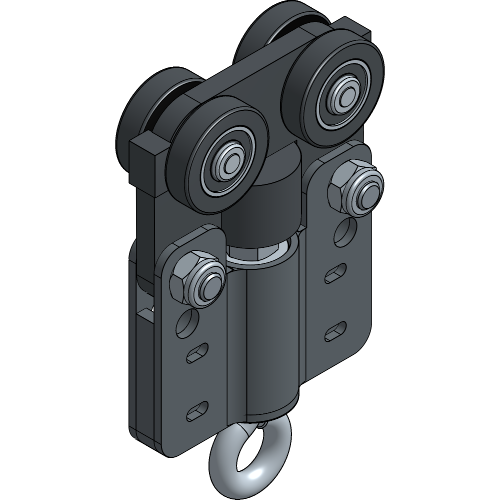

Master Carrier with Brake

Master Carrier with Brake

Article number Weight WLL SF Min. Rad. Colour
8050 0221 0197 0.10 kg 15.00 kg 2:1 205 mm Black
8050 0221 0193 0.10 kg 15.00 kg 2:1 205 mm White

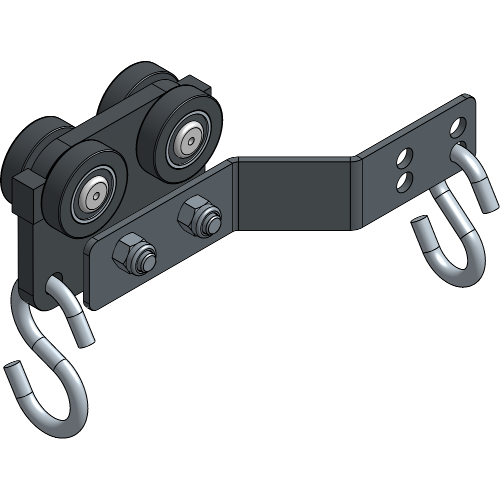

Short Overlap Master Carrier

Short Overlap Master Carrier

Article number Weight WLL SF Min. Rad. Colour
8050 0245 0057 0.14 kg 15.00 kg 2:1 205 mm Black
8050 0245 0053 0.14 kg 15.00 kg 2:1 205 mm White

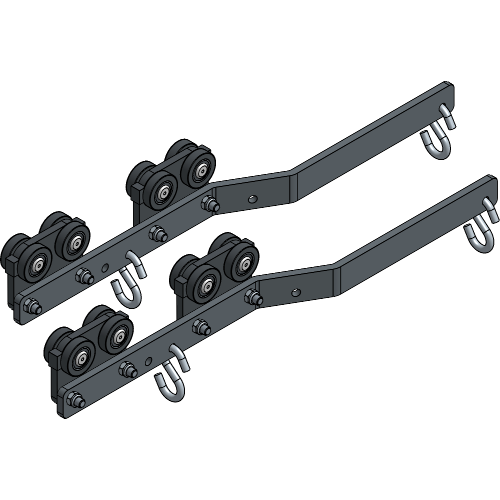

Overlap Master Carrier set

Overlap Master Carrier set

Article number Weight WLL SF Min. Rad. Colour
8050 0246 0167 0.79 kg 15.00 kg 2:1 2000 mm Black
8050 0246 0163 0.79 kg 15.00 kg 2:1 2000 mm White

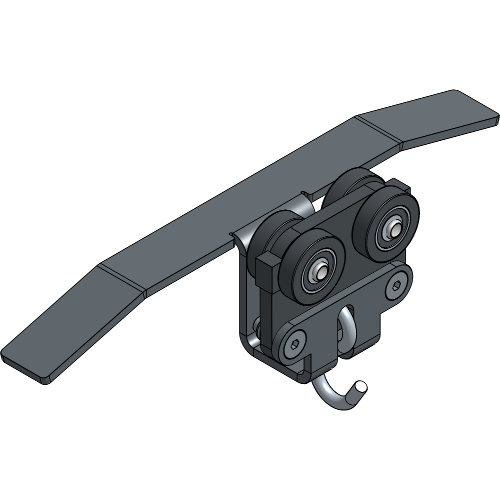

Master Carrier with Ski

Master Carrier with Ski

Article number Weight WLL SF Min. Rad. Colour
8050 0228 0167 0.12 kg 15.00 kg 2:1 205 mm Black
8050 0228 0163 0.12 kg 15.00 kg 2:1 205 mm White

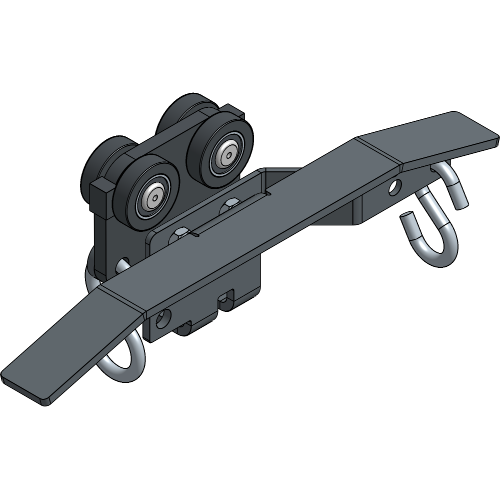

Short Overlap Master Carrier with Ski

Short Overlap Master Carrier with Ski

Article number Weight WLL SF Min. Rad. Colour
8050 0245 1057 0.20 kg 15.00 kg 2:1 205 mm Black
8050 0245 1053 0.20 kg 15.00 kg 2:1 205 mm White

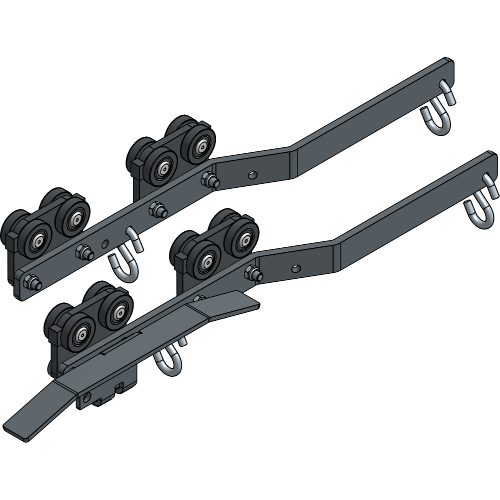

Overlap Master Carrier set with Ski

Overlap Master Carrier set with Ski

Article number Weight WLL SF Min. Rad. Colour
8050 0246 1167 0.90 kg 15.00 kg 2:1 2000 mm Black
8050 0246 1163 0.90 kg 15.00 kg 2:1 2000 mm White

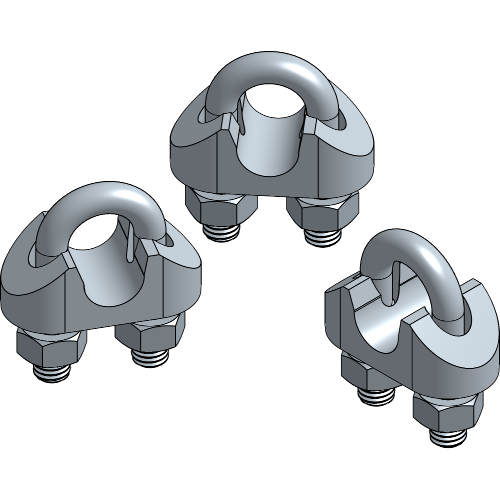

Rope Clamp set

Rope Clamp set

Article number Weight Colour
8050 0248 0035 0.01 kg Galvanised

Operation

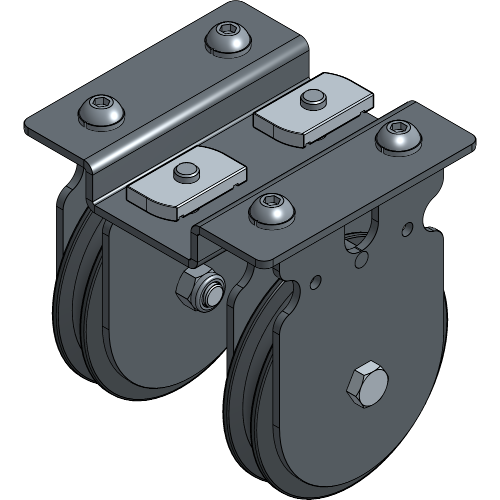

Head Pulley

Head Pulley

Article number Weight Colour
8050 0400 0047 1.50 kg Black
Return Pulley

Return Pulley

Article number Weight Colour
8050 0410 0047 1.50 kg Black

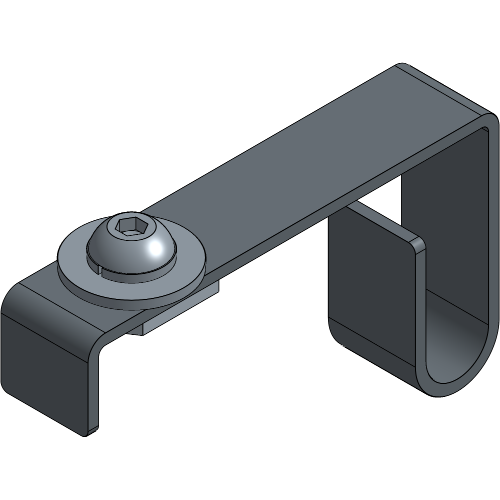

Rope Pickup

Rope Pickup

Article number Weight Colour
8055 0694 0007 0.20 kg Black

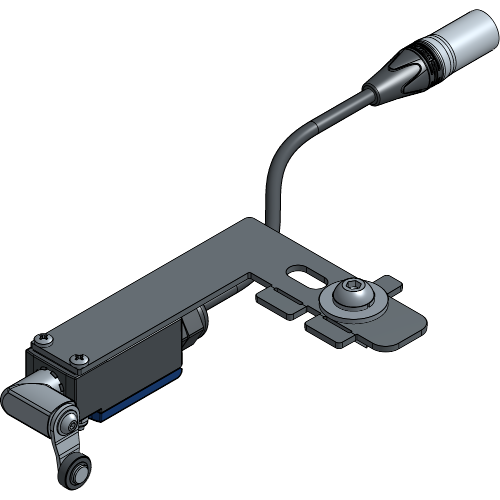

Limit Switch set

Limit Switch set

Article number Weight Colour
8050 0770 0010 0.27 kg Black

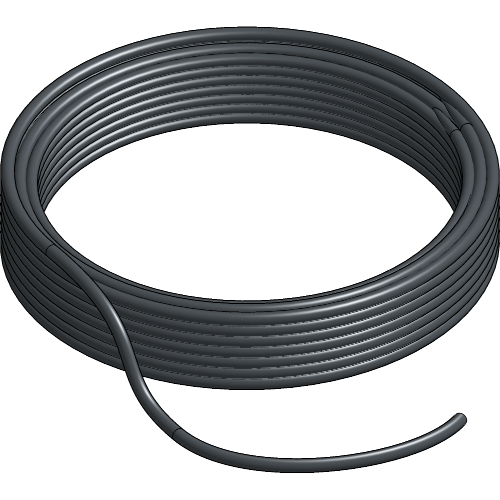

Double Braided Rope

Double Braided Rope

Article number Weight Length ⌀ Colour
7530 0308 1007 5.04 kg 100.00 m 8 mm Black
7530 1308 0027 5.04 kg 100.00 m 8 mm Black/Green/Orange
Double Braided Rope

Double Braided Rope

Article number Weight ⌀ Colour
7530 1308 0017 0.04 kg/m 8 mm Black
7530 1308 5027 0.04 kg/m 8 mm Black/Green/Orange
Weighted Return Pulley

Weighted Return Pulley

Article number Weight Colour
8050 0415 0077 5.50 kg Black
8050 0415 0097 10.50 kg Black
Floor Fixed Return Pulley

Floor Fixed Return Pulley

Article number Weight Colour
8050 0420 0007 3.38 kg Black

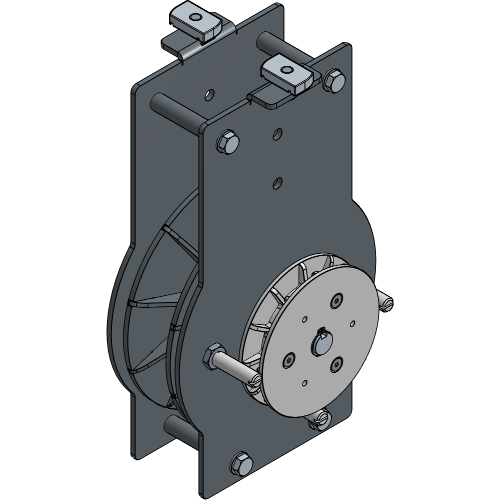

RopeAssist

RopeAssist

Article number Weight Colour
8050 0425 0107 6.54 kg Black

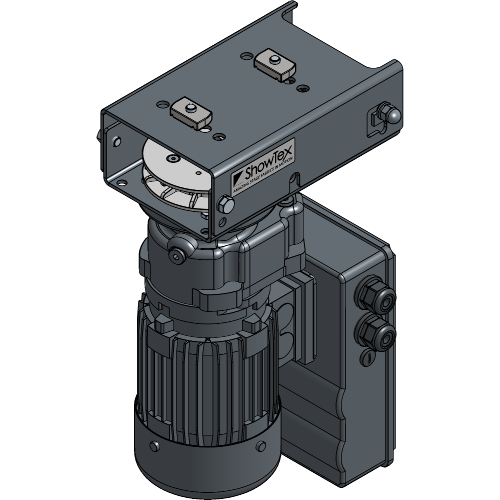

Rope Drive Lite

Rope Drive Lite

Article number Weight Torque Speed Colour
8050 0713 1107 15.75 kg 16 Nm 108 rpm Black

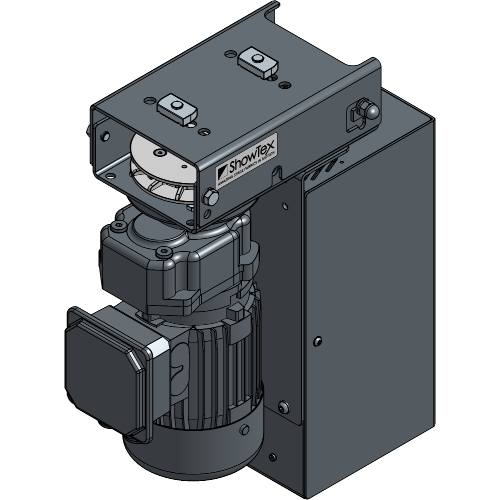

Rope Drive Standard

Rope Drive Standard

Article number Weight Torque Speed Colour
8050 0713 1507 19.50 kg 12 Nm 101 rpm Black
8050 0713 1707 19.50 kg 24 Nm 48 rpm Black
8050 0713 2307 19.50 kg 54 Nm 22 rpm Black

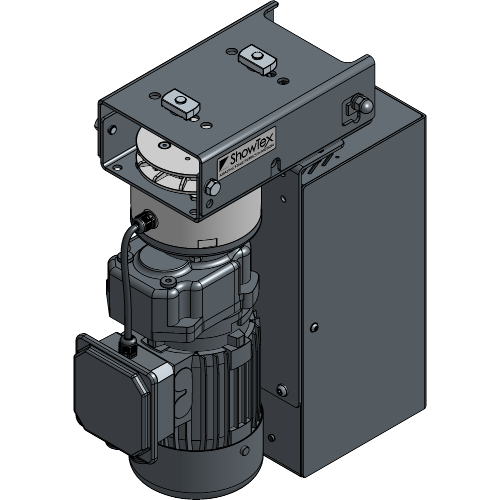

Rope Drive Decoupler

Rope Drive Decoupler

Article number Weight Torque Speed Colour
8050 0713 1557 20.00 kg 12 Nm 101 rpm Black
