OrientTrack

Meet the most versatile track of all. The elegant OrientTrack combines the size of its smaller brothers with the sophisticated features of the big guys. And above all, it's super smooth, reliable and silent.

Choose between slim (internal) gliders for straight tracks or sturdy 2-wheel runners (external) for straight or curved tracks.
Both manual and motor control possible for all setups
A small bendable radius allows for custom curves

OrientTrack comes with many types of curtain attachments to cover all your needs: master carriers, master gliders, ball raced runner, gliders, overlap carriers. All developed to operate as smooth and silent as possible. There's even a special acoustic runner available which hides the track and prevents an air gap between your acoustic drape and the ceiling.

The all-round OrientTrack suspension system is perfect to use on stage, in TV studios, smaller theatres and architectural installations, as well as for complex track systems with custom curves.

OrientTrack is compatible with our range of Rope Drive motors.

VIEW ALL CURTAIN TRACKS

TECHNICAL DATA - ORIENT TRACK - CURTAIN TRACK

إكسسوارات	كود المقال	معلومات

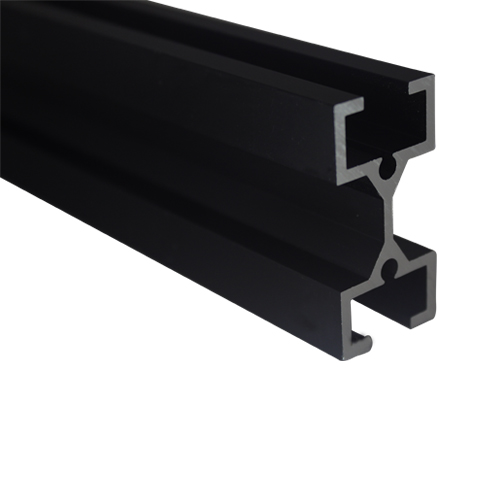

01. Track	8067 0001 6007	Weight: 0.98 kg/m • Length: 6.00 m • Black
02. Curved Track 90°	8067 0007 0357	Weight: 0.98 kg/m • Radius: 0.35 m • Black

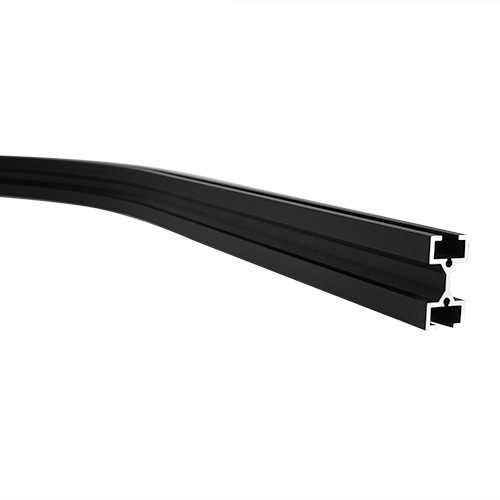

	8067 0007 0507	Weight: 0.98 kg/m • Radius: 0.50 m • Black
	8067 0007 1007	Weight: 0.98 kg/m • Radius: 1.00 m • Black

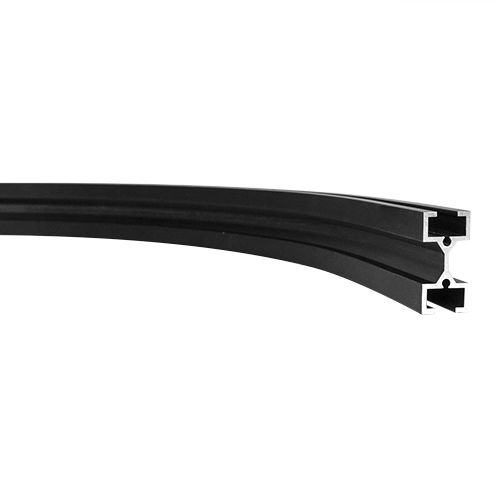

03. Custom-Made Track	8067 0007 0027	Weight: 0.98 kg/m • Custom-made • Black

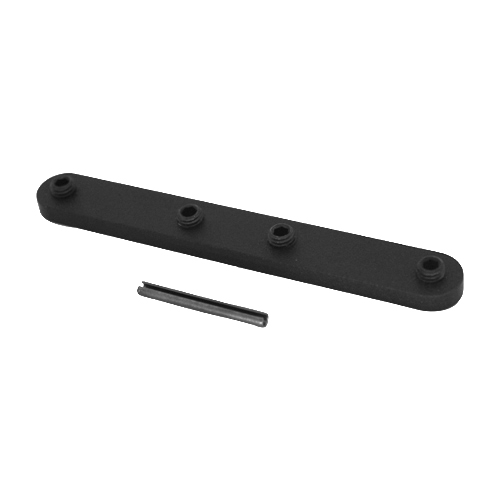

04. Joint set for Gliders	8067 0040 0017	Weight: 0.12 kg • Set of 2 pieces • Black

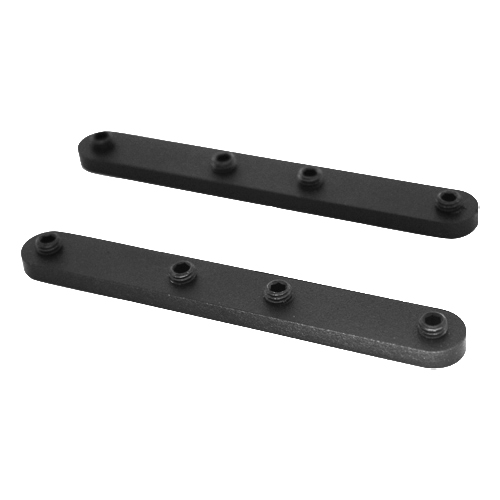

05. Joint set for Runners	8067 0040 0007	Weight: 0.20 kg • Set of 2 pieces • Black

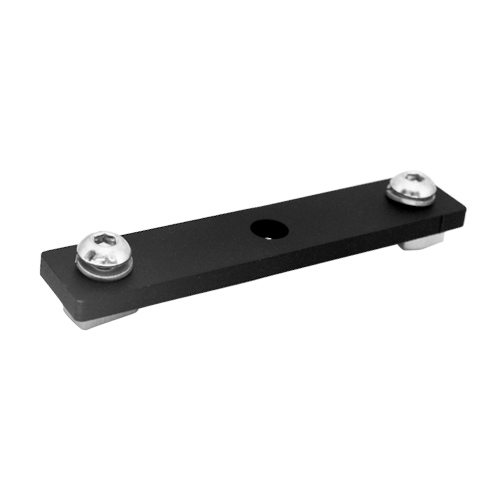

06. Overlap Clip	8067 0696 0007	Weight: 0.41 kg • For Double Track • Black

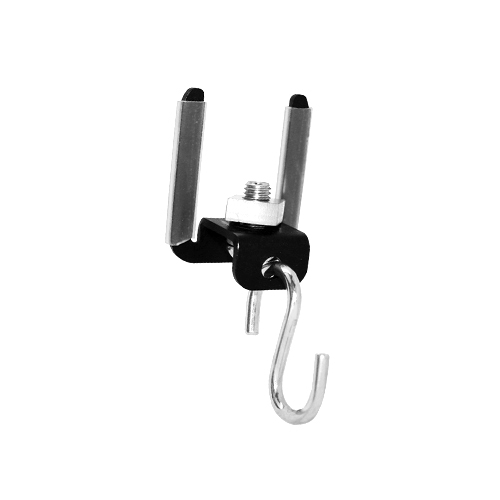

07. End Stop	8067 0050 0007	Weight: 0.06 kg • With S-Hook • Black

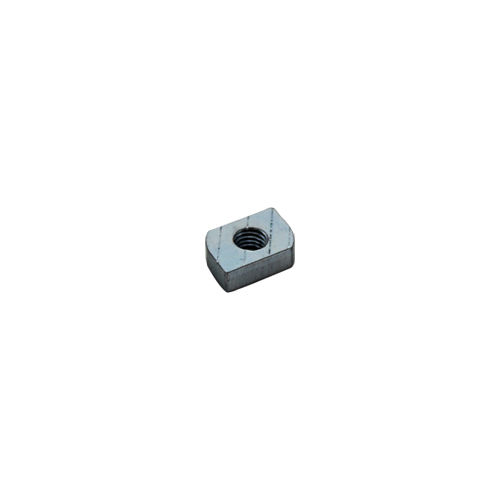

08. Channel Nut M8	8067 9224 0001	Weight: 0.01 kg • Galvanised
09. Channel Nut M10	8700 9224 0101	Weight: 0.03 kg • Galvanised

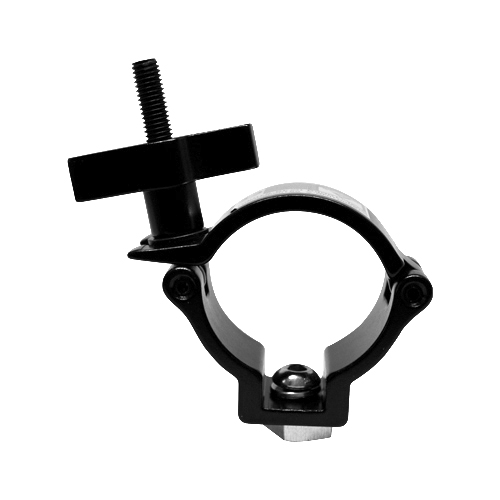

10. Half Coupler Clamp	8067 0680 0007	Weight: 0.20 kg • WLL: 100 kg SF: 2:1 • M8 • Black

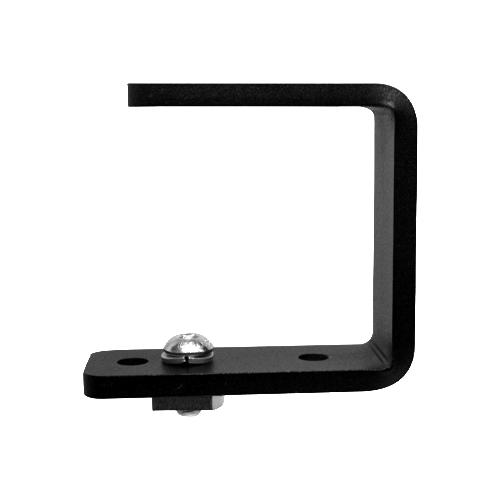

11. Suspension Bracket	8067 0550 0007	Weight: 0.32 kg • WLL: 60 kg SF: 2:1 • For Curved Track • Black

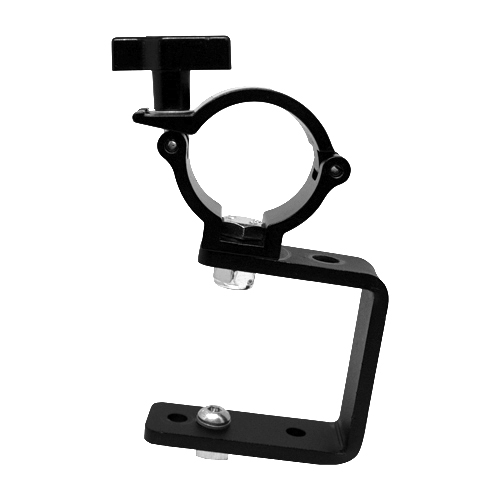

12. Suspension Bracket with Clamp	8067 0550 0017	Weight: 0.50 kg • WLL: 60 kg SF: 2:1 • For Curved Track • Black

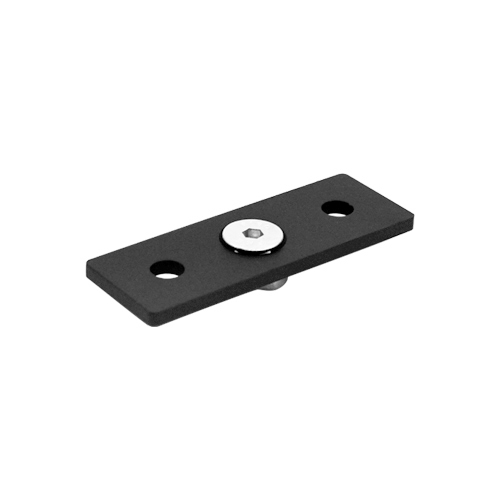

13. Ceiling Bracket	8067 0110 0007	Weight: 0.09 kg • WLL: 100 kg SF: 2:1 • Black

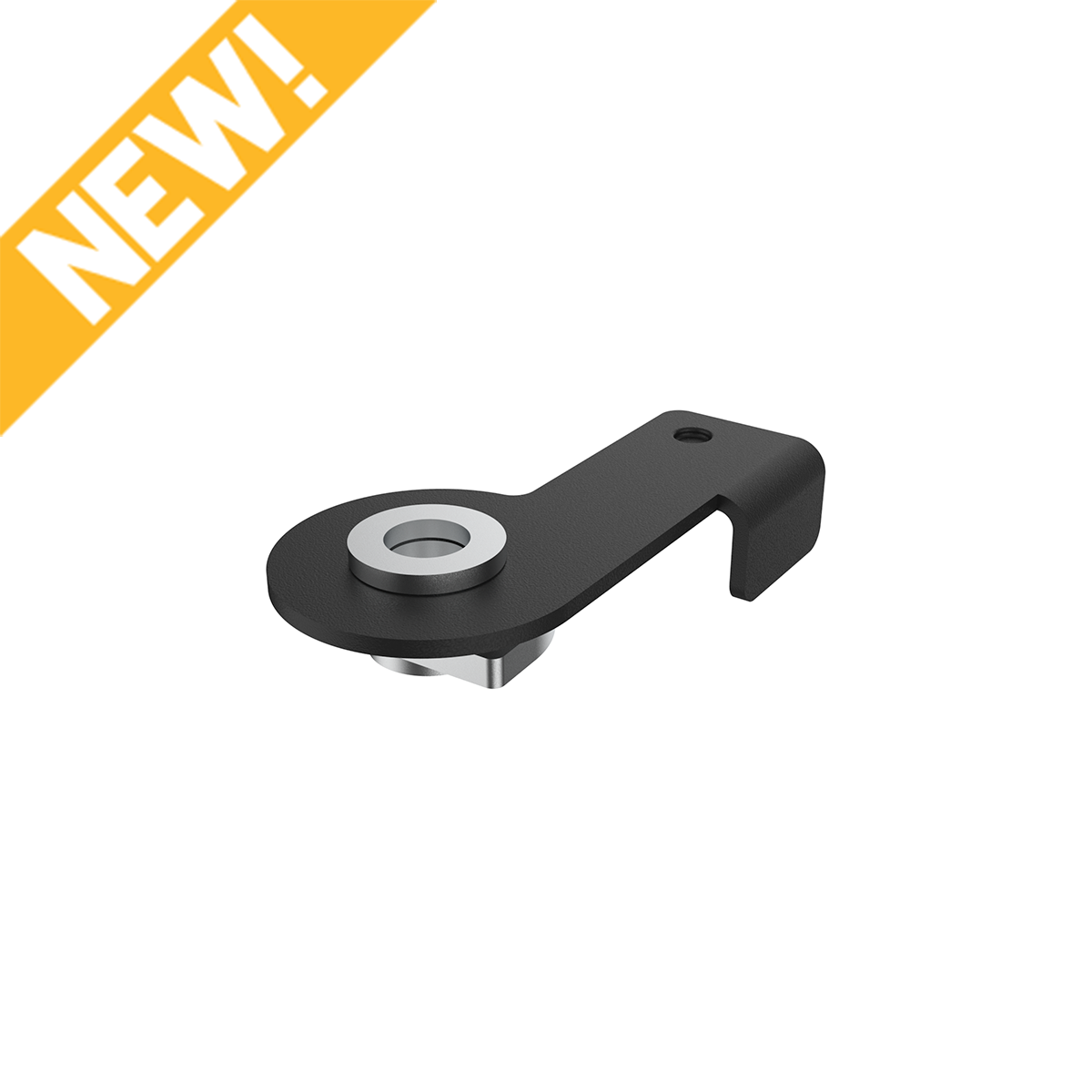

14. Hidden Ceiling Bracket	8067 0110 0017	Weight: 0.02 kg • WLL: 75 kg SF: 2:1 • Black

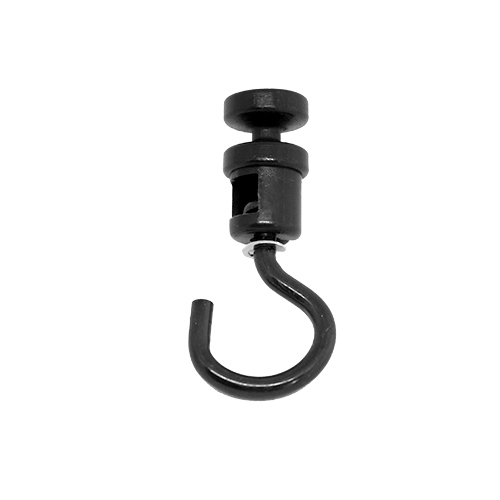

15. Glider	8067 0195 0007	Weight: 0.03 kg • WLL: 6 kg SF: 2:1 • Black

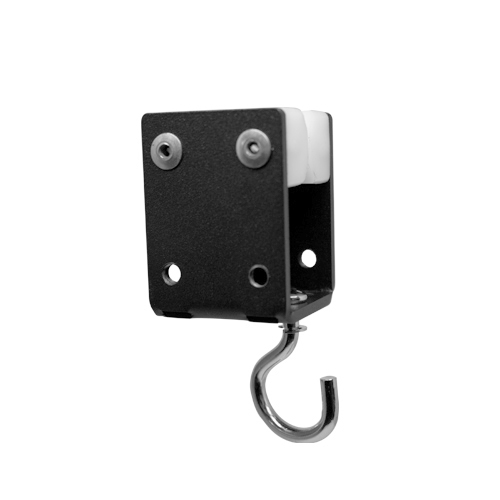

16. Master Glider	8067 0220 0007	Weight: 0.17 kg • WLL: 8 kg SF: 2:1 • Black

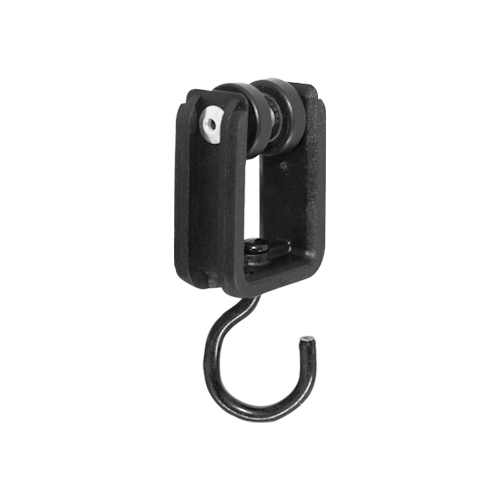

17. Runner	8067 0205 0007	Weight: 0.06 kg • Ball-raced • WLL: 8 kg SF: 2:1 • Black

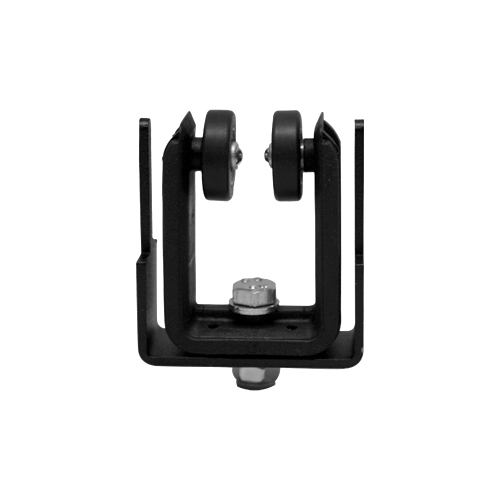

18. Runner with Acoustic Bracket	8067 0205 0097	Weight: 0.07 kg • Ball-raced • WLL: 8 kg SF: 2:1 • Black

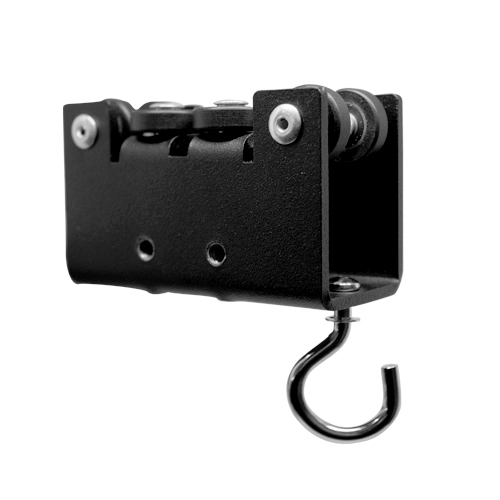

19. Master Carrier	8067 0221 0007	Weight: 0.41 kg • Ball-raced • WLL: 8 kg SF: 2:1 • Black

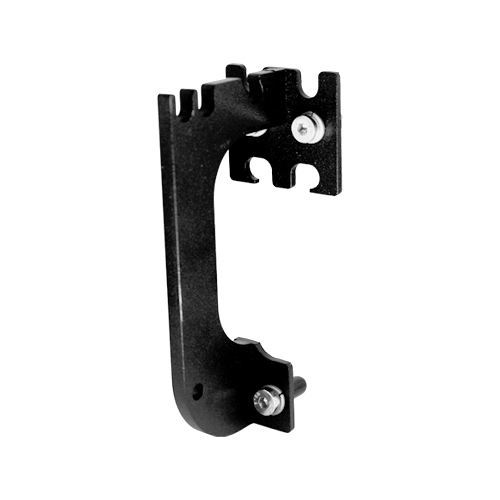

20. Master Carrier Arm	8067 0510 0507	Weight: 0.29 kg • For Curved Track • Black

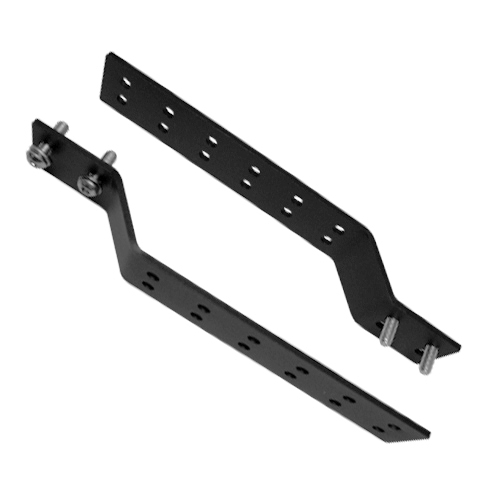

21. Overlap Arm set	8067 0240 0007	Weight: 0.34 kg • Set of 2 pieces • With 2 S-Hooks • Black

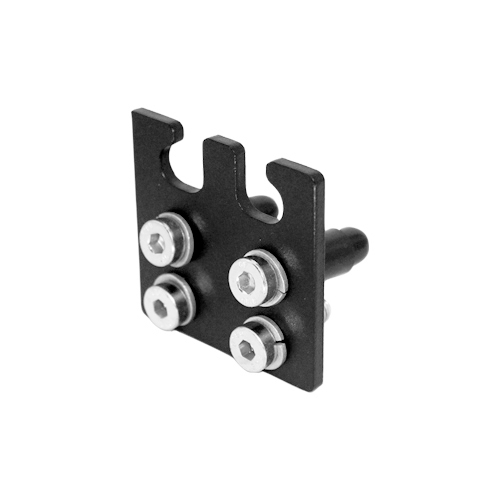

22. Rope Clamp	8067 0249 0007	Weight: 0.11 kg • For Single & Double Track • Black
23. Magnetic Carrier Bracket	8067 0224 0007	Weight: 0.32 kg • Black

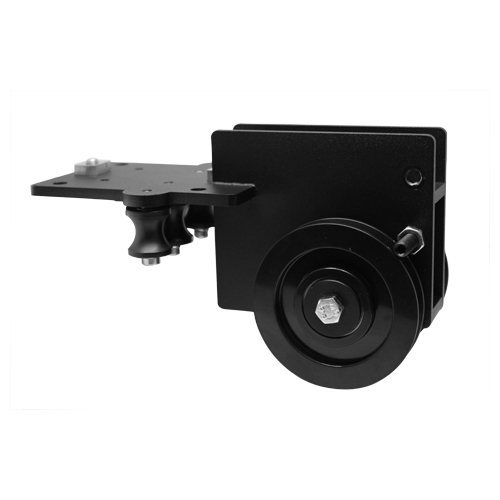

24. Head Pulley	8067 0400 0017	Weight: 2.42 kg • For Single & Double Track • Black

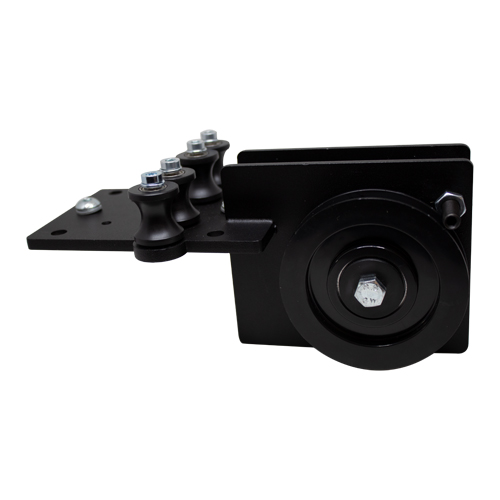

25. Head Pulley Curved Track	8067 0520 0037	Weight: 2.42 kg • For Curved Track • Black

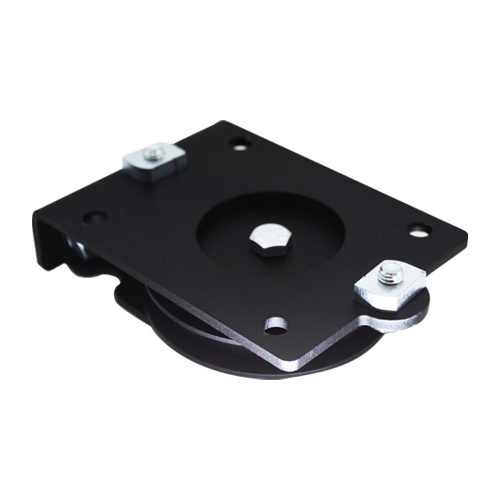

26. Return Pulley	8067 0410 0027	Weight: 1.17 kg • Black

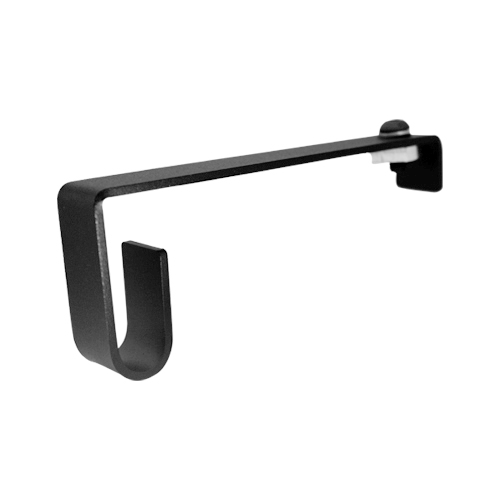

27. Rope Pickup	8067 0694 0007	Weight: 0.20 kg • For Double Track • Black

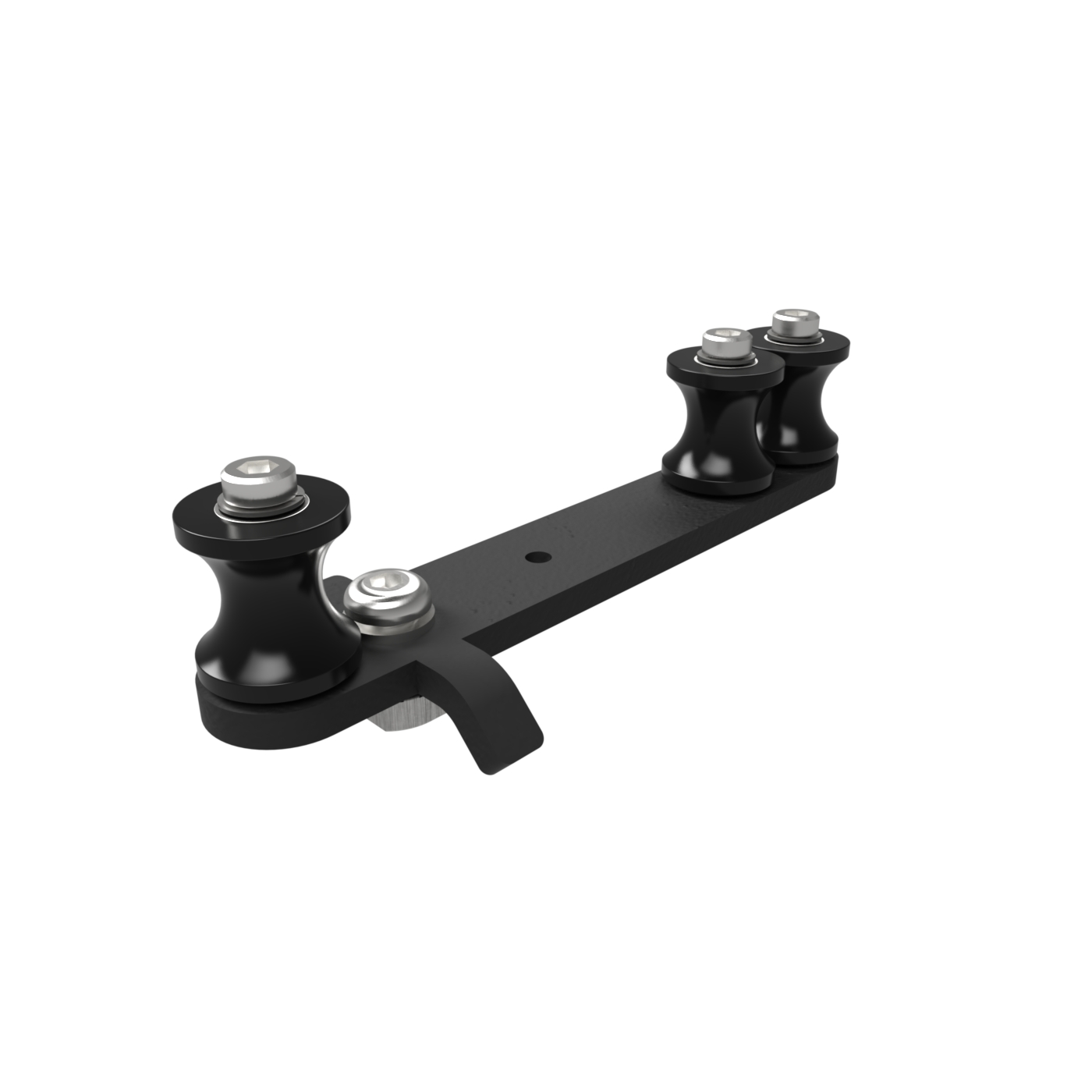

28. Rope Guide Curved Track	8067 0500 0007	Weight: 0.42 kg • For Curved Track • Black
29. Limit Switch set	8050 0770 0011	Weight: 0.27 kg • Set of 2 pieces • Black
30. Limit Switch Ski	8067 0770 0007	Weight: 0.18 kg • For motor operation • Black

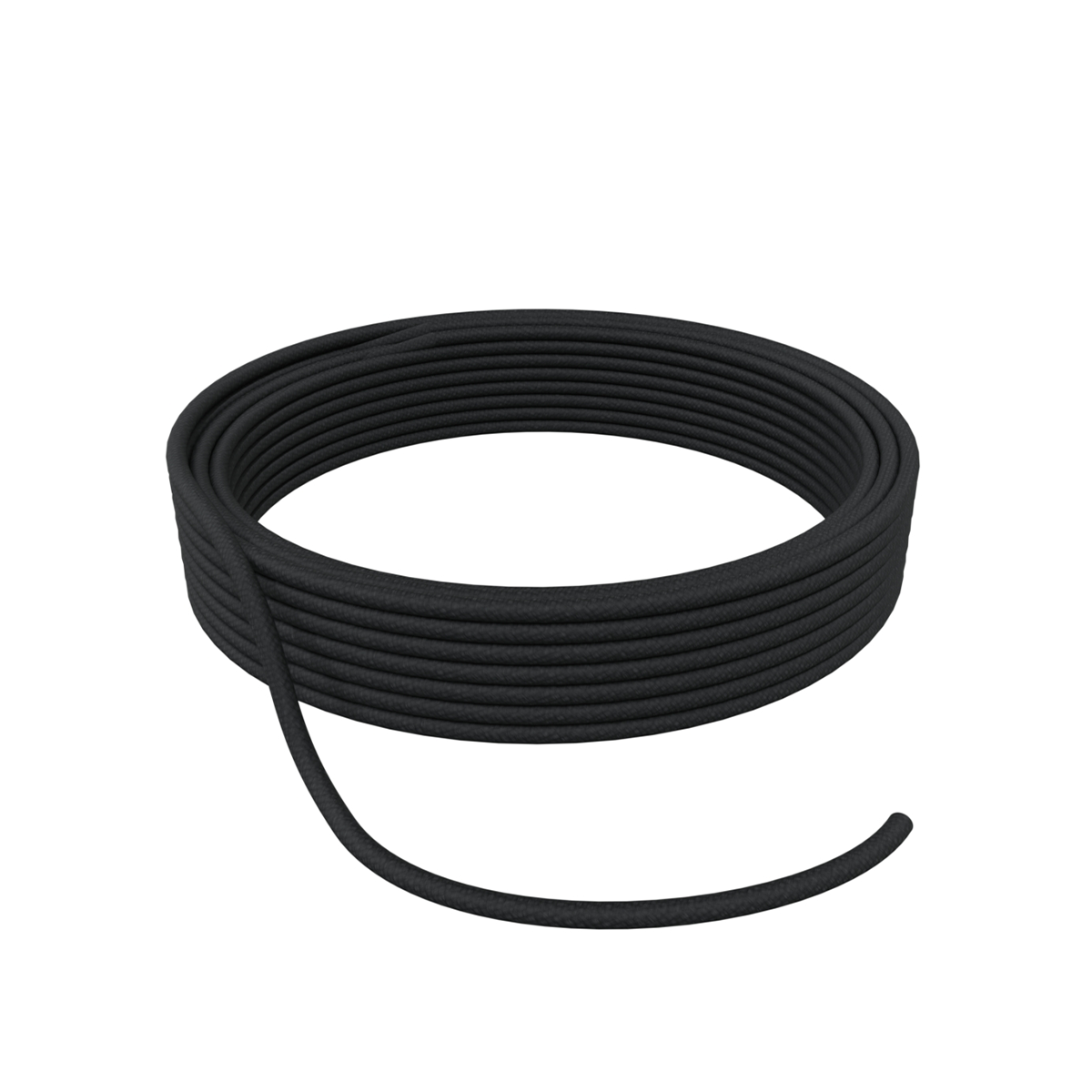

31. Double Braided Rope	7530 0308 1007	Weight: 5.04 kg • Length: 100.00 m • ⌀: 8 mm • Black
	7530 1308 0027	Weight: 5.04 kg • Length: 100.00 m • ⌀: 8 mm • Black / Green / Orange
32. Double Braided Rope	7530 1308 0017	Weight: 0.04 kg/m • Length: lm • ⌀: 8 mm • Black
	7530 1308 5027	Weight: 0.04 kg/m • Length: lm • ⌀: 8 mm • Black / Green / Orange

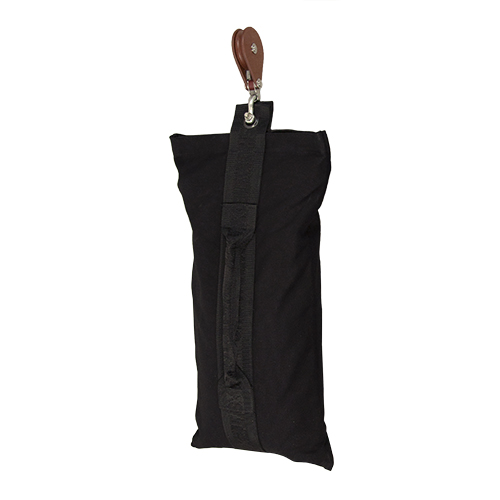

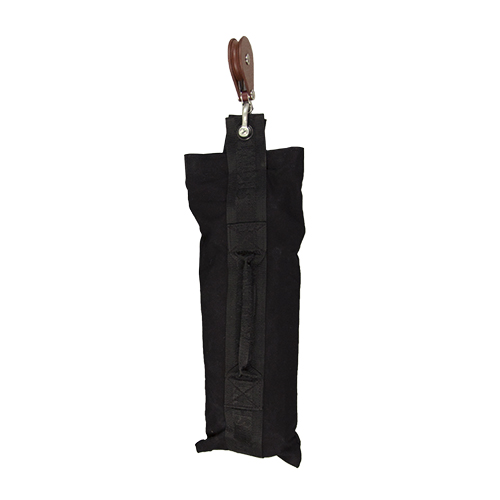

33. Weighted Return Pulley	8050 0415 0077	Weight: 5.50 kg • For rope operation • Black
	8050 0415 0097	Weight: 10.50 kg • For rope operation • Black
34. Floor Fixed Return Pulley	8050 0420 0007	Weight: 3.38 kg • For rope operation • Black
35. RopeAssist	8050 0425 0107	Weight: 6.54 kg • For comfortable rope operation • Black

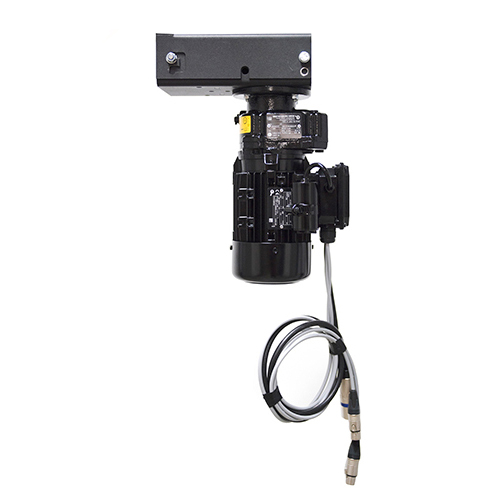

36. Rope Drive Lite	8050 0713 1107	Weight: 15.75 kg • 16 Nm • 108 rpm • Black

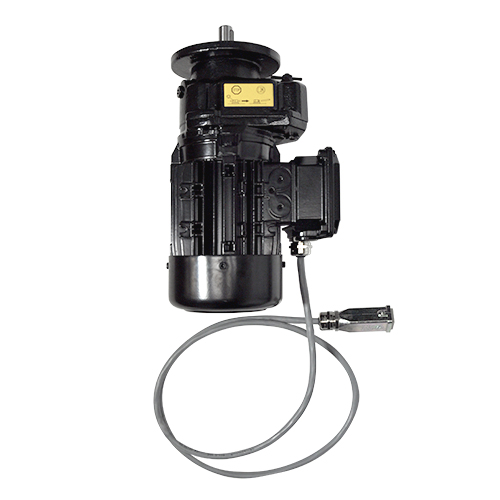

37. Rope Drive Standard	8050 0713 1507	Weight: 19.50 kg • 12 Nm • 101 rpm • Black
	8050 0713 1707	Weight: 19.50 kg • 24 Nm • 48 rpm • Black
	8050 0713 2307	Weight: 19.50 kg • 54 Nm • 22 rpm • Black
38. Rope Drive Decoupler	8050 0713 1557	Weight: 20.00 kg • 12 Nm • 101 rpm • Black
