OrientTrack

Technical Data Sheet

1 Info

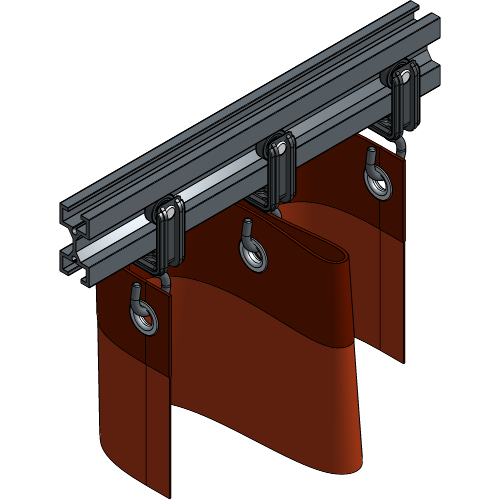

The OrientTrack is a mid-range track system for curtains and acoustic solutions with all features of the ShowTrack, but half the size!

Specifications:

  • The OrientTrack is a solid extruded aluminium track that guarantees a silent glide.
  • Rails are available in straight or curved lengths, with curves starting from a 350 mm radius.
  • An OrientTrack rail system can be operated manually by walking along the curtain, by manual rope operation or with a motor.
  • Different types of Runners are available to answer a broad range of needs, including ball-raced Runners, Gliders and Master Carriers with Overlap Arms.
  • Acoustic runners are available for acoustic solutions and/or to hide the track.

2 Load Capacity of the Track

L Point load
1 m 94 kg
1.5 m 41 kg
2 m 21 kg
3 m 7 kg
L Uniformly distributed load Total resulting load
1 m 151 kg/m 151 kg
1.5 m 44 kg/m 66 kg
2 m 18 kg/m 36 kg
3 m 4.66 kg/m 14 kg

The distance between two suspension points should never exceed 3 m. We recommend suspension points every 1 to 1.5 m.

The stated load capacities apply to the rail only. The load-bearing capacity of the carrying construction (ceiling/truss/…) and all individual mounting accessories must be taken into account as well.

Load capacities have been calculated using Safety Factor 2. Apply the required Safety factor according to the standards pertaining to your application.

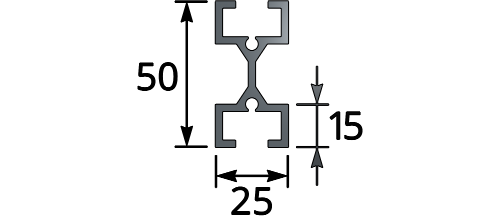

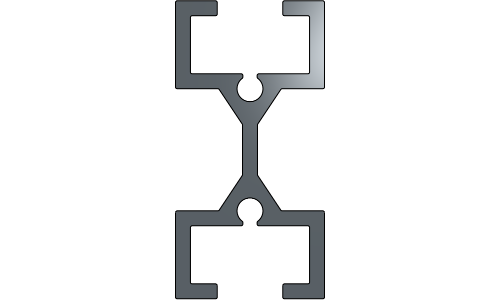

3 Track Dimensions

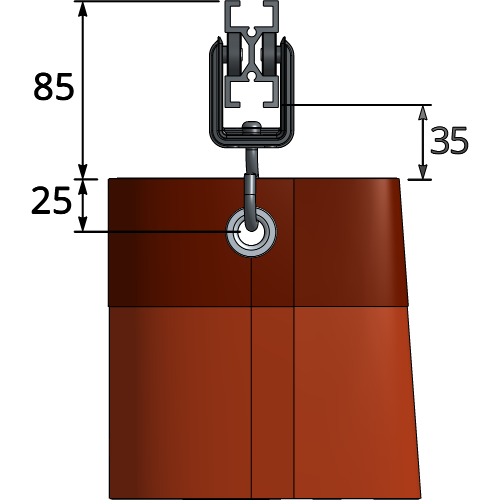

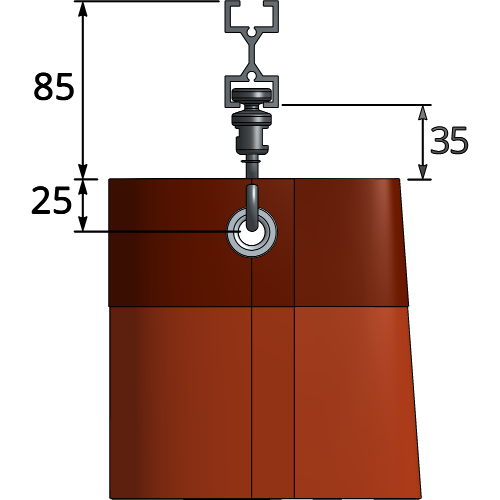

4 Track Dimensions with Curtain

5 Components

Track

Track

Track

Article number Weight Length Colour
8067 0001 6007 0.98 kg/m 6.00 m Black

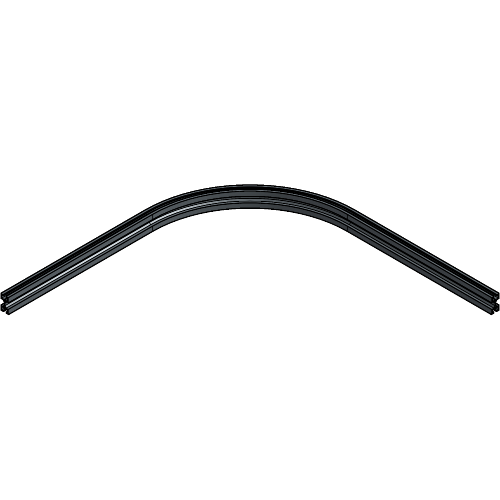

Curved Track 90°

Curved Track 90°

Article number Weight Radius Colour
8067 0007 0357 0.98 kg/m 0.35 m Black
8067 0007 0507 0.98 kg/m 0.50 m Black
8067 0007 1007 0.98 kg/m 1.00 m Black

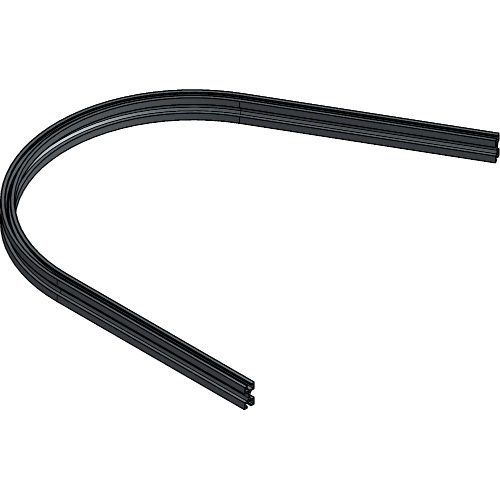

Custom-Made Track

Custom-Made Track

Article number Weight Colour
8067 0007 0027 0.98 kg/m Black

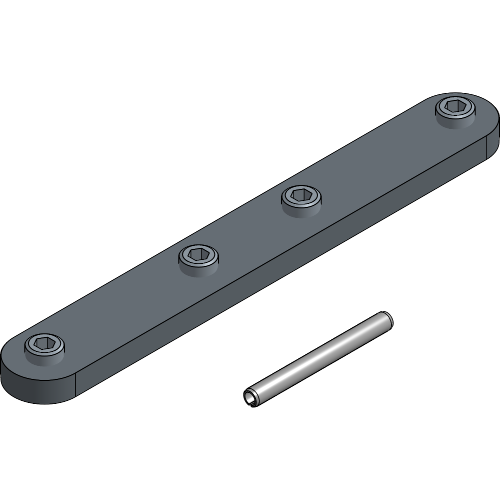

Joint set for Gliders

Joint set for Gliders

Article number Weight Colour
8067 0040 0017 0.12 kg Black

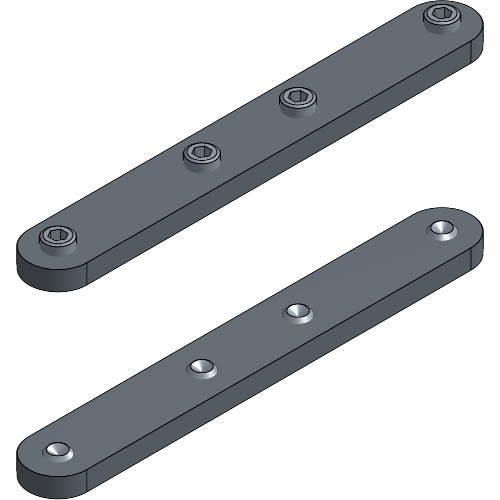

Joint set for Runners

Joint set for Runners

Article number Weight Colour
8067 0040 0007 0.20 kg Black

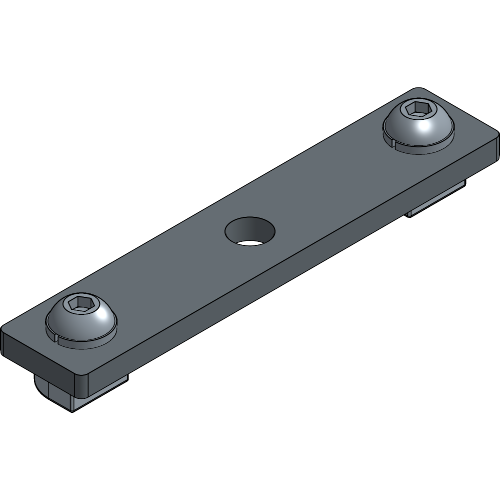

Overlap Clip

Overlap Clip

Article number Weight Colour
8067 0696 0007 0.41 kg Black

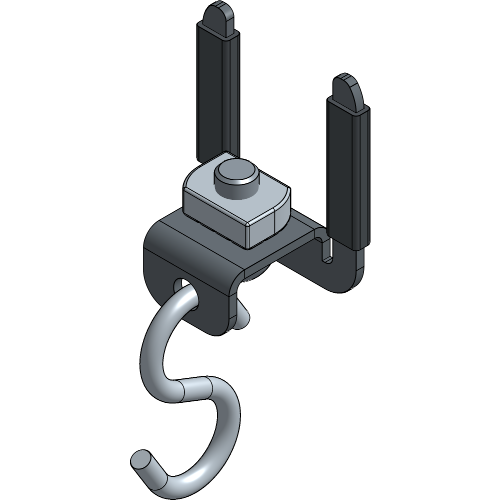

End Stop

End Stop

Article number Weight WLL SF Colour
8067 0050 0007 0.06 kg 8.00 kg 2:1 Black

Suspension

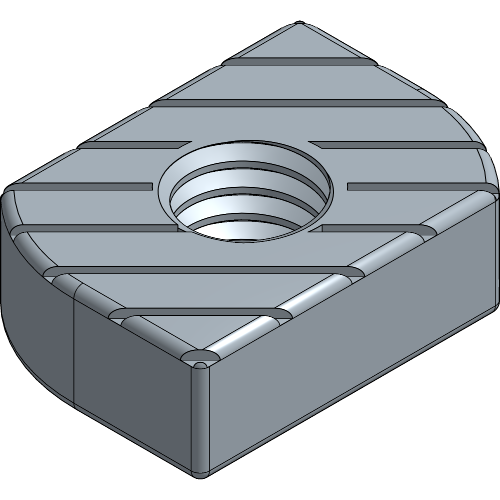

Channel Nut M8

Channel Nut M8

Article number Weight Colour
8067 9224 0001 0.01 kg Black

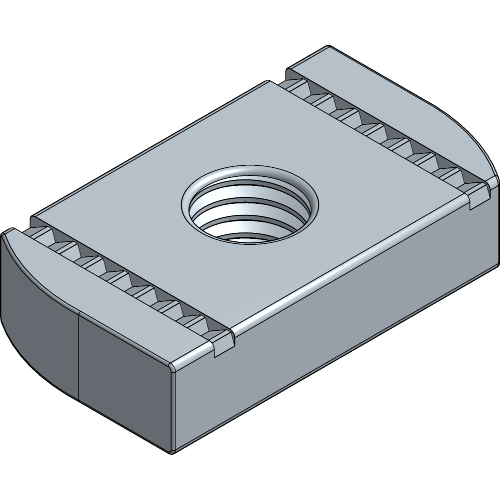

Channel Nut M10

Channel Nut M10

Article number Weight Colour
8700 9224 0101 0.03 kg Black

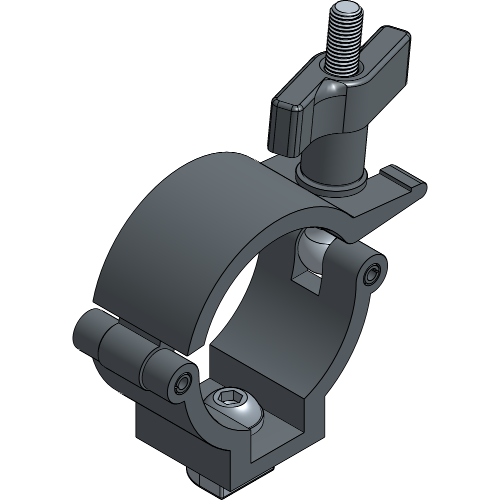

Half Coupler Clamp

Half Coupler Clamp

Article number Weight WLL SF Colour
8067 0680 0007 0.20 kg 100.00 kg 2:1 Black

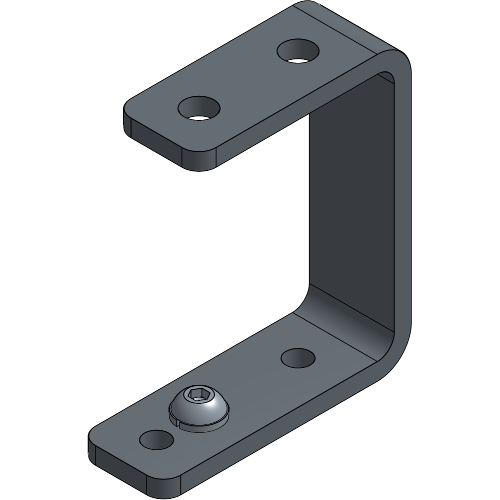

Suspension Bracket

Suspension Bracket

Article number Weight WLL SF Colour
8067 0550 0007 0.32 kg 60.00 kg 2:1 Black

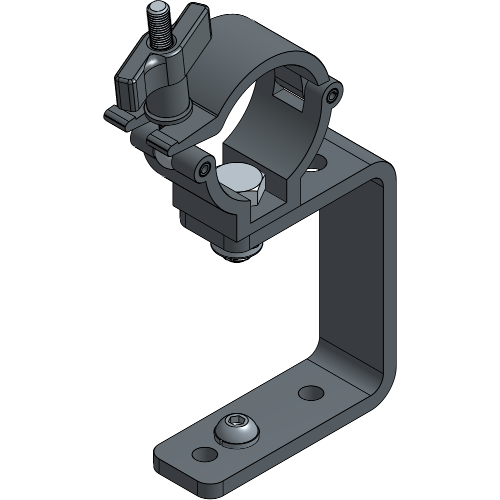

Suspension Bracket with Clamp

Suspension Bracket with Clamp

Article number Weight WLL SF Colour
8067 0550 0017 0.50 kg 60.00 kg 2:1 Black

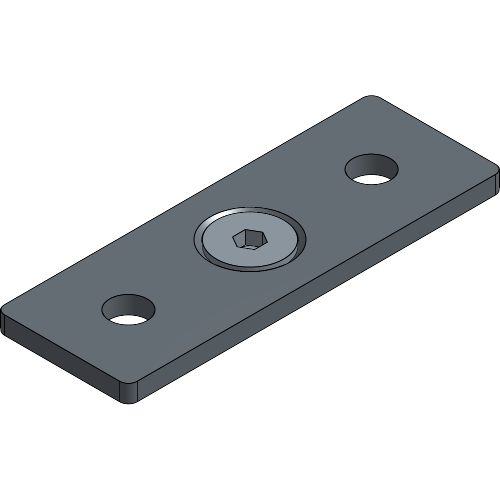

Ceiling Bracket

Ceiling Bracket

Article number Weight WLL SF Colour
8067 0110 0007 0.09 kg 100.00 kg 2:1 Black

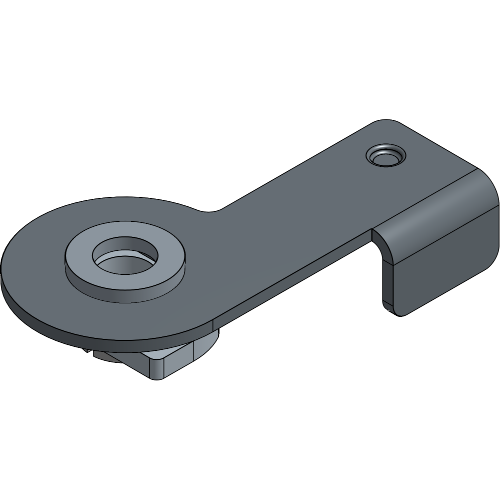

Hidden Ceiling Bracket

Hidden Ceiling Bracket

Article number Weight WLL SF Colour
8067 0110 0017 0.02 kg 75.00 kg 2:1 Black

Runners

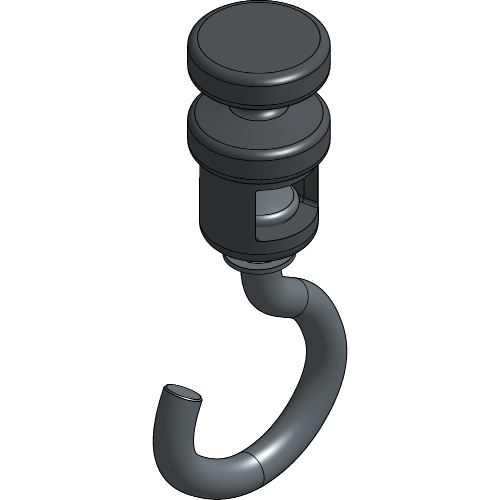

Glider

Glider

Article number Weight WLL SF Min. Rad. Colour
8067 0195 0007 0.03 kg 6.00 kg 2:1 350 mm Black

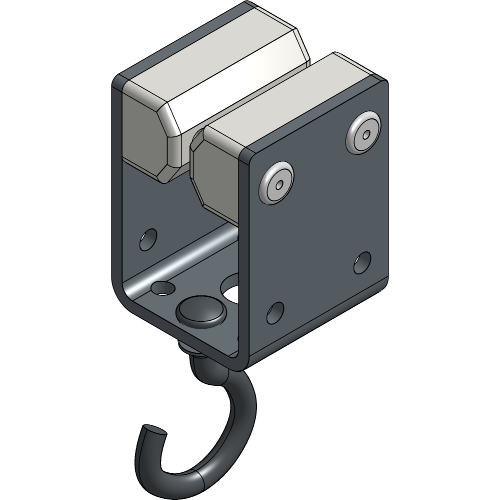

Master Glider

Master Glider

Article number Weight WLL SF Min. Rad. Colour
8067 0220 0007 0.17 kg 8.00 kg 2:1 350 mm Black

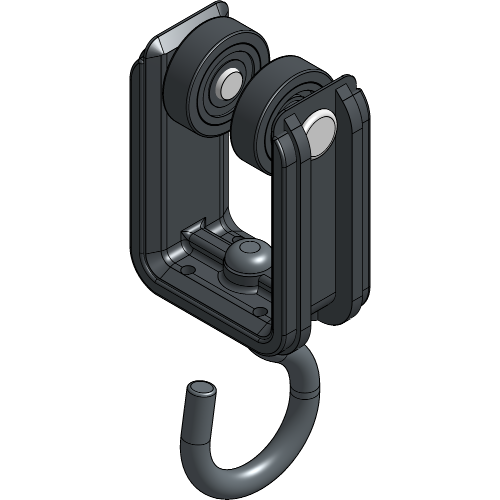

Runner

Runner

Article number Weight WLL SF Min. Rad. Colour
8067 0205 0007 0.06 kg 8.00 kg 2:1 350 mm Black

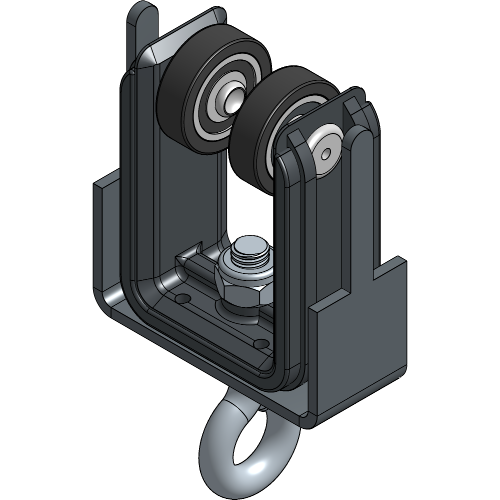

Runner with Acoustic Bracket

Runner with Acoustic Bracket

Article number Weight WLL SF Min. Rad. Colour
8067 0205 0097 0.07 kg 8.00 kg 2:1 350 mm Black

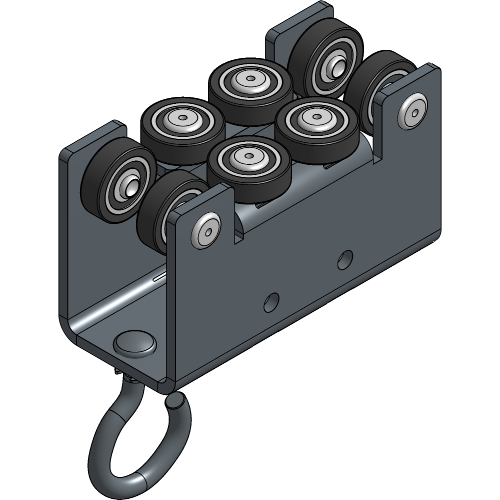

Master Carrier

Master Carrier

Article number Weight WLL SF Min. Rad. Colour
8067 0221 0007 0.41 kg 8.00 kg 2:1 350 mm Black

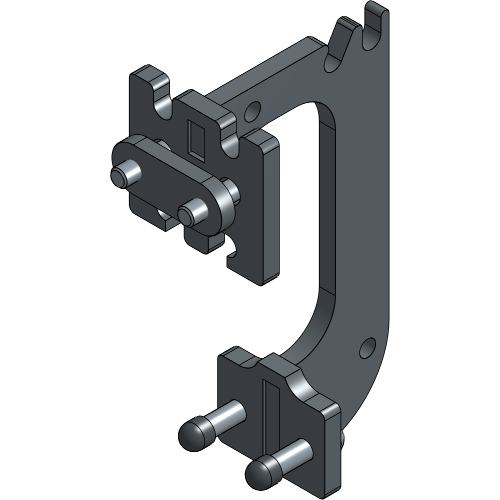

Master Carrier Arm

Master Carrier Arm

Article number Weight Colour
8067 0510 0507 0.29 kg Black

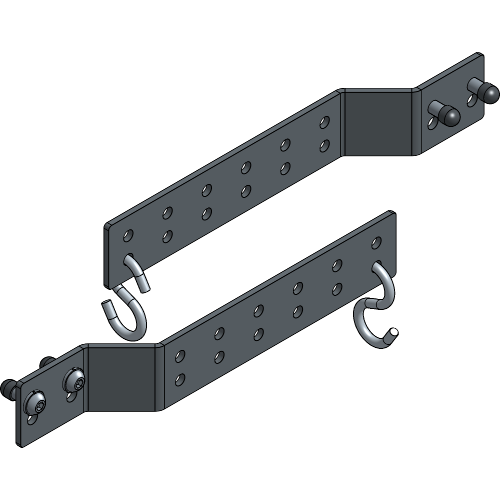

Overlap Arm set

Overlap Arm set

Article number Weight Min. Rad. Colour
8067 0240 0007 0.34 kg 650 mm Black

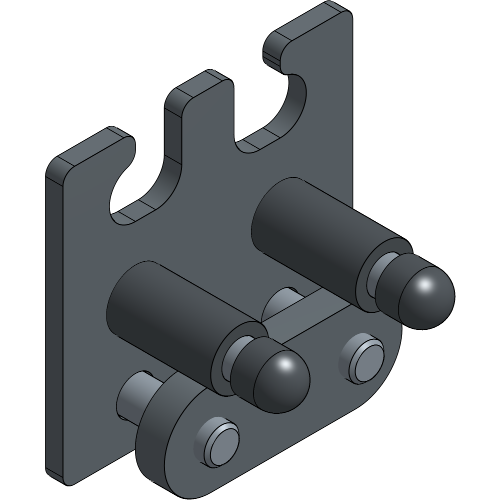

Rope Clamp

Rope Clamp

Article number Weight Colour
8067 0249 0007 0.11 kg Black

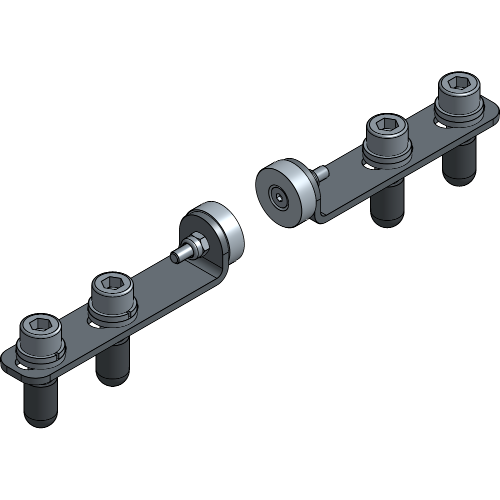

Magnetic Carrier Bracket

Magnetic Carrier Bracket

Article number Weight Colour
8067 0224 0007 0.32 kg Black

Operation

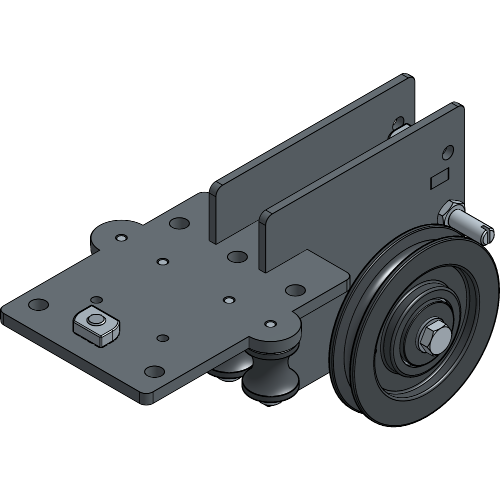

Head Pulley

Head Pulley

Article number Weight Colour
8067 0400 0017 2.42 kg Black

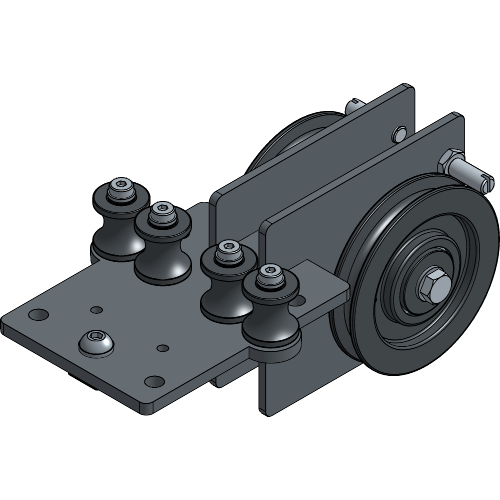

Head Pulley Curved Track

Head Pulley Curved Track

Article number Weight Colour
8067 0520 0037 2.42 kg Black

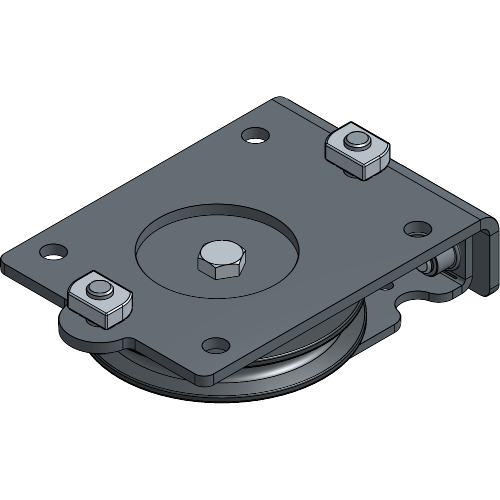

Return Pulley

Return Pulley

Article number Weight Colour
8067 0410 0027 1.17 kg Black

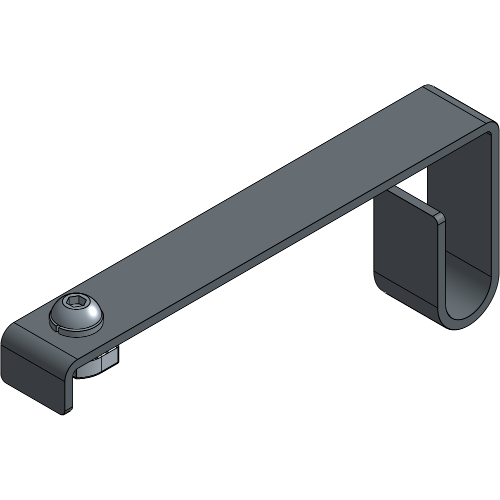

Rope Pickup

Rope Pickup

Article number Weight Colour
8067 0694 0007 0.20 kg Black

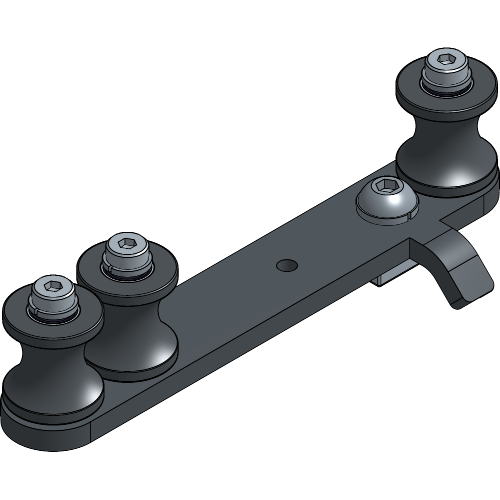

Rope Guide Curved Track

Rope Guide Curved Track

Article number Weight Colour
8067 0500 0007 0.42 kg Black

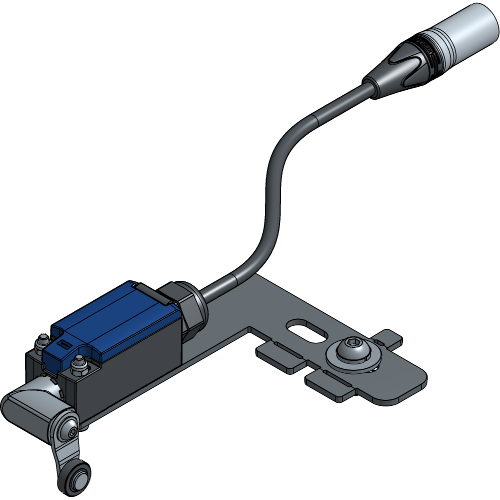

Limit Switch set

Limit Switch set

Article number Weight Colour
8050 0770 0011 0.27 kg Black

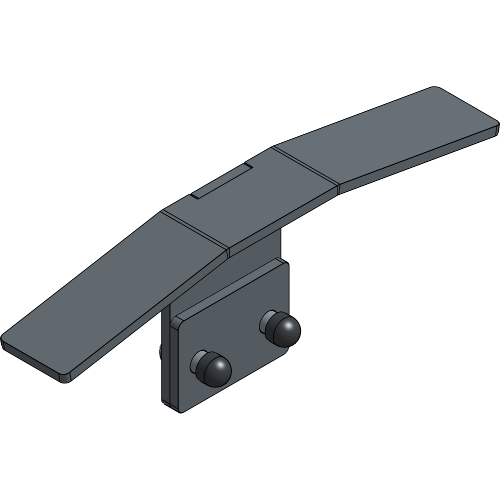

Limit Switch Ski

Limit Switch Ski

Article number Weight Colour
8067 0770 0007 0.18 kg Black

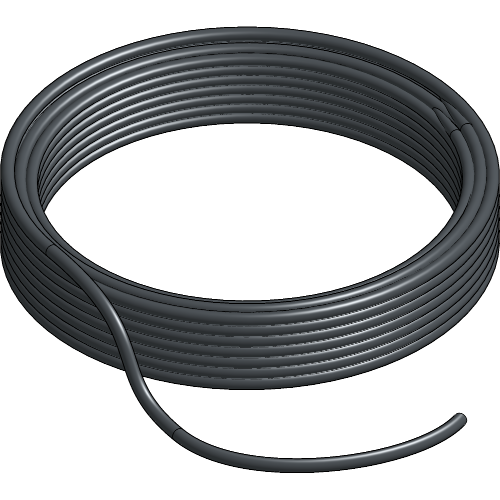

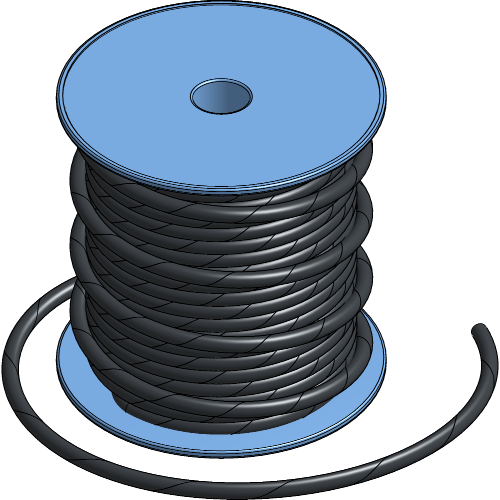

Double Braided Rope

Double Braided Rope

Article number Weight Length ⌀ Colour
7530 0308 1007 0.04 kg/m 100.00 m 8 mm Black
7530 1308 0027 0.04 kg/m 100.00 m 8 mm Black/Green/Orange

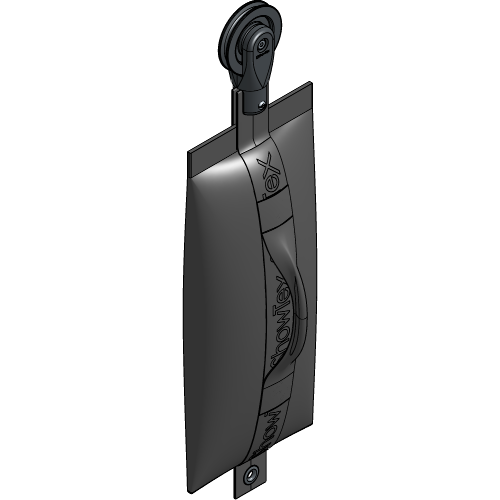

Weighted Return Pulley

Weighted Return Pulley

Article number Weight Colour
8050 0415 0077 5.50 kg Black
8050 0415 0097 10.50 kg Black

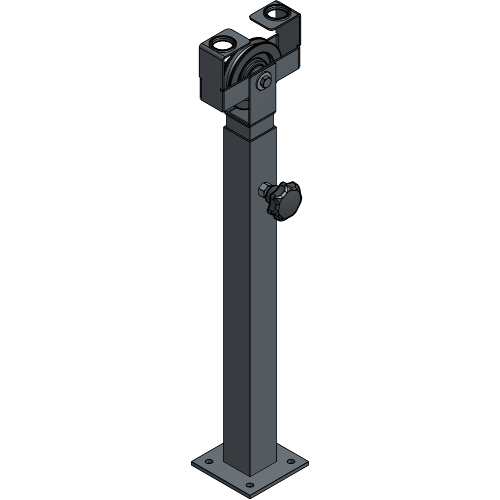

Floor Fixed Return Pulley

Floor Fixed Return Pulley

Article number Weight Colour
8050 0420 0007 3.38 kg Black

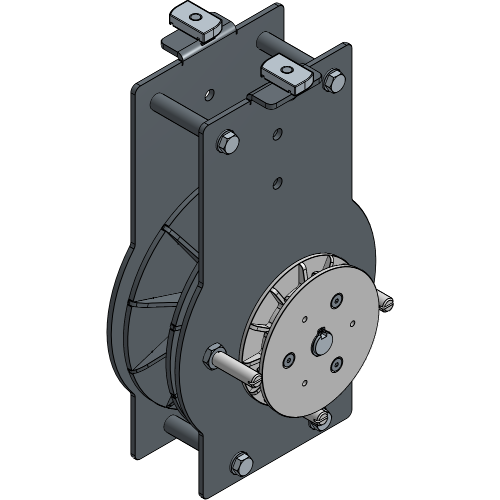

RopeAssist

RopeAssist

Article number Weight Colour
8050 0425 0107 6.54 kg Black

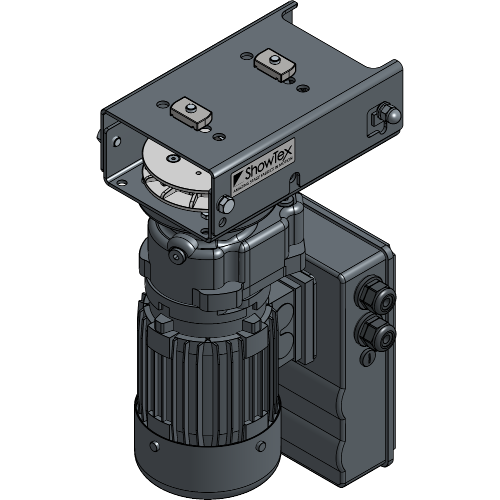

Rope Drive Lite

Rope Drive Lite

Article number Weight Torque Speed Colour
8050 0713 1107 15.75 kg 16 Nm 108 rpm Black

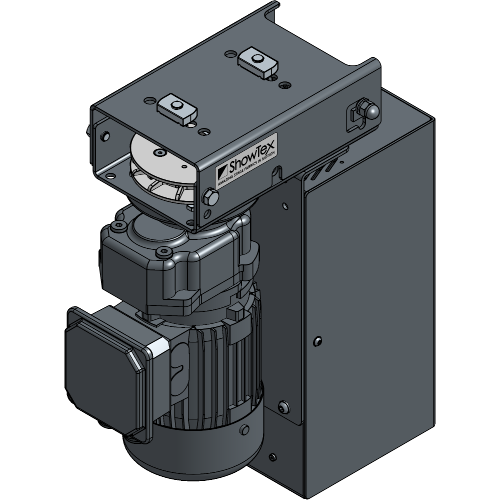

Rope Drive Standard

Rope Drive Standard

Article number Weight Torque Speed Colour
8050 0713 1507 19.50 kg 12 Nm 101 rpm Black
8050 0713 1707 19.50 kg 24 Nm 48 rpm Black
8050 0713 2307 19.50 kg 54 Nm 22 rpm Black

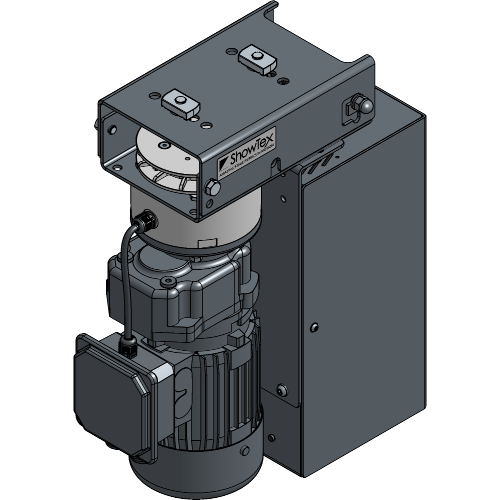

Rope Drive Decoupler

Rope Drive Decoupler

Article number Weight Torque Speed Colour
8050 0713 1557 20.00 kg 12 Nm 101 rpm Black
