Chain Drive Pro Flex motorised track control by ShowTex
Chain Drive Pro Flex motorised track control by ShowTex

Chain Drive Pro Flex

A durable and heavy-duty Chain Drive motor for precision curtain movement.

Wanna go all out? This high-end Chain Drive motor will get the job done, either horizontal or vertical.

  • Equipped with a motor for continuous use (Duty Cycle S1 - 100 %).
  • To save space, the control unit is suspended independently from the track.
  • Equipped with an easy-to-use remote control with open/close switch, fixed speed switch & emergency stop.
  • All connections use plugs, which makes it easy to install.
  • Can be controlled from a lighting console with 3 DMX channels: position - position fine - speed.
  • A 750 W motor with variable speed up to 85 cm/sec.
  • Precision positioning.
  • Chain force: 1394 N



TECHNICAL DATA - CHAIN DRIVE PRO FLEX - MOTORISED TRACK CONTROL WITH CHAIN

إكسسواراتكود المقالمعلومات

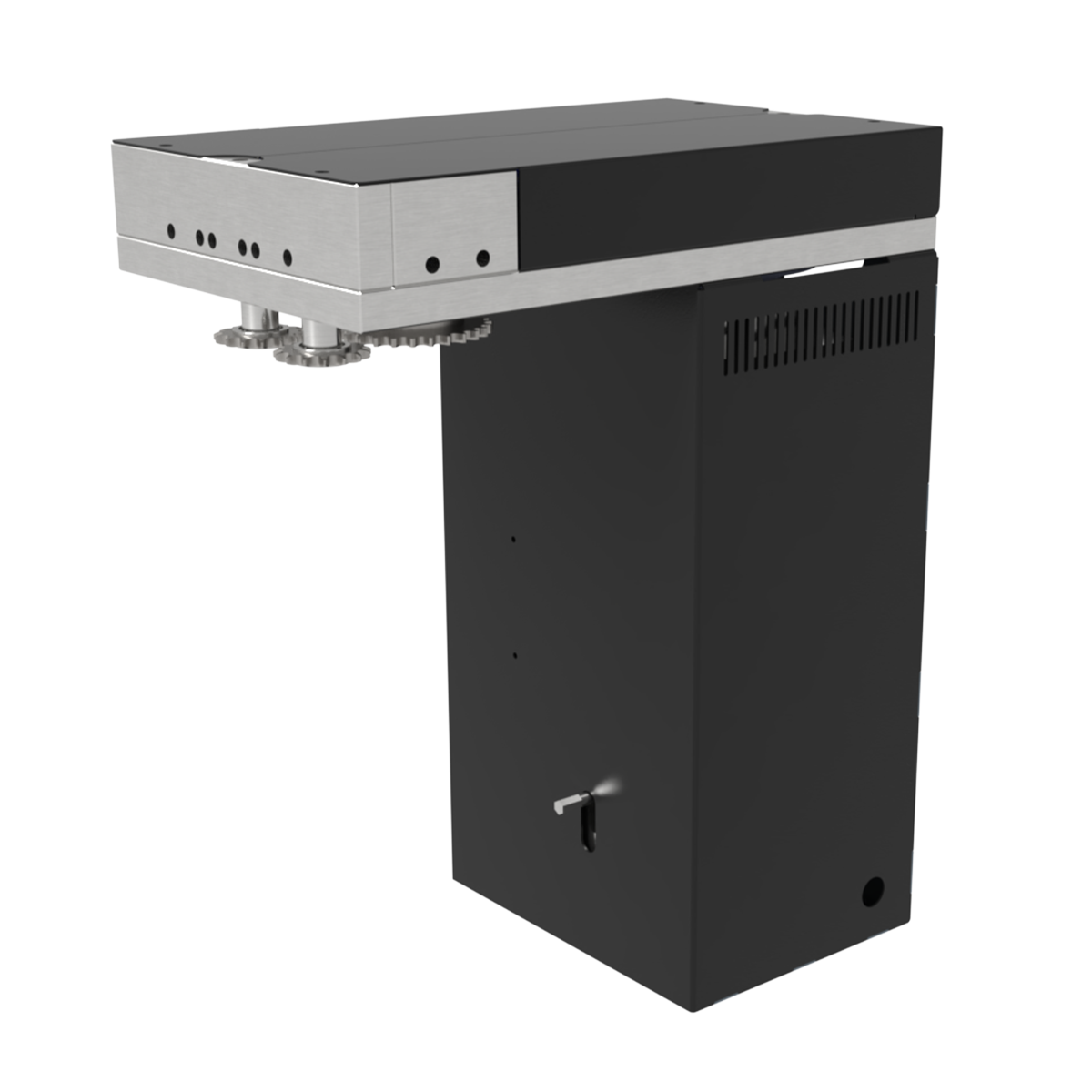

01. Chain Drive Pro Flex

8080 0702 7507

Weight: 35 kg/pc • 750 W • 3 x 230 VAC + N • 50 Hz • 3,6 A • including brake

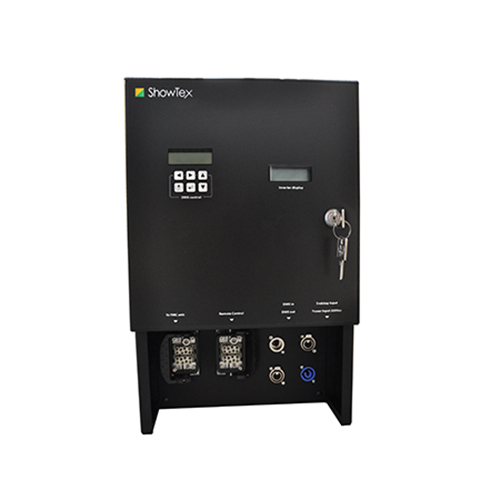

02. Control Unit

8080 0750 7507

Weight: 11.6 kg/pc • Black • Including 2 clamps of 75 kg

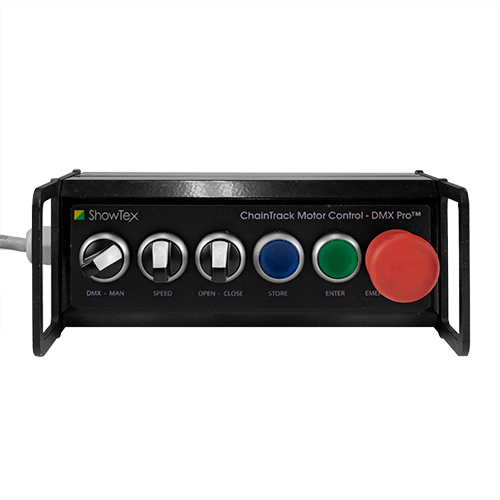

03. Remote

8080 0766 7507

Weight: 4.92 kg/pc • Black • With emergency stop 25m cable

04. Power Supply Cable

8150 0912 0027

Weight: 0.43 kg/pc • Black • Length: 2m

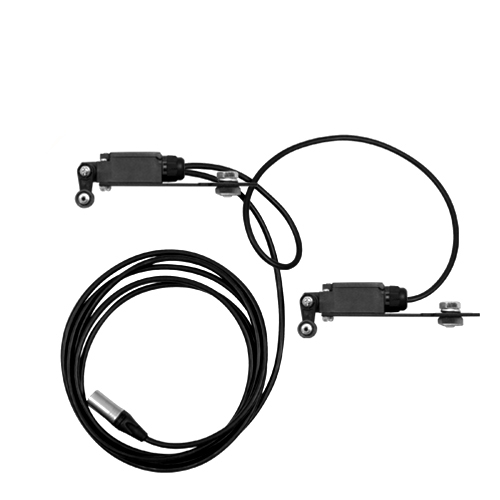

05. Limit Switch Set

8050 0770 0015

Weight: 0.85 kg/pc • Grey • 2 pieces • 25m cable

06. Hook Clamp 100 kg

8080 0680 0007

Weight: 1.22 kg/pc • Black

+ Channel Nut M10
