Wall & Ceiling Suspension

Pick from the range of construction profiles, aluminium tubes, wall brackets or beam clamps those that best fit your project. From creating immersive theatre or event setups, soundproofing your space with sound panels or installing wall or ceiling decorations, ShowTex wall & ceiling suspension accessories offer the perfect blend of strength, security, versatility and stability.

Easily suspend your fabrics, projection surfaces and hardware systems on the wall or ceiling. Designed to install and carry both lightweight fabrics and heavy set pieces or technical equipment.

Enjoy quick and easy installation with the easy-to-handle accessories. The end result? A sleek, professional look, in any type of setting.

إكسسوارات	كود المقال	معلومات

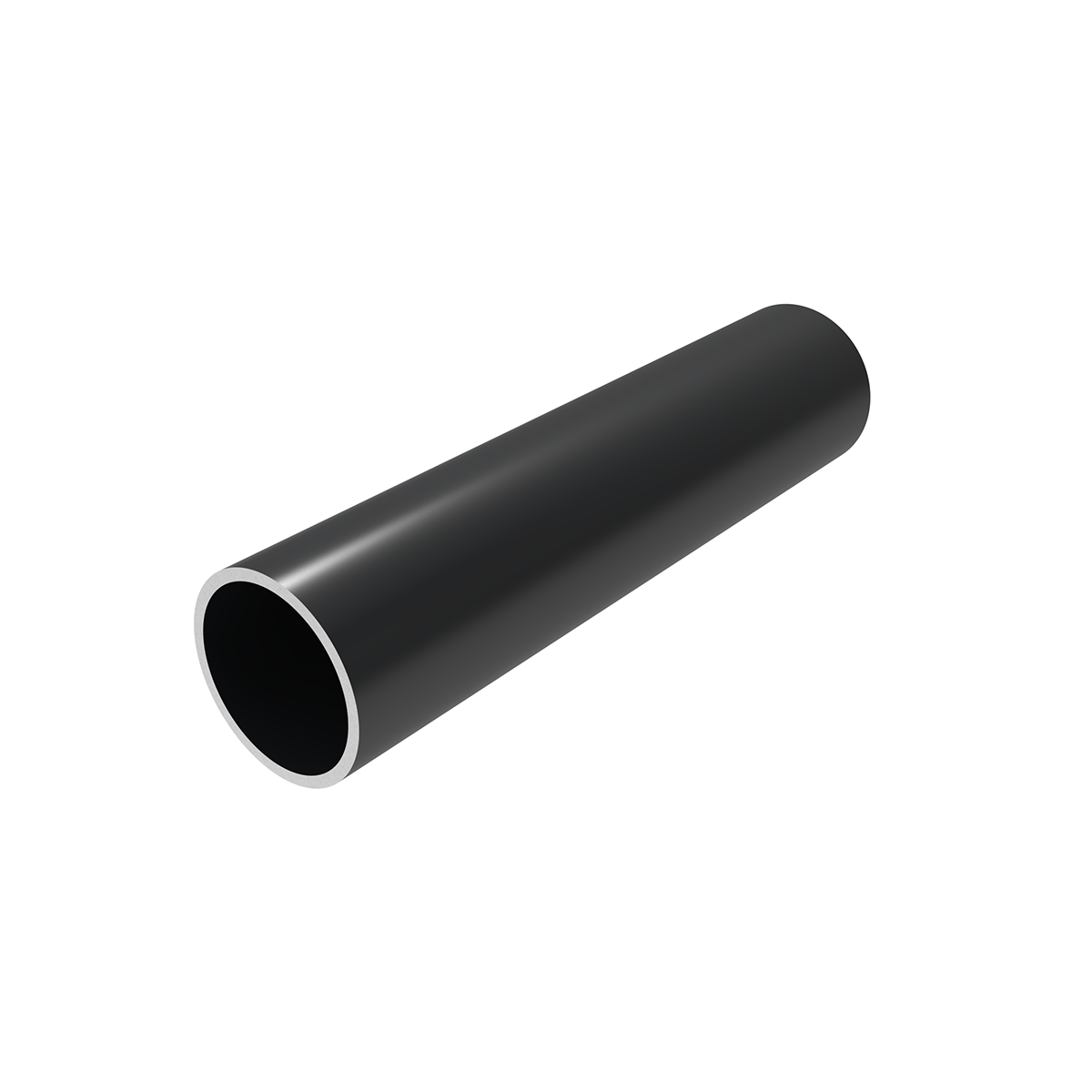

01. Construction Tube	8200 0661 0057	Weight: 3.25 kg • ⌀ 48.3 mm • Length: 6.00 m • Black

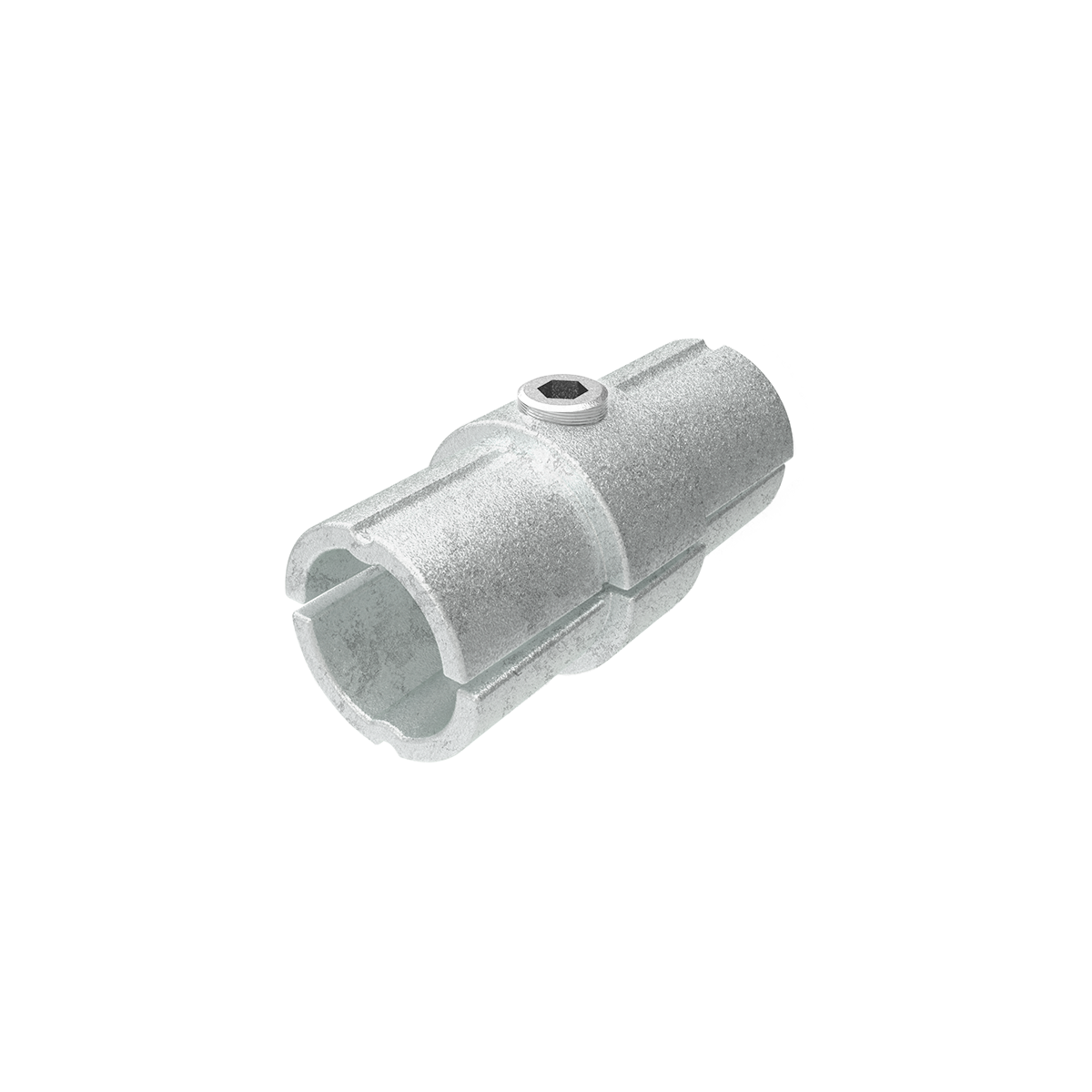

02. Construction Tube Inner Coupler	8200 0661 0037	Weight: 0.38 kg • Black
	8200 0661 0031	Weight: 0.38 kg • Alu

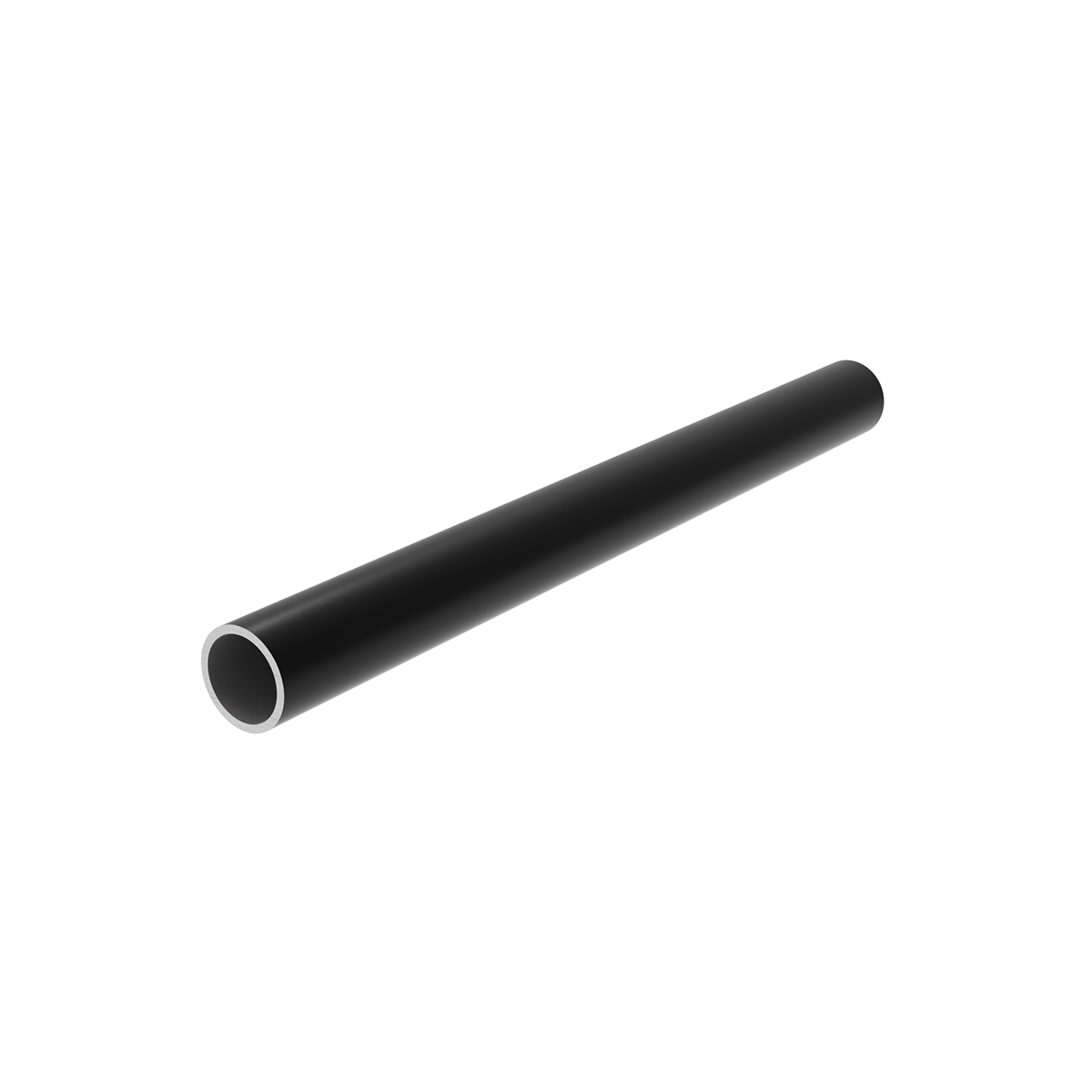

03. AluPipe	8700 1018 0004	Weight: 0.21 kg • ⌀ 18/15 mm • Length: 6.00 m • Alu

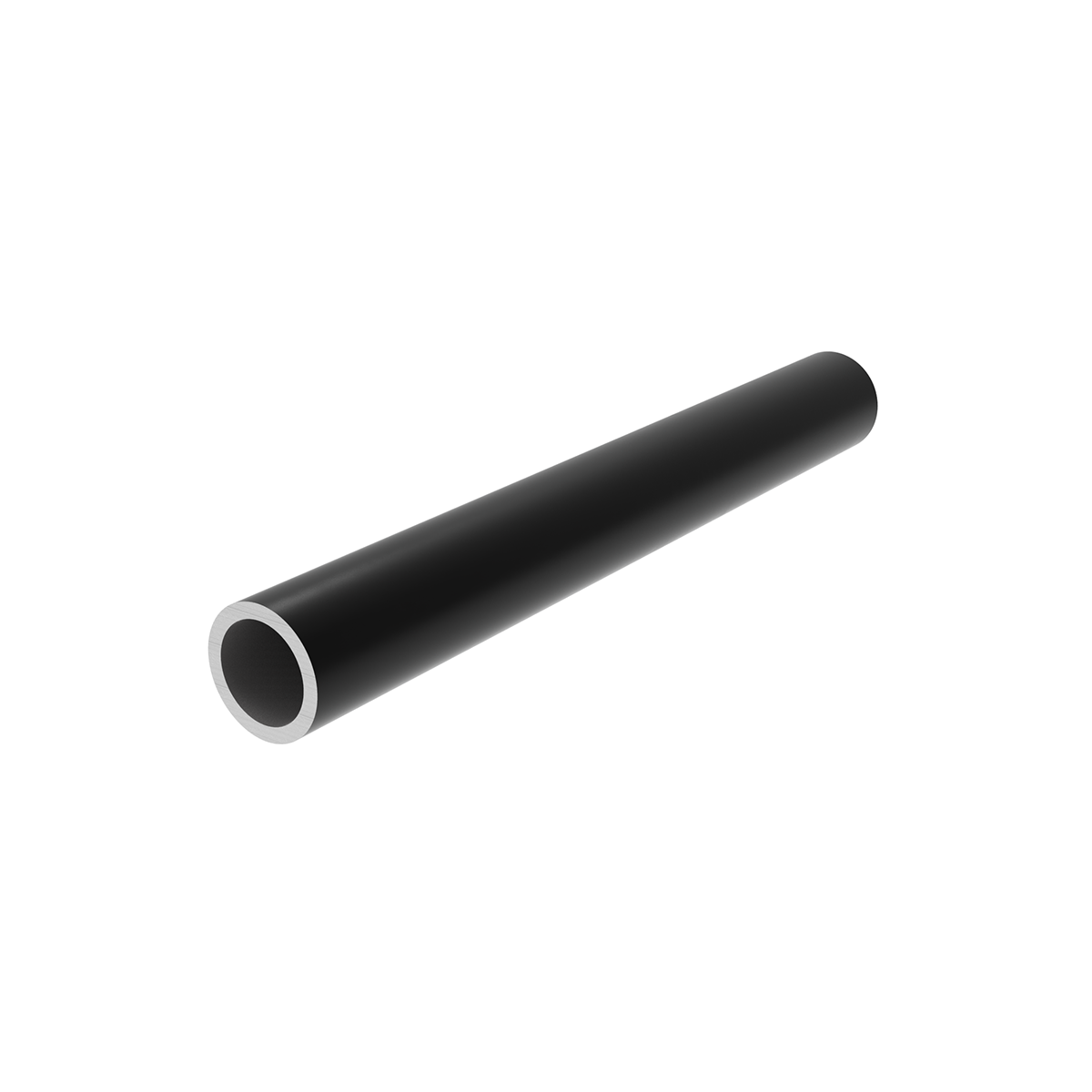

04. AluPipe	8700 1025 0047	Weight: 0.56 kg • ⌀ 25/19 mm • Length: 6.00 m • Alu
	8700 1025 0044	Weight: 0.56 kg • ⌀ 25/19 mm • Length: 6.00 m • Black

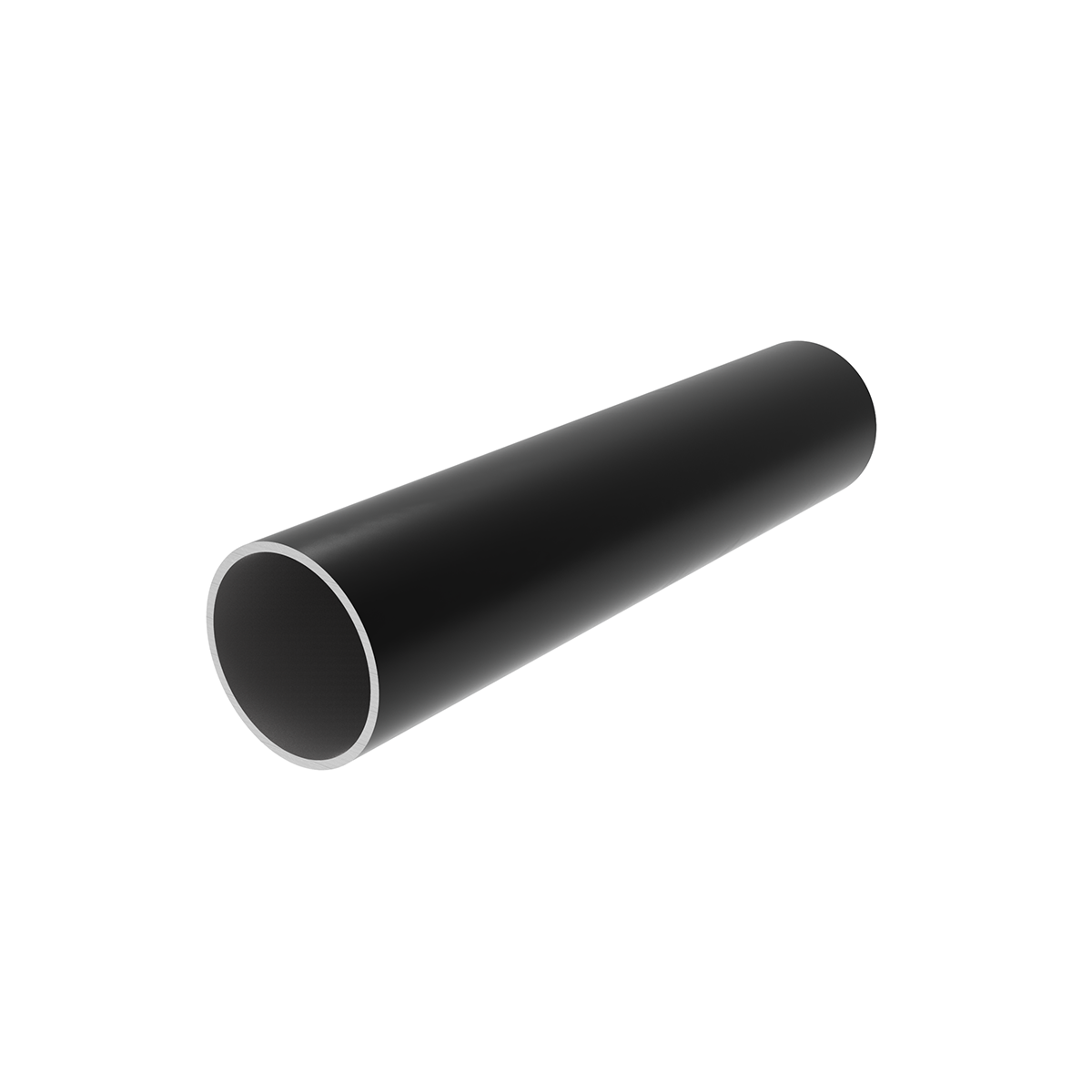

05. AluPipe	8700 1045 0027	Weight: 0.729 kg • ⌀ 45/41 mm • Length: 6.00 m • Black
	8700 1045 0024	Weight: 0.729 kg • ⌀ 45/41 mm • Length: 6.00 m • Alu

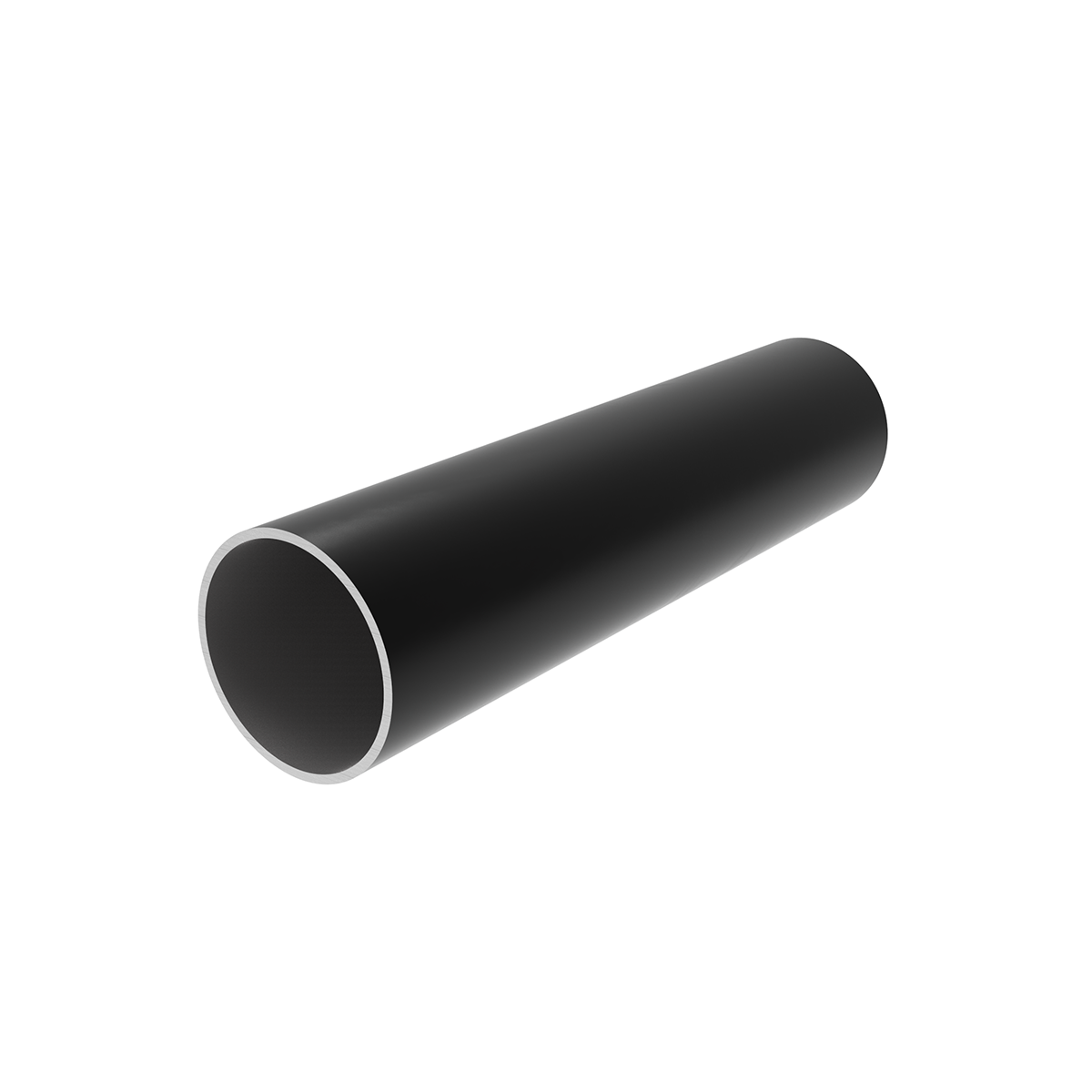

06. AluPipe	8700 1050 0027	Weight: 0.814 kg • ⌀ 50/46 mm • Length: 6.00 m • Black
	8700 1050 0024	Weight: 0.814 kg • ⌀ 50/46 mm • Length: 6.00 m • Alu

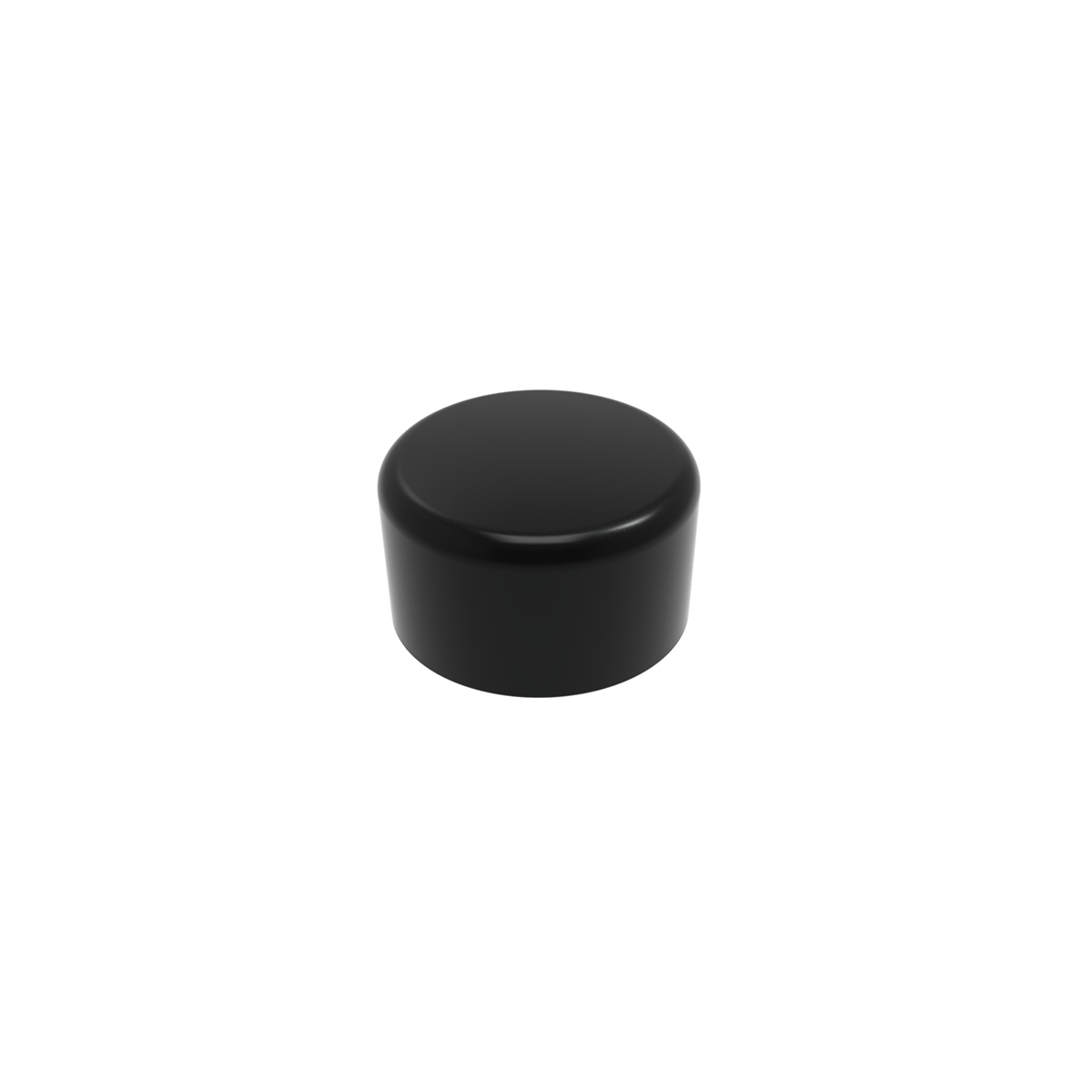

07. AluPipe Protection Cap	8700 1145 0257	Weight: 0.014 kg • ⌀ 25 mm • Black
	8700 1145 0007	Weight: 0.015 kg • ⌀ 45 mm • Black
	8700 1150 0007	Weight: 0.016 kg • ⌀ 50 mm • Black

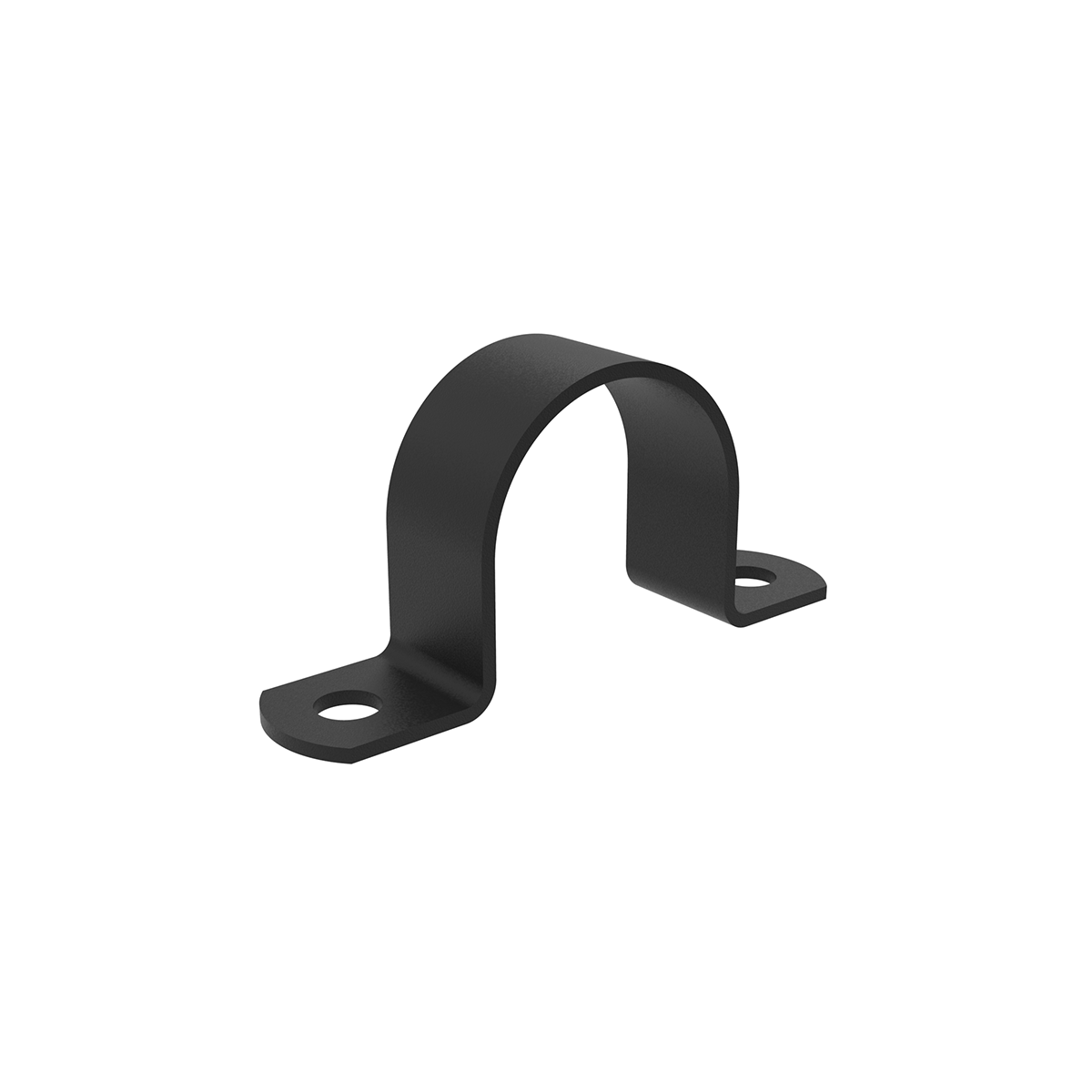

08. Pipe Bracket	8200 0670 0487	Weight: 0.06 kg • ⌀ 48.5 mm • Black
	8200 0670 0481	Weight: 0.06 kg • ⌀ 48.5 mm • Galvanised
	8200 0670 0507	Weight: 0.06 kg • ⌀ 50 mm • Black
	8200 0670 0501	Weight: 0.06 kg • ⌀ 50 mm • Galvanised

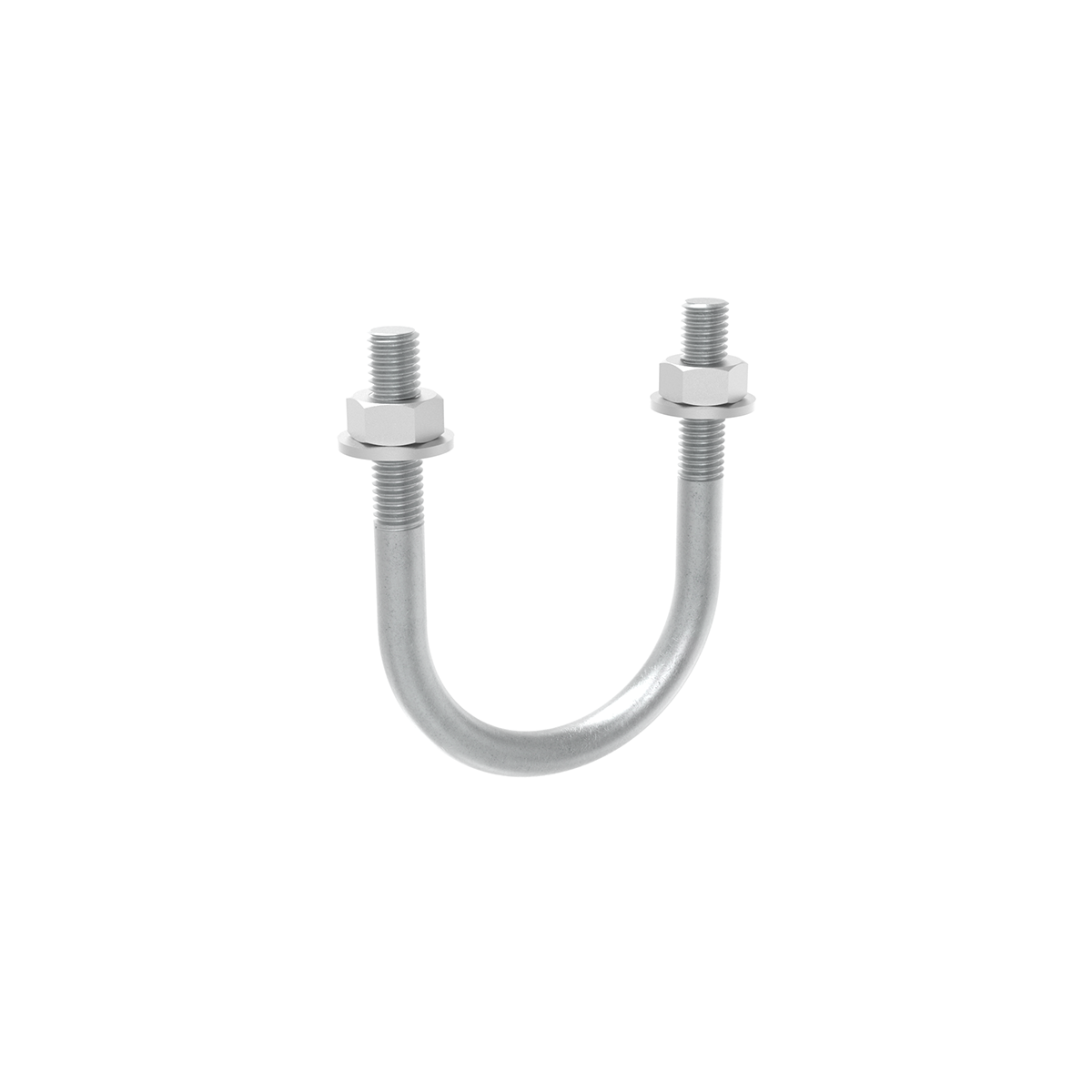

09. U-Bracket	8700 0666 0581	Weight: 0.08 kg • ⌀ 50 mm • Thread: 3 cm • Galvanised
	8700 0666 0501	Weight: 0.1 kg • ⌀ 50 mm • Thread: 9 cm • Galvanised
	8700 0666 0601	Weight: 0.12 kg • ⌀ 60 mm • Thread: 4 cm • Galvanised

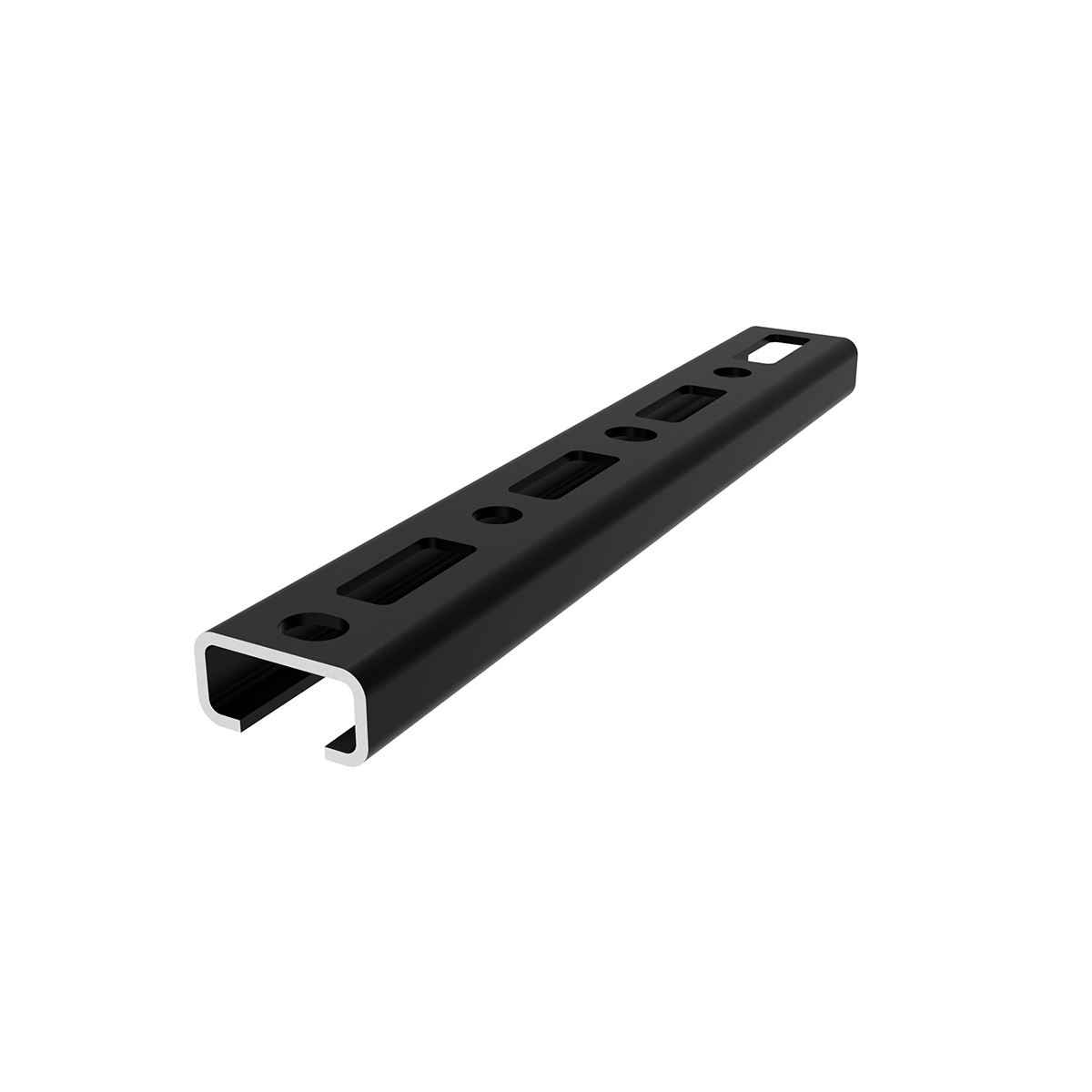

10. Construction Profile	8200 0010 1527	Weight: 1.15 kg • Dimensions: 30 x 15 mm • Length: 6.00 m • Galvanised

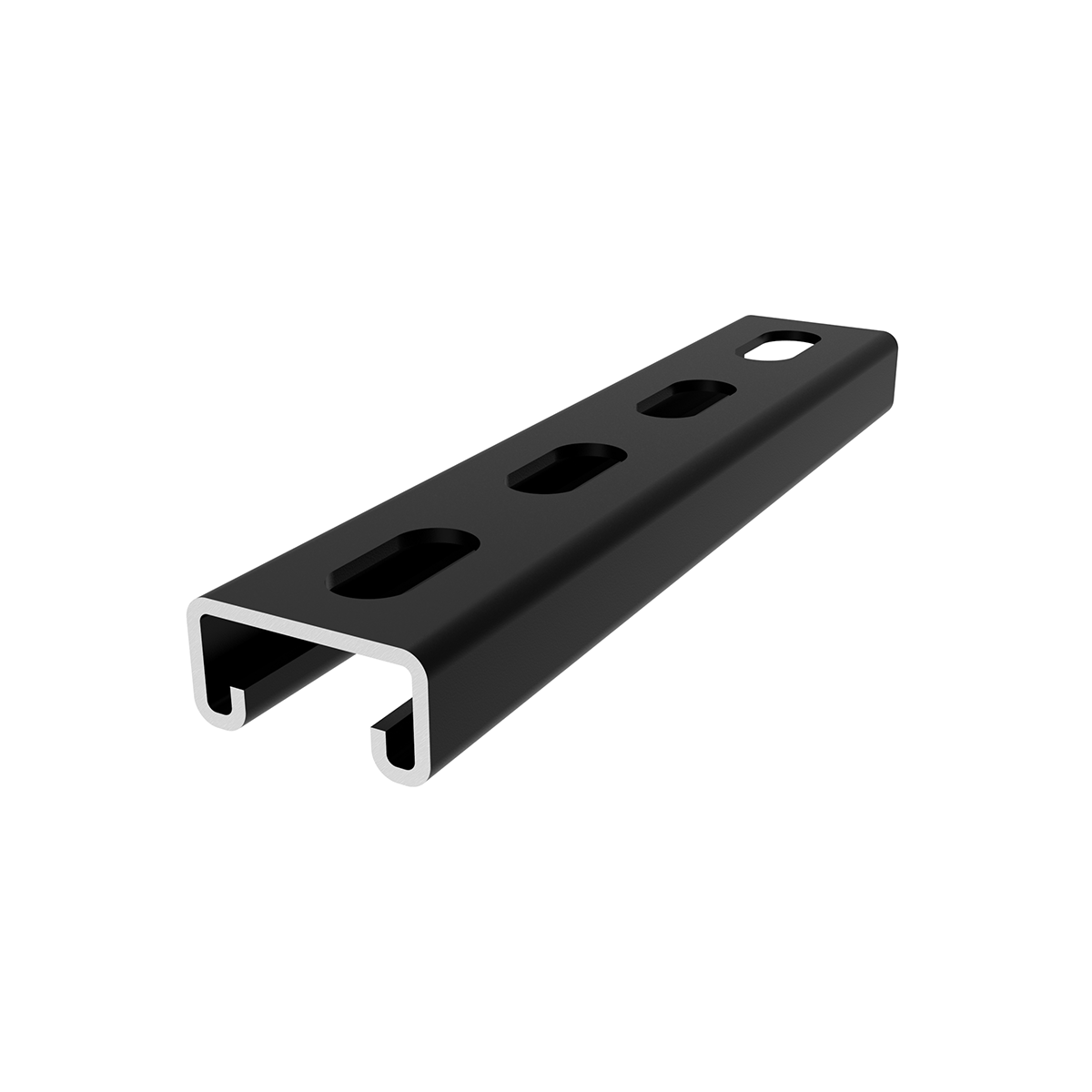

11. Construction Profile	8200 0010 2147	Weight: 1.78 kg • Dimensions: 41 x 21 mm • Length: 6.00 m • Black
	8200 0010 2141	Weight: 1.78 kg • Dimensions: 41 x 21 mm • Length: 6.00 m • Galvanised

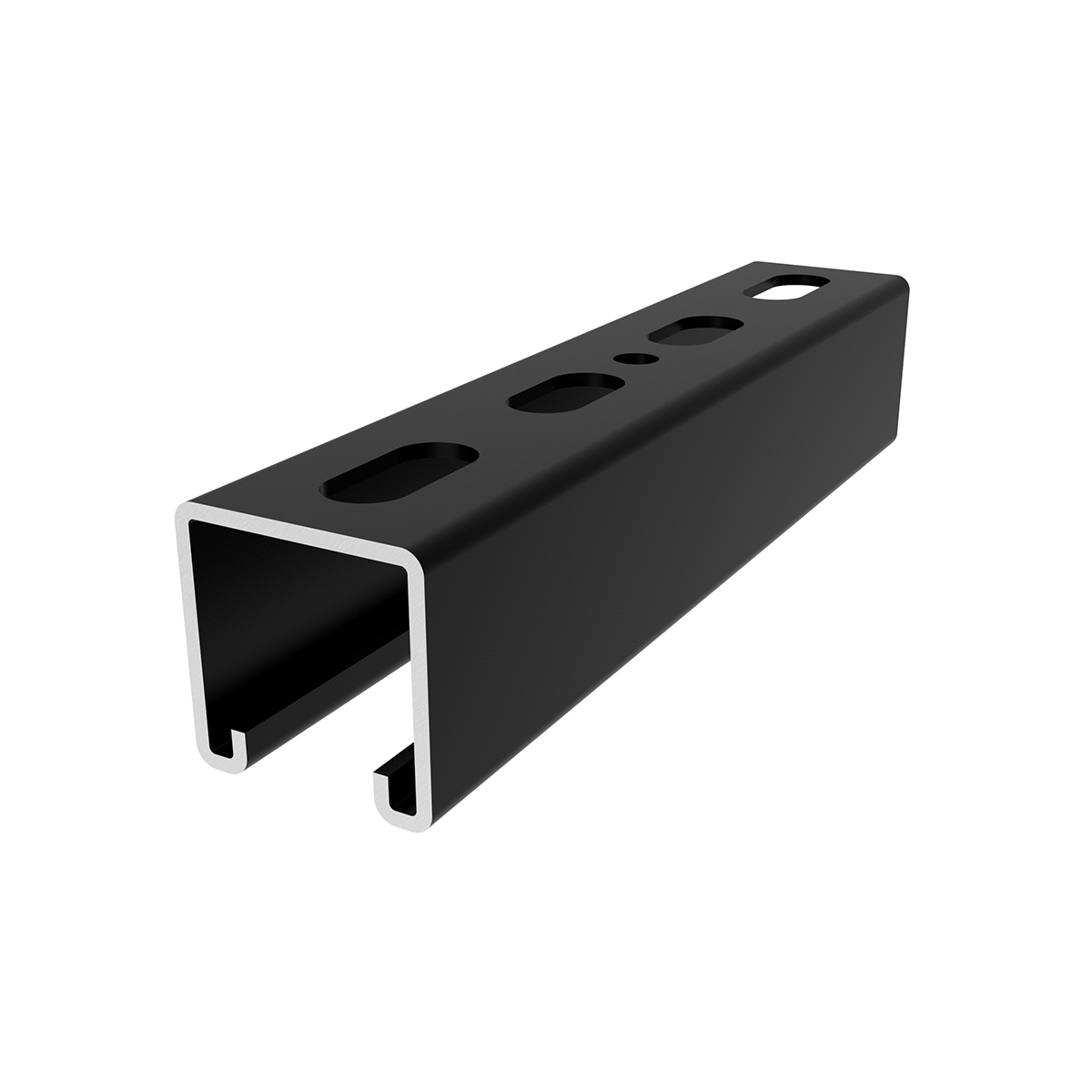

12. Construction Profile	8200 0010 4167	Weight: 2.45 kg • Dimensions: 41 x 41 mm • Length: 6.00 m • Black
	8200 0010 4161	Weight: 2.45 kg • Dimensions: 41 x 41 mm • Length: 6.00 m • Galvanised
	8200 0010 4163	Weight: 2.45 kg • Dimensions: 41 x 41 mm • Length: 6.00 m • White

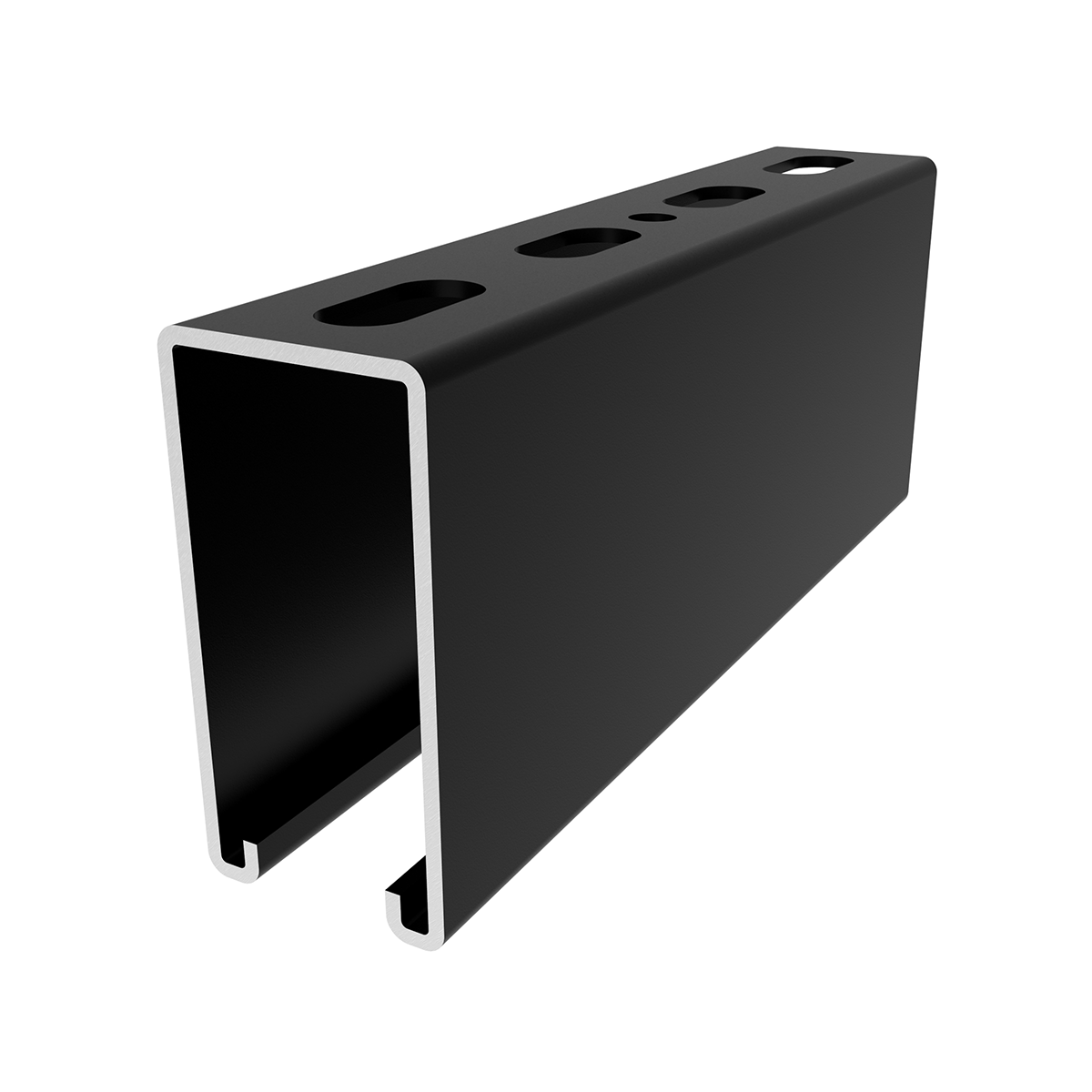

13. Construction Profile	8200 0010 8267	Weight: 4.08 kg • Dimensions: 41 x 82 mm • Length: 6.00 m • Black
	8200 0010 8261	Weight: 4.08 kg • Dimensions: 41 x 82 mm • Length: 6.00 m • Galvanised

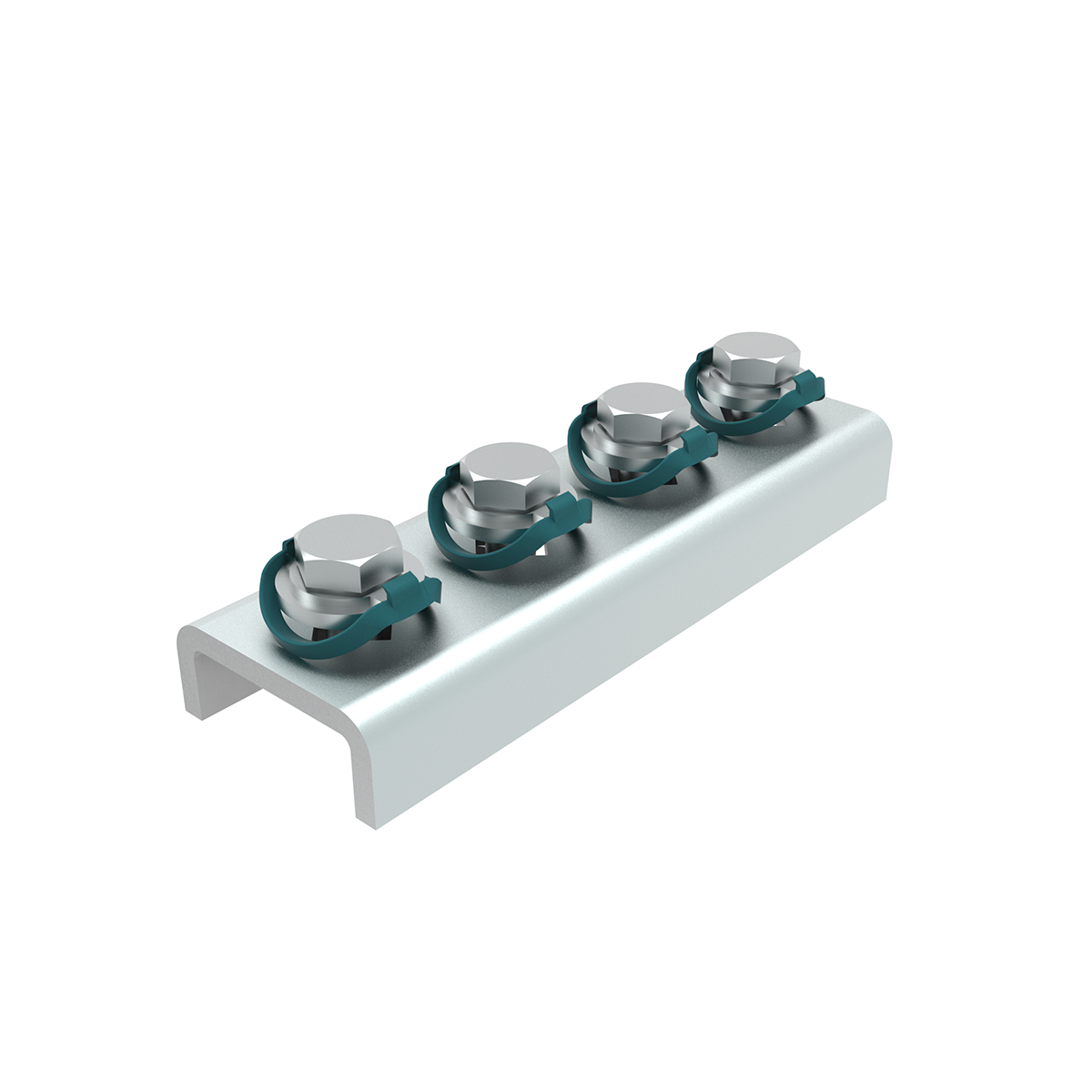

14. Joint Plate	8200 0014 0187	Weight: 1.22 kg • Black
	8200 0014 0181	Weight: 1.22 kg • Galvanised

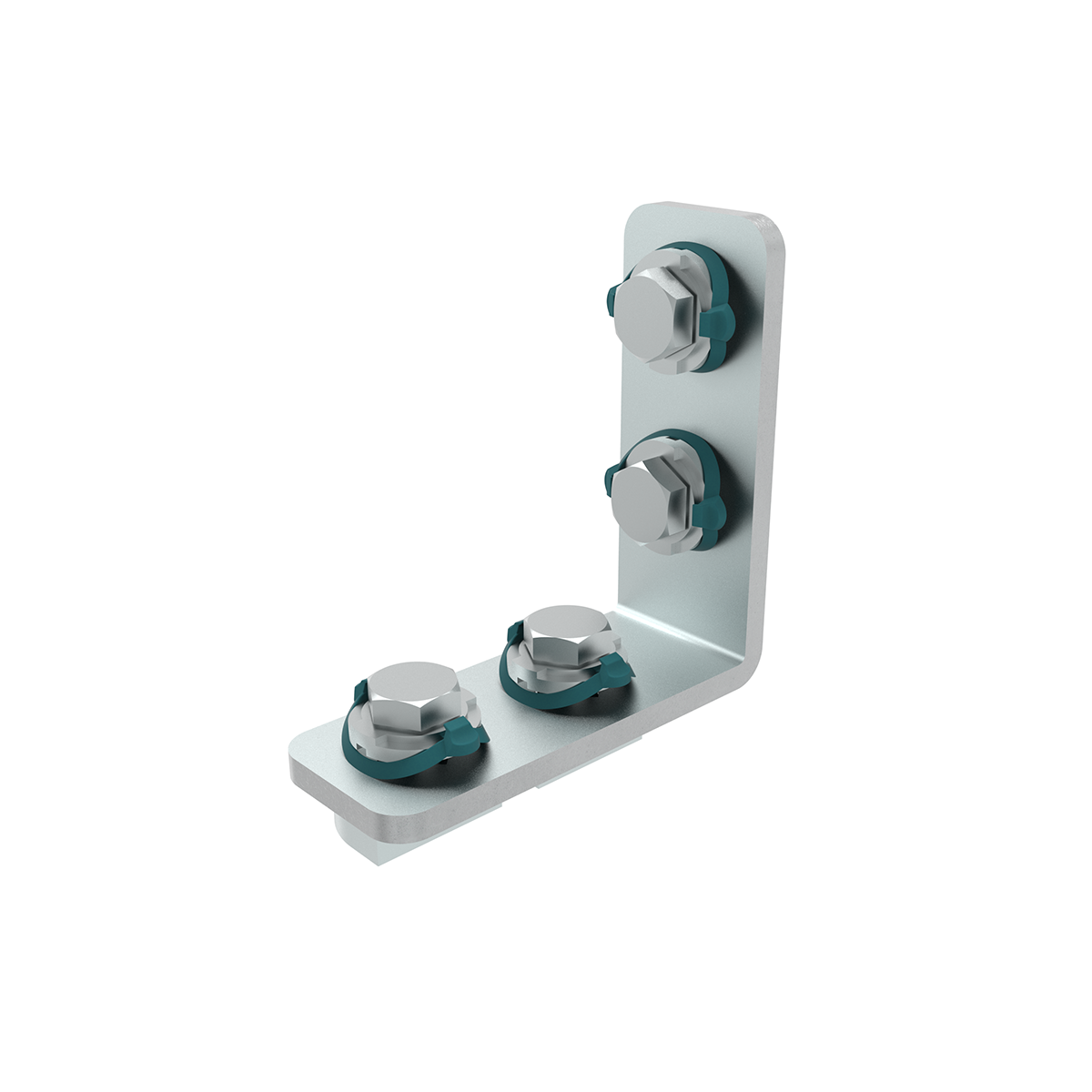

15. Joint Plate 90°	8200 0014 0107	Weight: 0.48 kg • Black
	8200 0014 0101	Weight: 0.48 kg • Galvanised

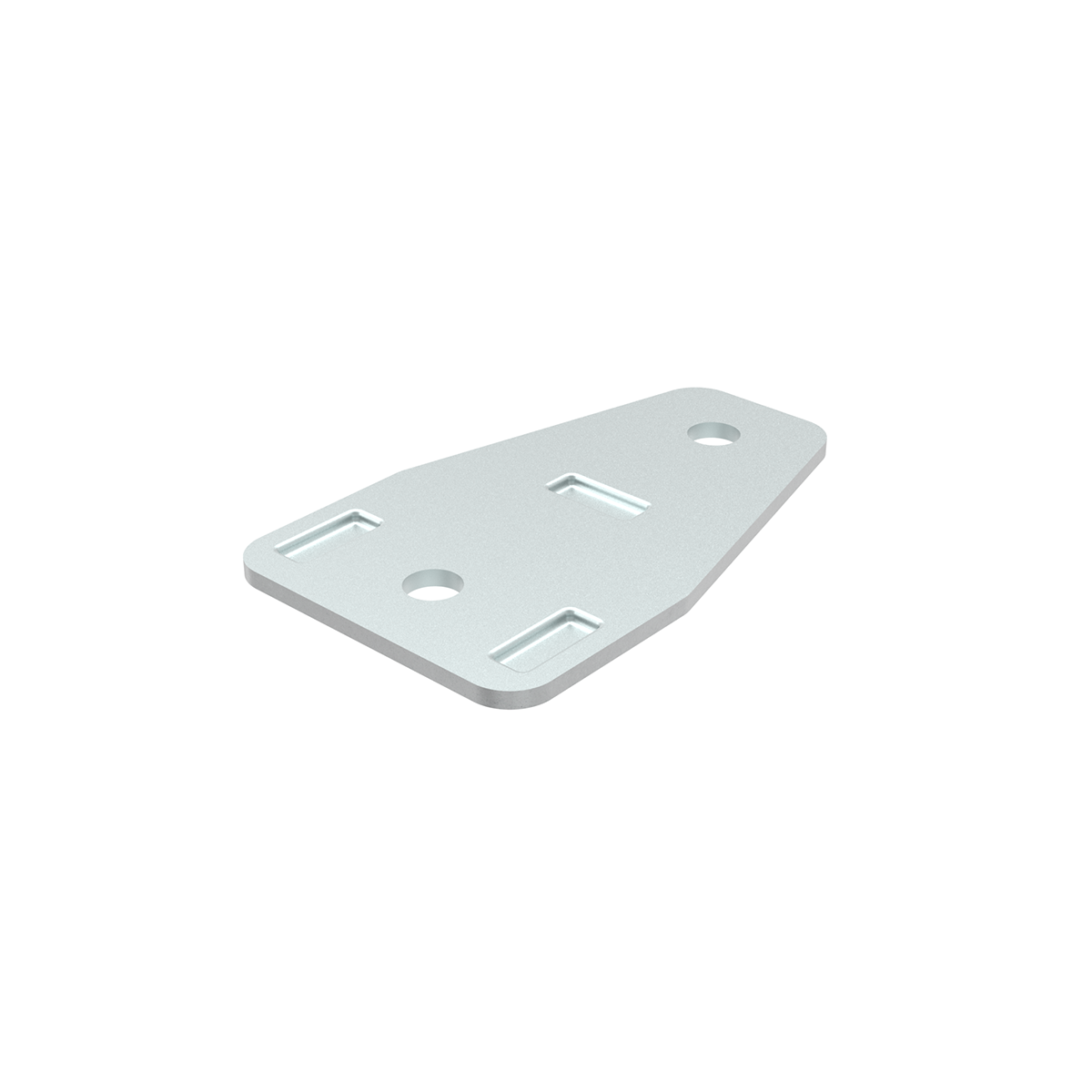

16. Joint Plate T	8200 0041 0001	Weight: 0.70 kg • Black

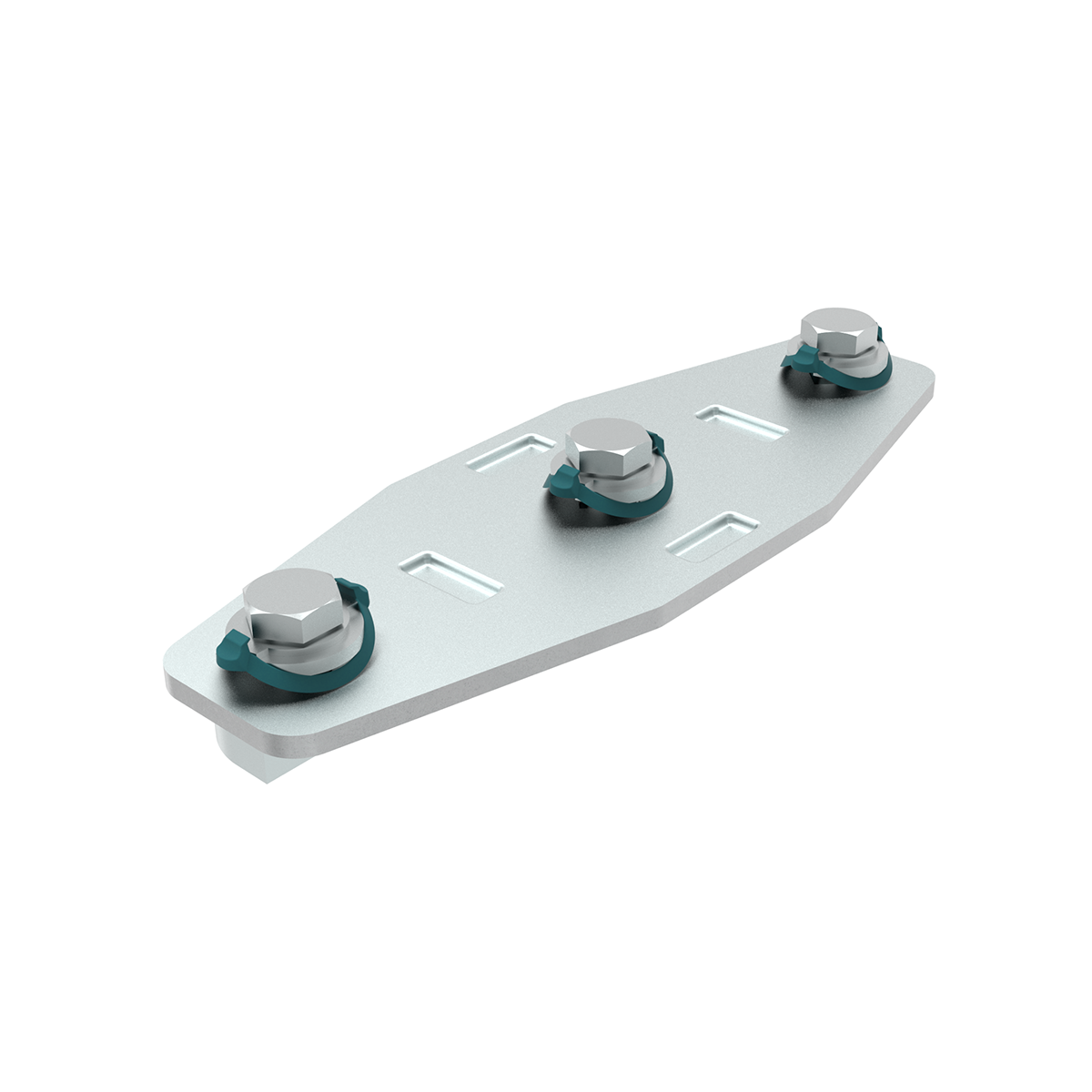

17. Joint Plate X	8200 0041 0011	Weight: 0.70 kg • Black

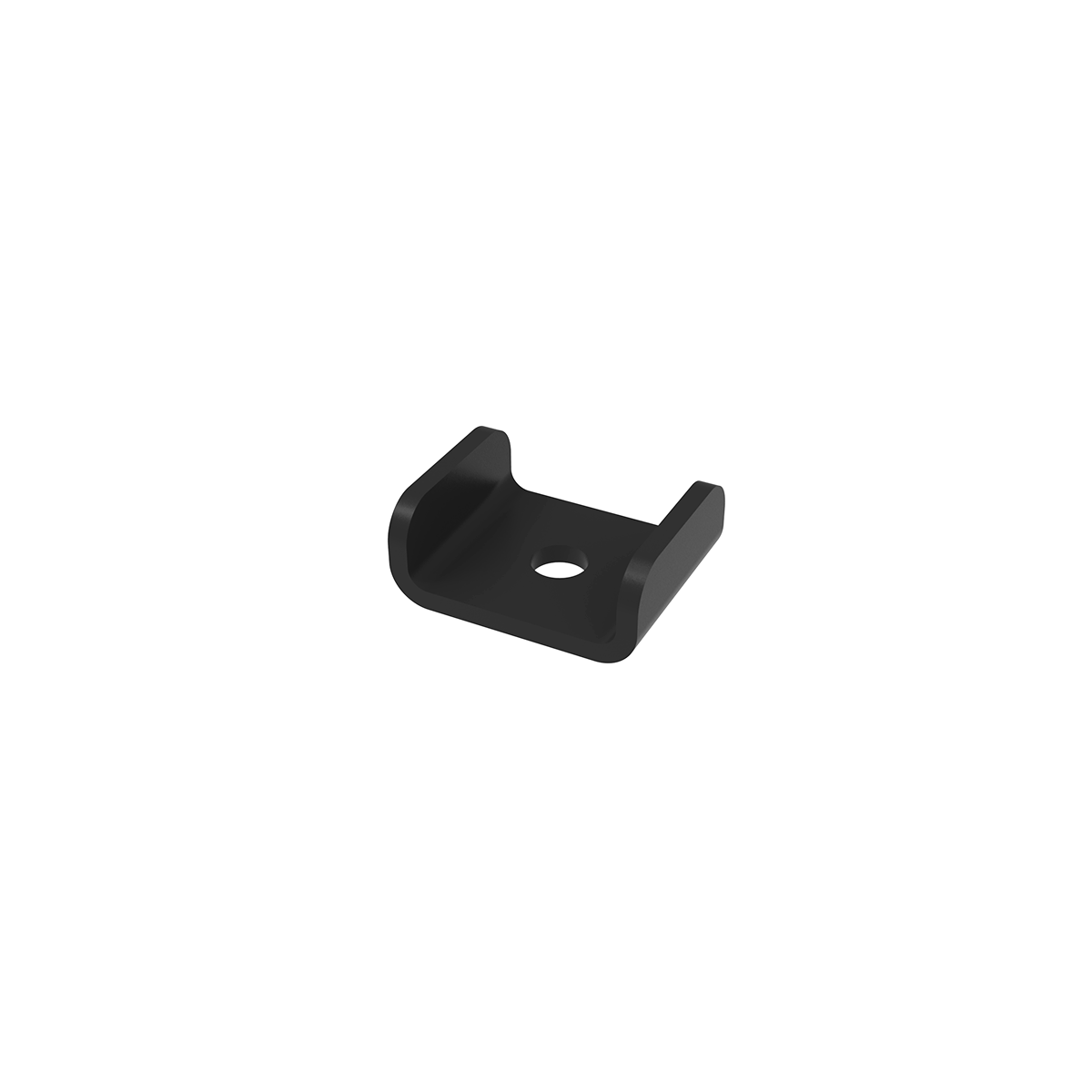

18. U-Washer	8200 0661 0007	Weight: 0.084 kg • Black
	8200 0661 0003	Weight: 0.084 kg • Galvanised

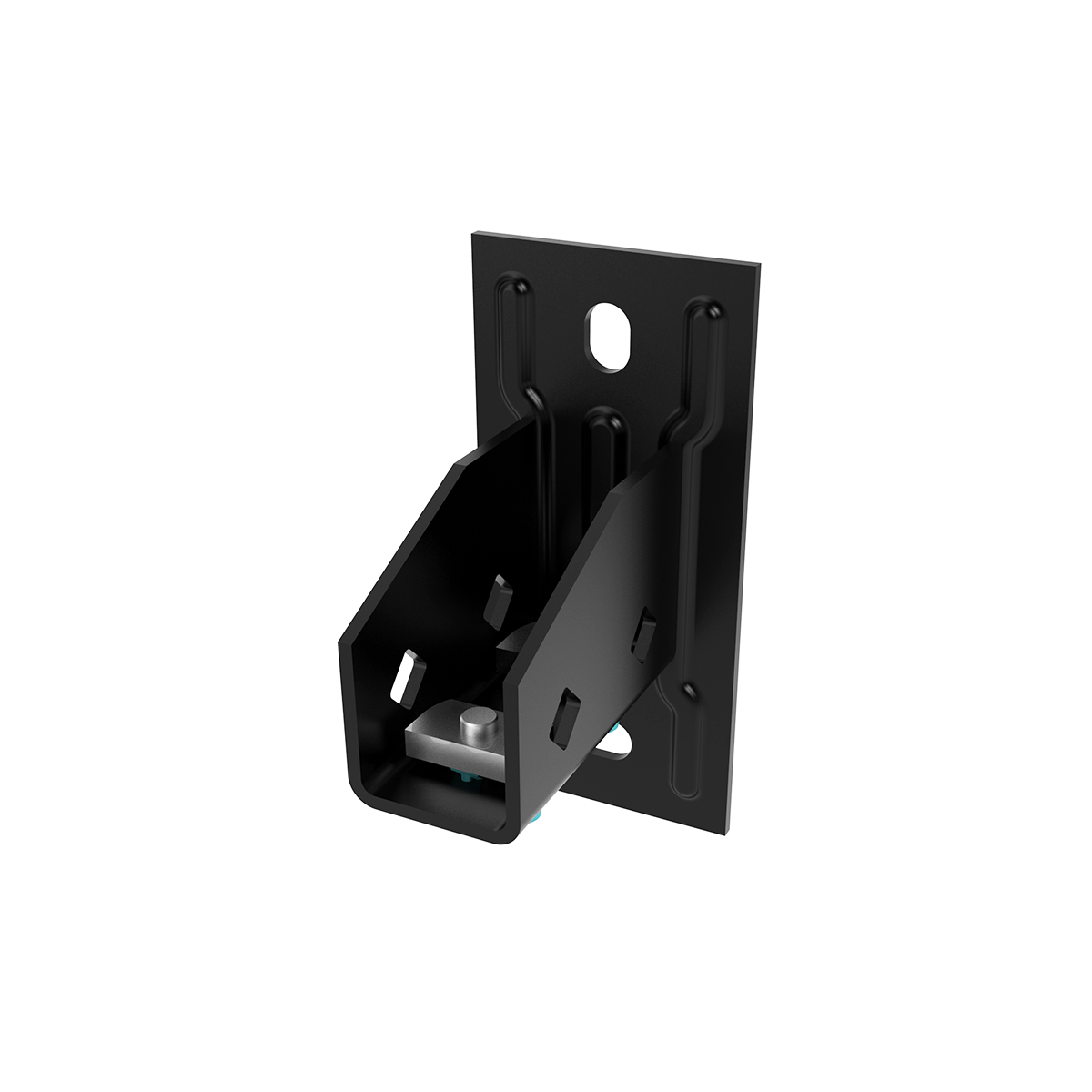

19. Wall Support Bracket	8200 0660 0417	Weight: 0.98 kg • Black
	8200 0660 0411	Weight: 0.98 kg • Galvanised

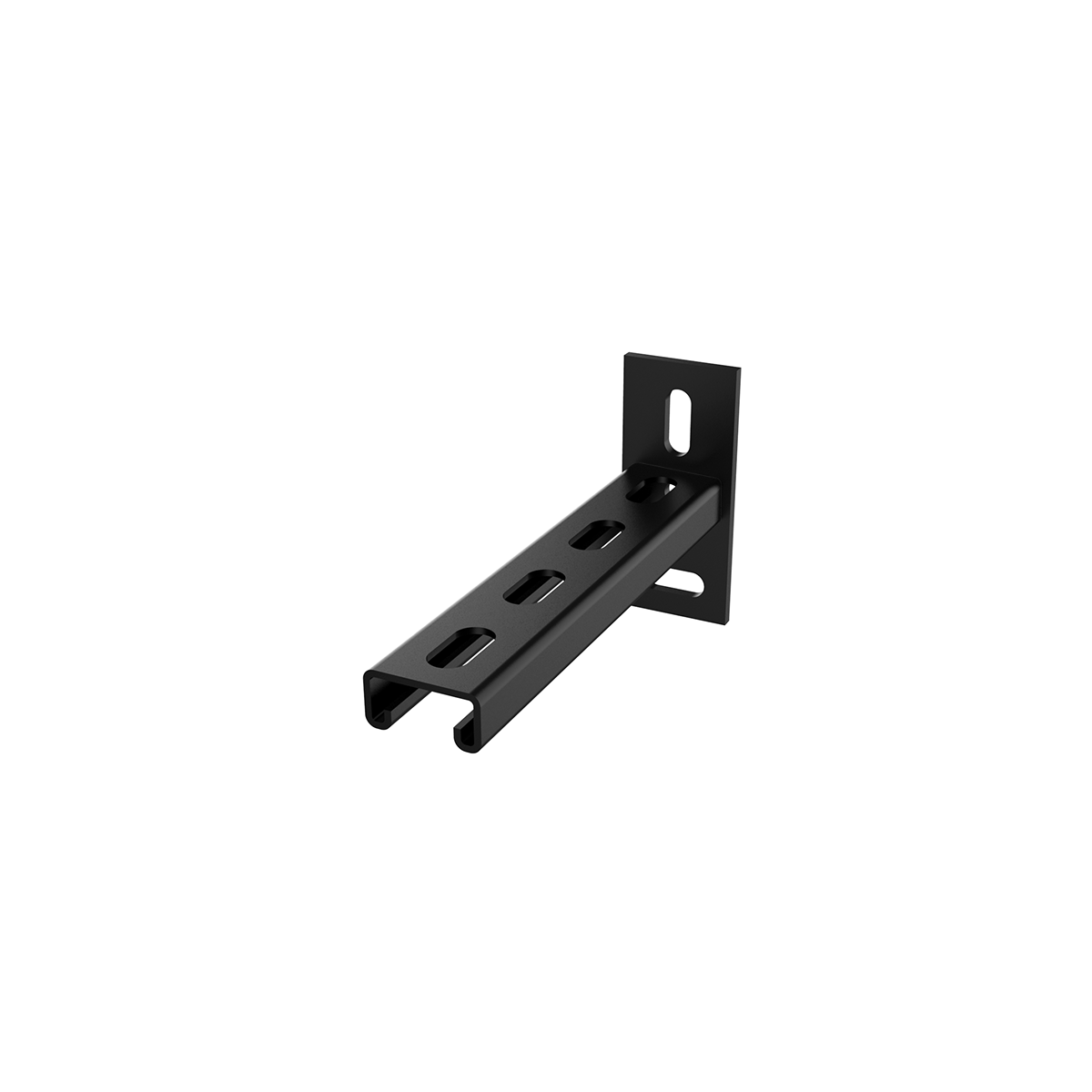

20. Small Wall Bracket	8700 0653 0207	Weight: 0.31 kg • Dimensions: 41 x 21 mm • Length: 0.2 m • Black
	8700 0653 0201	Weight: 0.31 kg • Dimensions: 41 x 21 mm • Length: 0.2 m • Galvanised
	8700 0653 0203	Weight: 0.31 kg • Dimensions: 41 x 21 mm • Length: 0.2 m • White

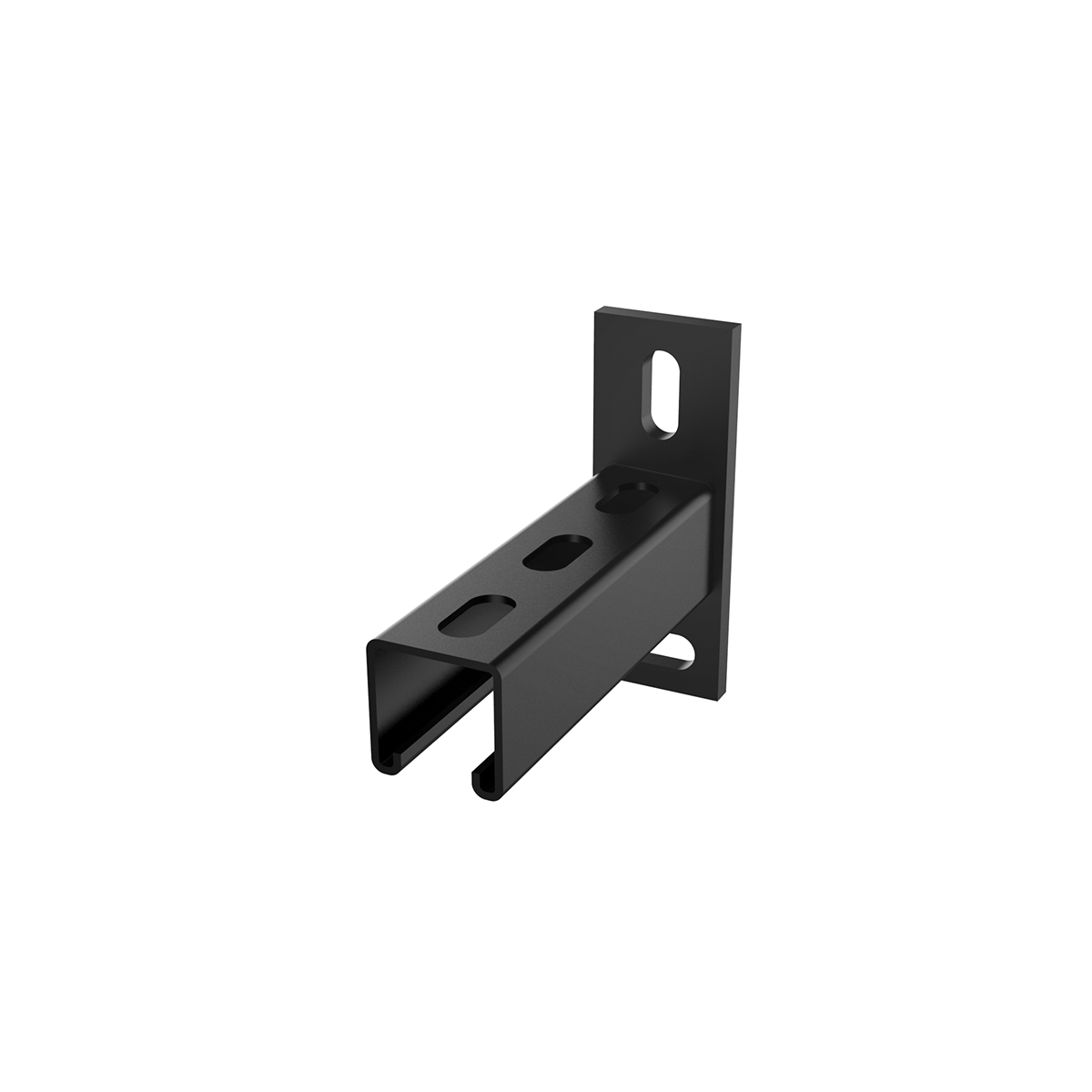

21. Wall Bracket 15 cm	8700 0650 0157	Weight: 0.66 kg • Dimensions: 41 x 41 mm • Length: 0.15 m • Black
	8700 0650 0151	Weight: 0.66 kg • Dimensions: 41 x 41 mm • Length: 0.15 m • Galvanised

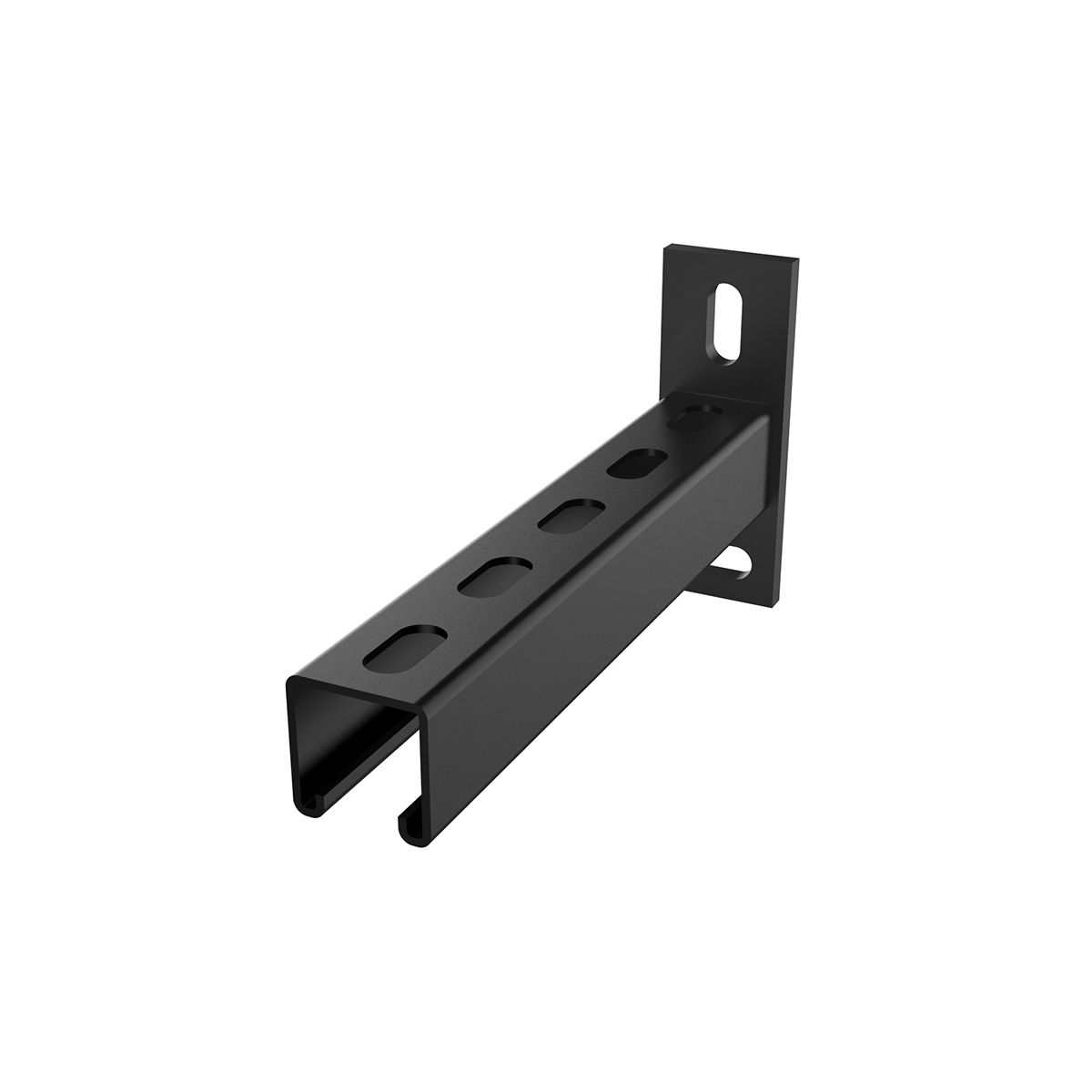

22. Wall bracket 25 cm	8700 0650 0257	Weight: 0.86 kg • Dimensions: 41 x 41 mm • Length: 0.25 m • Black
	8700 0650 0251	Weight: 0.86 kg • Dimensions: 41 x 41 mm • Length: 0.25 m • Galvanised
	8700 0650 0253	Weight: 0.86 kg • Dimensions: 41 x 41 mm • Length: 0.25 m • White

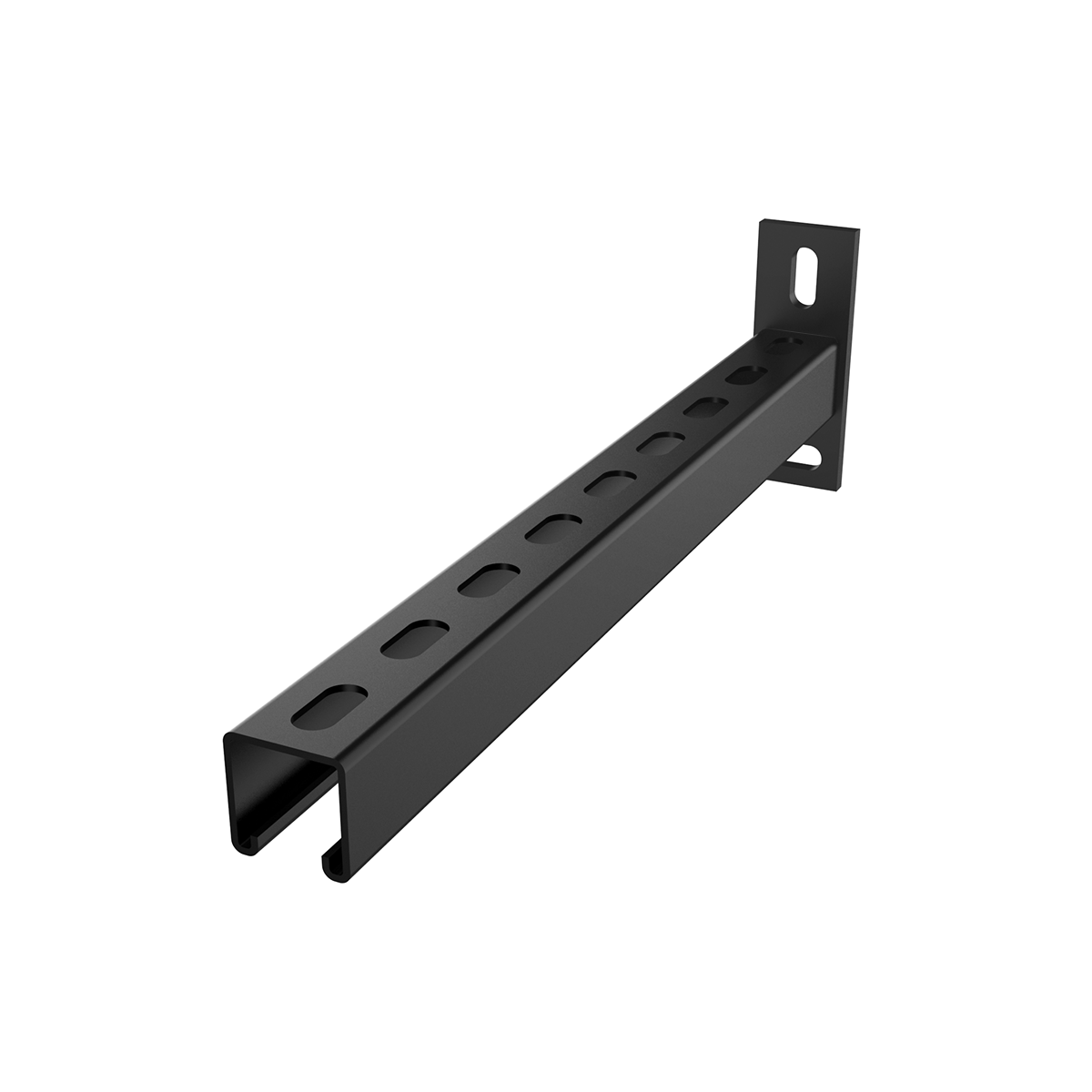

23. Wall Bracket 45 cm	8700 0650 0357	Weight: 1.38 kg • Dimensions: 41 x 41 mm • Length: 0.45 m • Black
	8700 0650 0351	Weight: 1.38 kg • Dimensions: 41 x 41 mm • Length: 0.45 m • Galvanised
	8700 0650 0353	Weight: 1.38 kg • Dimensions: 41 x 41 mm • Length: 0.45 m • White

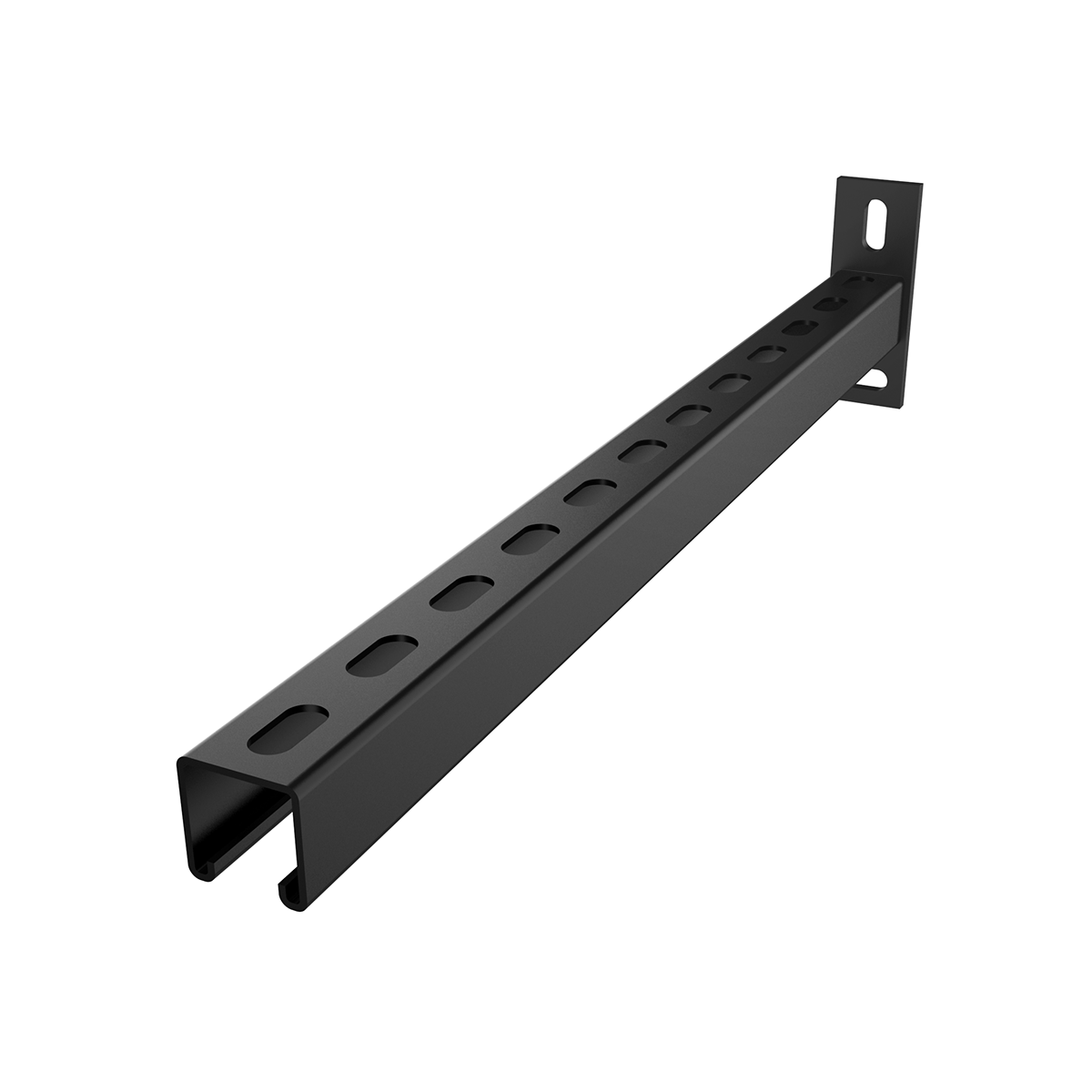

24. Wall Bracket 60 cm	8700 0650 0607	Weight: 1.74 kg • Dimensions: 41 x 41 mm • Length: 0.60 m • Black
	8700 0650 0601	Weight: 1.74 kg • Dimensions: 41 x 41 mm • Length: 0.60 m • Galvanised

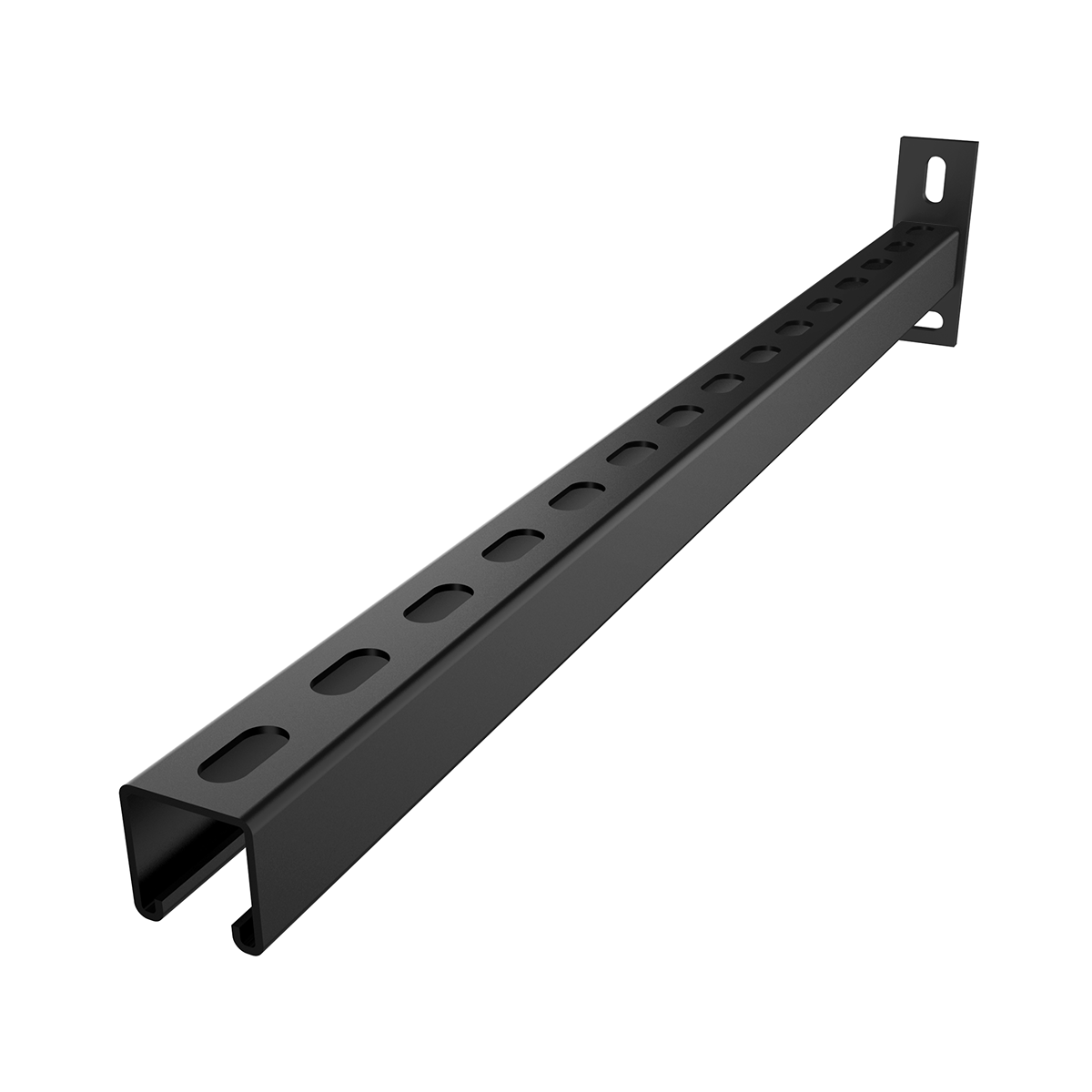

25. Wall Bracket 75 cm	8700 0650 0757	Weight: 2.22 kg • Dimensions: 41 x 41 mm • Length: 0.75 m • Black
	8700 0650 0751	Weight: 2.22 kg • Dimensions: 41 x 41 mm • Length: 0.75 m • Galvanised

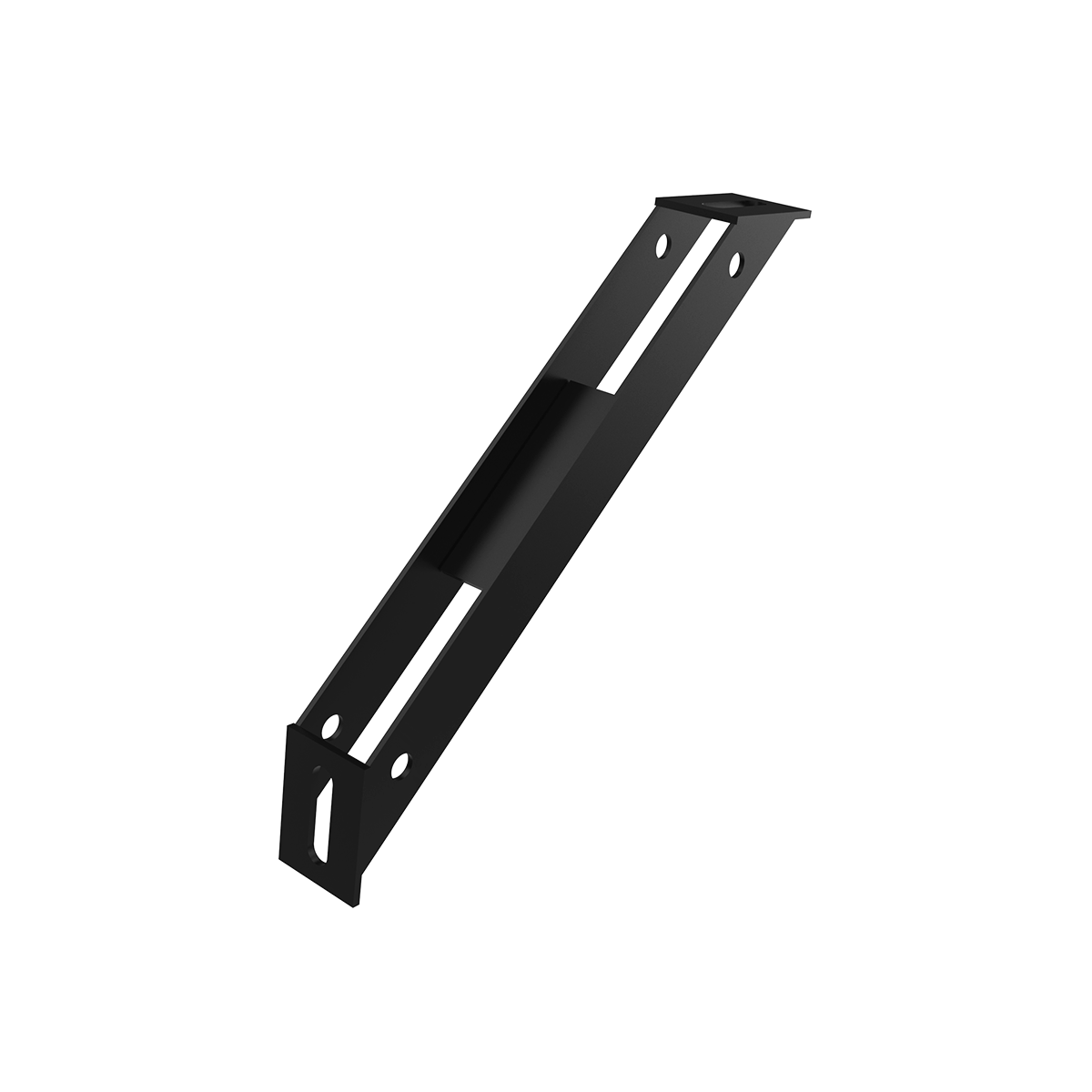

26. Construction Profile Support 45°	8700 0014 0207	Weight: 1.22 kg • Black
	8700 0014 0201	Weight: 1.22 kg • Galvanised

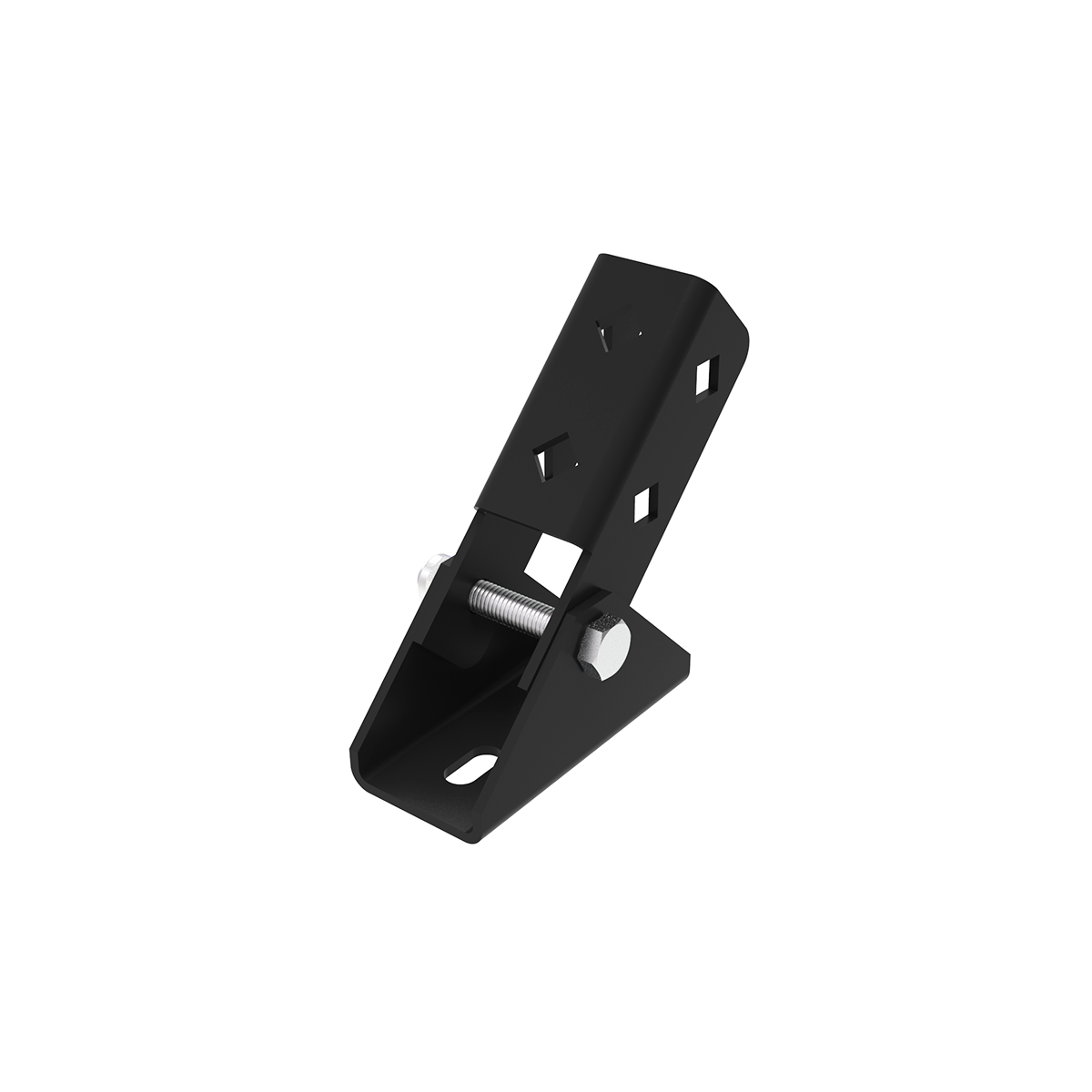

27. Pivoting Wall Bracket	8700 0014 0317	Weight: 0.94 kg • For 41 x 41 and 41 x 82 mm • Black
	8700 0014 0311	Weight: 0.94 kg • For 41 x 41 and 41 x 82 mm • Galvanised

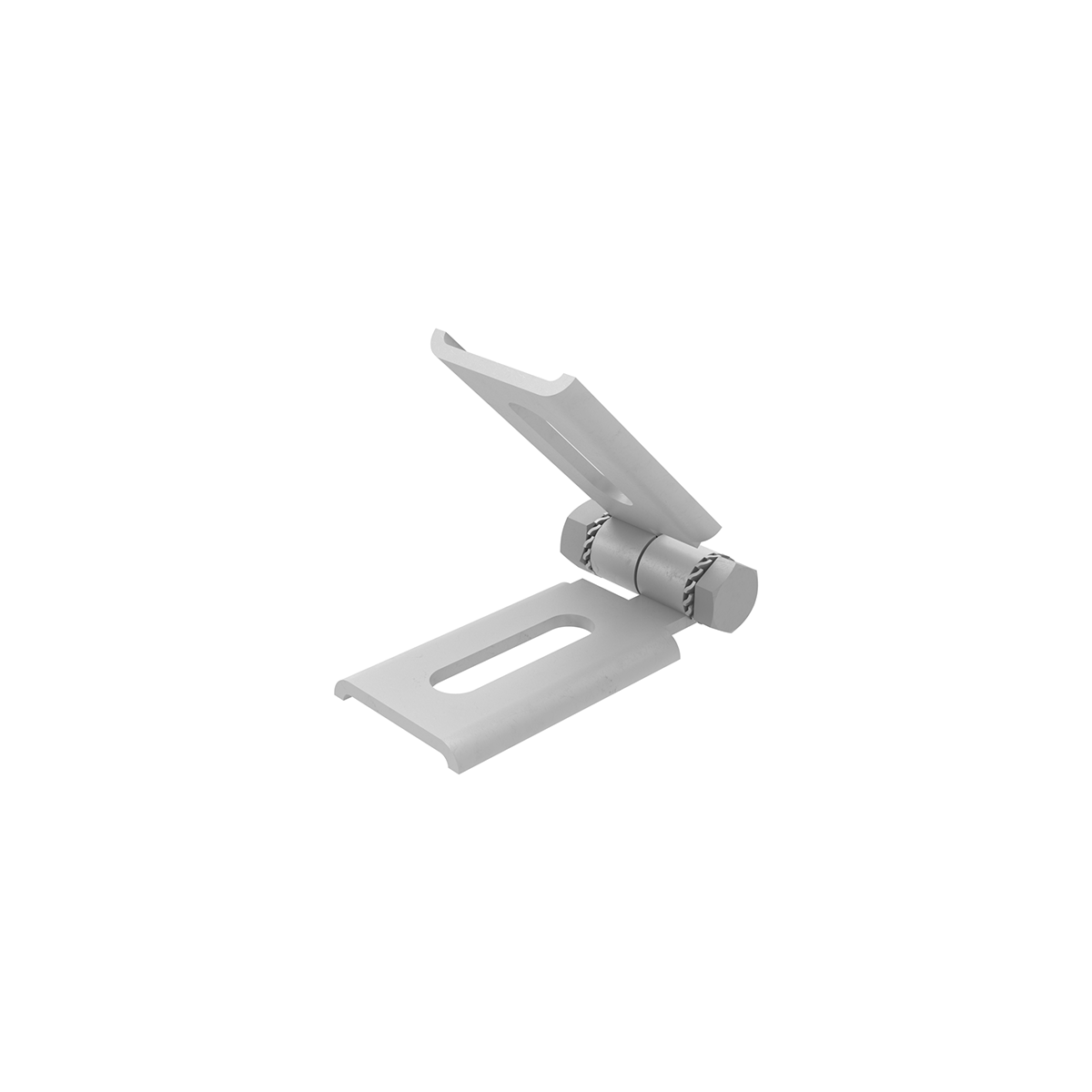

28. Hinged Joint Plate	8700 2260 0801	Weight: 0.35 kg • Galvanised

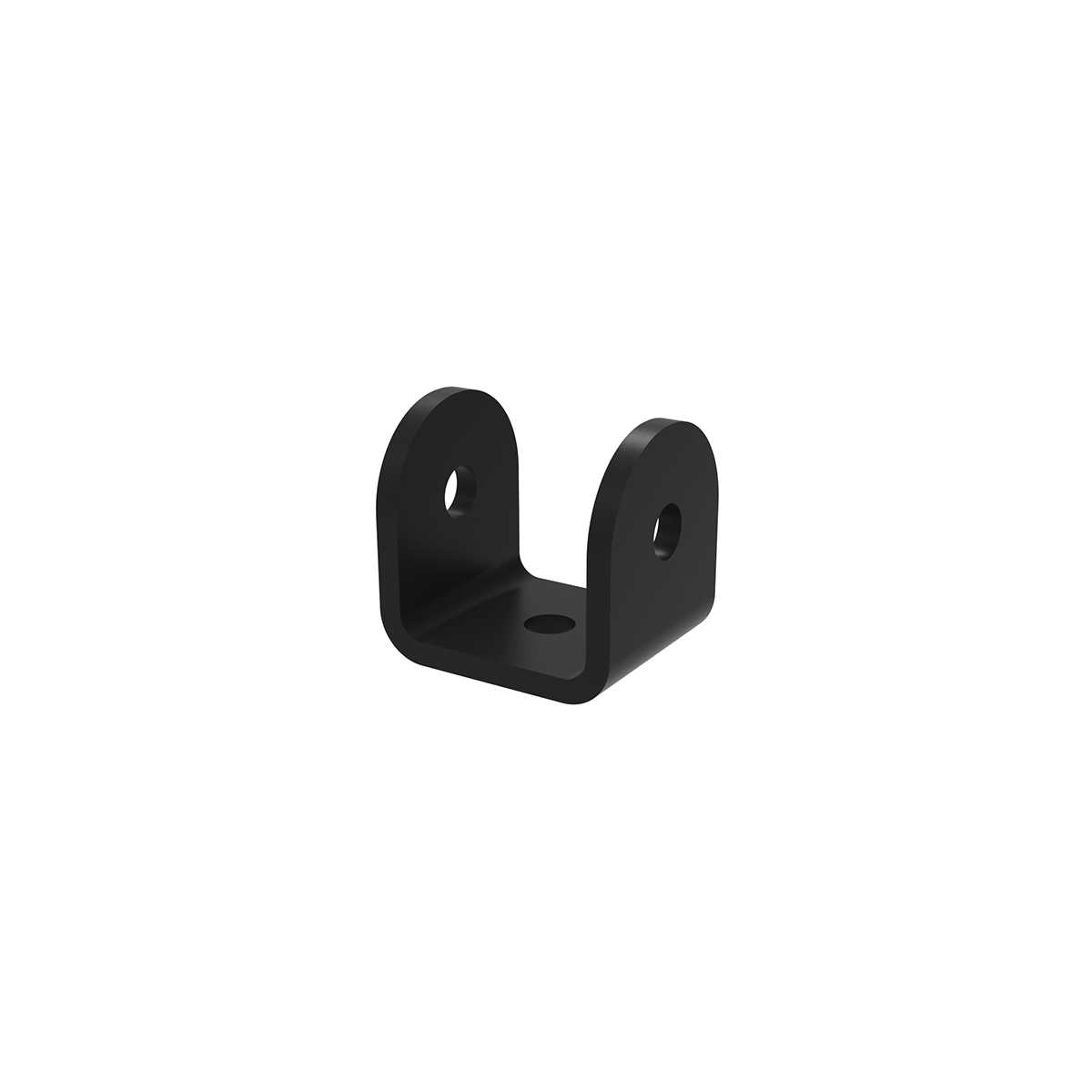

29. Hinge Bracket	8700 2260 0507	Weight: 0.19 kg • ⌀ 11 mm • Black

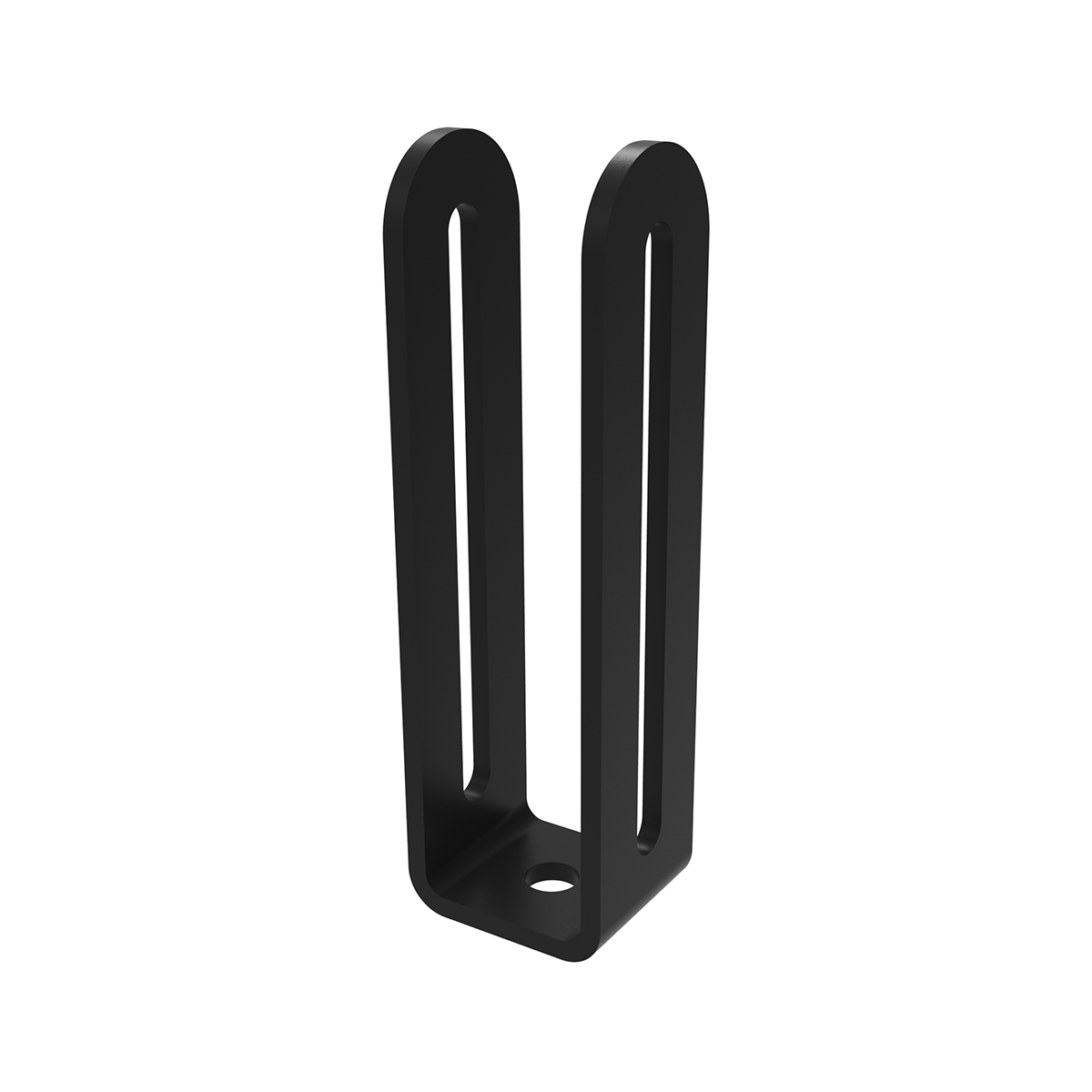

30. Slotted Hinge Bracket	8700 2260 1757	Weight: 0.48 kg • ⌀ 11 x 42 mm • Black

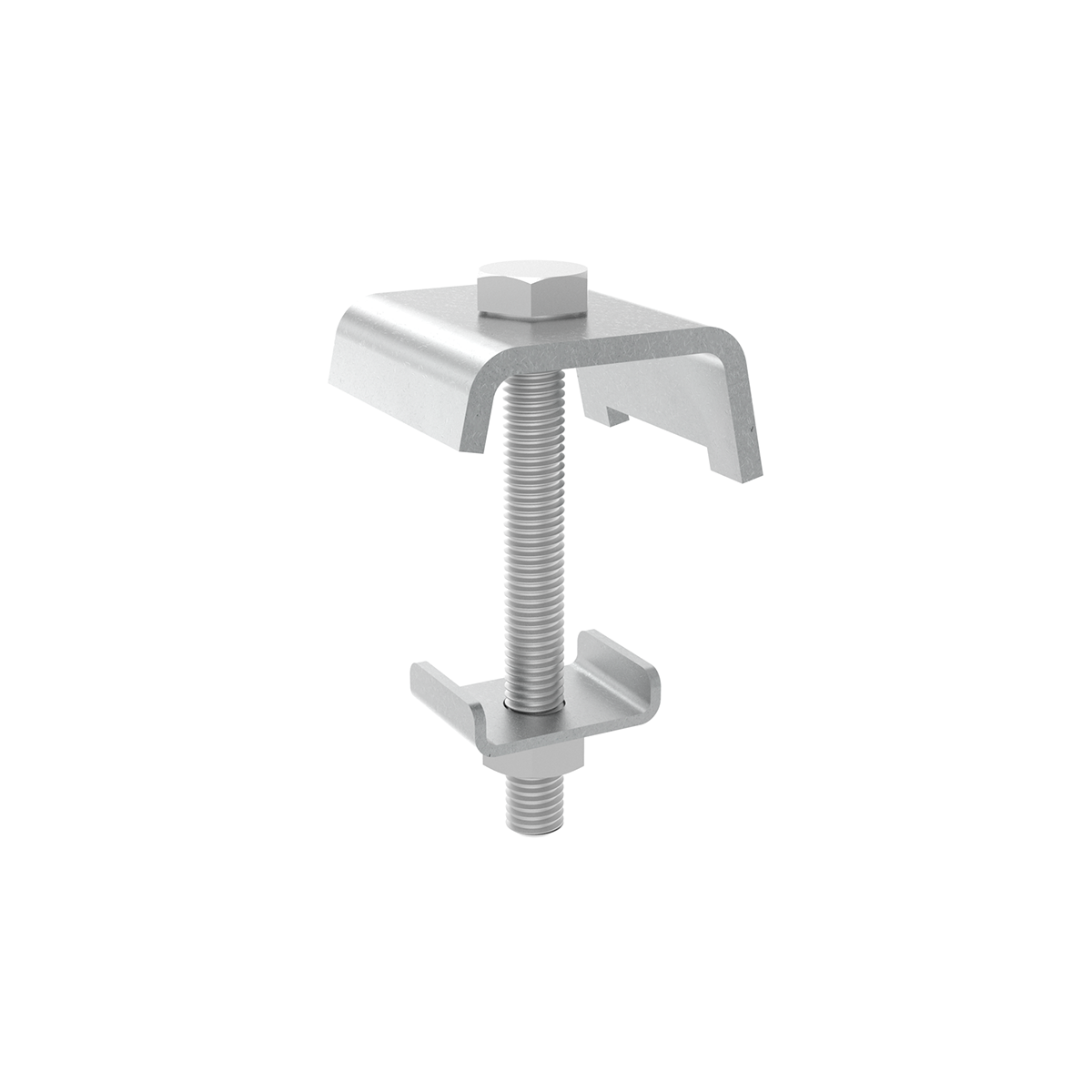

31. Rail Clamp	8200 0661 0017	Weight: 0.18 kg • For 30 x 15 mm • Black

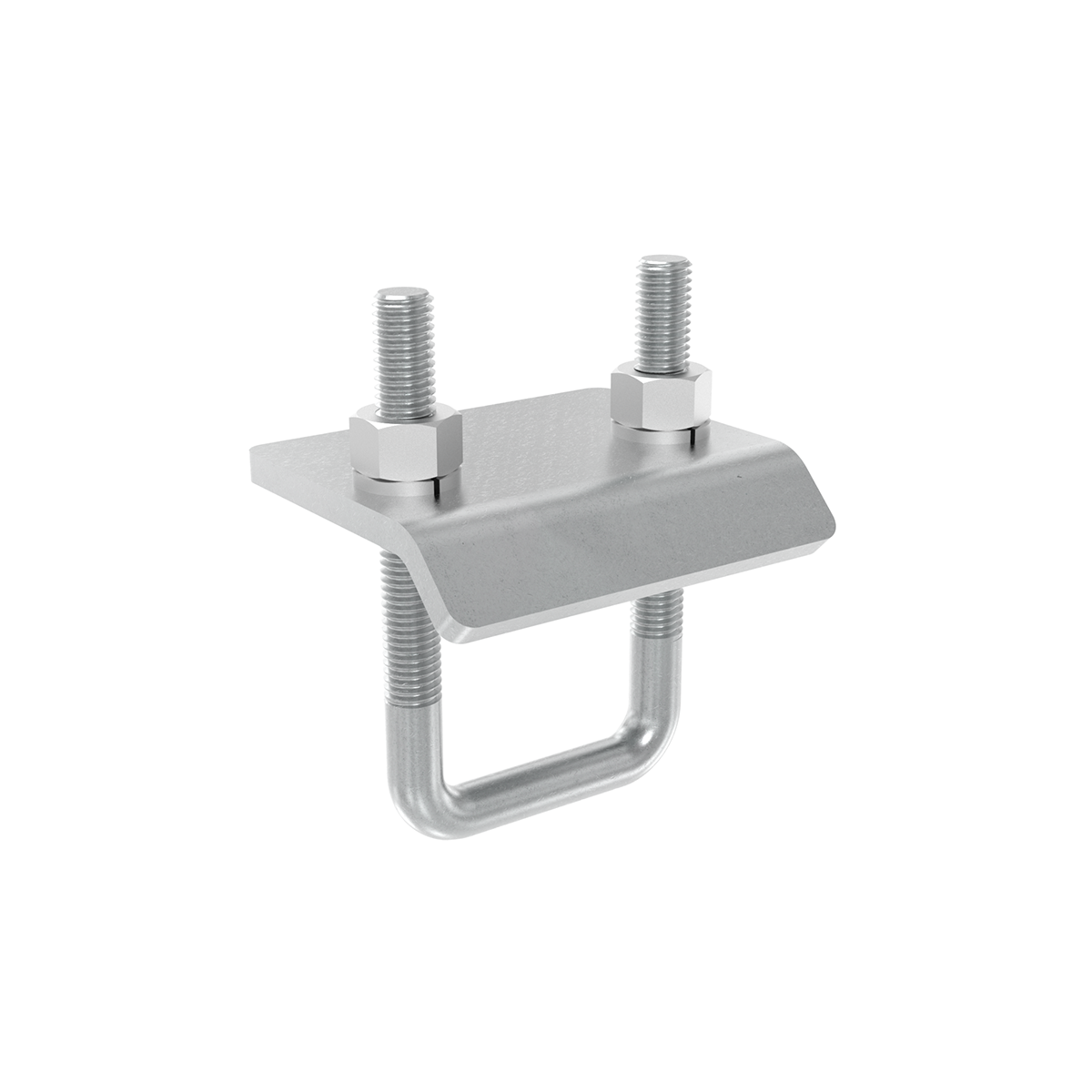

32. Beam Clamp	8700 0661 0067	Weight: 0.38 kg • For 41 x 41 mm • Galvanised
	8700 0661 0077	Weight: 0.38 kg • For 41 x 82 mm • Galvanised

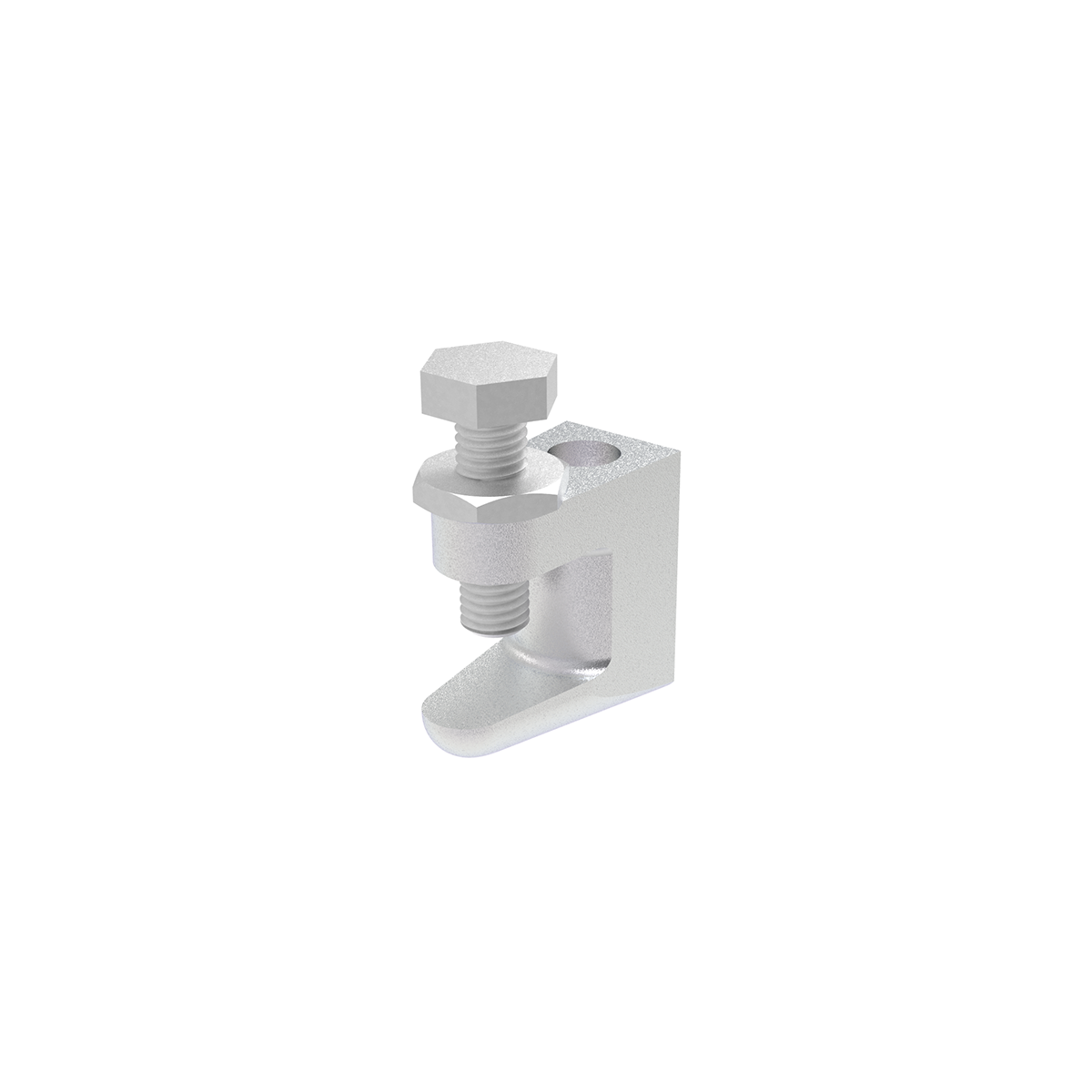

33. I-Beam Clamp	8700 0686 2001	Weight: 0.14 kg • M10 open • Static loads • Galvanised
	8700 0686 2101	Weight: 0.14 kg • M10 with screw thread • Static loads • Galvanised
	8700 0686 0121	Weight: 0.14 kg • M12 • Static loads • Galvanised

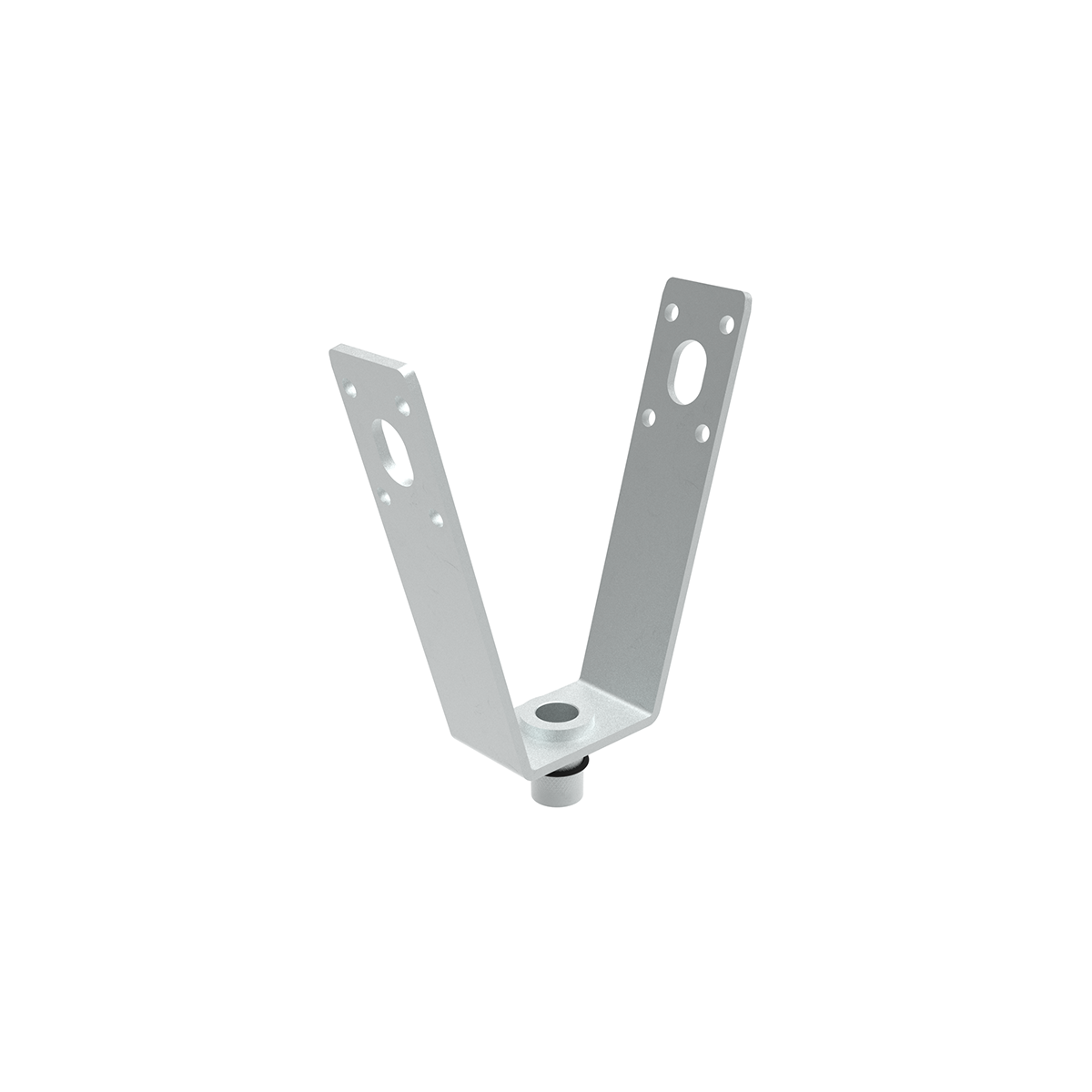

34. Steel Deck Profile Hanger	8700 0662 0101	Weight: 0.15 kg • Galvanised
