Bright yellow partition curtains on an industrial curtain rail

Rail H100

مسار متعدد الاستخدامات، وبسعر مناسب للستائر المتوسطة والثقيلة الوزن.

نظام مستدير كليًا بالتحكم اليدوي أو الكهربي.
مناسب لاستوديوهات التليفزيون والأماكن متوسطة الحجم أو المسارح.
H100 يمكن أن يتم التحكم به من خلال DMX.

إكسسوارات	كود المقال	معلومات

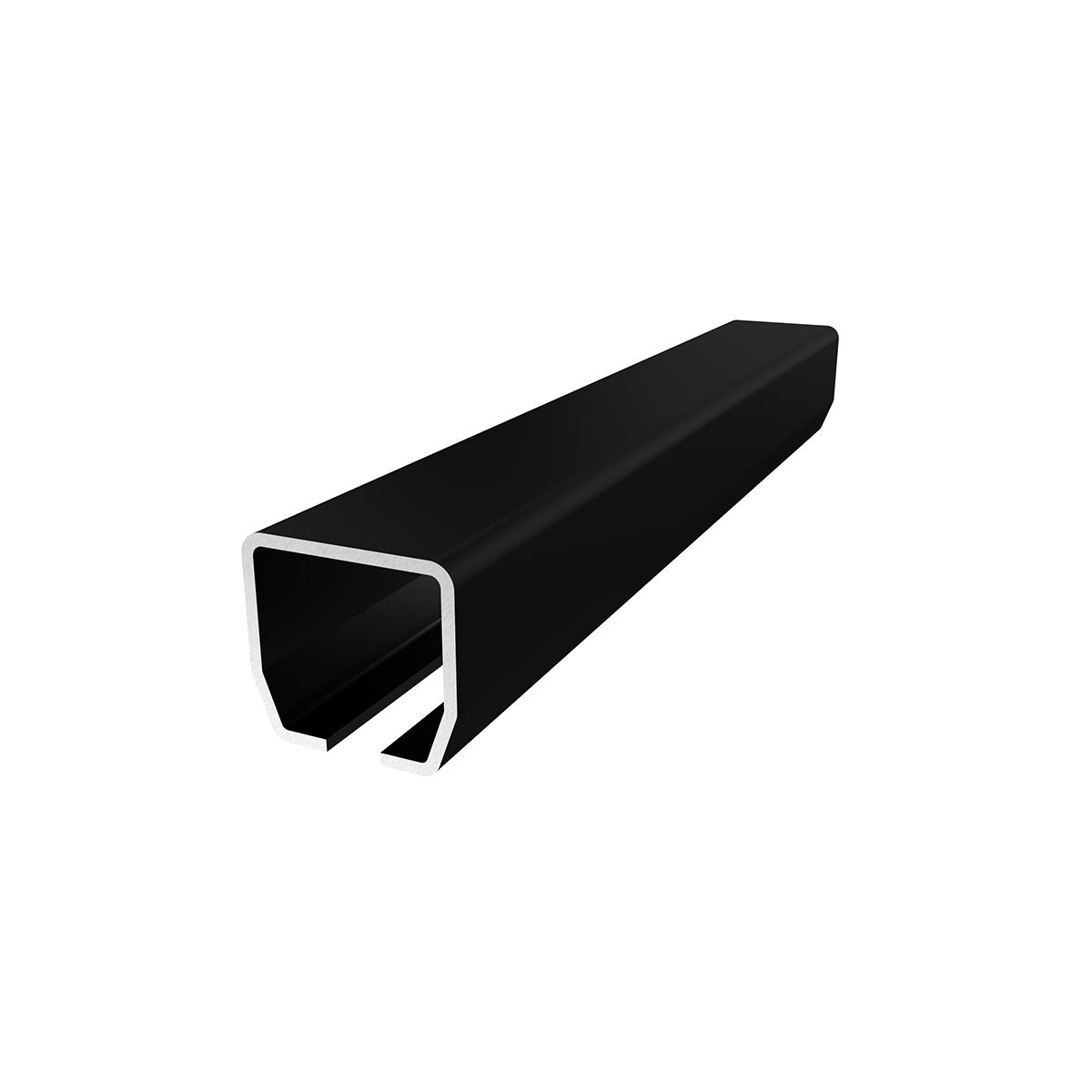

01. Track	8050 0001 6007	Weight: 1.34 kg/m • Length: 6.00 m • Black
	8050 0001 6003	Weight: 1.34 kg/m • Length: 6.00 m • White
	8050 0001 6001	Weight: 1.34 kg/m • Length: 6.00 m • Galvanized

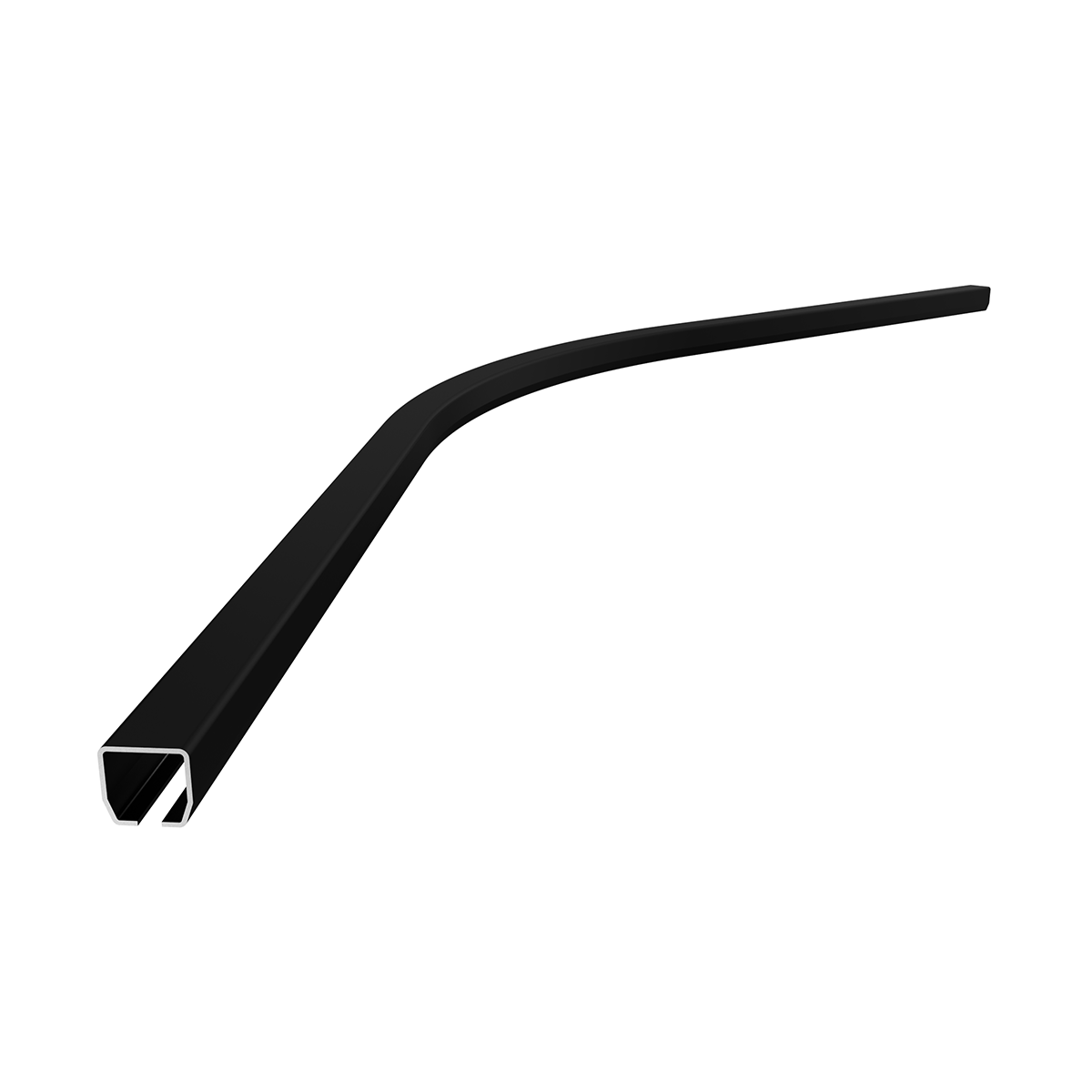

02. Curved Track 45° - Radius 65 cm	8050 0004 065#	Weight: 1.34 kg/m • Black / Galvanized

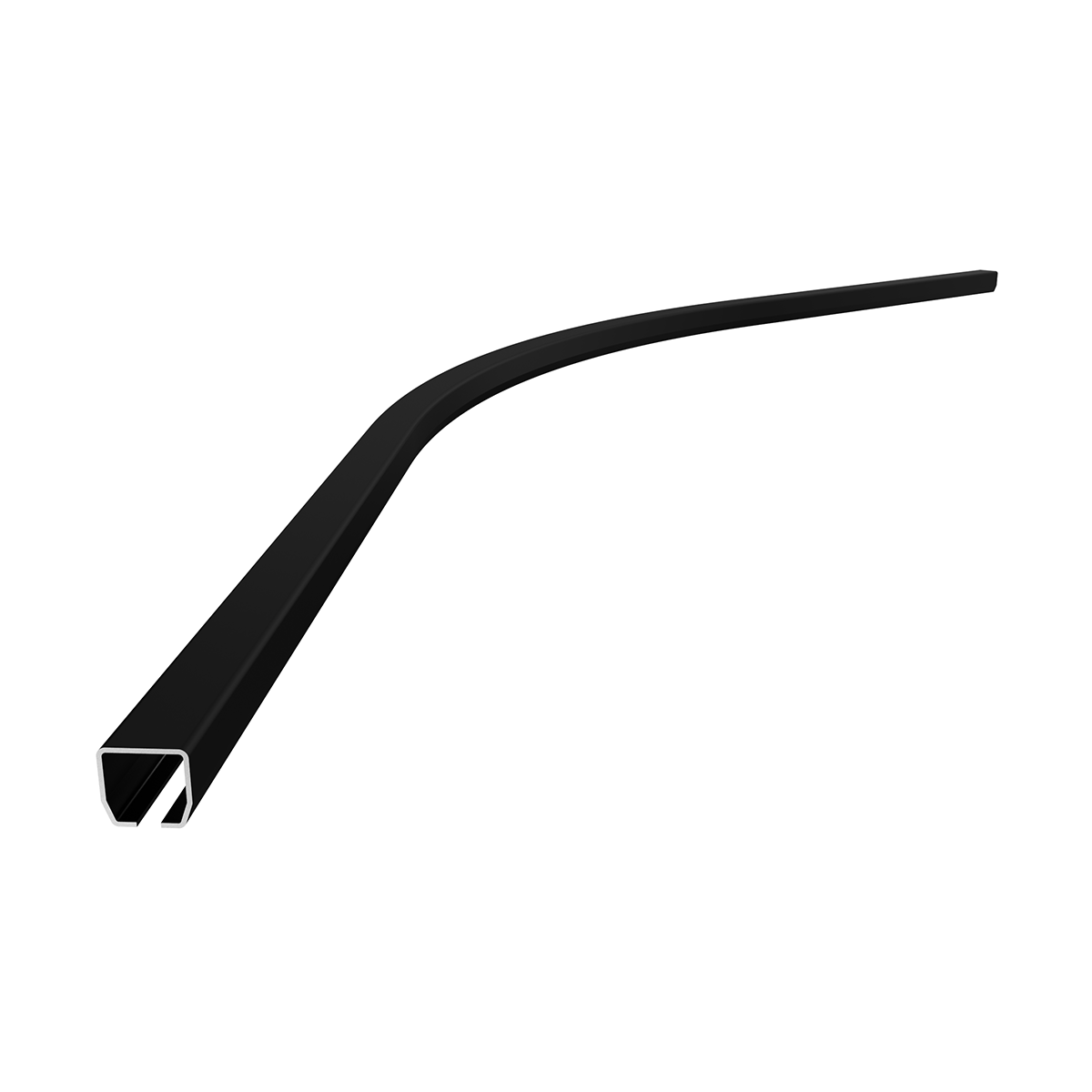

03. Curved Track 45° - Radius 100 cm	8050 0004 100#	Weight: 1.34 kg/m • Black / Galvanized

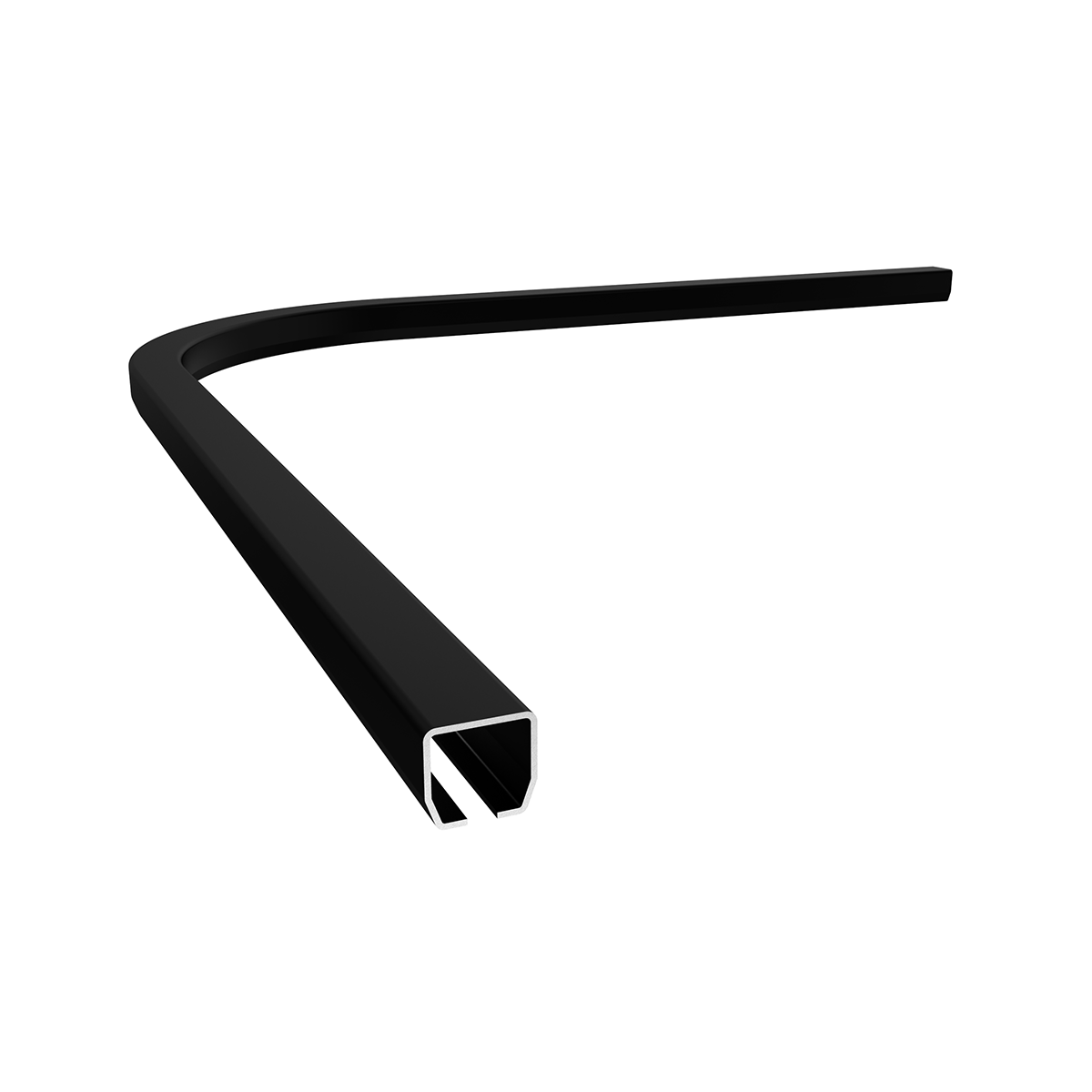

04. Curved Track 90° - Radius 20.5 cm	8050 0007 020#	Weight: 1.34 kg/m • Black / White / Galvanized

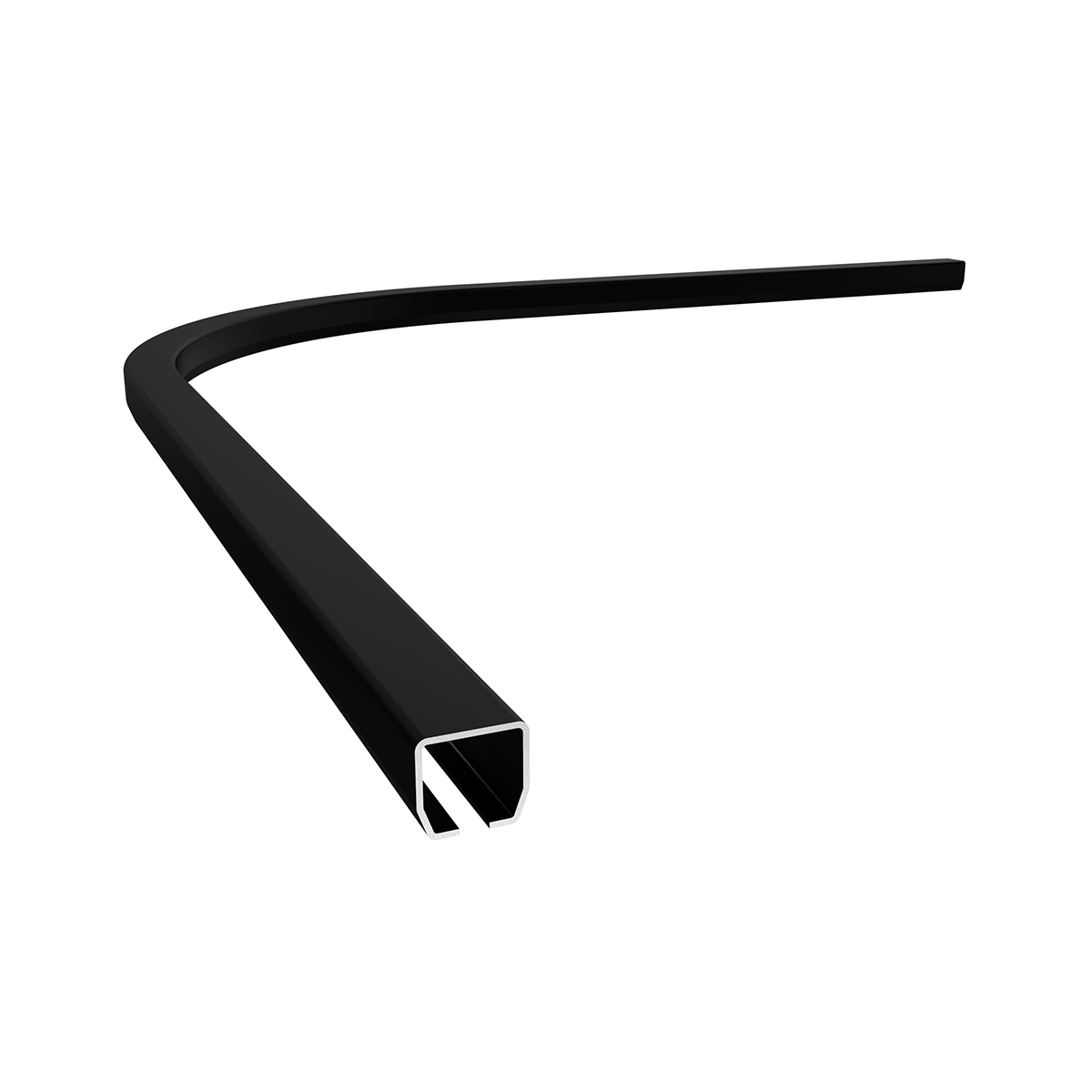

05. Curved Track 90° - Radius 30 cm	8050 0007 030#	Weight: 1.34 kg/m • Black / White / Galvanized

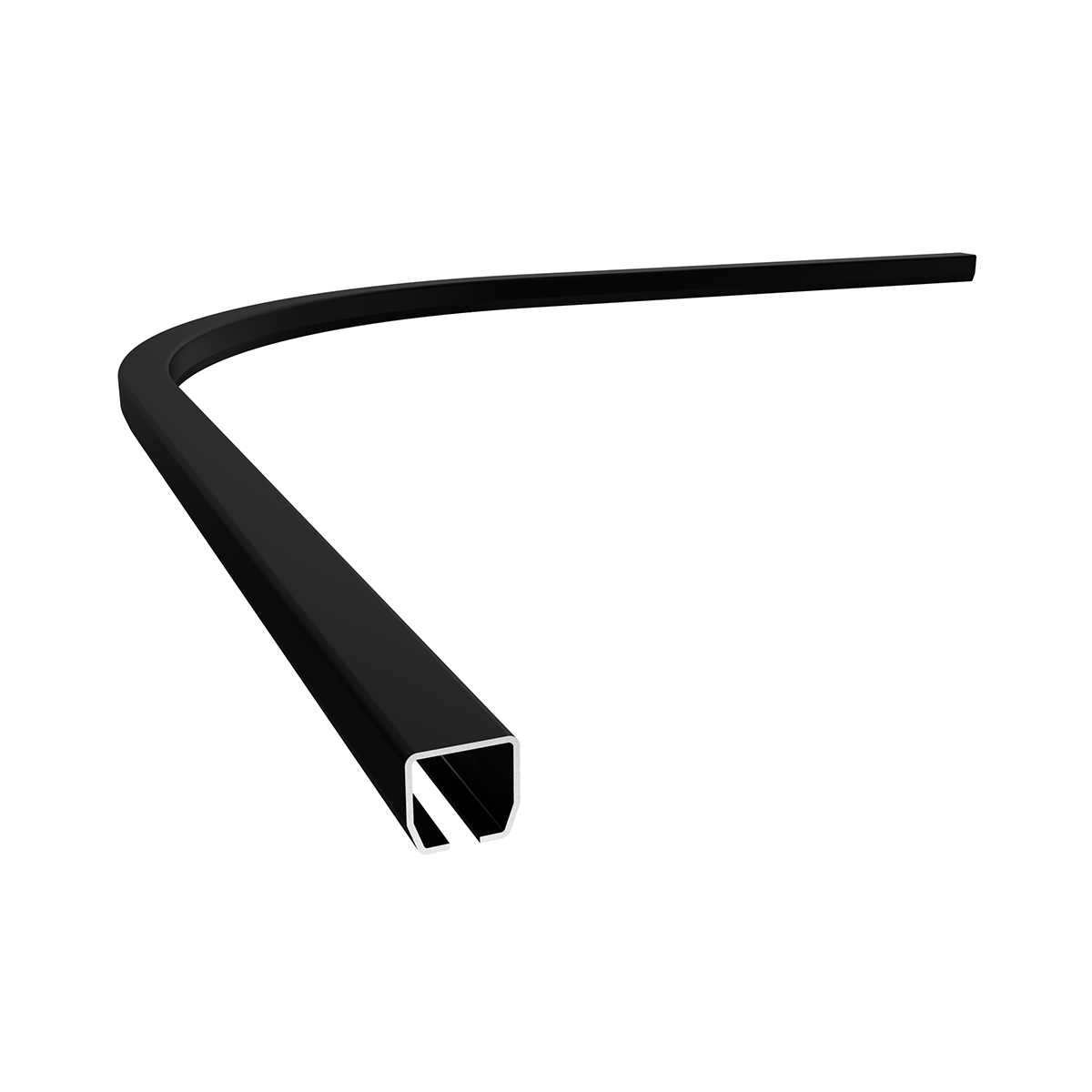

06. Curved Track 90° - Radius 40 cm	8050 0007 040#	Weight: 1.34 kg/m • Black / Galvanized

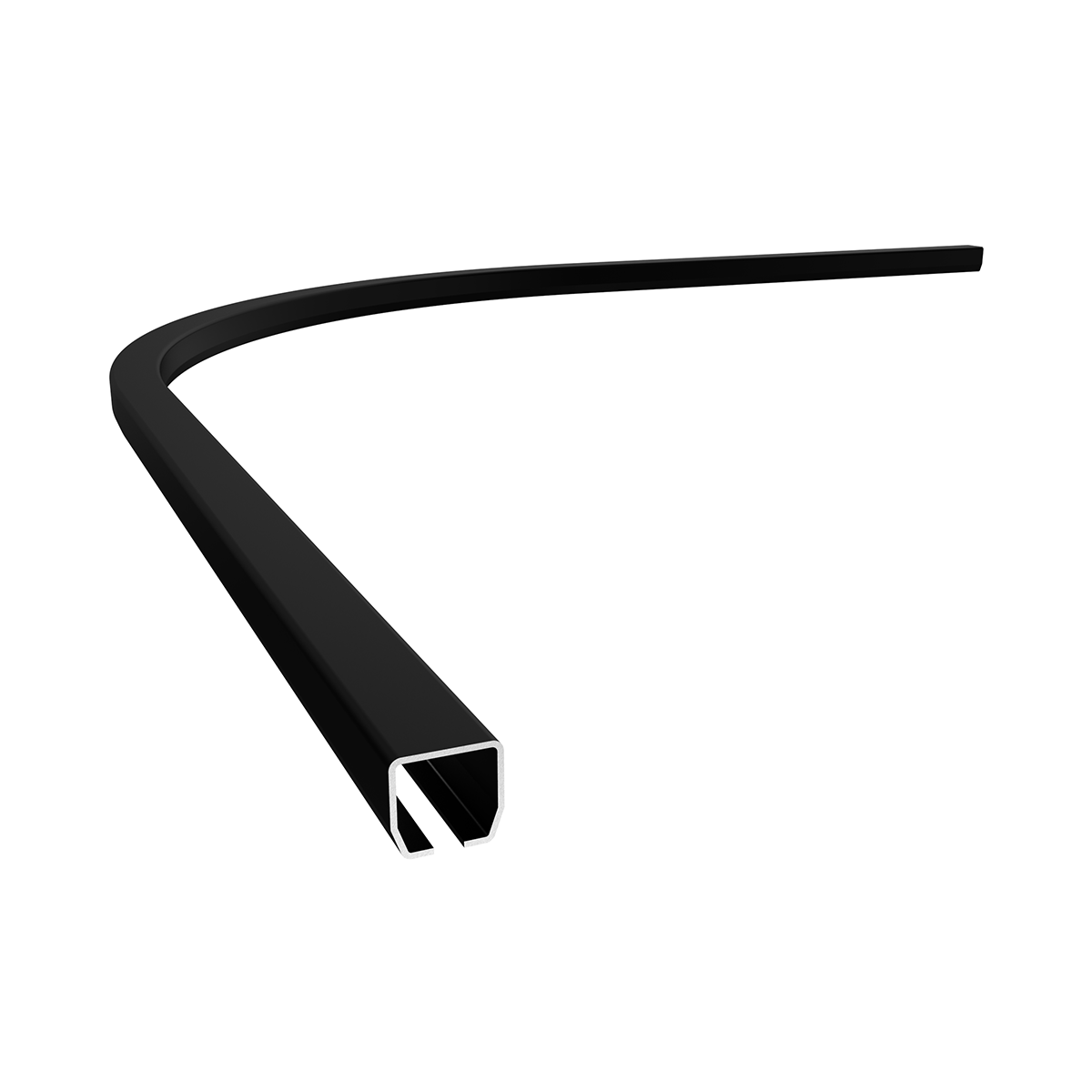

07. Curved Track 90° - Radius 50 cm	8050 0007 050#	Weight: 1.34 kg/m • Black / White / Galvanized

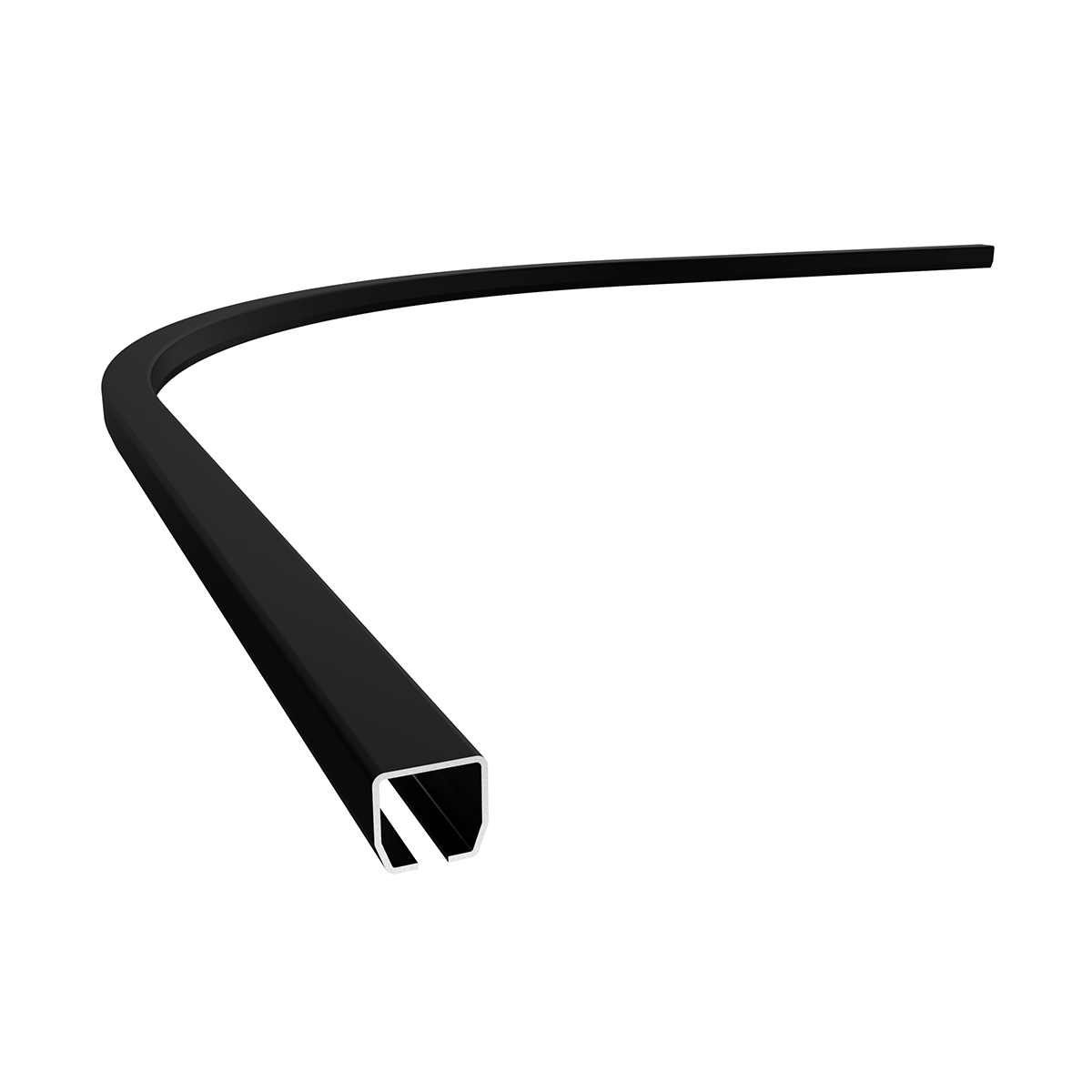

08. Curved Track 90° - Radius 65 cm	8050 0007 065#	Weight: 1.34 kg/m • Black / White / Galvanized

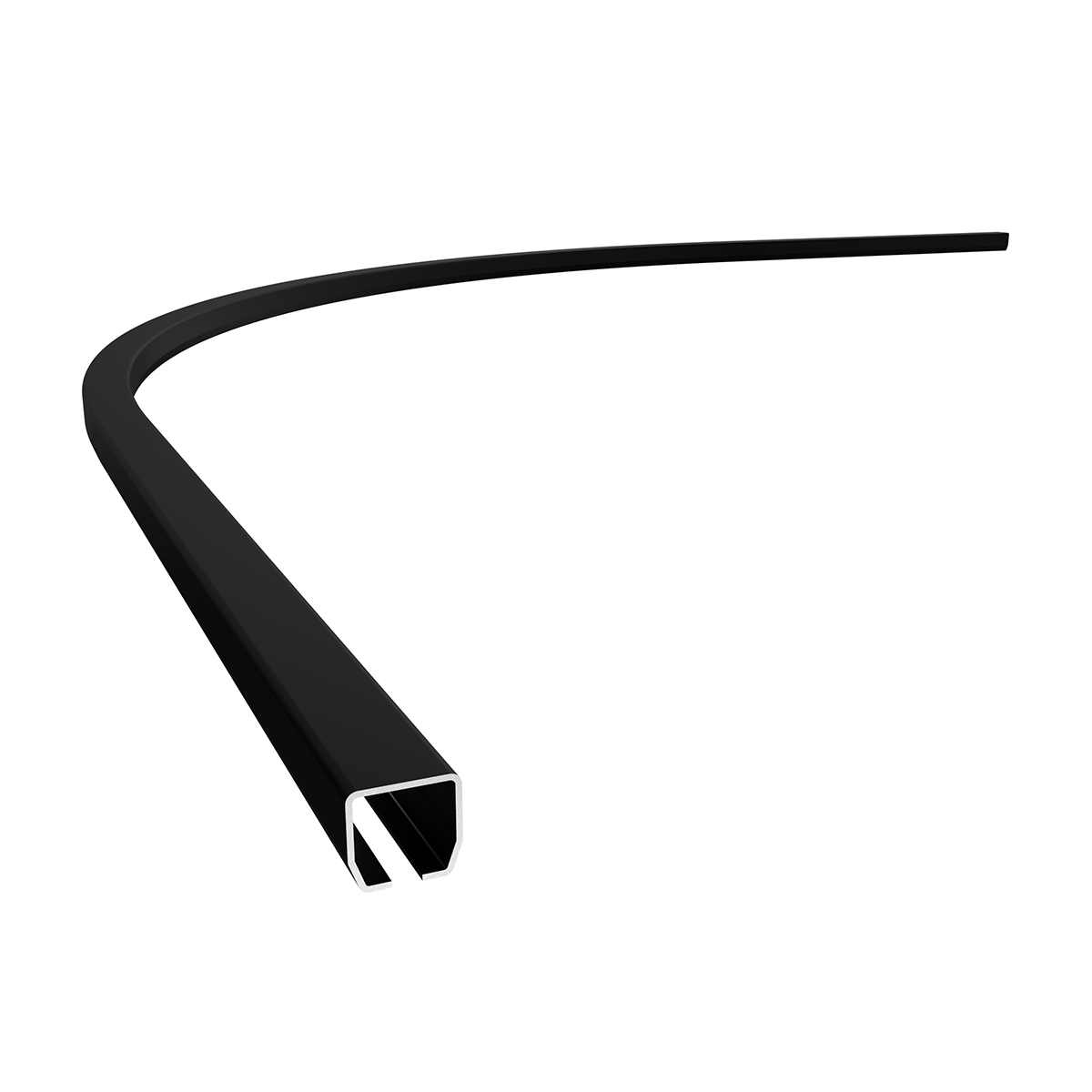

09. Curved Track 90° - Radius 100 cm	8050 0007 100#	Weight: 1.34 kg/m • Black / Galvanized

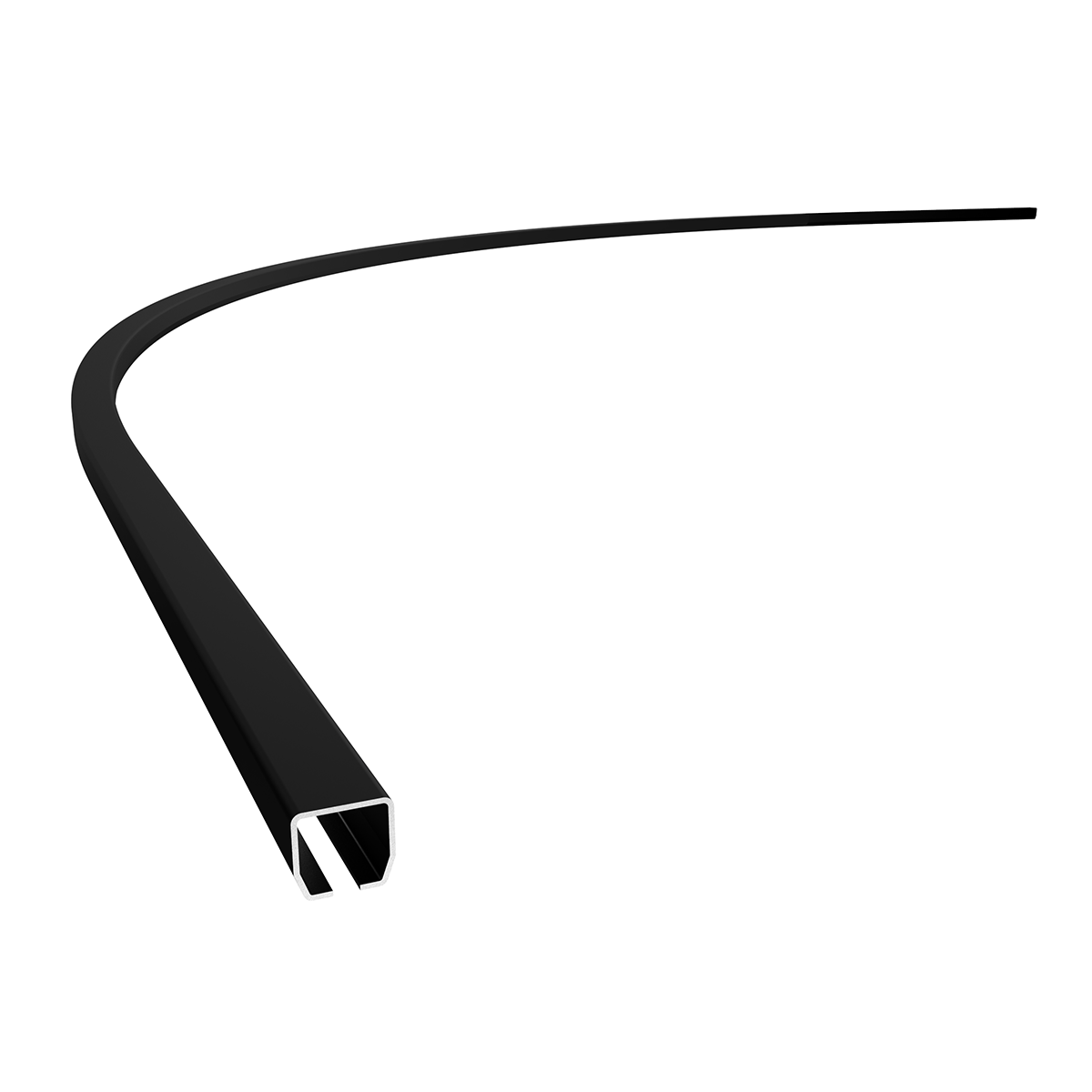

10. Curved Track 90° - Radius 200 cm	8050 0007 200#	Weight: 1.34 kg/m • Black / Galvanized
11. End Stop	8050 0050 0001	Weight: 0.03 kg • Galvanized
12. End Stop Swivel Hook Add-On	8050 0050 0017	Weight: 0.02 kg • Black
	8050 0050 0011	Weight: 0.02 kg • Galvanized

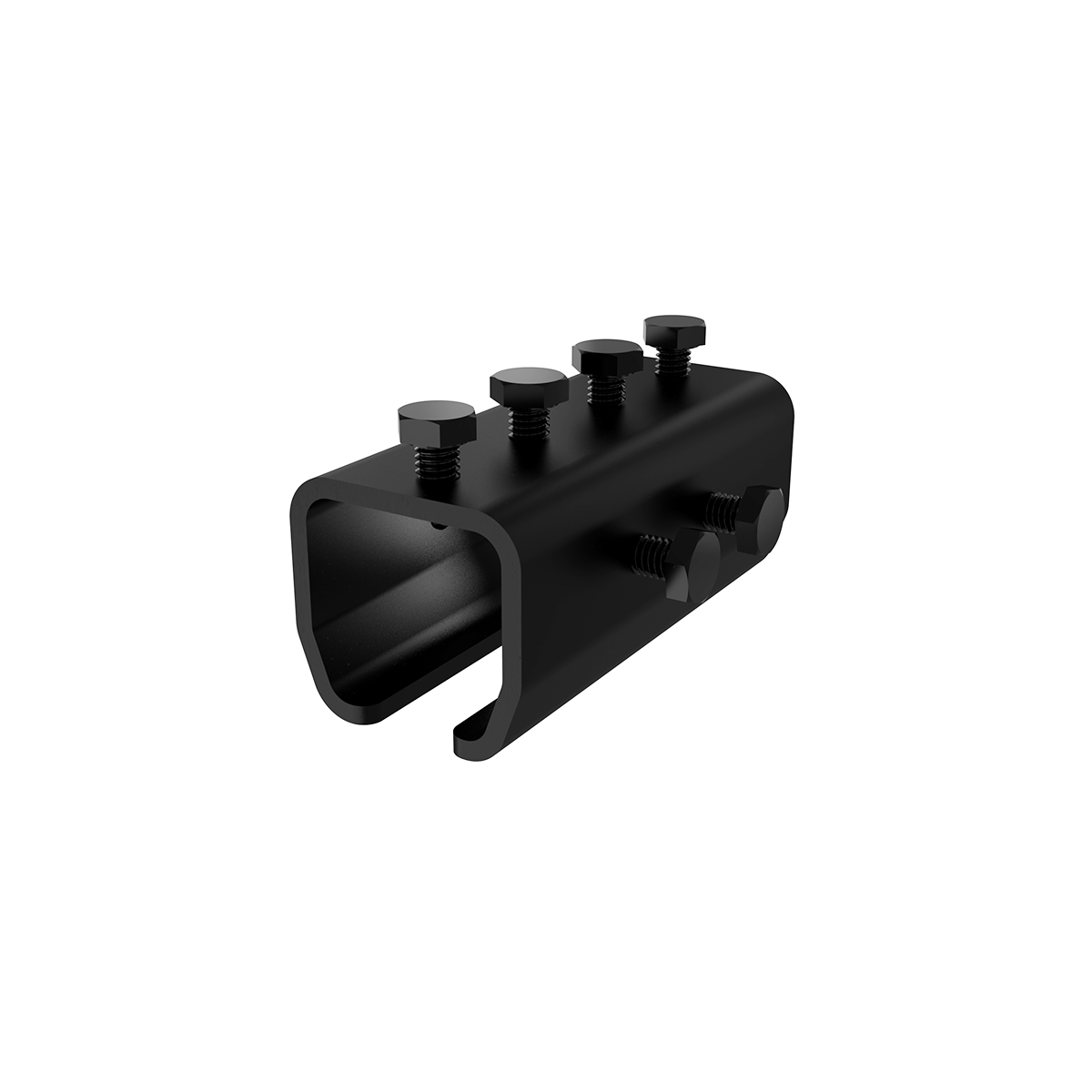

13. Coupling	8050 0040 0807	Weight: 0.24 kg • To connect tracks • Black
	8050 0040 0803	Weight: 0.24 kg • To connect tracks • White
	8050 0040 0801	Weight: 0.24 kg • To connect tracks • Galvanized

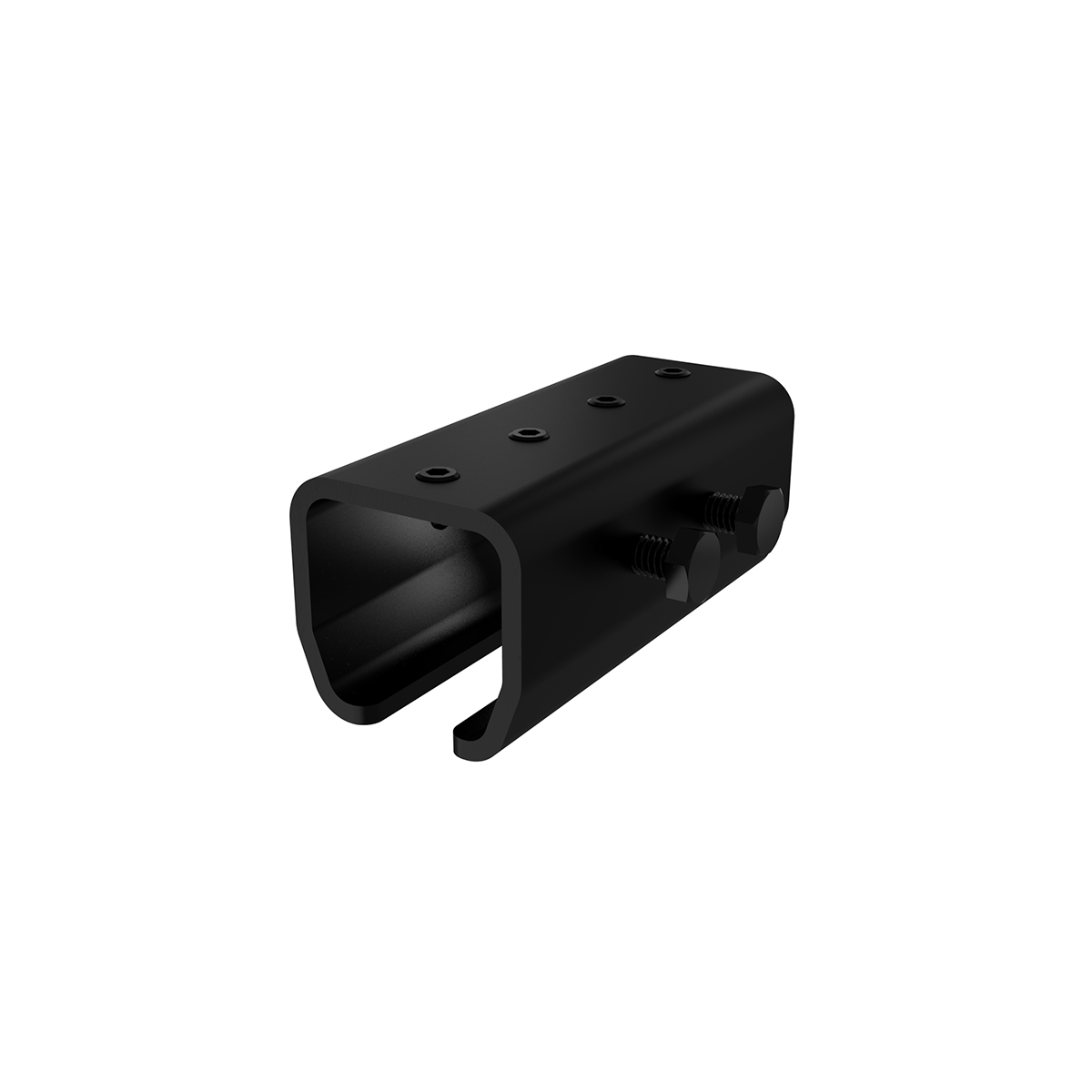

14. Coupling for Ceiling Suspension	8050 0040 0817	Weight: 0.22 kg • To connect tracks • Black
	8050 0040 0813	Weight: 0.22 kg • To connect tracks • White
	8050 0040 0811	Weight: 0.24 kg • To connect tracks • Galvanized

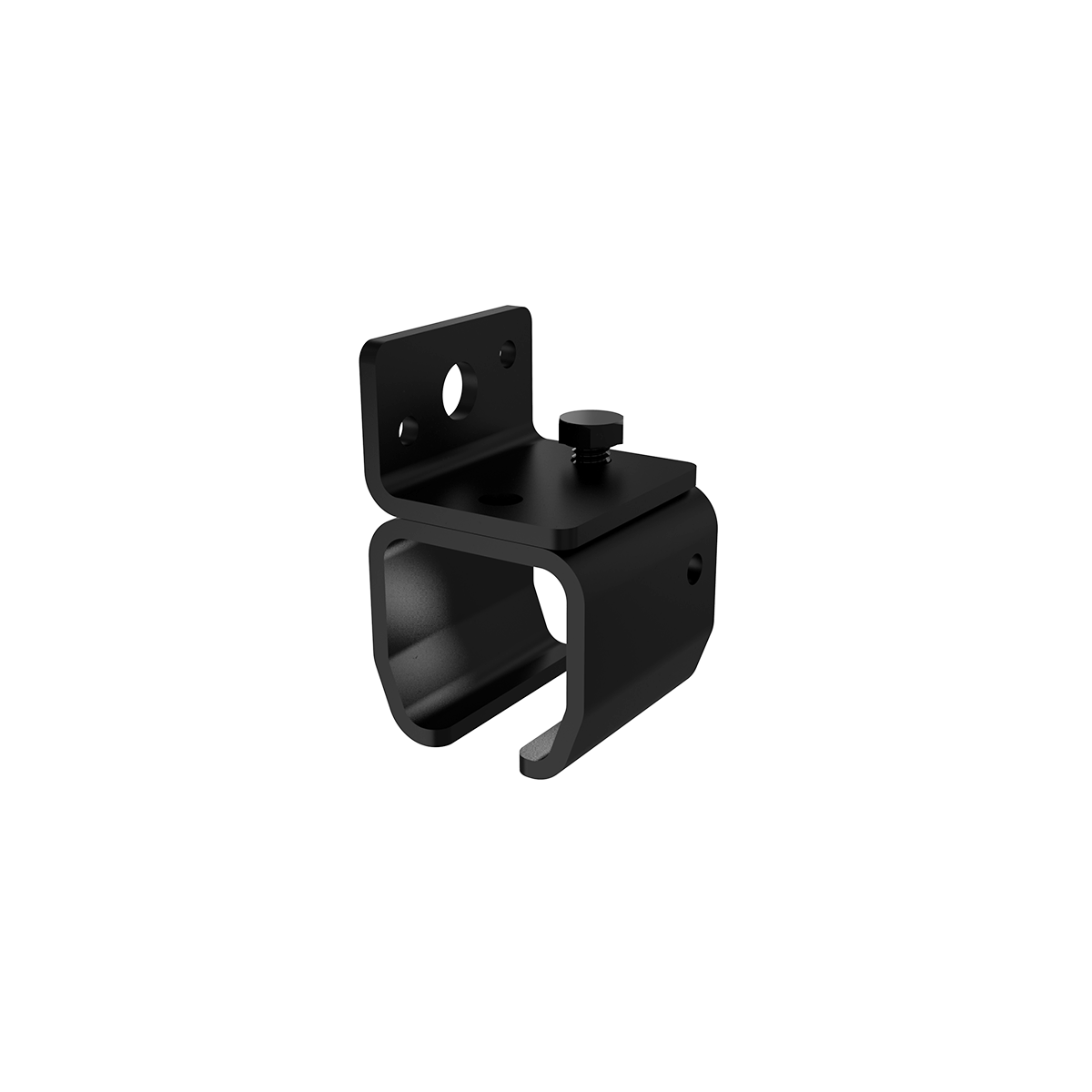

15. Wall Bracket	8050 0100 0007	Weight: 0.18 kg • Black
	8050 0100 0003	Weight: 0.18 kg • White
	8050 0100 0001	Weight: 0.18 kg • Galvanized

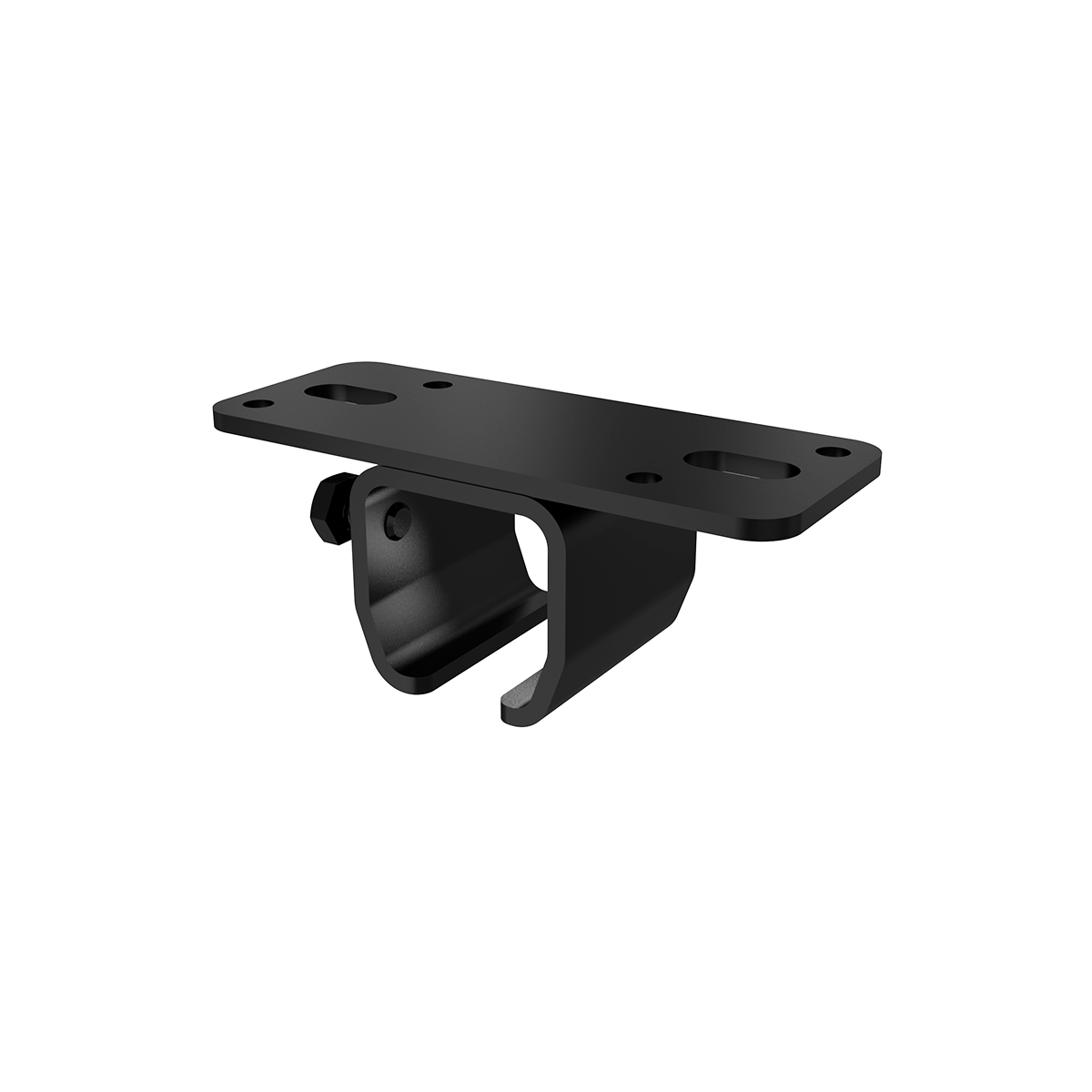

16. Ceiling Bracket	8050 0110 0007	Weight: 0.18 kg • Black
	8050 0110 0003	Weight: 0.18 kg • White
	8050 0110 0001	Weight: 0.18 kg • Galvanized

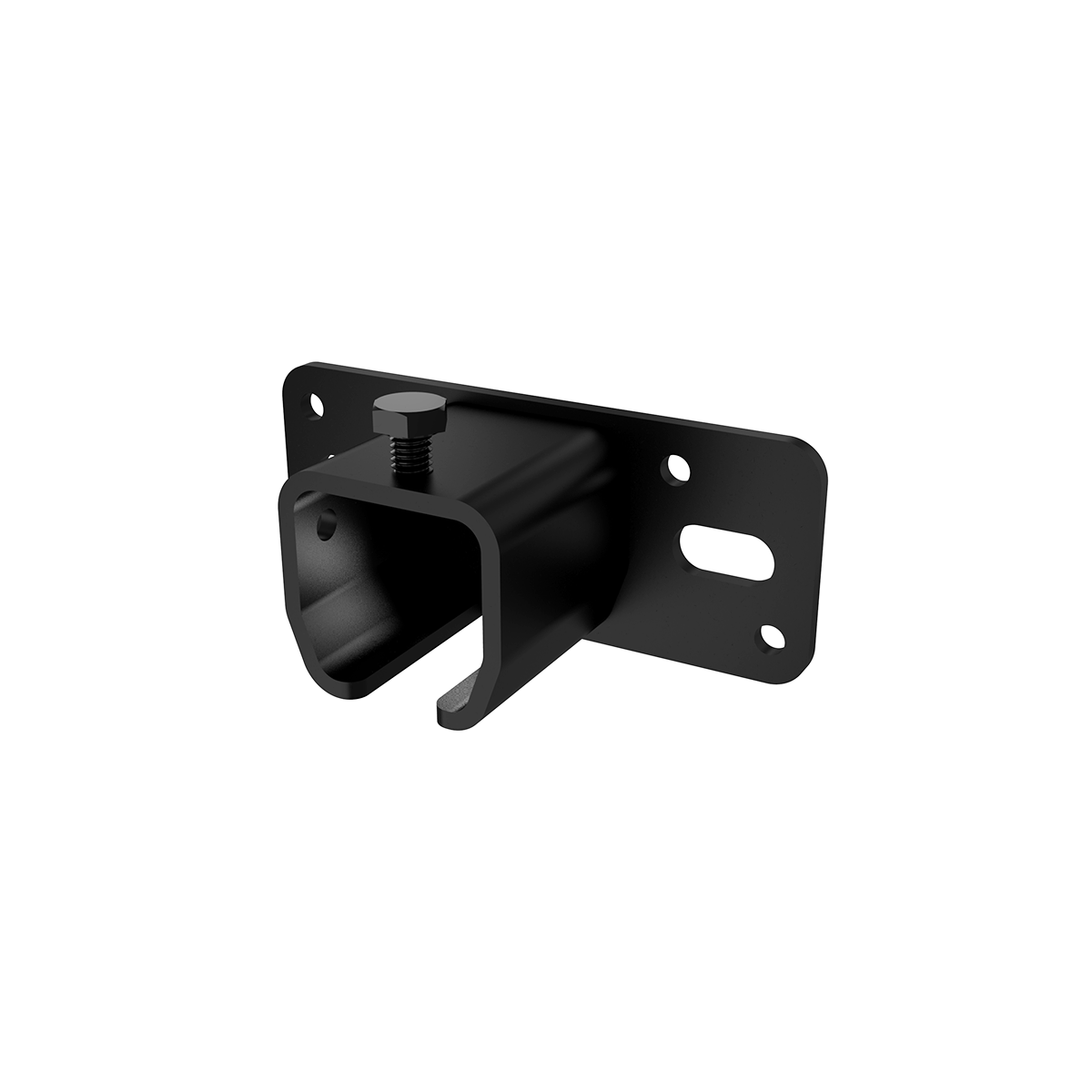

17. Horizontal Track Head Bracket	8050 0100 0037	Weight: 0.19 kg • Black
18. Vertical Track Head Bracket	8050 0100 0057	Weight: 0.14 kg • Black

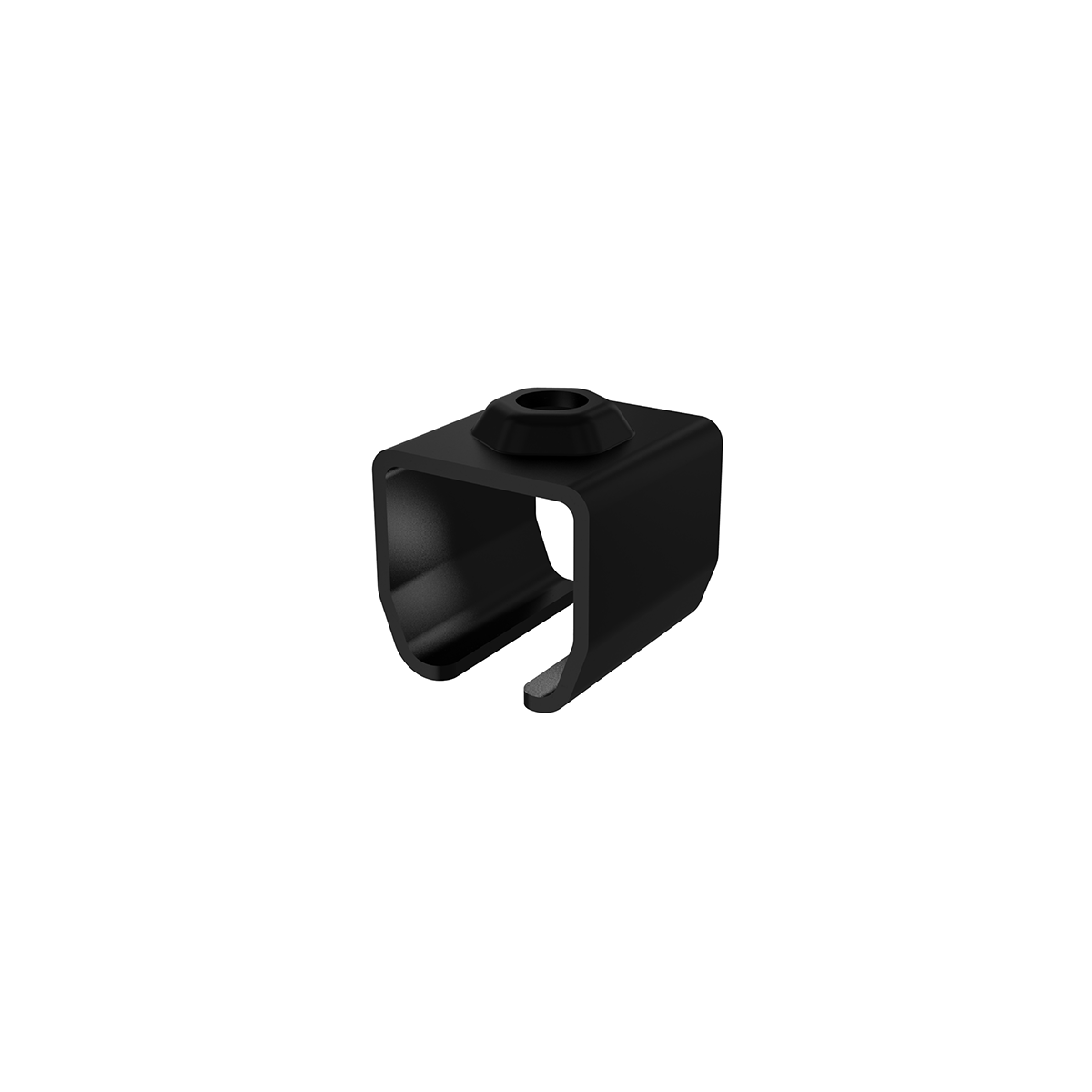

19. Bracket for Threaded Rod	8050 0131 0007	Weight: 0.09 kg • Black
	8050 0131 0003	Weight: 0.09 kg • White
	8050 0131 0000	Weight: 0.09 kg • Galvanized
20. Threaded Rod M10 with Fasteners	8700 9210 0411	Weight: 0.010 kg • Length: 0.10 m • WLL: 3090 kg SF: 2:1 • Galvanised
	8700 9210 0417	Weight: 0.010 kg • Length: 0.10 m • WLL: 3090 kg SF: 2:1 • Black
	8700 9210 0421	Weight: 0.014 kg • Length: 0.20 m • WLL: 3090 kg SF: 2:1 • Galvanised
	8700 9210 0427	Weight: 0.014 kg • Length: 0.20 m • WLL: 3090 kg SF: 2:1 • Black
	8700 9210 0451	Weight: 0.024 kg • Length: 0.50 m • WLL: 3090 kg SF: 2:1 • Galvanised
	8700 9210 0457	Weight: 0.024 kg • Length: 0.50 m • WLL: 3090 kg SF: 2:1 • Black
21. Runner	8050 0205 0087	Weight: 0.02 kg • Ball-raced • WLL: 8 kg SF: 2:1 • Black
	8050 0205 0083	Weight: 0.02 kg • Ball-raced • WLL: 8 kg SF: 2:1 • White

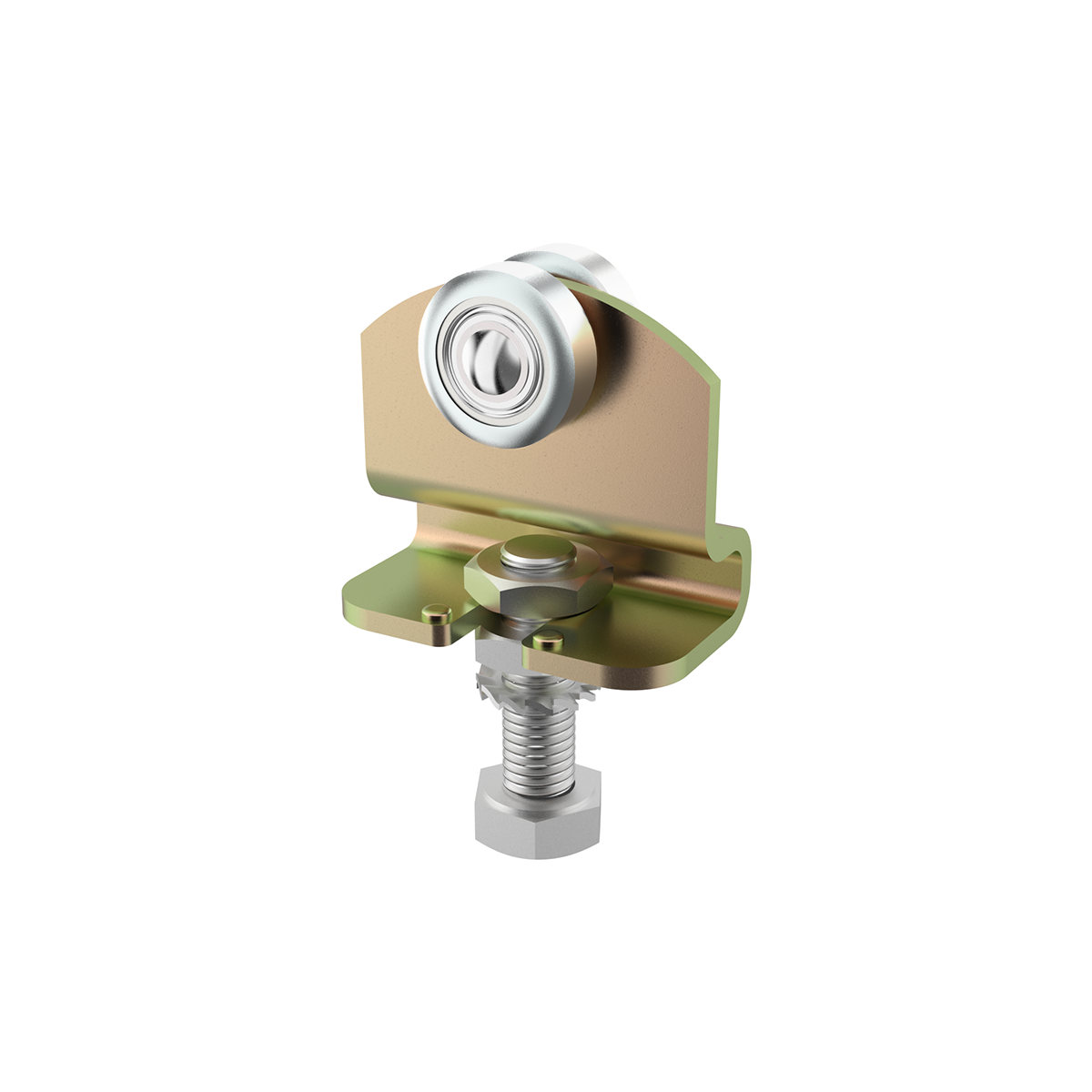

22. Scenery Carrier	8050 0230 0001	Weight: 0.11 kg • Ball-raced • WLL: 60 kg SF: 2:1 • Galvanized
23. Master Carrier	8050 0221 0167	Weight: 0.05 kg • Ball-raced • WLL: 15 kg SF: 2:1 • Black
	8050 0221 0163	Weight: 0.05 kg • Ball-raced • WLL: 15 kg SF: 2:1 • White
24. Master Carrier with Brake	8050 0221 0197	Weight: 0.10 kg • Ball-raced • WLL: 15 kg SF: 2:1 • Black
	8050 0221 0193	Weight: 0.10 kg • Ball-raced • WLL: 15 kg SF: 2:1 • White
25. Short Overlap Master Carrier	8050 0245 0057	Weight: 0.14 kg • Ball-raced • WLL: 15 kg SF: 2:1 • Black
	8050 0245 0053	Weight: 0.14 kg • Ball-raced • WLL: 15 kg SF: 2:1 • Black
26. Overlap Master Carrier set	8050 0246 0167	Weight: 0.79 kg • Ball-raced • WLL: 15 kg SF: 2:1 • Black
	8050 0246 0163	Weight: 0.79 kg • Ball-raced • WLL: 15 kg SF: 2:1 • White
27. Master Carrier with Ski	8050 0228 0167	Weight: 0.12 kg • Ball-raced • WLL: 15 kg SF: 2:1 • Black
	8050 0228 0163	Weight: 0.12 kg • Ball-raced • WLL: 15 kg SF: 2:1 • White
28. Short Overlap Master Carrier with Ski	8050 0245 1057	Weight: 0.20 kg • Ball-raced • WLL: 15 kg SF: 2:1 • Black
	8050 0245 1053	Weight: 0.20 kg • Ball-raced • WLL: 15 kg SF: 2:1 • White
29. Overlap Master Carrier set with Ski	8050 0246 1167	Weight: 0.90 kg • Ball-raced • WLL: 15 kg SF: 2:1 • Black
	8050 0246 1163	Weight: 0.90 kg • Ball-raced • • WLL: 15 kg SF: 2:1 • White
30. Rope Clamp set	8050 0248 0035	Weight: 0.01 kg • For rope operation • Galvanised
31. Head Pulley	8050 0400 0047	Weight: 1.50 kg • For rope operation • Black
32. Return Pulley	8050 0410 0047	Weight: 1.50 kg • For rope operation • Black
33. Limit Switch set	8050 0770 0020	Weight: 0.27 kg • Set of 2 pieces • Black
34. Double Braided Rope	7530 0308 1007	Weight: 5.04 kg • Length: 100 m • ⌀: 8 mm • Black
	7530 1308 0027	Weight: 5.04 kg • Length: 100 m • ⌀: 8 mm • Black / Green / Orange
35. Double Braided Rope	7530 1308 0017	Weight: 0.04 kg/m • Length: lm • ⌀: 8 mm • Black
	7530 1308 5027	Weight: 0.04 kg/m • Length: lm • ⌀: 8 mm • Black / Green / Orange
36. Weighted Return Pulley	8050 0415 0077	Weight: 5.50 kg • For rope operation • Black
	8050 0415 0097	Weight: 10.50 kg • For rope operation • Black
37. Floor Fixed Return Pulley	8050 0420 0007	Weight: 3.38 kg • For rope operation • Black
38. RopeAssist	8050 0425 0107	Weight: 6.54 kg • For comfortable rope operation • Black
39. Rope Drive Lite	8050 0713 1107	Weight: 15.75 kg • 16 Nm • 108 rpm • Black
40. Rope Drive Standard	8050 0713 1507	Weight: 19.50 kg • 12 Nm • 101 rpm • Black
	8050 0713 1707	Weight: 19.50 kg • 24 Nm • 48 rpm • Black
	8050 0713 2307	Weight: 19.50 kg • 54 Nm • 22 rpm • Black
41. Rope Drive Decoupler	8050 0713 1557	Weight: 20.00 kg • 12 Nm • 101 rpm • Black
