Amazing Stage Fabrics in Motion
Vielseitige, kostengünstige Vorhangschiene für halbschwere bis schwere Vorhänge.
Rail H100 ist kompatibel mit unsere Rope Drives.
| Zubehör | Artikelnummer | Information |
|---|---|---|

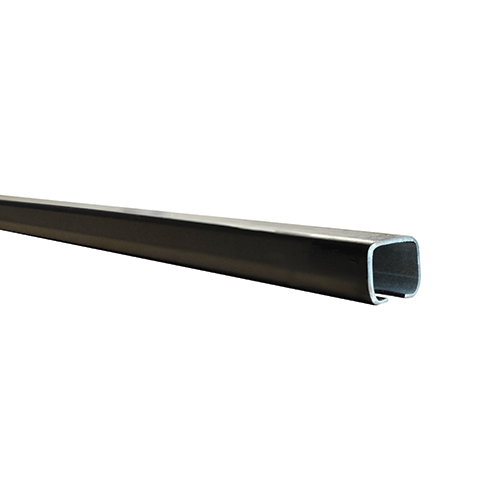

01. Track | 8050 0001 6007 | Weight: 1.34 kg/m • Length: 6.00 m • Black |
8050 0001 6003 | Weight: 1.34 kg/m • Length: 6.00 m • White | |
8050 0001 6001 | Weight: 1.34 kg/m • Length: 6.00 m • Galvanized | |

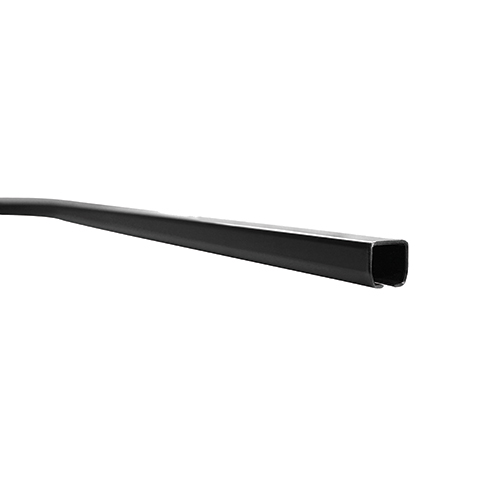

02. Curved Track 45° - Radius 65 cm | 8050 0004 065# | Weight: 1.34 kg/m • Black / Galvanized |
03. Curved Track 45° - Radius 100 cm | 8050 0004 100# | Weight: 1.34 kg/m • Black / Galvanized |

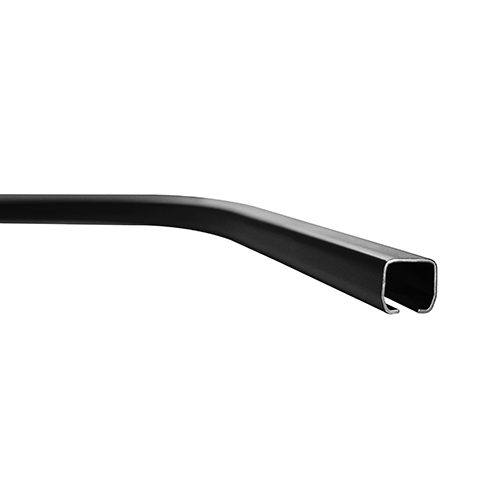

04. Curved Track 90° - Radius 20.5 cm | 8050 0007 020# | Weight: 1.34 kg/m • Black / White / Galvanized |
05. Curved Track 90° - Radius 30 cm | 8050 0007 030# | Weight: 1.34 kg/m • Black / White / Galvanized |
06. Curved Track 90° - Radius 40 cm | 8050 0007 040# | Weight: 1.34 kg/m • Black / Galvanized |
07. Curved Track 90° - Radius 50 cm | 8050 0007 050# | Weight: 1.34 kg/m • Black / White / Galvanized |
08. Curved Track 90° - Radius 65 cm | 8050 0007 065# | Weight: 1.34 kg/m • Black / White / Galvanized |
09. Curved Track 90° - Radius 100 cm | 8050 0007 100# | Weight: 1.34 kg/m • Black / Galvanized |
10. Curved Track 90° - Radius 200 cm | 8050 0007 200# | Weight: 1.34 kg/m • Black / Galvanized |
11. End Stop | 8050 0050 0001 | Weight: 0.03 kg • Galvanized |

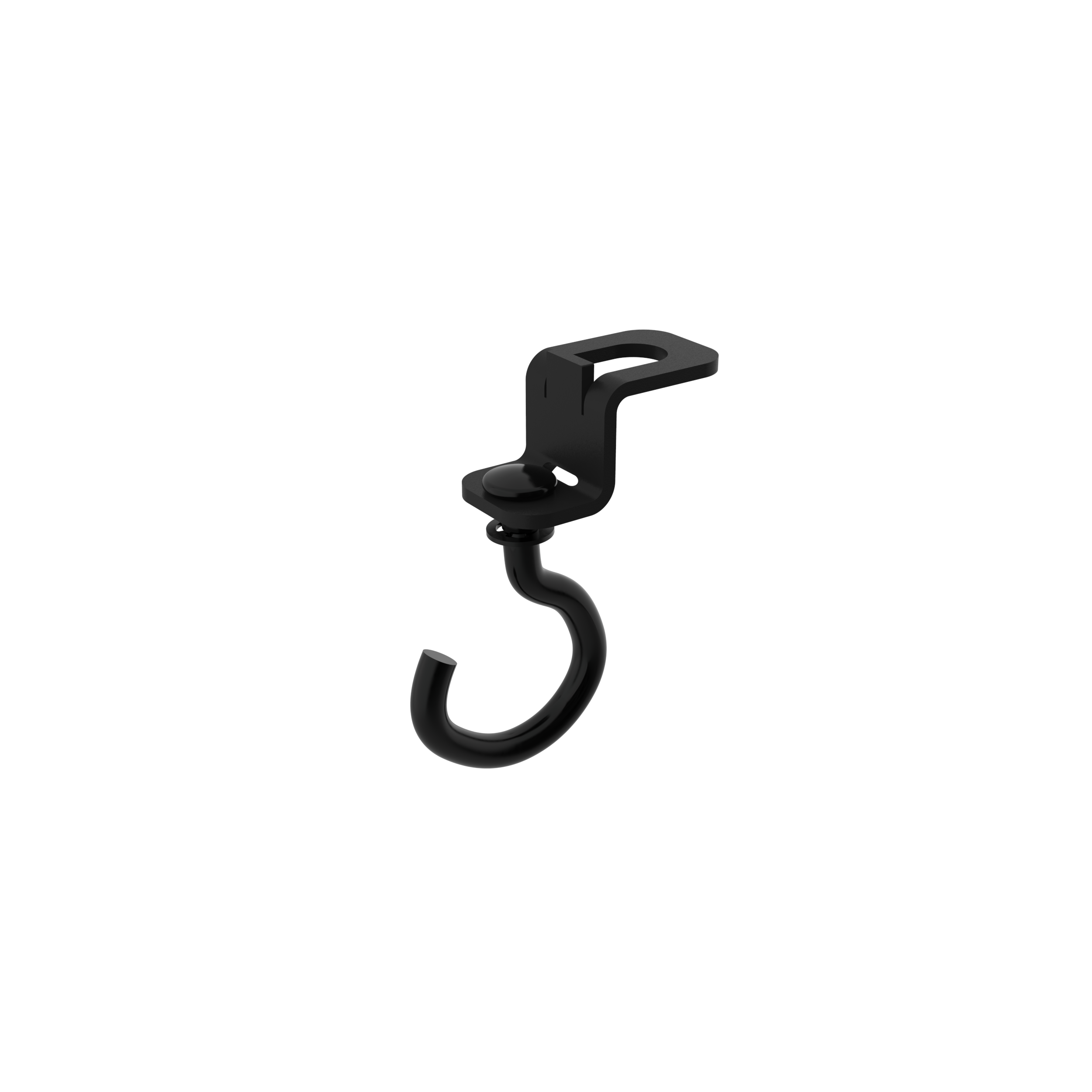

12. End Stop Swivel Hook Add-On | 8050 0050 0017 | Weight: 0.02 kg • Black |
8050 0050 0011 | Weight: 0.02 kg • Galvanized | |

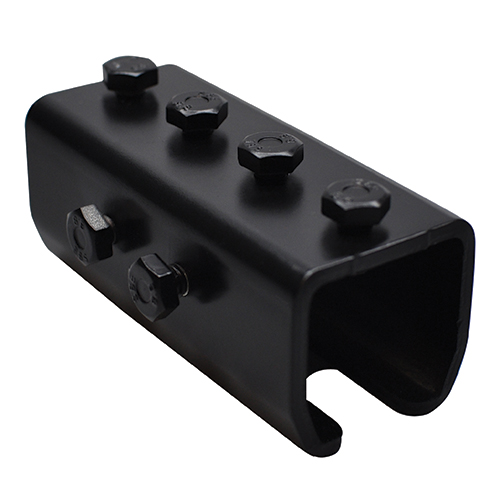

13. Coupling | 8050 0040 0807 | Weight: 0.24 kg • To connect tracks • Black |
8050 0040 0803 | Weight: 0.24 kg • To connect tracks • White | |
8050 0040 0801 | Weight: 0.24 kg • To connect tracks • Galvanized | |

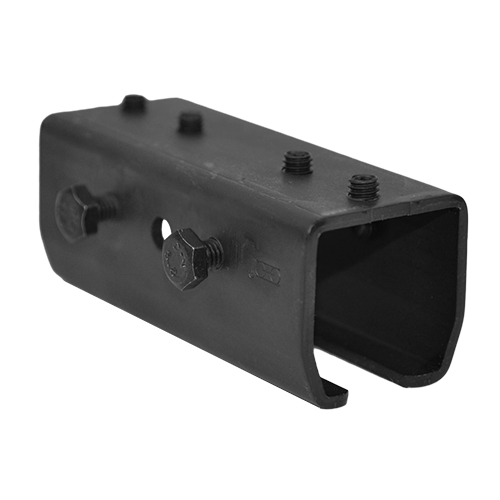

14. Coupling for Ceiling Suspension | 8050 0040 0817 | Weight: 0.22 kg • To connect tracks • Black |
8050 0040 0813 | Weight: 0.22 kg • To connect tracks • White | |
8050 0040 0811 | Weight: 0.24 kg • To connect tracks • Galvanized | |

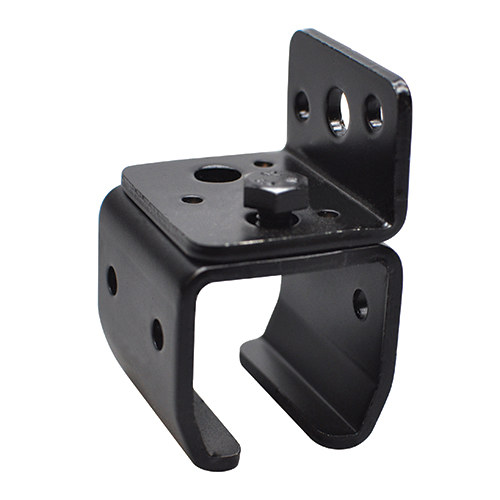

15. Wall Bracket | 8050 0100 0007 | Weight: 0.18 kg • Black |
8050 0100 0003 | Weight: 0.18 kg • White | |
8050 0100 0001 | Weight: 0.18 kg • Galvanized | |

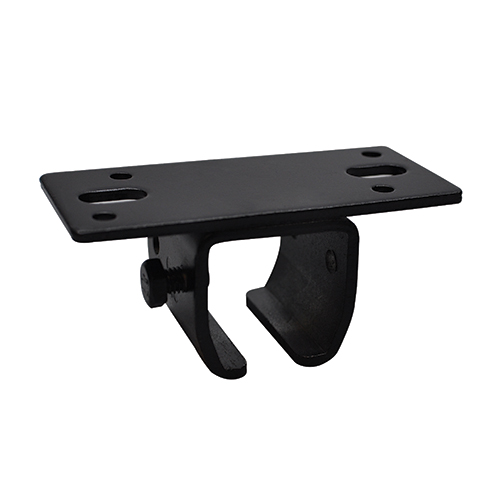

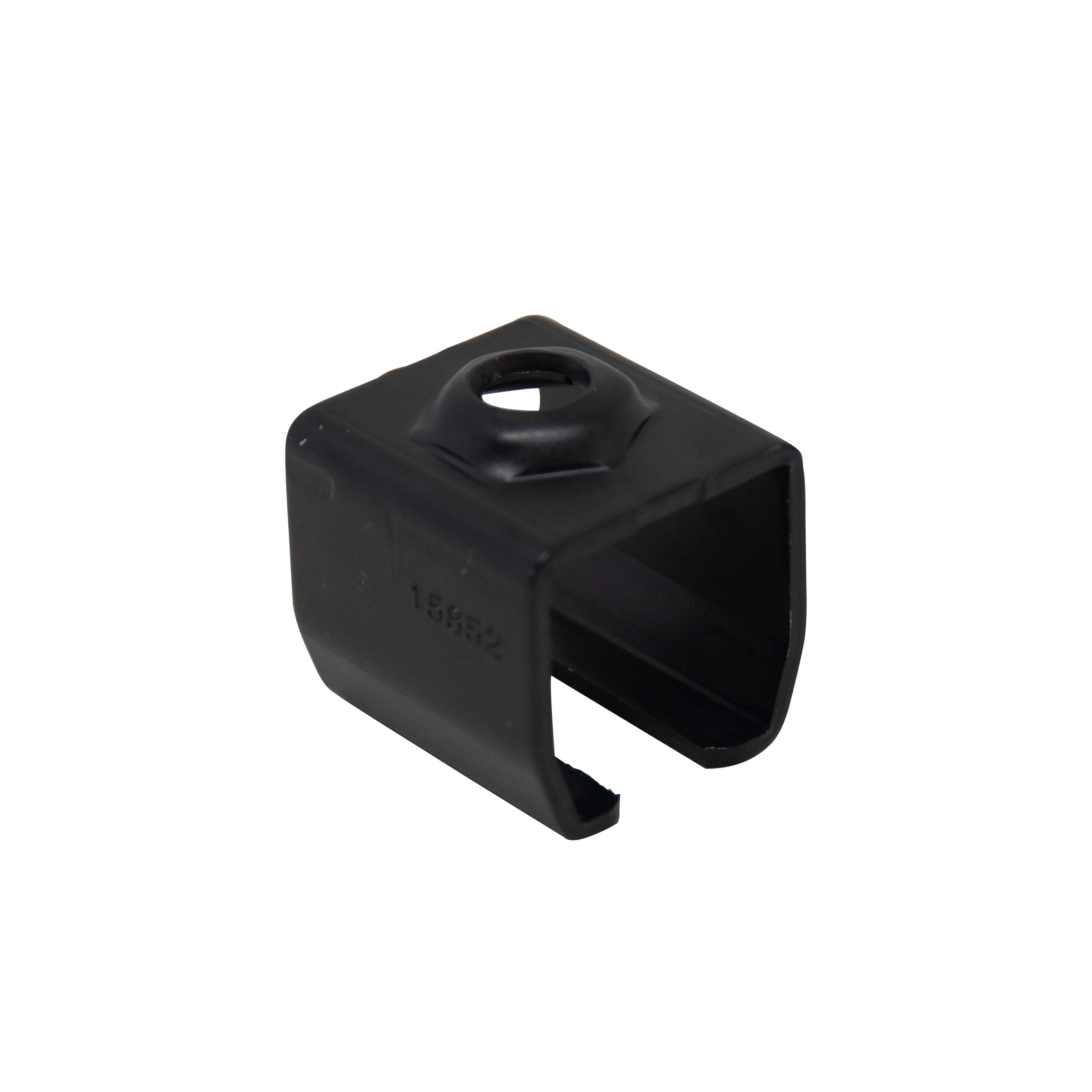

16. Ceiling Bracket | 8050 0110 0007 | Weight: 0.18 kg • Black |
8050 0110 0003 | Weight: 0.18 kg • White | |
8050 0110 0001 | Weight: 0.18 kg • Galvanized | |
17. Horizontal Track Head Bracket | 8050 0100 0037 | Weight: 0.19 kg • Black |

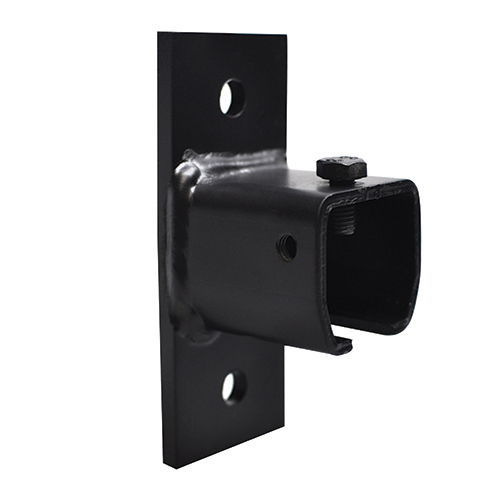

18. Vertical Track Head Bracket | 8050 0100 0057 | Weight: 0.14 kg • Black |
19. Bracket for Threaded Rod | 8050 0131 0007 | Weight: 0.09 kg • Black |
8050 0131 0003 | Weight: 0.09 kg • White | |
8050 0131 0000 | Weight: 0.09 kg • Galvanized | |
20. Threaded Rod M10 with Fasteners | 8700 9210 0411 | Weight: 0.010 kg • Length: 0.10 m • WLL: 3090 kg SF: 2:1 • Galvanised |
8700 9210 0417 | Weight: 0.010 kg • Length: 0.10 m • WLL: 3090 kg SF: 2:1 • Black | |
8700 9210 0421 | Weight: 0.014 kg • Length: 0.20 m • WLL: 3090 kg SF: 2:1 • Galvanised | |
8700 9210 0427 | Weight: 0.014 kg • Length: 0.20 m • WLL: 3090 kg SF: 2:1 • Black | |
8700 9210 0451 | Weight: 0.024 kg • Length: 0.50 m • WLL: 3090 kg SF: 2:1 • Galvanised | |
8700 9210 0457 | Weight: 0.024 kg • Length: 0.50 m • WLL: 3090 kg SF: 2:1 • Black | |
21. Runner | 8050 0205 0087 | Weight: 0.02 kg • Ball-raced • WLL: 8 kg SF: 2:1 • Black |
8050 0205 0083 | Weight: 0.02 kg • Ball-raced • WLL: 8 kg SF: 2:1 • White | |

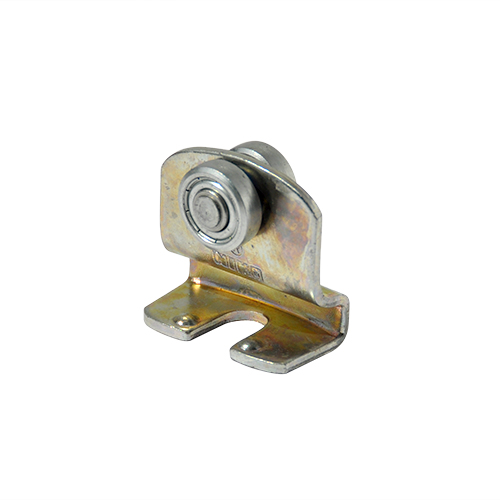

22. Scenery Carrier | 8050 0230 0001 | Weight: 0.11 kg • Ball-raced • WLL: 60 kg SF: 2:1 • Galvanized |
23. Master Carrier | 8050 0221 0167 | Weight: 0.05 kg • Ball-raced • WLL: 15 kg SF: 2:1 • Black |
8050 0221 0163 | Weight: 0.05 kg • Ball-raced • WLL: 15 kg SF: 2:1 • White | |
24. Master Carrier with Brake | 8050 0221 0197 | Weight: 0.10 kg • Ball-raced • WLL: 15 kg SF: 2:1 • Black |
8050 0221 0193 | Weight: 0.10 kg • Ball-raced • WLL: 15 kg SF: 2:1 • White | |
25. Short Overlap Master Carrier | 8050 0245 0057 | Weight: 0.14 kg • Ball-raced • WLL: 15 kg SF: 2:1 • Black |
8050 0245 0053 | Weight: 0.14 kg • Ball-raced • WLL: 15 kg SF: 2:1 • Black | |
26. Overlap Master Carrier set | 8050 0246 0167 | Weight: 0.79 kg • Ball-raced • WLL: 15 kg SF: 2:1 • Black |
8050 0246 0163 | Weight: 0.79 kg • Ball-raced • WLL: 15 kg SF: 2:1 • White | |
27. Master Carrier with Ski | 8050 0228 0167 | Weight: 0.12 kg • Ball-raced • WLL: 15 kg SF: 2:1 • Black |
8050 0228 0163 | Weight: 0.12 kg • Ball-raced • WLL: 15 kg SF: 2:1 • White | |
28. Short Overlap Master Carrier with Ski | 8050 0245 1057 | Weight: 0.20 kg • Ball-raced • WLL: 15 kg SF: 2:1 • Black |
8050 0245 1053 | Weight: 0.20 kg • Ball-raced • WLL: 15 kg SF: 2:1 • White | |
29. Overlap Master Carrier set with Ski | 8050 0246 1167 | Weight: 0.90 kg • Ball-raced • WLL: 15 kg SF: 2:1 • Black |
8050 0246 1163 | Weight: 0.90 kg • Ball-raced • • WLL: 15 kg SF: 2:1 • White | |
30. Rope Clamp set | 8050 0248 0035 | Weight: 0.01 kg • For rope operation • Galvanised |
31. Head Pulley | 8050 0400 0047 | Weight: 1.50 kg • For rope operation • Black |
32. Return Pulley | 8050 0410 0047 | Weight: 1.50 kg • For rope operation • Black |
33. Limit Switch set | 8050 0770 0020 | Weight: 0.27 kg • Set of 2 pieces • Black |
34. Double Braided Rope | 7530 0308 1007 | Weight: 5.04 kg • Length: 100 m • ⌀: 8 mm • Black |
7530 1308 0027 | Weight: 5.04 kg • Length: 100 m • ⌀: 8 mm • Black / Green / Orange | |
35. Double Braided Rope | 7530 1308 0017 | Weight: 0.04 kg/m • Length: lm • ⌀: 8 mm • Black |
7530 1308 5027 | Weight: 0.04 kg/m • Length: lm • ⌀: 8 mm • Black / Green / Orange | |
36. Weighted Return Pulley | 8050 0415 0077 | Weight: 5.50 kg • For rope operation • Black |
8050 0415 0097 | Weight: 10.50 kg • For rope operation • Black | |
37. Floor Fixed Return Pulley | 8050 0420 0007 | Weight: 3.38 kg • For rope operation • Black |
38. RopeAssist | 8050 0425 0107 | Weight: 6.54 kg • For comfortable rope operation • Black |
39. Rope Drive Lite | 8050 0713 1107 | Weight: 15.75 kg • 16 Nm • 108 rpm • Black |
40. Rope Drive Standard | 8050 0713 1507 | Weight: 19.50 kg • 12 Nm • 101 rpm • Black |
8050 0713 1707 | Weight: 19.50 kg • 24 Nm • 48 rpm • Black | |
8050 0713 2307 | Weight: 19.50 kg • 54 Nm • 22 rpm • Black | |
41. Rope Drive Decoupler | 8050 0713 1557 | Weight: 20.00 kg • 12 Nm • 101 rpm • Black |
