Installation Accessories

Install your fabrics, hardware and motion systems with ease using the right installation accessories. From steel cables to pulley blocks, hooks and shackles, rods and nuts, the ShowTex installation accessories cover every aspect of your rigging needs.

Ideal for installing both lightweight and heavy curtains or stage equipment. Constructing sturdy frameworks or hanging drapes and props never went more smoothly. Experience peace of mind throughout your entire performance or event, thanks to the security and support the materials offer.

إكسسوارات	كود المقال	معلومات

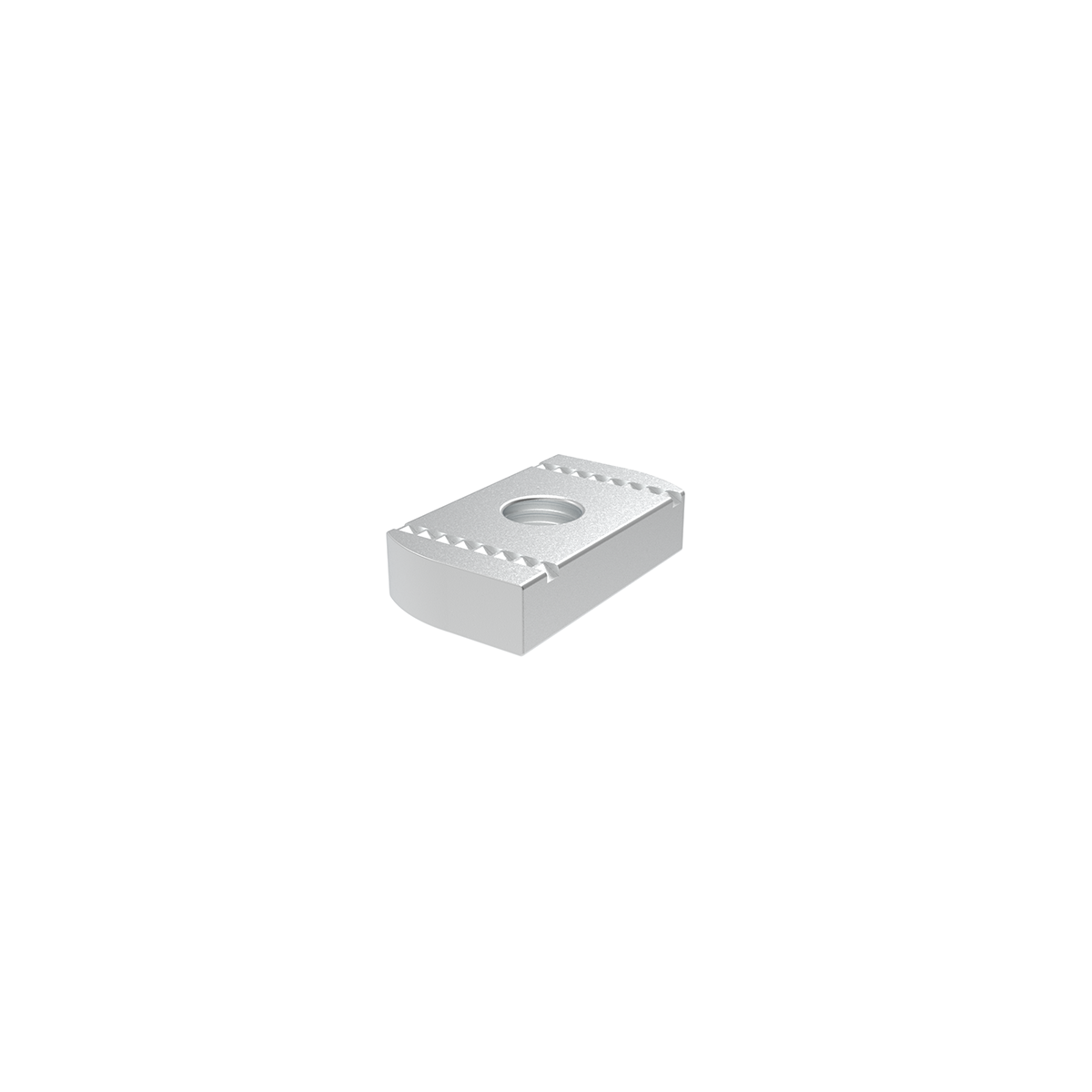

01. Channel Nut	8700 9224 0101	Weight: 0.03 kg • M10 • WLL: 500 kg SF: 2:1 • Galvanised

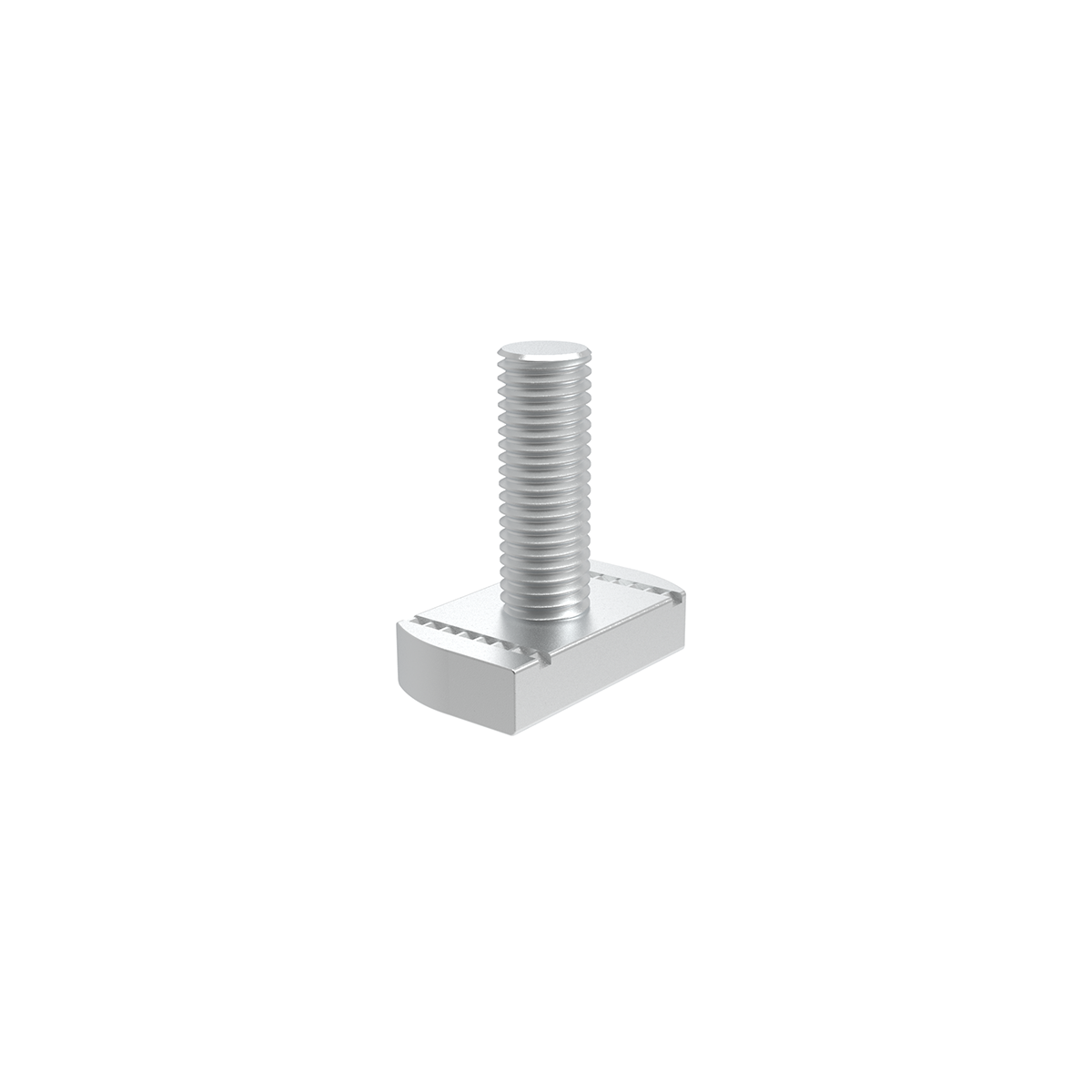

02. Channel Bolt	8200 9213 1031	Weight: 0.04 kg • M10 • WLL: 250 kg SF: 2:1 • Galvanised
03. Eye Nut	8700 9221 0101	Weight: 0.08 kg • M10 • WLL: 230 kg SF: 2:1 • Galvanised
	8700 9221 1001	Weight: 0.08 kg • M10 • WLL: 1000 kg SF: 2:1 • Red

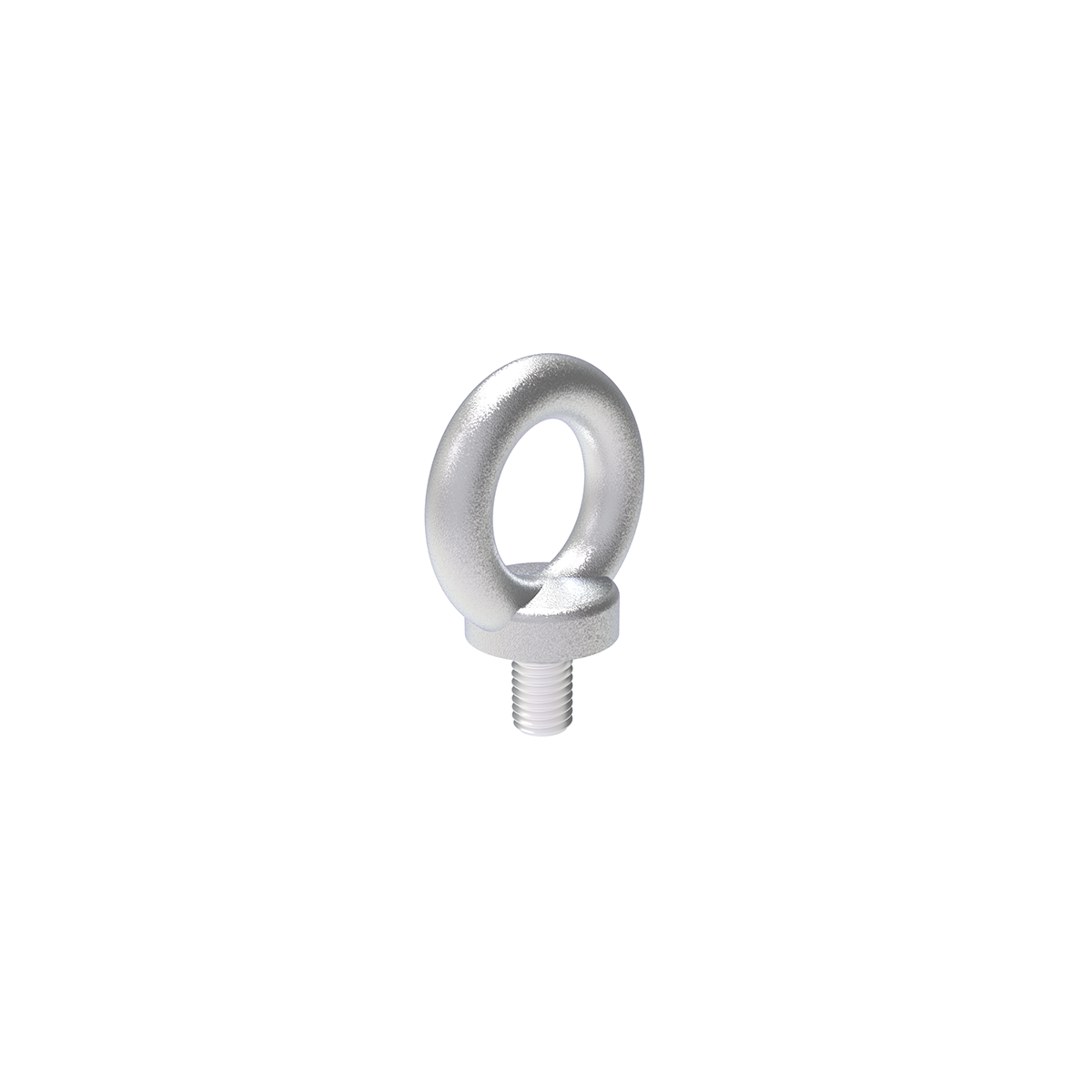

04. Eye Bolt	8700 9212 0101	Weight: 0.10 kg • M10 • WLL: 230 kg SF: 2:1 • Galvanised
	8700 9212 0801	Weight: 0.10 kg • M10 • WLL: 1000 kg SF: 2:1 • Red

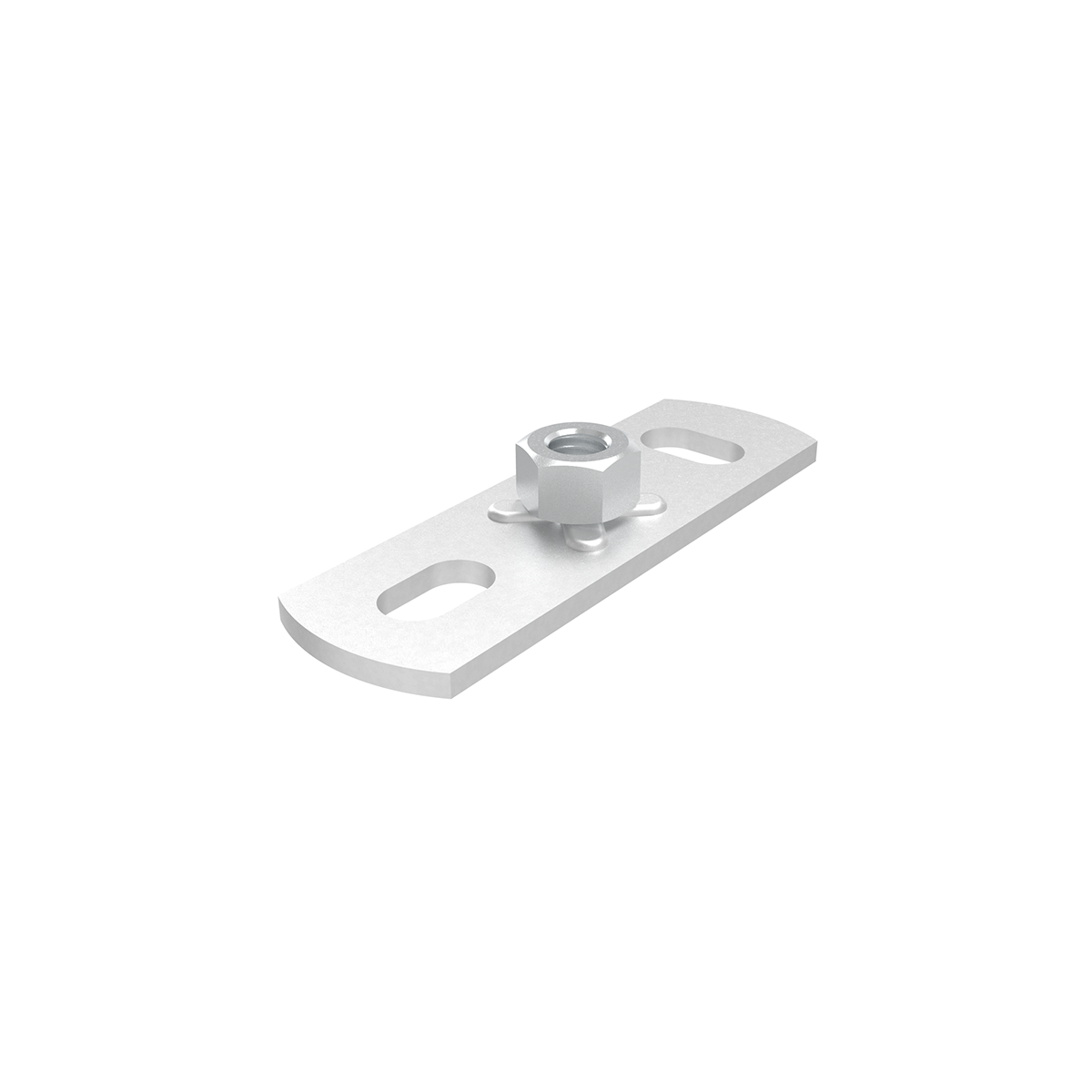

05. Ceiling Fixing Plate	8700 0665 0081	Weight: 0.06 kg • M8 • WLL: 250 kg SF: 2:1 • Galvanised
	8700 0665 0101	Weight: 0.06 kg • M10 • WLL: 250 kg SF: 2:1 • Galvanised

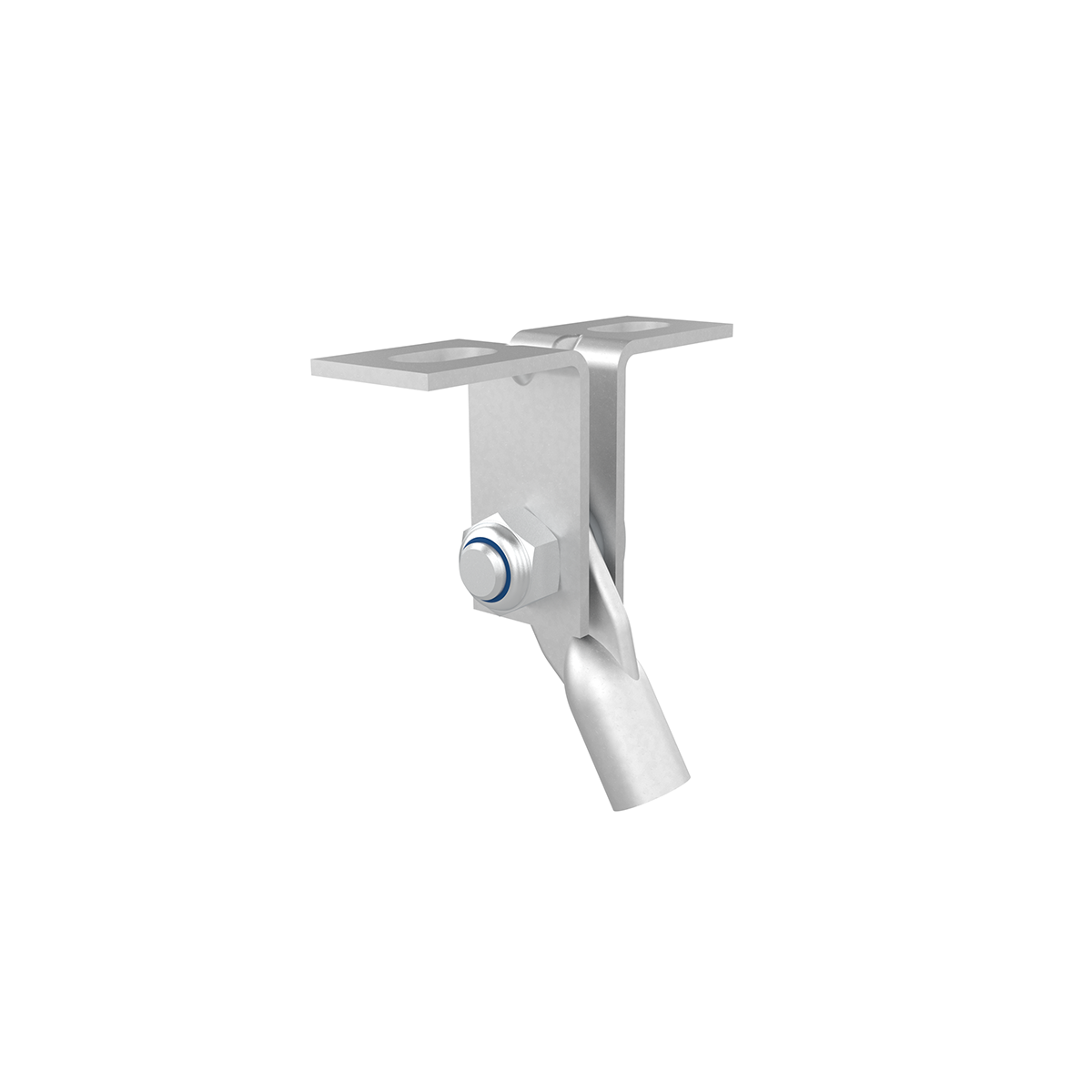

06. Swiveling Fixing Plate	8700 0665 1101	Weight: 0.06 kg • M10 • WLL: 258 kg SF: 2:1 • Galvanised

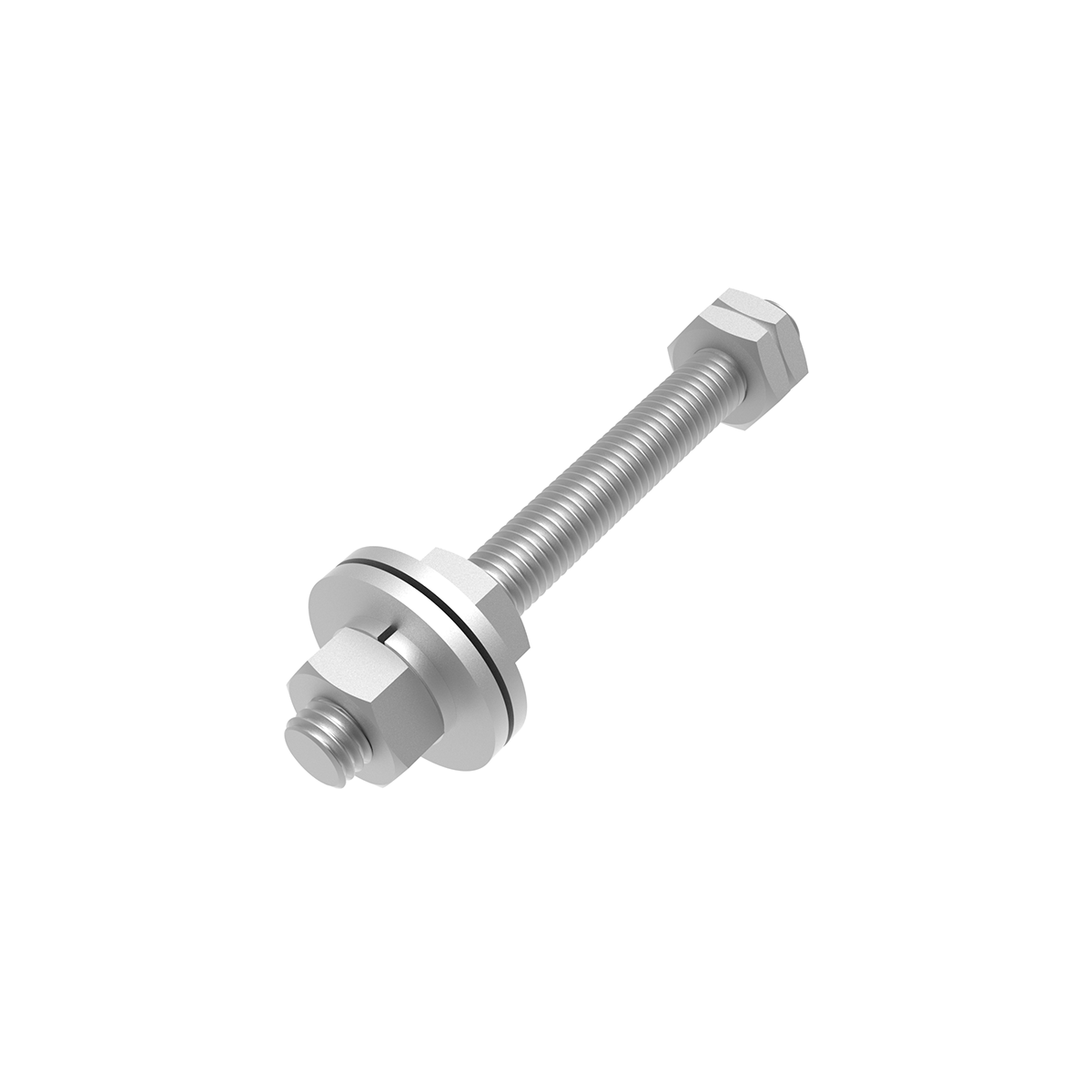

07. Threaded Rod	8700 9210 0411	Weight: 0.010 kg • M10 • Length: 0.10 m • WLL: 3090 kg SF: 2:1 • Galvanised
with Fasteners	8700 9210 0417	Weight: 0.010 kg • M10 • Length: 0.10 m • WLL: 3090 kg SF: 2:1 • Black
	8700 9210 0421	Weight: 0.014 kg • M10 • Length: 0.20 m • WLL: 3090 kg SF: 2:1 • Galvanised
	8700 9210 0427	Weight: 0.014 kg • M10 • Length: 0.20 m • WLL: 3090 kg SF: 2:1 • Black
	8700 9210 0451	Weight: 0.024 kg • M10 • Length: 0.50 m • WLL: 3090 kg SF: 2:1 • Galvanised
	8700 9210 0457	Weight: 0.024 kg • M10 • Length: 0.50 m • WLL: 3090 kg SF: 2:1 • Black

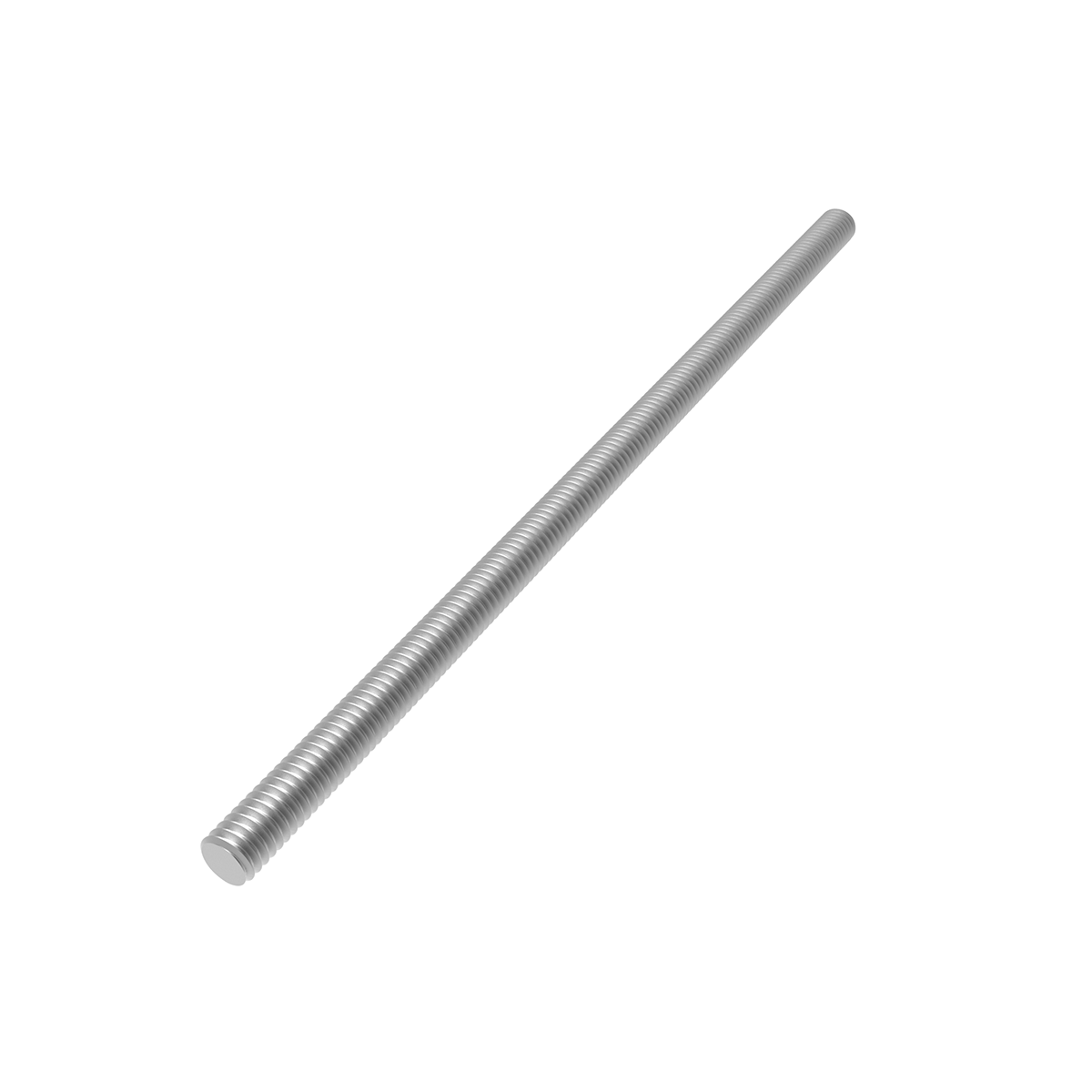

08. Threaded Rod	8700 9210 0081	Weight: 0.48 kg • M8 • Length: 1.00 m • WLL: 3090 kg SF: 2:1 • Galvanised
	8700 9210 0101	Weight: 0.48 kg • M10 • Length: 1.00 m • WLL: 3090 kg SF: 2:1 • Galvanised
	8700 9210 0107	Weight: 0.48 kg • M10 • Length: 1.00 m • WLL: 3090 kg SF: 2:1 • Black
	8700 9210 0201	Weight: 0.96 kg • M10 • Length: 2.00 m • WLL: 3090 kg SF: 2:1 • Galvanised
	8700 9210 0207	Weight: 0.96 kg • M10 • Length: 2.00 m • WLL: 3090 kg SF: 2:1 • Black

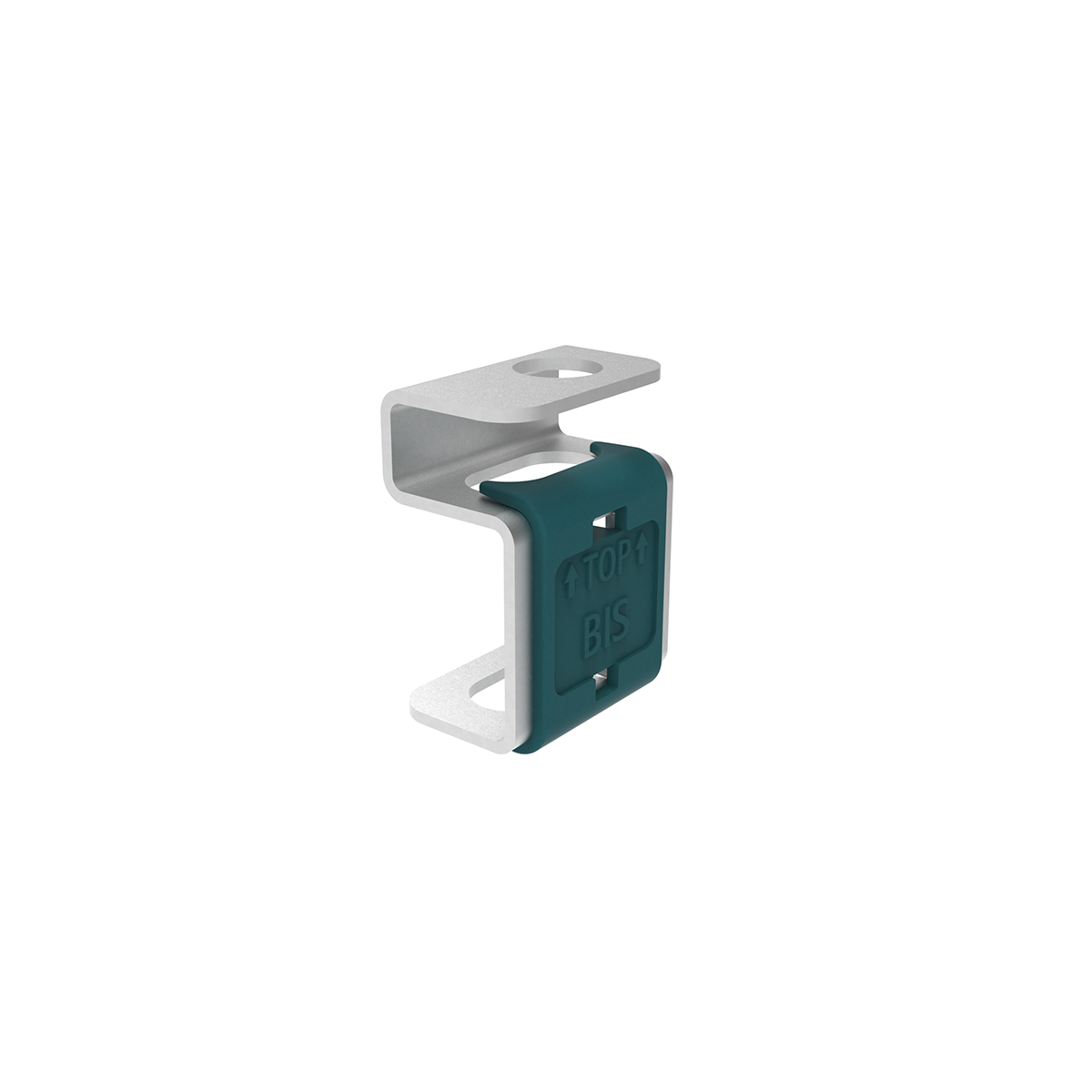

09. Parallel Threaded	8700 0664 0101	Weight: 0.02 kg • M10 • WLL: 359 kg SF: 2:1 • Galvanised
Rod Connector
10. Ratchet Fastener	8800 0372 0507	Weight: 0.21 kg • Length: 0.5 m • WLL: 40 kg SF: 2:1 • Black
	8800 0372 1007	Weight: 0.22 kg • Length: 1.00 m • WLL: 40 kg SF: 2:1 • Black
	8800 0372 2007	Weight: 0.24 kg • Length: 2.00 m • WLL: 40 kg SF: 2:1 • Black
	8800 0372 3007	Weight: 0.27 kg • Length: 3.00 m • WLL: 40 kg SF: 2:1 • Black
	8800 0372 5009	Weight: 0.33 kg • Length: 5.00 m • WLL: 40 kg SF: 2:1 • Black

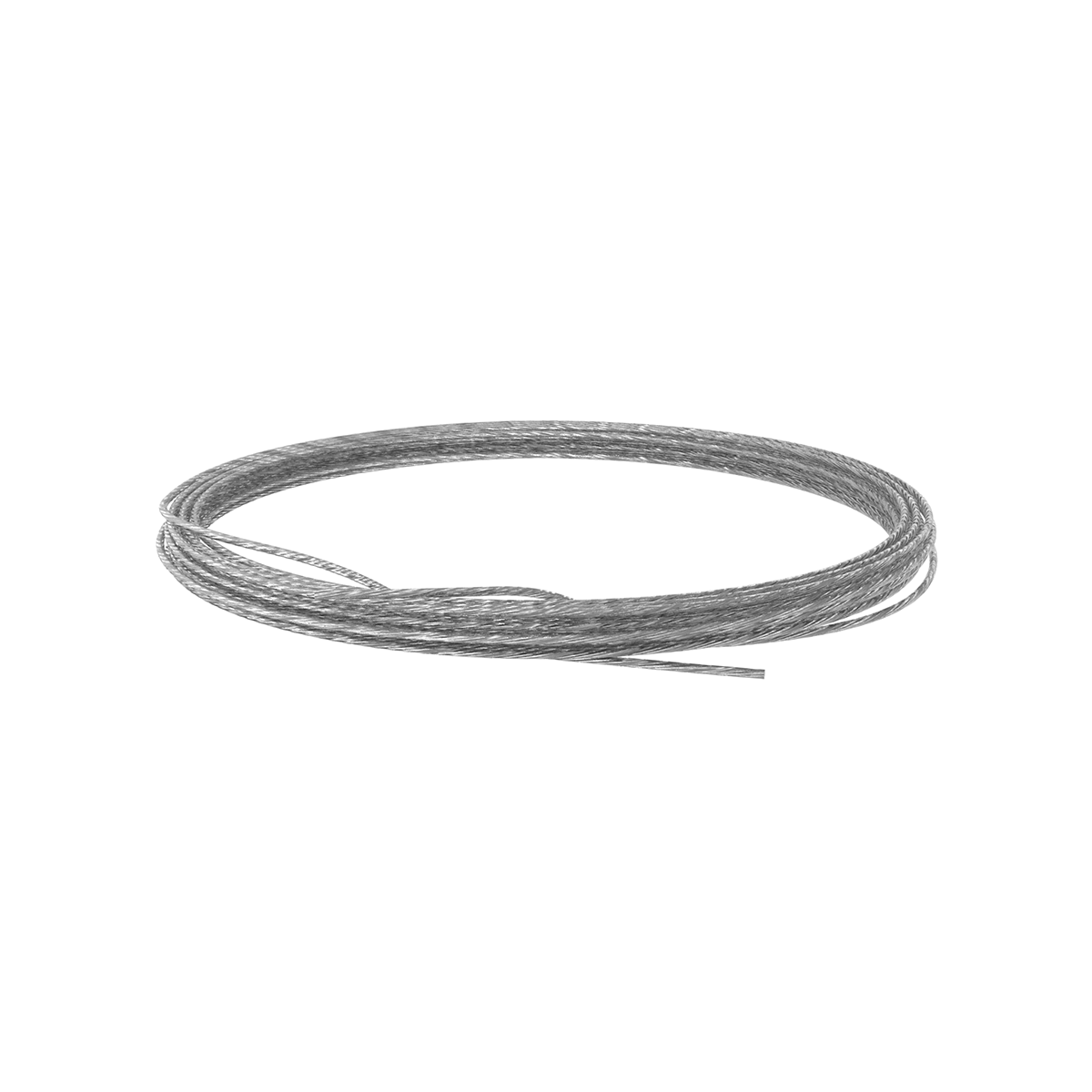

11. Steel Cable	8840 9600 7101	Weight: 0.02 kg/m • ⌀ 1.5 mm • WLL: 45 kg SF: 5:1 • Alu
	8840 9600 7231	Weight: 0.04 kg/m • ⌀ 3.0 mm • WLL: 90 kg SF: 5:1 • Alu
	8840 9600 7261	Weight: 0.08 kg/m • ⌀ 6.0 mm • WLL: 200 kg SF: 5:1 • Alu

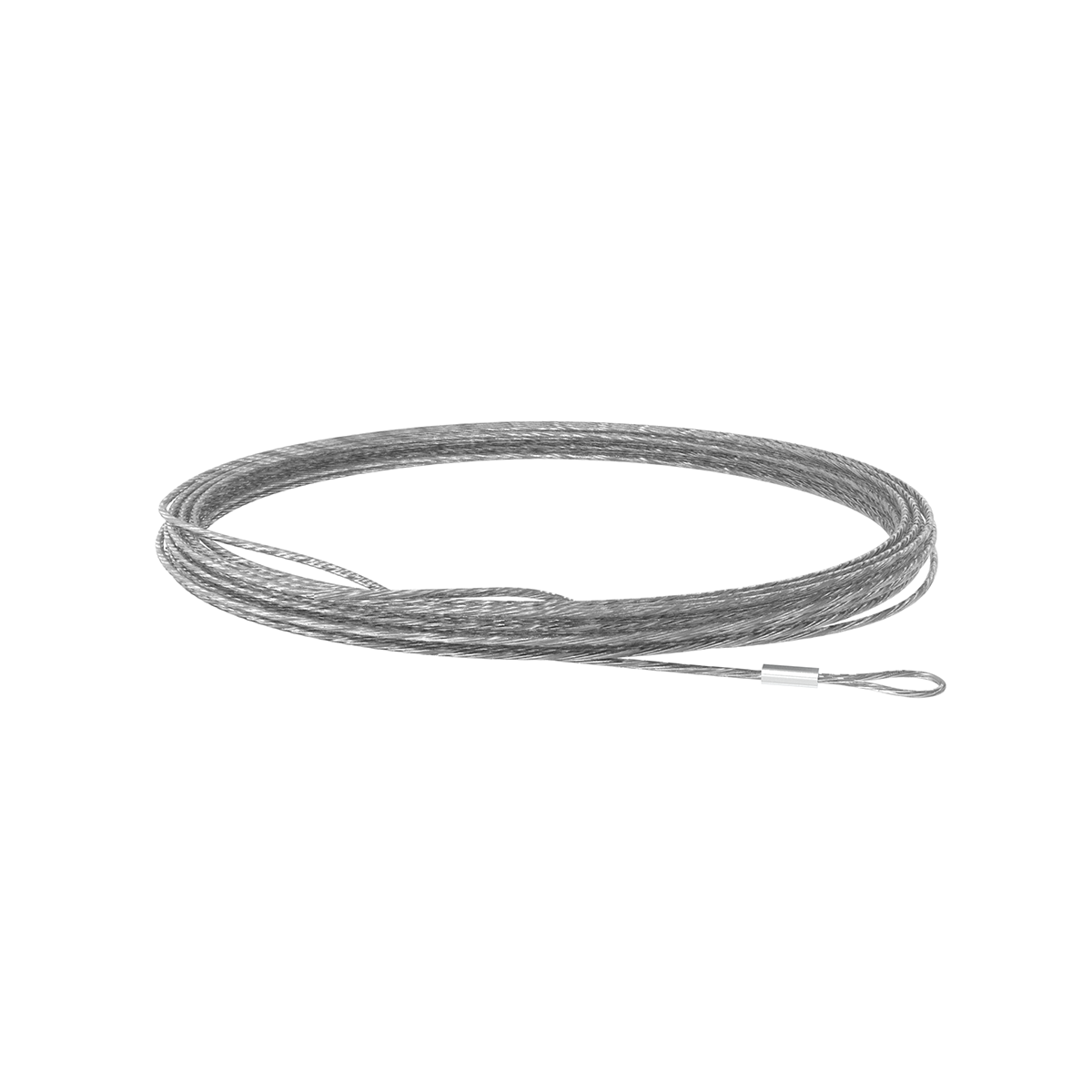

12. Steel Cable with Loop	8840 9600 7121	Weight: 0.014 kg • ⌀ 1.5 mm • Length: 2.50 m • WLL: 45 kg SF: 5:1 • Alu
	8840 9600 7127	Weight: 0.014 kg • ⌀ 1.5 mm • Length: 2.50 m • WLL: 45 kg SF: 5:1 • Black
	8840 9600 7151	Weight: 0.028 kg • ⌀ 1.5 mm • Length: 5.00 m • WLL: 45 kg SF: 5:1 • Alu
	8840 9600 7191	Weight: 0.056 kg • ⌀ 1.5 mm • Length: 10.00 m • WLL: 45 kg SF: 5:1 • Alu

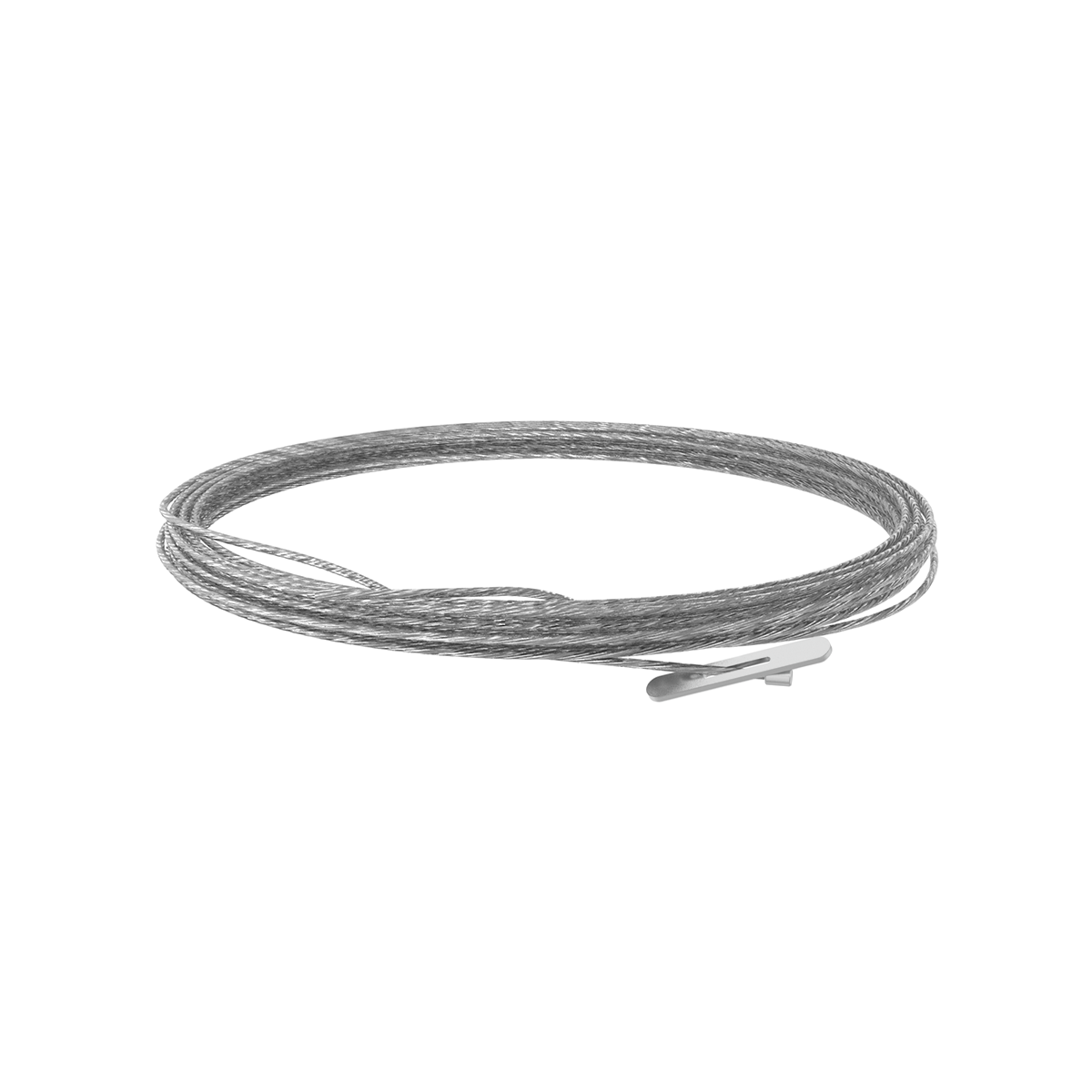

13. Steel Cable with Anchor	8700 0304 0431	Weight: 0.05 kg • ⌀ 1.5 mm • Length: 5.00 m • Alu

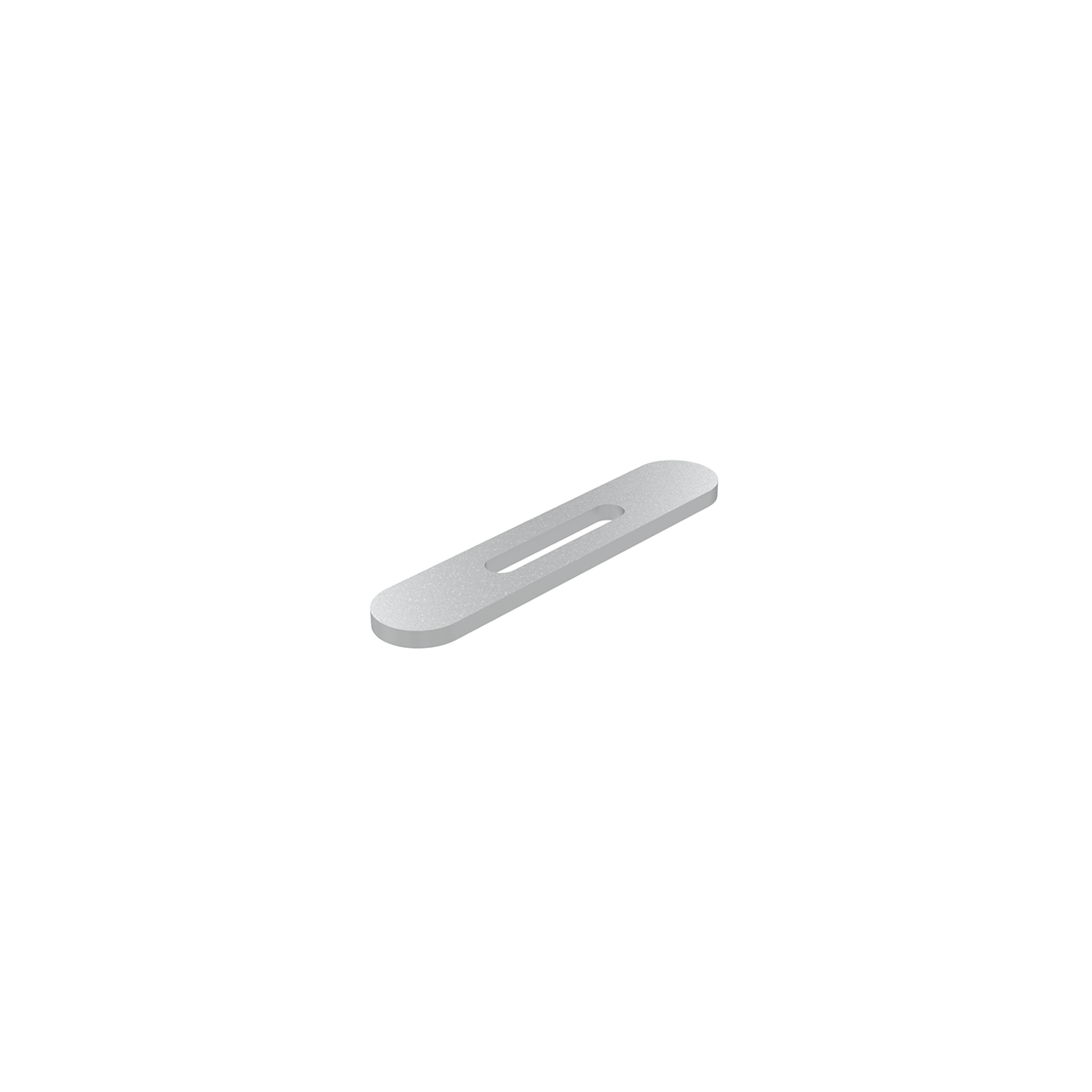

14. Steel Cable Anchor	8700 0304 0441	Weight: 0.01 kg • For ⌀ 3 mm • Alu

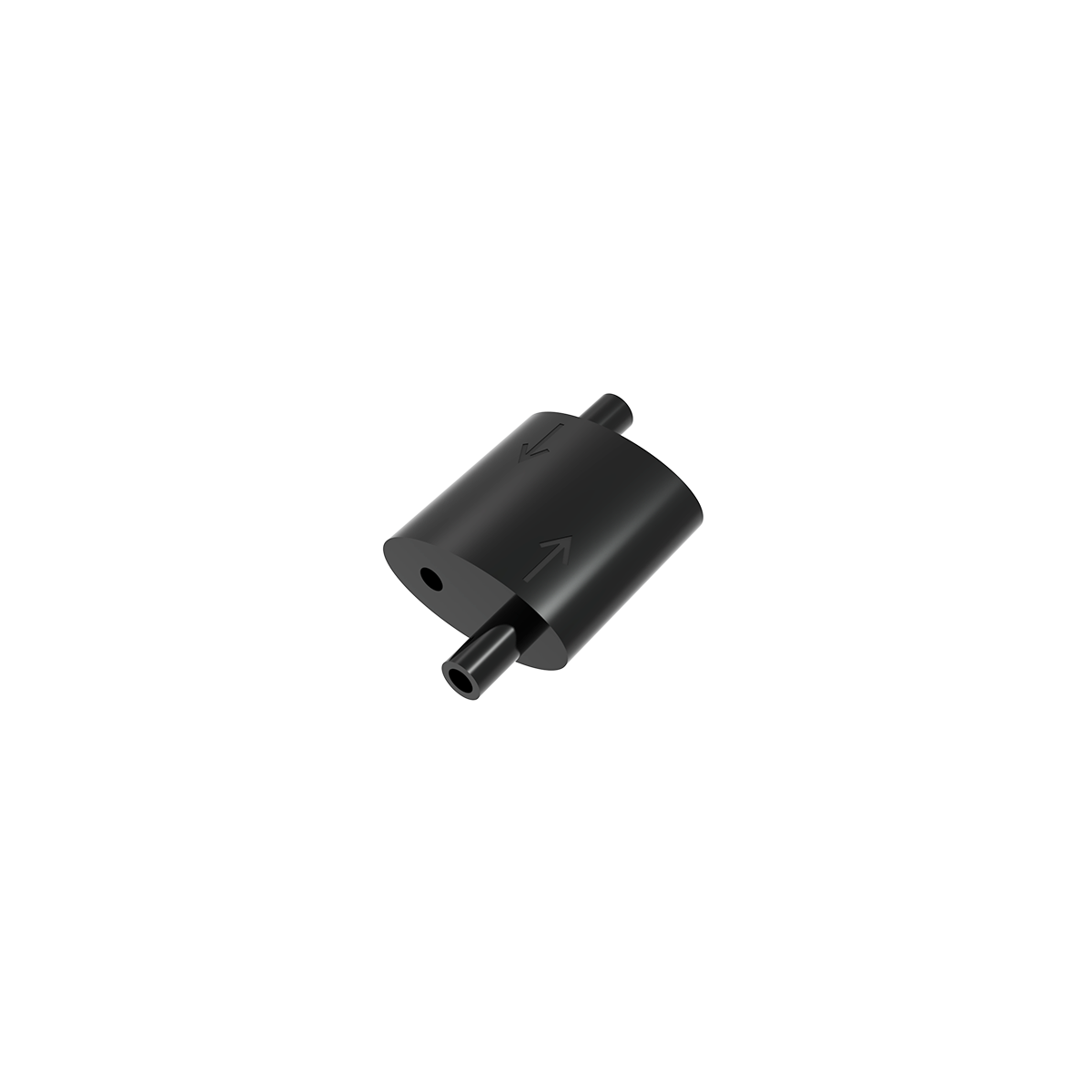

15. Quick Suspension 1.5 mm	8700 0304 0414	Weight: 0.008 kg • For ⌀ 1.5 mm • WLL: 45 kg SF: 5:1 • Alu
	8700 0304 0417	Weight: 0.008 kg • For ⌀ 1.5 mm • WLL: 45 kg SF: 5:1 • Black
16. Quick Suspension 3 mm	8700 0304 0424	Weight: 0.032 kg • For ⌀ 3 mm • WLL: 45 kg SF: 5:1 • Alu
	8700 0304 0427	Weight: 0.032 kg • For ⌀ 3 mm • WLL: 45 kg SF: 5:1 • Black

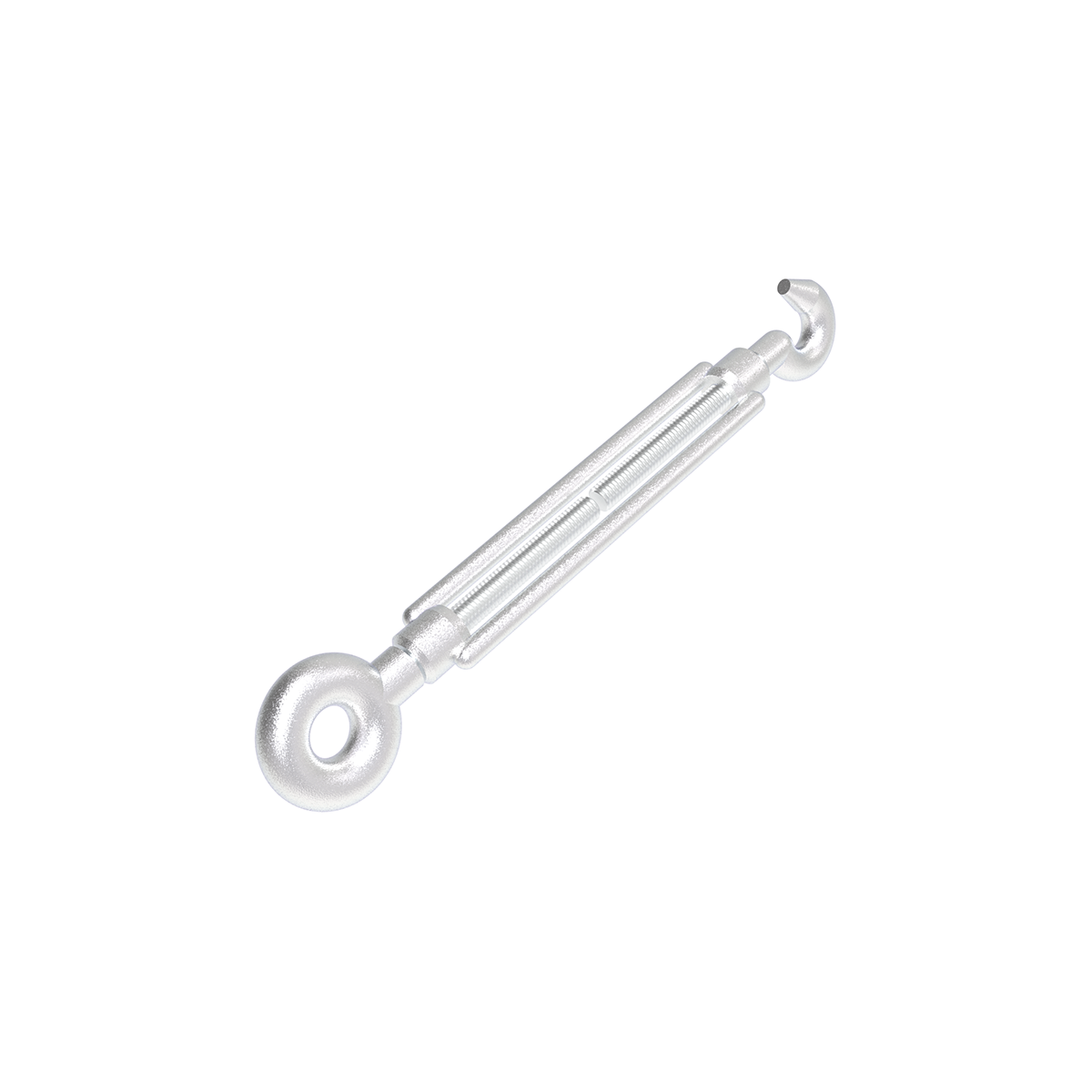

17. Turnbuckle	8800 0643 0601	Weight: 0.10 kg • M6 • Galvanised
with Hook and Eye	8700 0343 0101	Weight: 0.10 kg • M10 • Galvanised
18. Turnbuckle with 2 Eyes	8800 0643 0611	Weight: 0.10 kg • M6 • Galvanised
	8700 0343 0111	Weight: 0.10 kg • M10 • Galvanised

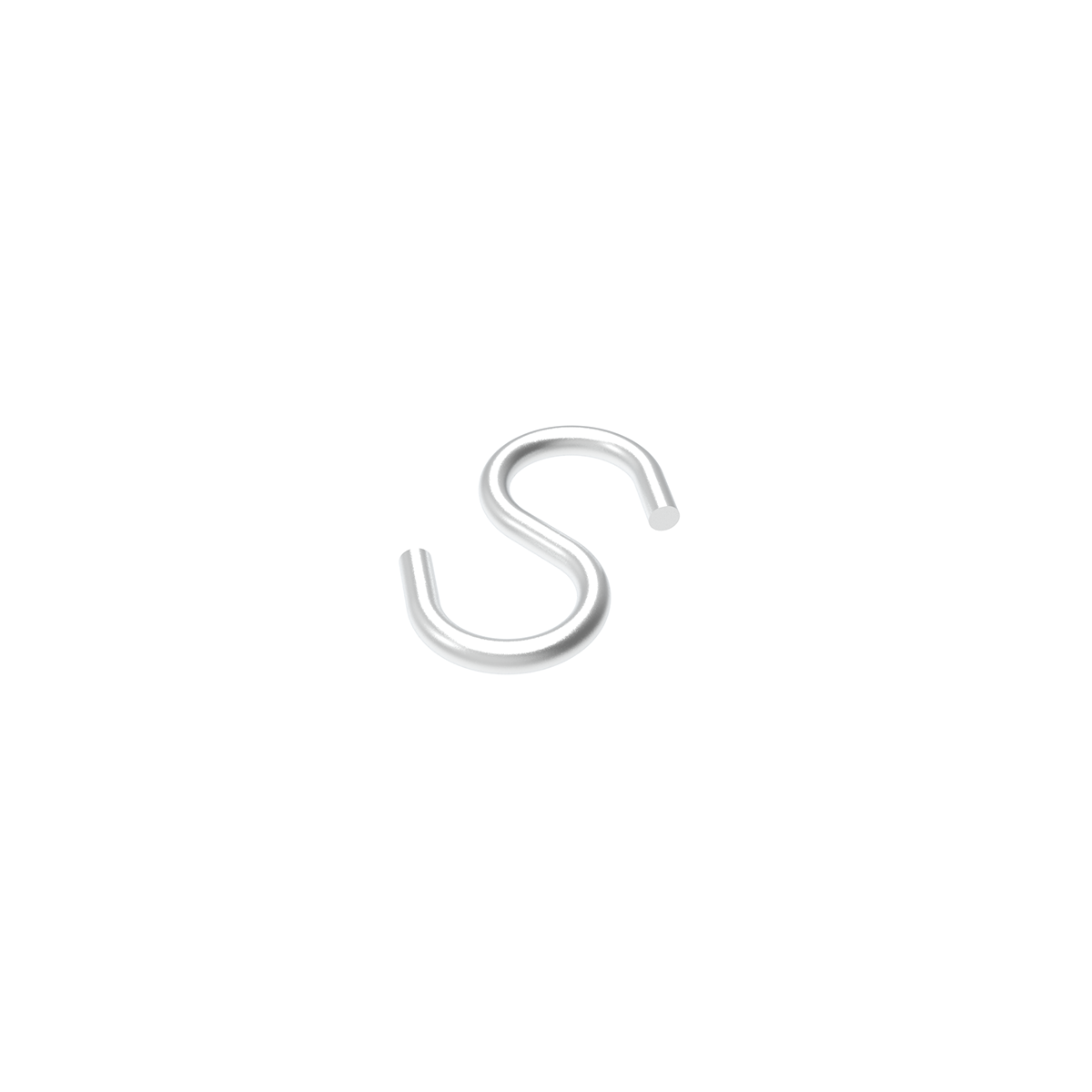

19. S-Hook	7770 0440 0901	Weight: 0.01 kg • Galvanised

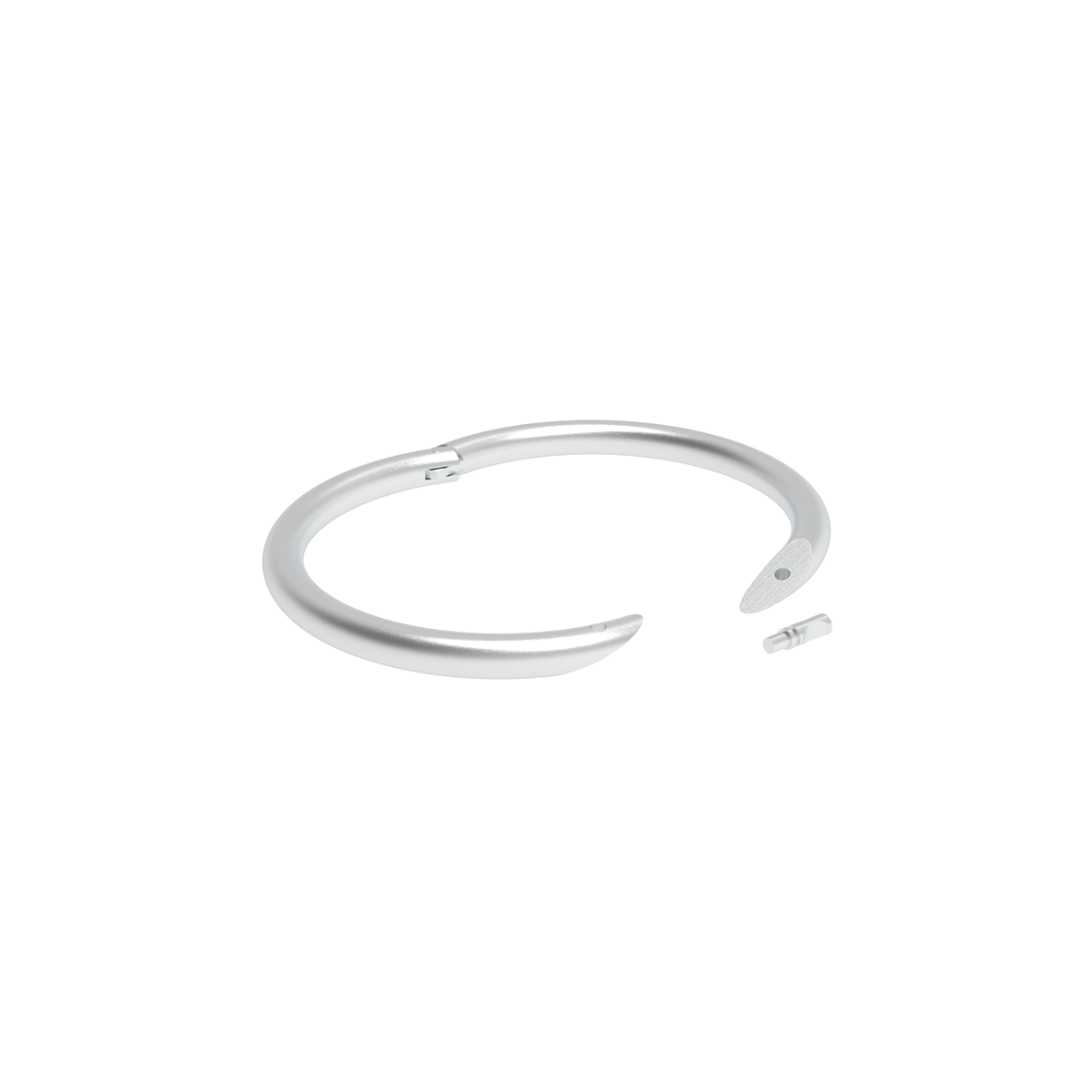

20. O-Ring	7915 0001 0901	Weight: 0.013 kg • Galvanised

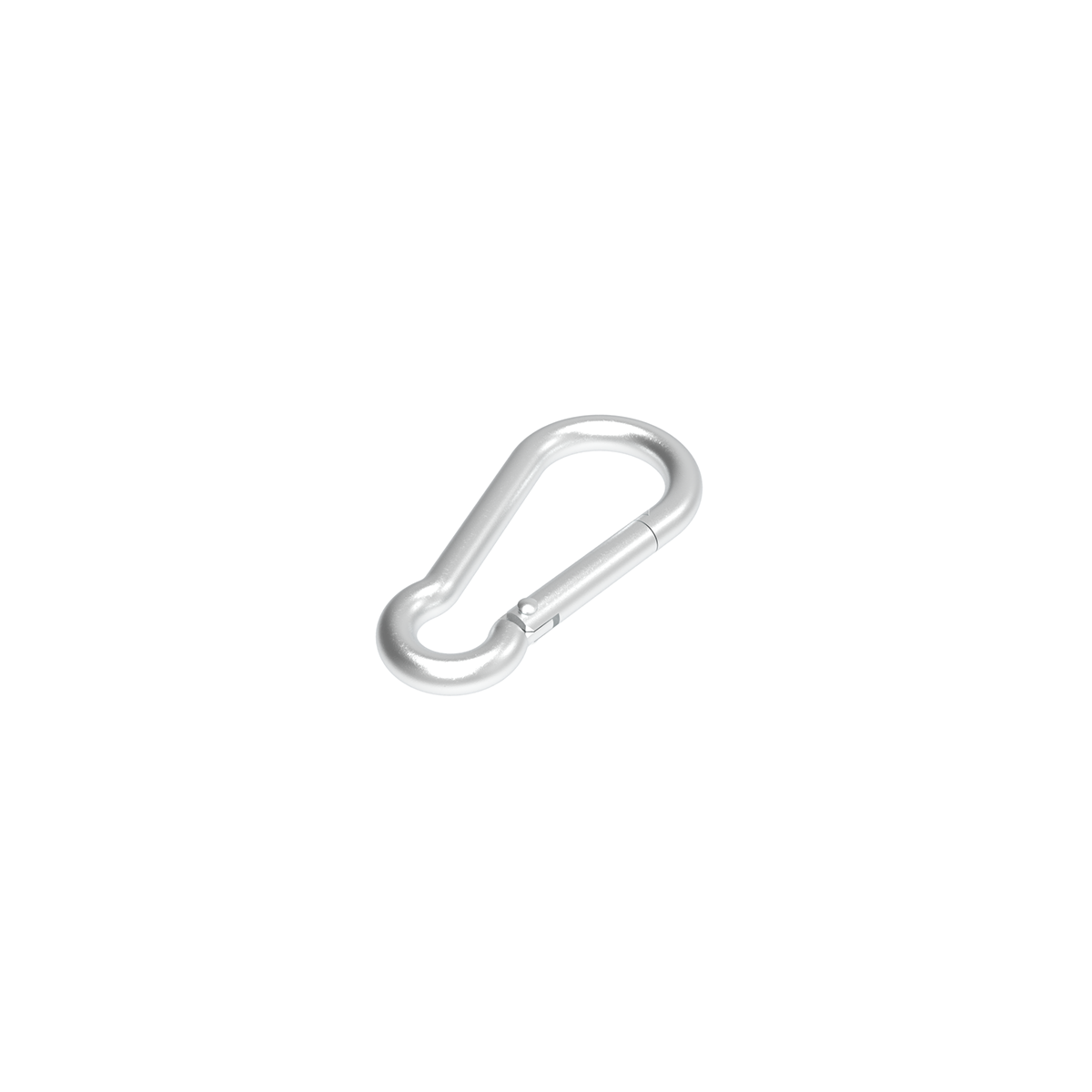

21. Snaphook	7900 0040 0905	Weight: 0.01 kg • ⌀: 40 mm • Galvanised
	7900 0040 0907	Weight: 0.01 kg • ⌀: 40 mm • Black
	7900 0050 0905	Weight: 0.01 kg • ⌀: 50 mm • Galvanised
	7900 0050 0907	Weight: 0.01 kg • ⌀: 50 mm • Black
	7900 0060 0905	Weight: 0.03 kg • ⌀: 60 mm • Galvanised
	7900 0060 0907	Weight: 0.03 kg • ⌀: 60 mm • Black

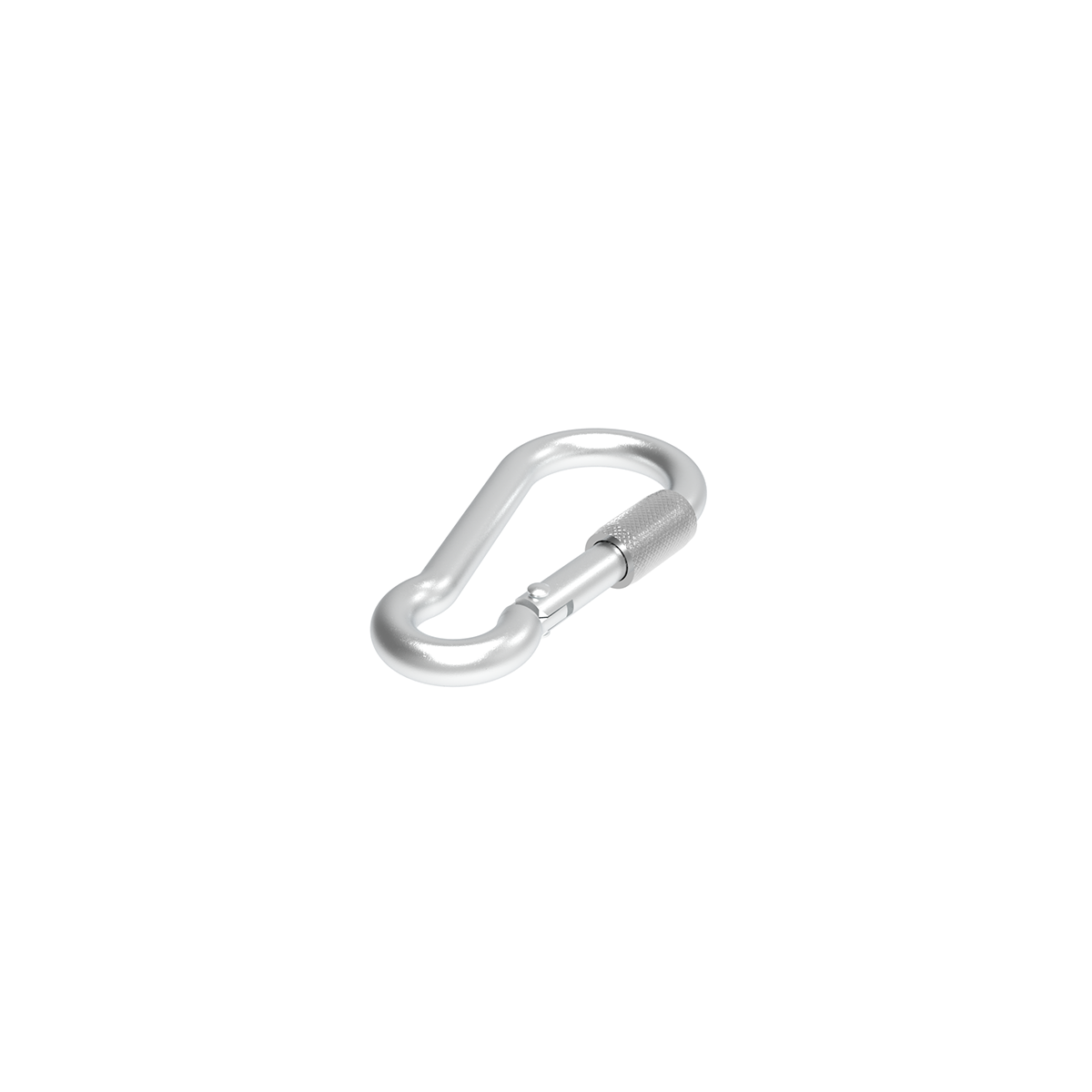

22. Snaphook with Fastener	7910 0060 0903	Weight: 0.03 kg • ⌀: 60 mm • Galvanised
	7910 0080 0903	Weight: 0.03 kg • ⌀: 60 mm • Black

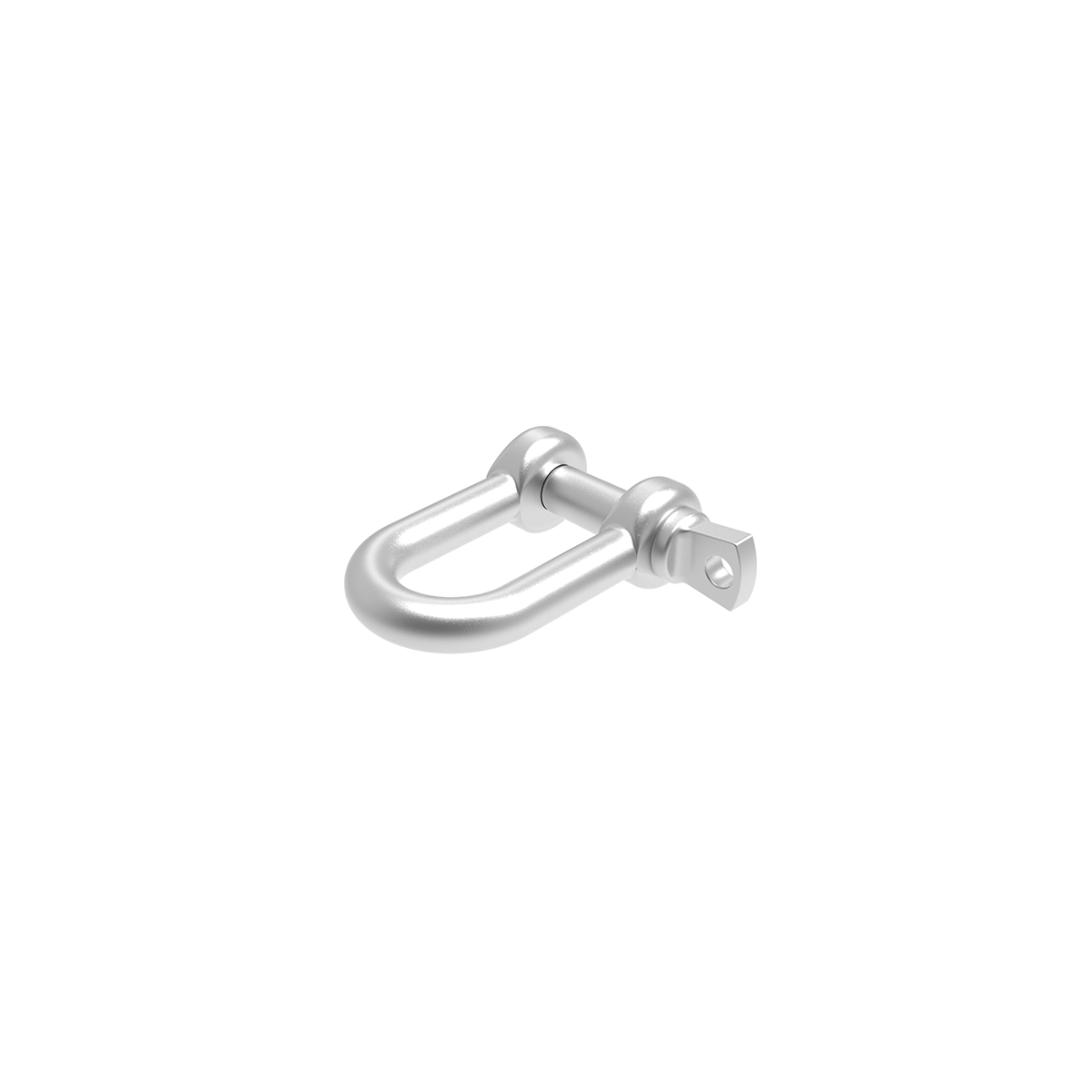

23. D-Shackle	7920 0008 0901	Weight: 0.06 kg • ⌀: 8 mm • Galvanised
	7920 0010 0901	Weight: 0.07 kg • ⌀: 10 mm • Galvanised
	7920 0012 0901	Weight: 0.08 kg • ⌀: 12 mm • Galvanised
24. Safety Cable	8700 0306 0607	Weight: 0.08 kg • Length: 0.60 m • WLL: 190 kg SF: 5:1 • Galvanised
	8700 0306 1207	Weight: 0.10 kg • Length: 1.20 m • WLL: 190 kg SF: 5:1 • Galvanised

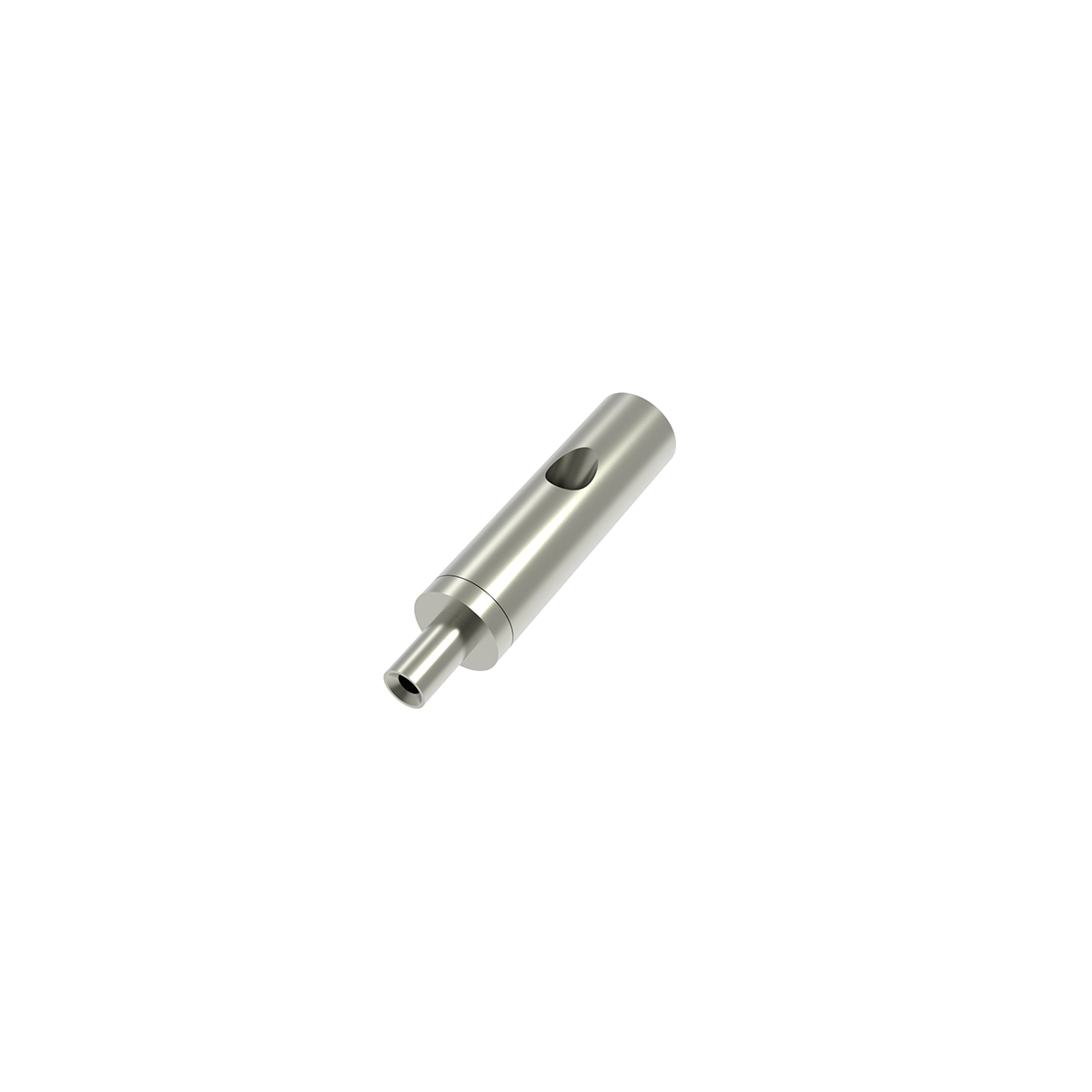

25. Cable Holder	8840 9600 1564	Weight: 0.01 kg • WLL: 45 kg SF: 5:1 • Galvanised
	8840 9600 3064	Weight: 0.06 kg • WLL: 90 kg SF: 5:1 • Galvanised

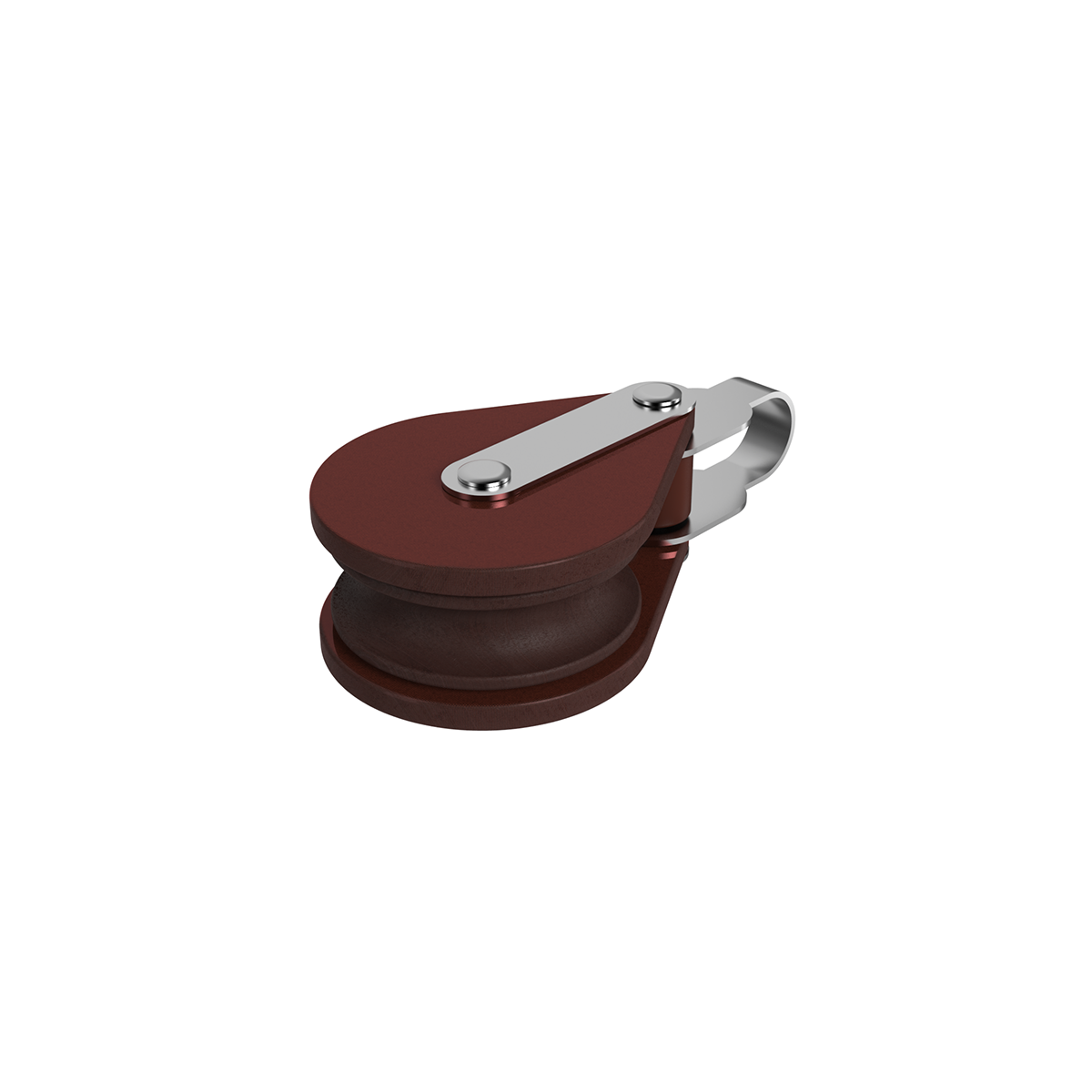

26. Single Pulley Block	7930 0520 0000	Weight: 0.02 kg • ⌀: 20 mm • Brown
	7930 1031 0000	Weight: 0.05 kg • ⌀: 30 mm • Brown
	7930 1060 0000	Weight: 0.09 kg • ⌀: 60 mm • Brown

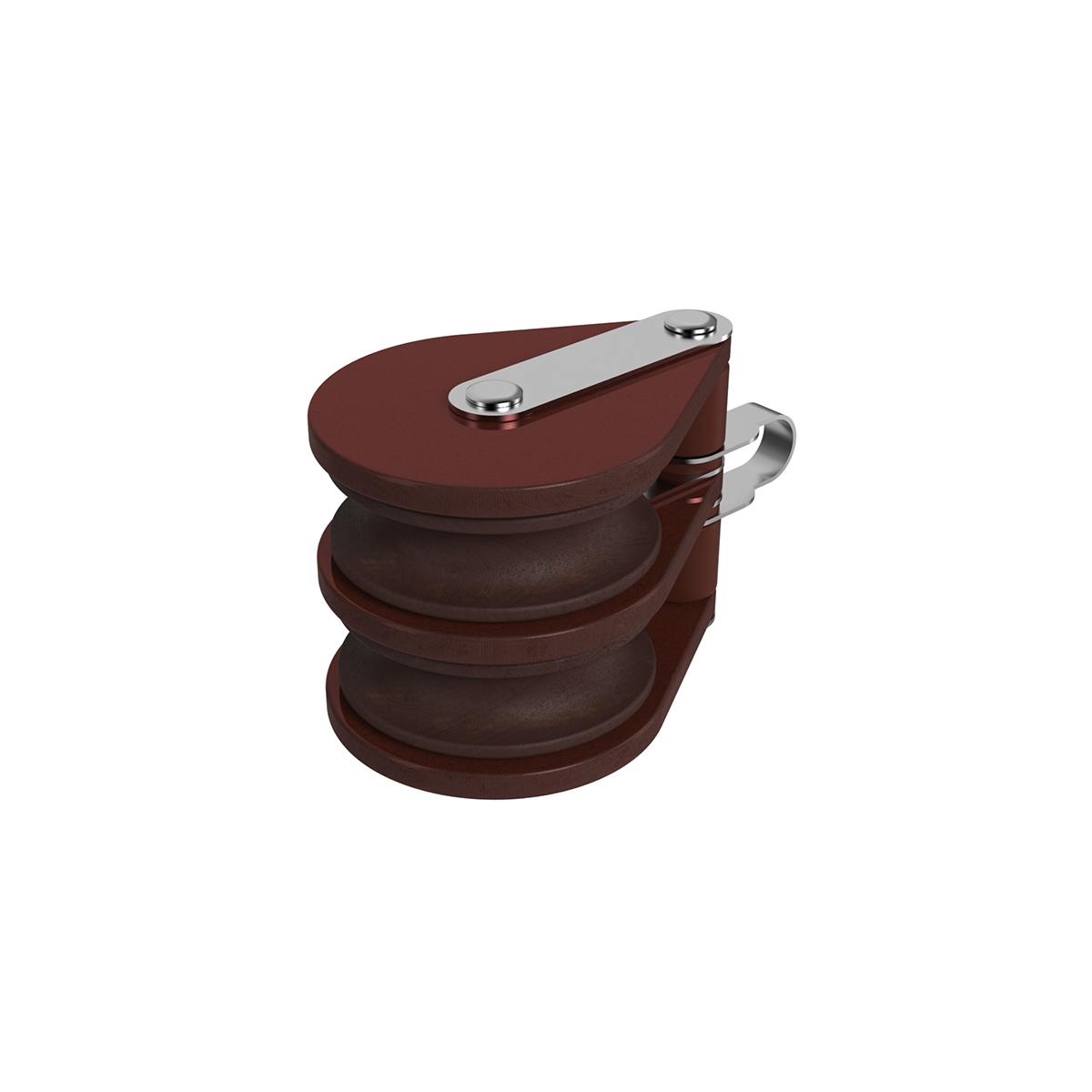

27. Double Pulley Block	7930 1032 0000	Weight: 0.64 kg • ⌀: 30 mm • Brown

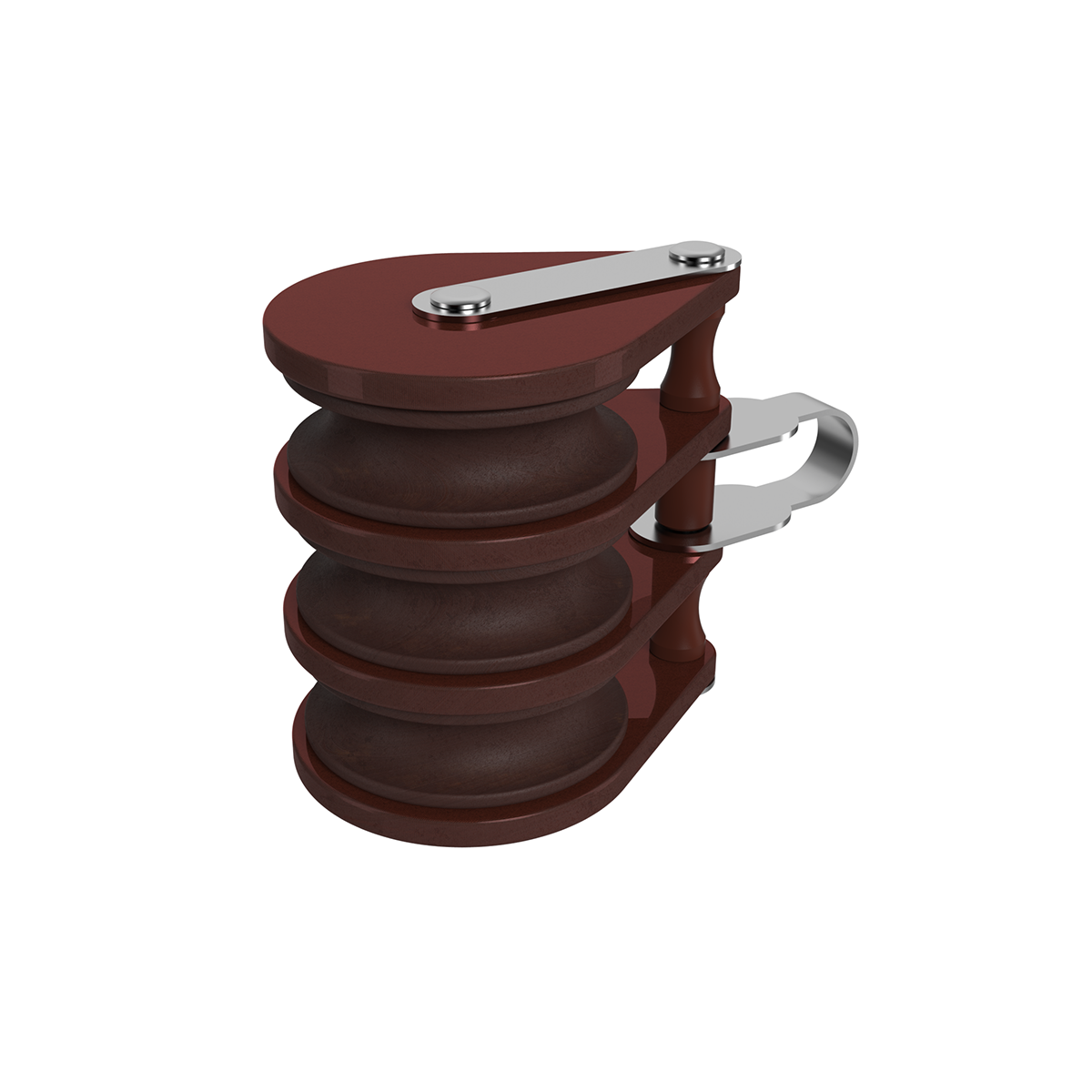

28. Triple Pulley Block	7930 1343 0000	Weight: 0.86 kg • ⌀: 43 mm • Brown
