Clamps & Couplers

Secure and flexible solutions for hanging lighting fixtures, suspending drapes or mounting scenic elements. Engineered to carry both lightweight and heavy setups.

Do you have to rig projection screens or dynamic elements for your theatre production or event? ShowTex clamps and couplers provide stability and safety for both permanent and temporary installations.

Compatible with truss systems and a variety of rigging elements. Select the right clamps and couplers to suspend your fabric backdrop or other types of production equipment with ease.

إكسسوارات	كود المقال	معلومات

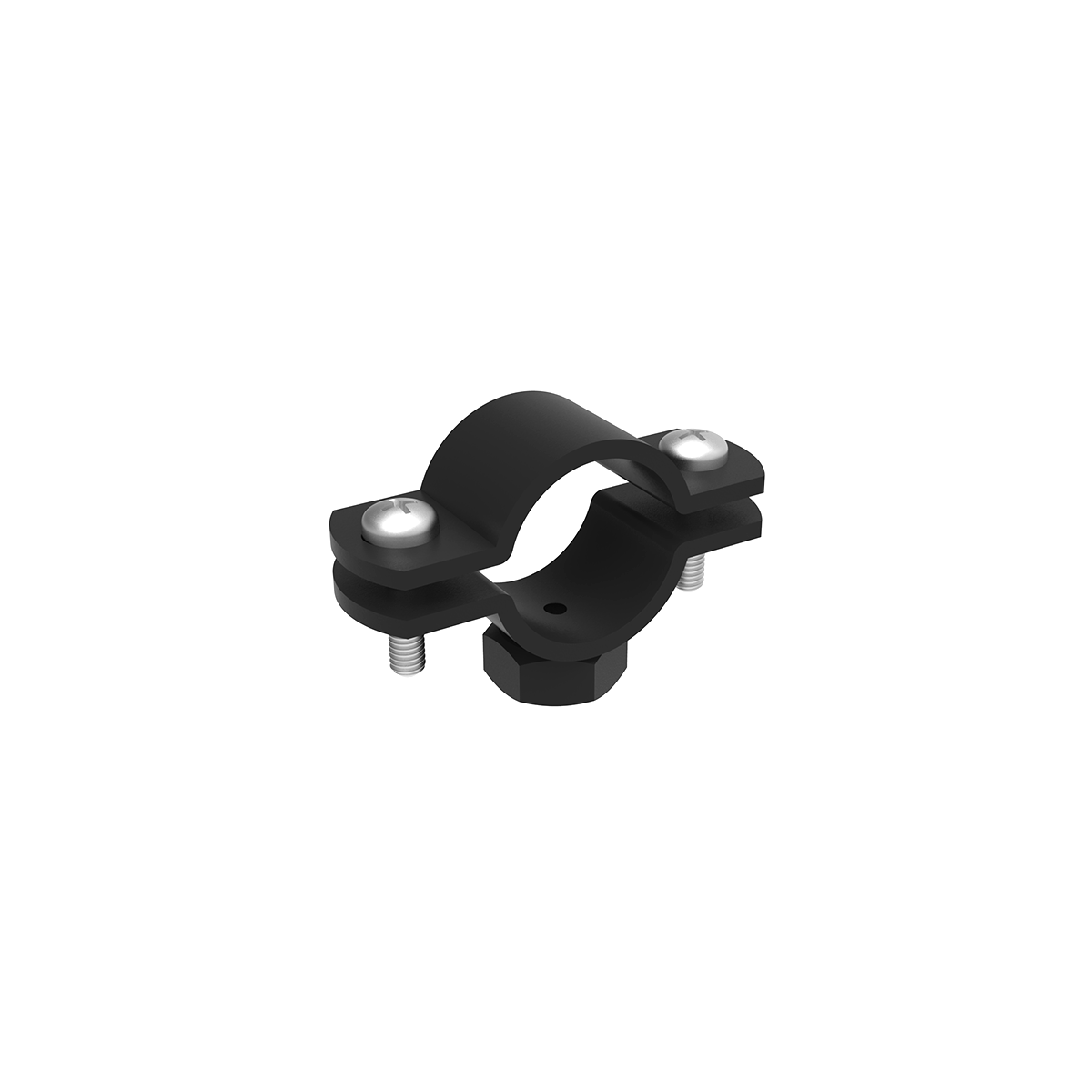

01. Pipe Clamp	8700 0673 0257	Weight: 0.02 kg • ⌀ 25-30 mm • WLL: 70 kg SF: 2:1 • Black
	8700 0673 0251	Weight: 0.02 kg • ⌀ 25-30 mm • WLL: 70 kg SF: 2:1 • Galvanised
	8700 0673 8107	Weight: 0.04 kg • ⌀ 47-52 mm • WLL: 70 kg SF: 2:1 • Black
	8700 0673 8101	Weight: 0.04 kg • ⌀ 47-52 mm • WLL: 70 kg SF: 2:1 • Galvanised

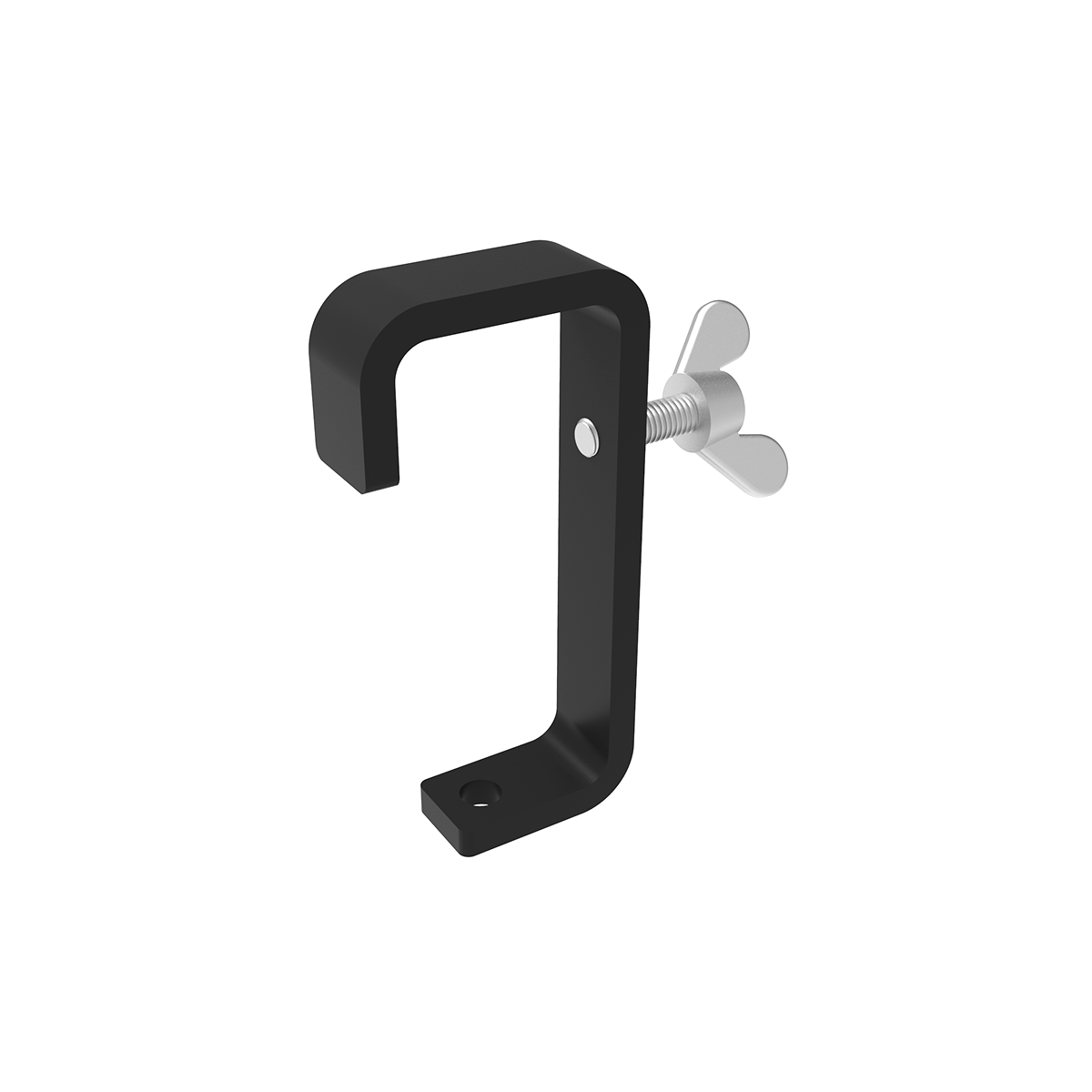

02. Hook Clamp 40 kg	8700 0677 0407	Weight: 0.42 kg • ⌀ 40-45 mm • WLL: 40 kg SF: 5:1 • Black
	8700 0677 0401	Weight: 0.42 kg • ⌀ 40-45 mm • WLL: 40 kg SF: 5:1 • Galvanised

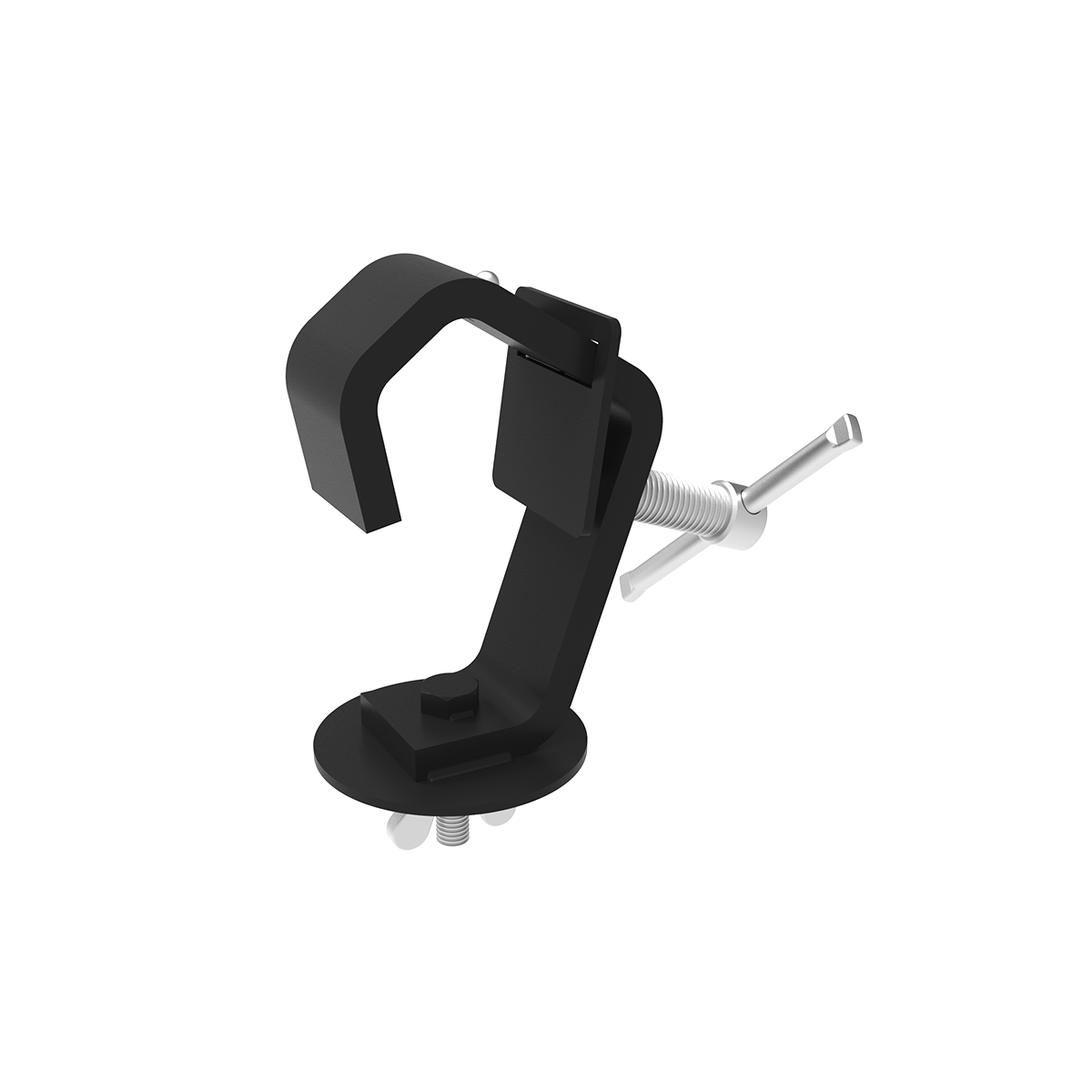

03. Hook Clamp 50 kg	8700 0677 0507	Weight: 1.16 kg • ⌀ 45-60 mm • WLL: 50 kg SF: 5:1 • Black

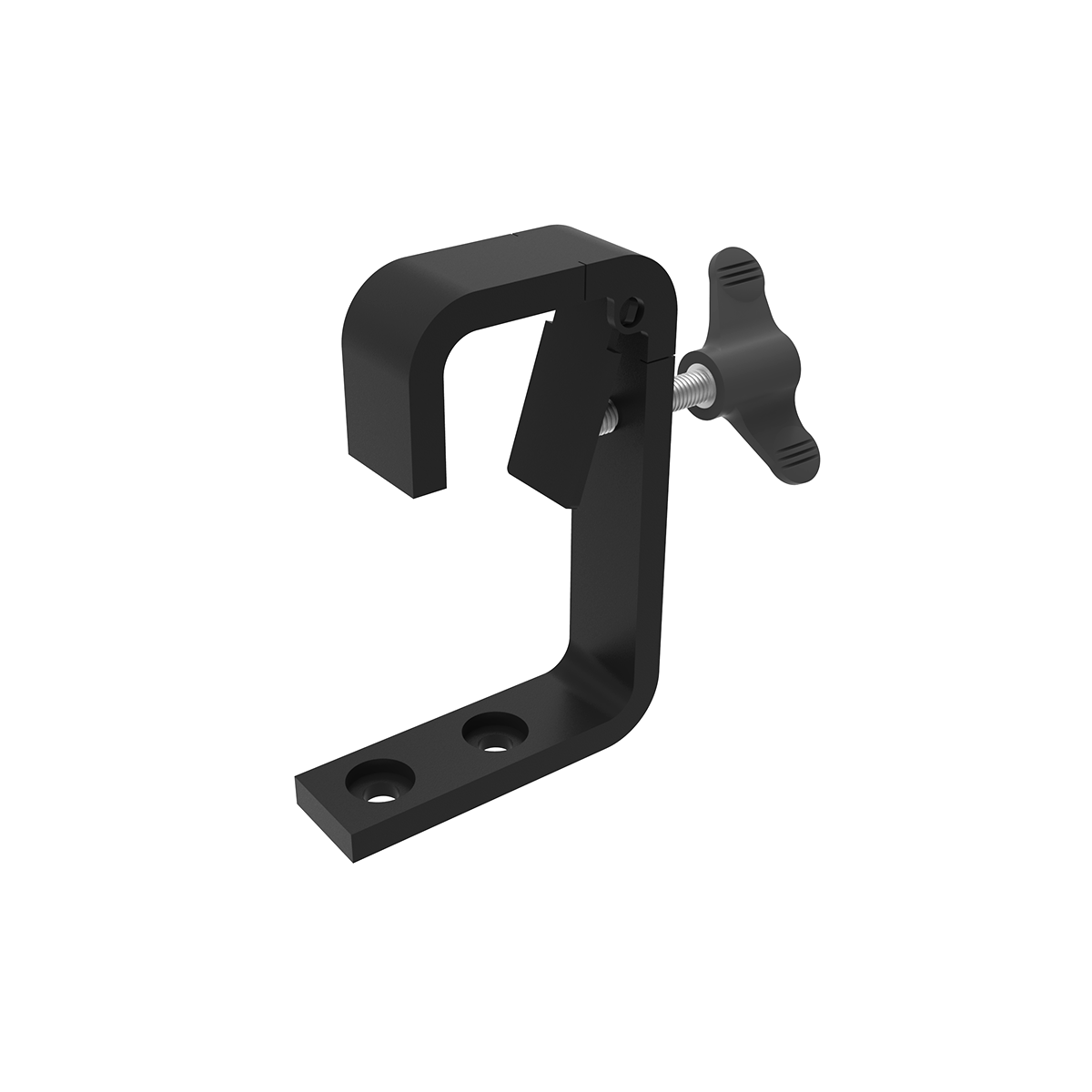

04. Hook Clamp 60 kg	8700 0677 0607	Weight: 0.92 kg • ⌀ 45-50 mm • WLL: 60 kg SF: 5:1 • Black

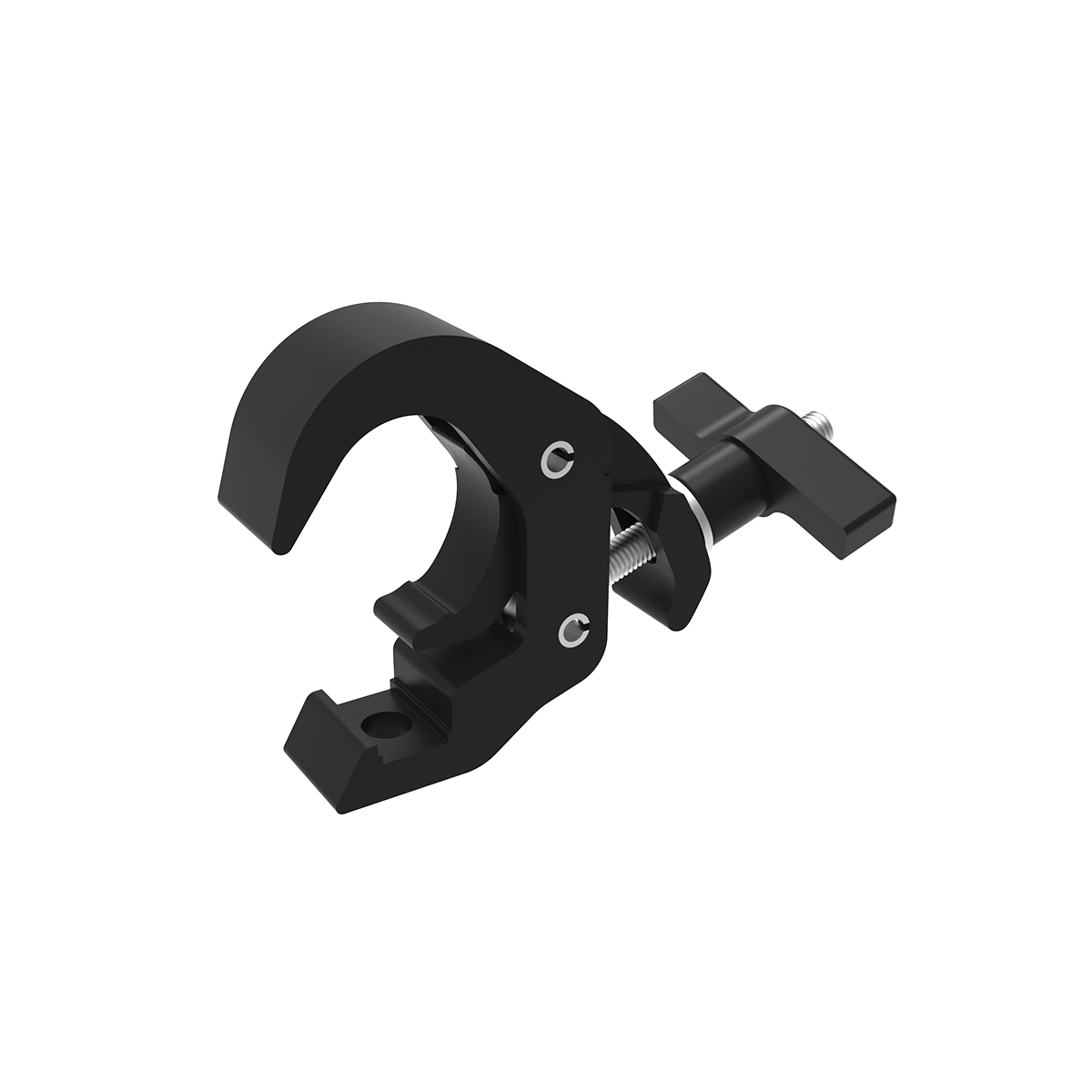

05. Hook Clamp 100 kg	8700 0677 1007	Weight: 0.48 kg • ⌀ 38-51 mm • WLL: 100 kg SF: 5:1 • Black
	8700 0677 1004	Weight: 0.48 kg • ⌀ 38-51 mm • WLL: 100 kg SF: 5:1 • Galvanised
	8700 0677 2007	Weight: 0.68 kg • ⌀ 48-80 mm • WLL: 100 kg SF: 5:1 • Black

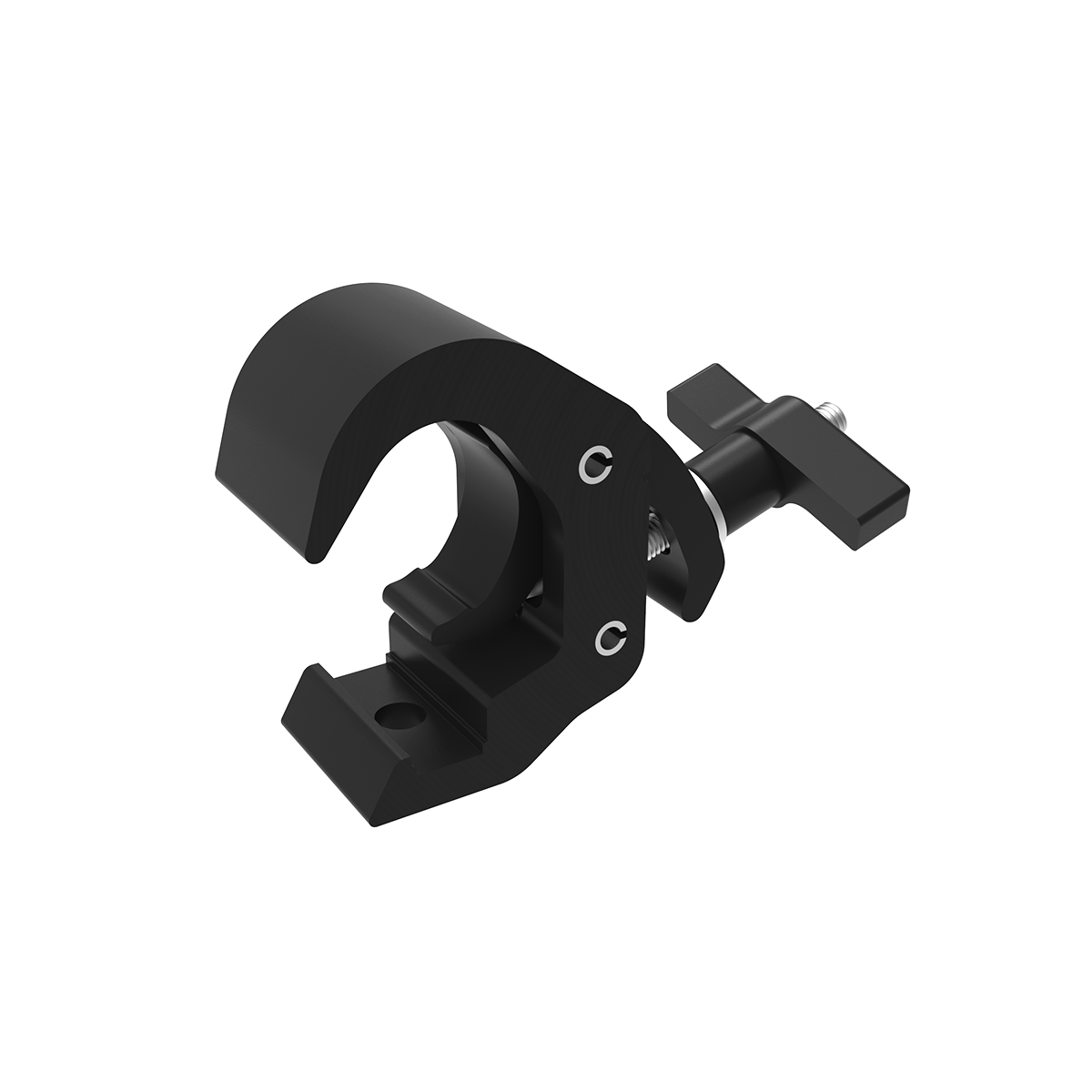

06. Hook Clamp 250 kg	8700 0677 2507	Weight: 0.68 kg • ⌀ 38-51 mm • WLL: 250 kg SF: 5:1 • Black
	8700 0677 2504	Weight: 0.68 kg • ⌀ 38-51 mm • WLL: 250 kg SF: 5:1 • Galvanised

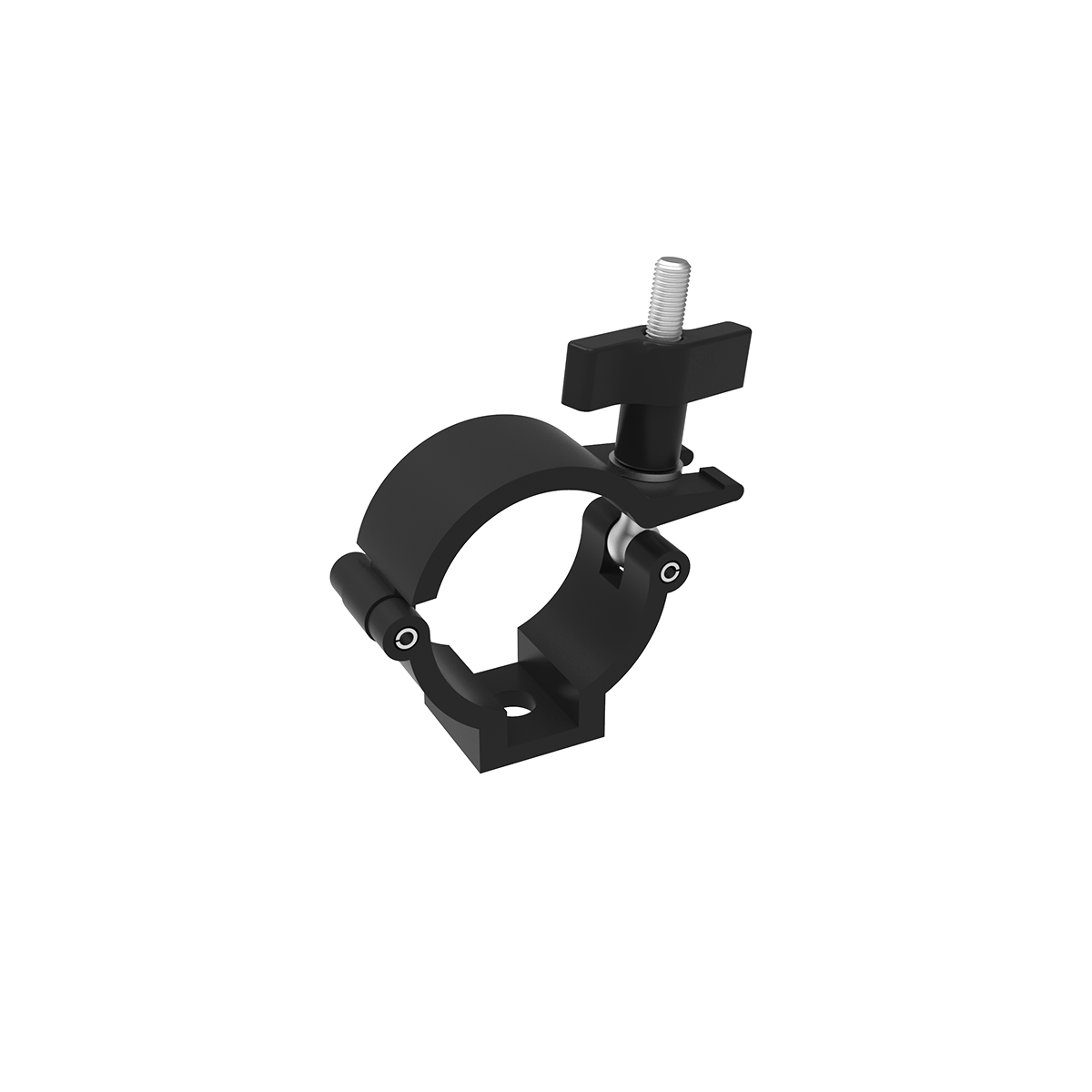

07. Half Coupler Clamp 100 kg	8700 0680 0757	Weight: 0.14 kg • ⌀ 48-51 mm • WLL: 100 kg SF: 5:1 • Black
	8700 0680 0754	Weight: 0.14 kg • ⌀ 48-51 mm • WLL: 100 kg SF: 5:1 • Galvanised

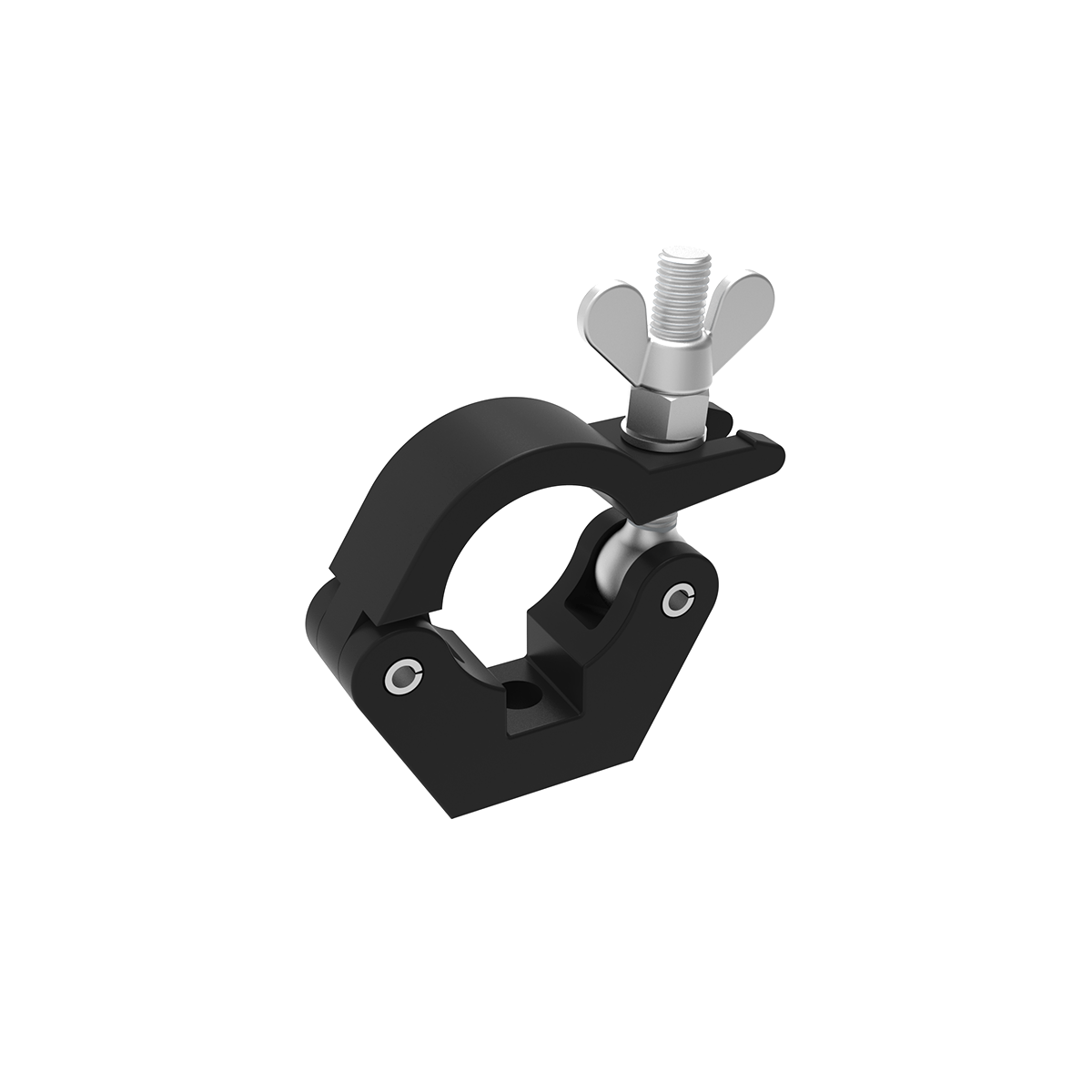

08. Half Coupler Clamp 750 kg	8700 0680 7507	Weight: 0.40 kg • ⌀ 48-51 mm • WLL: 750 kg SF: 5:1 • Black
	8700 0680 7504	Weight: 0.40 kg • ⌀ 48-51 mm • WLL: 750 kg SF: 5:1 • Galvanised

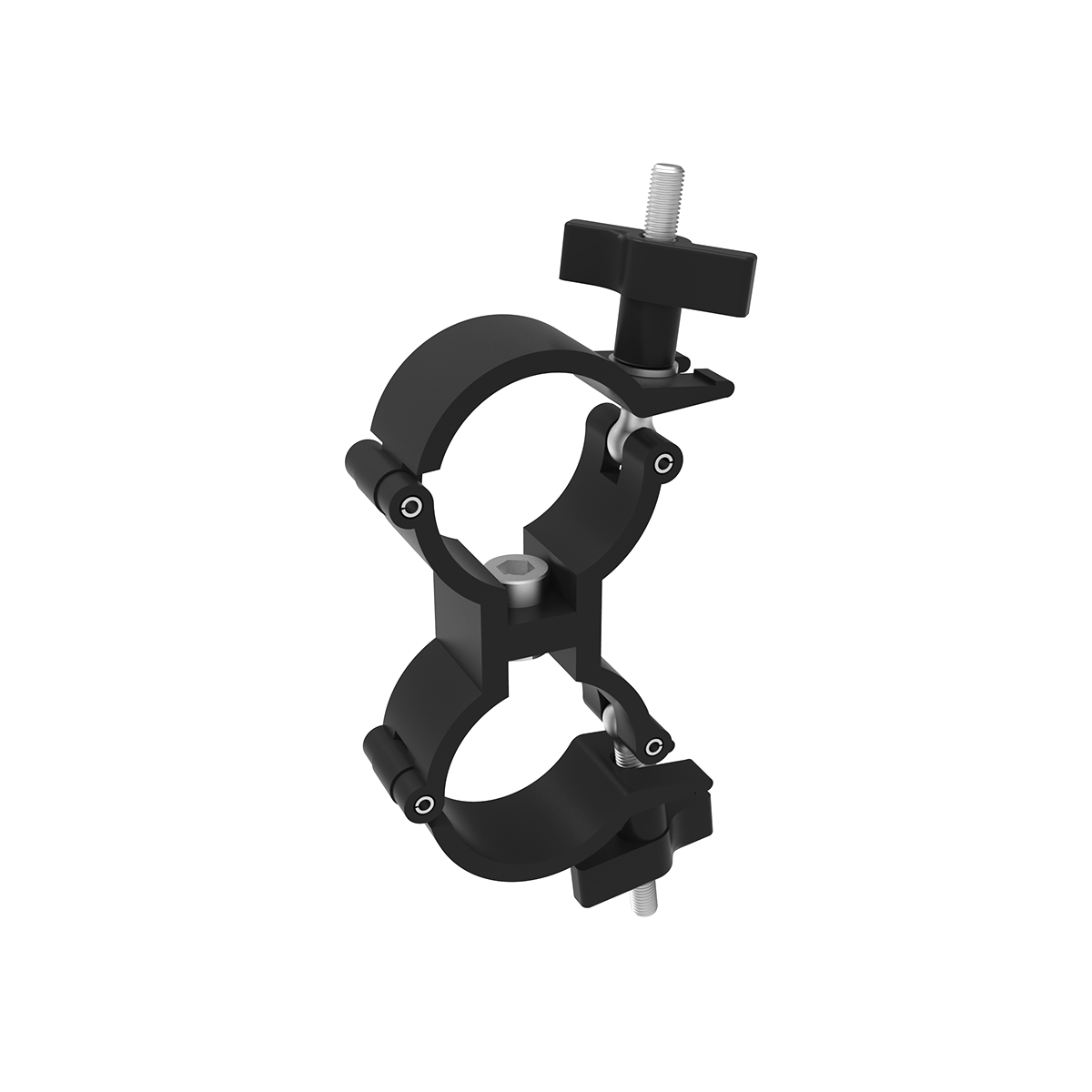

09. Turn Coupler 100 kg	8700 0683 0757	Weight: 0.28 kg • ⌀ 48-51 mm • WLL: 100 kg SF: 5:1 • Black
	8700 0683 0754	Weight: 0.86 kg • ⌀ 48-51 mm • WLL: 100 kg SF: 5:1 • Galvanised
10. Turn Coupler 750 kg	8700 0683 7507	Weight: 0.86 kg • ⌀ 48-51 mm • WLL: 100 kg SF: 5:1 • Black
	8700 0683 7504	Weight: 0.86 kg • ⌀ 48-51 mm • WLL: 100 kg SF: 5:1 • Galvanised

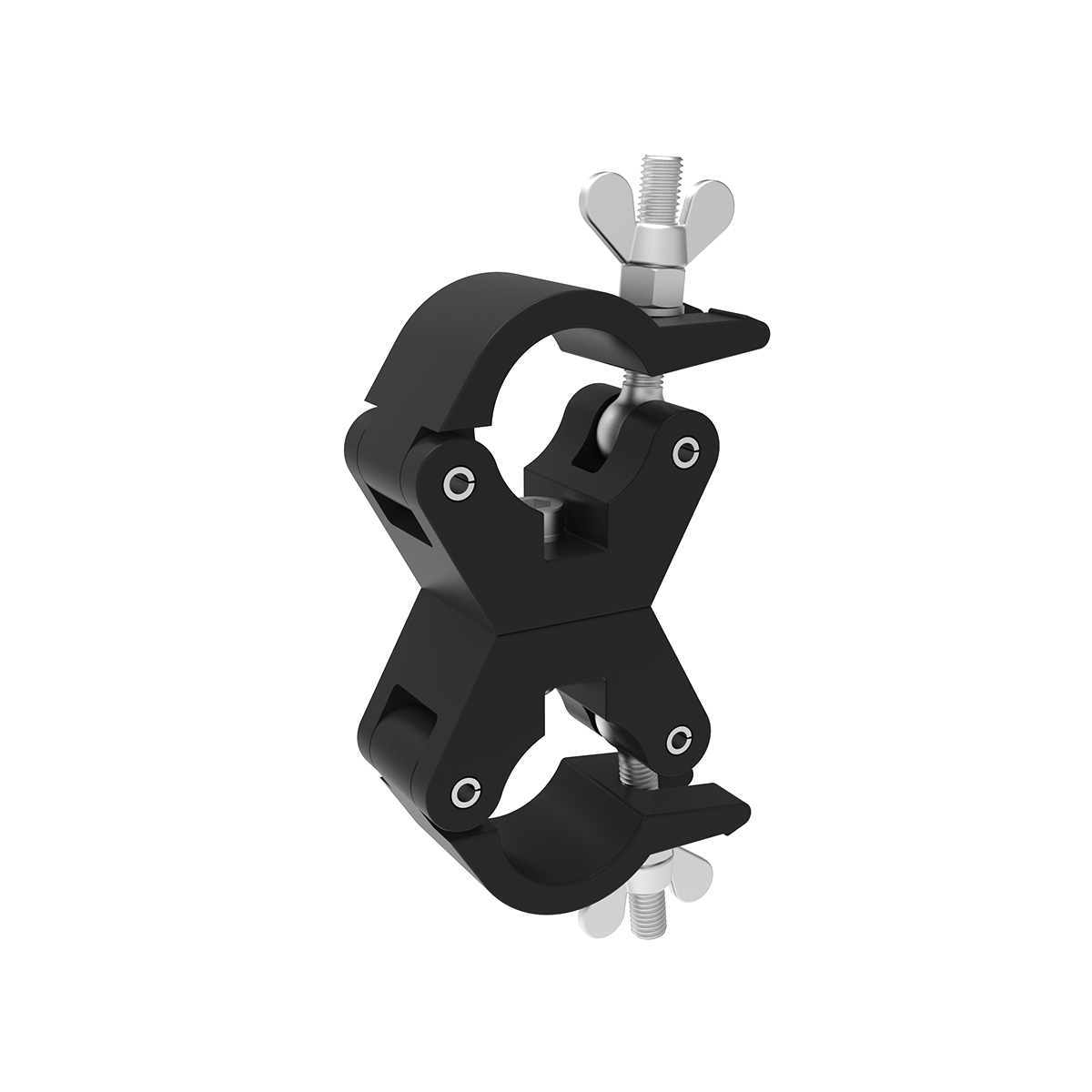

11. Turn Coupler XL 750 kg	8700 0683 7497	Weight: 1.28 kg • ⌀ 48-51 mm • WLL: 750 kg SF: 5:1 • Black
	8700 0683 7494	Weight: 1.28 kg • ⌀ 48-51 mm • WLL: 750 kg SF: 5:1 • Galvanised
