Profil de Cadre Carré

Utilisez des profilés aluminium carrés comme signalisation, plate-forme ou décoration en les suspendant. Éclairez-les à partir de l'intérieur pour créer une boîte lumineuse qui attire tous les regards.

Avantages: Aluminium léger, facile à assembler et à transporter, pas besoin d'aide professionnelle, sur pied, six faces imprimées, visible de tous les angles, pas d’agrafes, pas de colle, tenue garantie.

Nos Print Frame Profiles sont réalisés sur mesure en quelles dimensions que ce soit, pour accueillir des imprimés et des panneaux acoustiques de grande taille.



DONNÉES TECHNIQUES – PROFIL DE CADRE CARRÉ – PROFILÉ ALUMINIUM

AccessoireCode articleInformation

01. Cube PrintFrame Profile

8843 0010 0014

Weight: 1.19 kg • Length: 6.00 m • Alu

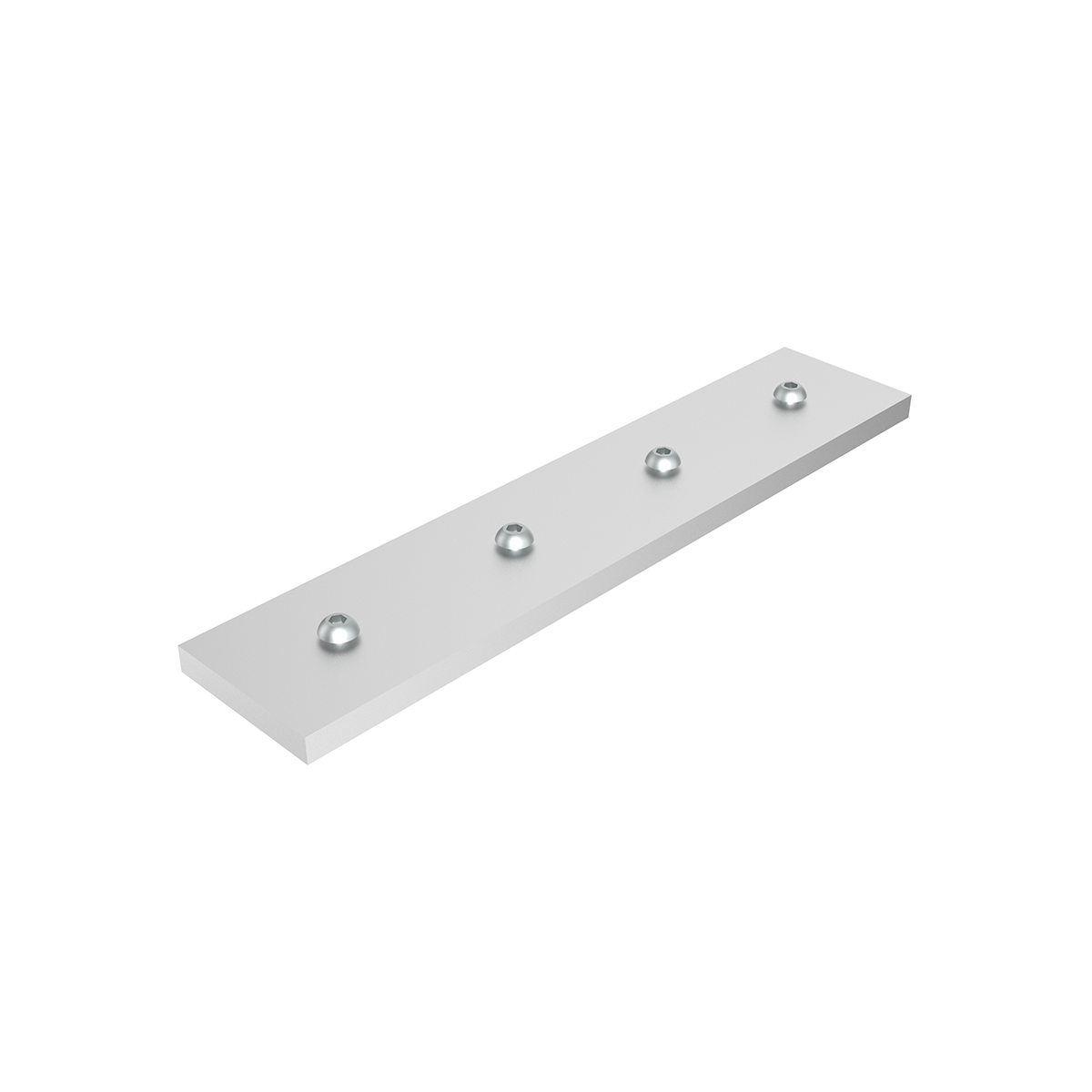

02. Joint Plate

8843 0041 0014

Weight: 0.05 kg • To connect Cube PrintFrame Profiles • Alu

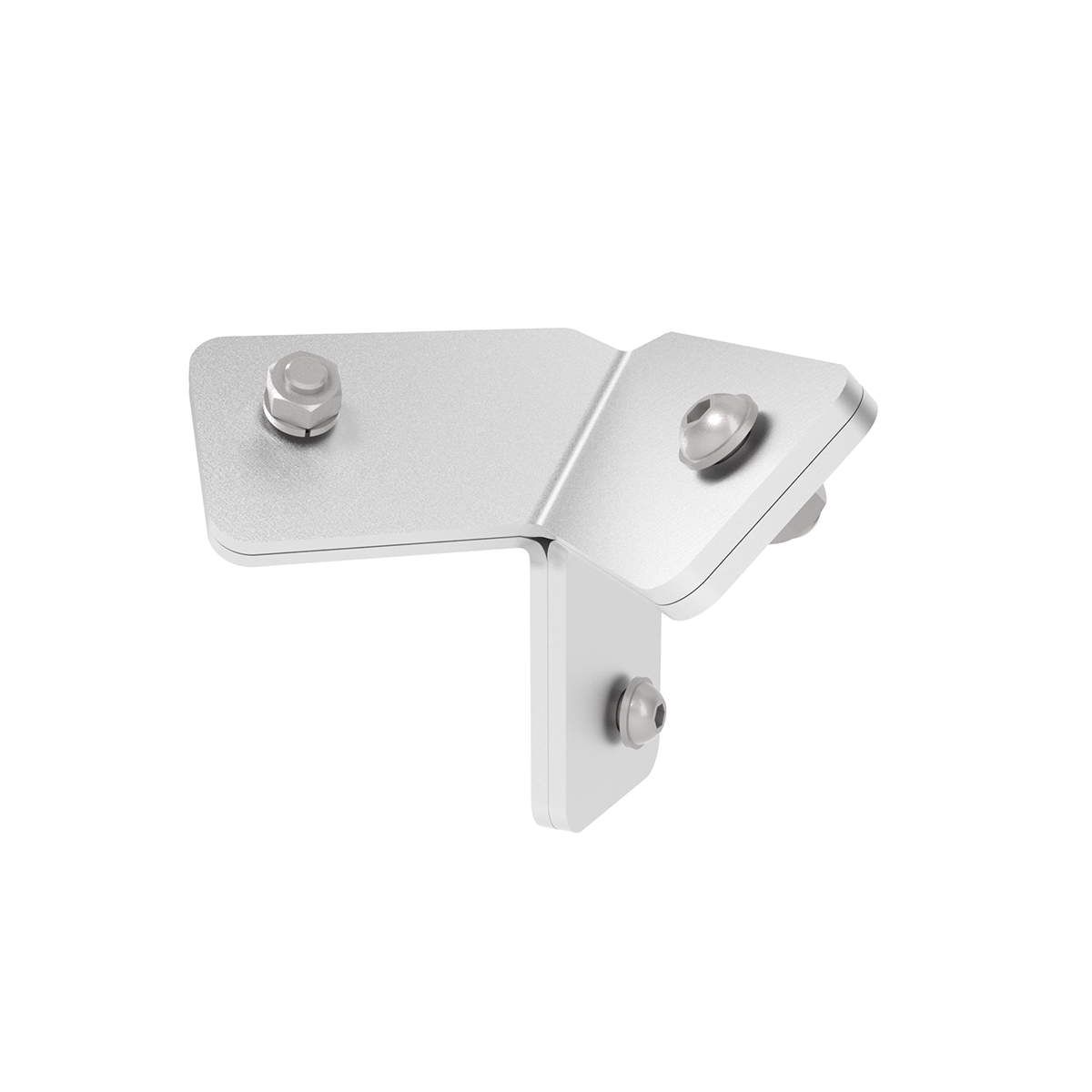

03. Corner Connection set

8843 4099 0014

Weight: 0.25 kg • Set to make 8 corners • Alu

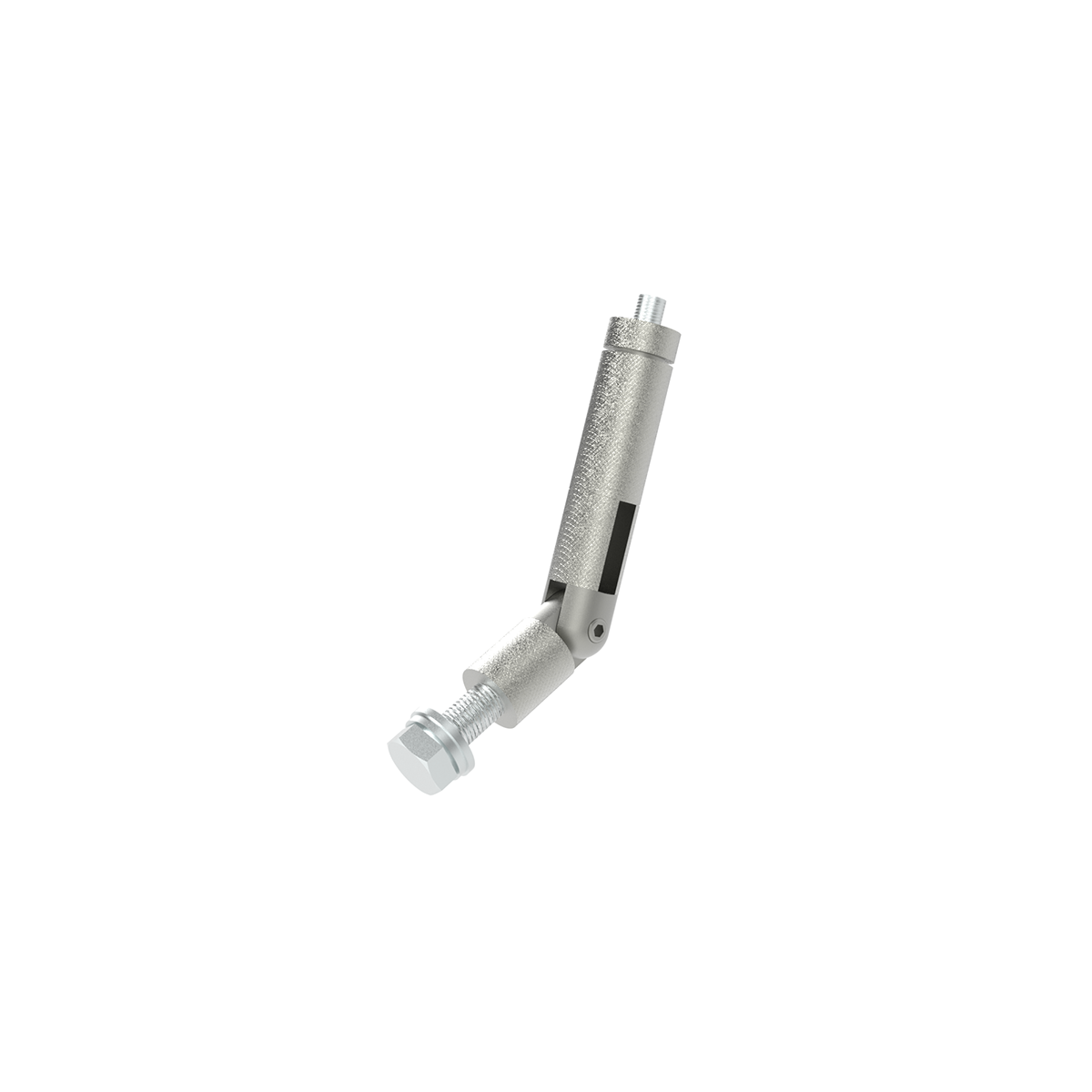

04. Angled Cable Holder

8843 9600 0034

Weight: 0.01 kg • ⌀: 3.00 mm • Alu

05. Quick Suspension 3 mm

8700 0304 0424

Weight: 0.03 kg • WLL: 90 kg SF 5:1 • ⌀: 3.00 mm • Alu

8700 0304 0427

Weight: 0.03 kg • WLL: 90 kg SF 5:1 • ⌀: 3.00 mm • Black

06. Steel Cable

8700 0304 0031

Weight: 0.02 kg/m • ⌀ 3.0 mm • WLL: 90 kg SF: 5:1 • ⌀: 3.00 mm • Alu

8700 0304 0007

Weight: 0.02 kg/m • ⌀ 3.0 mm • WLL: 90 kg SF: 5:1 • ⌀: 3.00 mm • Black

07. Brace Profile

8840 0010 0034

Weight: 0.67 kg • Length: 6.00 m • Alu

8840 0010 0037

Weight: 0.67 kg • Length: 6.00 m • Black

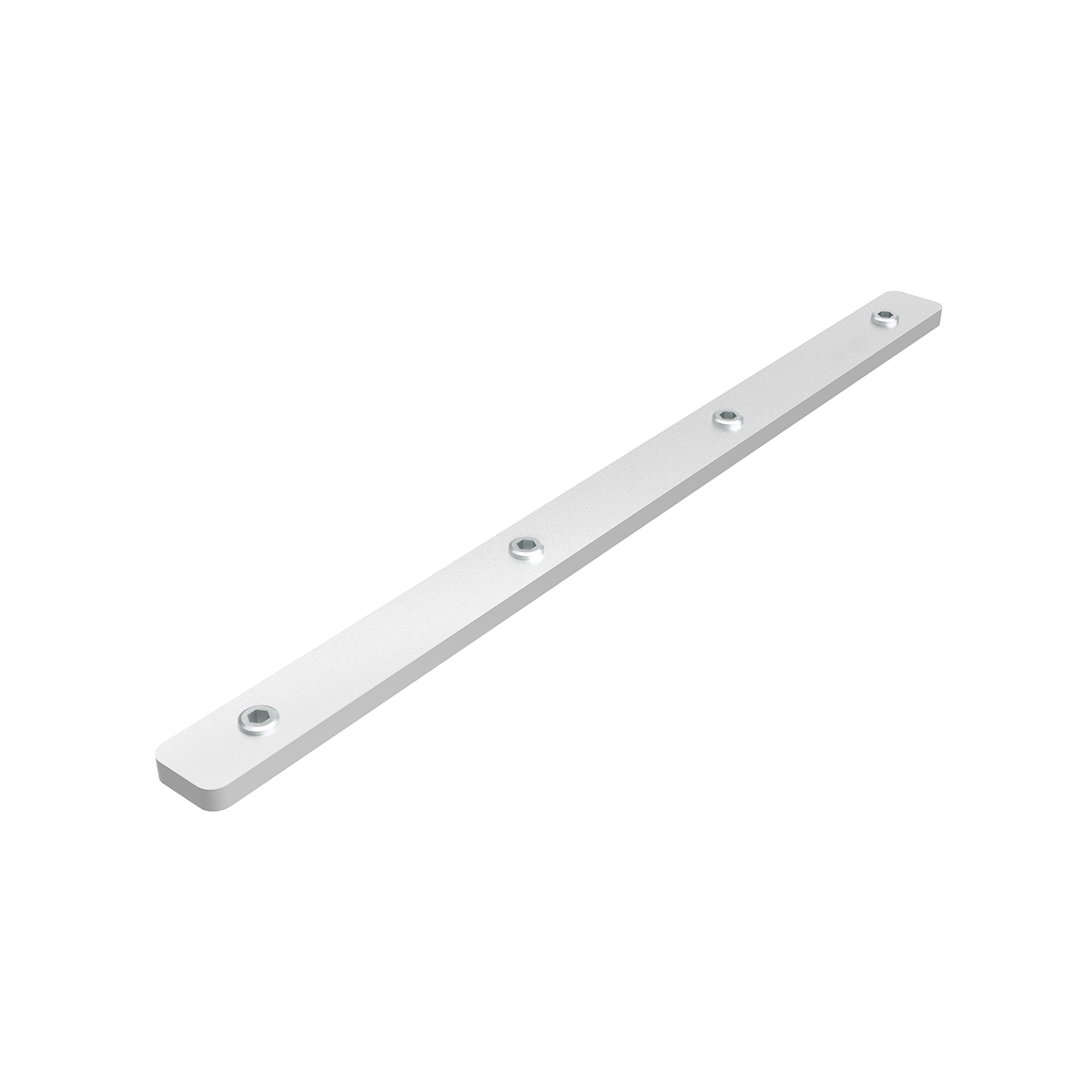

08. Universal Joint Plate

8840 0042 0054

Weight: 0.05 kg • Alu

8840 0042 0057

Weight: 0.05 kg • Black

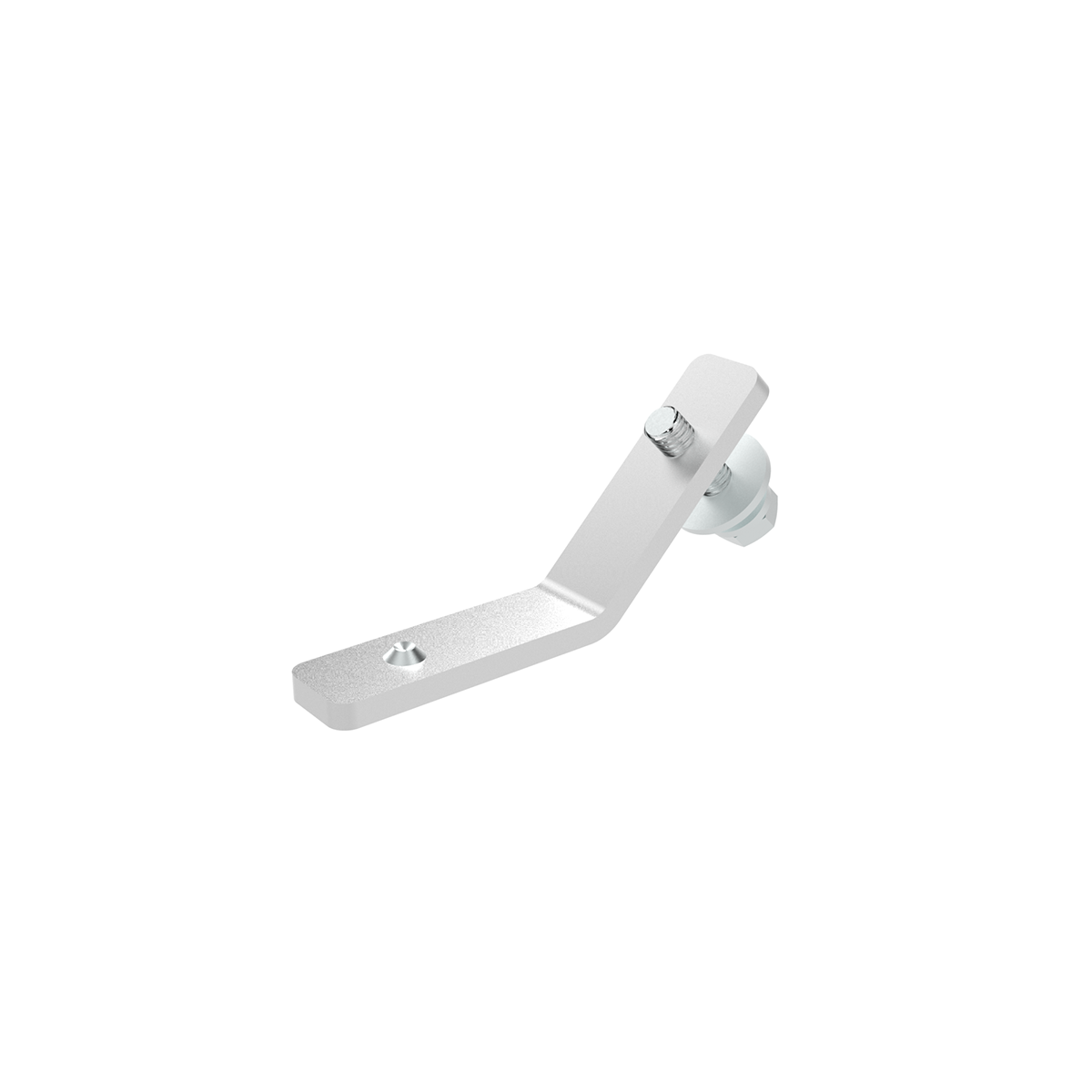

09. Brace Connection set

8843 0041 0004

Weight: 0.04 kg • Alu

10. Brace Lock

8840 0010 0334

Weight: 0.04 kg • Alu
