Cube PrintFrame

Use these aluminium frames for directional signage, as a free standing platform, or a decorative feature by hanging them. Light the Cubes from the inside to create an eye catching light box!

Advantages: Lightweight aluminium, easy to assemble & transport, no professional help needed, free standing, 6 printed sides, viewed from all angles, no staples, no glue, guaranteed fit

Our Print Frame Profiles are made to measure up to almost any size for extra large display prints and acoustic panels.



TECHNICAL DATA - CUBE PRINTFRAME - ALUMINIUM FRAME

AccessoryArticle codeInformation

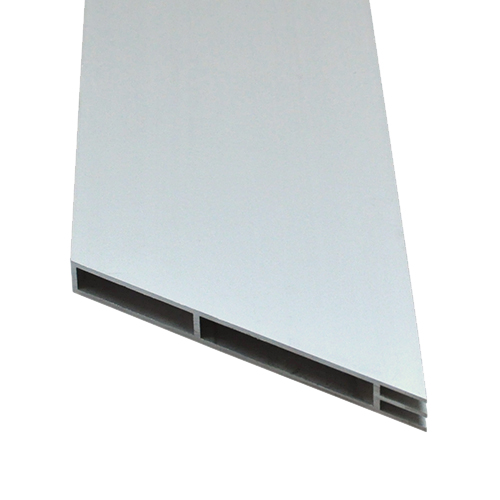

01. Cube PrintFrame Profile

8843 0010 0014

Weight: 1.19 kg • Length: 6.00 m • Alu

02. Joint Plate

8843 0041 0014

Weight: 0.05 kg • To connect Cube PrintFrame Profiles • Alu

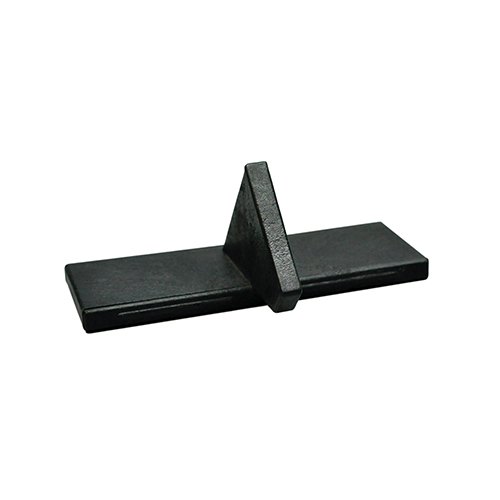

03. Corner Connection set

8843 4099 0014

Weight: 0.25 kg • Set to make 8 corners • Alu

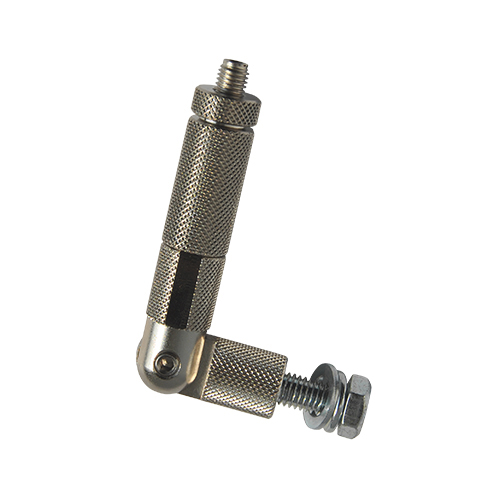

04. Angled Cable Holder

8843 9600 0034

Weight: 0.01 kg • ⌀: 3.00 mm • Alu

05. Quick Suspension 3 mm

8700 0304 0424

Weight: 0.03 kg • WLL: 90 kg SF 5:1 • ⌀: 3.00 mm • Alu

8700 0304 0427

Weight: 0.03 kg • WLL: 90 kg SF 5:1 • ⌀: 3.00 mm • Black

06. Steel Cable

8700 0304 0031

Weight: 0.02 kg/m • ⌀ 3.0 mm • WLL: 90 kg SF: 5:1 • ⌀: 3.00 mm • Alu

8700 0304 0007

Weight: 0.02 kg/m • ⌀ 3.0 mm • WLL: 90 kg SF: 5:1 • ⌀: 3.00 mm • Black

07. Brace Profile

8840 0010 0034

Weight: 0.67 kg • Length: 6.00 m • Alu

8840 0010 0037

Weight: 0.67 kg • Length: 6.00 m • Black

08. Universal Joint Plate

8840 0042 0054

Weight: 0.05 kg • Alu

8840 0042 0057

Weight: 0.05 kg • Black

09. Brace Connection set

8843 0041 0004

Weight: 0.04 kg • Alu

10. Brace Lock

8840 0010 0334

Weight: 0.04 kg • Alu
