Info
Lightweight aluminium frame that’s easy to transport and assemble
with no professional help needed.
Specifications:
- Used for directional signage, as a free standing platform or a
decorative feature by hanging the frame.
- Optional to light the Cube PrintFrame from the inside to create an
eye catching light box.
- Made to measure, almost any size for extra large display
prints.
- Due to our double slotted profile the frame is not visible when the
fabric is inserted.
Product
Flyer
For more information regarding the set-ups that are possible for this
ShowTex product, be sure to check the Product Flyer of this
product.
Components
Frame
Cube PrintFrame Profile
|
Article number
|
Colour
|
Weight
|
Length
|
|
8843 0010 0014
|
Alu
|
1.19 kg
|
6.00 m
|
Joint Plate set
|
Article number
|
Colour
|
Weight
|
|
8843 0042 0004
|
Alu
|
0.05 kg
|
Corner Connection set
|
Article number
|
Colour
|
Weight
|
|
8843 4099 0014
|
Alu
|
0.25 kg
|
Suspension

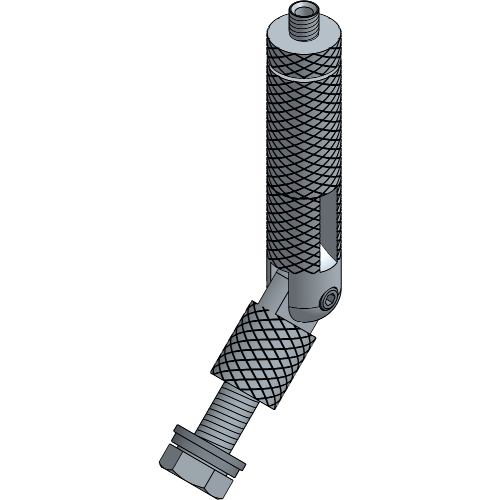

Angled Cable Holder
|
Article number
|
Colour
|
Weight
|
|
8843 9600 0034
|
Alu
|
0.01 kg
|
Quick Suspension 3 mm
|
Article number
|
Colour
|
Weight
|
⌀
|
WLL
|
SF
|
|
8700 0304 0424
|
Alu
|
0.02 kg/m
|
3.0 mm
|
90.00 kg
|
5:1
|
|
8700 0304 0427
|
Black
|
0.02 kg/m
|
3.0 mm
|
90.00 kg
|
5:1
|

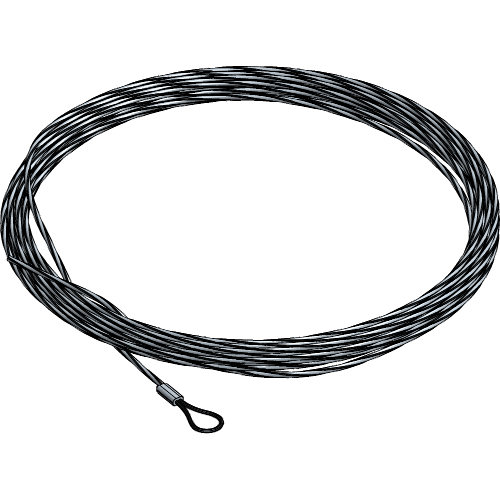

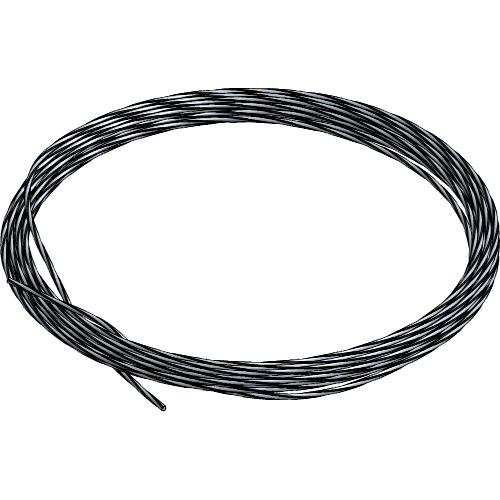

Steel Cable
|
Article number
|
Colour
|
⌀
|
WLL
|
SF
|
|
8700 0304 0031
|
Alu
|
3.0 mm
|
90.00 kg
|
5:1
|
|
8700 0304 0007
|
Black
|
3.0 mm
|
90.00 kg
|
5:1
|
Support

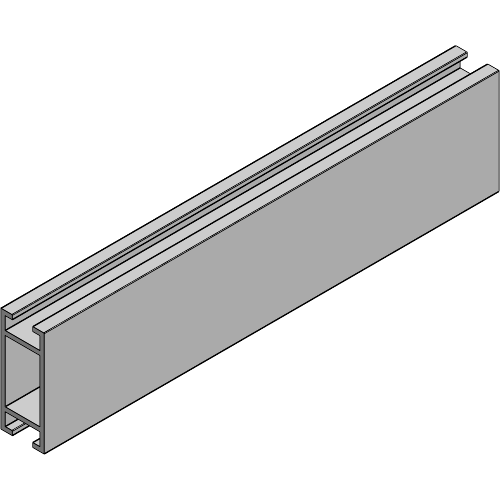

Brace Profile
|
Article number
|
Colour
|
Weight
|
|
8840 0010 0034
|
Alu
|
0.68 kg
|
|
8840 0010 0037
|
Black
|
0.68 kg
|

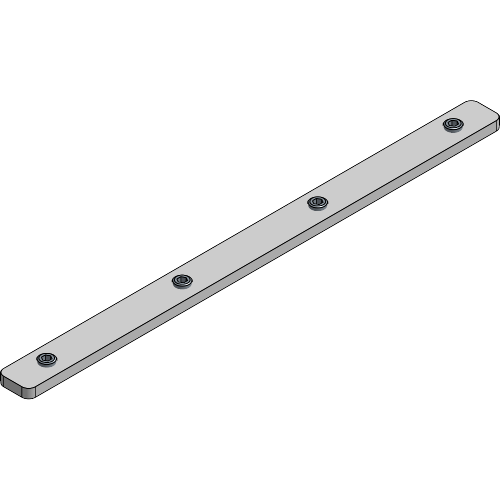

Universal Joint Plate
|
Article number
|
Colour
|
Weight
|
|
8840 0042 0054
|
Alu
|
0.05 kg
|
|
8840 0042 0057
|
Black
|
0.05 kg
|

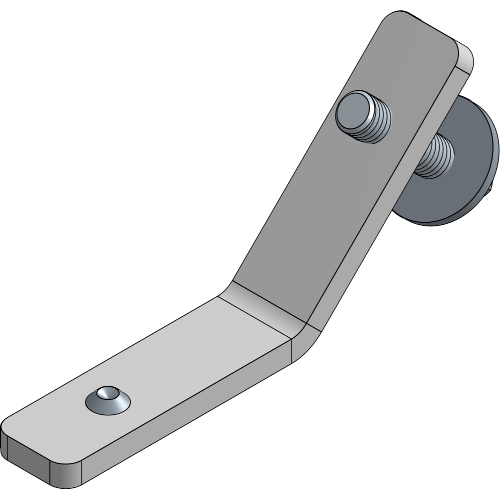

Brace Connection set
|
Article number
|
Colour
|
Weight
|
|
8843 0041 0004
|
Alu
|
0.04 kg
|

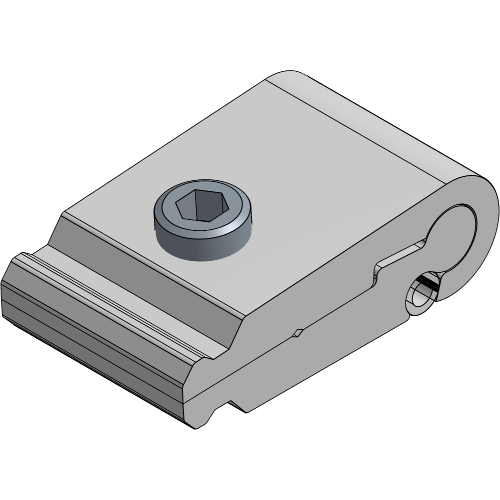

Brace Lock
|
Article number
|
Colour
|
Weight
|
|
8840 0010 0334
|
Alu
|
0.04 kg
|
