1 Info

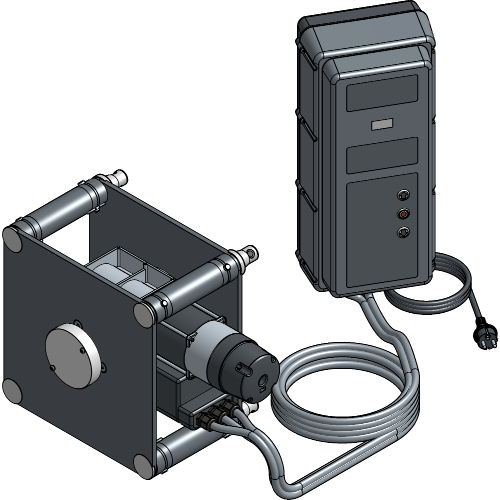

The HiSpeed Motor 3000 is the budget solution with a fixed speed in our HiSpeed RollUp range.

Specifications:

Compatible with all HiSpeed RollUp Truss Rollers.
Ideal for permanent HiSpeed RollUp setups.
The HiSpeed Motor 3000 has a fixed speed and 2 positions: up and down.
Equipped with a soft start and a soft stop for smooth screen movement.
The installation orientation is versatile, so the motor can be installed in all directions.
The motor can be operated with an RF Remote and can also be made DMX compatible upon request.

2 Dimensions

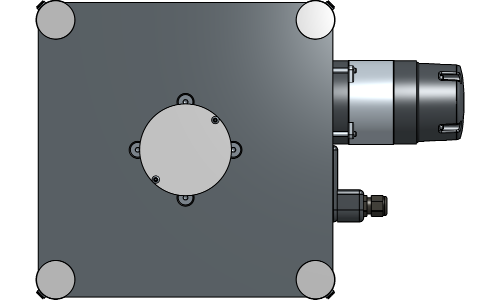

2.1 HiSpeed Motor 3000

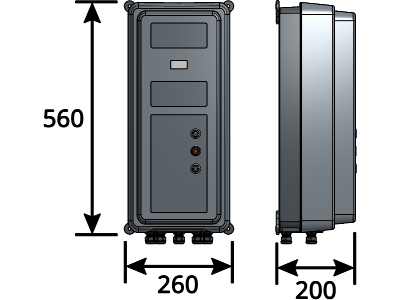

2.2 Control Box

3 Installation Specifications

3.0.1 HiSpeed Motor 3000 Installation Specifications:

Power Supply : 1 x 230 VAC + N
Power Connection : Schuko Mains Connector
Power Distribution for Permanent Installations : Provide a separate differential switch of 30 mA (K-Curve)

The motor is driven by frequency drive, the RFI filters produce a leakage current. For the correct use of the device on a current-sensitive RCD, the use of an all-current sensitive earth leakage circuit breaker (Type K-Curve) is necessary.

4 Electrical and Mechanical Specifications

4.0.1 HiSpeed Motor 3000 Electrical and Mechanical Specifications:

Motor Power : 1100 W
Motor Torque : 220 Nm
Motor Speed : 24 rpm
Power In : 1 x 230 VAC + N - 50Hz - 6.7 A
Electromagnetic Brakes : 1
Duty Cycle : S3 - 20 Operation cycles up & down / 1 hour

5 Speed and Load Capacity

Roller	Axis Ø	Article Number	Speed	Load Capacity
3 m Truss Roller	20 cm	8140 3115 3007	0.40 m/s	112 kg
6 m Truss Roller	20 cm	8140 3115 6007	0.40 m/s	112 kg
9 m Truss Roller	25 cm	8140 3115 9007	0.50 m/s	89 kg
3 m Venetia Truss Roller	13 cm	8140 3116 3007	0.26 m/s	172 kg

6 Electrical Wiring and Connectors

6.1 HiSpeed Motor 3000 with Control Box

6.2 HiSpeed Motor 3000 with Control Box and Remote

7 Components

HiSpeed Motor 3000

Article number	Weight	Cable length	Colour
8140 3112 1037	50.00 kg	21.00 m	Black

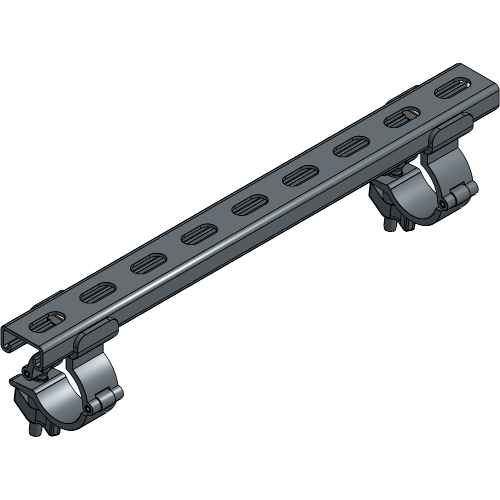

Control Box Truss Mount

Article number	Weight	Colour
8140 0661 1007	1.12 kg	Black

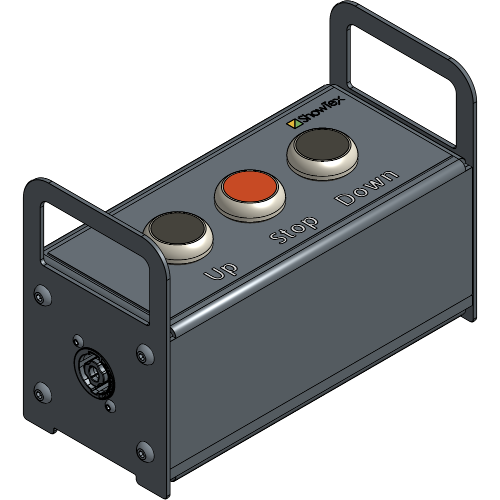

Remote

Article number	Weight	Colour
8140 0766 0040	5.75 kg	Black

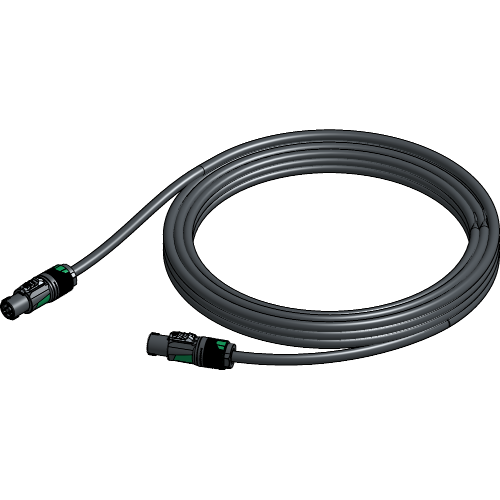

Link Cable

Article number	Weight	Cable	Length	Colour
8160 0915 0257	3.42 kg	SpeakON	25.00 m	Black
