1 Info

The HiSpeed Motor 8000 is an UMC-compatible, ultra-fast motor for seamless and accurate motion in our RollUp range.

Specifications:

Compatible with all our Truss Rollers and Venetia Truss Roller.
Perfect for seamlessly moving drapes or screens up and down during shows.
Features smooth and accurate movement due to full positioning control with the UMC software.
Equipped with a double brake to ensure maximum safety.
The motor is DMX compatible by default.

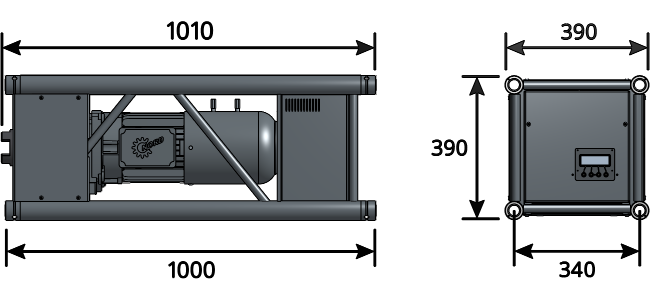

2 Dimensions

3 Installation Specifications

3.0.1 HiSpeed Motor 8000 Installation Specifications:

Power Supply : 208−230 VAC, 50−60 Hz, 1 phase + N
Power Connection : True1 - Schuko Mains Connector (EU) / NEMA L14-20 (NA)
Power Distribution for Permanent Installations : Provide a separate differential switch of 30 mA (Type B), compliant with EN 50178 / VDE 0160 for the motor
Power Distribution for Touring : Use an Isolation Transformer

The motor is driven by frequency drive, the RFI filters produce a leakage current. For the correct use of the device on a current-sensitive RCD, the use of an all-current sensitive earth leakage circuit breaker (Type B) compliant with EN 50178 / VDE 0160 is necessary.

4 Electrical and Mechanical Specifications

4.0.1 HiSpeed Motor 8000 Electrical and Mechanical Specifications:

Motor Power : 2.2 kW
Motor Torque : 244 Nm
Motor Speed : 86 rpm
Power In : 1 x 230 VAC + N - 50 Hz - 16A
Electromagnetic Brakes : 2
Duty Cycle : S1 - Continuous Duty

5 Speed and Load Capacity

Roller	Axis Ø	Article Number	Speed	Load Capacity
3 m Truss Roller	20 cm	8140 3115 3007	0 - 1.45 m/s	125 kg
6 m Truss Roller	20 cm	8140 3115 6007	0 - 1.45 m/s	125 kg
9 m Truss Roller	25 cm	8140 3115 9007	0 - 1.80 m/s	100 kg
3 m Venetia Truss Roller	13 cm	8140 3116 3007	0 - 0.95 m/s	190 kg

6 Electrical Wiring and Connectors

6.1 HiSpeed Motor 8000

6.2 Daisy-Chained HiSpeed Motor 8000 and extra Emergency Stop

Power cables are listed as 3G1.5 in the first scheme with 1 machine, but when linking machines as shown in the second scheme, we recommend using 3G2.5.

7 Components

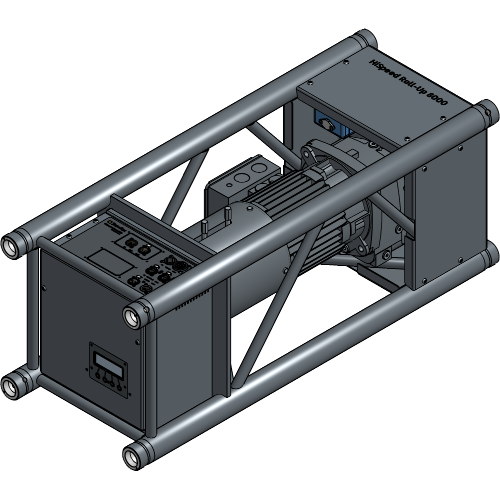

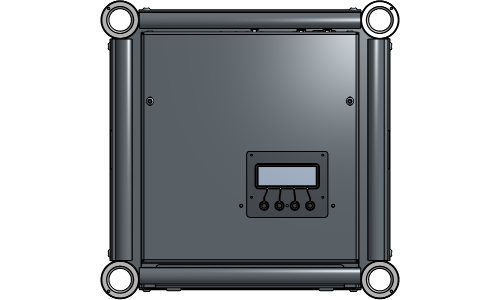

HiSpeed Motor 8000

Article number	Weight	Length	Colour
8140 3112 1047	100.00 kg	1.00 m	Black

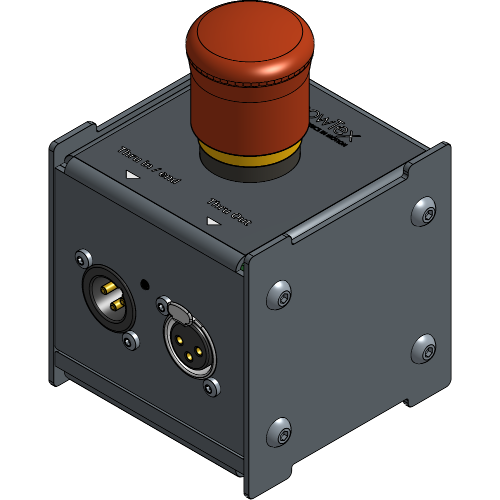

Emergency Stop Unit

Article number	Weight	Colour
8140 3117 0127	0.75 kg	Black

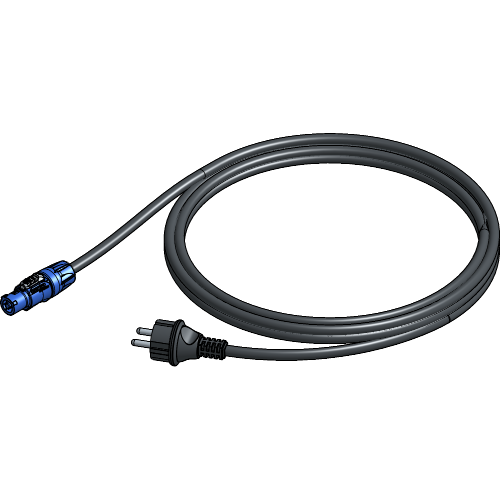

Power Supply Cable

Article number	Weight	Cable	Length	Colour
8145 0912 0017	0.40 kg	True1 / Schuko	2.00 m	Black

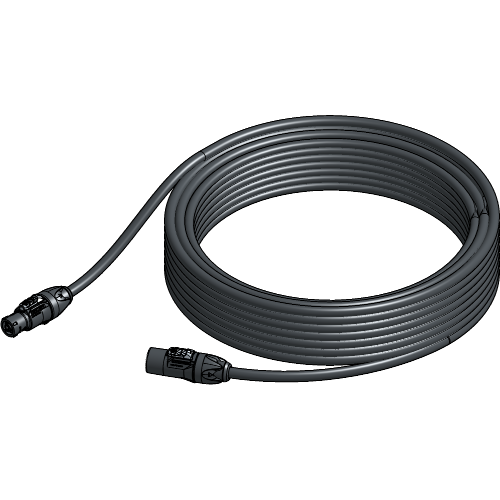

Power Supply Extension Cable

Article number	Weight	Cable	Length	Colour
8140 3117 0027	3.28 kg	True1	25.00 m	Black

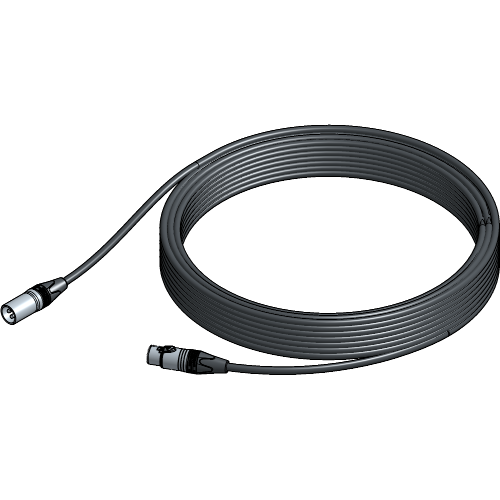

Emergency Stop Cable

Article number	Weight	Cable	Length	Colour
8140 3117 0047	1.20 kg	XLR 3	25.00 m	Black

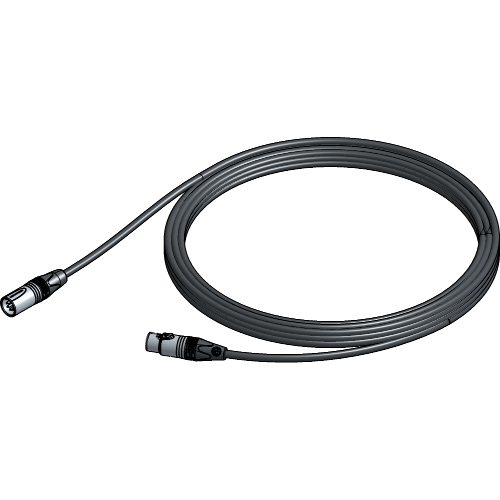

DMX Cable

Article number	Weight	Cable	Length	Colour
8050 7220 5107	0.38 kg	XLR 5	10.00 m	Black
8050 7220 5127	0.40 kg	XLR 5	12.50 m	Black

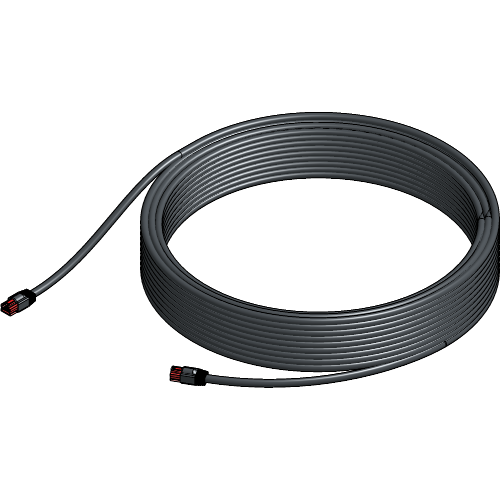

Ethernet Cable

Article number	Weight	Cable	Length	Colour
8140 3117 0217	0.88 kg	Cat6 (shielded)	30.00 m	Black

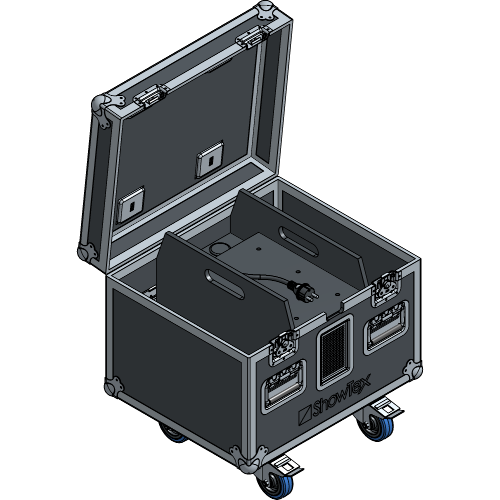

Isolation Transformer with Flightcase

Article number	Weight	Colour
8140 7260 0040	70.00 kg	Black
