EasyDrape
The new and improved EasyDrape pipe & drape is now completely toolless and designed to make your life easier. Ideal for building diverse setups such as trade show displays, banner stands, venue masking, event decoration or temporary divider walls.
All by yourself, you quickly place the aluminium uprights into the base plates and connect them with horizontal drape supports. Attach your drapes to the hook & loop fastener of the horizontals and push up the whole set, step by step, to the desired height. Easy as that! No tools, no noise, no hassle. And after the event? You can take down the reusable draping kit even faster than it was built. Have a look at the video here.
A STAND-ALONE PIPE & DRAPE SYSTEM
Save time and space by using the EasyDrape push-up drapes instead of a truss to safely hang your expo drapes up to 5 meters high. The adjustable uprights and horizontals allow you to easily install temporary venue masking or free-standing curtain walls, while the flexible 4-way coupler is great for creating corners from one pole. Perfect for venue draping!
Does your setup need more stability? That's where the handy supports come in. We recommend using supports on every other upright for setups around 3.5m high. For higher setups, a support on every upright is recommended. Depending on the specific conditions of each setup, extra supports might be advisable.
Contact us for more information
SETTING UP EASYDRAPE IS TOOLLESS, QUIET AND FAST
- Quick telescopic height and width adjustment.
- Stable & reliable construction.
- Compatible with ShowPipe track system for curtain motion.
- Comfortable working height and easily pushed up to as high as 5 m.
- No need for scaffolding.
- A variety of storage and transport solutions available.
- Uprights with 4-way for easy connection of horizontals.
- Horizontals with hook-and-loop finishing on both sides.
- 3 standard lengths of Uprights: 80 to 146 cm (FOH*) // 180 to 337 cm // 180 to 503 cm.
- 3 standard widths of Horizontals: 90 to120 cm // 120 to180 cm // 180 to 300 cm.
- EasyDrape Supports available for extra stability & safer installation.
*FOH= Front of house
Check out the EasyDrape Front of House (FOH) solution
TECHNICAL DATA - EASYDRAPE - PIPE & DRAPE
| Accessory | Article code | Information |
|---|---|---|
01. Telescopic Upright Front of House | 8750 2306 1307 | Weight: 1.45 kg • 0.80 m - 1.46 m |
02. Telescopic Upright 3 m | 8750 2306 3377 | Weight: 2.95 kg • 1.80 m - 3.37 m |
03. Telescopic Upright 5 m | 8750 2306 5057 | Weight: 4.60 kg • 1.80 m - 5.03 m |
04. Base Plate Front of House | 8750 2000 0057 | Weight: 5.00 kg • 34.5 x 34.5 cm • For Front of House, |
Retractable Belt and Hanging Rope Uprights | ||
05. Base Plate | 8750 2000 0147 | Weight: 14.00 kg • 49.5 x 49.5 cm • For 3 m and 5 m Telescopic Uprights |
06. Base Plate Coupler | 8750 2306 0017 | Weight: 0.22 kg • To connect Base Plates and Uprights |
07. Horizontal Drape Support | 8750 2309 0907 | Weight: 1.55 kg • 0.90 m - 1.20 m • To attach drapes |
8750 2309 1207 | Weight: 2.03 kg • 1.20 m - 1.80 m • To attach drapes | |
8750 2309 1807 | Weight: 2.94 kg • 1.80 m - 3.00 m • To attach drapes | |
08. Support for Uprights | 8750 2306 5067 | Weight: 1.60 kg • To support 3 m and 5 m Uprights |

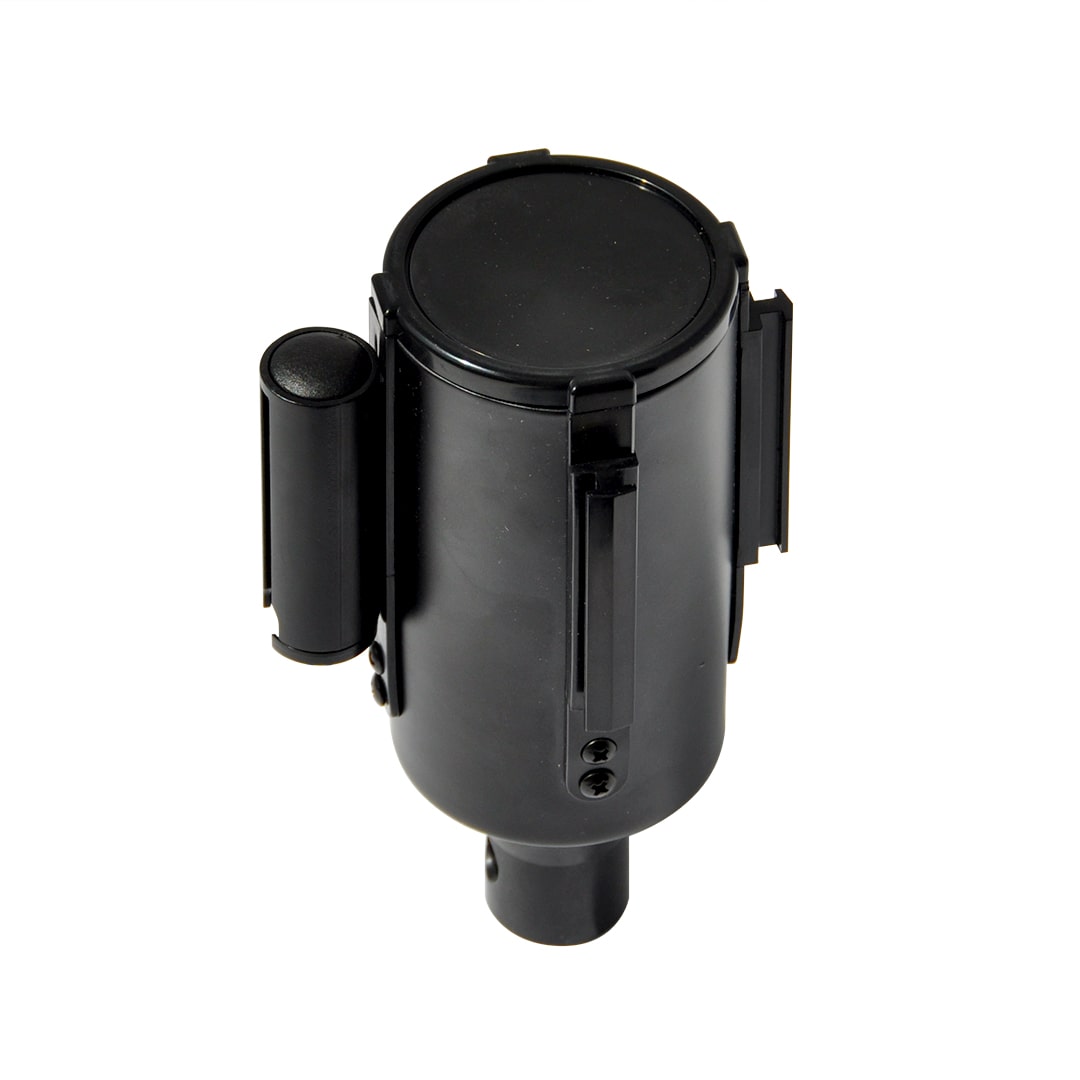

09. Retractable Belt Upright | 8750 2317 0907 | Weight: 1.08 kg • 0.90 m • Belt lenght: 2.50 m |
10. Hanging Rope Upright | 8750 2317 0917 | Weight: 0.92 kg • 0.90 m • To hang Velvet Hanging Rope |
11. Velvet Hanging Rope | 8750 2263 0107 | Weight: 0.52 kg • Rope length: 1.57 m • ⌀ 3 cm • Black |
8750 2263 0109 | Weight: 0.52 kg • Rope length: 1.57 m • ⌀ 3 cm • Red | |
12. Coat Hooks | 8750 2317 1457 | Weight: 2.94 kg • 1.45 m • To place on top of a Horizontal |
13. Offset Plate | 8750 2263 0087 | Weight: 0.31 kg • For ShowPipe in front setup |
14. 4-Way Track Connector | 8750 2263 0104 | Weight: 0.01 kg • For ShowPipe on top setup |
15. 4-Way M10 Adaptor | 8750 2263 0094 | Weight: 0.10 kg • For 4-Way to M10 adaption |
16. Upright Turn Button | 8750 2270 0017 | Weight: 0.02 kg • Spare part |
17. Horizontal Turn Button | 8750 2309 0057 | Weight: 0.02 kg • Spare part |
18. Coupler Turn Button | 8750 2270 0007 | Weight: 0.02 kg • Spare part |
19. Swivel | 8750 2309 0007 | Weight: 0.01 kg • Spare part |
20. Plastic Washer | 8750 2309 0067 | Weight: 0.01 kg • Spare part |

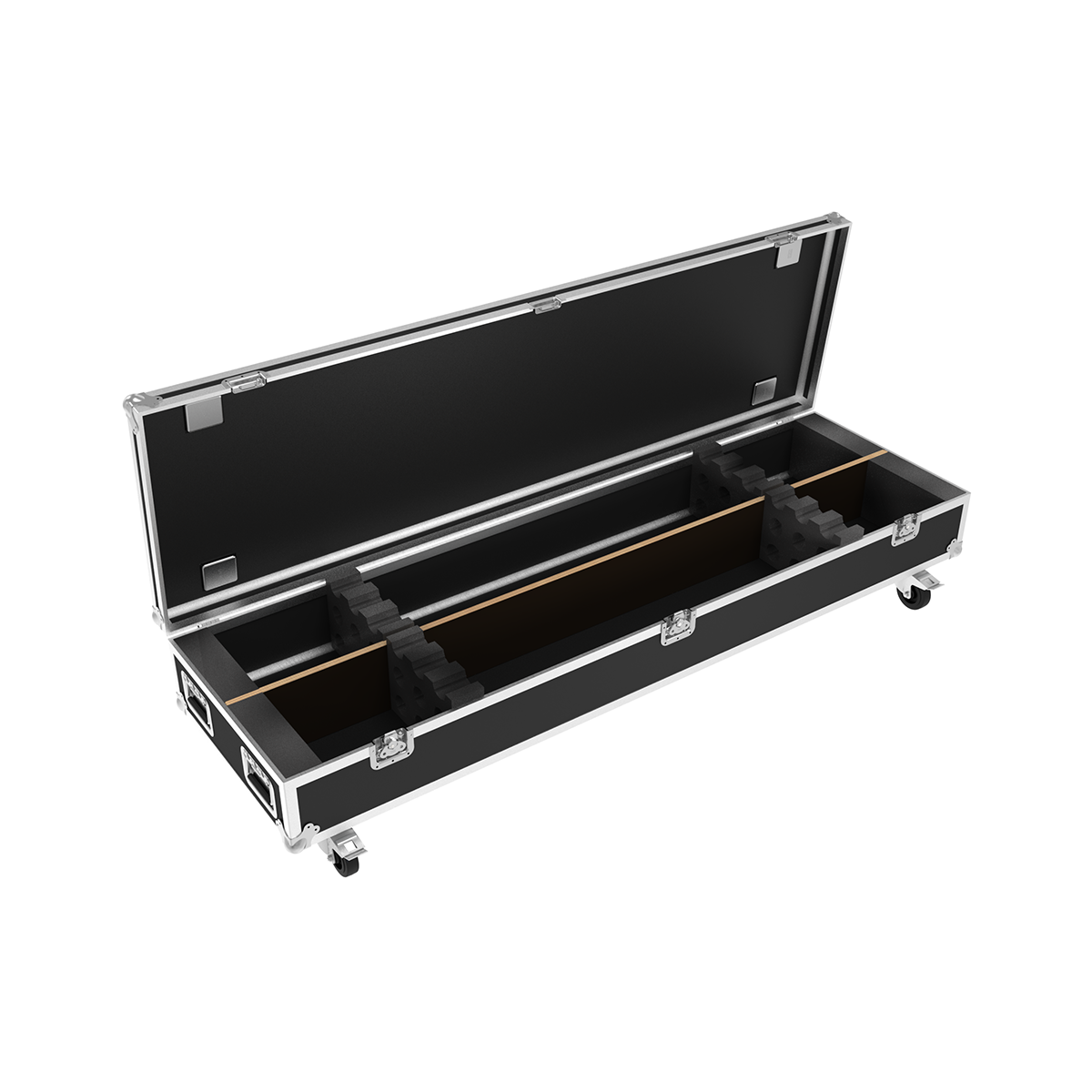

21. Flightcase | 8750 2375 0207 | Weight: 52.00 kg (empty) - 120.50 kg (full) |
Size: 2000 x 600 x 410 mm | ||
Fits 9 Uprights and 9 Horizontals | ||

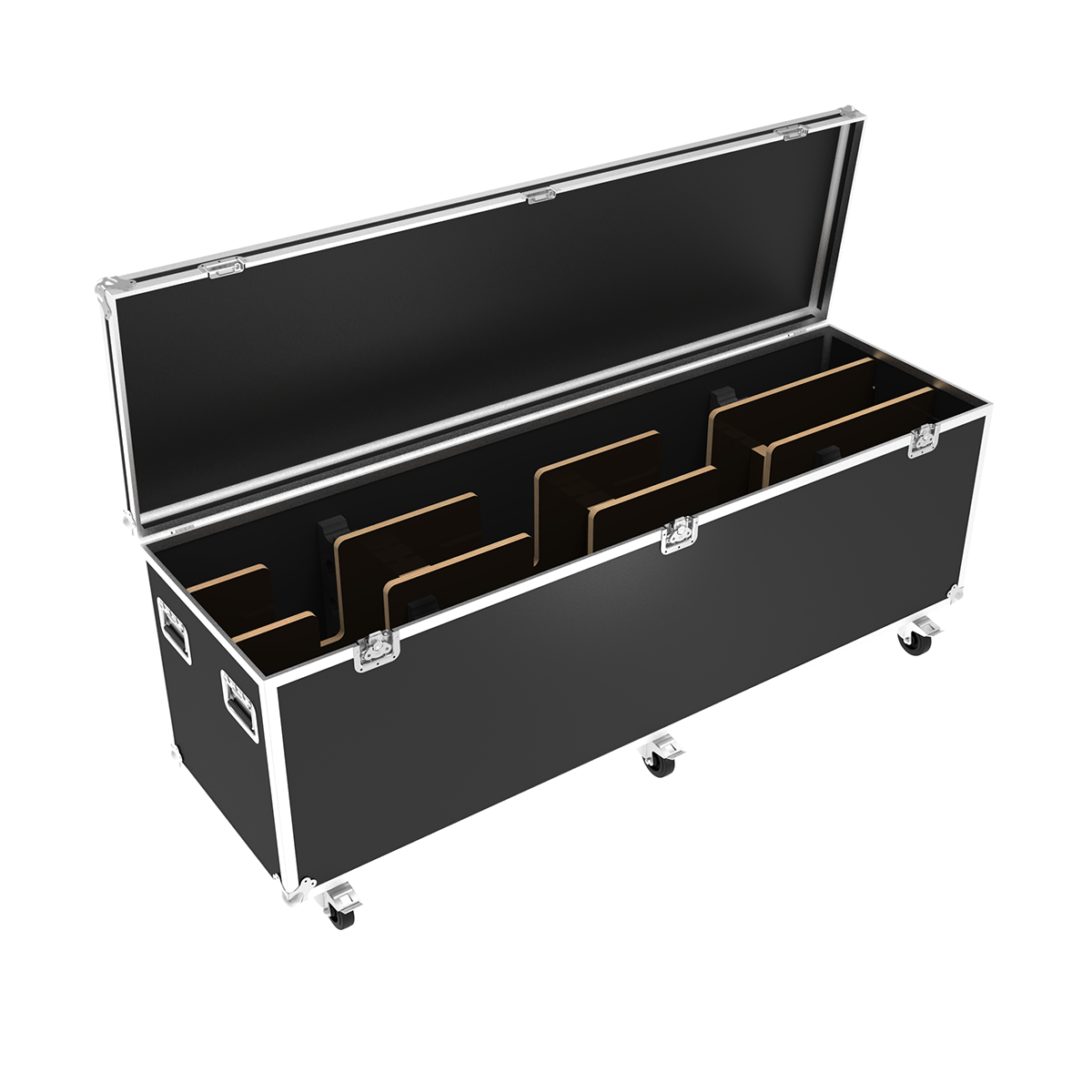

22. Flightcase xl | 8750 2375 0117 | Weight: 118.00 kg (empty) - 312.50 kg (full) |
Size: 2000 x 600 x 800 mm | ||
Fits 9 Uprights, 9 Horizontals and 9 Base Plates | ||

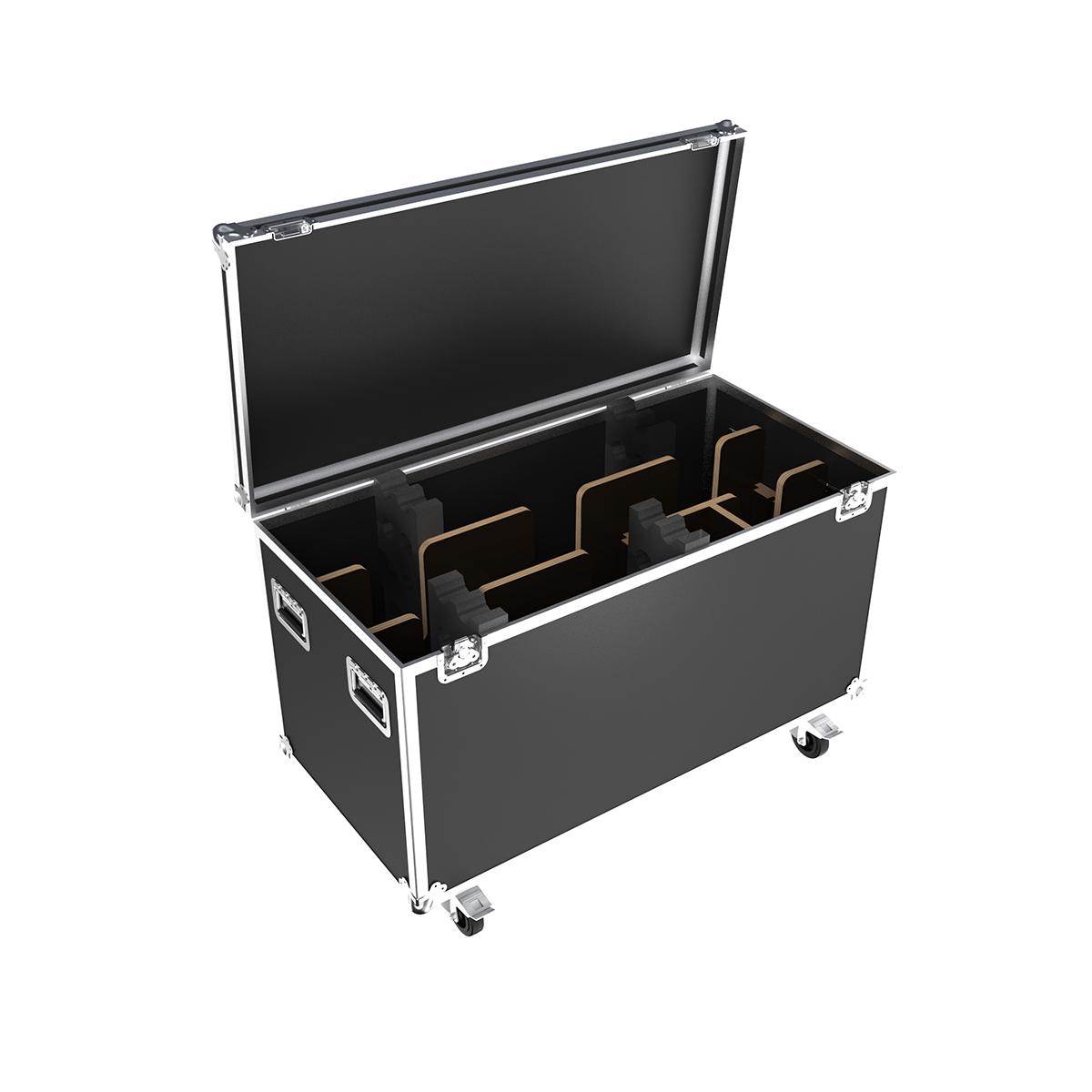

23. Front of House Flightcase | 8750 2380 0117 | Weight: 45.00 kg (empty) - 185.00 kg (full) |
Size: 1200 x 600 x 800 mm | ||
Fits 12 FOH Uprights, 12 FOH Base Plates and 4 drapes | ||
24. Base Plate Cart | 8750 2375 0305 | Weight: 42.00 kg (empty) - 168.00 kg (full) |
Size: 600 x 550 x 683 mm | ||
Fits 9 Base Plates | ||
25. Trolley | 8750 2375 0427 | Weight: 72.00 kg (empty) - 245.00 kg (full) |
Size: 600 x 798 x 1980 mm | ||
Fits 8 Uprights, 8 Horizontals, 8 Base Plates and 6 drapes | ||
26. Support Trolley | 8750 2375 0437 | Weight: 70.00 kg (empty) - 196.00 kg (full) |
Size: 600 x 798 x 1980 mm | ||
Fits 8 Supports, 8 Base Plates and 6 drapes | ||
27. Rain Cover for Trolley | 8750 2370 0417 | Weight: 5.62 kg • PVC • With zipper |
