RopeAssist

Technical Data Sheet

1 Info

The RopeAssist is an operation accessory for comfortable use of a manually rope operated track system.

Specifications:

  • The RopeAssist adds more grip and comfort for a manually rope operated track system.
  • Compatible with all our rope operated track systems.
  • The RopeAssist can easily be mounted onto an existing track system.
  • Different standard Endless Rope lengths are available for various curtain sizes.
  • Custom Endless Rope lengths can be delivered on demand, ensuring a flawless fit for your setup.
  • A Rope Container is available as a solution to neatly store potential excess rope.

2 Dimensions

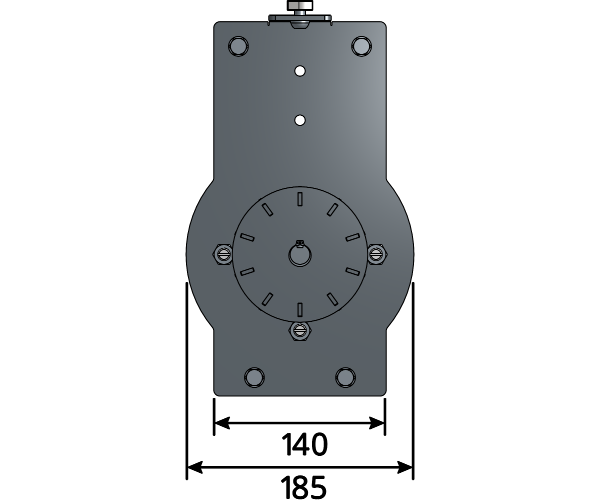

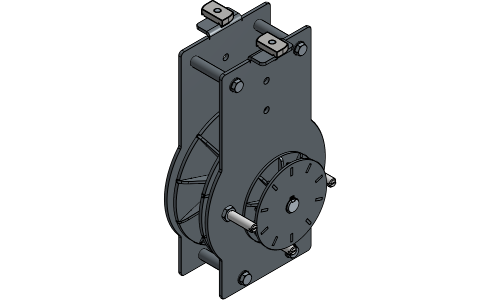

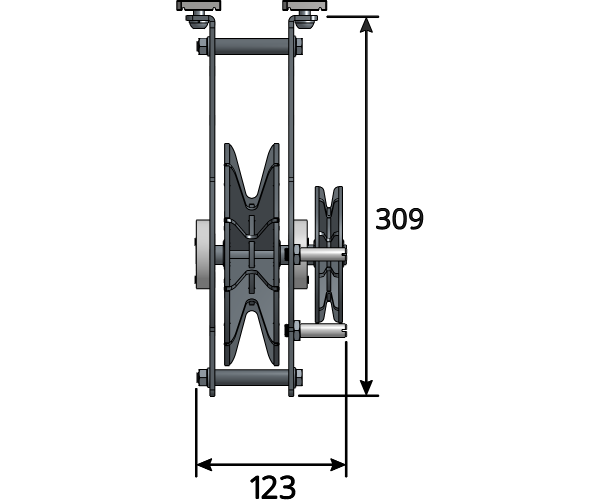

2.1 RopeAssist

2.2 Rope Container

3 Endless Rope Specifications

3.1 Ideal Endless Rope Length

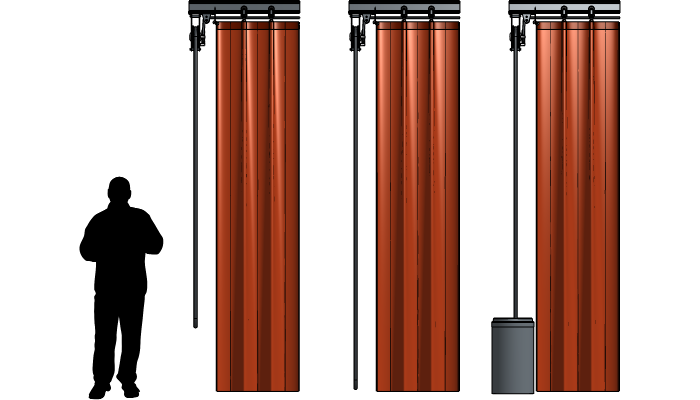

Curtain Height Range Endless Rope Length Rope Container
x - 3.80 m 7.40 m X
3.80 m - 4.50 m 7.40 m
4.50 m - 5.80 m 11.40 m X
5.80 m - 6.50 m 11.40 m
6.50 m - 7.80 m 15.40 m X
7.80 m - 8.50 m 15.40 m
8.50 m - 9.80 m 19.40 m X
9.80 m - 10.50 m 19.40 m

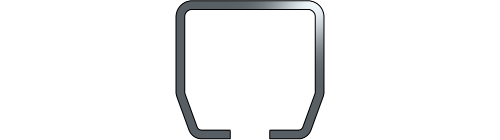

4 Compatible Tracks

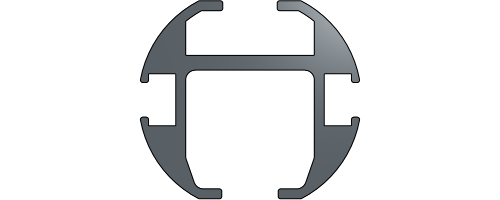

H100

The RopeAssist integrated in the H100 only supports a Straight Single Track configuration with no extra accessories needed. Straight Double Track and Curved Track are not supported with the H100. To make those configurations possible we recommend another track system.

ShowPipe

The RopeAssist integrated in the ShowPipe only supports a Straight Single and Double Track configuration with no extra accessories needed. Curved Track is not supported with the ShowPipe. To make those configurations possible we recommend another track system.

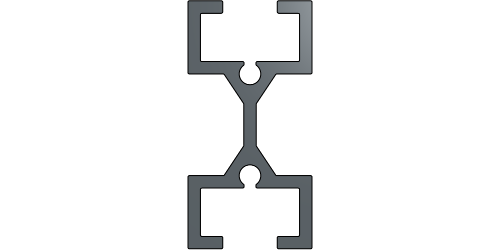

OrientTrack

The RopeAssist can be seamlessly integrated with the OrientTrack in every possible configuration. Whether you have a Straight Single/Double Track or Curved Single/Double Track configuration, no extra accessories are required for its installation.

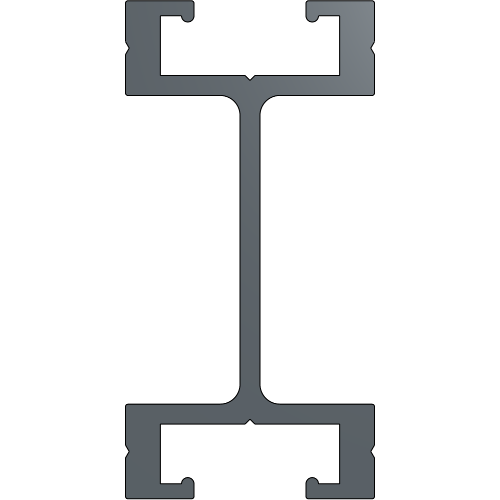

ShowTrack

For the ShowTrack it is possible to integrate the RopeAssist in every possible configuration. Extra accessories will be needed for certain configurations. The Straight Double Track configuration will need a Double Track Mounting set to enable the necessary offset. Both Curved Single and Double Track configurations require the Top Rope Mounting set.

5 Technical Specifications

5.1 Components

Operation

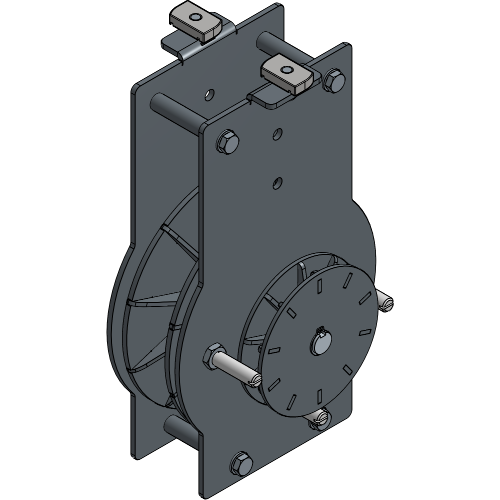

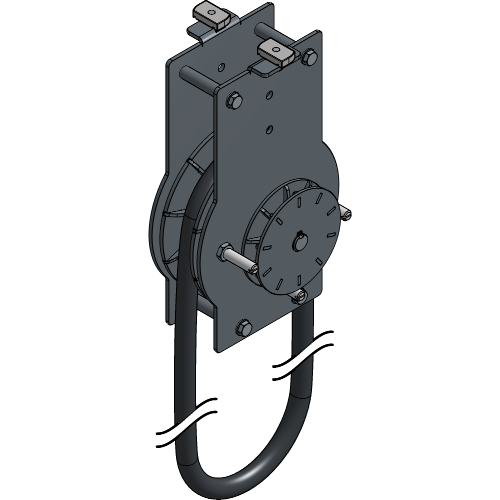

RopeAssist

RopeAssist

Article number Colour Weight
8050 0425 0107 Black 6.54 kg
Endless Rope

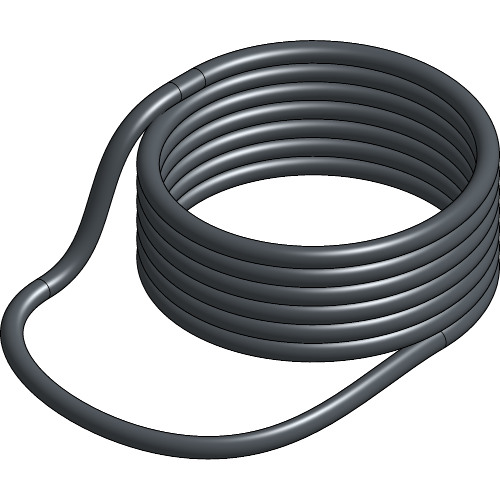

Endless Rope

Article number Colour Weight Length
7525 0400 0007 Black 1.78 kg 7.40 m
7525 0600 0007 Black 2.74 kg 11.40 m
7525 0800 0007 Black 3.70 kg 15.40 m
7525 1000 0007 Black 4.66 kg 19.40 m
Rope Container

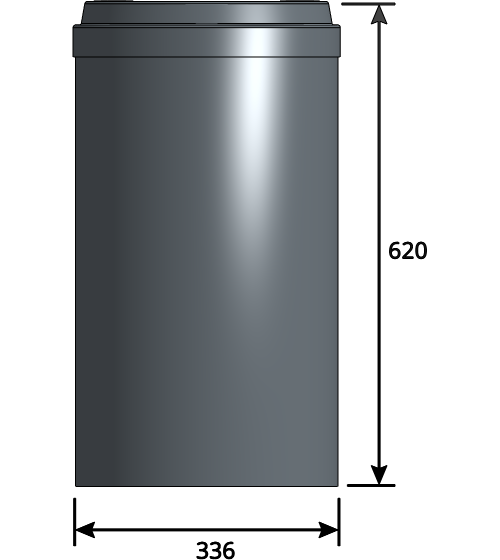

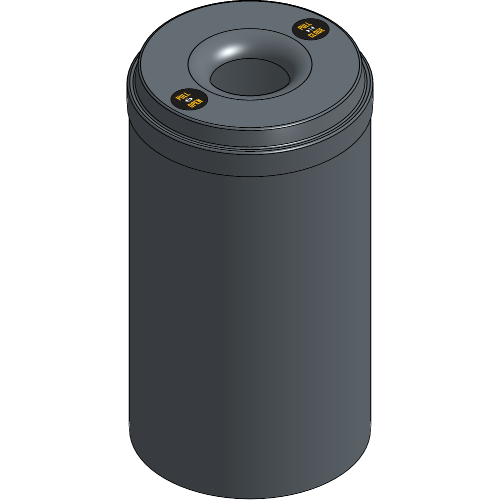

Rope Container

Article number Colour Weight
8050 2361 0017 Black 4.28 kg
Double Track Mounting set

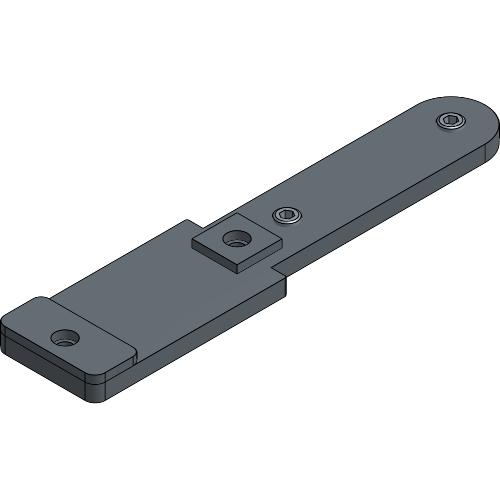

Double Track Mounting set

Article number Colour Weight
8075 0425 0047 Black 0.12 kg
Top Rope Mounting set

Top Rope Mounting set

Article number Colour Weight
8075 0425 0037 Black 0.58 kg
