EasyDrape

Accessories Installation

Annex

2 Introduction

Thank you for choosing for ShowTex and purchasing one of our products. We want to ensure that your experience is as smooth and safe as possible, so we kindly request that you take a few moments to carefully read this manual before installing your new system.

This manual contains important information that will help you comply with health and safety regulations, as well as provide guidance on how to safely install, operate and maintain your product. Our team has taken great care to ensure that this manual is easy to understand and follow, using straightforward language and clear illustrations.

If you have any questions or concerns regarding the installation or use of your product, please feel free to contact your local ShowTex office. Our knowledgeable team members are always available to assist you and answer any questions you may have.

3 Technical Specifications

3.1 Components

Main Components

Retractable Belt Upright

Retractable Belt Upright

Article number Colour Weight Length
8750 2317 0907 Black 1.08 kg 0.89 m
Hanging Rope Upright

Hanging Rope Upright

Article number Colour Weight Length
8750 2317 0917 Black 0.92 kg 0.89 m
Velvet Hanging Rope

Velvet Hanging Rope

Article number Colour Weight Length
8750 2263 0107 Black 0.52 kg 1.57 m
8750 2263 0109 Red 0.52 kg 1.57 m
Coat Hooks

Coat Hooks

Article number Colour Weight Length
8750 2317 1457 Black 2.94 kg 1.45 m
Offset Plate

Offset Plate

Article number Colour Weight
8750 2263 0087 Black 0.21 kg
4-Way Track Connector

4-Way Track Connector

Article number Colour Weight
8750 2263 0104 Aluminium 0.01 kg
4-Way M10 Adaptor

4-Way M10 Adaptor

Article number Colour Weight
8750 2263 0094 Aluminium 0.10 kg

3.2 Necessary Tools

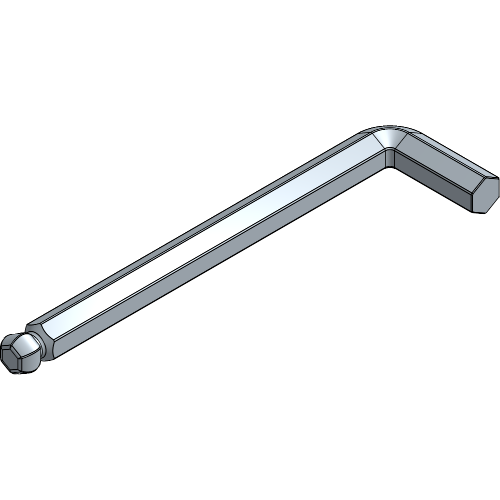

Allen Key - 6

Allen Key - 6

Allen Key - 8

Allen Key - 8

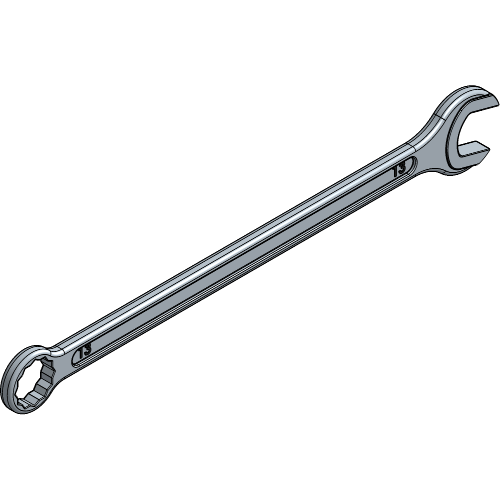

Wrench - 13

Wrench - 13

Wrench - 17

Wrench - 17

4 Assembly Retractable Belt

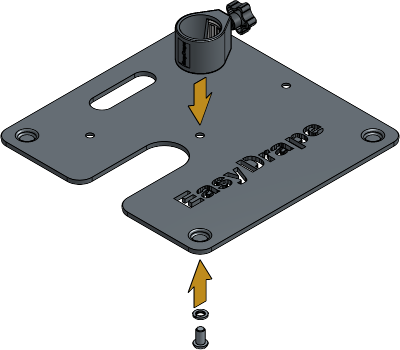

  1. Place the Base Plate Coupler on top of the Front of House Base Plate and fasten the screw. Repeat this for every Base Plate that will contain a Retractable Belt Upright.

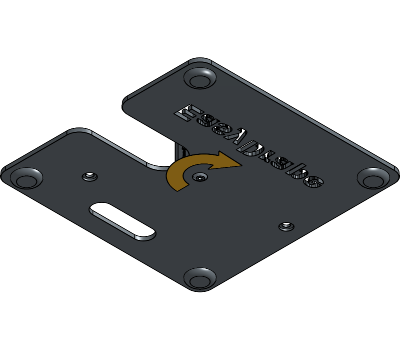

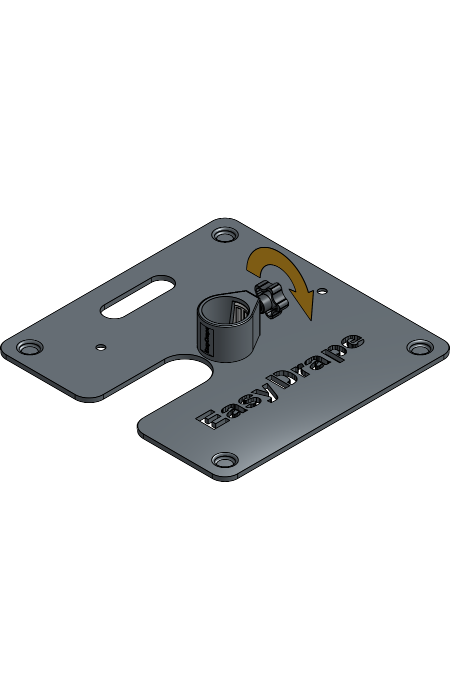

  2. Loosen the Turn Button of the Base Plate Coupler until it fits a Retractable Belt Upright.

  3. Place the Retractable Belt Upright inside the Base Plate Coupler. Fasten the Turn Button and repeat this for all Retractable Belt Uprights.

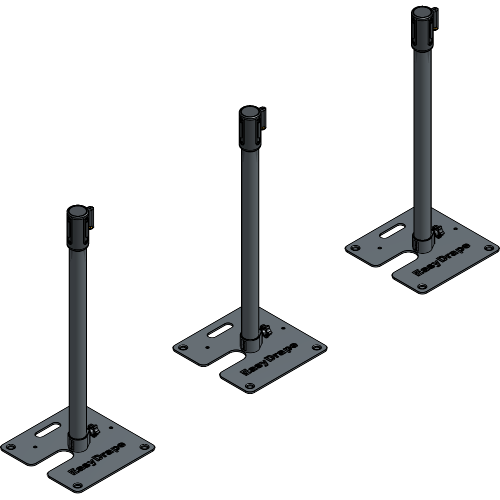

  4. Place all assembled Retractable Belt Uprights at the proper distance from one another depending on your setup.

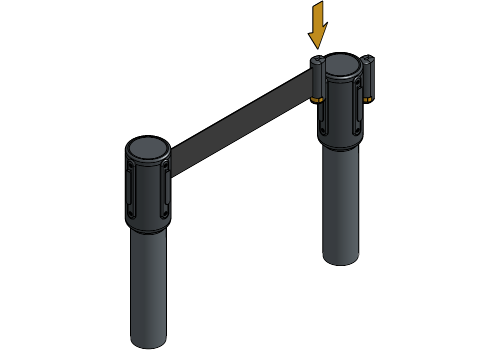

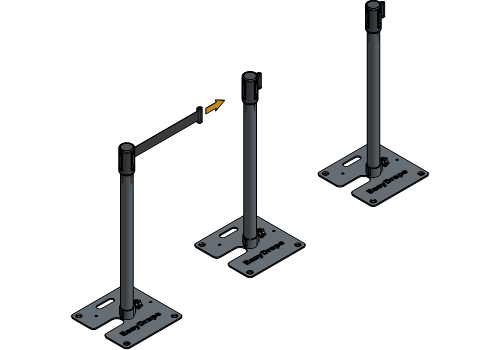

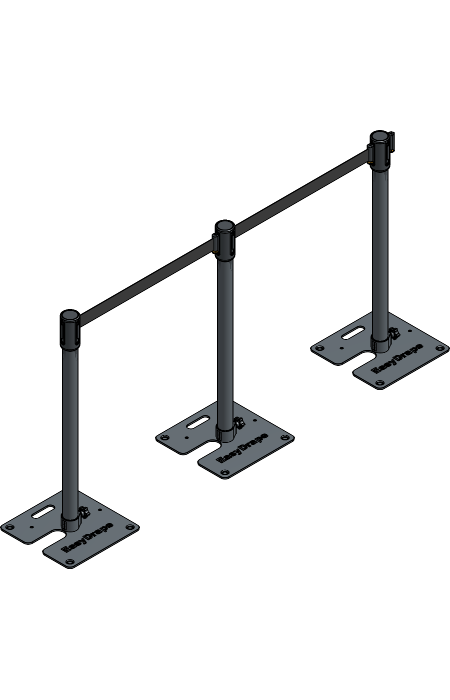

  5. Extend the Retractable Belt from one Upright to another. Slide it on the Upright it has been extended to until you hear a clicking sound.

  6. Repeat until you have the desired amount for your needed setup.

Your Retractable Belt setup is now completely installed and ready to use!

5 Assembly Hanging Rope

  1. Place the Base Plate Coupler on top of the Front of House Base Plate and fasten the screw. Repeat this for every Base Plate that will contain a Hanging Rope Upright.

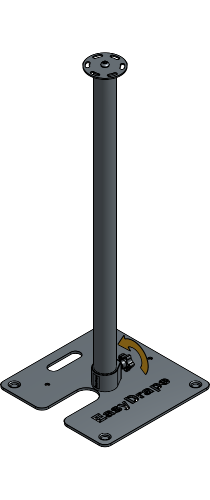

  2. Loosen the Turn Button of the Base Plate Coupler until it fits a Hanging Rope Upright.

  3. Place the Hanging Rope Upright inside the Base Plate Coupler. Fasten the Turn Button and repeat this for all Hanging Rope Uprights.

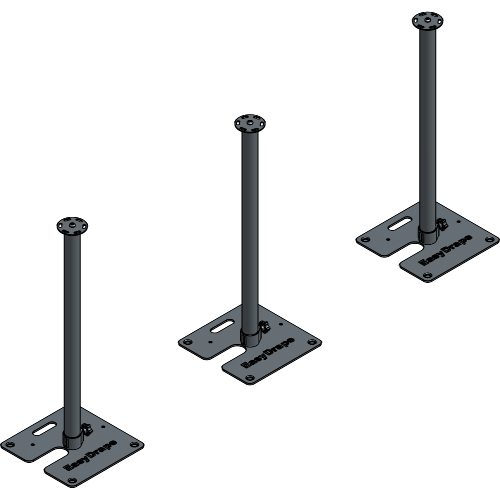

  4. Place all assembled Hanging Rope Uprights at the proper distance from one another depending on your setup.

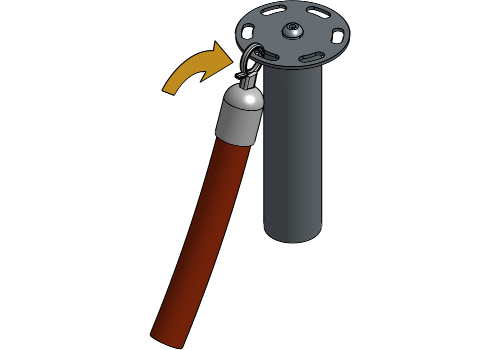

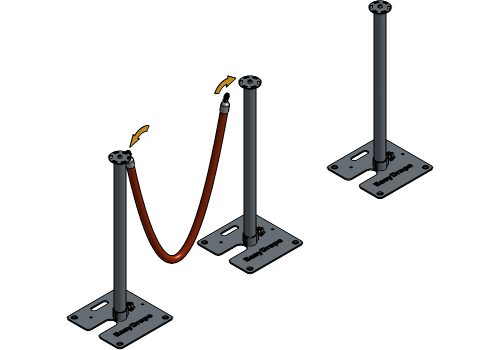

  5. Hang the Velvet Hanging Rope with one snap hook to a Hanging Rope Upright and the other snap hook to another Hanging Rope Upright.

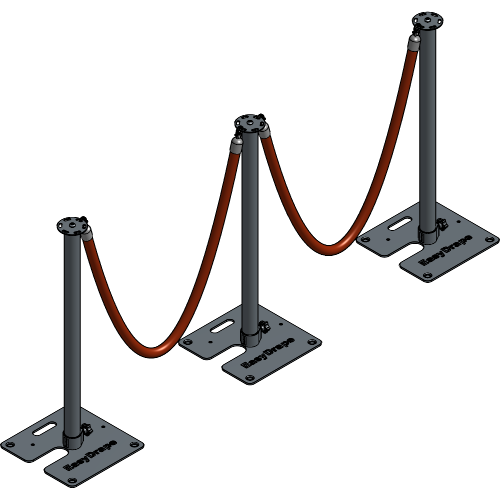

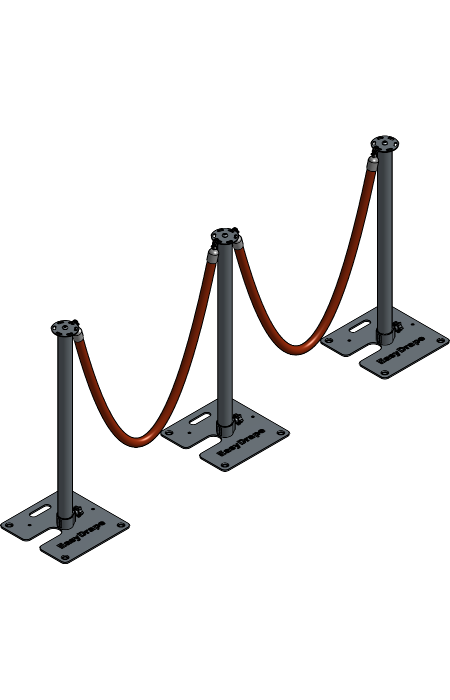

  6. Repeat until you have the desired amount for your needed setup.

Your Hanging Rope setup is now completely installed and ready to use!

6 Assembly ShowPipe on top

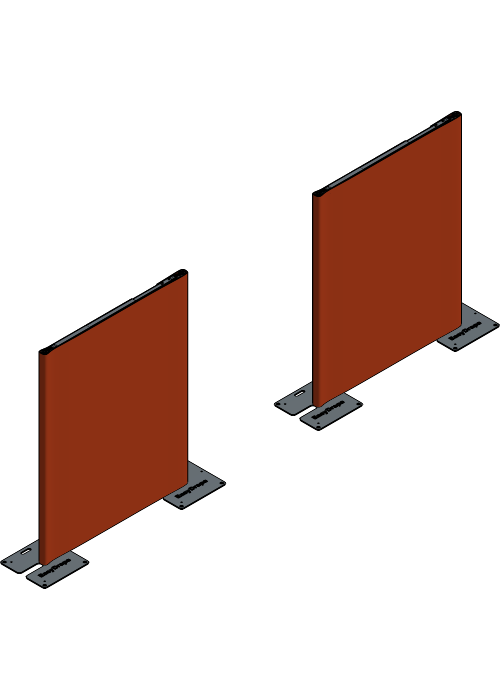

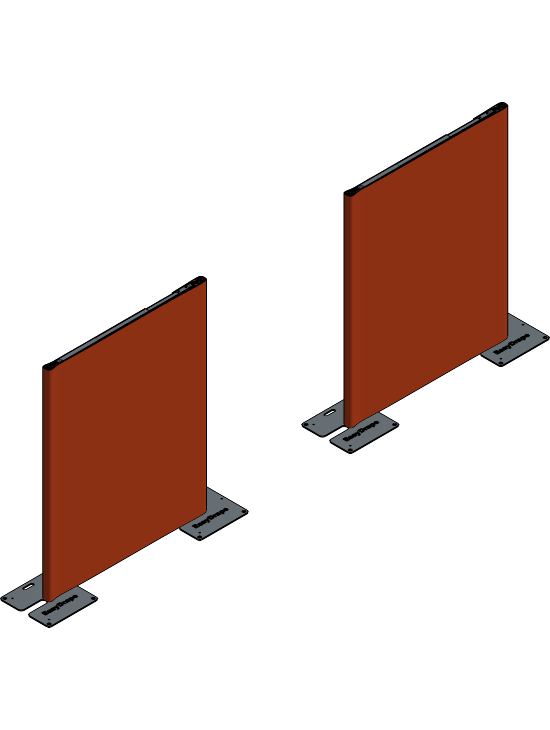

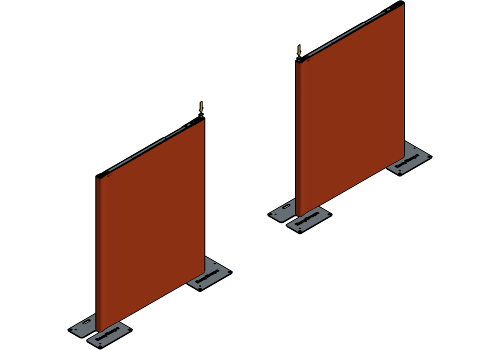

  1. Follow all necessary steps for your setup in the General Manual of the EasyDrape and continue when your setup is ready.

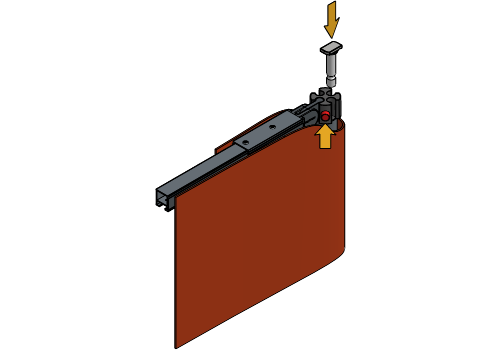

  2. Push and hold the red button of the 4-Way and place both 4-Way Track Connectors inside the opposite slot of where the Horizontal is placed. Release the red button to lock the 4-Way Track Connector in place.

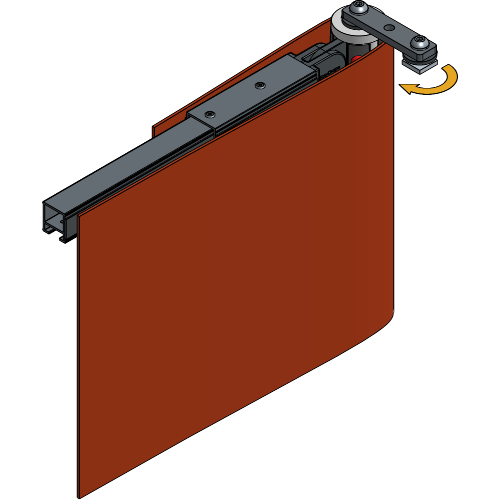

  3. Loosen the channel nuts of the 4-Way Track Connectors until they fit inside the track profile.

  4. Slide the track profile on one of the channel nuts of the 4-Way Track Connectors.

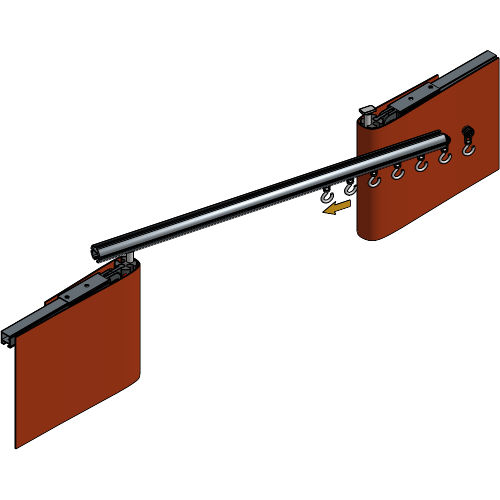

  5. Hold the track profile up while you insert the amount of Runners needed for your setup into the track profile.

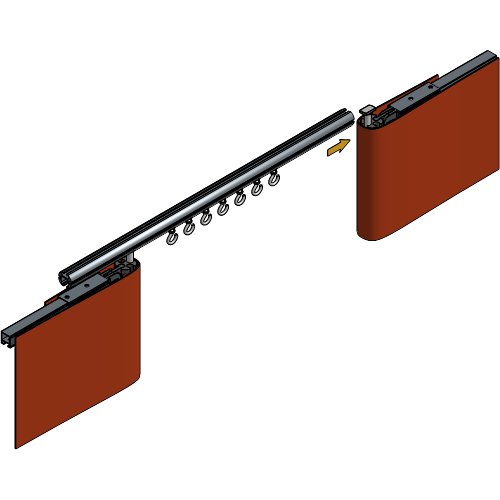

  6. Slide the track profile on the channel nut of the second 4-Way Track Connector.

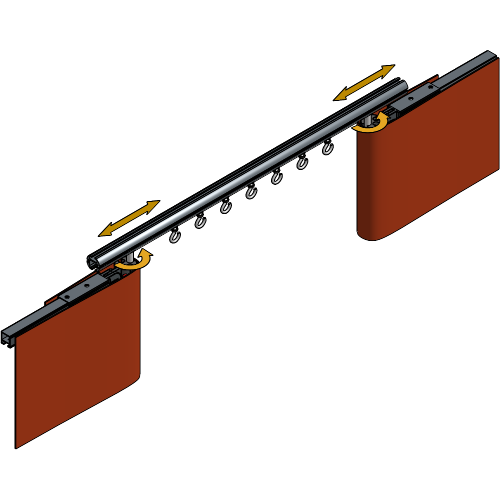

  7. Adjust the location of the track if necessary and turn the 4-Way Track Connectors to fasten the track.

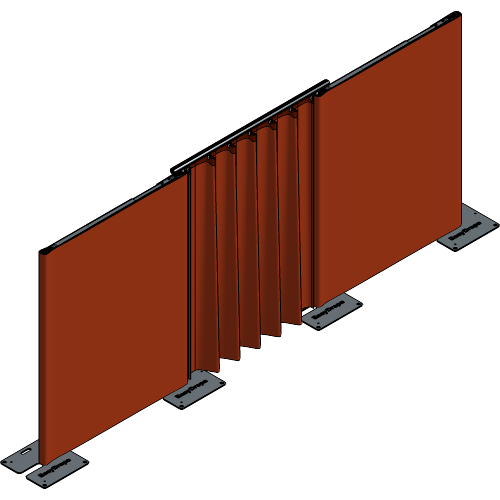

  8. Attach your curtain to the Runners.

Your ShowPipe on top setup is now completely installed and ready to use!

7 Assembly ShowPipe in front

  1. Follow all necessary steps for your setup in the General Manual of the EasyDrape and continue when your setup is ready.

  2. Remove the bolt and spring from the 4-Way Adaptor. Screw the 4-Way Adaptor on the Offset Plate and tighten the screw hand-tight

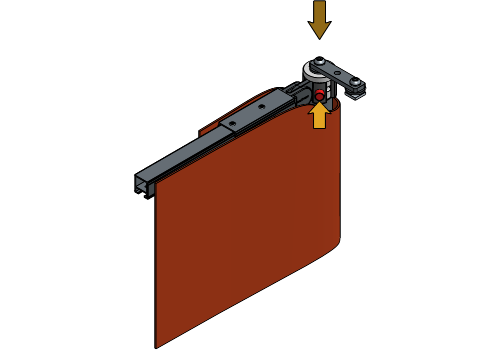

  3. Push and hold the red button of the 4-Way and place both 4-Way Adaptors with the Offset Plate inside the slots of the 4-Way. Release the red button to lock the 4-Way Adaptor in place.

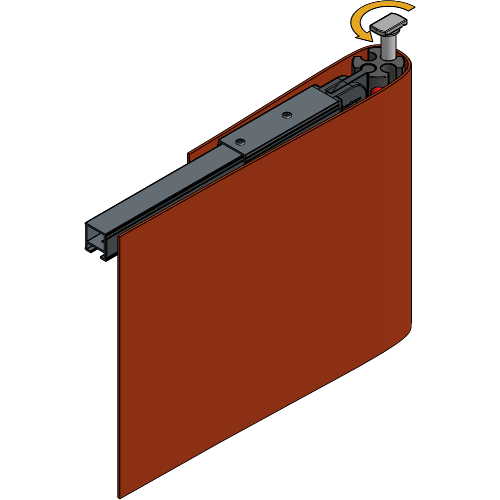

  4. Loosen the channel nuts of the Offset Plates until they fit inside the track profile.

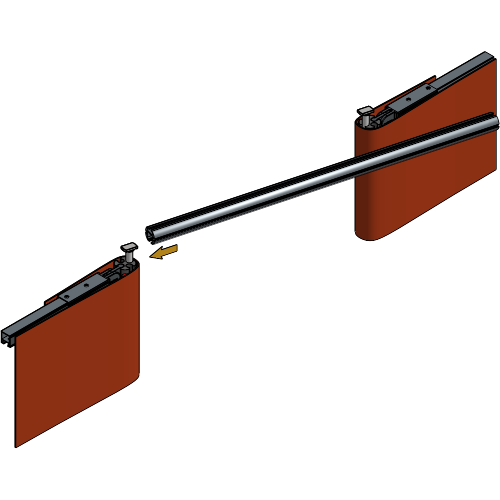

  5. Slide the track profile on the channel nuts of the Offset Plate and leave about 25 cm on each side for a nice close.

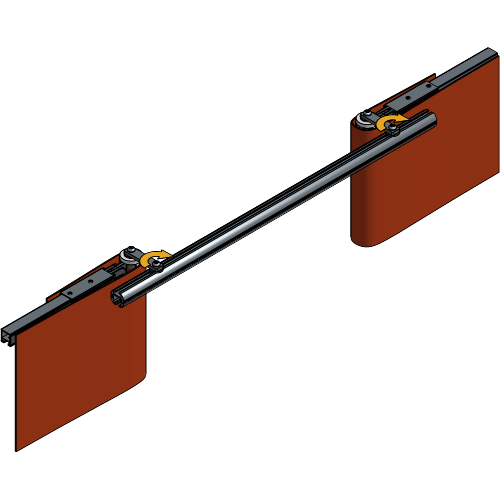

  6. Tighten the bolts of both Offset Plates.

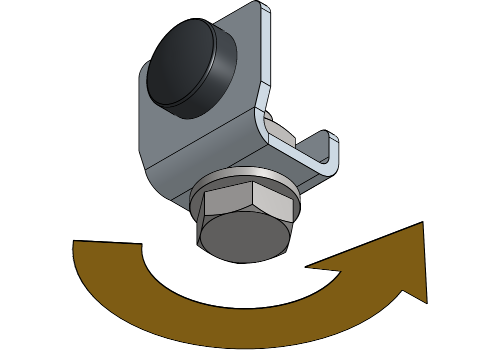

  7. Loosen the bolt of the End Stops until they fit inside the track profile.

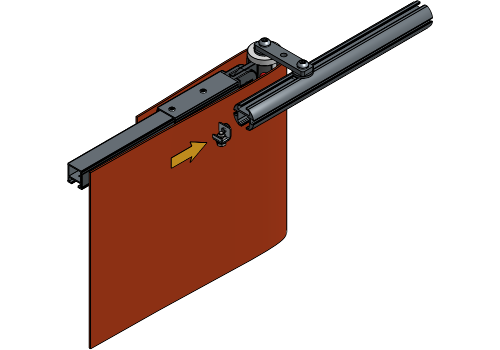

  8. Insert one End Stop into the track profile and tighten the bolt to secure it.

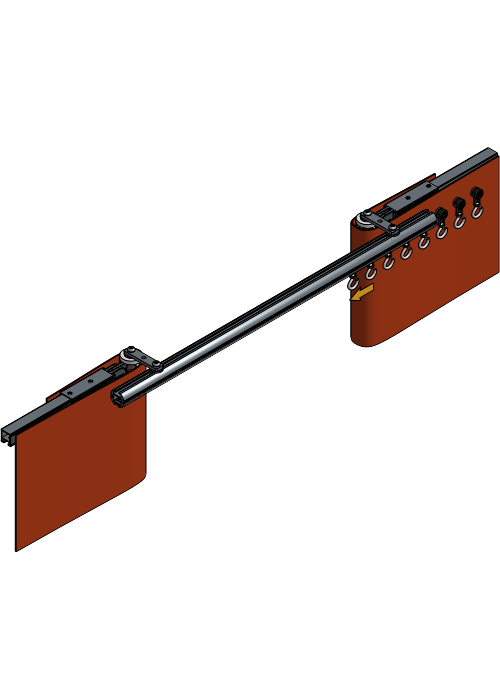

  9. Insert the amount of Runners needed for your setup into the track profile.

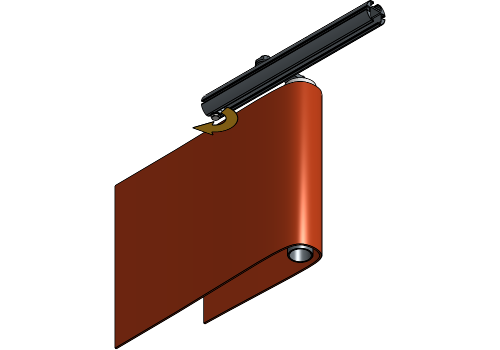

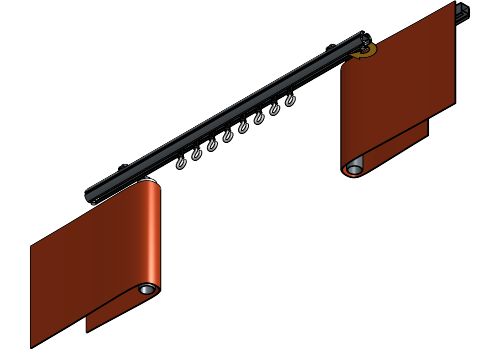

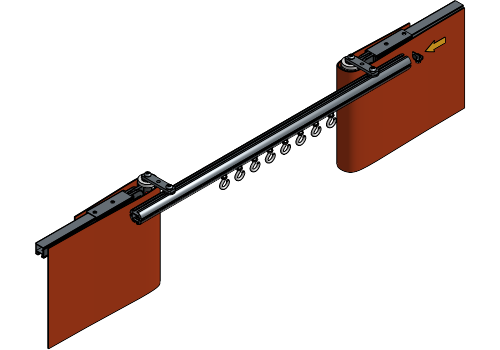

  10. Insert the second End Stop into the track profile and tighten the bolt to secure it.

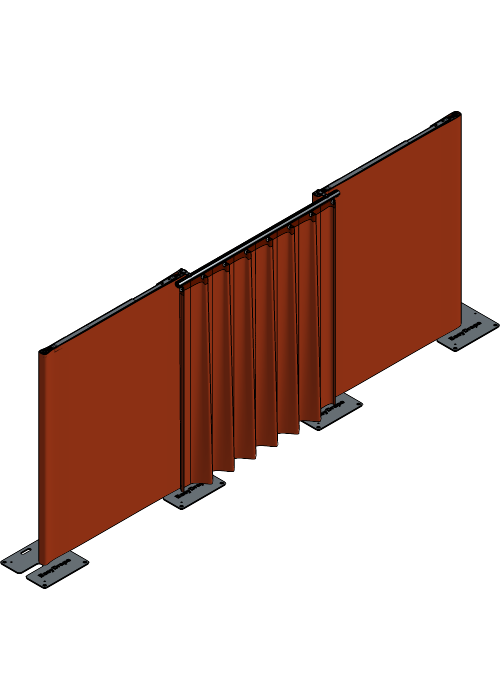

  11. Attach your curtain to the Runners.

Your ShowPipe in front setup is now completely installed and ready to use!

8 Contact & support

For more technical assistance, please contact your local ShowTex office.
The address and contact information can be found on our website: www.showtex.com
