ShowTrack

Technical Data Sheet

1 Info

The ShowTrack is an I-beam curtain track for very heavy curtains. It is a very durable system and supports great distances.

Specifications:

  • The ShowTrack is a solid extruded aluminium track that guarantees a silent glide.
  • Rails are available in straight or curved lengths according to your needs.
  • A ShowTrack rail system can be operated manually by walking along the curtain, by manual rope operation or with a motor.
  • Different types of Runners are available to answer a broad range of needs, including ball raced Runners, Master Carriers, Scenery Carriers with brakes and Overlap Arms.
  • For rope operated setups, a variety of choices are available to operate your system, including a Weighted Return Pulley, Floor Fixed Return Pulley, and the RopeAsssist for comfortable use of your rope.

2 Product Flyer

For more information regarding the set-ups that are possible for this ShowTex product, be sure to check the Product Flyer of this product.

3 Load Capacity of the Track

L Point load
1.5 m 250 kg
2 m 150 kg
3 m 100 kg
L Uniformly distributed load Total resulting load
1.5 m 233 kg/m 350 kg
2 m 88 kg/m 220 kg
3 m 67 kg/m 200 kg

The distance between two suspension points should never exceed 3 m.

The stated load capacities apply to the rail only. The load-bearing capacity of the carrying construction (ceiling/truss/…) and all individual mounting accessories must be taken into account as well.

Load capacities have been calculated using Safety Factor 2. Apply the required Safety factor according to the standards pertaining to your application.

4 Dimensions

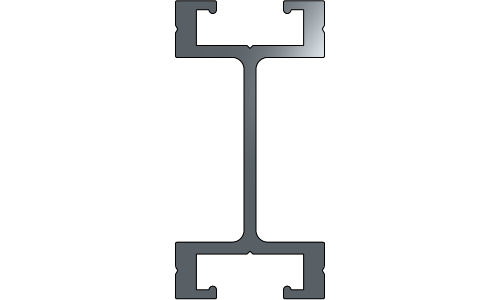

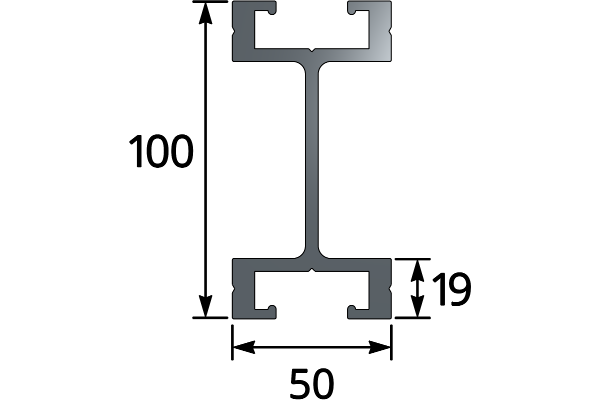

4.1 Track

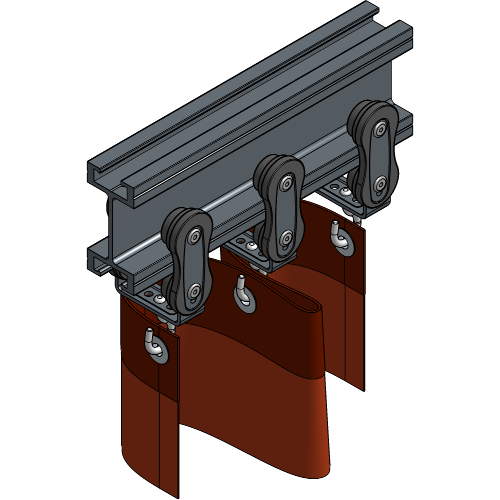

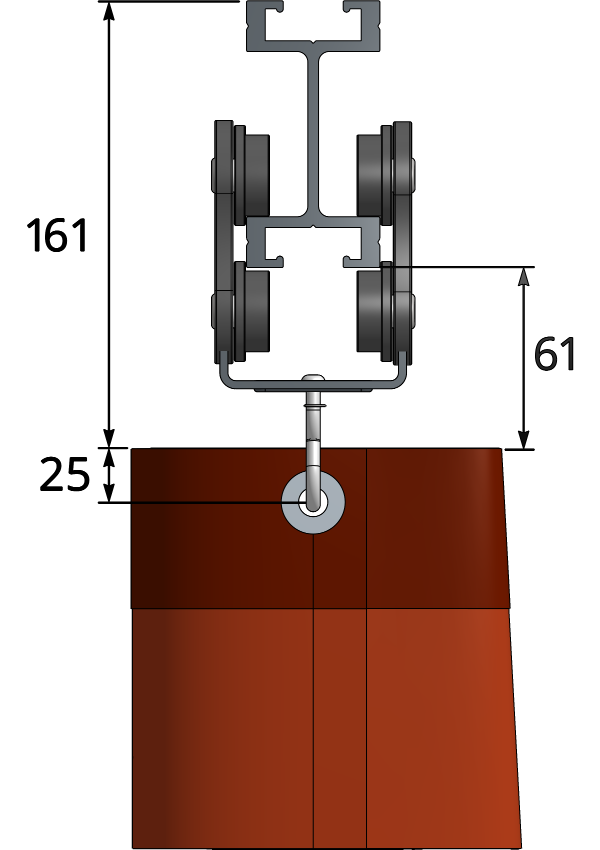

4.2 Track with Runners and Curtain

5 Components

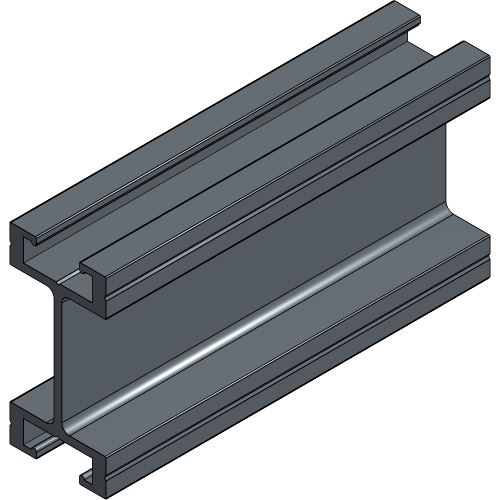

Track

Track

Track

Article number Weight Length Colour
8075 0001 6007 3.24 kg 600.00 m Black

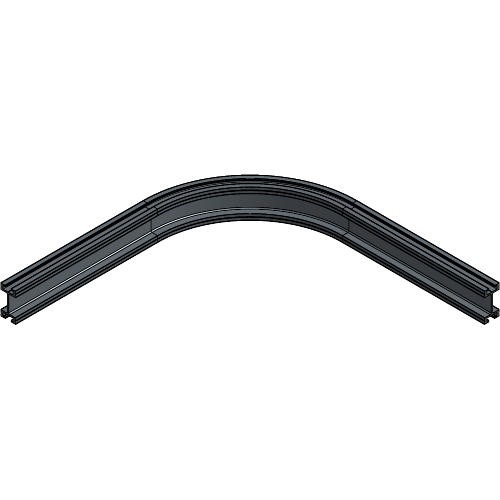

Curved Track 90°

Curved Track 90°

Article number Weight Radius Colour
8075 0007 1007 5.09 kg 100.00 m Black

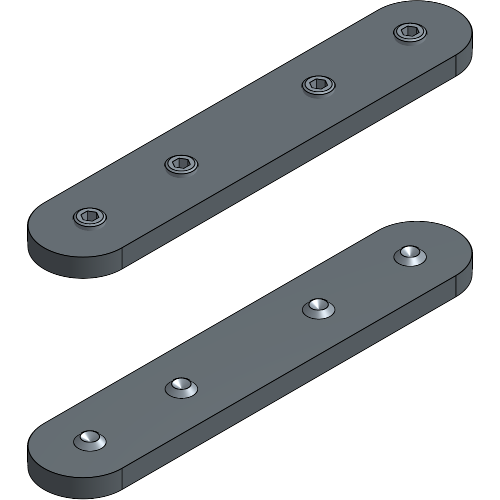

Joint Plate set

Joint Plate set

Article number Weight Colour
8075 0042 1807 0.74 kg Black

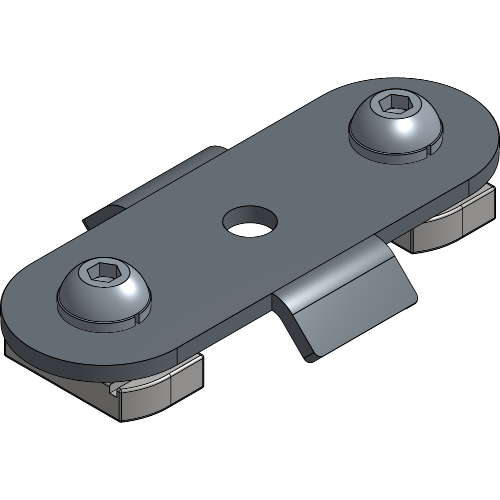

Overlap Clip

Overlap Clip

Article number Weight Colour
8075 0696 1207 0.29 kg Black

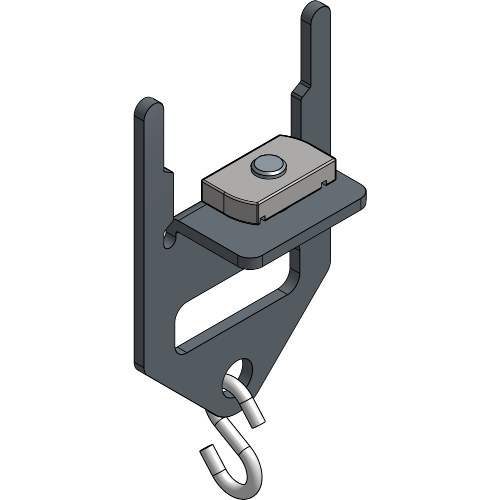

End Stop

End Stop

Article number Weight Colour
8075 0050 0007 0.27 kg Black

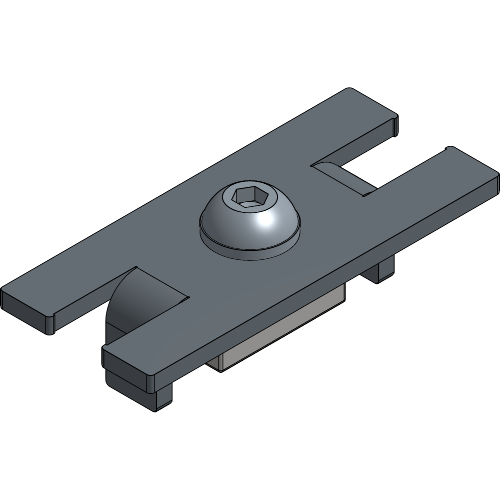

Flat End Stop

Flat End Stop

Article number Weight Colour
8075 0053 0007 0.14 kg Black

Suspension

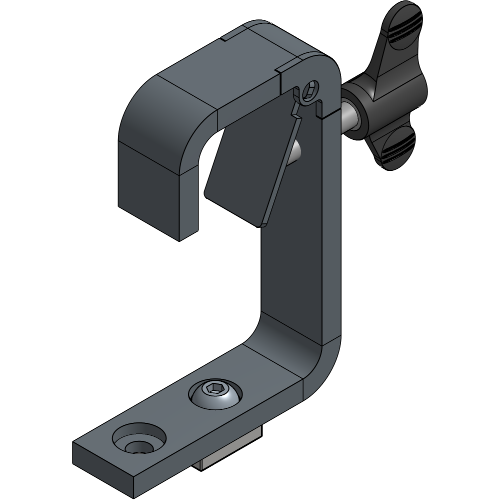

Hook Clamp

Hook Clamp

Article number Weight WLL SF Colour
8075 0680 0007 0.89 kg 60.00 kg 2:1 Black

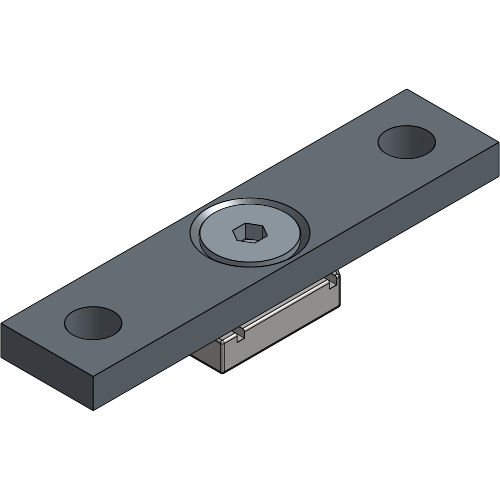

Ceiling Bracket

Ceiling Bracket

Article number Weight WLL SF Colour
8075 0110 0007 0.14 kg 350.00 kg 2:1 Black

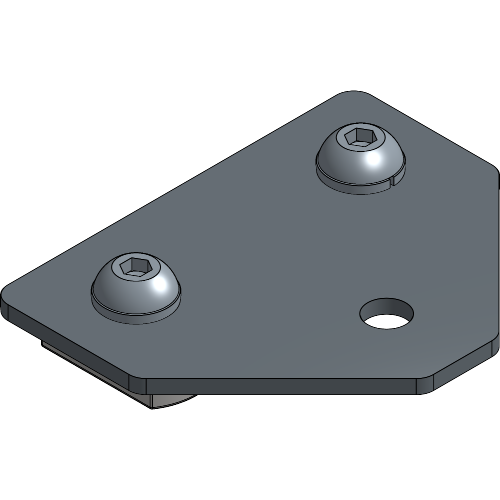

Offset Bracket

Offset Bracket

Article number Weight WLL SF Colour
8075 0690 0607 0.37 kg 150.00 kg 2:1 Black

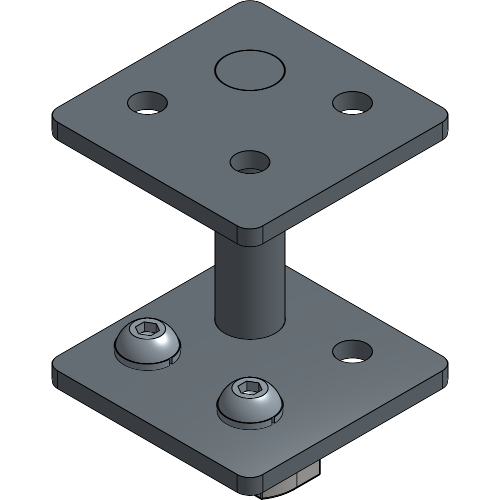

Offset Bracket HD

Offset Bracket HD

Article number Weight WLL SF Colour
8075 0550 0007 0.96 kg 450.00 kg 2:1 Black

Runners

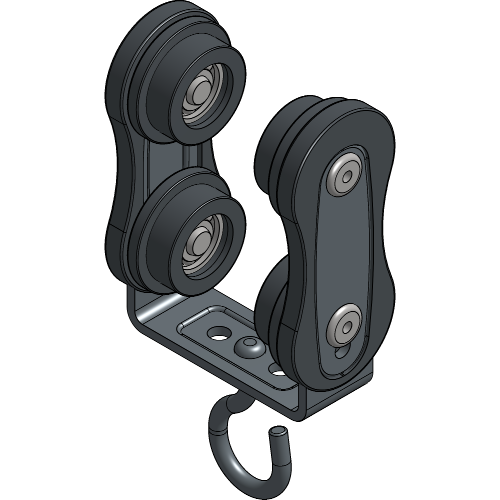

Runner

Runner

Article number Weight WLL SF Min. Rad. Colour
8070 0209 0257 0.28 kg 25.00 kg 2:1 300 mm Black

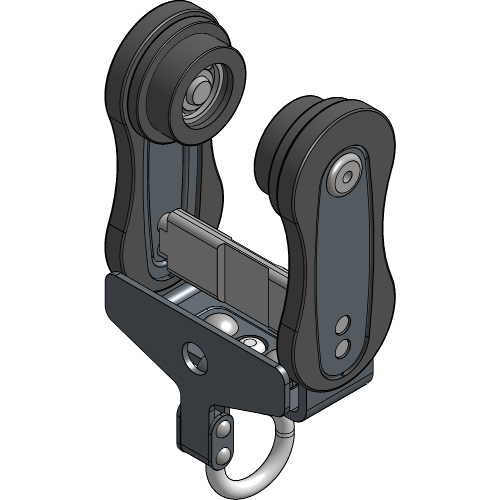

Rear Fold Runner

Rear Fold Runner

Article number Weight WLL SF Colour
8070 0212 0257 0.30 kg 25.00 kg 2:1 Black

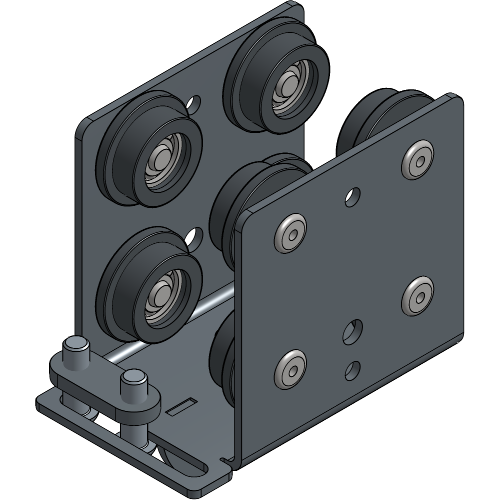

Master Carrier

Master Carrier

Article number Weight WLL SF Min. Rad. Colour
8070 0227 0507 0.80 kg 50.00 kg 2:1 300 mm Black

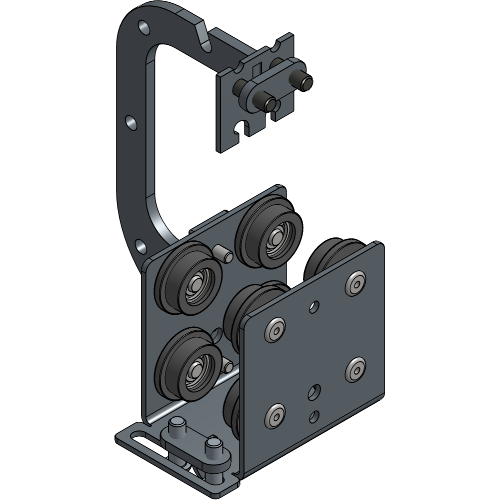

Master Carrier Curved Track 50 kg

Master Carrier Curved Track 50 kg

Article number Weight WLL SF Min. Rad. Colour
8070 0510 0507 1.24 kg 50.00 kg 2:1 300 mm Black

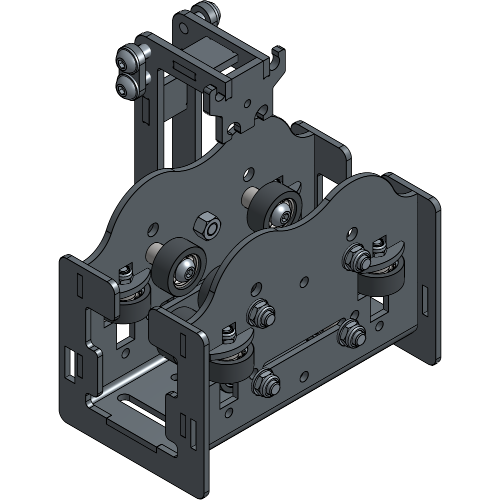

Master Carrier Curved Track 100 kg

Master Carrier Curved Track 100 kg

Article number Weight WLL SF Min. Rad. Colour
8070 0510 1007 2.96 kg 100.00 kg 2:1 450 mm Black

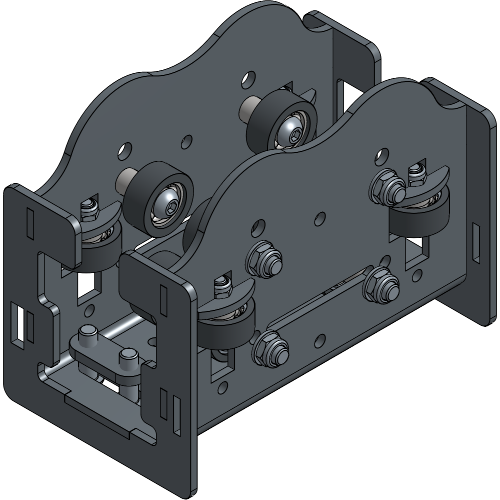

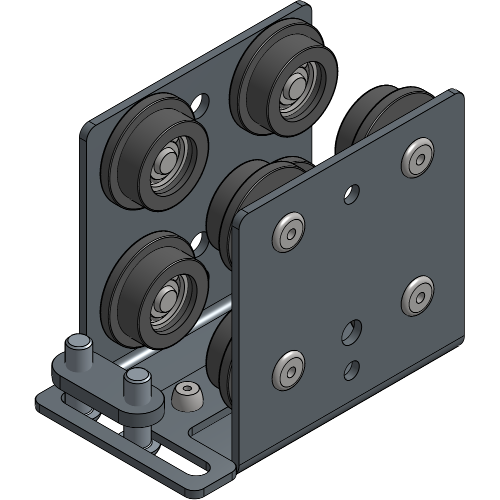

Scenery Carrier 50 kg

Scenery Carrier 50 kg

Article number Weight WLL SF Colour
8070 0230 0507 0.85 kg 50.00 kg 2:1 Black
Scenery Carrier 100 kg

Scenery Carrier 100 kg

Article number Weight WLL SF Min. Rad. Colour
8070 0230 1037 2.32 kg 100.00 kg 2:1 450 mm Black

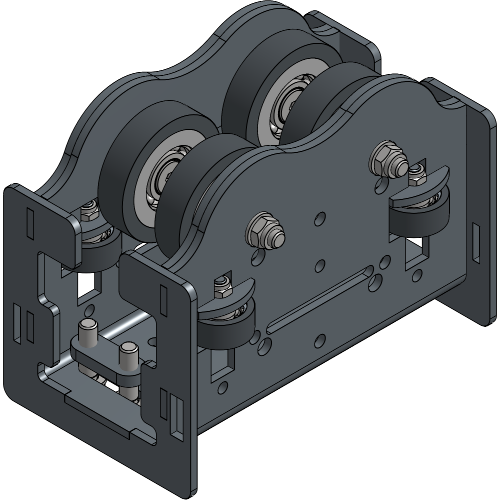

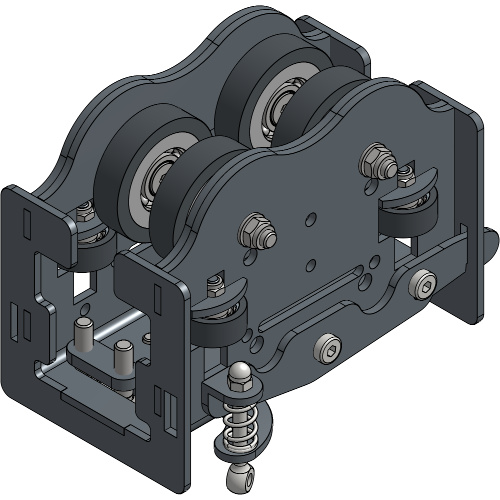

Scenery Carrier 350 kg

Scenery Carrier 350 kg

Article number Weight WLL SF Min. Rad. Colour
8075 0230 3507 3.70 kg 350.00 kg 2:1 450 mm Black

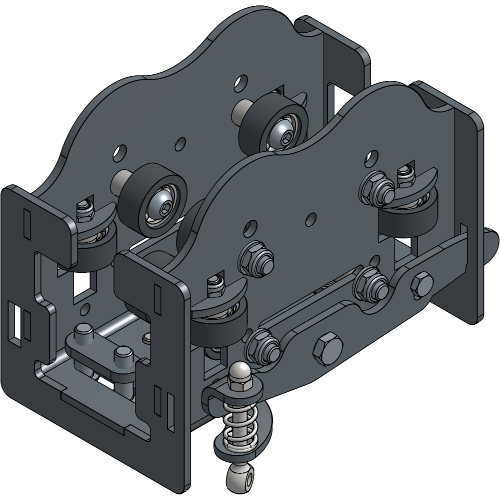

Quick Release Carrier 100 kg

Quick Release Carrier 100 kg

Article number Weight WLL SF Min. Rad. Colour
8070 0230 1067 3.70 kg 100.00 kg 2:1 6000 mm Black
Quick Release Carrier 350 kg

Quick Release Carrier 350 kg

Article number Weight WLL SF Min. Rad. Colour
8070 0230 3537 3.70 kg 350.00 kg 2:1 6000 mm Black

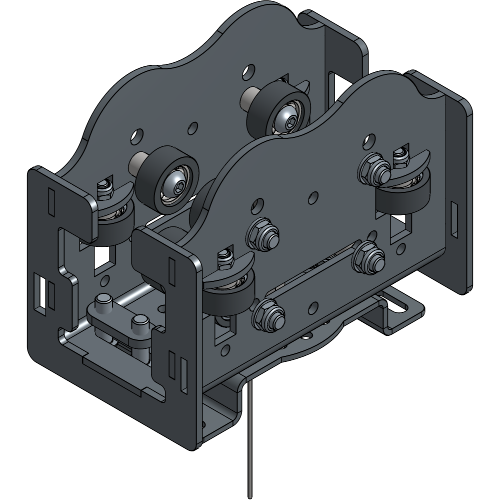

RotoDraper Carrier

RotoDraper Carrier

Article number Weight WLL SF Min. Rad. Colour
8700 0699 0037 3.40 kg 15.00 kg 2:1 450 mm Black

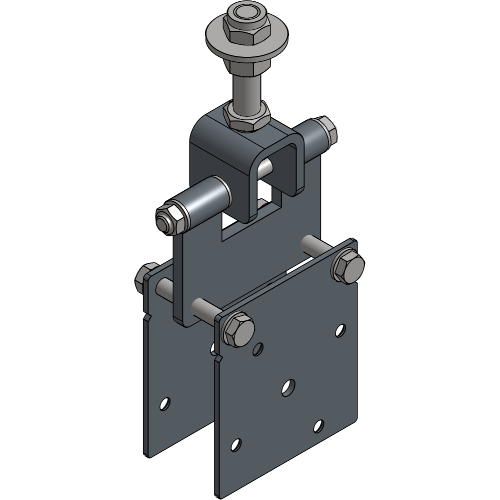

Scenery Hanger

Scenery Hanger

Article number Weight WLL SF Colour
8070 0235 0507 0.98 kg 100.00 kg 2:1 Black

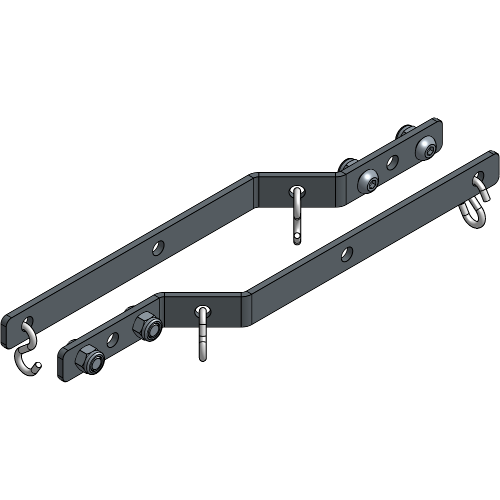

Overlap Arm set

Overlap Arm set

Article number Weight Colour
8070 0241 0007 0.60 kg Black

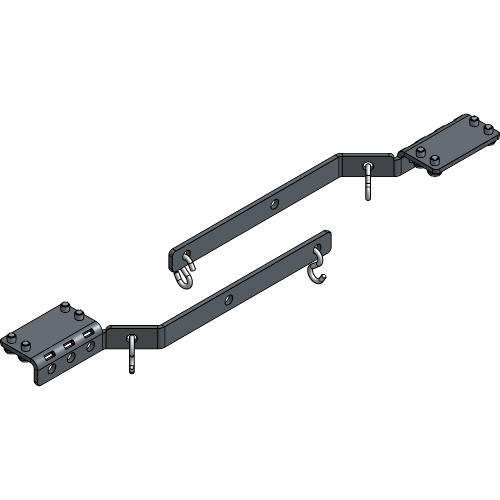

Overlap Arm set HD

Overlap Arm set HD

Article number Weight Colour
8070 0241 0017 0.69 kg Black

Operation

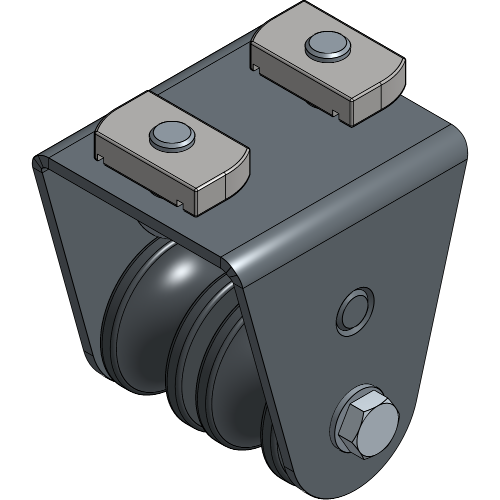

Head Pulley Single Track

Head Pulley Single Track

Article number Weight Colour
8075 0400 0017 0.54 kg Black

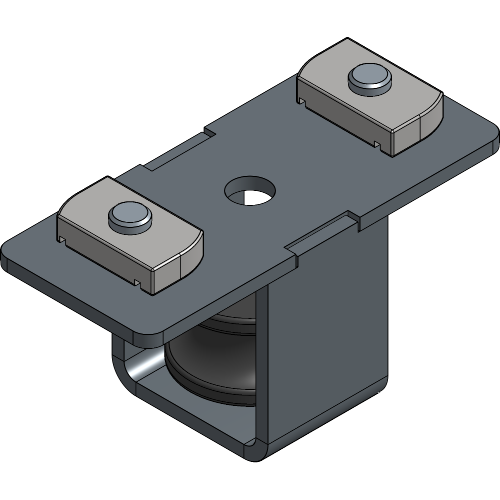

Return Pulley Single Track

Return Pulley Single Track

Article number Weight Colour
8075 0410 0017 0.48 kg Black

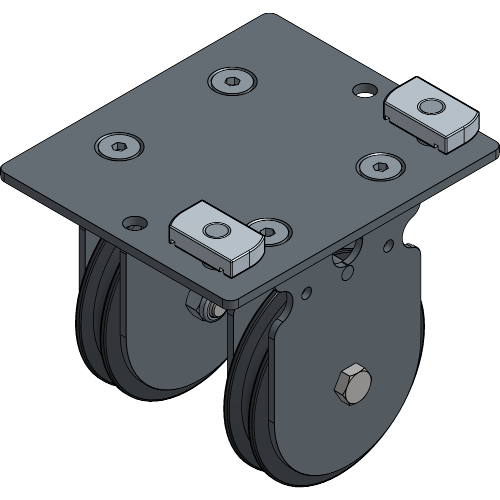

Head Pulley Double Track

Head Pulley Double Track

Article number Weight Colour
8075 0400 0027 1.38 kg Black

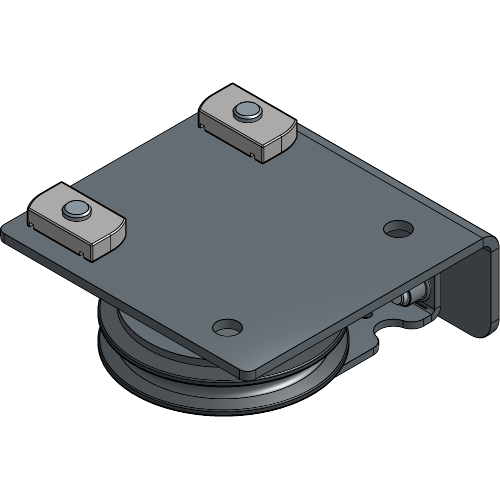

Return Pulley Double Track

Return Pulley Double Track

Article number Weight Colour
8075 0410 0027 1.38 kg Black

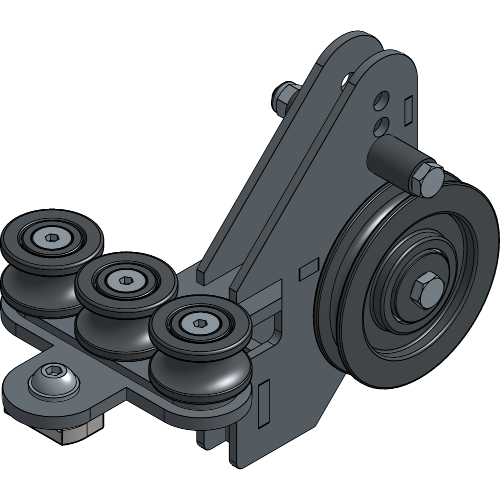

Head Pulley Curved Track

Head Pulley Curved Track

Article number Weight Colour
8075 0520 0007 1.73 kg Black
Return Pulley Curved Track

Return Pulley Curved Track

Article number Weight Colour
8075 0523 0007 1.22 kg Black

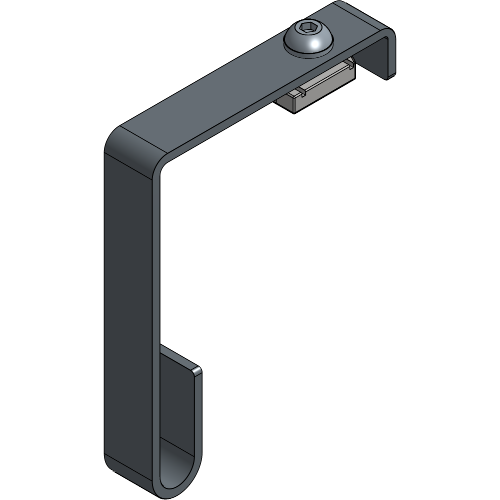

Rope Pickup

Rope Pickup

Article number Weight Colour
8075 0694 0007 0.27 kg Black

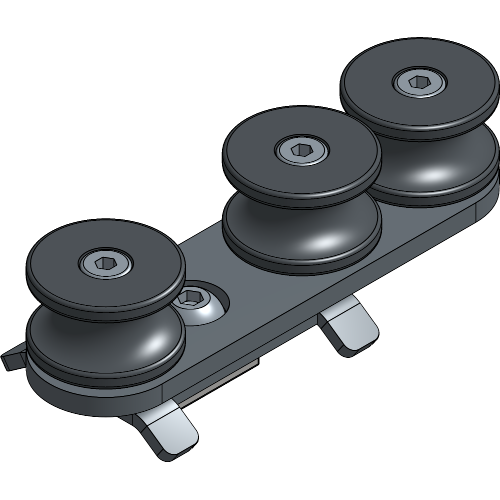

Rope Guide Curved Track

Rope Guide Curved Track

Article number Weight Colour
8075 0500 0007 0.46 kg Black
Rope Guide Add-On Bracket

Rope Guide Add-On Bracket

Article number Weight Colour
8075 0500 0017 0.08 kg Black

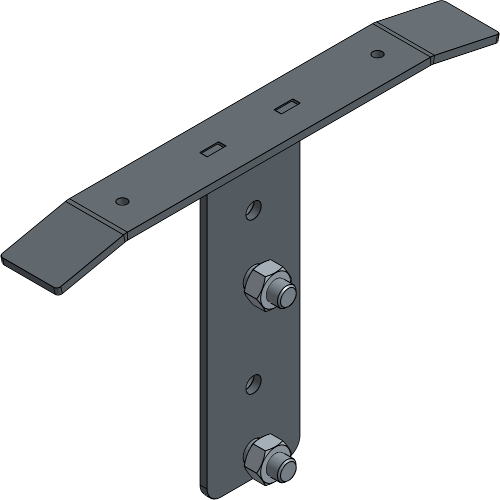

Limit Switch Ski

Limit Switch Ski

Article number Weight Colour
8075 0770 0017 0.30 kg Black
Limit Switch Ski Curved Track

Limit Switch Ski Curved Track

Article number Weight Colour
8075 0770 0027 0.20 kg Black
Limit Switch set

Limit Switch set

Article number Weight Colour
8050 0770 0013 0.27 kg Black

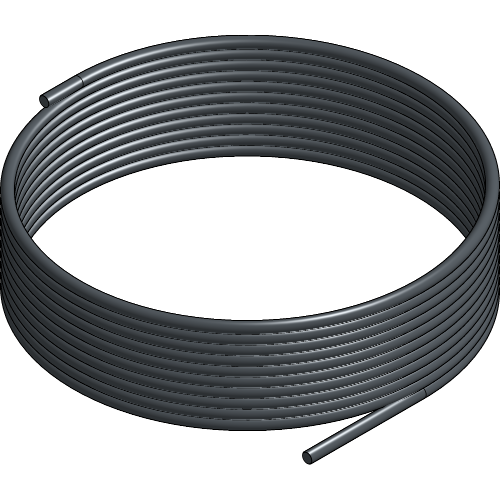

Double Braided Rope

Double Braided Rope

Article number Weight Length ⌀ Colour
7530 0308 1007 5.04 kg 100.00 m 8 mm Black
7530 1308 0027 5.04 kg 100.00 m 8 mm Black/Green/Orange
Double Braided Rope

Double Braided Rope

Article number Weight ⌀ Colour
7530 1308 0017 0.04 kg/m 8 mm Black
7530 1308 5027 0.04 kg/m 8 mm Black/Green/Orange

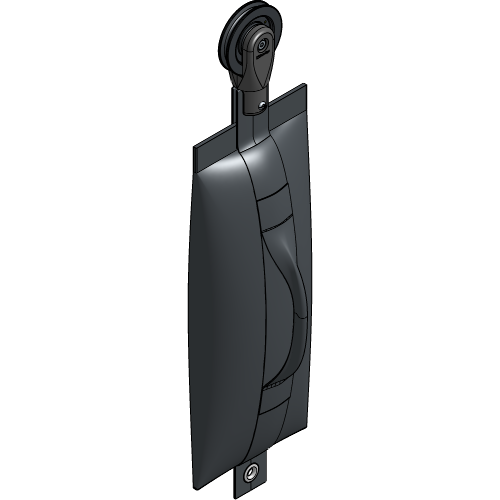

Weighted Return Pulley

Weighted Return Pulley

Article number Weight Colour
8050 0415 0077 5.50 kg Black
8050 0415 0097 10.50 kg Black
Floor Fixed Return Pulley

Floor Fixed Return Pulley

Article number Weight Colour
8050 0420 0007 3.38 kg Black

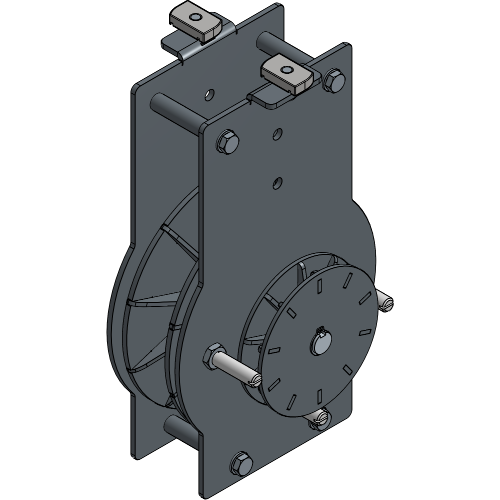

RopeAssist

RopeAssist

Article number Weight Colour
8050 0425 0107 6.54 kg Black
Rope Drive Lite

Rope Drive Lite

Article number Weight Torque Speed Colour
8050 0713 1107 15.75 kg 16 Nm 108 rpm Black

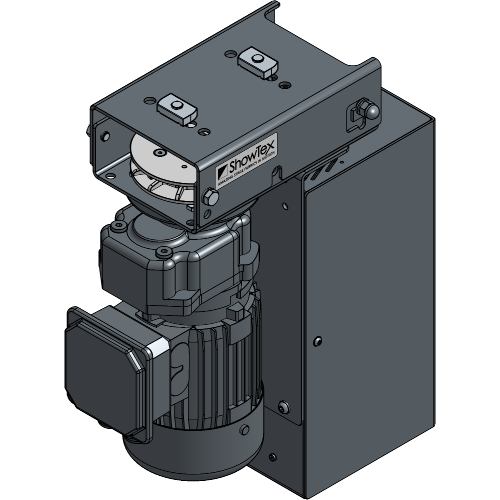

Rope Drive Standard

Rope Drive Standard

Article number Weight Torque Speed Colour
8050 0713 1507 19.50 kg 12 Nm 101 rpm Black
8050 0713 1707 19.50 kg 24 Nm 48 rpm Black
8050 0713 2307 19.50 kg 54 Nm 22 rpm Black
Rope Drive Decoupler

Rope Drive Decoupler

Article number Weight Torque Speed Colour
8050 0713 1557 20.00 kg 12 Nm 101 rpm Black
