Rope Drive

Lite

Technical Data Sheet

1 Info

The Rope Drive Lite is our simplest track operating motor with fixed speed that has a beginning and end stop.

Specifications:

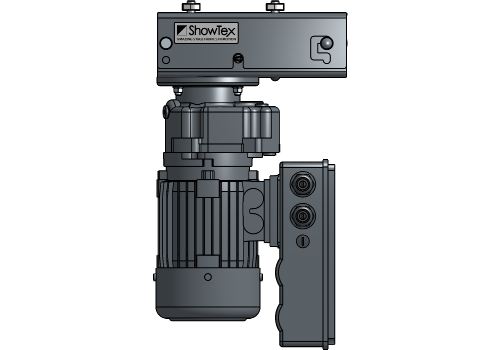

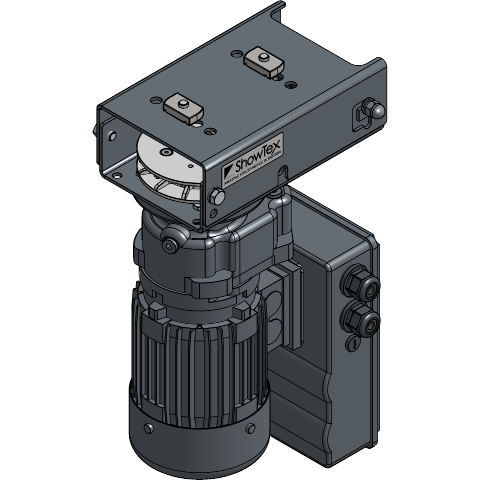

Built up in 2 major parts: Motor Unit and Rope Transmission.
All connections are made with plugs, making touring and installation fast and easy.
A standard configuration with default motor power, speed and torque is offered.
Compatible with OrientTrack, ShowTrack, ShowPipe and H100 rail systems.
Open and close operations can be controlled with a basic Remote or DMX Remote.

2 Installation Specifications

Power Supply : 1 x 230 VAC + N /50 Hz / 2,2 A
Power Connection : Schuko Mains Connector

3 Operational Specifications

Speed : Fixed speed
Remote Control : Open / Close
DMX : 2 Channels - Open / Close

4 Electrical and Mechanical Specifications

Motor Torque : 16 Nm
Motor Speed : 108 rpm
Motor power : 180 W
Maximum Rope Force : 400 N
Rope Speed : 45 cm/sec
Power in : 1 x 230 VAC / 2.2 A
Power connection : 20 A-PowerCON
Duty cycle : S1 - Continuous duty

5 Electrical Wiring and Connectors

5.1 Rope Drive Lite with Remote

5.2 Rope Drive Lite with DMX Remote

6 Components

6.1 Motion

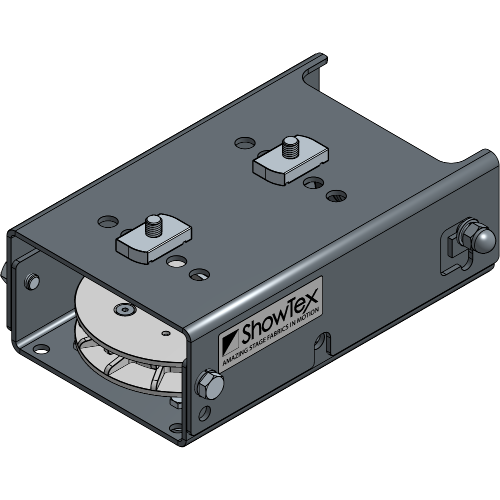

Rope Transmission

Rope Transmission

Article number	Colour	Weight
8050 0400 0017	Black	3.84 kg

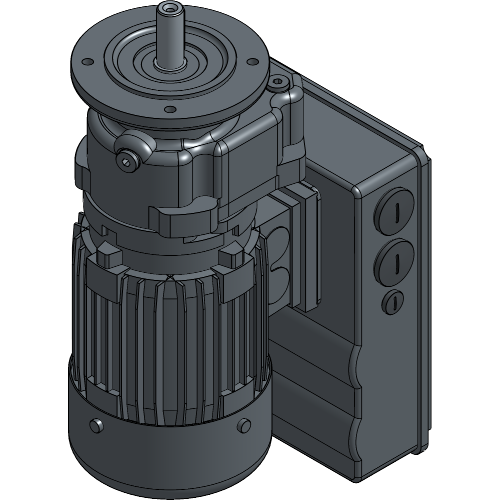

Motor Unit

Motor Unit

Article number	Colour	Weight
8050 0713 2227	Black	11.92 kg

6.2 Remotes

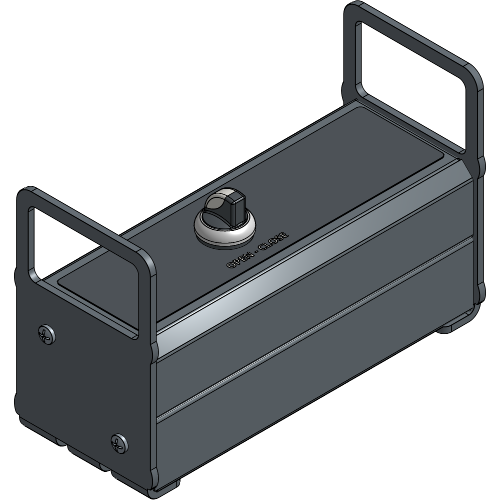

Remote

Remote

Article number	Colour	Weight
8050 0950 0007	Black	1.55 kg

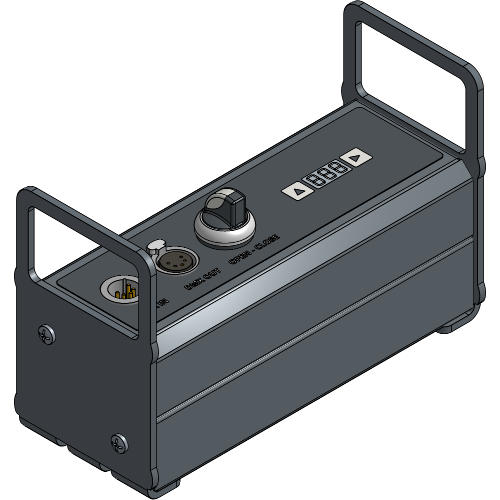

DMX Remote

DMX Remote

Article number	Colour	Weight
8050 0766 0200	Black	2.20 kg

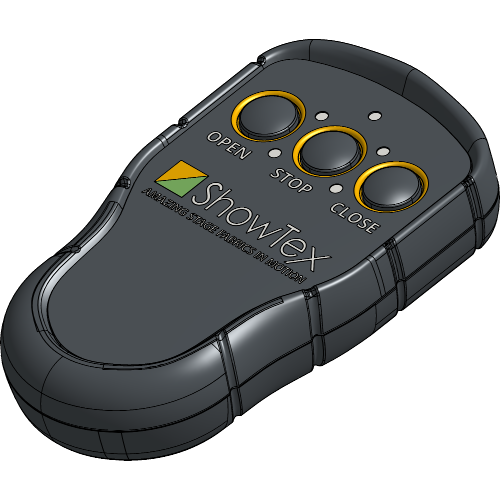

RF Remote

RF Remote

Article number	Colour	Weight
8050 0950 0200	Black	0.14 kg

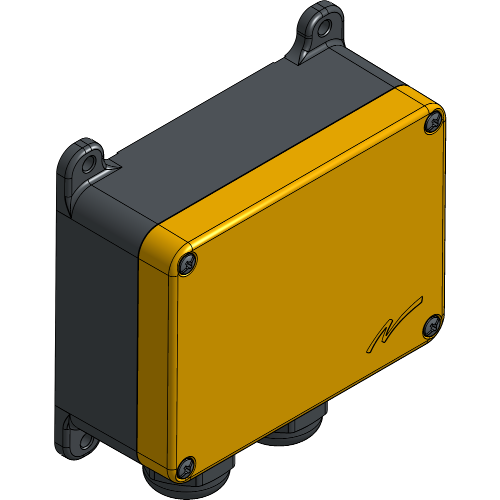

RF Receiver

RF Receiver

Article number	Colour	Weight
8050 0950 0300	Black	0.32 kg

6.3 Cables

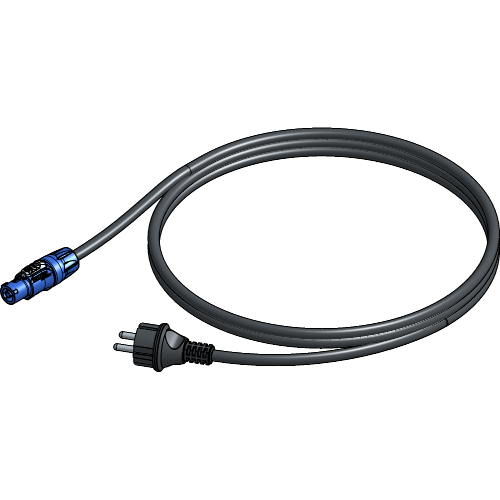

Power Cable

Power Cable

Article number	Colour	Weight	Length
8150 0912 0027	Black	0.40 kg	2.00 m

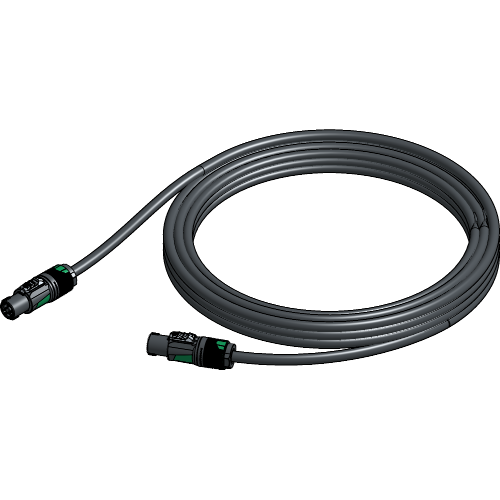

Link Cable

Link Cable

Article number	Colour	Weight	Length
8160 0915 0257	Black	2.60 kg	25.00 m

6.4 Limit Switches

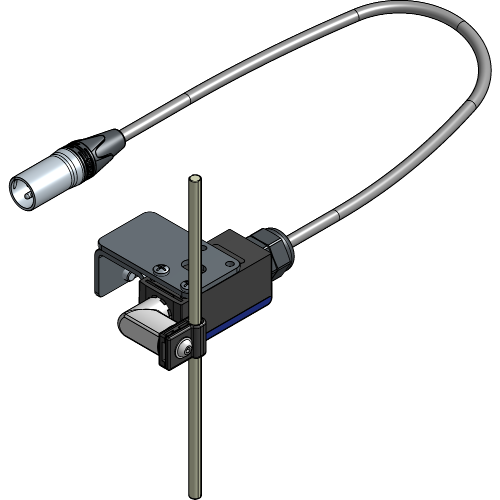

Limit Switch set

Limit Switch set

Article number	Colour	Weight	Tracks
8050 0770 0020	Black	0.23 kg	H100

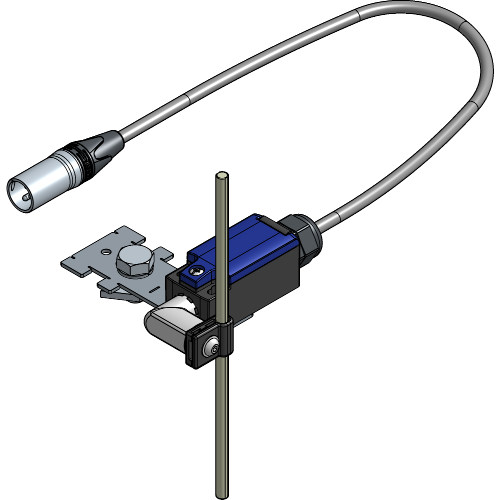

Limit Switch set

Limit Switch set

Article number	Colour	Weight	Tracks
8050 0770 0010	Black	0.23 kg	ShowPipe

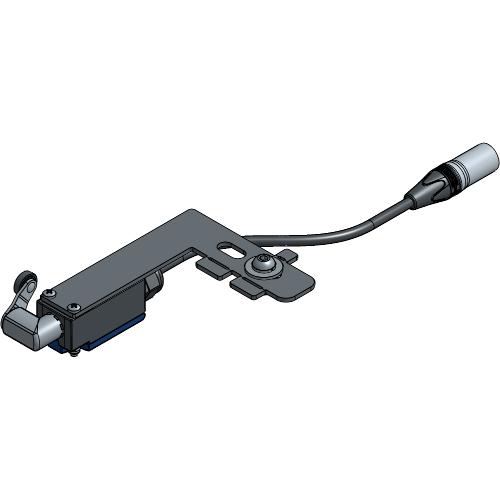

Limit Switch set

Limit Switch set

Article number	Colour	Weight	Tracks
8050 0770 0011	Black	0.23 kg	OrientTrack

Limit Switch set

Limit Switch set

Article number	Colour	Weight	Tracks
8050 0770 0013	Black	0.23 kg	ShowTrack

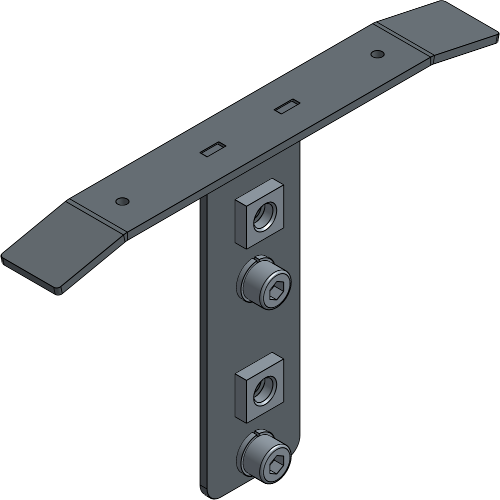

Limit Switch Ski

Limit Switch Ski

Article number	Colour	Weight	Tracks
8075 0770 0017	Black	0.30 kg	ShowTrack

Limit Switch Ski Curved Track

Limit Switch Ski Curved Track

Article number	Colour	Weight	Tracks
8075 0770 0027	Black	0.20 kg	ShowTrack

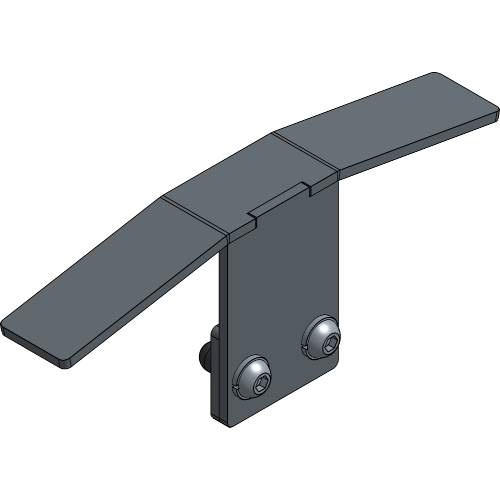

Limit Switch Ski

Limit Switch Ski

Article number	Colour	Weight	Tracks
8067 0770 0007	Black	0.18 kg	OrientTrack
