Rope Drive

Standard

Product Flyer

1 Info

The Rope Drive system facilitates motion of stage curtains or set pieces on a stage track by means of electric motors.

Specifications:

  • Built up in 3 major parts: Motor Unit, Rope Transmission and Control Unit.
  • All connections are made with plugs, making touring and installation fast and easy.
  • The Control Unit can be mounted on the back or side of the motor, or independently suspended.
  • A choice of 3 motors with different speeds and torque makes it flexible to meet project needs.
  • Compatible with OrientTrack, ShowTrack, ShowPipe and H100 rail systems.
  • Open, close and speed operations can be controlled with a basic Remote or DMX Remote.

2 Technical Data Sheet

For more information regarding the components and technical specifications, be sure to check the Technical Data Sheet of this product.

3 Setups with a Control Unit

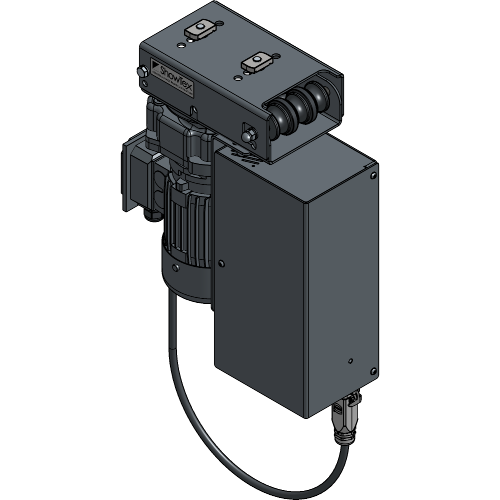

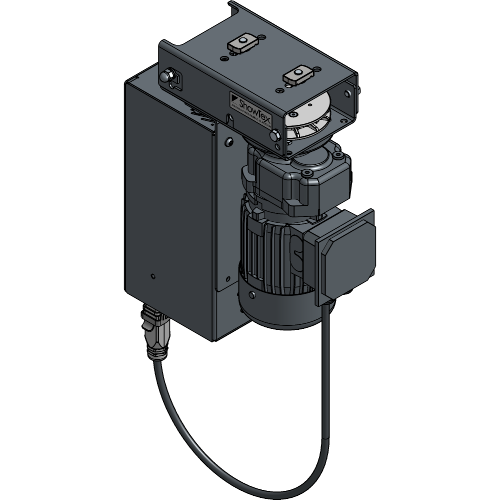

3.1 Control Unit at the back

The default configuration for our Rope Drive Standard features the Control Unit conveniently mounted at the back of the Rope Transmission. This setup provides a clean and space-saving solution, seamlessly aligning the Motor Unit with the Control Unit for visually pleasing esthetics.

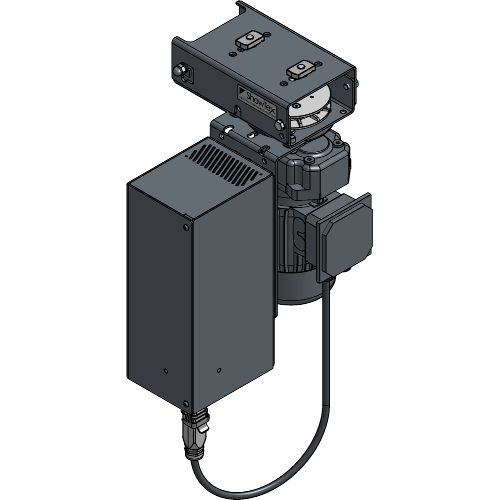

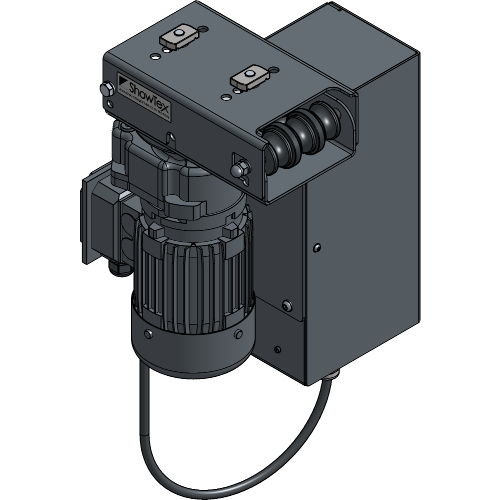

3.2 Control Unit at the side

The adaptable Rope Transmission and Control Box Mounting Plate offer a solution for scenarios where space limitations arise at the back of the motor, yet there is still a desire to mount the Control Unit on the motor. By positioning the Control Unit at the side of the Rope Transmission using the same bolts, this addresses any space limitations at the back.

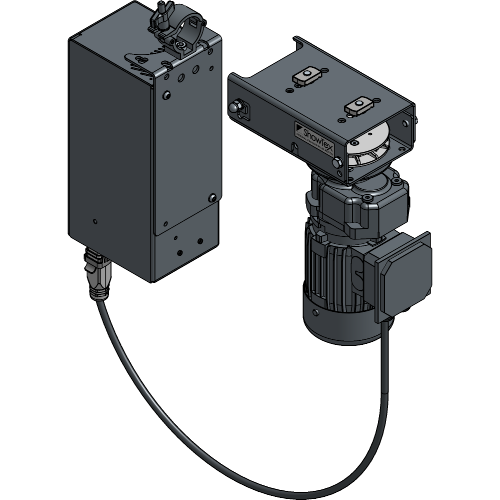

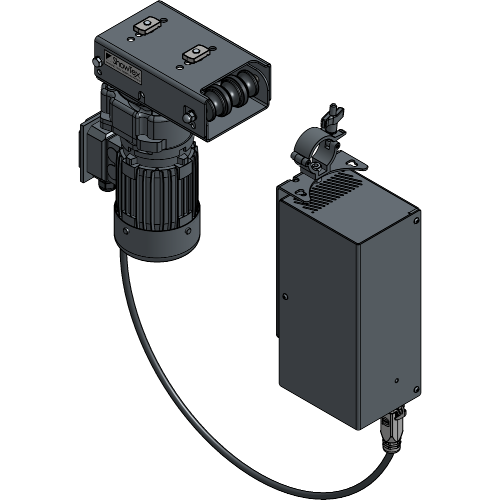

3.3 Control Unit Independently Suspended

In cases where there’s a preference for independently suspending the Control Unit or in scenarios where space limitations arise at the entire the motor, the Control Unit Mounting Plate’s flexibility allows the independent suspension of the Control Unit, using any suspension option of choice, provided that the work load limit is suitable.
