H100

Technical Data Sheet

1 Info

The H100 is a multifunctional, budget-friendly steel curtain track for medium-heavy to heavy curtains.

Specifications:

  • The H100 is a steel track, standard available in galvanized, with a white or black coated finishes.
  • Custom colours are available on demand.
  • Rails are available in straight or curved lengths, with curves starting from a 205 mm radius.
  • Various mounting options available with a range of different fixtures and application areas.
  • A H100 rail system can be operated manually by walking along the curtain, by manual rope operation or with a motor.
  • Different types of Runners are available to answer a broad range of needs, including ball-raced Runners and Master Carriers with Overlap Arms.

2 Load Capacity of the Track

L Point load
1 m 73 kg
1.5 m 61 kg
L Uniformly distributed load Total resulting load
1 m 150 kg/m 150 kg
1.5 m 75 kg/m 112 kg

The distance between two suspension points should never exceed 1.5 m.

The stated load capacities apply to the rail only. The load-bearing capacity of the carrying construction (ceiling/truss/…) and all individual mounting accessories must be taken into account as well.

Load capacities have been calculated using Safety Factor 2. Apply the required Safety factor according to the standards pertaining to your application.

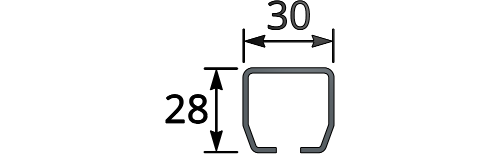

3 Track Dimensions

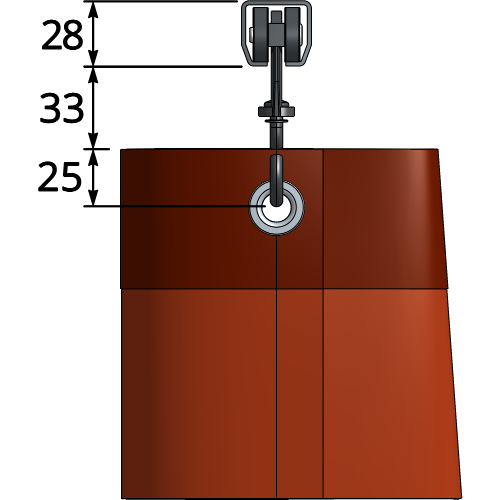

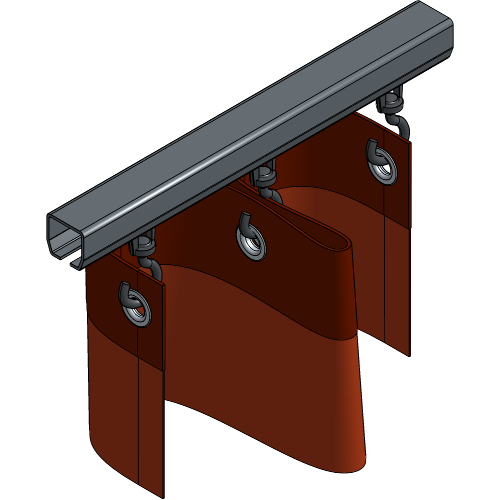

4 Track with Runners and Curtain

5 Components

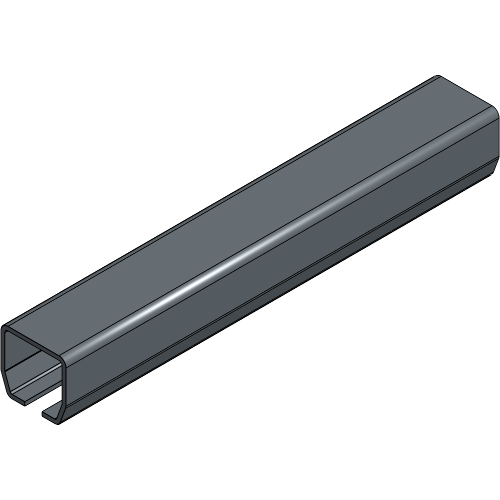

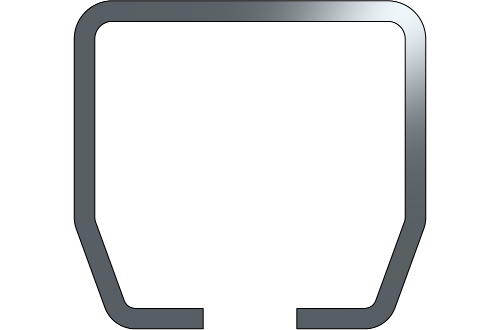

Track

Track

Track

Article number Weight Length Colour
8050 0001 6007 1.34 kg/m 6.00 m Black
8050 0001 6003 1.34 kg/m 6.00 m White
8050 0001 6001 1.34 kg/m 6.00 m Galvanized
Curved Track 45° - Radius 65 cm

Curved Track 45° - Radius 65 cm

Article number Weight Colour
8050 0004 0657 1.34 kg/m Black
8050 0004 0651 1.34 kg/m Galvanized

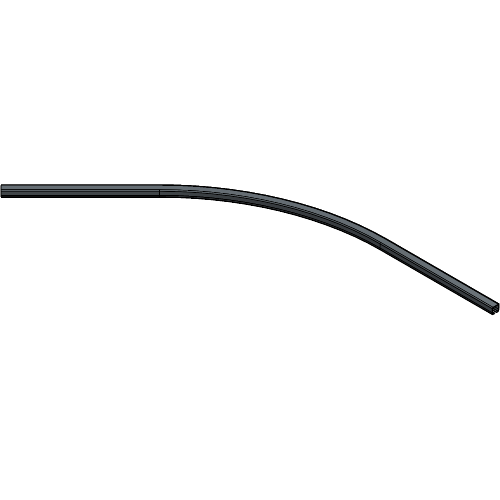

Curved Track 45° - Radius 100 cm

Curved Track 45° - Radius 100 cm

Article number Weight Colour
8050 0004 1007 1.34 kg/m Black
8050 0004 1001 1.34 kg/m Galvanized

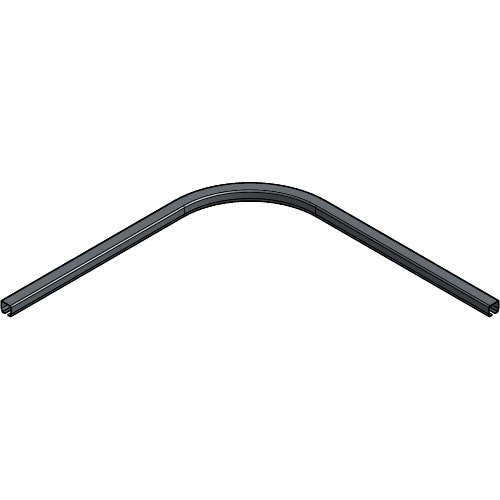

Curved Track 90° - Radius 20.5 cm

Curved Track 90° - Radius 20.5 cm

Article number Weight Colour
8050 0007 0207 1.34 kg/m Black
8050 0007 0203 1.34 kg/m White
8050 0007 0201 1.34 kg/m Galvanized

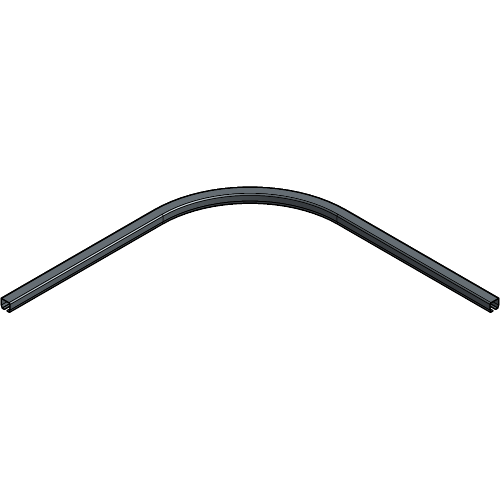

Curved Track 90° - Radius 30 cm

Curved Track 90° - Radius 30 cm

Article number Weight Colour
8050 0007 0307 1.34 kg/m Black
8050 0007 0303 1.34 kg/m White
8050 0007 0301 1.34 kg/m Galvanized
Curved Track 90° - Radius 40 cm

Curved Track 90° - Radius 40 cm

Article number Weight Colour
8050 0007 0407 1.34 kg/m Black
8050 0007 0401 1.34 kg/m Galvanized

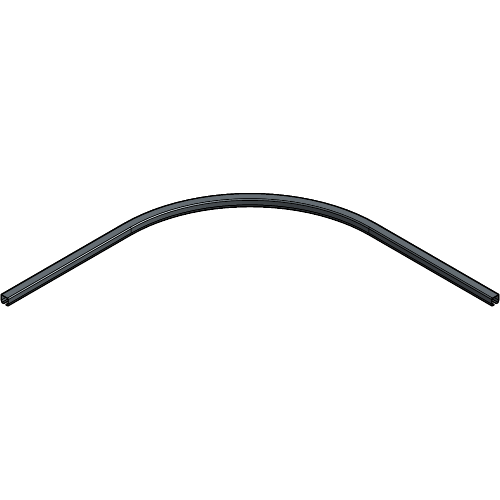

Curved Track 90° - Radius 50 cm

Curved Track 90° - Radius 50 cm

Article number Weight Colour
8050 0007 0507 1.34 kg/m Black
8050 0007 0503 1.34 kg/m White
8050 0007 0501 1.34 kg/m Galvanized

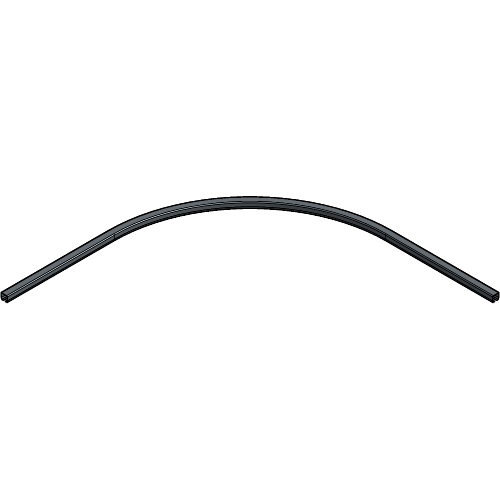

Curved Track 90° - Radius 65 cm

Curved Track 90° - Radius 65 cm

Article number Weight Colour
8050 0007 0657 1.34 kg/m Black
8050 0007 0653 1.34 kg/m White
8050 0007 0651 1.34 kg/m Galvanized

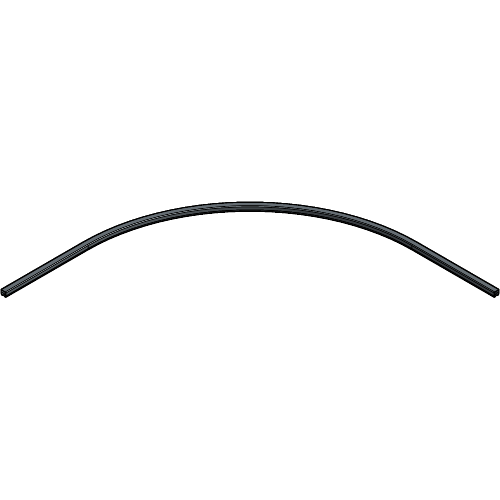

Curved Track 90° - Radius 100 cm

Curved Track 90° - Radius 100 cm

Article number Weight Colour
8050 0007 1007 1.34 kg/m Black
8050 0007 1001 1.34 kg/m Galvanized

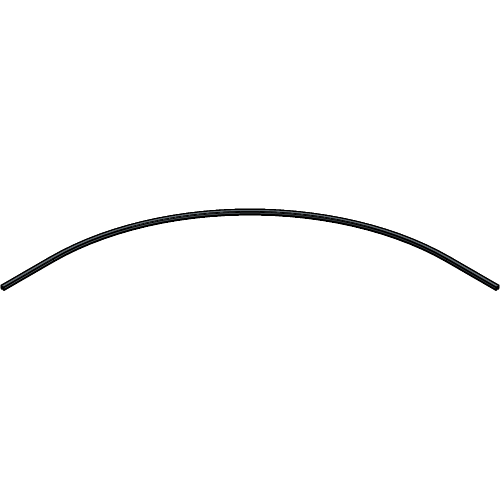

Curved Track 90° - Radius 200 cm

Curved Track 90° - Radius 200 cm

Article number Weight Colour
8050 0007 2007 1.34 kg/m Black
8050 0007 2001 1.34 kg/m Galvanized

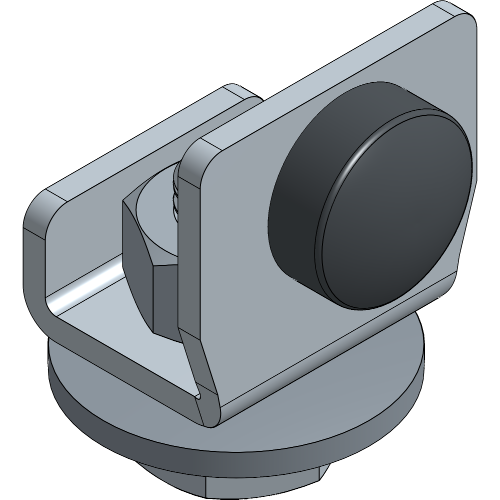

End Stop

End Stop

Article number Weight Colour
8050 0050 0001 0.03 kg Galvanised

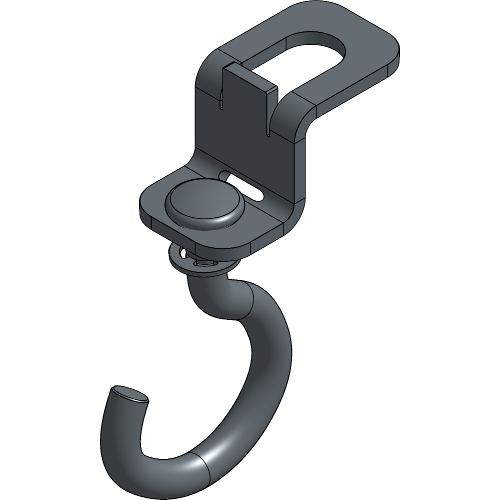

End Stop Swivel Hook Add-On

End Stop Swivel Hook Add-On

Article number Weight Colour
8050 0050 0017 0.02 kg Black
8050 0050 0011 0.02 kg Galvanized

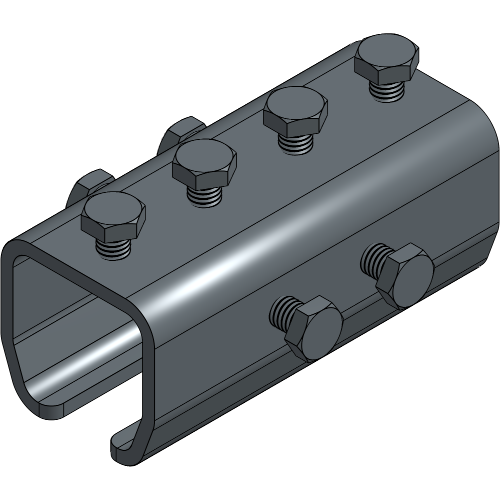

Coupling

Coupling

Article number Weight Colour
8050 0040 0807 0.24 kg Black
8050 0040 0803 0.24 kg White
8050 0040 0801 0.24 kg Galvanised

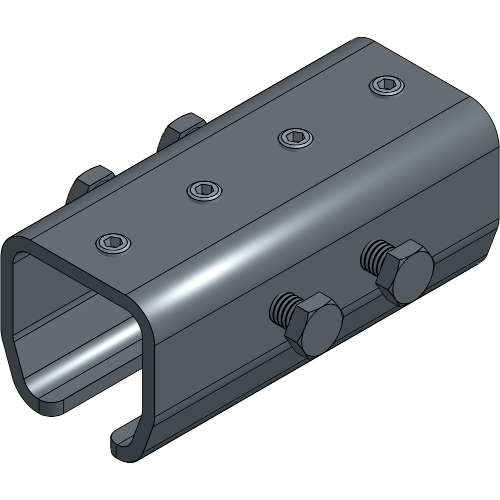

Coupling for Ceiling Suspension

Coupling for Ceiling Suspension

Article number Weight Colour
8050 0040 0817 0.22 kg Black
8050 0040 0813 0.22 kg White
8050 0040 0811 0.22 kg Galvanised

Suspension

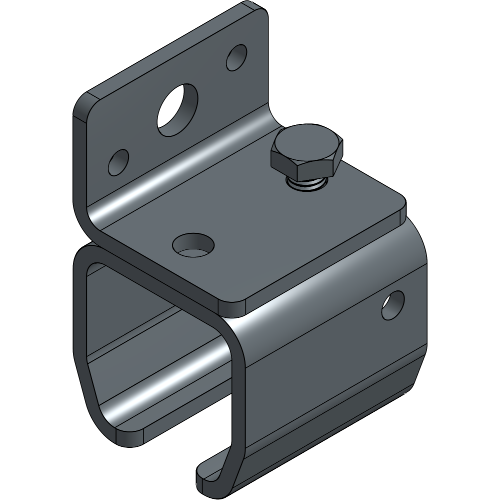

Wall Bracket

Wall Bracket

Article number Weight Colour
8050 0100 0007 0.18 kg Black
8050 0100 0003 0.18 kg White
8050 0100 0001 0.18 kg Galvanised

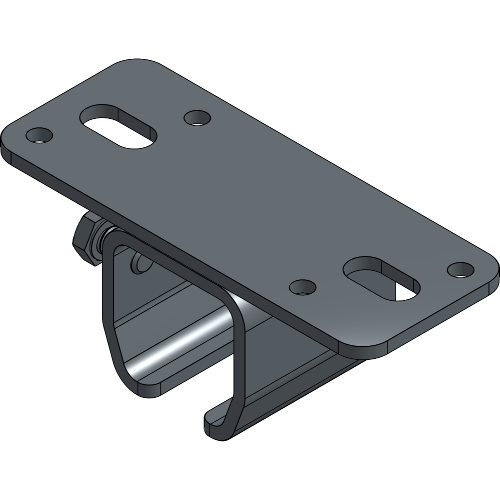

Ceiling Bracket

Ceiling Bracket

Article number Weight Colour
8050 0110 0007 0.18 kg Black
8050 0110 0003 0.18 kg White
8050 0110 0001 0.18 kg Galvanised

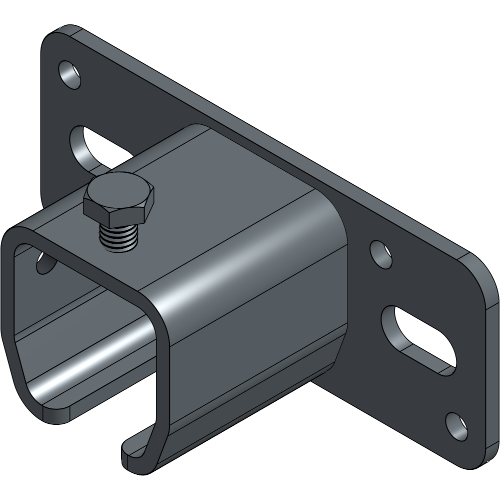

Horizontal Track Head Bracket

Horizontal Track Head Bracket

Article number Weight Colour
8050 0100 0037 0.19 kg Black

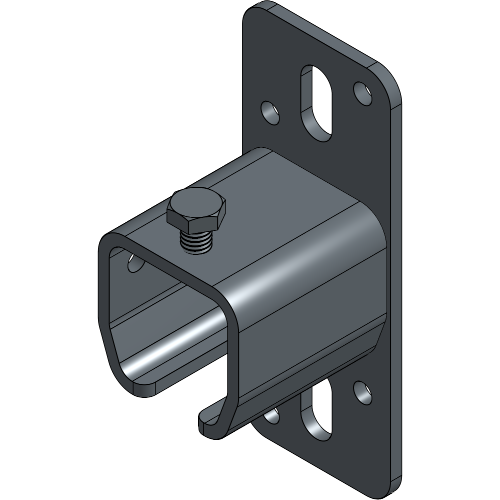

Vertical Track Head Bracket

Vertical Track Head Bracket

Article number Weight Colour
8050 0100 0057 0.14 kg Black

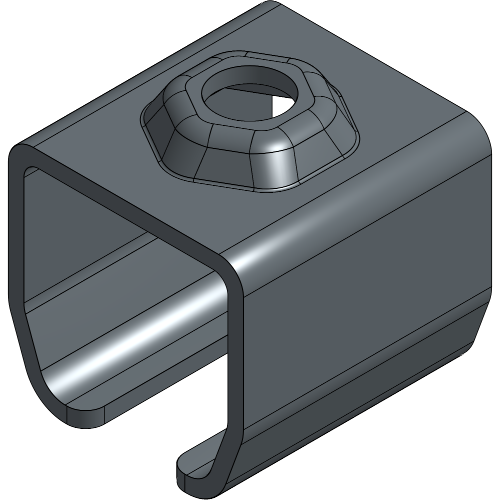

Bracket for Threaded Rod

Bracket for Threaded Rod

Article number Weight Colour
8050 0131 0007 0.09 kg Black
8050 0131 0003 0.09 kg White
8050 0131 0000 0.09 kg Galvanised

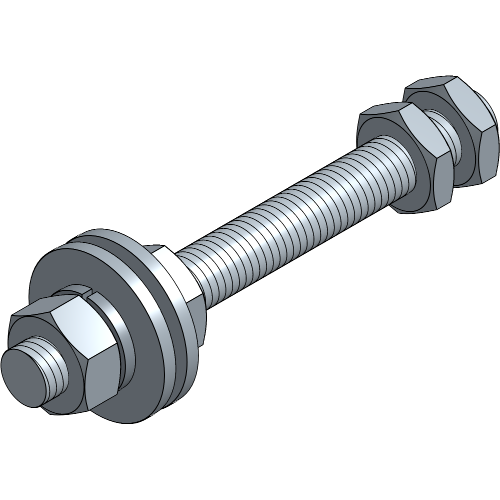

Threaded Rod with Fasteners

Threaded Rod with Fasteners

Article number Weight Length WLL SF Colour
8700 9210 0411 0.10 kg 0.10 m 3090.00 kg 2:1 Galvanised
8700 9210 0417 0.10 kg 0.10 m 3090.00 kg 2:1 Black
8700 9210 0421 0.14 kg 0.20 m 3090.00 kg 2:1 Galvanised
8700 9210 0427 0.14 kg 0.20 m 3090.00 kg 2:1 Black
8700 9210 0451 0.24 kg 0.50 m 3090.00 kg 2:1 Galvanised
8700 9210 0457 0.24 kg 0.50 m 3090.00 kg 2:1 Black

Runners

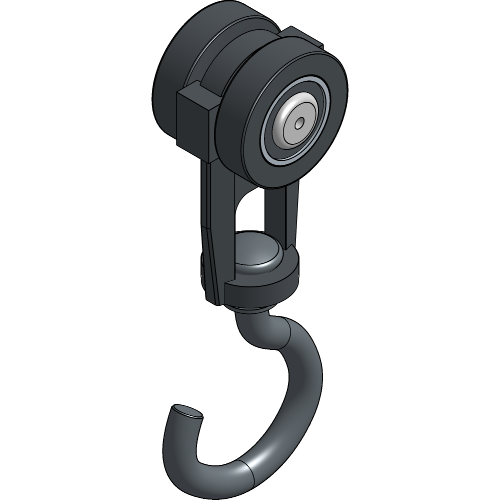

Runner

Runner

Article number Weight WLL SF Min. Rad. Colour
8050 0205 0087 0.02 kg 8.00 kg 2:1 205 mm Black
8050 0205 0083 0.02 kg 8.00 kg 2:1 205 mm White

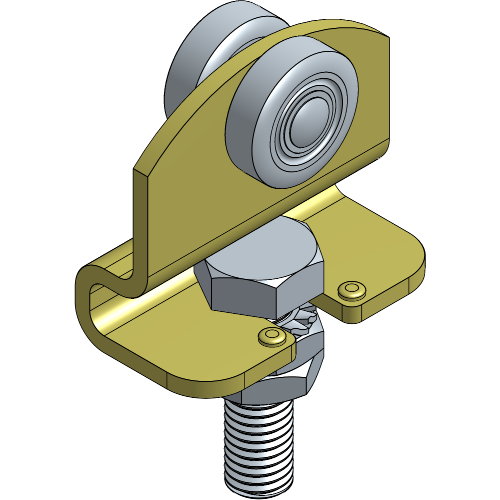

Scenery Carrier

Scenery Carrier

Article number Weight WLL SF Min. Rad. Colour
8050 0230 0001 0.11 kg 60.00 kg 2:1 205 mm Galvanised

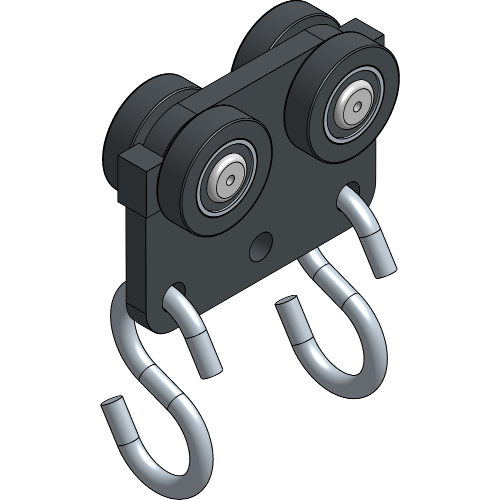

Master Carrier

Master Carrier

Article number Weight WLL SF Min. Rad. Colour
8050 0221 0167 0.05 kg 15.00 kg 2:1 205 mm Black
8050 0221 0163 0.05 kg 15.00 kg 2:1 205 mm White

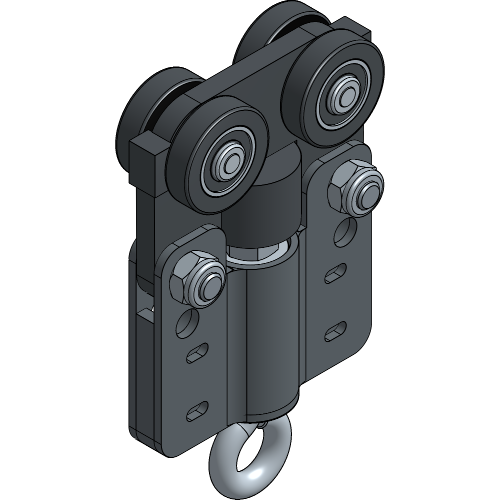

Master Carrier with Brake

Master Carrier with Brake

Article number Weight WLL SF Min. Rad. Colour
8050 0221 0197 0.10 kg 15.00 kg 2:1 205 mm Black
8050 0221 0193 0.10 kg 15.00 kg 2:1 205 mm White

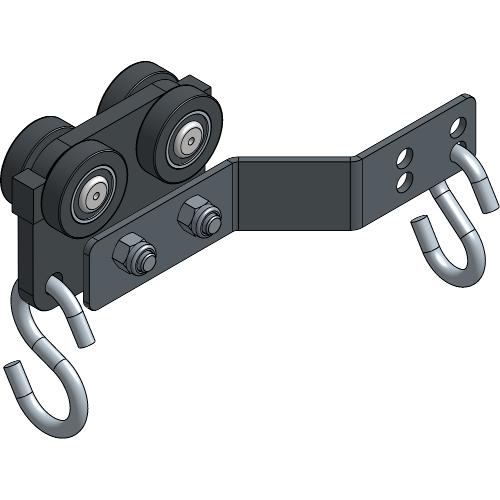

Short Overlap Master Carrier

Short Overlap Master Carrier

Article number Weight WLL SF Min. Rad. Colour
8050 0245 0057 0.14 kg 15.00 kg 2:1 205 mm Black
8050 0245 0053 0.14 kg 15.00 kg 2:1 205 mm White

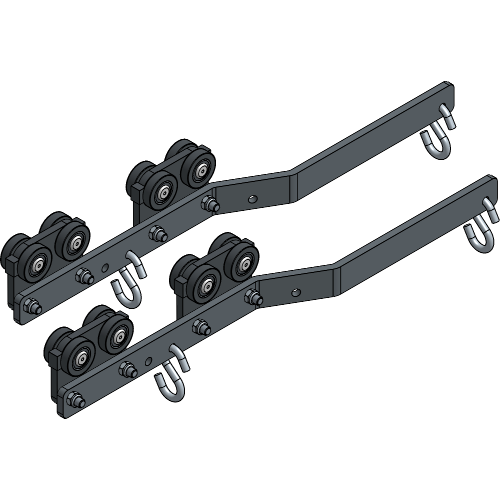

Overlap Master Carrier set

Overlap Master Carrier set

Article number Weight WLL SF Min. Rad. Colour
8050 0246 0167 0.79 kg 15.00 kg 2:1 2000 mm Black
8050 0246 0163 0.79 kg 15.00 kg 2:1 2000 mm White

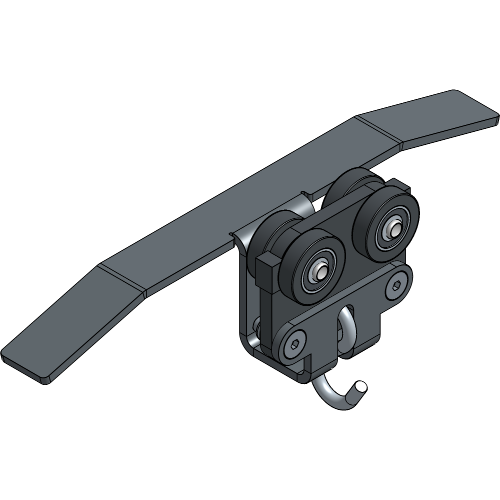

Master Carrier with Ski

Master Carrier with Ski

Article number Weight WLL SF Min. Rad. Colour
8050 0228 0167 0.12 kg 15.00 kg 2:1 205 mm Black
8050 0228 0163 0.12 kg 15.00 kg 2:1 205 mm White

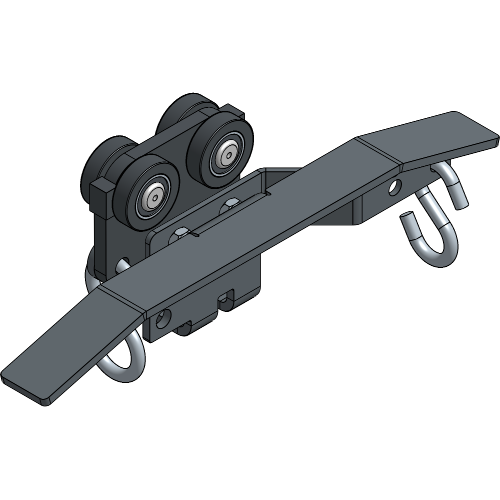

Short Overlap Master Carrier with Ski

Short Overlap Master Carrier with Ski

Article number Weight WLL SF Min. Rad. Colour
8050 0245 1057 0.20 kg 15.00 kg 2:1 205 mm Black
8050 0245 1053 0.20 kg 15.00 kg 2:1 205 mm White

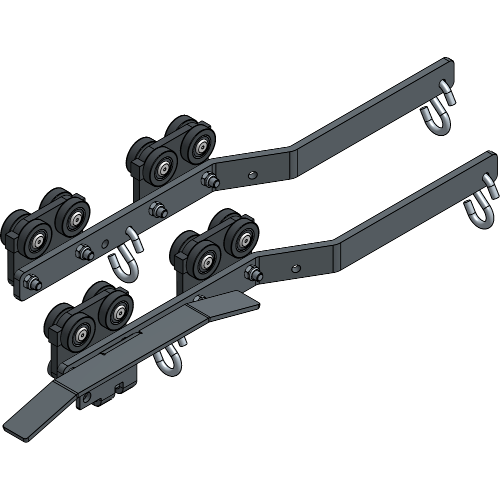

Overlap Master Carrier set with Ski

Overlap Master Carrier set with Ski

Article number Weight WLL SF Min. Rad. Colour
8050 0246 1167 0.90 kg 15.00 kg 2:1 2000 mm Black
8050 0246 1163 0.90 kg 15.00 kg 2:1 2000 mm White

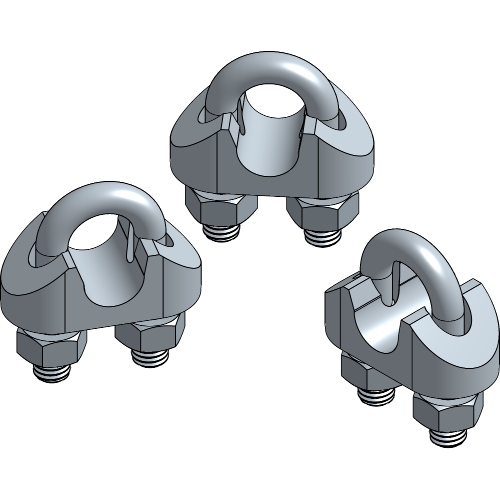

Rope Clamp set

Rope Clamp set

Article number Weight Colour
8050 0248 0035 0.01 kg Galvanised

Operation

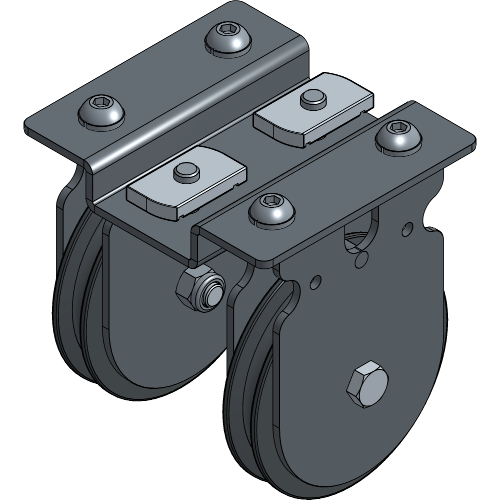

Head Pulley

Head Pulley

Article number Weight Colour
8050 0400 0047 1.50 kg Black

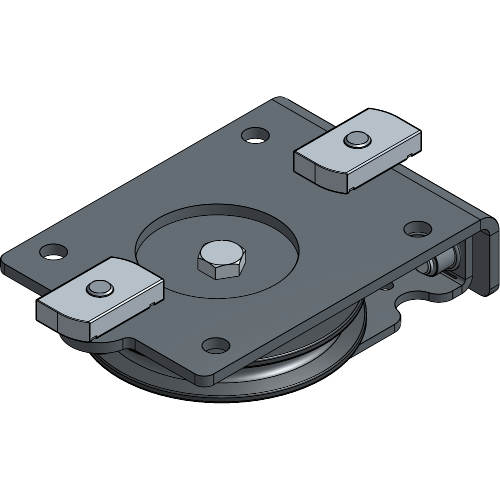

Return Pulley

Return Pulley

Article number Weight Colour
8050 0410 0047 1.50 kg Black

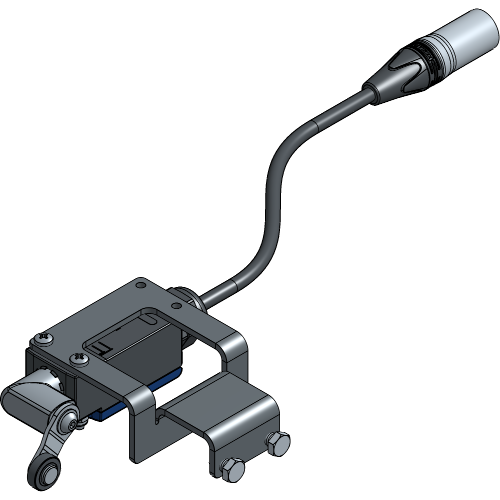

Limit Switch set

Limit Switch set

Article number Weight Colour
8050 0770 0020 0.27 kg Black

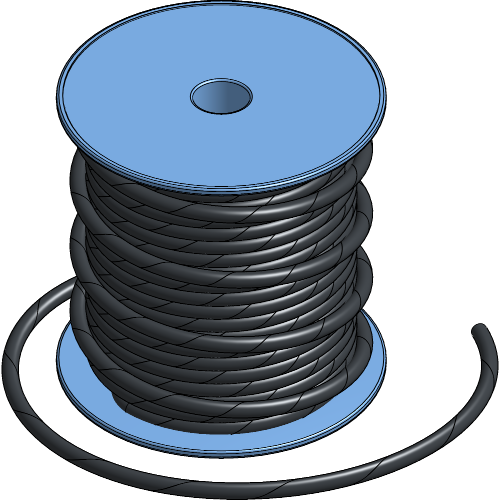

Double Braided Rope

Double Braided Rope

Article number Weight Length ⌀ Colour
7530 0308 1007 5.04 kg 100.00 m 8 mm Black
7530 1308 0027 5.04 kg 100.00 m 8 mm Black/Green/Orange

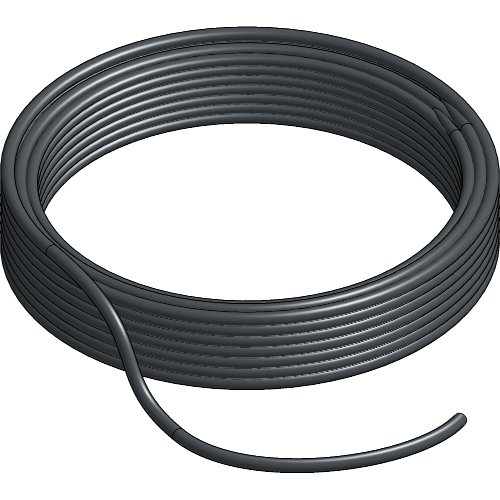

Double Braided Rope

Double Braided Rope

Article number Weight ⌀ Colour
7530 1308 0017 0.04 kg/m 8 mm Black
7530 1308 5027 0.04 kg/m 8 mm Black/Green/Orange

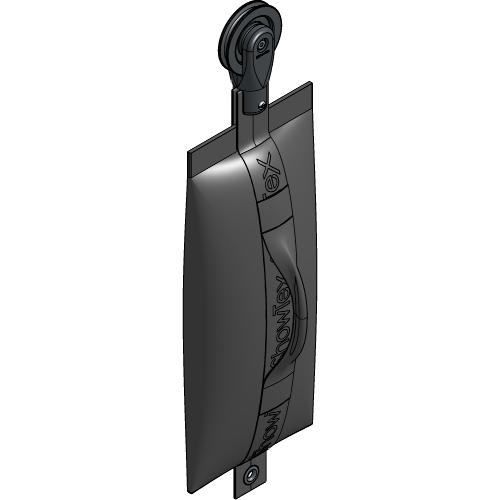

Weighted Return Pulley

Weighted Return Pulley

Article number Weight Colour
8050 0415 0077 5.50 kg Black
8050 0415 0097 10.50 kg Black

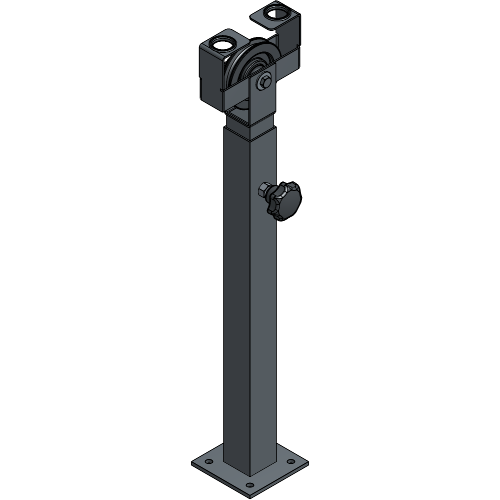

Floor Fixed Return Pulley

Floor Fixed Return Pulley

Article number Weight Colour
8050 0420 0007 3.38 kg Black

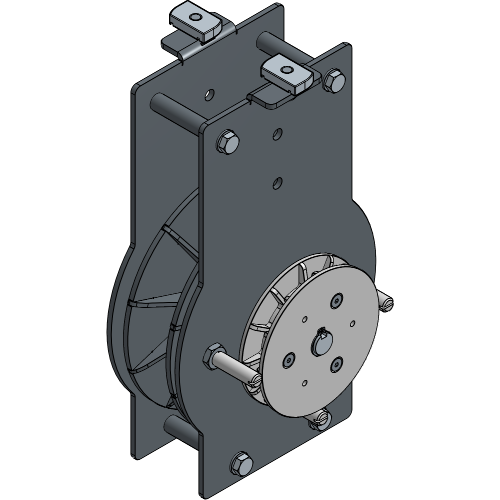

RopeAssist

RopeAssist

Article number Weight Colour
8050 0425 0107 6.54 kg Black

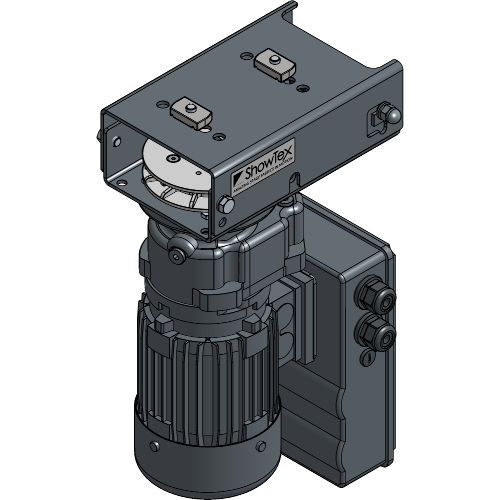

Rope Drive Lite

Rope Drive Lite

Article number Weight Torque Speed Colour
8050 0713 1107 15.75 kg 16 Nm 108 rpm Black

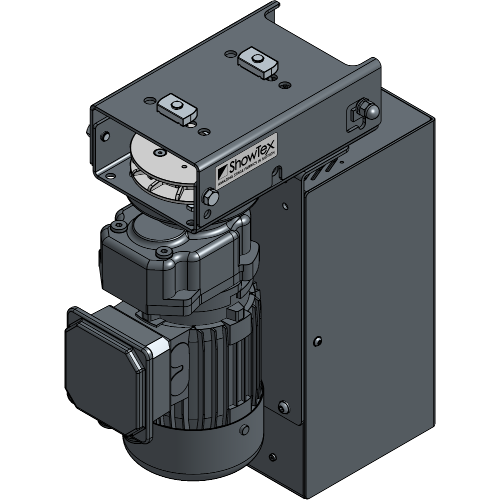

Rope Drive Standard

Rope Drive Standard

Article number Weight Torque Speed Colour
8050 0713 1507 19.50 kg 12 Nm 101 rpm Black
8050 0713 1707 19.50 kg 24 Nm 48 rpm Black
8050 0713 2307 19.50 kg 54 Nm 22 rpm Black

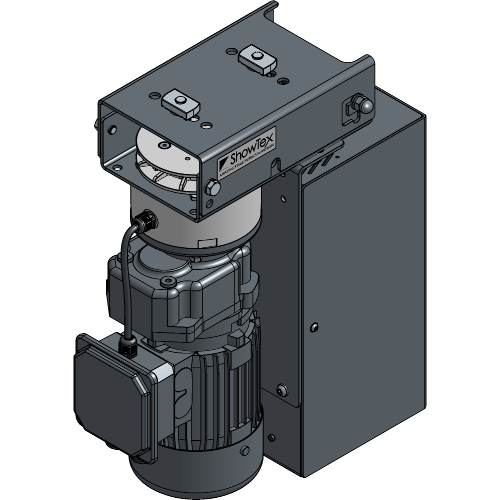

Rope Drive Decoupler

Rope Drive Decoupler

Article number Weight Torque Speed Colour
8050 0713 1557 20.00 kg 12 Nm 101 rpm Black
