1 Info

Especially designed to mask a front of house or a stage. Compared to the standard EasyDrape Base Plates, the FOH Base Plates measure 34.5 x 34.5 cm and only weigh 5 kg, making them much easier to handle for this kind of set-up.

Specifications:

A toolless system for a handy and silent installation.
Uprights with integrated 4-Way for easy mounting of horizontals.
Front of House Uprights of 0.80 to 1.46 m.
Two standard lengths of Horizontal Drape Support: 0.90 to 1.20 m - 1.20.
Available with two flightcase options: a larger standard model and a compact version that converts into a suitcase-style case with handle and wheels. Ideal as a convenient ‘to-go’ solution.

2 Product Flyer

For more information regarding the set-ups that are possible for this ShowTex product, be sure to check the Product Flyer of this product.

3 Dimensions

3.1 Front of House Upright

3.2 Front of House Base Plate

4 Storage and Transport Options

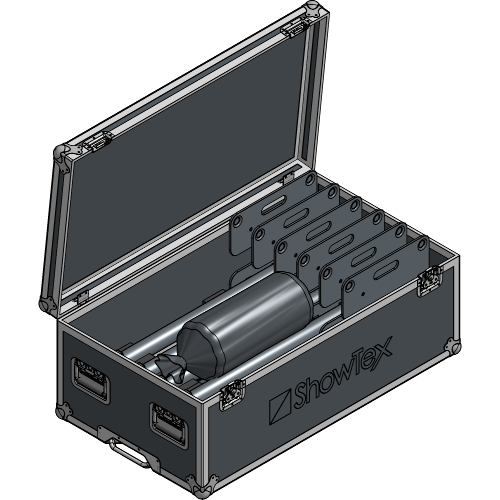

Front of House Flightcase

Dimensions: 1200 x 600 x 800 mm

The Front of House Flightcase is our storage option that’s capable of storing 12 Front of House Telescopic Uprights, 12 Horizontal Drape Supports of 0.90 to 1.20 m or 1.20 to 1.80 m and 12 Front of House Base Plates that are assembled with a Base Plate Coupler. It has additional storage room for about 4 curtains of 1.20 high and 6.00 m wide.

Front of House Junior Flightcase

Dimensions: 1050 x 600 x 400 mm

The Front of House Junior Flightcase is our storage option that’s capable of storing 6 Front of House Telescopic Uprights, 6 Horizontal Drape Supports of 0.90 to 1.20 m and 6 Front of House Base Plates that are assembled with a Base Plate Coupler. It has additional storage room for about 1 curtain of 1.20 high and 6.00 m wide.

5 Technical Specifications

5.1 Components

Main Components

Telescopic Upright Front of House

Article number	Colour	Weight	Length
8750 2306 1307	Black	1.45 kg	0.80 m - 1.46 m

Base Plate Front of House

Article number	Colour	Weight
8750 2000 0057	Black	5.00 kg

Base Plate Coupler

Article number	Colour	Weight
8750 2306 0017	Black	0.22 kg

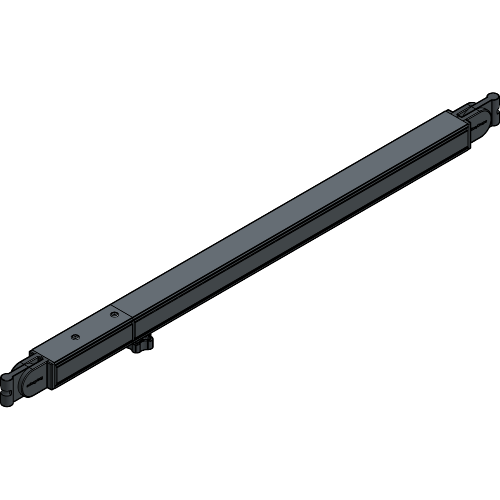

Horizontal Drape Support

Article number	Colour	Weight	Length
8750 2309 0907	Black	1.55 kg	0.90 m - 1.20 m
8750 2309 1207	Black	2.03 kg	1.20 m - 1.80 m

Accessories

Retractable Belt Upright

Article number	Colour	Weight	Length
8750 2317 0907	Black	1.08 kg	0.89 m

Hanging Rope Upright

Article number	Colour	Weight	Length
8750 2317 0917	Black	0.92 kg	0.89 m

Velvet Hanging Rope

Article number	Colour	Weight	Length
8750 2263 0107	Black	0.52 kg	1.57 m
8750 2263 0109	Red	0.52 kg	1.57 m

Storage

Front of House Flightcase

Article number	Colour	Weight
8750 2380 0117	Black	45.00 kg - 185.00 kg

Front of House Junior Flightcase

Article number	Colour	Weight
8750 2380 0127	Black	41.00 kg - 77.00 kg
