RollUp 300

Technical Data Sheet

1 Info

The Rollup 300 is our standard electric roll-up system for permanent installations with a low duty cycle.

Specifications:

  • The RollUp 300 has a fixed speed with two positions: up and down.
  • Equipped with a tubular motor and a standard white open/close/stop switch.
  • Easy installation with various mounting options.
  • Screens and fabrics are made to measure and can go up to 15 m high depending on the fabric and setup.
  • Compatible with our RF Remote and RF Receiver.

2 Product Flyer

For more information regarding the set-ups that are possible for this ShowTex product, be sure to check the Product Flyer of this product.

3 Dimensions

3.1 Setup with 4 m Roller

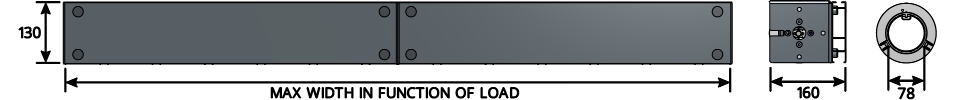

3.2 Setup with 6 m Roller

3.3 Setup with 6 m Venetia Roller

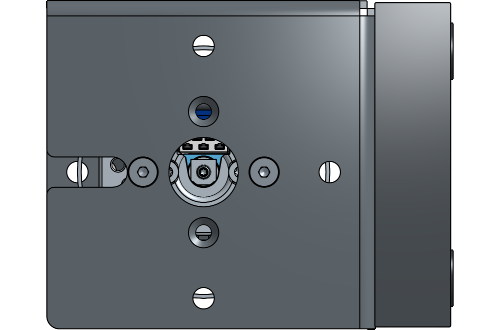

3.4 Flange

4 Rigging Points

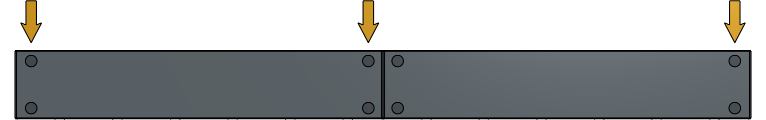

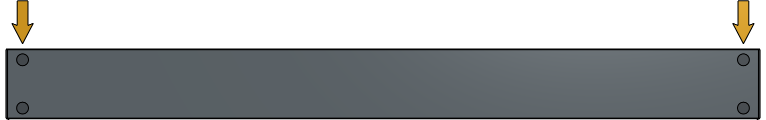

4.1 Regular Setup

4.2 Venetia Setup with tube connector

A rigging point must be provided at every side plate of the RollUp 300 setup.

In a venetian setup with a tube connector an extra rigging point must be provided at one of the two side plates of every tube connector.

5 Specifications

5.0.1 RollUp 300 with 4 m roller / ⌀ 78 mm tube:

5.0.2 RollUp 300 with 6 m roller / ⌀ 100 mm tube:

5.0.3 RollUp 300 with Flanges / ⌀ 78 mm tube / ⌀ 125 mm Flange:

6 Electrical and Mechanical Specifications

6.0.1 RollUp 300 Electrical and Mechanical Specifications:

7 Electrical Wiring and Connectors

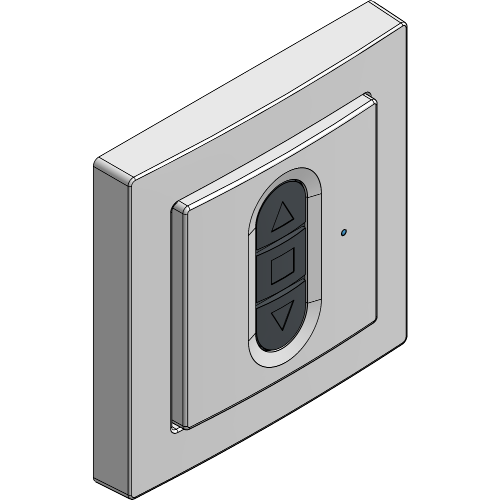

7.1 RollUp 300 with standard Switch

8 Components

RollUp 300

RollUp 300

RollUp 300

Article number Colour Weight Length Tube
8854 4130 0780 Black 45.00 kg 4.00 m 78 mm
8854 4130 1000 Black 50.00 kg 6.00 m 100 mm

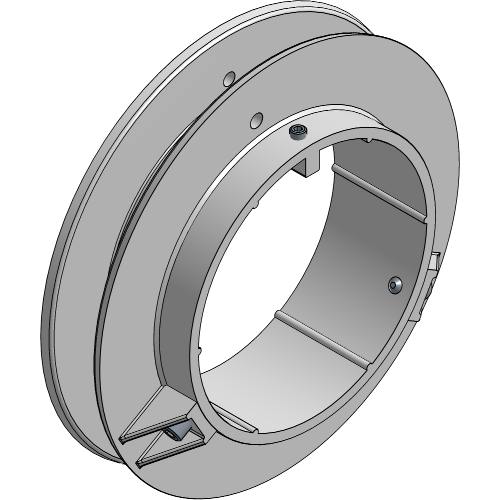

Flange

Flange

Article number Colour Weight
0372 0000 1100 PVC Grey 0.10 kg

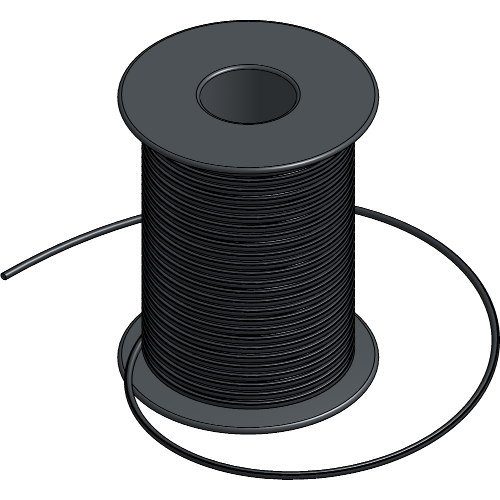

RibCord

RibCord

Article number Colour Weight Length ⌀
7550 0001 0007 Black 0.45 kg 100.00 m 1 mm
7550 0001 0003 White 0.45 kg 100.00 m 1 mm

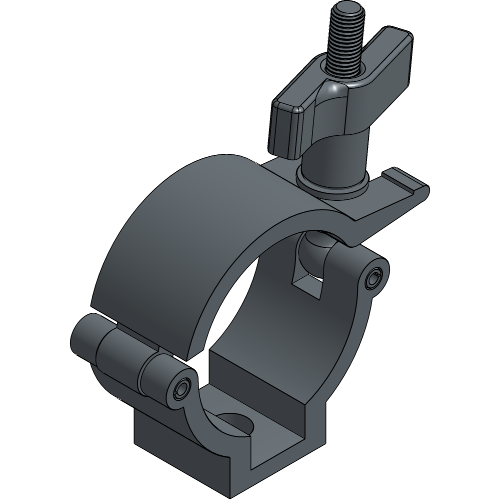

Half Coupler Clamp

Half Coupler Clamp

Article number Colour Weight WLL
8700 0680 0757 Black 0.18 kg 75.00 kg

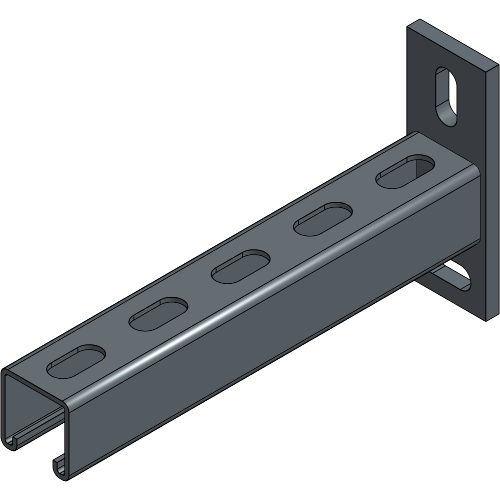

Wall Bracket

Wall Bracket

Article number Colour Weight Length
8700 0650 0257 Black 0.82 kg 0.25 m
8700 0650 0357 Black 1.04 kg 0.45 m
8700 0650 0757 Black 1.21 kg 0.60 m

Remotes

RF Remote

RF Remote

Article number Colour Weight Channels
8160 7400 1307 Grey 0.14 kg 1
8160 7400 1317 Grey 0.14 kg 5
8160 7400 1327 Grey 0.14 kg 10
RF Receiver

RF Receiver

Article number Colour Weight
8160 7400 1337 Grey 0.32 kg
