Kabuki 30

Technical Data Sheet

1 Info

The Kabuki system is perfect for revealing the top act with a curtain drop at the push of a button to add the element of surprise they’ll never forget.

Specifications:

  • Holds a fabric or up to 6 mm Double Braided Rope.
  • Specially designed to not let your curtain drop in the event of a power cut.
  • Can be manually released through a handle on the back.
  • Can be combined with the HiSpeed Reveal for a spectacular effect after the drop.

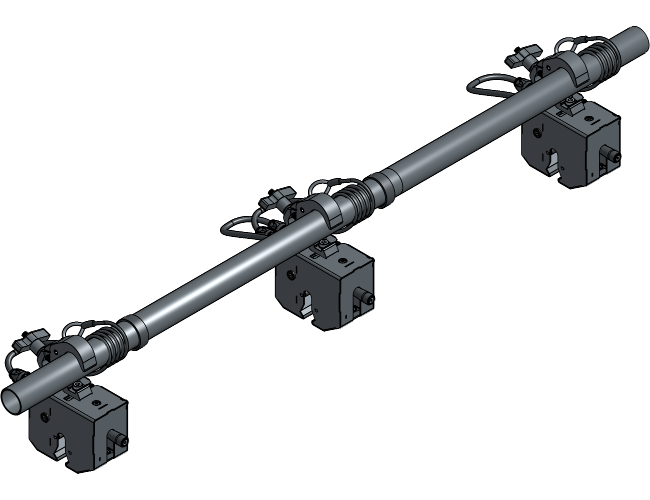

  • A maximum of 30 Brakes can be daisy-chained on 1 Remote.

2 Dimensions

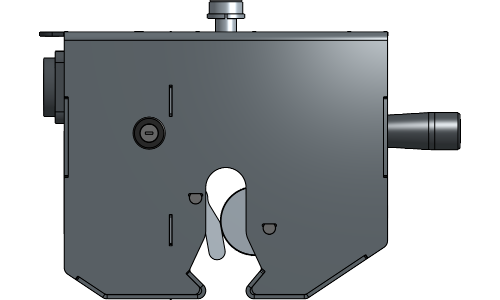

2.1 Kabuki 30 Brake

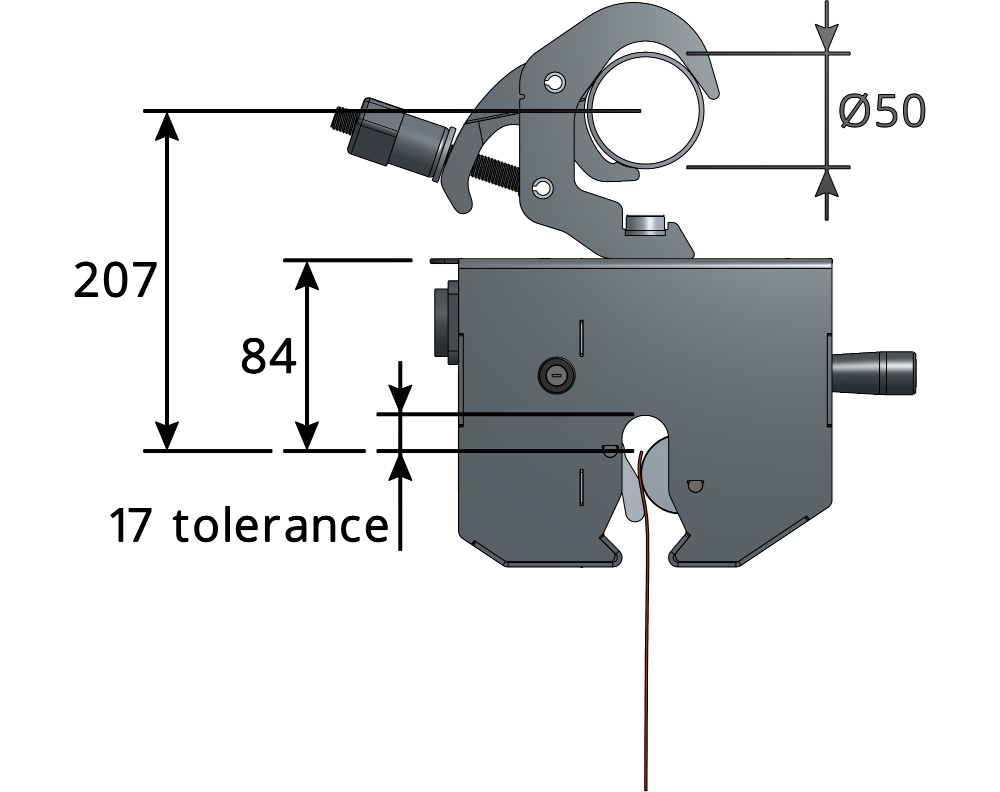

2.2 Kabuki 30 Brake with Clamp and Curtain

3 Installation Specifications

3.1 Kabuki 30 - 230VAC

  • Power Supply : 1 x 230 VAC - 50Hz - 0.5 A + N
  • Power Connection : PowerCon True1 - Schuko Mains Connector (EU)
  • Power Distribution : n/a
  • Trigger Time : Between 2 and 30 seconds max

4 Electrical and Mechanical Specifications

4.1 Kabuki 30 - 230VAC

  • Power In : 230 VAC - 16A
  • Magnet Power : 43 W
  • Magnet Torque : 35 Nm

4.2 Kabuki 30 - 110VAC

  • Power In : 110 VAC - 16A
  • Magnet Power : 43 W
  • Magnet Torque : 35 Nm

5 Electrical Wiring & Connectors

5.1 Kabuki 30 with Remote

6 Technical Specifications

6.1 Components

Reveal

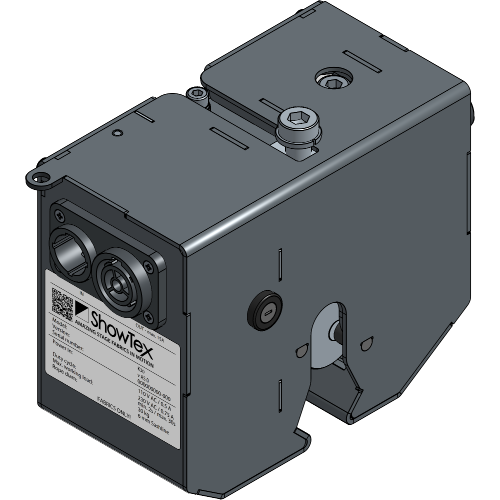

Brake

Brake

Article number Weight Voltage WLL SF
8145 0900 0017 2.15 kg 230 V 30.00 kg 1:1

Suspension

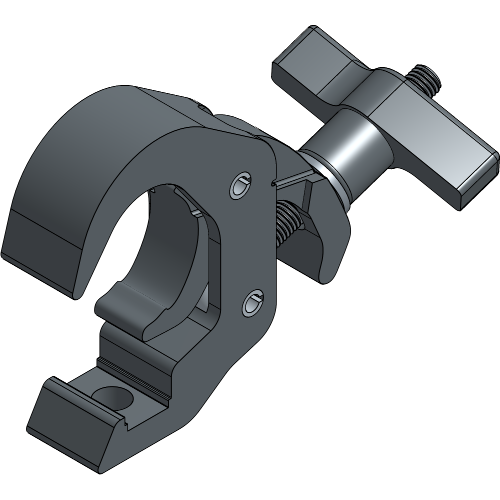

Hook Clamp

Hook Clamp

Article number Weight WLL SF Colour
8700 0677 1007 0.50 kg 100.00 kg 2:1 Black

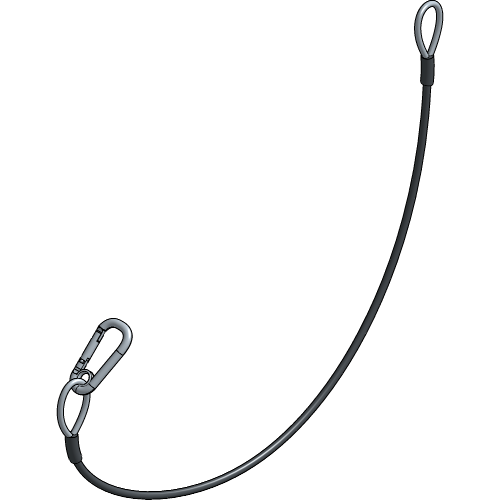

Safety Cable

Safety Cable

Article number Weight Length Colour
8700 0306 0607 0.08 kg 0.65 m Black
8700 0306 1207 0.11 kg 1.25 m Black

Remotes & Cables

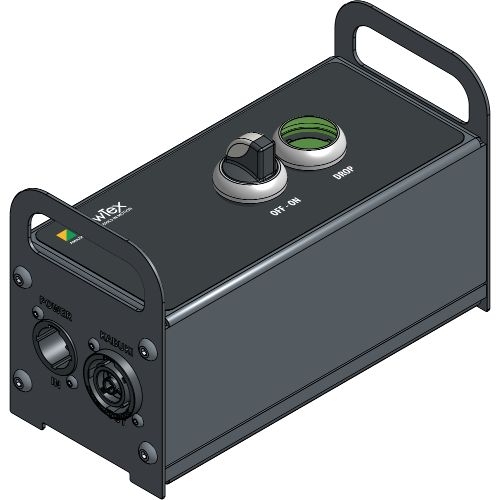

Remote

Remote

Article number Weight Colour
8150 0950 0020 0.82 kg Black

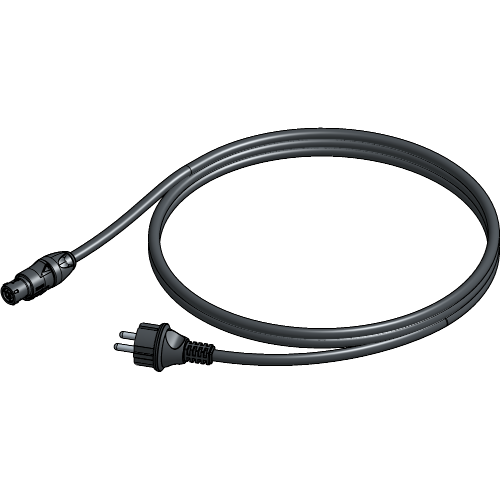

Power Supply Cable

Power Supply Cable

Article number Weight Cable Length Colour
8145 0912 0017 0.40 kg True1 / Schuko 2.00 m Black

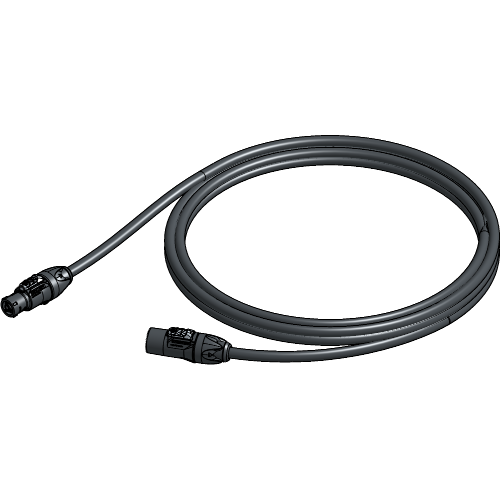

Link Cable

Link Cable

Article number Weight Cable Length Colour
8150 0915 0087 0.97 kg True1 7.00 m Black
8140 3117 0027 3.27 kg True1 25.00 m Black
