The HiSpeed Reveal is our touring friendly adapted system for
astonishing reveals and Kabuki dropping «sniffing» effects.
Specifications:
- Quick and easy installation and configuration.
- Plug & play configuration over ethernet cable with the UMC
software.
- Standard motor module built into a 50x50 truss with the option for a
1.50 m or 3.00 m truss roller.
- Effortless horizontal Flange positioning for any scenario.
- Speeds of up to 7.5 m/s with a 100 m² fabric.
Product
Flyer
For more information regarding the set-ups that are possible for this
ShowTex product, be sure to check the Product Flyer of this
product.
Dimensions
1.5
m Truss Roller
3 m
Truss Roller
Electronical and Mechanical Specifications
HiSpeed Reveal:
- Maximum Fabric Weight : 15 kg
- Maximum Fabric Size : 100 m²
- Maximum Speed : 7.5 m/s
- Motor Power : 4.0 kW
- Power In : 3 x 380 VAC - 32A
- Duty Cycle : S1 - Continuous Duty
Load
Capacity
HiSpeed Reveal:
- Maximum Load Capacity : 15 kg
- Use rope compliant to safety regulations and design factors for your
application! (e.g. The maximum load of RibCord 2 mm at Safety Factor 10
is 12 kg)
- Respect maximum loading (torque) of the motor.
hiSpeed
Reveal Rigging Points
1.5
m Truss Roller
3 m
Truss Roller
Electrical Wiring and Connectors
HiSpeed Reveal
HiSpeed Reveal combined with Kabuki 50
Daisy-chained HiSpeed Reveals
Technical Specifications
Axis &
Accessories

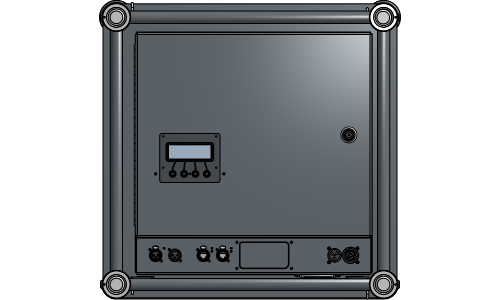

HiSpeed Reveal Motor
|
Article number
|
Weight
|
Colour
|
|
8140 3117 0087
|
74.00 kg
|
Black
|
Truss Roller
|
Article number
|
Weight
|
Length
|
Colour
|
|
8140 3117 0097
|
40.00 kg
|
1.50 m
|
Black
|
|
8140 3117 0107
|
60.00 kg
|
3.00 m
|
Black
|
Turn Coupler 750 kg
|
Article number
|
Weight
|
WLL
|
SF
|
⌀
|
Colour
|
|
8700 0683 7507
|
0.86 kg
|
750.00 kg
|
5:1
|
48-51 mm
|
Black
|
|
8700 0683 7504
|
0.86 kg
|
750.00 kg
|
5:1
|
48-51 mm
|
Galvanised
|
RibCord
|
Article number
|
Weight
|
Length
|
WLL
|
SF
|
⌀
|
Colour
|
|
7550 0002 0007
|
0.38 kg
|
100.00 m
|
12.00 kg
|
10:1
|
2 mm
|
Black
|
|
7550 0002 0003
|
0.38 kg
|
100.00 m
|
12.00 kg
|
10:1
|
2 mm
|
White
|
Coupling
Conical Coupler Truss-Roll
|
Article number
|
Weight
|
Colour
|
|
8140 2247 0124
|
0.18 kg
|
Aluminium
|
Conical Coupler Roll-Roll
|
Article number
|
Weight
|
Colour
|
|
8140 2247 0224
|
0.23 kg
|
Aluminium
|
Conical End Piece
|
Article number
|
Weight
|
Colour
|
|
8140 2247 0004
|
0.11 kg
|
Aluminium
|
Coupling End Cap
|
Article number
|
Weight
|
Colour
|
|
8140 3116 3027
|
0.50 kg
|
Aluminium
|
Pin with Safety Clip
|
Article number
|
Weight
|
Colour
|
|
8140 2247 0014
|
0.04 kg
|
Aluminium
|
Pin with Safety Nut
|
Article number
|
Weight
|
Colour
|
|
8140 2253 0001
|
0.05 kg
|
Aluminium
|
Coupling Spider
|
Article number
|
Weight
|
Colour
|
|
8140 9999 0007
|
0.05 kg
|
Red
|
Remotes &
Cables
Emergency Stop Unit
|
Article number
|
Weight
|
Colour
|
|
8140 3117 0127
|
0.75 kg
|
Black
|
Remote
|
Article number
|
Weight
|
Colour
|
|
8150 0950 0020
|
0.82 kg
|
Black
|
Power Extension Cable
|
Article number
|
Weight
|
Cable
|
Length
|
Colour
|
|
8140 3117 0017
|
6.00 kg
|
CEE32A / 380V
|
10.00 m
|
Black
|
Emergency Stop Cable
|
Article number
|
Weight
|
Cable
|
Length
|
Colour
|
|
8140 3117 0047
|
1.20 kg
|
XLR 3
|
25.00 m
|
Black
|
Power Supply Cable
|
Article number
|
Weight
|
Cable
|
Length
|
Colour
|
|
8145 0912 0017
|
0.78 kg
|
True1 / Schuko
|
2.00 m
|
Black
|
Power Extension Cable
|
Article number
|
Weight
|
Cable
|
Length
|
Colour
|
|
8140 3117 0027
|
3.28 kg
|
True1
|
25.00 m
|
Black
|

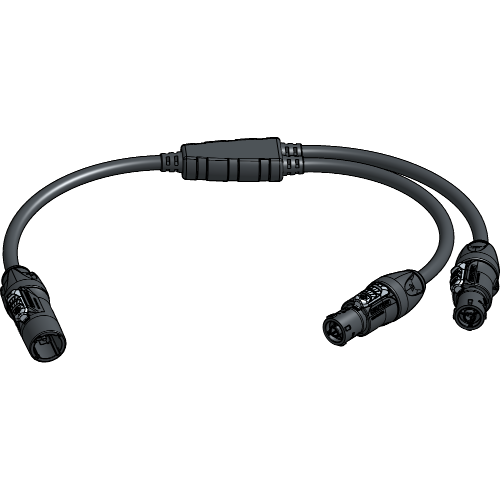

Power Supply Y-Split Cable
|
Article number
|
Weight
|
Cable
|
Length
|
Colour
|
|
8140 3117 0247
|
0.36 kg
|
True1
|
25.00 m
|
Black
|
Ethernet Cable
|
Article number
|
Weight
|
Cable
|
Length
|
Colour
|
|
8140 3117 0227
|
0.88 kg
|
Cat6 (shielded)
|
30.00 m
|
Black
|
Transport
Truss Trolley
|
Article number
|
Weight
|
Colour
|
|
8140 6050 0407
|
15.20 kg
|
Brown
|
Flightcase
|
Article number
|
Weight
|
Colour
|
|
8140 6050 0507
|
110.00 kg
|
Black
|
Ratchet Strap
|
Article number
|
Weight
|
Length
|
Colour
|
|
8800 0372 3007
|
0.27 kg
|
3.00 m
|
Black
|
|
8800 0372 5009
|
0.32 kg
|
5.00 m
|
Black
|
