AutoReveal 300

Technical Data Sheet

1 Info

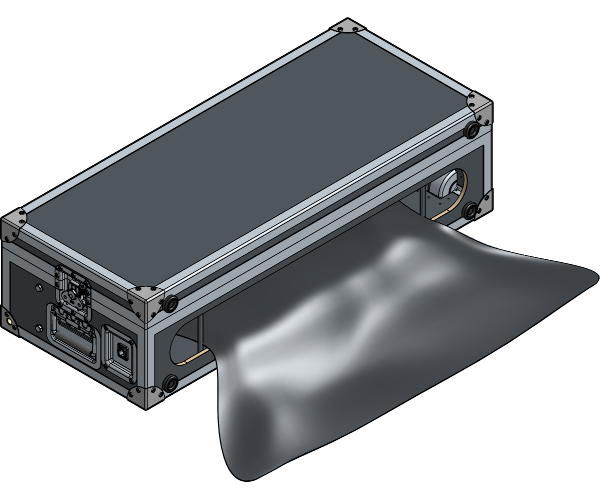

The AutoReveal is ideal for stylish car-sized product launches, unveiling the reveal item in less than 10 seconds.

Specifications:

  • Ideal for unveiling a new car or other types of product launches.
  • The AutoReveal lets you unveil products automatically in less than 10 seconds thanks to the easy to use Remote Control.
  • The Reveal Fabric has a maximum size of 8 m (L) x 5 m (W) and is available in a variety of colours but can also be made in custom sizes with printed designs and logos.
  • A hook and loop attachment strip makes the Reveal Fabric easy to change and replace.
  • The system comes standard with a 230 V single phase motor and a Remote Control.

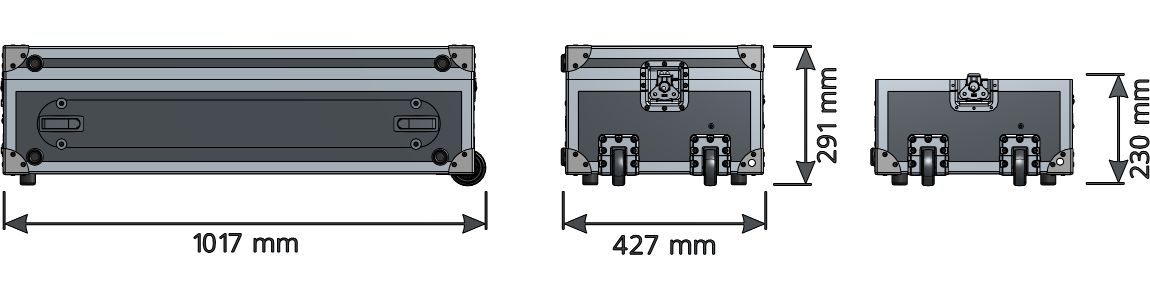

2 Dimensions

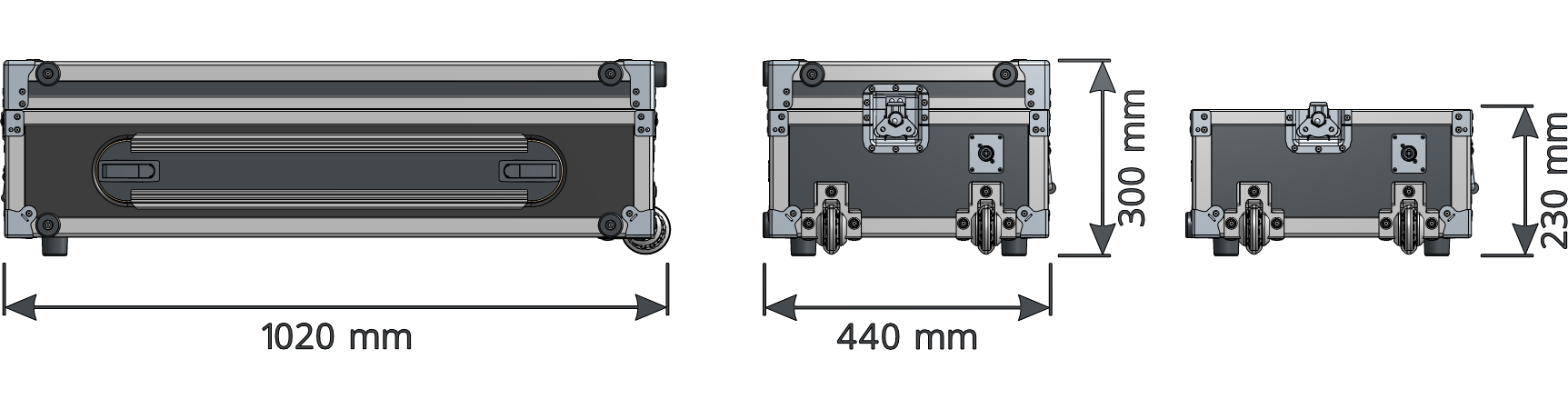

2.1 Flightcase

3 Electrical and Mechanical Specifications

4 Electrical Wiring and Connectors

4.1 AutoReveal 300 with Remote


4.2 AutoReveal 300 with DMX Remote

4.3 AutoReveal 300 with RF Remote

5 Technical Specifications

5.1 Components

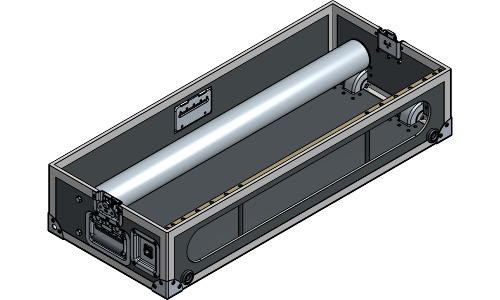

Reveal

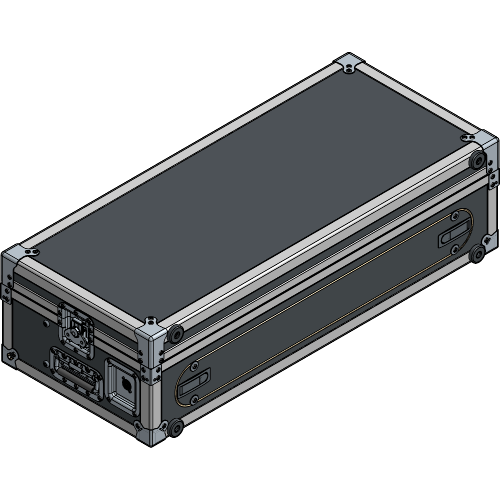

Flightcase

Flightcase

Article number Weight Colour
8160 7400 1027 32.00 kg Black

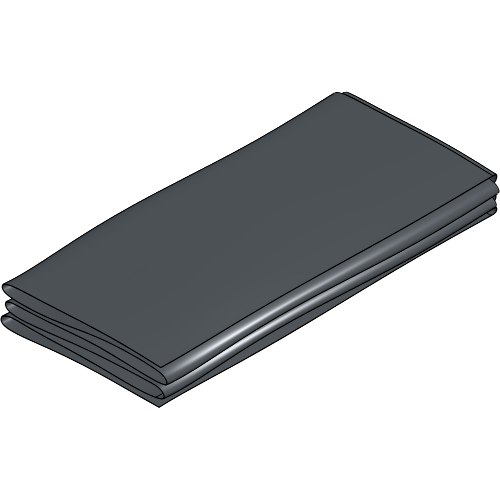

Reveal Fabric

Reveal Fabric

Article number Weight Colour
0000 0000 0000 1.60 kg N/A

Remotes & Cables

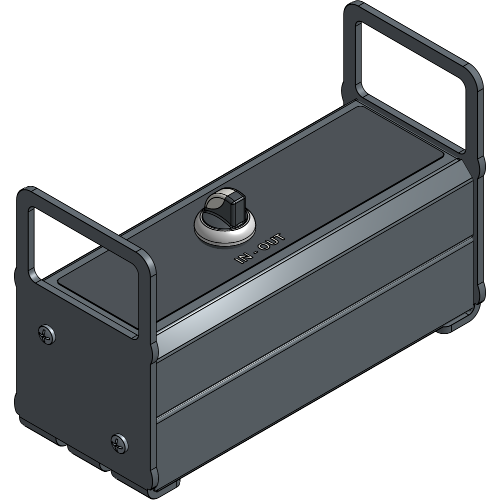

Remote

Remote

Article number Weight Colour
8160 0950 0047 1.55 kg Black

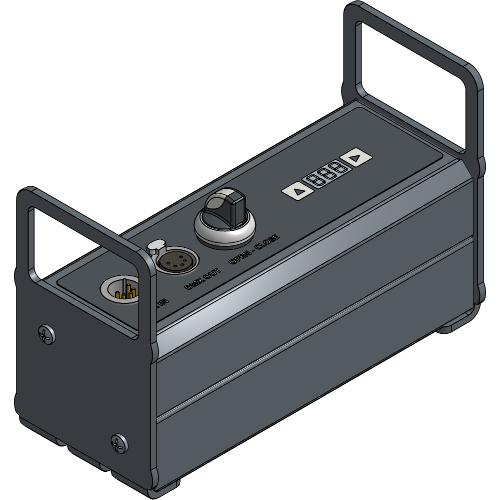

DMX Remote

DMX Remote

Article number Weight Colour
8160 0950 0027 1.82 kg Black

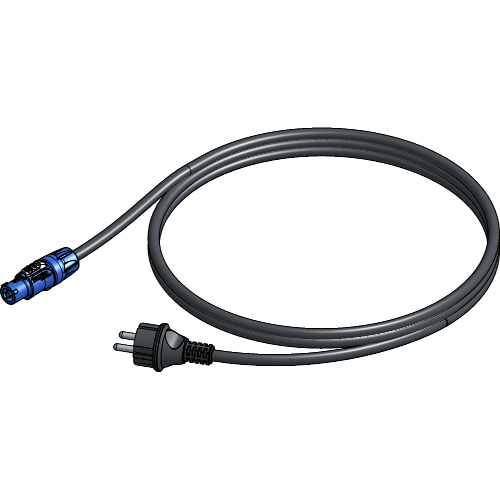

Power Supply Cable

Power Supply Cable

Article number Weight Cable Length Colour
8150 0912 0027 0.40 kg True1 / Schuko 2.00 m Black

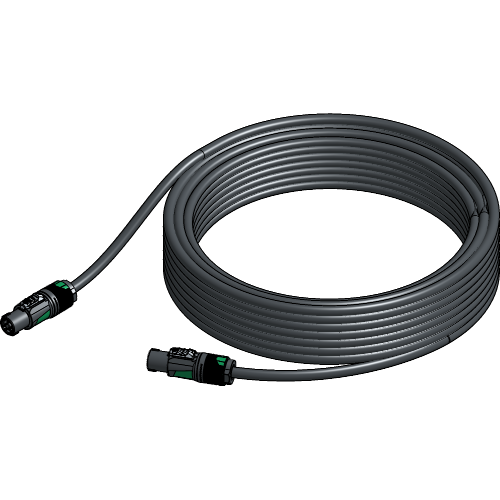

Link Cable

Link Cable

Article number Weight Cable Length Colour
8160 0915 0257 3.42 kg SpeakON 25.00 m Black

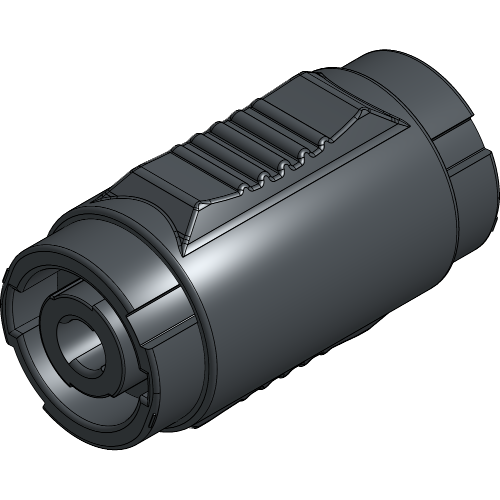

Cable Coupler

Cable Coupler

Article number Weight Colour
8160 7400 1207 0.05 kg Black

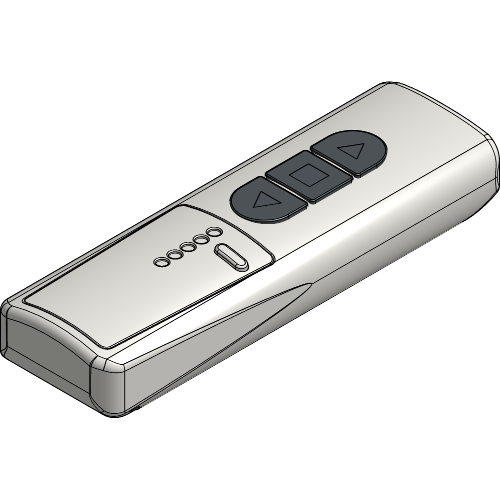

RF Remote

RF Remote

Article number Weight Channels Colour
8160 7400 1307 0.07 kg 1 White
8160 7400 1317 0.07 kg 5 White
8160 7400 1327 0.07 kg 10 White

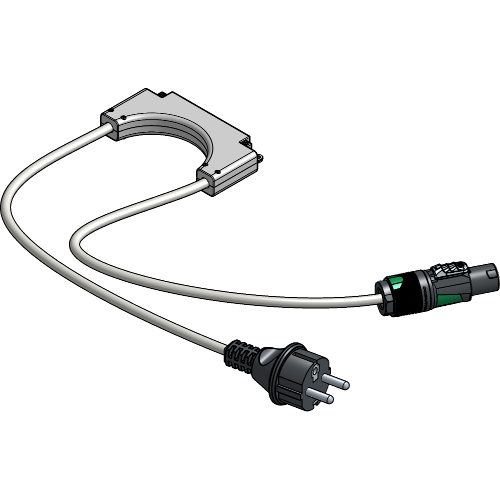

RF Receiver

RF Receiver

Article number Weight Colour
8160 7400 1337 0.48 kg Grey
