Info
Double PrintFrame is used as a wall-mounted frame for fixed
installations as decoration. The lightweight aluminium frame is easy to
assemble and can be used to improve room acoustics.
Specifications:
- Lightweight aluminium frame for easy assembly.
- Can be wall-mounted or hung to a ceiling with steel cable.
- Available in aluminium and black to match your specific interior
needs.
- Custom-made to almost any size with the option to include acoustic
panels for sound absorption.
Product
Flyer
For more information regarding the set-ups that are possible for this
ShowTex product, be sure to check the Product
Flyer of this product.
Components
Frame

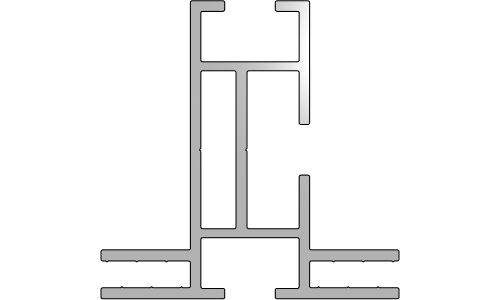

Double PrintFrame Profile
|
Article number
|
Weight
|
Dimensions
|
Length
|
Colour
|
|
8840 0010 0024
|
0.89 kg/m
|
49 x 46 mm
|
6.00 m
|
Alu
|
|
8840 0010 0217
|
0.89 kg/m
|
50 x 50 mm
|
6.00 m
|
Black
|
Corner Connection Plate set
|
Article number
|
Weight
|
Colour
|
|
8840 4099 0004
|
0.20 kg
|
Alu
|
|
8840 4099 0007
|
0.20 kg
|
Black
|
Reinforcement Corner HD
|
Article number
|
Weight
|
Colour
|
|
8840 4099 0034
|
1.16 kg
|
Alu
|
|
8840 4099 0037
|
1.16 kg
|
Black
|
Joint Plate set
|
Article number
|
Weight
|
Colour
|
|
8840 0042 0004
|
0.21 kg
|
Alu
|
|
8840 0042 0007
|
0.21 kg
|
Black
|
Frame Corner Connection Plate set
|
Article number
|
Weight
|
Colour
|
|
8840 4099 0044
|
0.75 kg
|
Alu
|
|
8840 4099 0047
|
0.75 kg
|
Black
|
Frame Joint Plate set
|
Article number
|
Weight
|
Colour
|
|
8840 0042 0044
|
0.75 kg
|
Alu
|
|
8840 0042 0047
|
0.75 kg
|
Black
|
Acoustic Foam
|
Article number
|
Colour
|
|
8185 4107 0200
|
Grey
|
|
8185 4107 0400
|
Grey
|
Suspension &
Display
Steel Cable with Loop
|
Article number
|
Weight
|
Length
|
WLL
|
SF
|
⌀
|
Colour
|
|
8840 9600 7121
|
0.05 kg
|
2.50 m
|
45.00 kg
|
5:1
|
1.5 mm
|
Alu
|
|
8840 9600 7127
|
0.05 kg
|
2.50 m
|
45.00 kg
|
5:1
|
1.5 mm
|
Black
|
|
8840 9600 7151
|
0.11 kg
|
5.00 m
|
45.00 kg
|
5:1
|
1.5 mm
|
Alu
|
|
8840 9600 7191
|
0.21 kg
|
10.00 m
|
45.00 kg
|
5:1
|
1.5 mm
|
Alu
|
Steel Cable
|
Article number
|
Weight
|
WLL
|
SF
|
⌀
|
|
8840 9600 7101
|
0.02 kg/m
|
45.00 kg
|
5:1
|
1.5 mm
|
|
8840 9600 7231
|
0.04 kg/m
|
90.00 kg
|
5:1
|
3.0 mm
|
Cable Holder 1.5 mm
|
Article number
|
Weight
|
WLL
|
SF
|
Colour
|
|
8840 9600 1564
|
0.01 kg
|
45.00 kg
|
5:1
|
Alu
|
Cable Holder 3 mm
|
Article number
|
Weight
|
WLL
|
SF
|
Colour
|
|
8840 9600 3064
|
0.06 kg
|
60.00 kg
|
5:1
|
Alu
|
|
8840 9600 3067
|
0.06 kg
|
60.00 kg
|
5:1
|
black
|
Quick Suspension 1.5 mm
|
Article number
|
Weight
|
WLL
|
SF
|
⌀
|
Colour
|
|
8700 0304 0414
|
0.01 kg
|
45.00 kg
|
5:1
|
1.5 mm
|
Alu
|
|
8700 0304 0417
|
0.01 kg
|
45.00 kg
|
5:1
|
1.5 mm
|
Black
|
Quick Suspension 3 mm
|
Article number
|
Weight
|
WLL
|
SF
|
⌀
|
Colour
|
|
8700 0304 0424
|
0.03 kg
|
90.00 kg
|
5:1
|
3.0 mm
|
Alu
|
|
8700 0304 0427
|
0.03 kg
|
90.00 kg
|
5:1
|
3.0 mm
|
Black
|
Base Plate
|
Article number
|
Weight
|
Colour
|
|
8840 2000 0004
|
1.73 kg
|
Alu
|
|
8840 2000 0007
|
1.73 kg
|
Black
|
Support
Brace Profile
|
Article number
|
Weight
|
Dimensions
|
Length
|
Colour
|
|
8840 0010 0224
|
0.68 kg
|
16.5 x 50 mm
|
6.00 m
|
Alu
|
|
8840 0010 0227
|
0.68 kg
|
16.5 x 50 mm
|
6.00 m
|
Black
|
Brace Joint Plate
|
Article number
|
Weight
|
Colour
|
|
8840 0010 0044
|
0.05 kg
|
Alu
|
|
8840 0010 0047
|
0.05 kg
|
Black
|
Brace Lock
|
Article number
|
Weight
|
Colour
|
|
8840 0010 0334
|
0.04 kg
|
Alu
|
