RTD 3000 - motorised track control

RTD 3000

The Rope Track Drive (RTD) systems facilitate motion of stage curtains or set pieces on a stage track by means of electric motors. It is compatible with the ShowTex Rail H100, ShowPipe and ShowTrack track systems.

The RTD 3000 system enables durable motorised track control with a rope mount system and integrated head pulley.

  • Equipped with an easy to use remote control with open/close switch and speed controller.
  • The exclusive toothed belt and pulley creates maximum friction for reliable movement.
  • The system has step-less speed regulation and a manual emergency override.
  • The speed controller allows for fast motion with a variable speed of 0 to 55 cm/sec.
  • The RTD 3000 system is optionally controllable through the lighting console with the RTD 3000 DMX Basic module for open / close positions (2 DMX channels).



TECHNICAL DATA - RTD 3000 - MOTORISED TRACK CONTROL

TypeArticle codeInformation

RTD 3000 module with remote

8050 0713 3707

Total weight: 37.2 kg

1. RTD 3000 motor

370 W • 1 x 230 VAC • 1.89 A • 21 Nm • 138 rpm

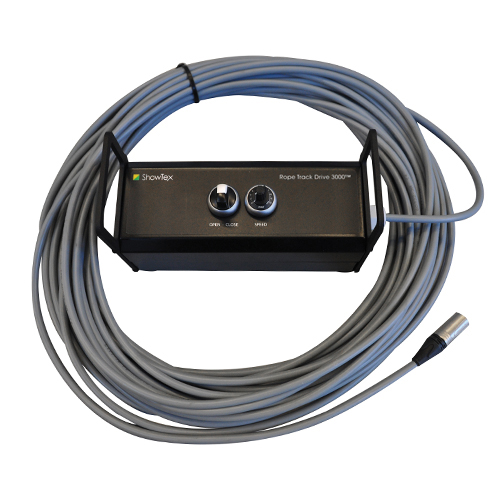

2. RTD 3000 Remote Unit

with 25 m cable

3. Power Supply Cable

2 m

Choose between:

4. Limit Switch set with wheel for ShowTrack

2 pieces • with 25 m cable

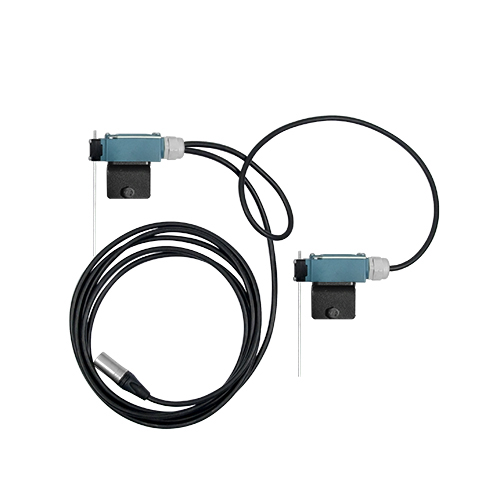

5. Limit Switch set for Rail H100

2 pieces • with 25 m cable

RTD 3000 DMX Basic module with remote

8050 0741 3657

Total weight: 38.2 kg

1. RTD 3000 motor

370 W • 1 x 230 VAC • 1.89 A • 21 Nm • 138 rpm

2. RTD 3000 Remote Unit

with 25m cable

3. Power Supply Cable

2 m

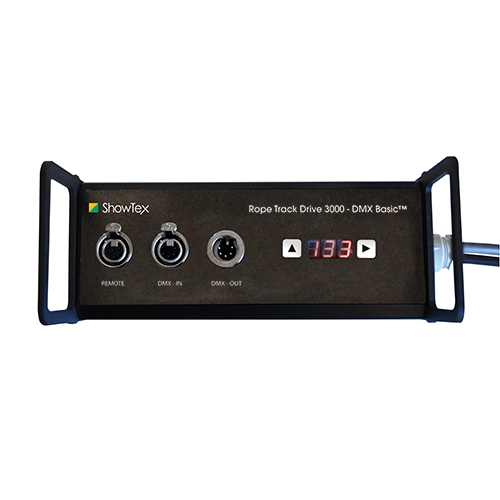

7. RTD 3000 DMX Basic module

with 25m cable

Choose between:

4. Limit Switch set with wheel for ShowTrack

2 pieces • with 25 m cable

5. Limit Switch set for Rail H100

2 pieces • with 25 m cable

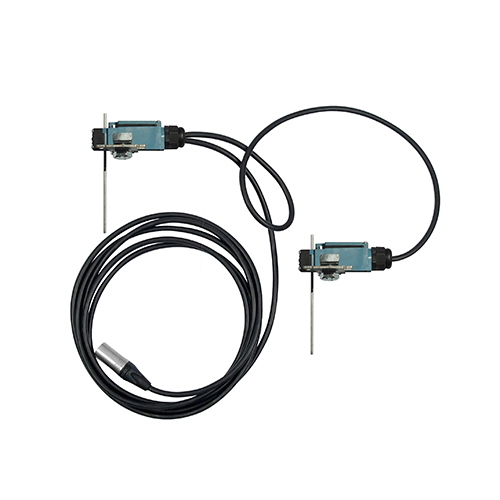

6. Limit Switch set for ShowPipe

2 pieces • with 25 m cable
