Suspension Accessories

Eine Vielzahl von Kupplungen und Klemmen zum Aufhängen von Vorhängen.
Wählen Sie aus diesen robusten und praktischen Zubehörteilen zum Anbringen und Aufhängen von Bühnen- und Theatervorhängen mit jedem Gewicht aus.

TECHNISCHE DATEN – SUSPENSION ACCESSORIES – ZUBEHÖR

Accessory	Art.nr.	Colour	Weight	Information
1. Quick System Adjuster 1.5 mm	8700 0304 0414 8700 0304 0417	Aluminium Black	0.008 kg/piece 0.008 kg/piece	Cable ø: 1,5 mm • SWL: 0-45 kg (factor 5:1) Cable ø: 1,5 mm • SWL: 0-45 kg (factor 5:1
2. Quick System Adjuster 3 mm	8700 0304 0424 8700 0304 0427	Aluminium Black	0.032 kg/piece 0.032 kg/piece	Cable ø: 3 mm • SWL: 45-90 kg (factor 5:1) Cable ø: 3 mm • SWL: 45-90 kg (factor 5:1)

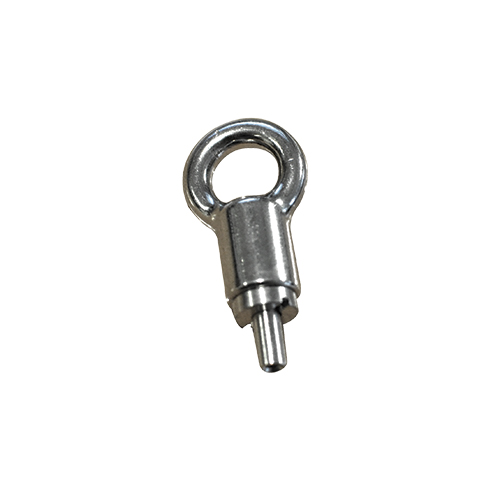

3. Loop Adjuster GR25	0001 0000 2511	Galvanised	0.012 kg/piece	Cable ø: 1mm
4. Construction Tube	8200 0661 0057	Galvanised	3.05 kg/meter	48.3 x 2.9 mm
5. Inner Coupler Construction Tube	8200 0661 0031	Galvanised	0.39 kg/piece
6. Construction Profile	8200 0010 1527 8200 0010 4161 8200 0010 4167 8200 0010 8261 8200 0010 8267	Black Galvanised Black Galvanised Black	0.58 kg/meter 2.45 kg/meter 2.45 kg/meter 4.05 kg/meter 4.05 kg/meter	H x W: 41 mm w 41 mm H x W: 41 mm w 41 mm H x W: 82 mm w 41 mm H x W: 82 mm w 41 mm

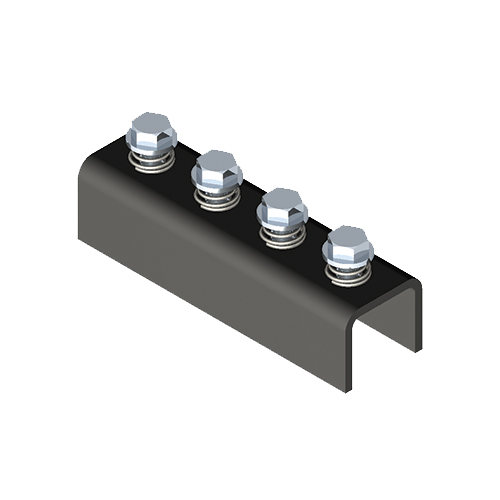

7. Joiner Profile	8200 0014 0181 8200 0014 0187	Galvanised Black	1.22 kg/piece 1.22 kg/piece

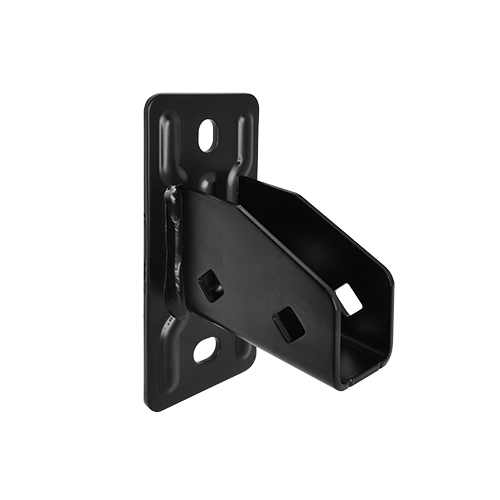

8. Stirrup	8200 0660 0411 8200 0660 0417	Galvanised Black	0.98 kg/piece 0.98 kg/piece
9. U-Washer	8200 0661 0007	Black	0.082 kg/piece
10. Alu-Pipe	8700 1025 0044 8700 1025 0047 8700 1045 0024 8700 1045 0027 8700 1050 0024 8700 1050 0027	Aluminum Black Aluminum Black Aluminum Black	0.54 kg/meter 0.54 kg/meter 0.73 kg/meter 0.64 kg/meter 0.81 kg/meter 0.83 kg/meter	ø: 25/19 mm • Length: 6 m ø: 25/19 mm • Length: 6 m ø: 45/41 mm • Length: 6 m ø: 45/41 mm • Length: 6 m ø: 50/46 mm • Length: 6 m ø: 50/46 mm • Length: 6 m
11. Protective Cap Alu-Pipe	8700 1145 0257 8700 1145 0007 8700 1150 0007	Black Black Black	0.012 kg/piece 0.014 kg/piece 0.015 kg/piece	ø: 25 mm ø: 45 mm ø: 50 mm
12. Pipe Bracket	8200 0670 0481 8200 0670 0487 8200 0670 0501 8200 0670 0507	Galvanised Black Galvanised Black	0.08 kg/piece 0.08 kg/piece 0.08 kg/piece 0.08 kg/piece	ø: 48.5 mm ø: 48.5 mm ø: 50 mm ø: 50 mm

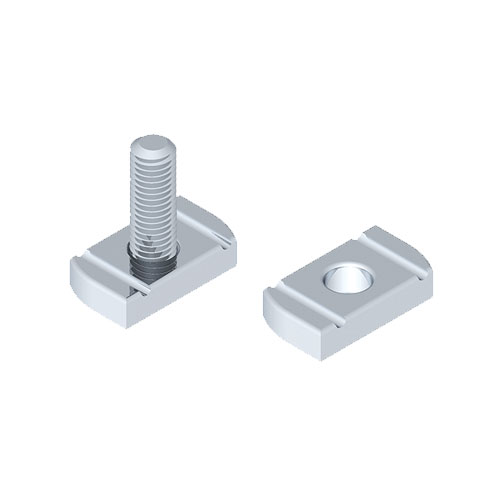

13. Channel Bolt M10 Channel Nut M10	8700 9213 1031 8700 9224 0101	Galvanised Galvanised	0.05 kg/piece 0.03 kg/piece	M10/30 • SWL: 230 kg M10 • SWL: 230 kg

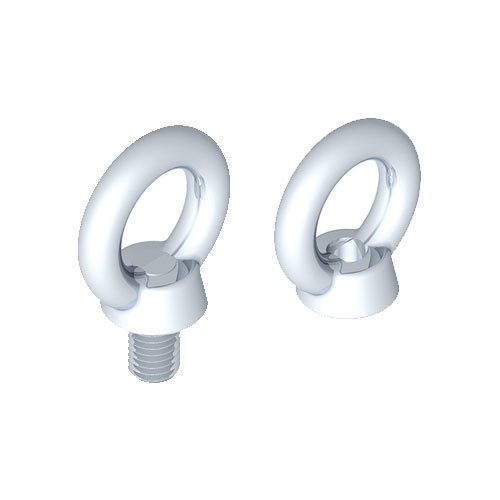

14. Eyebolt M10 Eye Nut M10	8700 9212 0101 8700 9221 0101	Galvanised Galvanised	0.12 kg/piece 0.09 kg/piece	M10 M10

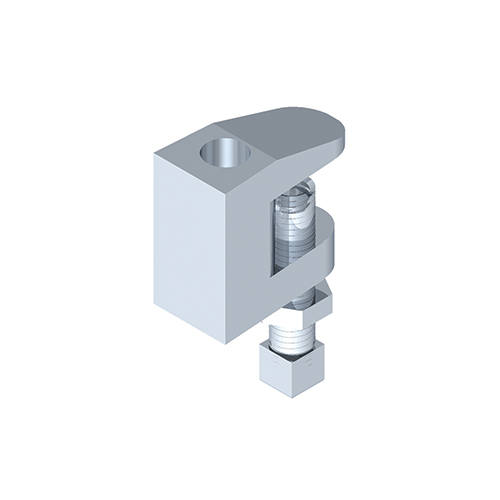

15. Girder Clamp	8700 0686 2001	Galvanised	1.14 kg/piece	244 kg capacity
16. Wall Bracket	8700 0653 0201 8700 0653 0207	Galvanised Black	0.31 kg/piece 0.31 kg/piece	15 mm H x 30.5 mm W • Length: 20 cm 15 mm H x 30.5 mm W • Length: 20 cm
17. Wall Bracket	8700 0650 0151 8700 0650 0157 8700 0650 0251 8700 0650 0257 8700 0650 0351 8700 0650 0357 8700 0650 0353 8700 0650 0601 8700 0650 0607 8700 0650 0751 8700 0650 0757	Galvanised Black Galvanised Black Galvanised Black White Galvanised Black Galvanised Black	0.59 kg/piece 0.59 kg/piece 0.82 kg/piece 0.82 kg/piece 1.36 kg/piece 1.36 kg/piece 1.36 kg/piece 1.74 kg/piece 1.74 kg/piece 2.22 kg/piece 2.22 kg/piece	41 mm H x 41 mm W • Length: 15 cm 41 mm H x 41 mm W • Length: 15 cm 41 mm H x 41 mm W • Length: 25 cm 41 mm H x 41 mm W • Length: 25 cm 41 mm H x 41 mm W • Length: 45 cm 41 mm H x 41 mm W • Length: 45 cm 41 mm H x 41 mm W • Length: 45 cm 41 mm H x 41 mm W • Length: 60 cm 41 mm H x 41 mm W • Length: 60 cm 41 mm H x 41 mm W • Length: 75 cm 41 mm H x 41 mm W • Length: 75 cm
18. Pipe Clamp	8700 0673 0251 8700 0673 0257 8700 0673 0541 8700 0673 0547 8700 0673 8101 8700 0673 8107	Galvanised Black Galvanised Black Galvanised Black	0.06 kg/piece 0.06 kg/piece 0.11 kg/piece 0.11 kg/piece 0.06 kg/piece 0.06 kg/piece	ø: 25 mm • for threaded rod M10 ø: 25 mm • for threaded rod M10 ø: 48/54 mm • for threaded rod M10 ø: 48/54 mm • for threaded rod M10 ø: 45/50 mm • for threaded rod M8 or M10 ø: 45/50 mm • for threaded rod M8 or M10
19. Hook Clamp 40 kg	8700 0677 0401 8700 0677 0407	Galvanised Black	0.42 kg/piece 0.42 kg/piece	ø: 45/50 mm • 40 kg capacity ø: 45/50 mm • 40 kg capacity
20. Hook Clamp 50 kg	8700 0677 0507	Black	1.16 kg/piece	ø: 45/60 mm • 50 kg capacity
21. Hook Clamp 60 kg	8700 0677 0607	Black	0.89 kg/piece	ø: 40/50 mm • 60 kg capacity
22. Hook Clamp 100 kg	8700 0677 1004 8700 0677 1007	Galvanised Black	0.50 kg/piece 0.50 kg/piece	ø: 38/51 mm • 100 kg capacity ø: 38/51 mm • 100 kg capacity
23. Hook Clamp 250 kg	8700 0677 2504 8700 0677 2507	Galvanised Black	0.72 kg/piece 0.72 kg/piece	ø: 38/51 mm • 250 kg capacity ø: 38/51 mm • 250 kg capacity

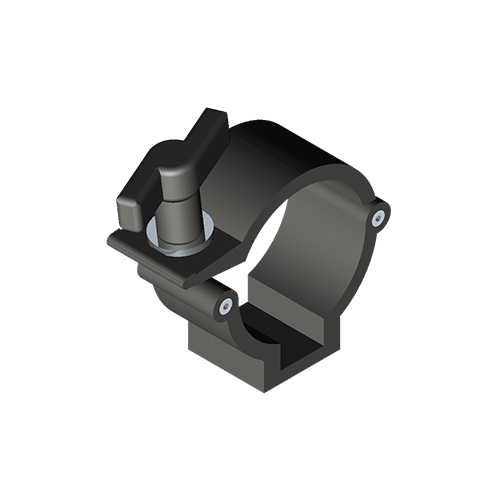

24. Half Coupler Clamp 75 kg	8700 0680 0754 8700 0680 0757	Galvanised Black	0.18 kg/piece 0.18 kg/piece	ø: 48/51 mm • 75 kg capacity ø: 48/51 mm • 75 kg capacity
25. Half Coupler Clamp 750 kg	8700 0680 7504 8700 0680 7507	Galvanised Black	0.40 kg/piece 0.40 kg/piece	ø: 48/51 mm • 750 kg capacity ø: 48/51 mm • 750 kg capacity

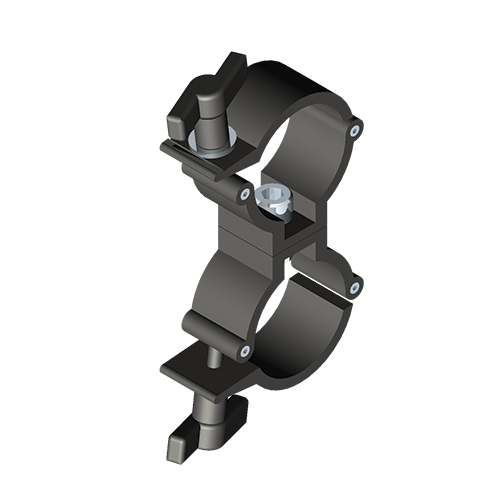

26. Turn Coupler 75 kg	8700 0683 0754 8700 0683 0757	Galvanised Black	0.30 kg/piece 0.30 kg/piece	ø: 48/51 mm • 75 kg capacity ø: 48/51 mm • 75 kg capacity
27. Turn Coupler 750 kg	8700 0683 7504 8700 0683 7497	Galvanised Black	1.31 kg/piece 1.31 kg/piece	ø: 48/51 mm • 750 kg capacity ø: 48/51 mm • 750 kg capacity
28. Ratchet Fastener	8800 0372 0507 8800 0372 1007 8800 0372 2007 8800 0372 3007 8800 0372 5009	Black Black Black Black Black	0.21 kg/piece 0.22 kg/piece 0.24 kg/piece 0.27 kg/piece 0.32 kg/piece	Width: 25 mm • Strap length: 50 cm Width: 25 mm • Strap length: 100 cm Width: 25 mm • Strap length: 200 cm Width: 25 mm • Strap length: 300 cm Width: 25 mm • Strap length: 500 cm

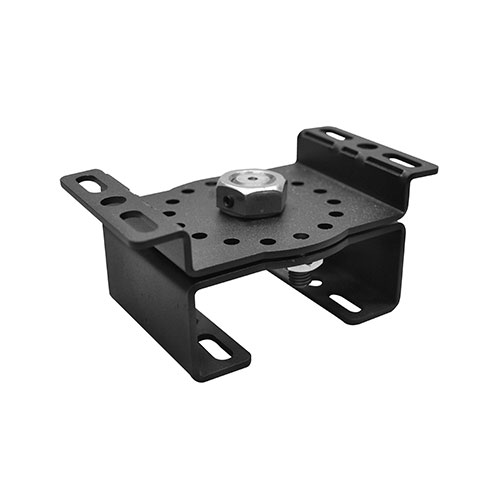

29. RotoDraper Fix	8700 0699 0027	Black	1.10 kg/piece	Fixed system for adjustable positioning of stage curtains, legs, and borders up to 360° • pipe clamps not included
30. Swiveling Ceiling Fixing Plate M10	8700 0665 1101	Galvanized	0.06 kg/piece	Holds M10 threaded rod under any angle Point breaking load of 2580N
31. Height Adjuster	8700 0110 0011	Galvanised	0.04 kg/piece	M8/M10 • H x W: 45 mm x 30 mm
